EMB06
Model: Corsa Extra
Tubes: Reynolds 753 - no markings
Columbus SLX/SPX "road racing" - X marking
Columbus SLX/SPX "century" - XB markings
Columbus TSX "road racing" - TT markings
Columbus New SLX - Markings as SLX/SPX
Geometry: "road racing"
"century"
"century mod (?)
Serial numbers in the range: ~Z7400 - ~L7200
Predecessors: Pro (gold sticker)
Successors: -
Manufactured: 1986 - 2006
Versions:
- SLX
- 753
- TSX
- limited series
The most popular EMC model
Used by profi team for 10 years
Superb classic design
Used all possible parts, paints, decals etc.
That's enough
...and there are no models:
- Super Corsa
- Corsa Extra SL
- Corsa Extra 531
EMB0601
Corsa Extra SLX 86 - 95 (later on request)
EMB0602
Sticker 86/87
EMB0603
Corsa Extra TSX 88 - 94 (later on request)
EMB0604
Sticker - always the same
EMB0605
Corsa Extra 753 86 - 88 and 90 - 94 (later custom)
Not clear if it was produced simultaneously with the Grand Prix from 86 - 88
EMB0606
Sticker - definitely from 87 onwards
EMB0607
Late Corsa Extra (NEW SLX)
One of 2 New SLX kits (because there were two)
In one of them DT was with Columbus TSX - interesting
EMB0608
Sticker used since 1994
EMB0609
The latest Corsa Extra - limited or custom series
No chrome and threadless steering tube
EMB0610
Family photo:
Corsa Extra in 2 variations
Model: Corsa Extra
Tubes: Reynolds 753 - no markings
Columbus SLX/SPX "road racing" - X marking
Columbus SLX/SPX "century" - XB markings
Columbus TSX "road racing" - TT markings
Columbus New SLX - Markings as SLX/SPX
Geometry: "road racing"
"century"
"century mod (?)
Serial numbers in the range: ~Z7400 - ~L7200
Predecessors: Pro (gold sticker)
Successors: -
Manufactured: 1986 - 2006
Versions:
- SLX
- 753
- TSX
- limited series
The most popular EMC model
Used by profi team for 10 years
Superb classic design
Used all possible parts, paints, decals etc.
That's enough
...and there are no models:
- Super Corsa
- Corsa Extra SL
- Corsa Extra 531
EMB0601
Corsa Extra SLX 86 - 95 (later on request)
EMB0602
Sticker 86/87
EMB0603
Corsa Extra TSX 88 - 94 (later on request)
EMB0604
Sticker - always the same
EMB0605
Corsa Extra 753 86 - 88 and 90 - 94 (later custom)
Not clear if it was produced simultaneously with the Grand Prix from 86 - 88
EMB0606
Sticker - definitely from 87 onwards
EMB0607
Late Corsa Extra (NEW SLX)
One of 2 New SLX kits (because there were two)
In one of them DT was with Columbus TSX - interesting
EMB0608
Sticker used since 1994
EMB0609
The latest Corsa Extra - limited or custom series
No chrome and threadless steering tube
EMB0610
Family photo:
Corsa Extra in 2 variations
#52
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB07
Model: Criterium
Tubes: Columbus SLX/SPX - CX designation
Geometry: "criterium"
Serial numbers in the range: ~Z7800 - ~B500
Predecessors: Pro (geometry change)
Successors: -
Manufactured: 1986 - 1988
Versions: -
An interesting experiment, which ended rather unexpectedly.
"Aggressive" criterium geometry was created in opposition to the "softer" "road racing" geometry
After 2 years, the "aggressive enough" geometry turned out to be "road racing"
and the "softer" was the newly introduced century...
there was no more room for the Criterium in this situation - too bad
There is no distinguishing Criterium detail - except for the sticker
EMB0701
Criterium in its full glory
EMB0702
The only noticeable differences from Pro and Corsa Extra
EMB0703
Catalog page 1987
Criterium and Road Racing Geometry Comparison
Difference in ground clearance between DT and front wheel
After a quarter of an hour of careful looking at these pictures, you can see
that the TT/ST angle on the criterium is ~2 degrees greater - unless this is autosuggestion...
EMB0704
It would be difficult without this sticker...
EMB0705
Earlier production period - 86/87
EMB0706
Later version of SLX sticker - 87/88
EMB0707

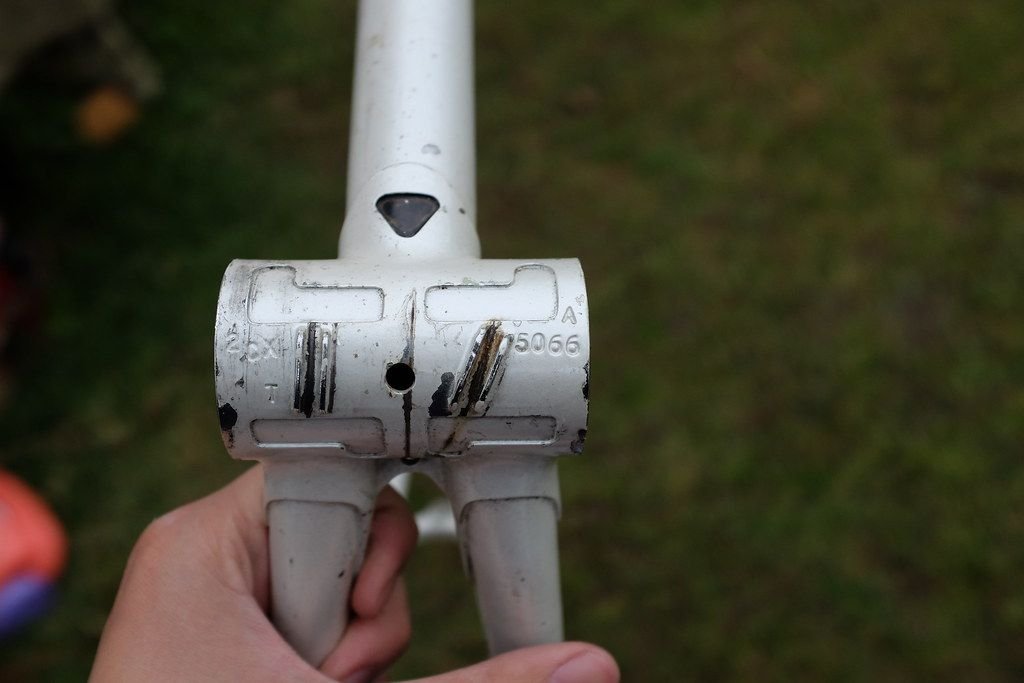

This is the surest way to identify a Criterium
CX always stands for Criterium
Earlier model BB cover - 86/87
EMB0708
As above - CX clarifies the situation
Later model BB cover - 87/88
...and now compare the serial numbers of these frames -
yes sir, it is one production batch -
frames probably built on the same day in 1987 - cool
EMB0709
This is what it should look like from the top
EMB0710
Dropouts - Campagnolo only
Model: Criterium
Tubes: Columbus SLX/SPX - CX designation
Geometry: "criterium"
Serial numbers in the range: ~Z7800 - ~B500
Predecessors: Pro (geometry change)
Successors: -
Manufactured: 1986 - 1988
Versions: -
An interesting experiment, which ended rather unexpectedly.
"Aggressive" criterium geometry was created in opposition to the "softer" "road racing" geometry
After 2 years, the "aggressive enough" geometry turned out to be "road racing"
and the "softer" was the newly introduced century...
there was no more room for the Criterium in this situation - too bad
There is no distinguishing Criterium detail - except for the sticker
EMB0701
Criterium in its full glory
EMB0702
The only noticeable differences from Pro and Corsa Extra
EMB0703
Catalog page 1987
Criterium and Road Racing Geometry Comparison
Difference in ground clearance between DT and front wheel
After a quarter of an hour of careful looking at these pictures, you can see
that the TT/ST angle on the criterium is ~2 degrees greater - unless this is autosuggestion...
EMB0704
It would be difficult without this sticker...
EMB0705
Earlier production period - 86/87
EMB0706
Later version of SLX sticker - 87/88
EMB0707
This is the surest way to identify a Criterium
CX always stands for Criterium
Earlier model BB cover - 86/87
EMB0708
As above - CX clarifies the situation
Later model BB cover - 87/88
...and now compare the serial numbers of these frames -
yes sir, it is one production batch -
frames probably built on the same day in 1987 - cool
EMB0709
This is what it should look like from the top
EMB0710
Dropouts - Campagnolo only
#53
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB08
Model: Strada
Tubing: Columbus Matrix - M marking
Columbus Cromor - M marking
Columbus Strada - markings WW and possibly M (90-91)
Geometry: "road racing"
Serial numbers in the range: ~A1500 - ~G2000
Predecessors: 3-Athlete
Successors: Strada OS
Manufactured: 1987 - 1996
Versions (unofficial breakdown):
- early
- mid
- standard
An "economy" model, always in "road racing" geometry
EMB0801
Very early 1987
Columbus Matrix Tubes (this is where the M-number came from)
Configuration identical to 3-Athlete except for Columbus dropouts
EMB0802
1987: tubes renamed (only) to Cromor
EMB0803
"Lugs with cut-outs" used until 1988
Gold "Strada" sticker
EMB0804
Columbus dropouts used until 1990
EMB0805
M marking and bridgeless BB cover introduced in 1988
EMB0806
New lugs introduced in 1988
EMB0807
New Cromor stickers and brake bridge introduced in 1988
EMB0808
Strada in final configuration (late)
EMB0809
Strada sticker and dedicated cable routing on TT
EMB0810
EDDY MERCKX long dropout - late production 95-96
Model: Strada
Tubing: Columbus Matrix - M marking
Columbus Cromor - M marking
Columbus Strada - markings WW and possibly M (90-91)
Geometry: "road racing"
Serial numbers in the range: ~A1500 - ~G2000
Predecessors: 3-Athlete
Successors: Strada OS
Manufactured: 1987 - 1996
Versions (unofficial breakdown):
- early
- mid
- standard
An "economy" model, always in "road racing" geometry
EMB0801
Very early 1987
Columbus Matrix Tubes (this is where the M-number came from)
Configuration identical to 3-Athlete except for Columbus dropouts
EMB0802
1987: tubes renamed (only) to Cromor
EMB0803
"Lugs with cut-outs" used until 1988
Gold "Strada" sticker
EMB0804
Columbus dropouts used until 1990
EMB0805
M marking and bridgeless BB cover introduced in 1988
EMB0806
New lugs introduced in 1988
EMB0807
New Cromor stickers and brake bridge introduced in 1988
EMB0808
Strada in final configuration (late)
EMB0809
Strada sticker and dedicated cable routing on TT
EMB0810
EDDY MERCKX long dropout - late production 95-96
#54
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB09
Model: Grand Prix
Tubes: Reynolds 753 - no markings
Geometry: "road racing"
Serial numbers in the range: ~A9000 - ~C4000
Predecessors: Corsa Extra 753 (details)
Successors: Corsa Extra 753 (details)
Manufactured: 1988 - 1990
Versions: -
A model created suddenly in 1988 for the American market as a supplement to the offer of the (alleged) super hit Century 653.
Prized (and expensive) tubing, proven geometry and a few features:
- "narrow" seatstays: (EMG10)
- slope fork crown (EMFC03)
- chrome on drop/fork outs only
After the Century 653 model fiasco, kept in production until 1990.
The Grand Prix name is used incorrectly for 753 frames built before 1988 and after 1990.
This is the last release from the "road racing" geometry.
EMB0901
Grand Prix in all its glory
EMB0902
4 identifying elements
The fifth is low weight
EMB0903
The frame gives the impression of not being very impressive....
EMB0904
...and the Grand Prix was the flagship model at the time (in US)
EMB0905
Combine seatstays with top lug
EMB0906
Chrome plated fork/dropouts - Campagnolo only
EMB0907
The Grand Prix production years (88-90) saw an incredible amount of BB cover designs
Here is one of them
EMB0908
Here is another BB cover pattern
753 did not have any "own" lettering
EMB0909
Page from 1989 catalog
EMB0910
Catalog page 1990
No design changes were made
Model: Grand Prix
Tubes: Reynolds 753 - no markings
Geometry: "road racing"
Serial numbers in the range: ~A9000 - ~C4000
Predecessors: Corsa Extra 753 (details)
Successors: Corsa Extra 753 (details)
Manufactured: 1988 - 1990
Versions: -
A model created suddenly in 1988 for the American market as a supplement to the offer of the (alleged) super hit Century 653.
Prized (and expensive) tubing, proven geometry and a few features:
- "narrow" seatstays: (EMG10)
- slope fork crown (EMFC03)
- chrome on drop/fork outs only
After the Century 653 model fiasco, kept in production until 1990.
The Grand Prix name is used incorrectly for 753 frames built before 1988 and after 1990.
This is the last release from the "road racing" geometry.
EMB0901
Grand Prix in all its glory
EMB0902
4 identifying elements
The fifth is low weight
EMB0903
The frame gives the impression of not being very impressive....
EMB0904
...and the Grand Prix was the flagship model at the time (in US)
EMB0905
Combine seatstays with top lug
EMB0906
Chrome plated fork/dropouts - Campagnolo only
EMB0907
The Grand Prix production years (88-90) saw an incredible amount of BB cover designs
Here is one of them
EMB0908
Here is another BB cover pattern
753 did not have any "own" lettering
EMB0909
Page from 1989 catalog
EMB0910
Catalog page 1990
No design changes were made
#55
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB10
Model: Century
Tubes: Reynolds 653 - no markings
Columbus TSX - markings TTB
Geometry: "century"
Serial numbers in the range: ~A9000 - ~F3000
Predecessors: Corsa Extra (TSX tubes)
Successors: Arcobaleno, Corsa Extra Max (Geometry)
Manufactured: 1988 - 1994
Versions:
- 653 (1988 - 1990) ~A9000 - ~C3000
- TSX (1989 - 1994) ~B6000 - ~F3000
A completely new model created (primarily for the US market) in 1988;
revolutionary geometry (perhaps identical introduced by De Rosa under a different name)
and new tubes (not at all "ordered" by EMC, used for at least 2 years by other manufacturers)
Offer definitely for the American market; for mysterious reasons the production of Century 653 was terminated after only 1 year
and neatly replaced by the Century TSX model (cleverly promoted by the 10th Anniversary paint job)
"More comfortable" geometry and cheaper tubing placed the Century in a hierarchy below the Grand Prix and Corsa Extra - for one year;
The use of the more expensive TSX and "modern" (as it turned out) geometry established the Century's position at the level of the Corsa Extra.
A model used (well, advertised) by Team Hitachi during the 1989 season.
Unlike the Grand Prix it used (on the 653 version):
- flat fork crown (EMFC04)
- chrome chainstays
The first model with "century" geometry, the Reynolds 653 is much rarer than the Reynolds 753
The TSX version used the same solutions and frame parts as the Corsa Extra
EMB1001
Century 653 black
EMB1002
Century 653 blue
EMB1003
Century 653 Hitachi painting
Marked the most important elements for quick identification
This model did not have any "letter" markings on BB cover
EMB1004
Your Century 653 should have these items
EMB1005
And these too
EMB1006
Group photo from 1989 catalog
EMB1007
Century TSX
This model is marked TTB on BB cover
EMB1008
Flat fork crown
(for the European market the slope fork crown was installed - sometimes)
EMB1009
"Classic" seatstay cap used on the vast majority of TSX
EMB1010
1990 Catalogue page
Elegantly presented information about the Century TSX
Correction 1: "spirals" correctly shown on drawing, but incorrectly described in caption
Correction 2: TT above size 54 was not longer than in "road racing" geometry (and this is what the drawing suggests)
Model: Century
Tubes: Reynolds 653 - no markings
Columbus TSX - markings TTB
Geometry: "century"
Serial numbers in the range: ~A9000 - ~F3000
Predecessors: Corsa Extra (TSX tubes)
Successors: Arcobaleno, Corsa Extra Max (Geometry)
Manufactured: 1988 - 1994
Versions:
- 653 (1988 - 1990) ~A9000 - ~C3000
- TSX (1989 - 1994) ~B6000 - ~F3000
A completely new model created (primarily for the US market) in 1988;
revolutionary geometry (perhaps identical introduced by De Rosa under a different name)
and new tubes (not at all "ordered" by EMC, used for at least 2 years by other manufacturers)
Offer definitely for the American market; for mysterious reasons the production of Century 653 was terminated after only 1 year
and neatly replaced by the Century TSX model (cleverly promoted by the 10th Anniversary paint job)
"More comfortable" geometry and cheaper tubing placed the Century in a hierarchy below the Grand Prix and Corsa Extra - for one year;
The use of the more expensive TSX and "modern" (as it turned out) geometry established the Century's position at the level of the Corsa Extra.
A model used (well, advertised) by Team Hitachi during the 1989 season.
Unlike the Grand Prix it used (on the 653 version):
- flat fork crown (EMFC04)
- chrome chainstays
The first model with "century" geometry, the Reynolds 653 is much rarer than the Reynolds 753
The TSX version used the same solutions and frame parts as the Corsa Extra
EMB1001
Century 653 black
EMB1002
Century 653 blue
EMB1003
Century 653 Hitachi painting
Marked the most important elements for quick identification
This model did not have any "letter" markings on BB cover
EMB1004
Your Century 653 should have these items
EMB1005
And these too
EMB1006
Group photo from 1989 catalog
EMB1007
Century TSX
This model is marked TTB on BB cover
EMB1008
Flat fork crown
(for the European market the slope fork crown was installed - sometimes)
EMB1009
"Classic" seatstay cap used on the vast majority of TSX
EMB1010
1990 Catalogue page
Elegantly presented information about the Century TSX
Correction 1: "spirals" correctly shown on drawing, but incorrectly described in caption
Correction 2: TT above size 54 was not longer than in "road racing" geometry (and this is what the drawing suggests)
#56
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB11
Model: Corsa Extra Max
Tubes: Columbus Max - no markings
Geometry: "century"
Serial numbers in the range: ~C1900 - ~D1200
Predecessors: Corsa Extra (name and prestige), Century (geometry)
Successors: Mx Leader (modified)
Manufactured: 1990 - 1992
Versions (unofficial):
- early (11)
- mid (12 and 21)
- late (22)
EMC's first oversized/ovalised frame, the highest, best, most expensive model - used by team profi.
Until now I thought there were 3 versions of this model, but... it was too easy
1 Frame: early version (seatstays attached to the side of the rear lug) (EMFA08) - production ended due to (supposedly) impermanence of this joint
2 Frame: late version (seatstays attached at the rear to the seat lug) (EMFA09) - this was OK, the idea was "passed on" to the successor, the Mx Leader
1 Fork: early version (Max "no crown") (EMFC05)
2 Fork: late version (like Mx Leader) (EMFC06)
...any frame version could be combined with any fork version...
This means there are 4 versions: early + early (which is 11) is the oldest, late + late (which is 22) is the youngest
The others are 12 and 21 (system borrowed from IJN A6M fighter - more or less)
Model used by profi team, confused with Mx Leader - a pity, because it is much rarer...
EMB1101
Early Corsa Extra Max (11)
EMB1102
Mid Corsa Extra Max (12)
EMB1103
Rear lug and seatstays versions (11) and (12)
EMB1104
Mid Corsa Extra Max (21)
EMB1105
Late Corsa Extra Max (22)
EMB1106
Rear lug and seatstays versions (21) and (22)
EMB1107
Fork of the versions (11) and (21)
EMB1108
Fork of the versions (12) and (22)
and Mx Leader by the way
The front muffs were identical
on all versions
EMB1109
BB cover was identical on all versions
Also found on early versions of the Mx Leader
EMB1110
Powerful chainstays (identical on Mx Leader)
Short EDDY MERCKX dropouts
Model: Corsa Extra Max
Tubes: Columbus Max - no markings
Geometry: "century"
Serial numbers in the range: ~C1900 - ~D1200
Predecessors: Corsa Extra (name and prestige), Century (geometry)
Successors: Mx Leader (modified)
Manufactured: 1990 - 1992
Versions (unofficial):
- early (11)
- mid (12 and 21)
- late (22)
EMC's first oversized/ovalised frame, the highest, best, most expensive model - used by team profi.
Until now I thought there were 3 versions of this model, but... it was too easy
1 Frame: early version (seatstays attached to the side of the rear lug) (EMFA08) - production ended due to (supposedly) impermanence of this joint
2 Frame: late version (seatstays attached at the rear to the seat lug) (EMFA09) - this was OK, the idea was "passed on" to the successor, the Mx Leader
1 Fork: early version (Max "no crown") (EMFC05)
2 Fork: late version (like Mx Leader) (EMFC06)
...any frame version could be combined with any fork version...
This means there are 4 versions: early + early (which is 11) is the oldest, late + late (which is 22) is the youngest
The others are 12 and 21 (system borrowed from IJN A6M fighter - more or less)
Model used by profi team, confused with Mx Leader - a pity, because it is much rarer...
EMB1101
Early Corsa Extra Max (11)
EMB1102
Mid Corsa Extra Max (12)
EMB1103
Rear lug and seatstays versions (11) and (12)
EMB1104
Mid Corsa Extra Max (21)
EMB1105
Late Corsa Extra Max (22)
EMB1106
Rear lug and seatstays versions (21) and (22)
EMB1107
Fork of the versions (11) and (21)
EMB1108
Fork of the versions (12) and (22)
and Mx Leader by the way
The front muffs were identical
on all versions
EMB1109
BB cover was identical on all versions
Also found on early versions of the Mx Leader
EMB1110
Powerful chainstays (identical on Mx Leader)
Short EDDY MERCKX dropouts
#57
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB12
Model: Mx Leader
Tubes: Columbus Mxl - no markings
Geometry: "century"
Serial numbers between ~D100 - ~L2000
Predecessors: Corsa Extra Max
Successors: -
Manufactured: 1992 - 2004
Versions (unofficial):
- early (1)
- mid (2) and (3)
- standard (4)
- late (5)
EMC's flagship model, Eddy's favourite frame of which he was (and indeed was) very proud
A continuation of the Corsa Extra Max, but brilliantly modified.
Versions:
- version (1): like Max (22) but replacing TT with lighter, "inverted" mounted one and lighter upper lugs (EMFT16)(so far I thought that new tube came from Minimax kit - I compared sizes and it's rather impossible, it looks like Columbus built this tube specially and uniquely for Mxl kit)
- Version (2): change connection seatstays/lug "back" to "side", change seat stays from Max to SLX (EMFA10)
- Version (3): changing BB cover from Max to lighter Mx Leader (EMFB16)
- Version (4): Standard - change connecting seat stays from side to "standard" with EM-logo seatstay cap (EMFA05)
- version (5): Threadless steering tube, no chrome plating
Model used by team profi, produced regularly until 2001 - after that on request and in limited series.
EMB1201
Beautiful early (1) Mx Leader
Thin TT front end
EMB1202
Close-up of CE Max identical to (21) and (22)
attachment method for seatstays
EMB1203
Change in attachment of seatstays (2)
EMB1204
In versions (1) and (2) the BB cover is retained
from Corsa Extra Max model
EMB1205
Version (3): attachment of seatstays as (2)
Thick TT rear end distinguishes the Mx Leader from the Corsa Extra Max
EMB1206
New lighter BB cover (3)
EMB1207
Standard Mx Leader (4) - in this configuration produced 1993 - 2001
EMB1208
Final (4) variant of seatstays attachment to lug
EMB1209
"Flattening" of the tubes at the BB cover
Columbus Mxl sticker
EMB1210
Mx Leader late version (5)
No chrome plating, threadless steering tube
Model: Mx Leader
Tubes: Columbus Mxl - no markings
Geometry: "century"
Serial numbers between ~D100 - ~L2000
Predecessors: Corsa Extra Max
Successors: -
Manufactured: 1992 - 2004
Versions (unofficial):
- early (1)
- mid (2) and (3)
- standard (4)
- late (5)
EMC's flagship model, Eddy's favourite frame of which he was (and indeed was) very proud
A continuation of the Corsa Extra Max, but brilliantly modified.
Versions:
- version (1): like Max (22) but replacing TT with lighter, "inverted" mounted one and lighter upper lugs (EMFT16)(so far I thought that new tube came from Minimax kit - I compared sizes and it's rather impossible, it looks like Columbus built this tube specially and uniquely for Mxl kit)
- Version (2): change connection seatstays/lug "back" to "side", change seat stays from Max to SLX (EMFA10)
- Version (3): changing BB cover from Max to lighter Mx Leader (EMFB16)
- Version (4): Standard - change connecting seat stays from side to "standard" with EM-logo seatstay cap (EMFA05)
- version (5): Threadless steering tube, no chrome plating
Model used by team profi, produced regularly until 2001 - after that on request and in limited series.
EMB1201
Beautiful early (1) Mx Leader
Thin TT front end
EMB1202
Close-up of CE Max identical to (21) and (22)
attachment method for seatstays
EMB1203
Change in attachment of seatstays (2)
EMB1204
In versions (1) and (2) the BB cover is retained
from Corsa Extra Max model
EMB1205
Version (3): attachment of seatstays as (2)
Thick TT rear end distinguishes the Mx Leader from the Corsa Extra Max
EMB1206
New lighter BB cover (3)
EMB1207
Standard Mx Leader (4) - in this configuration produced 1993 - 2001
EMB1208
Final (4) variant of seatstays attachment to lug
EMB1209
"Flattening" of the tubes at the BB cover
Columbus Mxl sticker
EMB1210
Mx Leader late version (5)
No chrome plating, threadless steering tube
#58
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB13
Model: Corsa Thron and Corsa 01
Tubes: Columbus Thron - no markings
Dedacciai 01 - no markings (almost, sometimes you get a C)
Geometry: "century"
Serial numbers in the range ~F3000 - ~F5000 (Thron)
~F5200 - ~J2500 (Deda 01)
Predecessors: Corsa
Successors: -
Manufactured: 1994 - 2001
Versions (unofficial):
- Thron
- early 01
- standard 01
Continuation of the "oversized" level
Thron and standard Deda 01 are oversized tubes, but not ovalised
It wasn't until the Deda 01 Custom was ovalised that a sensational frame was created
which in a few years "jumped over" the Corsa Extra and replaced the Arcobaleno
A very appreciated and popular frame - the last steel EMC hit
EMB1301
Corsa Thron
Model difficult to identify, very rare
Produced only in 1994
Distinctive chrome plating later inherited by Corsa 01
Extra thick chainstays and unusual BB cover design
EMB1302
Corsa Thron
"narrow" seatstays - also used on Corsa 01
EMB1303
Corsa 01
Set of "curved" lugs and BB cover
EMB1304
BB cover
EMB1305
Rear lugs
EMB1306
Front lug
EMB1307
Corsa 01
Set of front lugs and BB cover
EMB1308
BB cover
EMB1309
Rear lugs
EMB1310
Front lug
Identical looking sets were used in Strada OS
How it relates to chronology and different thickness of tubes
in these 2 models - I do not know yet
Model: Corsa Thron and Corsa 01
Tubes: Columbus Thron - no markings
Dedacciai 01 - no markings (almost, sometimes you get a C)
Geometry: "century"
Serial numbers in the range ~F3000 - ~F5000 (Thron)
~F5200 - ~J2500 (Deda 01)
Predecessors: Corsa
Successors: -
Manufactured: 1994 - 2001
Versions (unofficial):
- Thron
- early 01
- standard 01
Continuation of the "oversized" level
Thron and standard Deda 01 are oversized tubes, but not ovalised
It wasn't until the Deda 01 Custom was ovalised that a sensational frame was created
which in a few years "jumped over" the Corsa Extra and replaced the Arcobaleno
A very appreciated and popular frame - the last steel EMC hit
EMB1301
Corsa Thron
Model difficult to identify, very rare
Produced only in 1994
Distinctive chrome plating later inherited by Corsa 01
Extra thick chainstays and unusual BB cover design
EMB1302
Corsa Thron
"narrow" seatstays - also used on Corsa 01
EMB1303
Corsa 01
Set of "curved" lugs and BB cover
EMB1304
BB cover
EMB1305
Rear lugs
EMB1306
Front lug
EMB1307
Corsa 01
Set of front lugs and BB cover
EMB1308
BB cover
EMB1309
Rear lugs
EMB1310
Front lug
Identical looking sets were used in Strada OS
How it relates to chronology and different thickness of tubes
in these 2 models - I do not know yet
#59
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB14
Model: Arcobaleno (OV-Pro)
Tubes: Columbus Neuron - no markings
Geometry: "century"
Serial numbers between ~F4800 - ~H9000
Predecessors: Century
Successors: -
Manufactured: 1994 - 2000
Versions (unofficial):
- early
- mid
- standard
EMC's most underrated steel frame
Appeared too late and with a bad name
The successor of the Century which without a doubt "jumped over" the Corsa Extra in the hierarchy
EMB1401
Earliest version of Arcobaleno - vertical dropouts, early Neuron sticker
"narrow" seatstays, slope fork crown
Oversized and ovalised - but internally !
EMB1402
Sticker
EMB1403
Vertical dropouts
EMB1404
Return to "classic" dropouts
EMB1405
Back to "classic" seatstays, but the fork is EL-OS
EMB1406
New sticker - this probably means "double ovalised tubes" - internally and externally
EMB1407
Mx Leader fork also happened
EMB1408
Standard version, appeared in 1995
Lugless at front, bolt at rear
EMB1409
You will only see something like this on Arcobaleno
EMB1410
Seat post locking system
A rare and precious thing
Model: Arcobaleno (OV-Pro)
Tubes: Columbus Neuron - no markings
Geometry: "century"
Serial numbers between ~F4800 - ~H9000
Predecessors: Century
Successors: -
Manufactured: 1994 - 2000
Versions (unofficial):
- early
- mid
- standard
EMC's most underrated steel frame
Appeared too late and with a bad name
The successor of the Century which without a doubt "jumped over" the Corsa Extra in the hierarchy
EMB1401
Earliest version of Arcobaleno - vertical dropouts, early Neuron sticker
"narrow" seatstays, slope fork crown
Oversized and ovalised - but internally !
EMB1402
Sticker
EMB1403
Vertical dropouts
EMB1404
Return to "classic" dropouts
EMB1405
Back to "classic" seatstays, but the fork is EL-OS
EMB1406
New sticker - this probably means "double ovalised tubes" - internally and externally
EMB1407
Mx Leader fork also happened
EMB1408
Standard version, appeared in 1995
Lugless at front, bolt at rear
EMB1409
You will only see something like this on Arcobaleno
EMB1410
Seat post locking system
A rare and precious thing
#60
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMB15
Model: Strada OS
Tubes: Columbus Brain - no markings
Geometry: "century"
Serial numbers in the range ~F4800 - ~H9000
Predecessors: Strada
Successors: -
Manufactured: 1994 - 2001
Versions: -
The last in a series of steel economy frames
Lighter than the Corsa Extra SLX - this is what progress looks like
Oversized but not Ovalised (I have my doubts)
EMB1501
Strada OS in its full glory
Noteworthy chrome plating - in the last generation of EMC steel
This was a distinctive feature of the model
EMB1502
Strada OS lettering pattern
EMB1503
One of the two Strada OS
lugs pattern - front
EMB1504
Rear lug for complete set
EMB1505
Second lugs pattern - front
EMB1506
Rear lugs complete
EMB1507
Very versatile piece since 1987
EMB1508
Very universal dropouts from 1995 onwards
EMB1509
Early version
EMB1510
Late version
I have not found any correlation between the versions of lugs, tubes and stickers -
which does not mean that there is not, research is ongoing
End of Part 06
Model: Strada OS
Tubes: Columbus Brain - no markings
Geometry: "century"
Serial numbers in the range ~F4800 - ~H9000
Predecessors: Strada
Successors: -
Manufactured: 1994 - 2001
Versions: -
The last in a series of steel economy frames
Lighter than the Corsa Extra SLX - this is what progress looks like
Oversized but not Ovalised (I have my doubts)
EMB1501
Strada OS in its full glory
Noteworthy chrome plating - in the last generation of EMC steel
This was a distinctive feature of the model
EMB1502
Strada OS lettering pattern
EMB1503
One of the two Strada OS
lugs pattern - front
EMB1504
Rear lug for complete set
EMB1505
Second lugs pattern - front
EMB1506
Rear lugs complete
EMB1507
Very versatile piece since 1987
EMB1508
Very universal dropouts from 1995 onwards
EMB1509
Early version
EMB1510
Late version
I have not found any correlation between the versions of lugs, tubes and stickers -
which does not mean that there is not, research is ongoing
End of Part 06
#61
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
Part 07 - tEaMerCkx - EMT or bicycles for profi
In chronological order (more or less)
Economical descriptions
Team names abbreviated
EMT01
1980 - Marc IWC vrd
Professional?
early logo design
stripes with Mexico" sticker
BB cover design not used on series EMCs at the time
Who built this frame and where?
Don't know
EMT02
1980 - Corneille Daems, age 16, Belgian Champion
Professional
early sticker designs and "long" lugs, seatstay cap with "signature"
EMT03
1981 - Expert
Professional
early decal designs and "long" lugs
EMT04
1981 - IMEX IWC or Patrick Sercu
Professional
new features include:
EM logo on seatstay cap
new "short" lugs
EMT05
1982 - Kelme
Professional
No surprises, maybe new design of logo stickers
EMT06
1982 - Capri Sonne
Professional
Definitely a new design of logo stickers
EMT07
1982 - Capri Sonne
Aero
Merckx slides on TT
FD mounting
"Stripes with Mexico" finally visible
(used since the beginning of production)
EMT08
1983 - Europ Decor
Professional
FD mounting
Number hanger early pattern
sticker on DT "with background"
EMT09
1983 - Winning - Merckx - Campagnolo
Professional (it's red, really)
Slope fork crown
EMT10
1983 - same as above
Professional
No changes: cables above BB cover
In chronological order (more or less)
Economical descriptions
Team names abbreviated
EMT01
1980 - Marc IWC vrd
Professional?
early logo design
stripes with Mexico" sticker
BB cover design not used on series EMCs at the time
Who built this frame and where?
Don't know
EMT02
1980 - Corneille Daems, age 16, Belgian Champion
Professional
early sticker designs and "long" lugs, seatstay cap with "signature"
EMT03
1981 - Expert
Professional
early decal designs and "long" lugs
EMT04
1981 - IMEX IWC or Patrick Sercu
Professional
new features include:
EM logo on seatstay cap
new "short" lugs
EMT05
1982 - Kelme
Professional
No surprises, maybe new design of logo stickers
EMT06
1982 - Capri Sonne
Professional
Definitely a new design of logo stickers
EMT07
1982 - Capri Sonne
Aero
Merckx slides on TT
FD mounting
"Stripes with Mexico" finally visible
(used since the beginning of production)
EMT08
1983 - Europ Decor
Professional
FD mounting
Number hanger early pattern
sticker on DT "with background"
EMT09
1983 - Winning - Merckx - Campagnolo
Professional (it's red, really)
Slope fork crown
EMT10
1983 - same as above
Professional
No changes: cables above BB cover
#62
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT11
1984 - Europ Decor
Professional
Change of paint
Sticker with rider's name
Flat fork crown
Change: cables under BB cover
EMT12
1984 - as above
Professional
Set of current decals
EMT13
1984 - Kelme
Professional
Change of paint scheme
EMT14
1985 - Kelme
Professional
Change of paint scheme
EMT15
1985 - Kelme
Aero
EMT16
1985 - Tonissteiner
Professional
Paint pattern: FAEMA-like
EMT17
1985 - as above
Professional
Sticker details
EMT18
1985 - TeVe Blad
Professional
Goodbye to early font (almost) and "Mexico" on "stripes"
EMT19
1985 - as above
Professional
Early number hanger
EMT20
1985 - Lotto
Pro (debut? TdF 1985)
Columbus SLX stickers (early pattern)
BB cover without chain bridge
1984 - Europ Decor
Professional
Change of paint
Sticker with rider's name
Flat fork crown
Change: cables under BB cover
EMT12
1984 - as above
Professional
Set of current decals
EMT13
1984 - Kelme
Professional
Change of paint scheme
EMT14
1985 - Kelme
Professional
Change of paint scheme
EMT15
1985 - Kelme
Aero
EMT16
1985 - Tonissteiner
Professional
Paint pattern: FAEMA-like
EMT17
1985 - as above
Professional
Sticker details
EMT18
1985 - TeVe Blad
Professional
Goodbye to early font (almost) and "Mexico" on "stripes"
EMT19
1985 - as above
Professional
Early number hanger
EMT20
1985 - Lotto
Pro (debut? TdF 1985)
Columbus SLX stickers (early pattern)
BB cover without chain bridge
#63
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT21
1986 - Lotto
Pro
WITHOUT paint changes
Panasonic in the foreground
EMT22
1986 - Kelme
Pro
Change of paint scheme
A turbulent transition period:
3 different font designs - jersey, frame, bridge
early brake bridge design
EMT23
1986 - TeVe Blad
Pro
Change of paint scheme
Fonts unified
EMT24
1987 - TeVe Blad
Corsa Extra
created from Pro by adding gold sticker
EMT25
1987 - Panasonic
Corsa Extra
"narrow geo"
flat fork crown
newer break bridge design
EMT26
1987 - Lotto
Corsa Extra
Change of paint scheme
classic geo
slope fork crown
early SLX sticker
early big seat stay cap
EMT27
1988 - Lotto (paint change)
1988 - ADR
Corsa Extra
Early SLX
newer brake bridge design
EMT28
1988 - Hitachi
Corsa Extra
Late SLX sticker
late narrow seatstay cap
EMT29
1988 - Intral
Corsa Extra
EMT30
1988 - Kelme
Corsa Extra
Change of paint scheme
Early SLX decal
1986 - Lotto
Pro
WITHOUT paint changes
Panasonic in the foreground
EMT22
1986 - Kelme
Pro
Change of paint scheme
A turbulent transition period:
3 different font designs - jersey, frame, bridge
early brake bridge design
EMT23
1986 - TeVe Blad
Pro
Change of paint scheme
Fonts unified
EMT24
1987 - TeVe Blad
Corsa Extra
created from Pro by adding gold sticker
EMT25
1987 - Panasonic
Corsa Extra
"narrow geo"
flat fork crown
newer break bridge design
EMT26
1987 - Lotto
Corsa Extra
Change of paint scheme
classic geo
slope fork crown
early SLX sticker
early big seat stay cap
EMT27
1988 - Lotto (paint change)
1988 - ADR
Corsa Extra
Early SLX
newer brake bridge design
EMT28
1988 - Hitachi
Corsa Extra
Late SLX sticker
late narrow seatstay cap
EMT29
1988 - Intral
Corsa Extra
EMT30
1988 - Kelme
Corsa Extra
Change of paint scheme
Early SLX decal
Last edited by CyclesMakaron; 06-08-21 at 11:01 AM. Reason: net zonk
#64
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT31
1989 - Kelme
Corsa Extra
Late stickers SLX
EMT32
1989 - Domex Weinmann
Corsa Extra
External cable routing on TT
EMT33
1989 - Hitachi
Century 653 (officially)
Flat fork crown
narrow seatstay geo
EMT34
1989 - La William
Corsa Extra
EMT35
1989 - Stuttgart
Corsa Extra
EMT36
1989 - 7-Eleven
Corsa Extra
Flat fork crown
early model number hanger
Chrome!
EMT37
1990 - 7-Eleven
Corsa Extra
without FD mounting
late model number hanger
Without chrome
EMT38
1990 - Kelme
Corsa Extra
Change of paint scheme
EMT39
1990 - Westwood
Corsa Extra
similar to ADR (lighter shade of blue?)
EMT40
1990 - Weinmann
Corsa Extra
Change of paint scheme
1989 - Kelme
Corsa Extra
Late stickers SLX
EMT32
1989 - Domex Weinmann
Corsa Extra
External cable routing on TT
EMT33
1989 - Hitachi
Century 653 (officially)
Flat fork crown
narrow seatstay geo
EMT34
1989 - La William
Corsa Extra
EMT35
1989 - Stuttgart
Corsa Extra
EMT36
1989 - 7-Eleven
Corsa Extra
Flat fork crown
early model number hanger
Chrome!
EMT37
1990 - 7-Eleven
Corsa Extra
without FD mounting
late model number hanger
Without chrome
EMT38
1990 - Kelme
Corsa Extra
Change of paint scheme
EMT39
1990 - Westwood
Corsa Extra
similar to ADR (lighter shade of blue?)
EMT40
1990 - Weinmann
Corsa Extra
Change of paint scheme
#65
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT41
1991 - Motorola
Corsa Extra TSX
Slides on TT
Paint scheme used 1991 - 1994
EMT42
1991 - Weinmann
Corsa Extra
Change of paint scheme
EMT43
1991 - Kelme
Corsa Extra
Change of paint scheme (pattern used 1991-1993)
EMT44
1992 - Telekom
Corsa Extra
Paint pattern used 1991 - 1994
EMT45
1992 - Motorola
Mx Leader early version
Farewell with "Belgium handmade" striped sticker
EMT46
1993 - ASLK-CGER
Mx Leader mid version
Greeting with "round star sticker"
1993 - 1994 paint scheme
EMT47
1993 - Lotto Caloi
Mx Leader as above
EMT48
1993 - Telekom
Mx Leader late version
EMT49
1993 - Willy Naessens
?
1991 - Motorola
Corsa Extra TSX
Slides on TT
Paint scheme used 1991 - 1994
EMT42
1991 - Weinmann
Corsa Extra
Change of paint scheme
EMT43
1991 - Kelme
Corsa Extra
Change of paint scheme (pattern used 1991-1993)
EMT44
1992 - Telekom
Corsa Extra
Paint pattern used 1991 - 1994
EMT45
1992 - Motorola
Mx Leader early version
Farewell with "Belgium handmade" striped sticker
EMT46
1993 - ASLK-CGER
Mx Leader mid version
Greeting with "round star sticker"
1993 - 1994 paint scheme
EMT47
1993 - Lotto Caloi
Mx Leader as above
EMT48
1993 - Telekom
Mx Leader late version
EMT49
1993 - Willy Naessens
?
#66
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT50
1994 - Motorola
Corsa Extra
EMT51
1994 - Vlaanderen
Mx Leader
EMT52
1994 - Telekom
Mx Leader
EMT53
1994 - Cafe la Brasilena
Corsa Extra
EMT54
1994 - ASLK-CGER
Mx Leader
EMT55
1994 - Lotto Caloi
Mx Leader
EMT56
1994 - Telekom
Corsa Extra frame + Mx Leader fork
Painted in spring 1994
EMT57
1995 - Motorola Caloi
Corsa Extra
EMT58
1995 - GAN
Mx Leader
Paintscheme used between 1995 and 1997
EMT59
1995 - RDM
Mx Leader
1994 - Motorola
Corsa Extra
EMT51
1994 - Vlaanderen
Mx Leader
EMT52
1994 - Telekom
Mx Leader
EMT53
1994 - Cafe la Brasilena
Corsa Extra
EMT54
1994 - ASLK-CGER
Mx Leader
EMT55
1994 - Lotto Caloi
Mx Leader
EMT56
1994 - Telekom
Corsa Extra frame + Mx Leader fork
Painted in spring 1994
EMT57
1995 - Motorola Caloi
Corsa Extra
EMT58
1995 - GAN
Mx Leader
Paintscheme used between 1995 and 1997
EMT59
1995 - RDM
Mx Leader
#67
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMT60
1996 - Motorola Caloi
Corsa Extra
Paintscheme used between 1995 and 1996
EMT61
1996 - Vlaanderen
Mx Leader
EMT62
1996 - GAN
Arcobaleno
EMT63
1996 - Collstrop
Mx Leader
EMT64
1997 - Gan
Arcobaleno
fork EL-OS
EMT65
1997 - IPSO
Corsa Extra?
EMT66
1997 - ASLK-CGER
Mx Leader
EMT67
1998 - GAN
Arcobaleno
Change of paint scheme for 1998 season
EMT68
1998 - DEN TIP
Mx Leader
End of Part 07
1996 - Motorola Caloi
Corsa Extra
Paintscheme used between 1995 and 1996
EMT61
1996 - Vlaanderen
Mx Leader
EMT62
1996 - GAN
Arcobaleno
EMT63
1996 - Collstrop
Mx Leader
EMT64
1997 - Gan
Arcobaleno
fork EL-OS
EMT65
1997 - IPSO
Corsa Extra?
EMT66
1997 - ASLK-CGER
Mx Leader
EMT67
1998 - GAN
Arcobaleno
Change of paint scheme for 1998 season
EMT68
1998 - DEN TIP
Mx Leader
End of Part 07
#68
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
Part 08 - cataloguEMerCkx - EMX
There was probably a rule (exception: 1981)
that catalogs were created in August/September of the year preceding the season
so, for example, photos from 1985 catalog show late summer 1984
I do not discuss entire catalogs, but only interesting photos
Chronological arrangement (EMX81, EMX85, EMX86, etc)
Descriptions of photos (EMX8101, EMX8102, EMX8103, etc)
EMX81
Catalog published probably in 1981
As seen at the turn of 1980/1981
EMX8101
Bicycle/frame build sheets
Information - priceless
Some photos of these cards I will show in Part 09
EMX8102

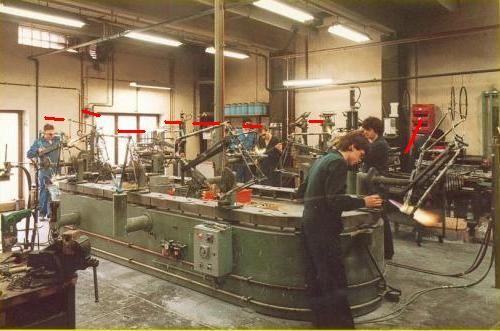

People at work
Equipment of Italian company Marchetti&Lange
8 frames under construction
EMX8103
Four "EMC people" - if the photo was not posed
we would be dealing with Mr A,B,F,G.
They are busy with cleaning, honing etc, that is preparing the frames for chroming/painting
Nice stack of forks
EMX8104
Functional mounting rack (for 4 bikes)
You can see 4 build sheets
Beautifully painted (not EMC) frames in the background
In the foreground a beautiful Professional -
Early construction and decals
EMX8105
Assembly rack #2
Dream rack with Campagnolo hardware - Super Record only
A continuation of the colored frames - bonus hanging on the rack: this looks like a brown color, definitely a special order
EMX8106
A beautiful presentation of an early frame: "long" lug, "signature", early stickers
Bonus: the card attached to the brake bridge - I wonder what it says; it's not likely this card went on the steering tube
EMX8107
Classic early EMC Professional
Red one doesn't have a Columbus sticker - Reynolds?
EMX8108
A beautiful photo showing all features of
of one of the possible configurations of early EMC Professional
EMX8109
The most famous photo from this catalog
The caption is misleading (there was no Professional model - we already know that)
The early stickers are carefully shown,
signed parts etc.
And now a surprise: on this frame you will not find a single "long" lug - and this was the most popular model in early EMC
The rear lug is a very rare "short" lug
The front lower lug is a newly introduced novelty used regularly between 1981 and 1988
This is the only frame on which I have seen this combination of lugs
EMX8110
Folder from 1981, released a few months after the 1981 catalog
EMC Professional standard - with a set of modern lugs
Campagnolo Super record group
There was probably a rule (exception: 1981)
that catalogs were created in August/September of the year preceding the season
so, for example, photos from 1985 catalog show late summer 1984
I do not discuss entire catalogs, but only interesting photos
Chronological arrangement (EMX81, EMX85, EMX86, etc)
Descriptions of photos (EMX8101, EMX8102, EMX8103, etc)
EMX81
Catalog published probably in 1981
As seen at the turn of 1980/1981
EMX8101
Bicycle/frame build sheets
Information - priceless
Some photos of these cards I will show in Part 09
EMX8102
People at work
Equipment of Italian company Marchetti&Lange
8 frames under construction
EMX8103
Four "EMC people" - if the photo was not posed
we would be dealing with Mr A,B,F,G.
They are busy with cleaning, honing etc, that is preparing the frames for chroming/painting
Nice stack of forks
EMX8104
Functional mounting rack (for 4 bikes)
You can see 4 build sheets
Beautifully painted (not EMC) frames in the background
In the foreground a beautiful Professional -
Early construction and decals
EMX8105
Assembly rack #2
Dream rack with Campagnolo hardware - Super Record only
A continuation of the colored frames - bonus hanging on the rack: this looks like a brown color, definitely a special order
EMX8106
A beautiful presentation of an early frame: "long" lug, "signature", early stickers
Bonus: the card attached to the brake bridge - I wonder what it says; it's not likely this card went on the steering tube
EMX8107
Classic early EMC Professional
Red one doesn't have a Columbus sticker - Reynolds?
EMX8108
A beautiful photo showing all features of
of one of the possible configurations of early EMC Professional
EMX8109
The most famous photo from this catalog
The caption is misleading (there was no Professional model - we already know that)
The early stickers are carefully shown,
signed parts etc.
And now a surprise: on this frame you will not find a single "long" lug - and this was the most popular model in early EMC
The rear lug is a very rare "short" lug
The front lower lug is a newly introduced novelty used regularly between 1981 and 1988
This is the only frame on which I have seen this combination of lugs
EMX8110
Folder from 1981, released a few months after the 1981 catalog
EMC Professional standard - with a set of modern lugs
Campagnolo Super record group
#69
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX85
The catalog appeared in connection with the "takeover" of EMC representation on American soil
by GITA and the expansion of the Eddy Merckx bike range!
EMX8501
A beautiful Professional in the colors and specifications of the Boule d'Or team for the 1984 season
...or Lotto for early 1985
Early model number hanger, FD mounting and cables under BB cover
Campagnolo Super Record group
EMX8502
Two versions available - names were introduced "unofficially" probably by GITA
GITA salesmen realized that the product should have its own name
EMX8503
TEAM ISSUE
paintings: Molteni, Faema, Fiat
details (older configuration):
- cables over BB cover
- flat fork crown
- no chrome
It is very logical - they were supposed to be similar to 60/70s frames
EMX8504
PROFESSIONAL
paintwork: one colour
details (newer configuration):
- cables under BB cover (but kept chain bridge model)
- slope fork crown
- chromed parts
EMX8505
First officially named and shown in catalog
EMC model: 3-Athlete (gold sticker!)
The cheapest, most economical and accessible model.
Same geometry and build quality as the Professional
"Economical" materials and painting (no chrome plating)
Several details used exclusively on this model.
Campagnolo Victory group (yes, in the summer of 1984)
EMX8506
Frame building - no change
The catalog appeared in connection with the "takeover" of EMC representation on American soil
by GITA and the expansion of the Eddy Merckx bike range!
EMX8501
A beautiful Professional in the colors and specifications of the Boule d'Or team for the 1984 season
...or Lotto for early 1985
Early model number hanger, FD mounting and cables under BB cover
Campagnolo Super Record group
EMX8502
Two versions available - names were introduced "unofficially" probably by GITA
GITA salesmen realized that the product should have its own name
EMX8503
TEAM ISSUE
paintings: Molteni, Faema, Fiat
details (older configuration):
- cables over BB cover
- flat fork crown
- no chrome
It is very logical - they were supposed to be similar to 60/70s frames
EMX8504
PROFESSIONAL
paintwork: one colour
details (newer configuration):
- cables under BB cover (but kept chain bridge model)
- slope fork crown
- chromed parts
EMX8505
First officially named and shown in catalog
EMC model: 3-Athlete (gold sticker!)
The cheapest, most economical and accessible model.
Same geometry and build quality as the Professional
"Economical" materials and painting (no chrome plating)
Several details used exclusively on this model.
Campagnolo Victory group (yes, in the summer of 1984)
EMX8506
Frame building - no change
#70
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX86
The 1986 catalog is a marketing step backwards:
all identifying features of the models disappear (no gold stickers of course)
Somehow I have to manage by myself
EMX8601
Pro SLX half frame (debut!)
Campagnolo Super Record
EMX8602
Other half Pro SLX
Columbus SLX sticker and new EDDY MERCKX font
Frame in Team Lotto 1985 (TdF) configuration
EMX8603
Pro SLX Panasonic - full version:
- number hanger
- cable inside TT
- 2nd bottle mounting
- chrome plating
Campagnolo C-Record Group
EMX8604
Pro SLX Kelme - basic version
Campagnolo C-Record Group
EMX8605
This is a surprise:
- it has a Columbus sticker, but it's not a Corsa (because that name doesn't exist yet)
- it has Campagnolo dropouts, but it is not a Professional
- it has lugs with cut-outs, but it is not a 3-Athlete
This is a noCorsa (very unofficial name - I can't think of any better)
Model produced from 1984 to 1986
The equivalent of 3-Athlete, but built with Columbus tubes
and that's what the C stands for; it wasn't until 1986 that it began to stand for Corsa
Campagnolo Victory Group
The 1986 catalog is a marketing step backwards:
all identifying features of the models disappear (no gold stickers of course)
Somehow I have to manage by myself
EMX8601
Pro SLX half frame (debut!)
Campagnolo Super Record
EMX8602
Other half Pro SLX
Columbus SLX sticker and new EDDY MERCKX font
Frame in Team Lotto 1985 (TdF) configuration
EMX8603
Pro SLX Panasonic - full version:
- number hanger
- cable inside TT
- 2nd bottle mounting
- chrome plating
Campagnolo C-Record Group
EMX8604
Pro SLX Kelme - basic version
Campagnolo C-Record Group
EMX8605
This is a surprise:
- it has a Columbus sticker, but it's not a Corsa (because that name doesn't exist yet)
- it has Campagnolo dropouts, but it is not a Professional
- it has lugs with cut-outs, but it is not a 3-Athlete
This is a noCorsa (very unofficial name - I can't think of any better)
Model produced from 1984 to 1986
The equivalent of 3-Athlete, but built with Columbus tubes
and that's what the C stands for; it wasn't until 1986 that it began to stand for Corsa
Campagnolo Victory Group
#71
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX87
Finally, a professional catalog!
Models described and signed (almost right)
Photos of curiosities from the factory
EMX8701
Debut of the Corsa Extra SLX
Team Lotto 1987 colors and specifications
Campagnolo C-Record group
EMX8702
Criterium debut
Panasonic colors
You can see the "tight" geometry
Campagnolo C-Record Group
EMX8703
Corsa debut?
As for the introduction of the model name - yes
But there's a late Professional in the picture!
Corsa already existed,
why the original frame was not used ? I don't know.
Campagnolo Chorus group (yes, in summer 1986)
EMX8704
Strada debut?
Only the name
In the photo is probably the noCorsa
You'll have to wait a few months for the Strada.
It doesn't even have its sticker yet....
Campagnolo Victory S3 group (also summer 1986)
EMX8705
4 frames
3 brake bridge models
2 ways to set seatstays
3 types of tubes
2 ways to run cables on TT
2 Eddy Merckx fonts
3 frame models
3 chrome plating patterns
3 paint patterns
and gold stickers on the wrong side of the TT (from left):
- Corsa Extra SLX, Rich, Kelme 86
- Corsa SL, Panasonic 86
- Corsa Extra SLX, brake bridge 86/87
- Corsa Extra 753, brake bridge and paint pattern 85
EMX8706
2 additional frames
1 additional font
1 additional chrome pattern
and gold decals on the right side (from left):
- Corsa SL, Faema; early version 86/87
- Corsa Extra 86/87
- Pista (not Corsa)
- Criterium 86/87
EMX8707
Frames and forks on the mystery machine.
Preparation before painting.
EMX8708
A genius at work - really; the paint jobs at EMC are great
By the way: these are the first photos showing the paint shop at EMC
EMX8709
The "new" area for the lucky ones to pick up
EMX8710
"Old after service" area - also for the lucky ones
Finally, a professional catalog!
Models described and signed (almost right)
Photos of curiosities from the factory
EMX8701
Debut of the Corsa Extra SLX
Team Lotto 1987 colors and specifications
Campagnolo C-Record group
EMX8702
Criterium debut
Panasonic colors
You can see the "tight" geometry
Campagnolo C-Record Group
EMX8703
Corsa debut?
As for the introduction of the model name - yes
But there's a late Professional in the picture!
Corsa already existed,
why the original frame was not used ? I don't know.
Campagnolo Chorus group (yes, in summer 1986)
EMX8704
Strada debut?
Only the name
In the photo is probably the noCorsa
You'll have to wait a few months for the Strada.
It doesn't even have its sticker yet....
Campagnolo Victory S3 group (also summer 1986)
EMX8705
4 frames
3 brake bridge models
2 ways to set seatstays
3 types of tubes
2 ways to run cables on TT
2 Eddy Merckx fonts
3 frame models
3 chrome plating patterns
3 paint patterns
and gold stickers on the wrong side of the TT (from left):
- Corsa Extra SLX, Rich, Kelme 86
- Corsa SL, Panasonic 86
- Corsa Extra SLX, brake bridge 86/87
- Corsa Extra 753, brake bridge and paint pattern 85
EMX8706
2 additional frames
1 additional font
1 additional chrome pattern
and gold decals on the right side (from left):
- Corsa SL, Faema; early version 86/87
- Corsa Extra 86/87
- Pista (not Corsa)
- Criterium 86/87
EMX8707
Frames and forks on the mystery machine.
Preparation before painting.
EMX8708
A genius at work - really; the paint jobs at EMC are great
By the way: these are the first photos showing the paint shop at EMC
EMX8709
The "new" area for the lucky ones to pick up
EMX8710
"Old after service" area - also for the lucky ones
#72
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX88
Catalog idea as in 1987 - even the cover is identical
EMX8801
Corsa Extra SLX
"narrow" seatstays
Early SLX sticker
beautiful ADR paint job
Campagnolo Croce d'Aune Group
EMX8802
This is a Corsa Extra signed as Criterium - funny
new thin seatstays
new SLX sticker design
Campagnolo Group C-Record
EMX8803
A real early Corsa
"Old" Columbus sticker pattern
Early Eddy Merckx font reserved for lower models
Early thick seatstays
Campagnolo Chorus group
EMX8804
Strada Cromor
Successor to the 3-Athlete
Exceptional dropouts: Columbus
Campagnolo Athena (yes, summer 1987)
EMX8805
3 times Corsa Extra - one amazing paint job
1 time... Century 653? Too early. Corsa Extra 753? Possibly.
A clever Century 653 announcement using 1 sticker and any Corsa Extra frame?
Probably...
All frames have identical brake bridge
New SLX stickers
Old Reynolds sticker
EMX8806
4 times Corsa Extra
Kelme frame (1st from left) has tight seatstays and old SLX sticker
The rest are normal
EMX8807
Another shot of EMC's most famous workstation
Catalog idea as in 1987 - even the cover is identical
EMX8801
Corsa Extra SLX
"narrow" seatstays
Early SLX sticker
beautiful ADR paint job
Campagnolo Croce d'Aune Group
EMX8802
This is a Corsa Extra signed as Criterium - funny
new thin seatstays
new SLX sticker design
Campagnolo Group C-Record
EMX8803
A real early Corsa
"Old" Columbus sticker pattern
Early Eddy Merckx font reserved for lower models
Early thick seatstays
Campagnolo Chorus group
EMX8804
Strada Cromor
Successor to the 3-Athlete
Exceptional dropouts: Columbus
Campagnolo Athena (yes, summer 1987)
EMX8805
3 times Corsa Extra - one amazing paint job
1 time... Century 653? Too early. Corsa Extra 753? Possibly.
A clever Century 653 announcement using 1 sticker and any Corsa Extra frame?
Probably...
All frames have identical brake bridge
New SLX stickers
Old Reynolds sticker
EMX8806
4 times Corsa Extra
Kelme frame (1st from left) has tight seatstays and old SLX sticker
The rest are normal
EMX8807
Another shot of EMC's most famous workstation
#73
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX89
This is EMC's steel peak
Largest production, largest workforce, new models
Lots of sponsored teams
Americans and Germans (big markets)
Folder version 1 (early)
EMX8901
EMX8902
Original frame names
Original team names
Folder Version 2 (Mid)
EMX8903
EMX8904
Original frame names
Original paint codes
Flyer version 3, censored (late)
EMX8905
Completed (La William and Stuttgart) and forged (TeVe Blad)
team names
Removed Reynolds 753 sticker from Corsa Extra frame
due to launch of Grand Prix model (753)
and obscured 2 photos shown in earlier versions:
EMX8906
Frame described as Aero - really a 1985 Chrono
judging by brake bridge and handlebar mountings
EMX8907
Strada from 1987
This is EMC's steel peak
Largest production, largest workforce, new models
Lots of sponsored teams
Americans and Germans (big markets)
Folder version 1 (early)
EMX8901
EMX8902
Original frame names
Original team names
Folder Version 2 (Mid)
EMX8903
EMX8904
Original frame names
Original paint codes
Flyer version 3, censored (late)
EMX8905
Completed (La William and Stuttgart) and forged (TeVe Blad)
team names
Removed Reynolds 753 sticker from Corsa Extra frame
due to launch of Grand Prix model (753)
and obscured 2 photos shown in earlier versions:
EMX8906
Frame described as Aero - really a 1985 Chrono
judging by brake bridge and handlebar mountings
EMX8907
Strada from 1987
#74
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
US market catalog (beautiful)
For the US market they used "quick identification elements"
(at least it seems that was the plan).
These included paint schemes and design elements (most important)
A "parallel hierarchy" was introduced for Columbus and Reynolds
EMX8908
A beautiful flock (I've highlighted the paint scheme... controversial) of Corsa Extra which is the best Columbus tube model
Features:
- classic seat stay cap
- slope fork crown
- chrome chainstays
EMX8909
Corsa - lower Columbus model
Features:
- classic seatstay cap
- flat fork crown
- chrome plated right chainstay
- Gipiemme brake bridge
(by the way: new Columbus SL decal design)
EMX8910
Corsa close-up (old Columbus sticker)
EMX8911
Grand Prix or the highest Reynolds model (753)
Features:
- narrow seatstays
- slope fork crown
- no chrome chainstays
EMX8912
Century 653 or lower Reynolds model (653)
Features:
- narrow seatstays
- flat fork crown
- chrome plated chainstays
EMX8913
Century 653 with old 653 sticker and without Century sticker
EMX8914
Corsa Extra 7-Eleven Limited Edition
Flat fork crown
EMX8915
Corsa Extra also 7-Eleven
EMX8916
Corsa Extra team Domex Weinmann
Hierarchy 1989:
- Grand Prix
- Corsa Extra
- Century
- Corsa
- Strada
For the US market they used "quick identification elements"
(at least it seems that was the plan).
These included paint schemes and design elements (most important)
A "parallel hierarchy" was introduced for Columbus and Reynolds
EMX8908
A beautiful flock (I've highlighted the paint scheme... controversial) of Corsa Extra which is the best Columbus tube model
Features:
- classic seat stay cap
- slope fork crown
- chrome chainstays
EMX8909
Corsa - lower Columbus model
Features:
- classic seatstay cap
- flat fork crown
- chrome plated right chainstay
- Gipiemme brake bridge
(by the way: new Columbus SL decal design)
EMX8910
Corsa close-up (old Columbus sticker)
EMX8911
Grand Prix or the highest Reynolds model (753)
Features:
- narrow seatstays
- slope fork crown
- no chrome chainstays
EMX8912
Century 653 or lower Reynolds model (653)
Features:
- narrow seatstays
- flat fork crown
- chrome plated chainstays
EMX8913
Century 653 with old 653 sticker and without Century sticker
EMX8914
Corsa Extra 7-Eleven Limited Edition
Flat fork crown
EMX8915
Corsa Extra also 7-Eleven
EMX8916
Corsa Extra team Domex Weinmann
Hierarchy 1989:
- Grand Prix
- Corsa Extra
- Century
- Corsa
- Strada
#75
Senior Member
Thread Starter
Join Date: Oct 2016
Posts: 896
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times
in
259 Posts
EMX90
Another beautiful catalog on US market
A violent goodbye to Century 653
New paint jobs
EMX9001
Grand Prix - a simple continuation of the previous year
EMX9002
Century - old model, new Columbus TSX tubes
Classic seat stay cap
EMX9003
Corsa Extra - simple continuation of previous year
EMX9004
Corsa - finally new brake bridge design and new EDDY MERCKX sticker and lettering
gratis: small mistake in "tube sticker" photo
EMX9005
Anniversary model - beautiful Century TSX paint job
EMX9006
as above - Campagnolo group
EMX9007
Corsa Extra 7-Eleven - Shimano group
EMX9008
Corsa Faema group
EMX9009
Corsa Extra Domex Weinmann - Edco Group
Another beautiful catalog on US market
A violent goodbye to Century 653
New paint jobs
EMX9001
Grand Prix - a simple continuation of the previous year
EMX9002
Century - old model, new Columbus TSX tubes
Classic seat stay cap
EMX9003
Corsa Extra - simple continuation of previous year
EMX9004
Corsa - finally new brake bridge design and new EDDY MERCKX sticker and lettering
gratis: small mistake in "tube sticker" photo
EMX9005
Anniversary model - beautiful Century TSX paint job
EMX9006
as above - Campagnolo group
EMX9007
Corsa Extra 7-Eleven - Shimano group
EMX9008
Corsa Faema group
EMX9009
Corsa Extra Domex Weinmann - Edco Group
