Old 09-08-21, 05:47 AM
  #126
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts








CyclesMakaron is offline
Old 09-08-21, 05:53 AM
  #127
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts

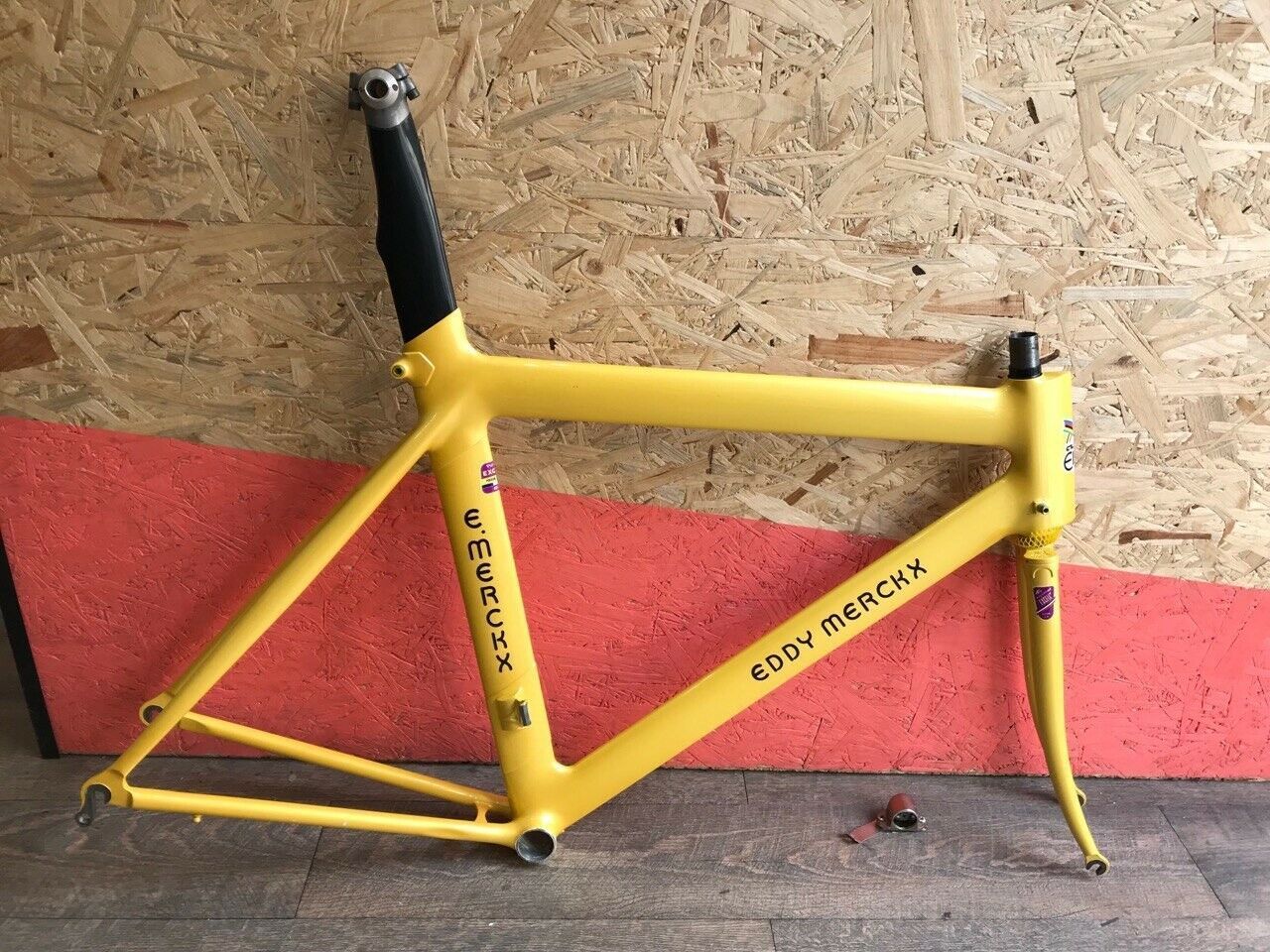

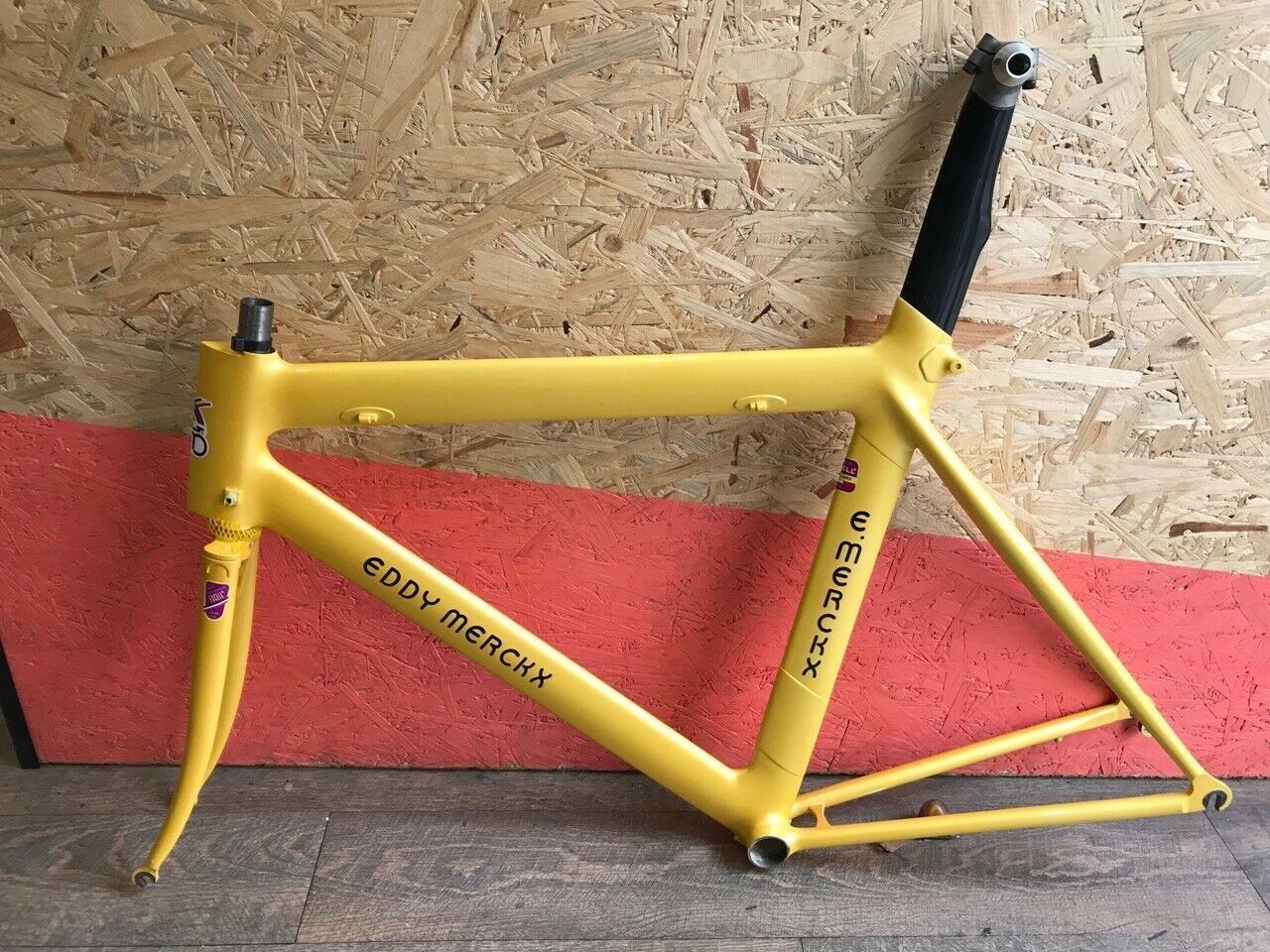

Eddy Merckx Alu Oria 1995

First Merckx Alu built to EMC design in Italy
Never shown in catalogue

Double serial number F6446 and 95569









CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-08-21, 05:58 AM
  #128
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts









CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-08-21, 07:15 AM
  #129
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 16,429

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 123 Post(s)
Tagged: 0 Thread(s)
Quoted: 10820 Post(s)
Liked 7,291 Times in 4,089 Posts

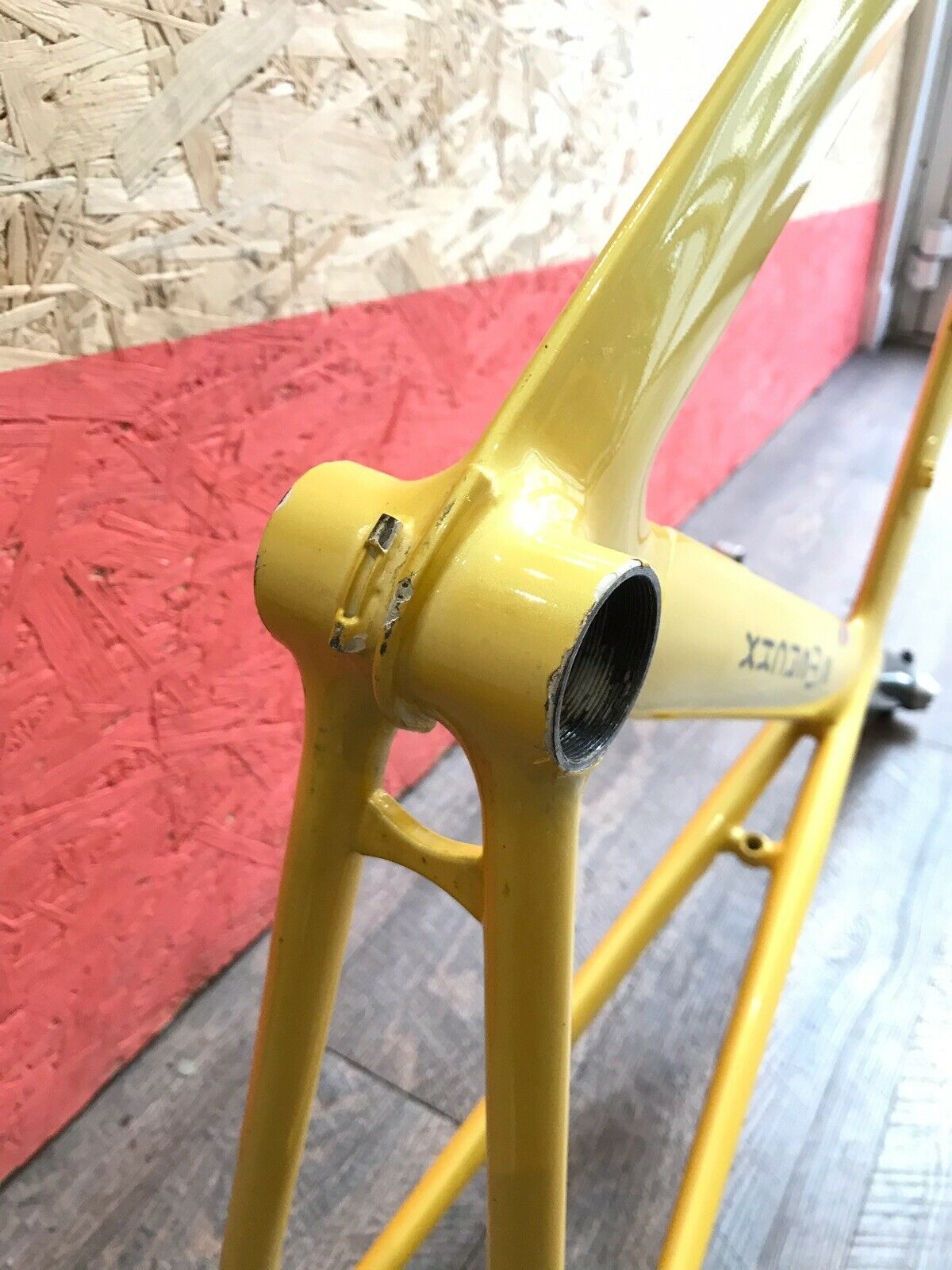

Interesting to see some of the shop workarounds that occurred in production. Some of the internally routed brake cable guides are quite rough compared to others.
mstateglfr is offline
Old 09-08-21, 09:21 AM
  #130
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,553

Bikes: '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1596 Post(s)
Liked 2,178 Times in 1,084 Posts
Wow! Thanks for documenting this information! I have been overwhelmed with the differences of the marque and don't even know where to begin to identify what EMC bike to seek. This didn't help! Now I have a source to check out any I might consider.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 09-08-21, 09:28 AM
  #131
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
Podio, screwdriver and guinea pig











CyclesMakaron is offline
Old 09-08-21, 09:36 AM
  #132
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
Chrono (or TT or Funny Bike) short history


The Chrono came out in 1984 (catalog 1985)
First built with the Columbus SL/SP



Then SLX/SPX



Experimental Panasonic geometry...



Kelme 88


Hitachi 88 (unusual paint job)



Hitachi 89 Reynolds 753 (even more unusual painting)

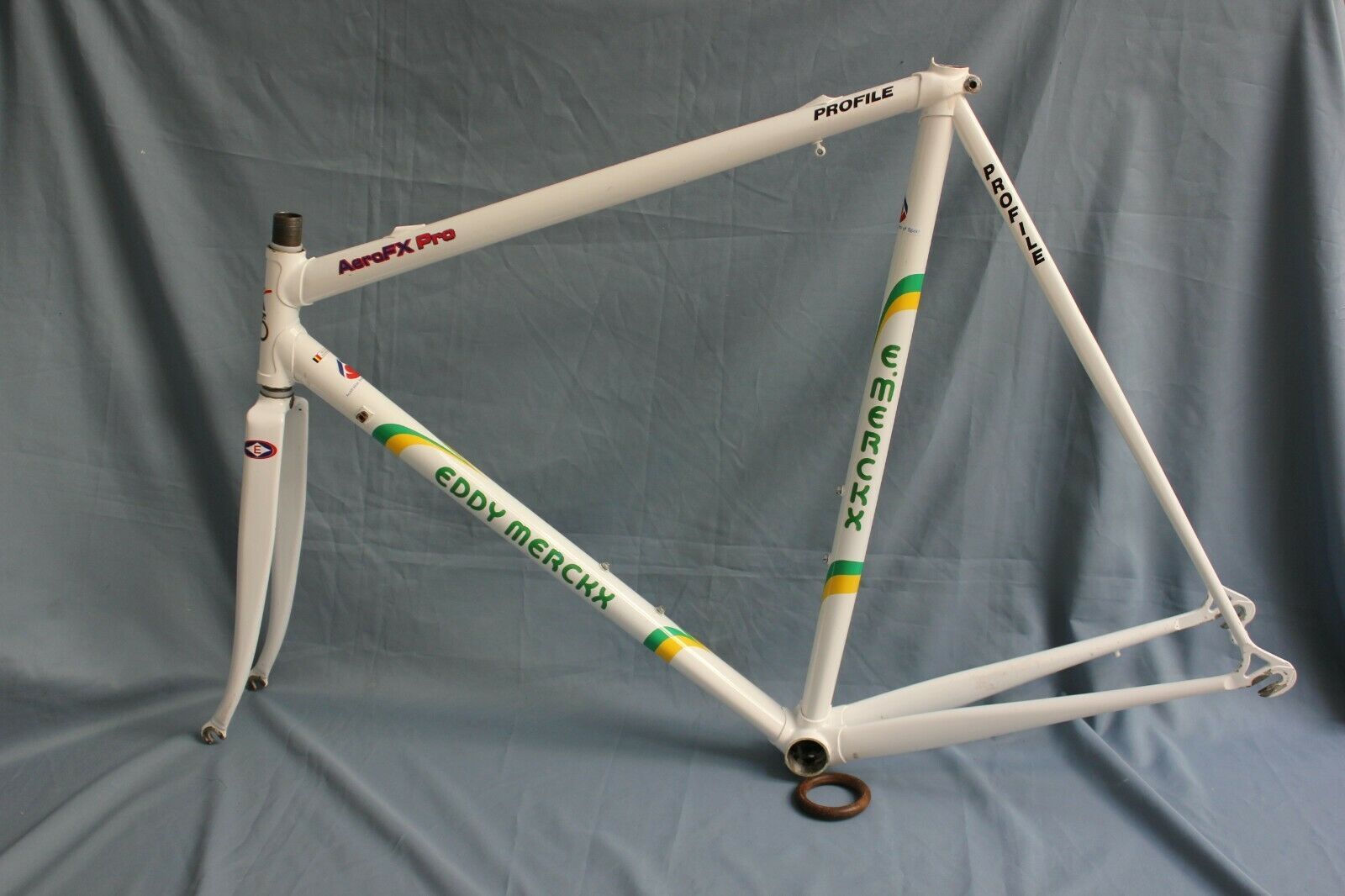

Australian 1992 Olympic Team - Columbus Max

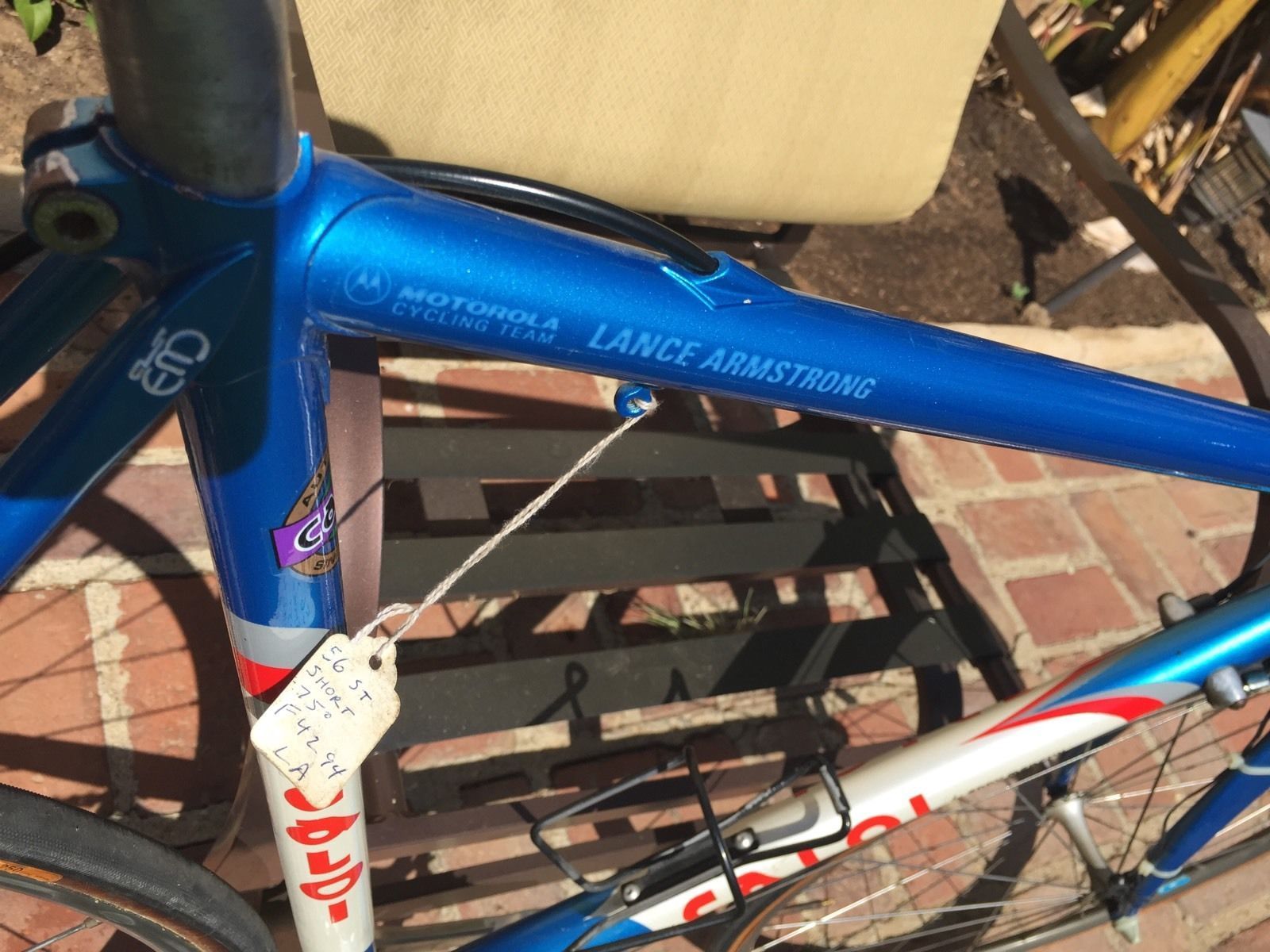

Frame for Lance - 75 degrees


"Fake" Chrono from Columbus Mxl


"Flattened" Chrono from Columbus Genius 1994
CyclesMakaron is offline
Old 09-08-21, 09:45 AM
  #133
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
The first EMC Chrono built from scratch with special Excel tubing
is the WX Chrono model
Prototype built for EMC by Masi





Different versions built at EMC (compare screws at seat lug)




1996 Telekom


1996 Olympic Games


CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-08-21, 10:26 AM
  #134
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
A new era that means everything but steel


Titanium frame 1997?

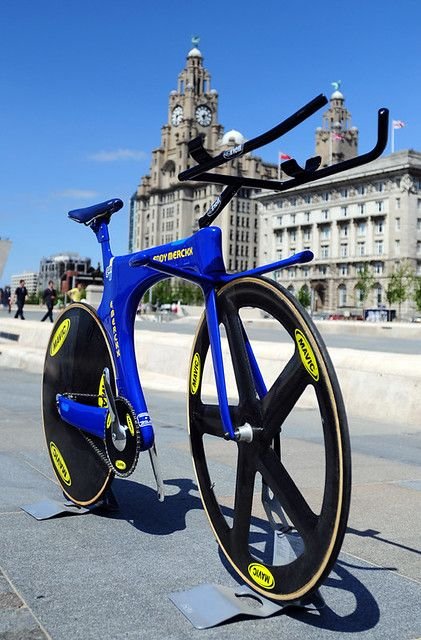

Carbon Lotus 110


Lance on a 1996 Lotus 110

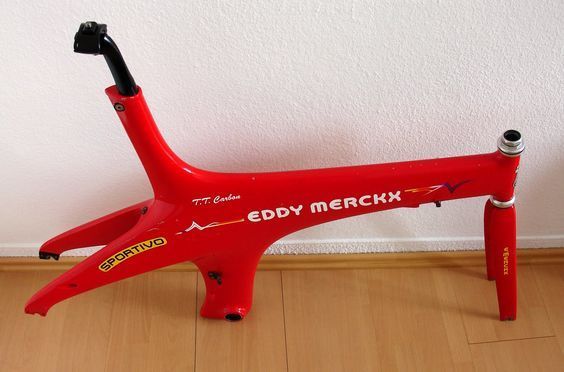

Carbon Hotta TT

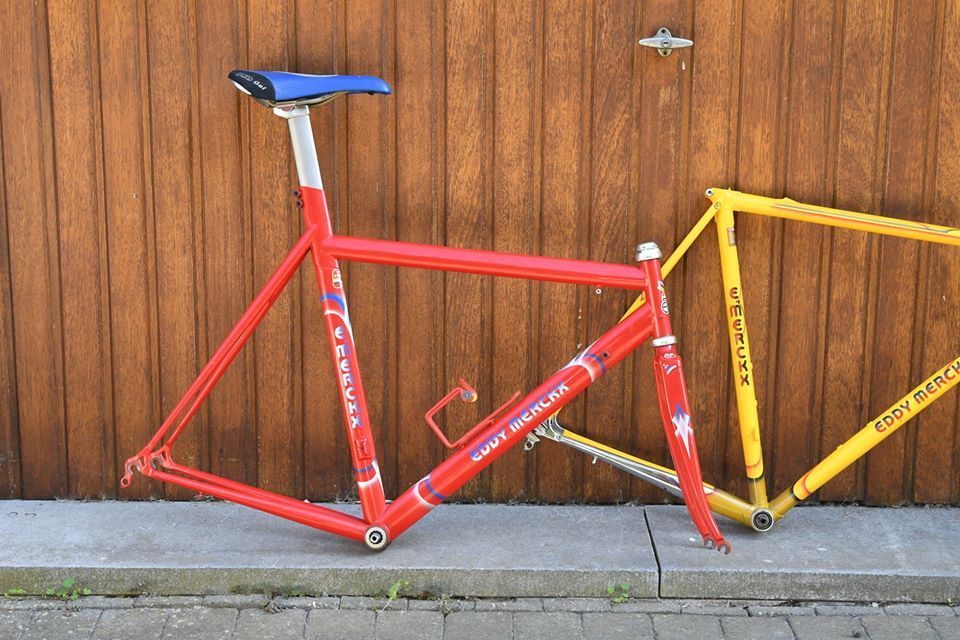

Alu frame 1998 (Columbus Altec) 1998


Titanium frame (with fake advertising sticker) built at EMC


Titanium frame with correct sticker - also built at Meise


Ti + Al (Team SC Chrono)

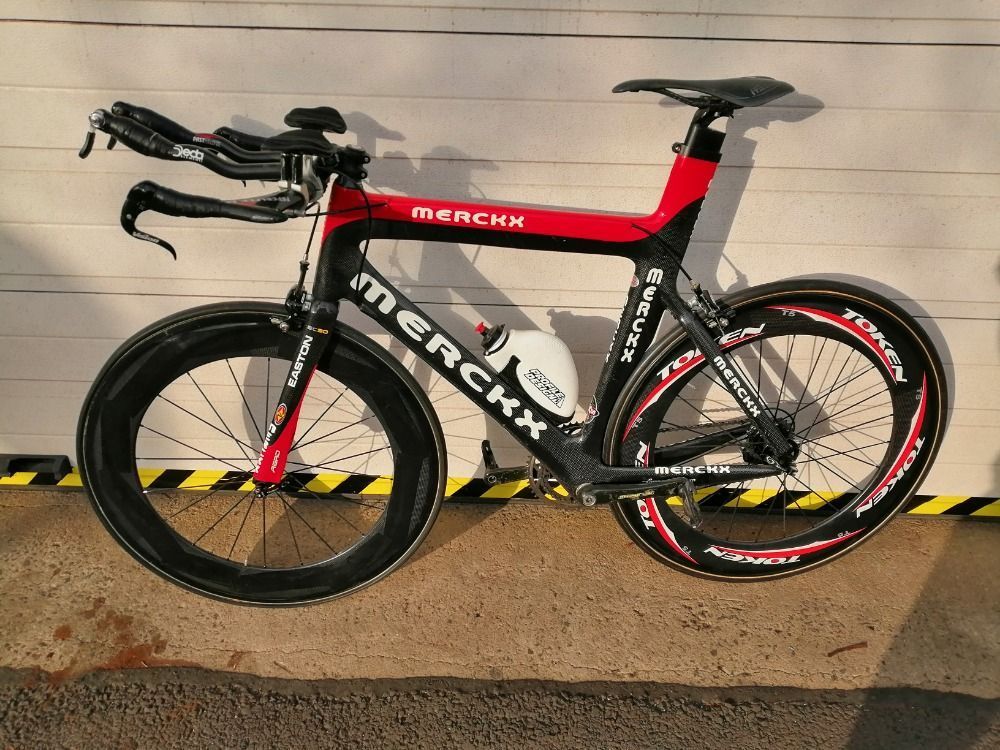

Carbon CXM beauty to finish
CyclesMakaron is offline
Old 01-28-22, 01:41 AM
  #135
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts

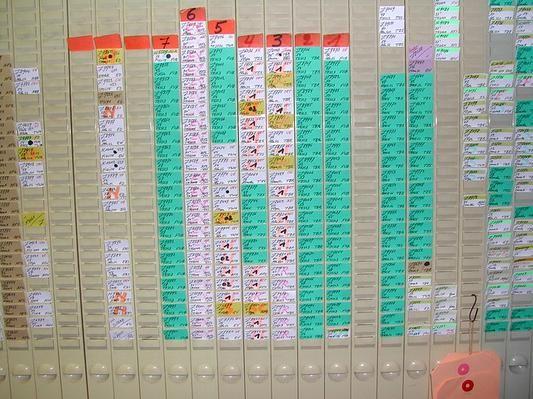

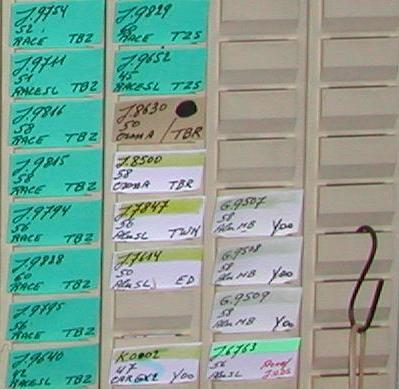

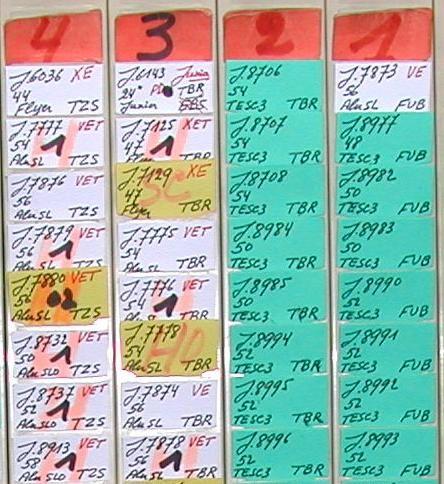

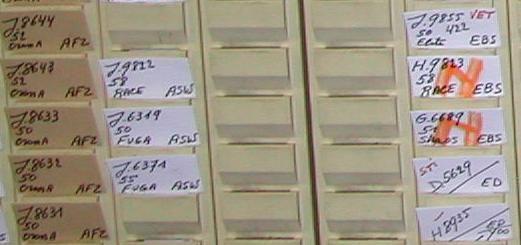

Photo stolen from flickr



It's not the periodic table, it's something more important
From left, 5 columns of 3 photos
Persons with weak nerves view at their own risk


















CyclesMakaron is offline
Likes For CyclesMakaron:
Old 01-28-22, 02:22 AM
  #136
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts

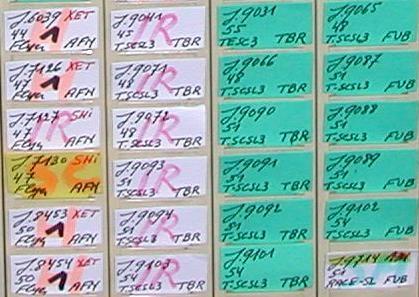

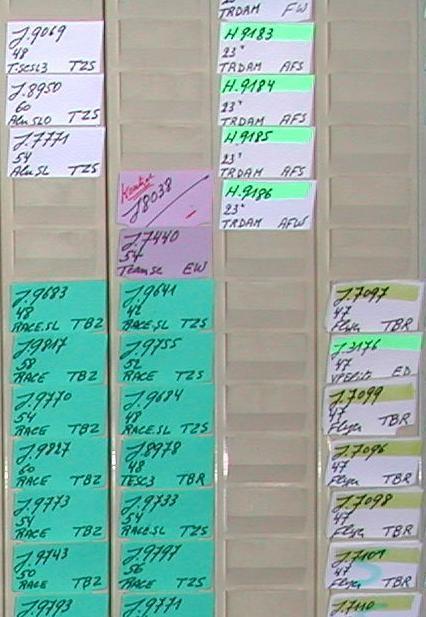

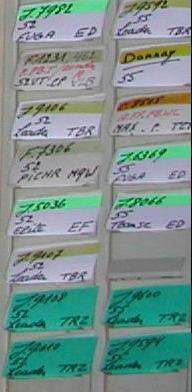

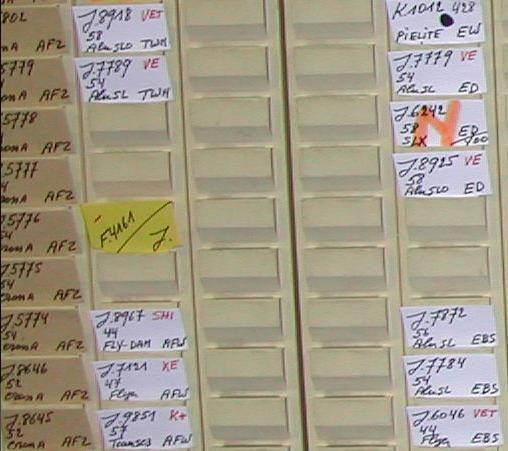

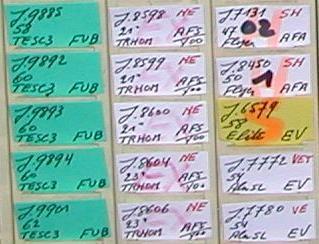

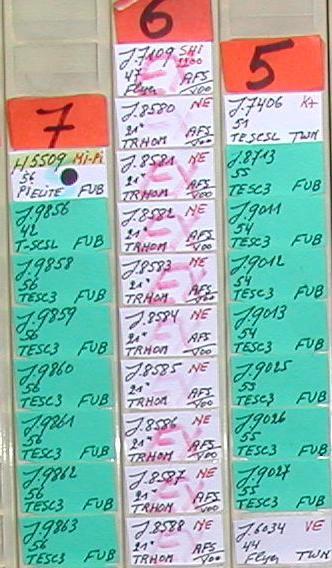

The serial markings and frame size are not questionable.
All those ED, AFW, EBS, TBR, FUB etc are paint pattern codes.
The VE, CET, NE etc. designations are mounted accessory groups (Veloce, Centaur Tri, Nexave etc.).
T.SCSL, TESC3, PiElite, TRHOM etc. are EMC models (Team SC slope, Team SC3, Pista Elite, Trekking Man)
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 03-11-22, 05:59 PM
  #137
Newbie

Join Date: Jan 2020
Location: Belgian coast
Posts: 8

Bikes: 15 Eddy Merckx, 2 Pinarello, 6 Concorde/billato, Vicini, Flanders TT 2 Colnago, Gazelle, Plum Vinquer,

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 3 Times in 3 Posts
no serial Team Marc VRD

i have 2 of The Team Marc VRD (zeepentrale) bikes from Marc Dierickx and Patrick sercu, both confirmed by Marc Janssens (employee 1981-1992)
only 4 remain of this temframes without serials, Jozef Bruyere's in the bikemuzeum in Roeselare and Jos Huismans's bike is in private collection.
Lenman is offline
Old 03-11-22, 11:51 PM
  #138
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
Priceless information!
But...
Josef Bruyere finished his career before the "acquisition" of Marc VRD by EMC, so the bike from Roeselare did not have time to be used in professional racing.
Jos Huysmans wasn't on team Marc VRD at all, he worked at EMC.
So far I have identified nearly 20 frames without serial numbers, including 5 without any markings.
Your frames are a treasure
Show them to all of us !
Thank you for your post
Jacek
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 03-12-22, 04:01 AM
  #139
Junior Member

Join Date: Jul 2020
Location: Australia
Posts: 130
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 123 Times in 50 Posts
Originally Posted by CyclesMakaron
Photo stolen from flickr

Excellent work finding this Jacek I find it cool that amongst the H and J serials are a few G, an F, and even a D that I am assuming was in for sti slides to be added to the head tube and a repaint. Also at this time still a few MX Leaders in the build too. Thanks, Sean.
Seanaus is offline
Old 03-29-22, 09:34 PM
  #140
Junior Member

Join Date: Jul 2020
Location: Australia
Posts: 130
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 123 Times in 50 Posts
Jacek, today's technical question is, what are your thoughts on the possibility of Corsa in Brain existing? I have seen recently one for sale, and searching internet seems to reveal a few more, but I am unsure if they are legitimate or not. As usual, thanks for you continued great work!
Seanaus is offline
Old 03-29-22, 11:34 PM
  #141
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 895
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 396 Times in 259 Posts
Only Strada OS (oversize tubes) were built with Brain tubes.
The Corsa model used Columbus SL or Reynolds 531 - standard size tubes.
Corsa 01 had oversize tubes.
Corsa Brain does not exist, mistakes in stickers and frame painting - they happen
CyclesMakaron is offline
Old 03-05-23, 03:09 AM
  #142
Steel is real

georges1's Avatar

Join Date: Mar 2013
Location: Not far from Paris
Posts: 2,122

Bikes: 1992Giant Tourer,1992MeridaAlbon,1996Scapin,1998KonaKilaueua,1993Peugeot Prestige,1991RaleighTeamZ(to be upgraded),1998 Jamis Dragon,1992CTWallis(to be built),1998VettaTeam(to be built),1995Coppi(to be built),1993Grandis(to be built)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 825 Times in 540 Posts
very interesting thread thanks for sharing
georges1 is offline
Old 10-24-23, 01:07 PM
  #143
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 1,103

Bikes: 40 - accumulated over 40 years

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 1,066 Times in 301 Posts
Since this is the most crazy wonderful source on everything regarding Eddy Merckx frames I put this info here.

If wanting to touch up frames in Merckx code "Blue83", light blue, of the early 80ies, Motip standard colour 54450 might be the thing. I have yet to try it but if the can contains anything like what is on the can cap it looks really promising. I have some paint touch ups to do - everything from a 20x25 mm that needs to be sprayed on and blended to the surrounding paint, to paint chips that only needs a dot of paint applied with a small brush.

I will get back with the results.

CyclesMakaron




Last edited by styggno1; 10-30-23 at 12:34 PM. Reason: spelling
styggno1 is offline
Likes For styggno1:
