Bottom Bracket gets loose every 3 or 4 turns

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Bottom Bracket gets loose every 3 or 4 turns

Old 05-17-21, 03:02 PM
  #1
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Bottom Bracket gets loose every 3 or 4 turns

My 1980 Miyata 610 cranks get a little play in them every few turns. The whole BB was loose a few months back and I could not get the cranks off so I had my LBS do the work. They said it looked fine and they just cleaned and relubed, I forgot to ask but I doubt they replaced the bearings even. Is this something I need to worry about, sure seems a little odd to me.
55murray is offline
Old 05-17-21, 03:39 PM
  #2
rgvg
Car free since 2018

Join Date: Aug 2017
Location: Vancouver, BC
Posts: 428

Bikes: Mostly japanese ones

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 55 Times in 39 Posts
Sealed or cup and cone? I had a bike with the bottom bracket coming loose and I was soooo sure the adjustable cup was tight. Turns out the fixed side was loose. Doh.
rgvg is offline
Old 05-17-21, 03:39 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,696

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,961 Times in 1,316 Posts
Originally Posted by 55murray View Post
My 1980 Miyata 610 cranks get a little play in them every few turns. The whole BB was loose a few months back and I could not get the cranks off so I had my LBS do the work. They said it looked fine and they just cleaned and relubed, I forgot to ask but I doubt they replaced the bearings even. Is this something I need to worry about, sure seems a little odd to me.
So arms loose on the spindle, spindle in the cups or cups in the frame?

Set up and adjusted correctly, none of this should come loose at all.

I would not ride this until it is completely sorted out, cause, effect and remedy.

No way this would ever end up at the shop, exactly for this reason.

This is why we have cartridge BB's now, hate to think of the good cup and cone parts that have been lost this way.

Last edited by merziac; 05-17-21 at 03:46 PM.
merziac is offline
Old 05-17-21, 03:51 PM
  #4
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,861

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 317 Times in 195 Posts
I recommend attending to it pretty quickly. I couldn't have ridden even 100 miles with a BB that got a little loose. I took it into an LBS I was close to when I realized what was happening, and a mechanic adjusted it correctly while I waited, but my axle got trashed, and I'm pretty sure that was because I had ridden with a loose BB. Maybe the Japanese stuff on your Miyata is more durable than the TA axle I had, but why take a chance?
philbob57 is offline
Old 05-17-21, 03:54 PM
  #5
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Thanks, so clarifications are original cup and cone, and spindle starts to play in the cups. Just rode it 66 miles last night...

Last edited by 55murray; 05-17-21 at 03:58 PM.
55murray is offline
Old 05-17-21, 04:07 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,696

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,961 Times in 1,316 Posts
Originally Posted by 55murray View Post
Thanks, so clarifications are original cup and cone, and spindle starts to play in the cups.
Well that still means one or both of the cups are coming loose so it all needs to come apart and be evaluated, sounds like one of the cups isn't staying tight.

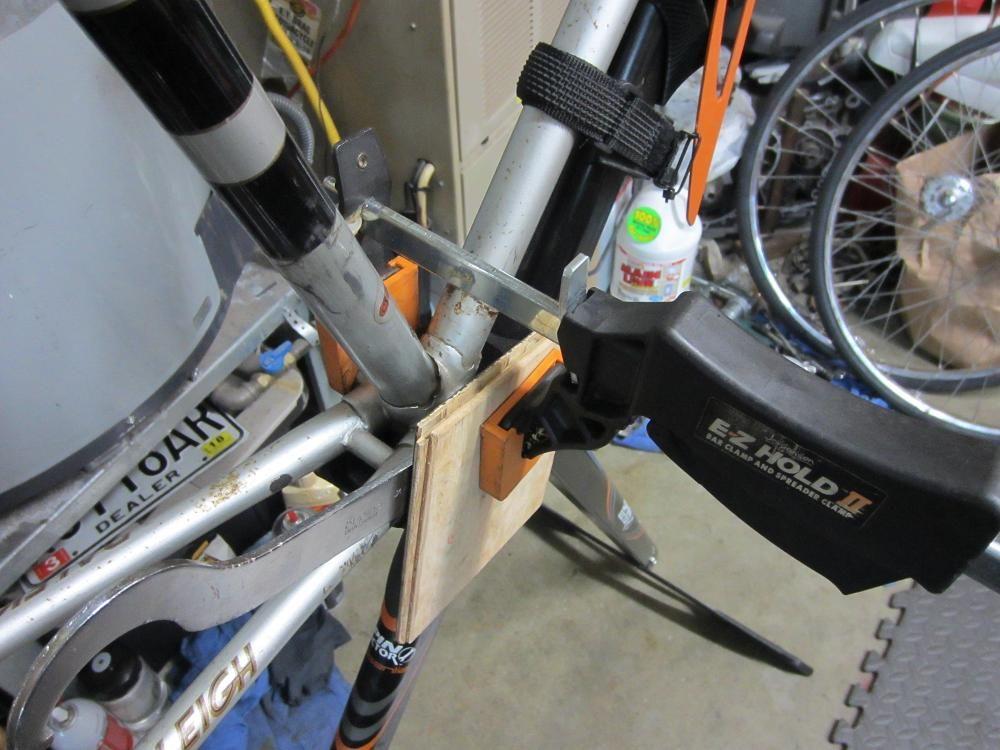

I would get it apart, clean all the threads and have a good hard look at the cups and BB shell then get after it with this setup to make sure the fixed cup is tight.

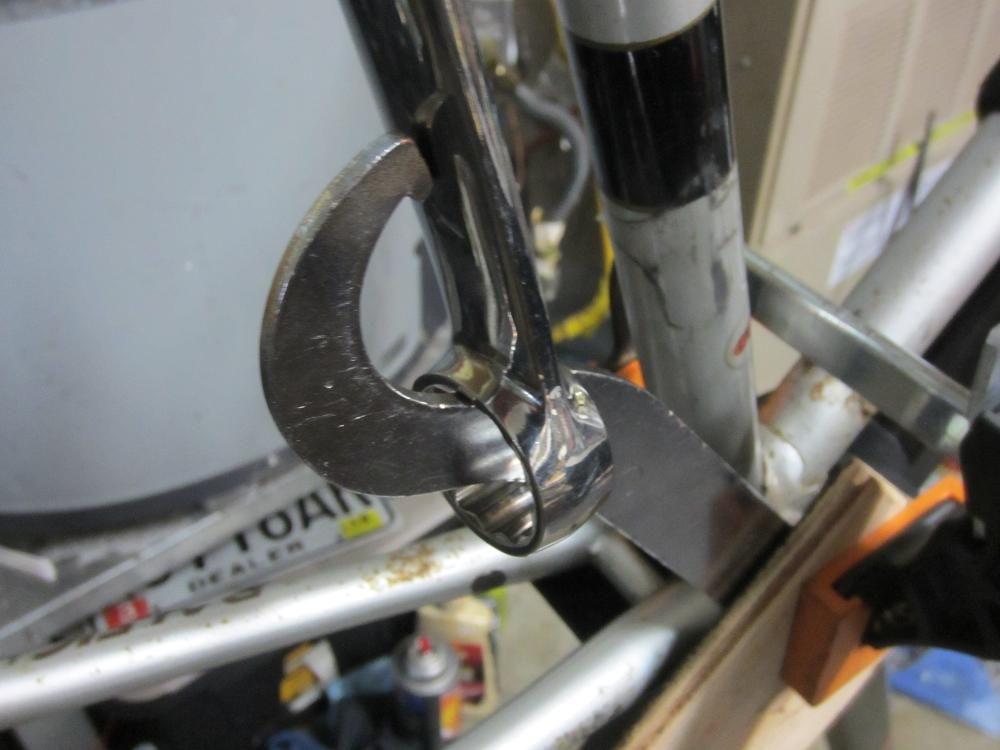

This same setup will always get them off when they are stuck without damaging any parts, pieces, tools, frames or flesh, ever, period.





merziac is offline
Likes For merziac:
Old 05-17-21, 04:38 PM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,240
Mentioned: 311 Post(s)
Tagged: 1 Thread(s)
Quoted: 2671 Post(s)
Liked 1,057 Times in 804 Posts
-----

one thing which might cause this symptom is damaged threads

simple enough to disassemble everything and check them

if damaged, chasing might be adequate to sort things

if damaged and chasing not adequate you could tap the shell out to italian

---

one odd thing which can cause an adjustable cup to loosen is if bottom bracket threads to do not go far enough in toward the centre of the shell

had one case of this in me workshop where the adjustable cup was butting up against the end of the threads right at the point where the bearing adjustment was correct. this caused end loading on the cup which caused it to loosen - an odd problem indeed.

-----
juvela is offline
Likes For juvela:
Old 05-17-21, 07:47 PM
  #8
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,826

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1982 Post(s)
Liked 2,328 Times in 1,268 Posts
Might be as easy as replacing the lock ring ... if it's the adjustable cup that is moving on you. Blue Loctite might be of some help.

Sorta a pita, but you can usually tighten the lock ring without removing the nds arm

Last edited by SurferRosa; 05-17-21 at 07:50 PM.
SurferRosa is offline
Old 05-17-21, 07:50 PM
  #9
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,781

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 610 Post(s)
Liked 745 Times in 407 Posts
Are the bearings caged? I had similar problems with a Sugino BB when I put the caged bearings in facing the wrong way ...
rustystrings61 is offline
Likes For rustystrings61:
Old 05-18-21, 07:22 AM
  #10
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Thanks much for all the info everyone! I'm taking your advise and putting the bike in inactive status until I take it apart and look at everything you pointed me to. I'll let you know what I find!
55murray is offline
Likes For 55murray:
Old 05-18-21, 09:02 AM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,211

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 1143 Post(s)
Liked 607 Times in 429 Posts
I've seen quite a few cup/cone bottom brackets where poor tolerances together with perhaps a less-than-perfect bb shell conspired to cause such symptoms.

So it may be no fault of the shop who rebuilt yours. I might just tighten the adjustment myself if that can get rid of the play without causing binding.

And as was mentioned, sometimes a bearing retainer gets put in backwards, or one or more balls falls out of place during assembly. Sometimes a ball breaks in half and causes problems, so I would inspect those closely and perhaps replace them with grade25 pieces.
dddd is offline
Old 05-18-21, 09:44 AM
  #12
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 512

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 150 Times in 95 Posts
I'm wondering if incorrect number of / wrong size / mismatched loose bearings could be the issue. It might seem tight at first, but as things start moving it goes out of adjustment.
Bianchi84 is offline
Old 05-18-21, 09:57 AM
  #13
cbrstar
BMX Connoisseur

cbrstar's Avatar

Join Date: Jun 2016
Location: Canada
Posts: 772

Bikes: 1988 Kuwahara Newport, 1983 Nishiki, 1984 Diamond Back Viper, 1991 Dyno Compe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Liked 104 Times in 67 Posts
When you have a BB that old you have to take it apart and clean the old grease out completely because grease crystalizes over time . I've seen so many bike shops squirt a little bit of new grease in there without proper cleaning. And it works for a little while then gums up and things start to loosen. But with the amount of riding you have done with it loose there's a good chance it's shot now. Luckily BB's are not that expensive to replace and I'd just buy a new one.
cbrstar is offline
Old 05-18-21, 01:40 PM
  #14
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Originally Posted by cbrstar View Post
Luckily BB's are not that expensive to replace and I'd just buy a new one.
Where would be a good place to get new parts, or good old parts? One thing I have not mentioned, is that when it came back from the shop I had to adjust both limit screws to get the shifting to work well again- it seemed that the rings moved closer enough to the frame to require this (it would jump off the large ring and would not reliably drop to my granny).

Yea, I have probably ridden the bike too much with this issue. It is my only decent road bike.
55murray is offline
Old 05-18-21, 03:25 PM
  #15
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,708

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 1,044 Times in 701 Posts
Suffice to say that you can't trust at least one mechanic in that shop. I'd mention it to the boss just to see what he says. A standup guy would appreciate the feedback.
clubman is offline
Old 05-18-21, 04:52 PM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,473
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 906 Times in 704 Posts
Originally Posted by 55murray View Post
Where would be a good place to get new parts, or good old parts? One thing I have not mentioned, is that when it came back from the shop I had to adjust both limit screws to get the shifting to work well again- it seemed that the rings moved closer enough to the frame to require this (it would jump off the large ring and would not reliably drop to my granny).

Yea, I have probably ridden the bike too much with this issue. It is my only decent road bike.
Oh dear-
upon taking it apart, note if the spindle has a longer side of favored projection, longer is for the drive side. (asymmetrical)
A big enough change in position upon service suggests to me-
flipped spindle
(other organic problems as noted earlier)
lubricated tapers /arms - I suggest dry fit, not lacquer thinner dry, but not greased.
there are many young mechanics that just don't have the "knowledge"

What brand / model of cranks are you working with?
repechage is offline
Likes For repechage:
Old 05-18-21, 05:16 PM
  #17
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,696

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,961 Times in 1,316 Posts
Originally Posted by clubman View Post
Suffice to say that you can't trust at least one mechanic in that shop. I'd mention it to the boss just to see what he says. A standup guy would appreciate the feedback.
When I jumped back into bikes about 10 years ago, I went around to most of the shops to gauge their C+V acumen, it was abysmal for the most part. The funny thing is, my local Performance was the most onboard from the manager on down.

The rest were always like "huh, what, oh so and so is the old bike guy" some of them were none to thrilled about it and some pointed me to a guy that was all of maybe 30 and far from enthusiastic so most were not a place I would recommend.

At this juncture we are too far down the line with threadless, cartridge, throwaway cookie cutter, profit at all costs crap to trust anybody else with our stuff, if we want it done right, we need to do it ourselves.

Most of this is not that hard, until it is and when a shop gets stuck, they are often quick to "upsell" you to the modern corner cutting cartridge or whatever "the old one was worn out, just old, too fussy, etc." , in other words they couldn't figure it out, may have screwed it up so here you are, not original anymore, old parts scrapped, SOL.
merziac is offline
Old 05-18-21, 05:58 PM
  #18
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Originally Posted by repechage View Post
What brand / model of cranks are you working with?
Thanks for that tip, I'll look out for that! It is a Suntour Custom Triple.

Last edited by 55murray; 05-18-21 at 06:04 PM.
55murray is offline
Old 05-18-21, 06:00 PM
  #19
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,708

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 1,044 Times in 701 Posts
Originally Posted by 55murray View Post
Thanks for that tip, I'll look out for that! It is a Suntour Custom.
Customs come in double and triple flavours...I have a triple mounted on a bike.


Last edited by clubman; 05-18-21 at 06:05 PM.
clubman is offline
Likes For clubman:
Old 05-18-21, 06:01 PM
  #20
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,628

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 506 Times in 360 Posts
Interesting -- I have never had an English or Swiss (left-threaded) fixed cup come loose, because they self-tighten as you ride. In contrast, I have had to resort to Loctite and heavy torque to keep some French and Italian fixed cups fixed, because they self-loosen as you ride.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-18-21, 06:08 PM
  #21
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Originally Posted by clubman View Post
Customs come in double and triple flavours...I have a triple mounted on a bike.

That is dead ringer for what I have!
55murray is offline
Old 05-18-21, 06:11 PM
  #22
cbrstar
BMX Connoisseur

cbrstar's Avatar

Join Date: Jun 2016
Location: Canada
Posts: 772

Bikes: 1988 Kuwahara Newport, 1983 Nishiki, 1984 Diamond Back Viper, 1991 Dyno Compe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Liked 104 Times in 67 Posts
Originally Posted by 55murray View Post
Where would be a good place to get new parts, or good old parts? One thing I have not mentioned, is that when it came back from the shop I had to adjust both limit screws to get the shifting to work well again- it seemed that the rings moved closer enough to the frame to require this (it would jump off the large ring and would not reliably drop to my granny).

Yea, I have probably ridden the bike too much with this issue. It is my only decent road bike.
There's quite a few shops down the road in Indianapolis. I would try googling "BIke Co-Op" which I think there was 4 listed!. It would be the cheapest route and you will get a chance to learn how to fix it yourself.
cbrstar is offline
Likes For cbrstar:
Old 05-18-21, 06:21 PM
  #23
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,708

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1882 Post(s)
Liked 1,044 Times in 701 Posts
Originally Posted by 55murray View Post
That is dead ringer for what I have!
If I find time tomorrow, perhaps I can pop the crank off for a measurement.
clubman is offline
Old 05-18-21, 08:34 PM
  #24
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,969
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 390 Post(s)
Liked 203 Times in 129 Posts
Originally Posted by Bianchi84 View Post
I'm wondering if incorrect number of / wrong size / mismatched loose bearings could be the issue. It might seem tight at first, but as things start moving it goes out of adjustment.
I will second that emotion: count the bearing balls on each side, and measure their size -- when I first read this thread, that's the thought that occurred to me, but it's such a stupid error that I was embarrassed to bring it up. However, if bike shop maintenance was involved, there's no end of reasons why you may have gotten the know-nothing, who failed counting and "some of these balls are not like the others" in grade school, wrenching while doing a Lothario on his phone.
Charles Wahl is offline
Old 05-21-21, 07:07 AM
  #25
55murray
Senior Member
Thread Starter

55murray's Avatar

Join Date: Apr 2017
Location: Lafayette, Indiana
Posts: 440

Bikes: 1955 20" Murray modified cruiser, 2007 Trek 7.3 FX, 1980 Miyata 610, several other vintage coaster brake machines

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 79 Times in 41 Posts
Well, everybody was pretty much spot on about this! Components pretty much trashed, the worst being the fixed side cup. That cup was not completely loose, but it was not as tight as it should have been it came loose with very little effort. Sure enough, the spindle had been reversed by the LBS, with the short side on the rings. It had caged 9 count bearings, properly installed, with some just falling out of the cages upon disassembly. Good news it the cranks are OK, the BB shell is good with all threads in fine shape.

Debating about trying to stay vintage or just get a cartridge, standard English size and threads, seems to be 124.5mm spindle. I don't think I need to worry about the offset on the spindle since the bike seemed to run just fine with the thing reversed!
55murray is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
