Hammertone or similar paint experiences?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Hammertone or similar paint experiences?

Old 05-19-21, 03:36 AM
  #1
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 2,047
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 763 Post(s)
Likes: 0
Liked 807 Times in 495 Posts
Hammertone or similar paint experiences?

Has anyone painted a frame with hammertone or similar effect paint, what did you use, how did it turn out?

I read that hammertone works because of two incompatible solvents, which form the random cell structure as they dry at slightly different rates.

They also like to be applied on flat level surfaces, which bicycles aren't, and in thick coats, probably runny on a frame tube.

What I'm after is a metallic undercoat with some sort of pebbled or grainy look to it, not sparkly, over which will go a transparent colour coat.
oneclick is offline
Old 05-19-21, 06:39 AM
  #2
Krov9
Junior Member

Krov9's Avatar

Join Date: Mar 2021
Location: Helsinki, Finland
Posts: 108
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 23 Times in 18 Posts
I'm interested, too.

​​​Hammerite claims that you can just apply it straight over rust - I doubt that. I think some early 90's bikes came stock with this kind of finish?

Edit: I assume you are looking for something similar to this

Last edited by Krov9; 05-19-21 at 06:42 AM.
Krov9 is offline
Likes For Krov9:
Old 05-19-21, 07:33 AM
  #3
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 2,047
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 763 Post(s)
Likes: 0
Liked 807 Times in 495 Posts
Originally Posted by Krov9 View Post
I'm interested, too.

​​​Hammerite claims that you can just apply it straight over rust - I doubt that. I think some early 90's bikes came stock with this kind of finish?

Edit: I assume you are looking for something similar to this
Not that dramatic - more like an orange-peel effect, more like this, except in silver:


oneclick is offline
Old 05-19-21, 08:51 AM
  #4
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,712

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto/Raleigh

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 630 Post(s)
Liked 256 Times in 185 Posts

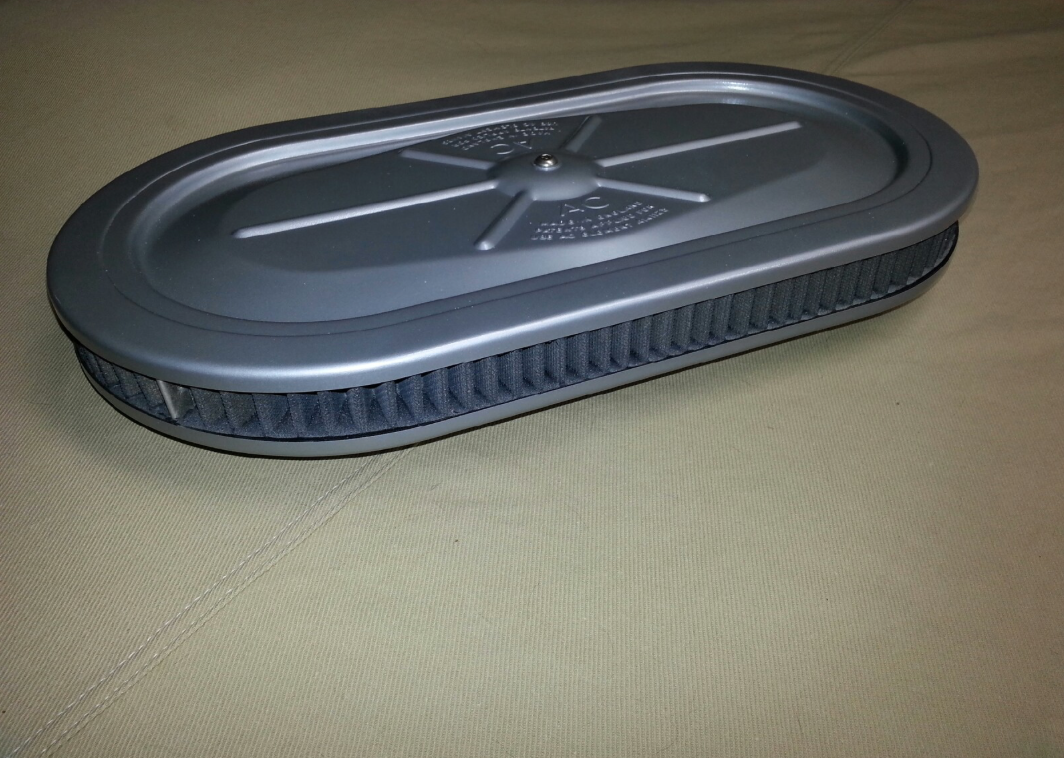

Original factory finish on the air cleaner housing on Sunbeam Tigers, I could ask the owners' group for feedback on sources and application if you like; that's not a perfectly flat surface, I found the following picture online (my car has the importer-installed chrome dress up kit including the air cleaner, so I never that to mess with it).

__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto, 197x Raleigh Gran Sport. Susan: 1976 Windsor Profesional.

tiger1964 is offline
Old 05-19-21, 09:03 AM
  #5
Krov9
Junior Member

Krov9's Avatar

Join Date: Mar 2021
Location: Helsinki, Finland
Posts: 108
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 23 Times in 18 Posts
Originally Posted by oneclick View Post
Not that dramatic - more like an orange-peel effect, more like this, except in silver:


A plenty of old stationary drills (what do you call them again), bench vices and the like used to come in that kind of finish
Krov9 is offline
Old 05-19-21, 10:25 PM
  #6
cheffyjay
Junior Member

cheffyjay's Avatar

Join Date: Sep 2017
Location: Seattle
Posts: 123

Bikes: Masi Gran Criterium, Derosa, Ron Cooper, Davidson, Miyata 912, Le Jeune, Klein Rascals, AMP Research B3, B4, B5, PX10,Holdsworth, Schwinn Paramount, Frejus,Simoncini, Cecil Walker, Bianchi + Ti Cycles cyclocross

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 72 Times in 29 Posts
i painted a stumpjumper with hammerite in the 1990s. I think my prep was lacking as it wasn't particularly durable. It didn't really achieve the hammered look either, but somewhat close to the image on hammerite wikipedia. sort of mottled. I let a co-worker borrow the bike and never saw it again, so I don't know how it held up long term.
cheffyjay is offline
Old 05-20-21, 05:47 AM
  #7
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 7,184
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 537 Times in 277 Posts
Hamnertone requires a fairly heavy application to get the effect. A bicycle with its skinny tubes and angles requires multiple light coats to avoid drips and sags.

I sprayed an old Schwinn Continental frame with hammertone. The result was a sort of coarse spray finish with little of the hammertone effect.
big chainring is offline
Old 05-20-21, 06:27 AM
  #8
JulesCW
Full Member

Join Date: Aug 2012
Location: Upper third of the central USA
Posts: 256

Bikes: N+1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 177 Times in 112 Posts
I used it on a set of early 1900s beefy double coat hooks -- they are cast metal and were rusted and pitted -- I stripped them and painted them with hammertone and it worked great -- the pebbly surface masking the pits, and they've been very durable for 6+ years.

I'm not sure I'd use it on a bike frame, though, as it is a fairly thick application, and if the frame has any fine details they'll be obscured, and it also has more depth/size than standard spray paint.

It is an interesting idea, but I'd try it on part of a junker frame first before applying it to anything I'd want to keep to be sure it worked and gave the look i wanted. Good luck!
JulesCW is offline
Old 05-20-21, 06:28 AM
  #9
TugaDude
Senior Member

TugaDude's Avatar

Join Date: Nov 2010
Posts: 3,025
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 401 Times in 291 Posts
Regarding the manufacturer's claims that the product can be applied directly over rust, well of course it can. So can any product. That doesn't mean it is going to be durable. There is rust and then there is rust. I have worked in the chemicals business for more than 30 years and I deal with corrosion on a regular basis. Having said that, there are some products that CAN be applied successfully over a corroded surface and become durable. The reason is that rusting stops the minute you remove something from the corrosion chain and in this instance it is oxygen. Remove oxygen and rusting or corrosion ceases. So if the coating is impermeable, no more rusting can happen, period. Now all that matters is how much rust was there and how tight to the host metal was that rust. Most of us can vouch for the fact that some rusted steel is very difficult to remove. If that's the case, then the coating will probably work OK. Any loose rust must, however, be removed. So just to be safe, a light cleaning of the rusted areas should take place.

Having said all of that, remember, manufacturer's claims are often to help promote sales. Spraying over a rusted surface is a lot more appealing than stripping down to white metal (the term for steel that has had all rust removed). If you have the time and the inclination, do yourself a favor and remove the rust!
TugaDude is offline
Old 05-20-21, 10:33 PM
  #10
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Soviet of Oregon or the NW Florida Redoubt
Posts: 5,195

Bikes: Still have a few left!

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 286 Times in 169 Posts

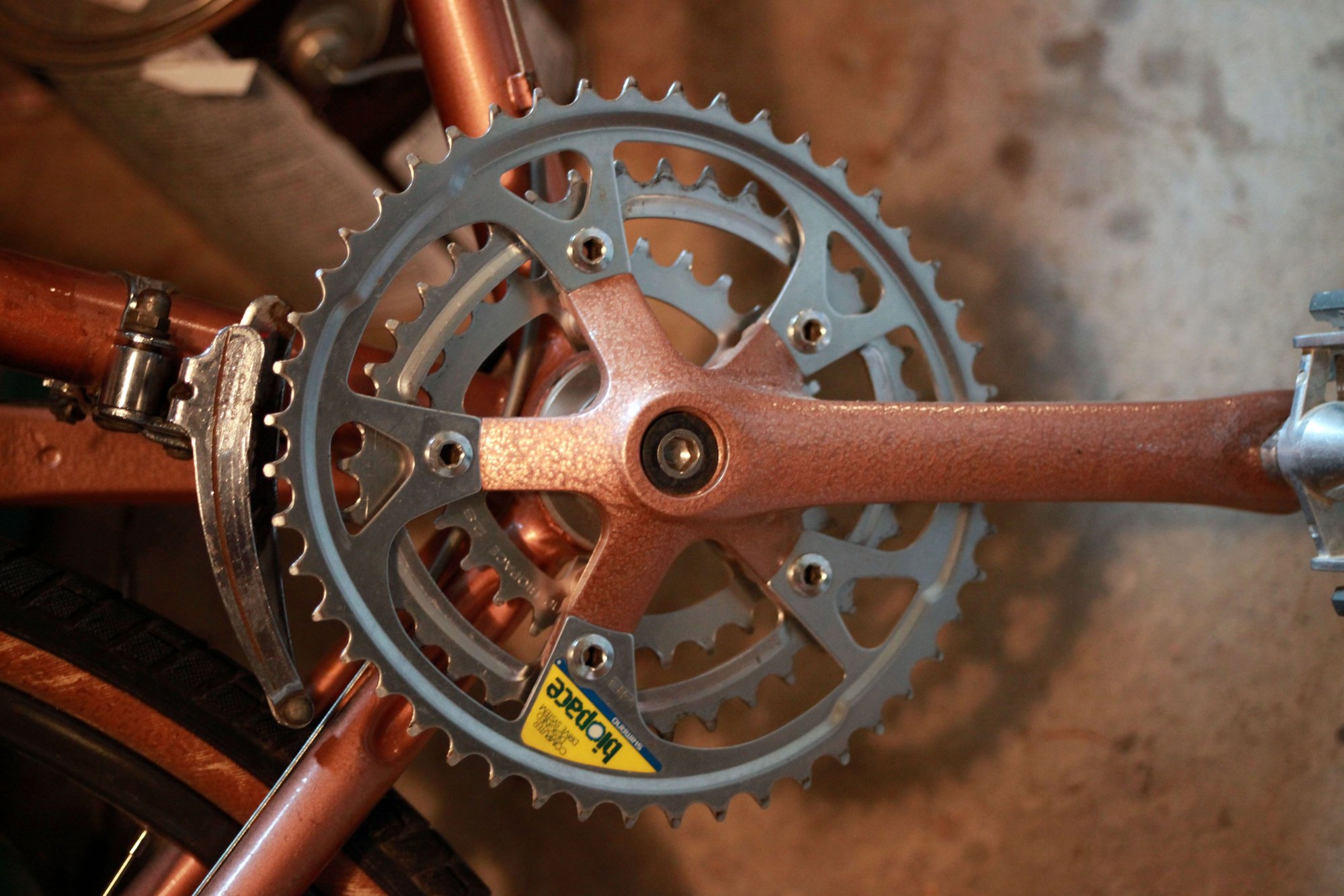

I converted my 1966 Schwinn Super Sport to a modern cartridge bottom bracket with a triple crank. Crank arms were battered, scratched and gouged. Got some hammered copper paint advertised to "cover and hide flaws and imperfections", think it was Rustoleum (I'll check tomorrow). I'm pleased with how it turned out. Don

Hammered Copper On Battered Crank
ollo_ollo is offline
Likes For ollo_ollo:
Old 05-30-21, 01:54 AM
  #11
Krov9
Junior Member

Krov9's Avatar

Join Date: Mar 2021
Location: Helsinki, Finland
Posts: 108
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 23 Times in 18 Posts
Here's an excellent example of a "hammered" finish, again a rougher one than what you look for. From what I've heard, DIY products such as Hammertone, Hammerite etc. give less drastic contrasts so that might indeed be what you're looking for.

bikecult.com > bikeworks nyc > archive bicycles > yamaguchi tt track




Krov9 is offline
