7 speed downtube shifter levers on 6 speed bar end mounts?

Old 05-21-21, 09:26 AM
  #1
drewfio
Senior Member
Thread Starter

Join Date: Jun 2020
Location: New York, NY
Posts: 53

Bikes: '87 Miyata 912, '88 Schwinn Voyageur, Mystery custom bike w/ Columbus tubes; Trek 1100, Miyata Pavea. Hoping my stolen Casati Ellisse will one day return to me.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 6 Times in 5 Posts
7 speed downtube shifter levers on 6 speed bar end mounts?

Hello,

I have a bike currently set up with 7 speed indexed downtube shifters. I've been curious about using bar end shifters. I have a 6 speed indexed bar end shifters I pulled off another bike (never road it, since it was "for parts" condition) a while ago which I never used. I've seen mounts for attaching downtube shifters to bar ends, but I was wondering if I could use the same mounts as are on the 6 speed, and just replace the levers. Is this possible/reasonable?
drewfio is offline
Old 05-21-21, 09:37 AM
  #2
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 791
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 11 Times in 11 Posts
Depends on the shifters. I know the modern Shimano bar end shifters pods will accept just about any DT shifter that fits on the standard post, but I don't think they go back as far as 6 speed indexing, the fewest I've ever seen is 7 speed. If its the suntour accushift 6-speed bar-end shifters I'd be a little more skeptical about mixing and matching parts. The two sets I've had of those were very finicky just by themselves.
degan is offline
Old 05-21-21, 09:47 AM
  #3
drewfio
Senior Member
Thread Starter

Join Date: Jun 2020
Location: New York, NY
Posts: 53

Bikes: '87 Miyata 912, '88 Schwinn Voyageur, Mystery custom bike w/ Columbus tubes; Trek 1100, Miyata Pavea. Hoping my stolen Casati Ellisse will one day return to me.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 6 Times in 5 Posts

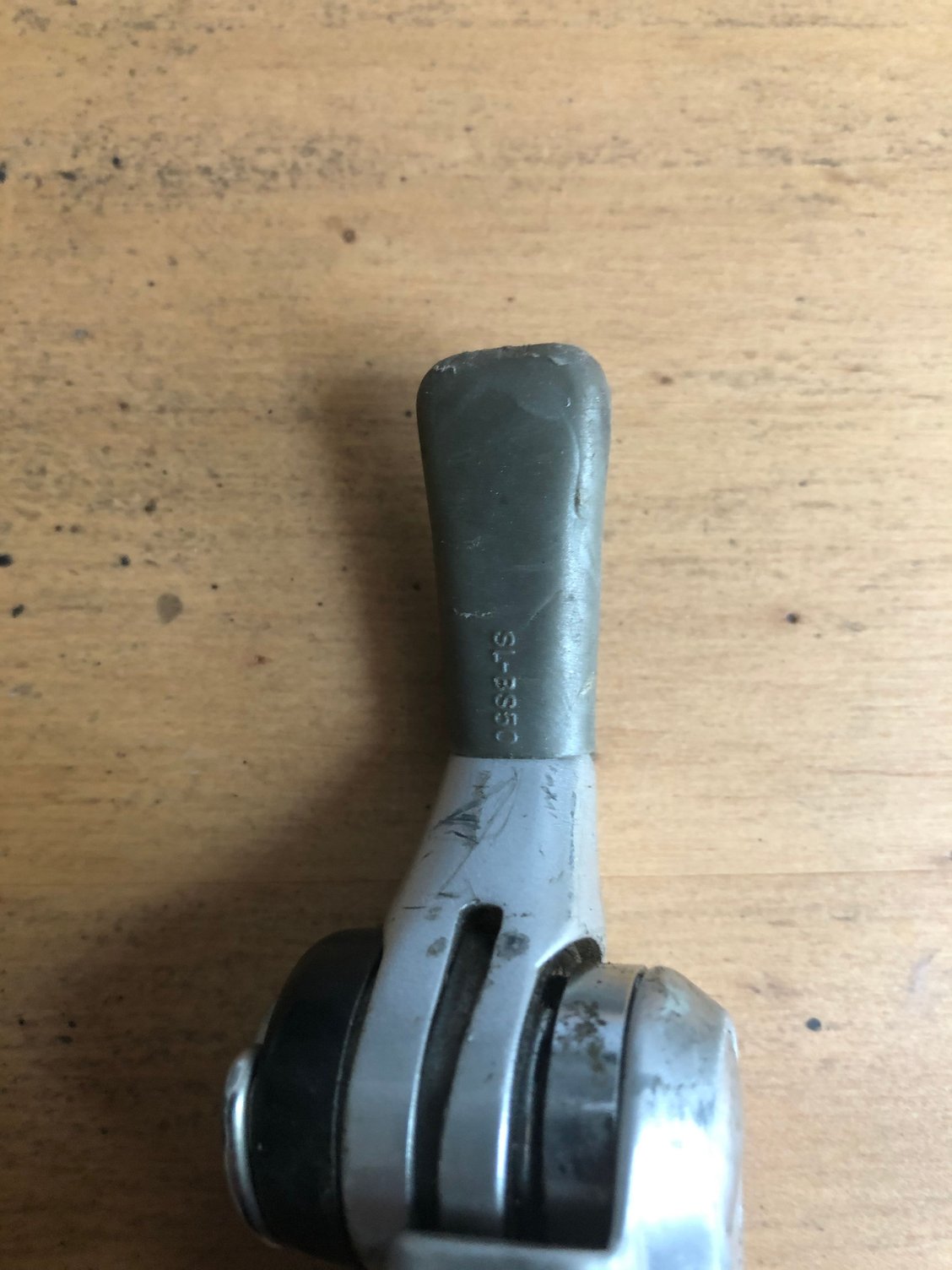

Here are some photos of the parts in question. The downtube 7s shifter I believe is Shimano SL-A410 (not marked), and the bar end shifters say SL-BS50.



drewfio is offline
Old 05-21-21, 09:57 AM
  #4
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,850

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 124 Times in 75 Posts
This thread should be helpful.

Shimano SL-BS50 bar end shifter 6 spd adapter
brian3069 is online now
Likes For brian3069:
Old 05-21-21, 10:16 AM
  #5
drewfio
Senior Member
Thread Starter

Join Date: Jun 2020
Location: New York, NY
Posts: 53

Bikes: '87 Miyata 912, '88 Schwinn Voyageur, Mystery custom bike w/ Columbus tubes; Trek 1100, Miyata Pavea. Hoping my stolen Casati Ellisse will one day return to me.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 6 Times in 5 Posts
Oh! super Helpful. It turns out it does have one of the adapters mentioned in thread in there already, making it 6 speed. I also, when pulling it apart just now found it seems to have the square mount inside oriented wrong (it was only clicking 3 times). When I spun it around into a different orientation, it in fact clicks 7 times, so it is an 8 speed? It doesn't seem to shift great, and my current downtube shifts quite well, but maybe worth giving it a shot as is (since 8 speed shifter I understand can shift a 7 speed cassette)?

Last edited by drewfio; 05-21-21 at 10:17 AM. Reason: clarification
drewfio is offline
Old 05-21-21, 10:41 AM
  #6
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,850

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 124 Times in 75 Posts
I don't know why you're getting an extra click, but your shifters should be 7 speed with the adapter removed. My understanding is that the 8 speed version (sl-bs-50-8) is Dura Ace only, it can't be converted to 6 speed.
brian3069 is online now
Old 05-21-21, 11:51 AM
  #7
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 762
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 317 Times in 196 Posts
Originally Posted by drewfio View Post
Oh! super Helpful. It turns out it does have one of the adapters mentioned in thread in there already, making it 6 speed. I also, when pulling it apart just now found it seems to have the square mount inside oriented wrong (it was only clicking 3 times). When I spun it around into a different orientation, it in fact clicks 7 times, so it is an 8 speed? It doesn't seem to shift great, and my current downtube shifts quite well, but maybe worth giving it a shot as is (since 8 speed shifter I understand can shift a 7 speed cassette)?
I noticed the same thing with my 7 speed BS50. For some strange reasons, it has 7 clicks, which technically gives it 8 positions.
icemilkcoffee is offline
Old 05-21-21, 12:12 PM
  #8
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 590
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 276 Post(s)
Likes: 0
Liked 246 Times in 175 Posts
Originally Posted by icemilkcoffee View Post
I noticed the same thing with my 7 speed BS50. For some strange reasons, it has 7 clicks, which technically gives it 8 positions.
Yep. There's a low-side overshift built into the shifters, to allow for bail-out downshifts under load. This is why you can use a 7 speed shifter on an 8 speed bike and the indexing works. I had a mountain bike set up this way, because I hate trigger shifters. (8 speed cassette, 9 speed XTR rear derailleur, 7 speed XT thumbshifters, best-shifting MTB I've ever owned)

--Shannon
ShannonM is offline
Old 05-21-21, 02:47 PM
  #9
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100° with 110% humidity
Posts: 1,274

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Liked 255 Times in 120 Posts
Here’s my 7sp setup.

tyler_fred is offline
Likes For tyler_fred:
