1983 Schwinn Voyageur SP

My 700c Conversion Voyageur SP "boomerang" bike. I picked this bike up off of CL about 4-5 ears ago, pretty much stock. I swapped in upright bars and shifters so my teenage son could use it. He got his drivers license and rarely did so it sat in my garage for a long time, unused.

I was talking with a co-worker one day and he let me know he was looking for a bike to get back into riding so I sold him this bike with some different bits on it at the time for pretty cheap. HE loved it, rode it all over the place and got bitten by the C&V bug,

I helped him snag a Ti Lemond road bike that was a bit too small but it got him focused on road bikes. He then picked up a vintage Kestrel CF bike and I helped him make some mods on that and he has been riding that pretty much exclusively. He then sold me this bike back tome for half of what I sold it to him for originally and now it was back in my garage, again. Boomerang always returns.....















Last edited by fender1; 05-23-21 at 08:05 PM.
fender1 is offline
Likes For fender1:
Old 05-23-21, 07:51 PM
  #2
fender1
Senior Member
Thread Starter

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,150

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 248 Times in 82 Posts






fender1 is offline
Likes For fender1:
Old 05-23-21, 08:00 PM
  #3
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,542

Bikes: Lots. Just...lots.

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 1555 Post(s)
Liked 1,003 Times in 469 Posts
MMM mmmmmmm.
Nicely done, sir!
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 05-23-21, 08:03 PM
  #4
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,686
Mentioned: 362 Post(s)
Tagged: 0 Thread(s)
Quoted: 2397 Post(s)
Liked 2,273 Times in 1,125 Posts
Nice! Everyone should have a bicycle/pick-up truck.
nlerner is online now
Likes For nlerner:
Old 05-23-21, 08:09 PM
  #5
fender1
Senior Member
Thread Starter

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,150

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 248 Times in 82 Posts
Originally Posted by nlerner View Post
Nice! Everyone should have a bicycle/pick-up truck.
Pretty much what I was thinking when I put it together. I have done errands and shopping with it and its been a great addition.
fender1 is offline
Old 05-23-21, 08:48 PM
  #6
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,373

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 708 Post(s)
Liked 518 Times in 387 Posts
canti bosses a little high for the conversion? you got'em to work, though

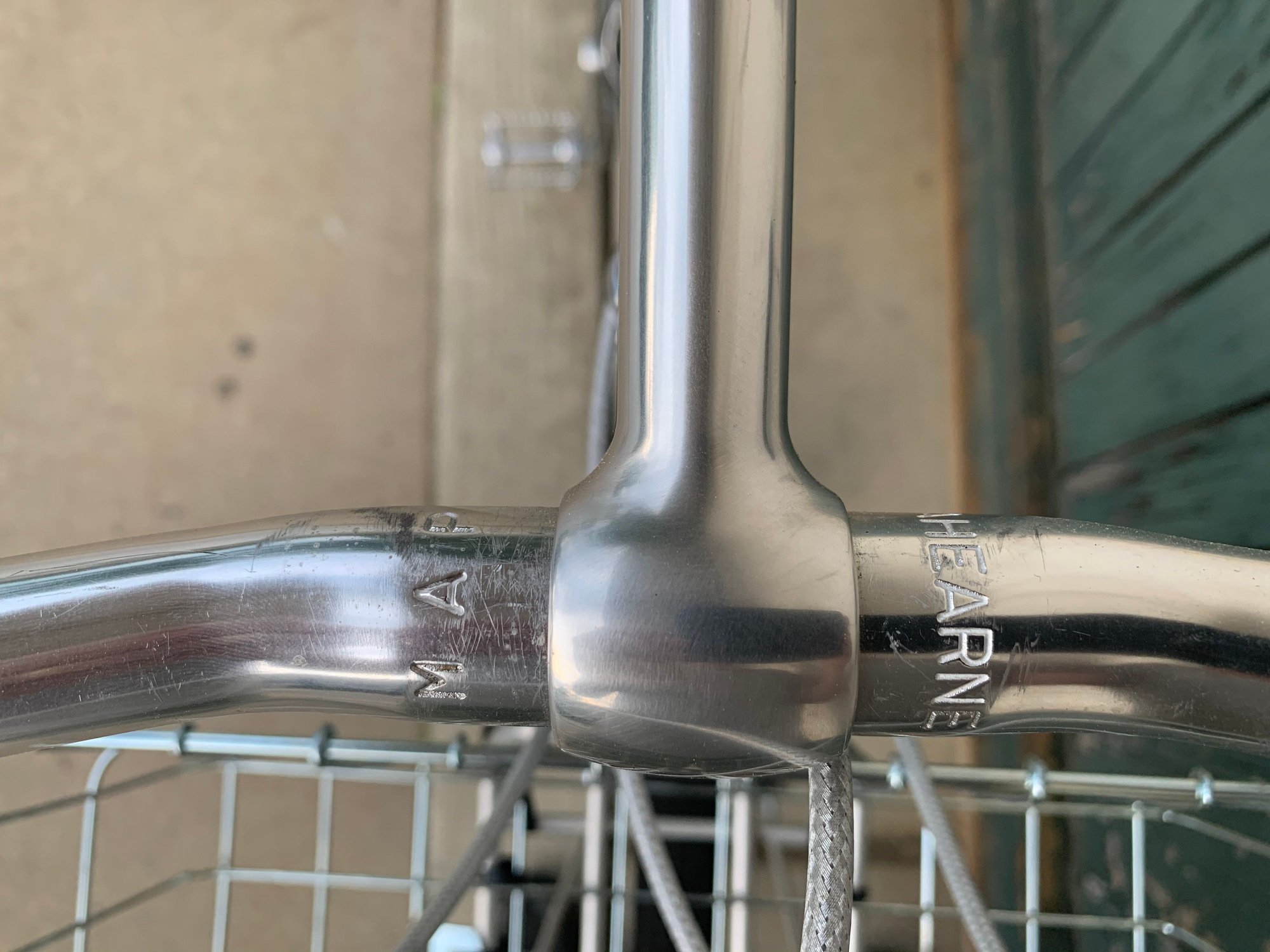

sure wish those map bars weren't as pricey. i wouldn't mind having some myself. very nice build!
thook is offline
Old 05-24-21, 05:27 AM
  #7
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,798

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5234 Post(s)
Liked 1,863 Times in 1,218 Posts
Very clean bike and nice build. I like the front basket
bikemig is offline
Likes For bikemig:
Old 05-24-21, 06:16 AM
  #8
Sierra
Uff Da!

Join Date: Sep 2003
Posts: 1,083
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 50 Times in 25 Posts
Those thumb shifters seem to be like gold these days.
Sierra is offline
Likes For Sierra:
Old 05-24-21, 06:20 AM
  #9
Davswar
Junior Member

Join Date: May 2021
Location: Ohio
Posts: 6

Bikes: Univega Nuovo Sport, Univega Viva sport, Trek 4300

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 1 Time in 1 Post
I dig it.
Davswar is offline
Likes For Davswar:
Old 05-24-21, 07:17 AM
  #10
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 887
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 55 Times in 40 Posts
Well done.
OTS is online now
Likes For OTS:
Old 05-24-21, 07:51 AM
  #11
fender1
Senior Member
Thread Starter

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,150

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 248 Times in 82 Posts
Originally Posted by fender1 View Post
Pretty much what I was thinking when I put it together. I have done errands and shopping with it and its been a great addition.

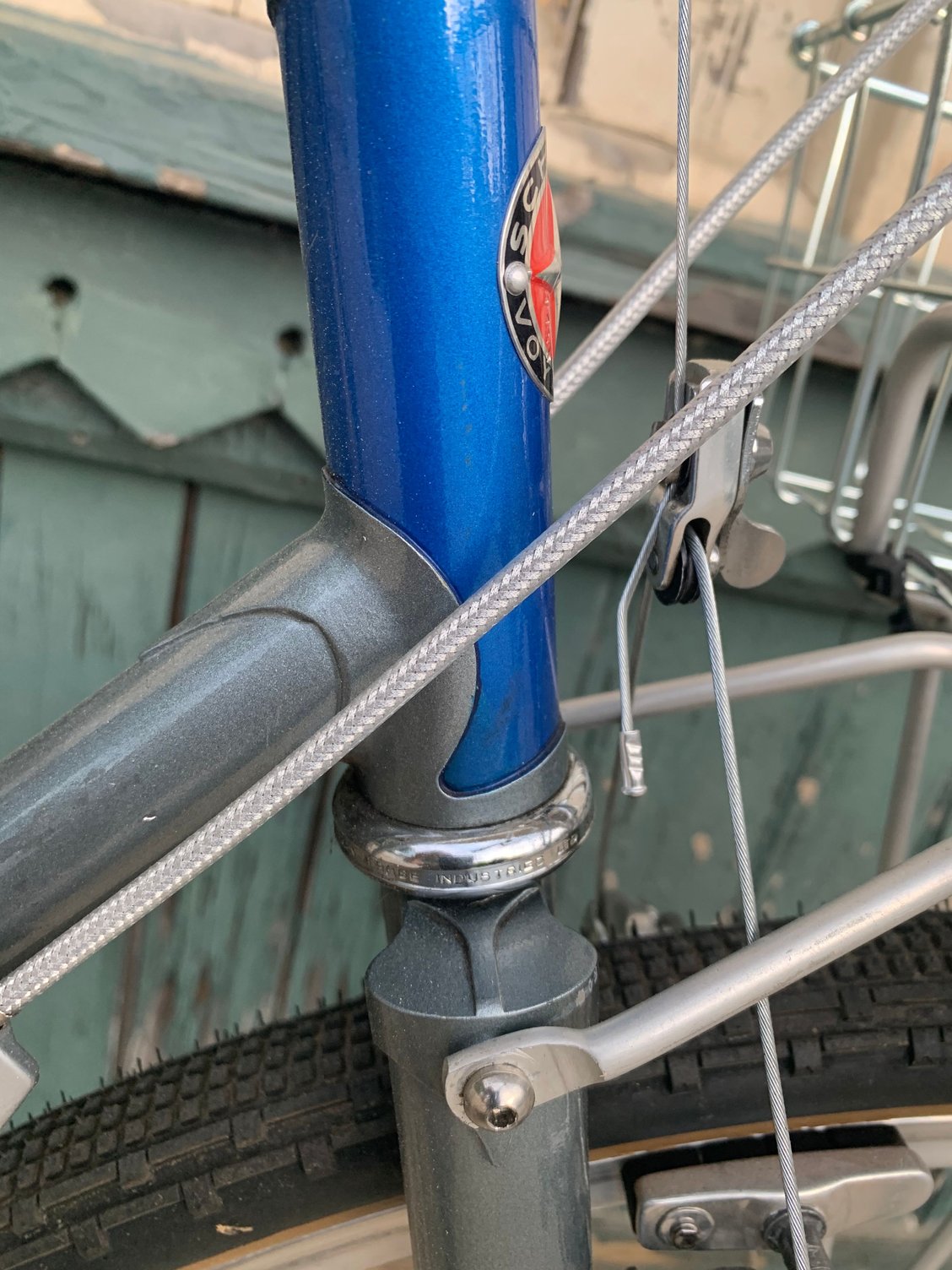

The brakes were a challenge. Not so much the height of the posts but the width. The front canti mounts are only 60mm wide and the rear are 65mm wide. Super narrow by modern canit brake standards. I had removed the original Dia Compe canti's (not sure what model) as I could not get them to work well with 700c wheels. This was probably more about my ability to set them up properly, than it had to do with the brakes. Those original brakes enede up being donated to the local co-op after this bike was sold. I installed some older Shimano SLR canti's and they worked OK but were never really very powerful.

When I got the bike back I noticed how the rear drive side pad was worn way out of spec and then realized my initial set up was pretty bad. I went thorugh about 9 different types of cantis and the only ones that worked were the Dia Compe 981's that are currently installed. I wanted to post this up for anyone who may enounter this in the future. Start with the 981's and save yourselt the time and aggravation of the trial and error cantilever brake installation!
fender1 is offline
Old 05-24-21, 08:21 AM
  #12
Kobe
Senior Member

Kobe's Avatar

Join Date: Feb 2007
Location: Schwenksville, Pa
Posts: 2,728
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 125 Times in 93 Posts
Don't let this one get away again. Your son will probably want it back once he sees the current set up.
__________________
'85 Specialized Expedition, '88 Proteus,'92 Trek 790, '07 Rivendell AHH, '13 Black Mountain Cycles Cross, '16 Clockwork All-Rounder, '19 Gunnar Sport








Last edited by Kobe; 05-24-21 at 08:25 AM.
Kobe is offline
Likes For Kobe:
Old 05-24-21, 09:28 AM
  #13
johnnyace
Le savonnier

johnnyace's Avatar

Join Date: Sep 2016
Location: Oregon
Posts: 1,568

Bikes: Peugeot PXR80, Motobecane Grand Record, Hampsten Strada Bianca

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 654 Post(s)
Liked 355 Times in 186 Posts

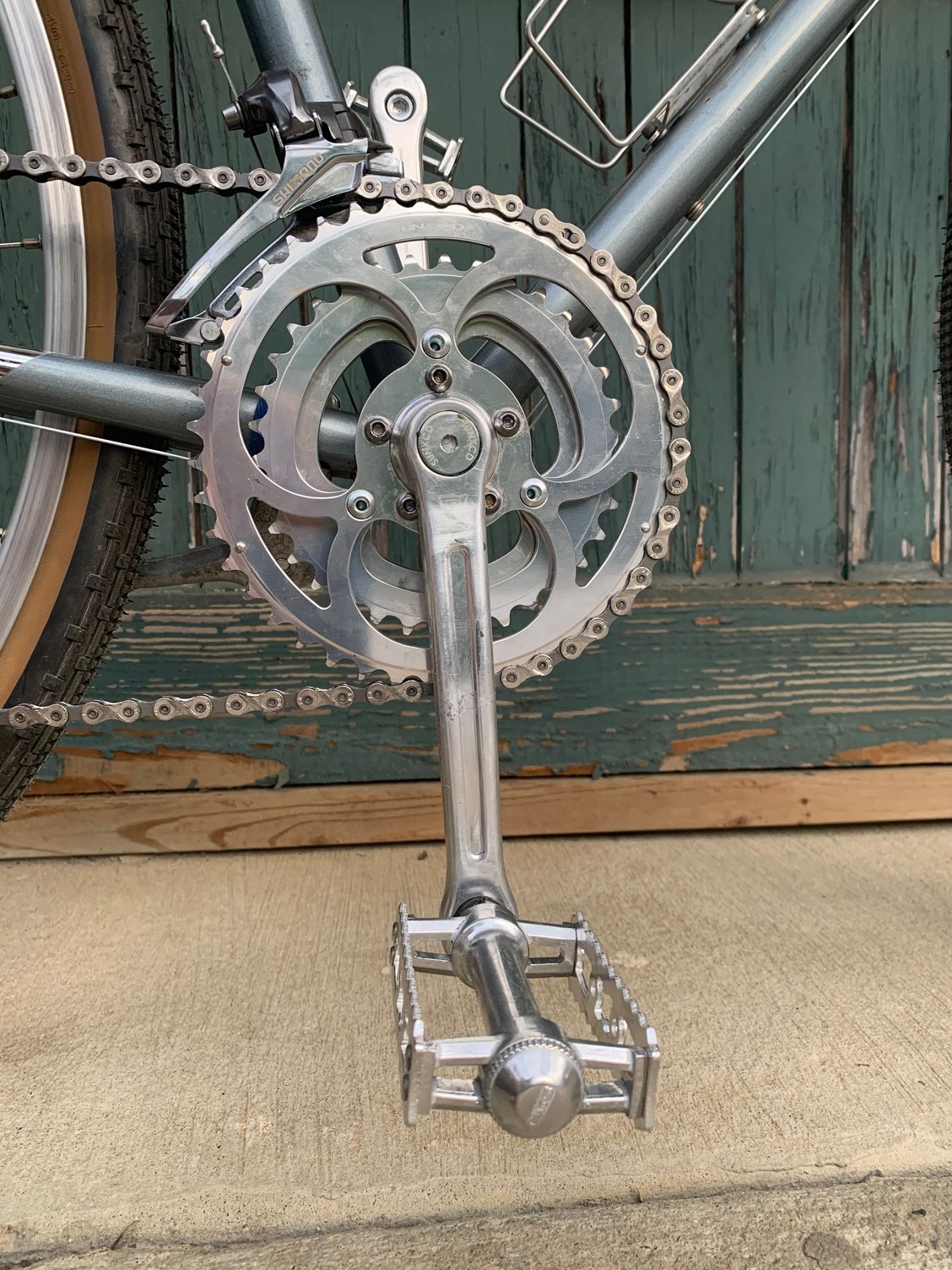

Very nice, I love that SunXCD triple. Those Voyageur SPs are great bikes.
__________________
Bikes and stuff
johnnyace is offline
Likes For johnnyace:
Old 05-24-21, 11:43 AM
  #14
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,373

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 708 Post(s)
Liked 518 Times in 387 Posts
Originally Posted by fender1 View Post
The brakes were a challenge. Not so much the height of the posts but the width. The front canti mounts are only 60mm wide and the rear are 65mm wide. Super narrow by modern canit brake standards. I had removed the original Dia Compe canti's (not sure what model) as I could not get them to work well with 700c wheels. This was probably more about my ability to set them up properly, than it had to do with the brakes. Those original brakes enede up being donated to the local co-op after this bike was sold. I installed some older Shimano SLR canti's and they worked OK but were never really very powerful.

When I got the bike back I noticed how the rear drive side pad was worn way out of spec and then realized my initial set up was pretty bad. I went thorugh about 9 different types of cantis and the only ones that worked were the Dia Compe 981's that are currently installed. I wanted to post this up for anyone who may enounter this in the future. Start with the 981's and save yourselt the time and aggravation of the trial and error cantilever brake installation!

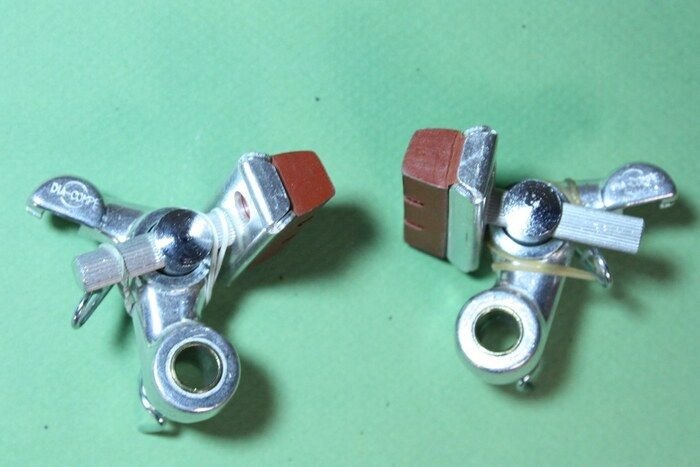

were these the original style?



i'm not trying to be persnickity, but i really think the boss height is the issue more than the width. what you had to do was, in effect, make the brakes "squat" outward more to get the pads to reach down to the lower rim diameter since you don't have enough vertical adjustment to go any lower with the pad in it's holder. it's more apparent on the rear since the pad posts are secured more close to the end opposite the pad itself....that is vs the front wherein the pad/post are secured more to the middle. make sense?
i've got an '83 univega gran turismo (miyate built) i've converted to 700c. i'm pretty sure the post (boss) width is narrow like yours, but the brakes shown above are what i have and i didn't have any issues. not the strongest of brakes, but i have an idea to modify them so i can use an adjustable straddle cable. anyway, i'm gonna go out measure things today. i may be wrong, but it just seems like you should be able to get better brake geometry/fitment. even if you're completely satisfied, i'm just curious myself...lol

Last edited by thook; 05-24-21 at 11:50 AM.
thook is offline
Old 05-24-21, 12:37 PM
  #15
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,373

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 708 Post(s)
Liked 518 Times in 387 Posts
fender1 as i suspected, the canti boss width on the univega are like your miyata; 60mm front and 65mm rear. they're 23-24mm center of the boss to center of the rim brake surface in height, though. if you care to explore the dynamic at all, what might the height be on yours?
thook is offline
Old 05-24-21, 01:11 PM
  #16
romperrr
Pedal to the medal

Join Date: Sep 2012
Location: The Arsenal of Democracy
Posts: 1,033

Bikes: 1991 Team Miyata Track, 1992 Lemond Alpe d'Huez, 19?? Schwinn High Serra, 1982 Trek 614, 198X Raleigh Alyeska

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 185 Post(s)
Liked 41 Times in 30 Posts
Love the color scheme on these bikes, very lovely setup. Bravo!
romperrr is offline
