how to remove Suntour XC shifter?

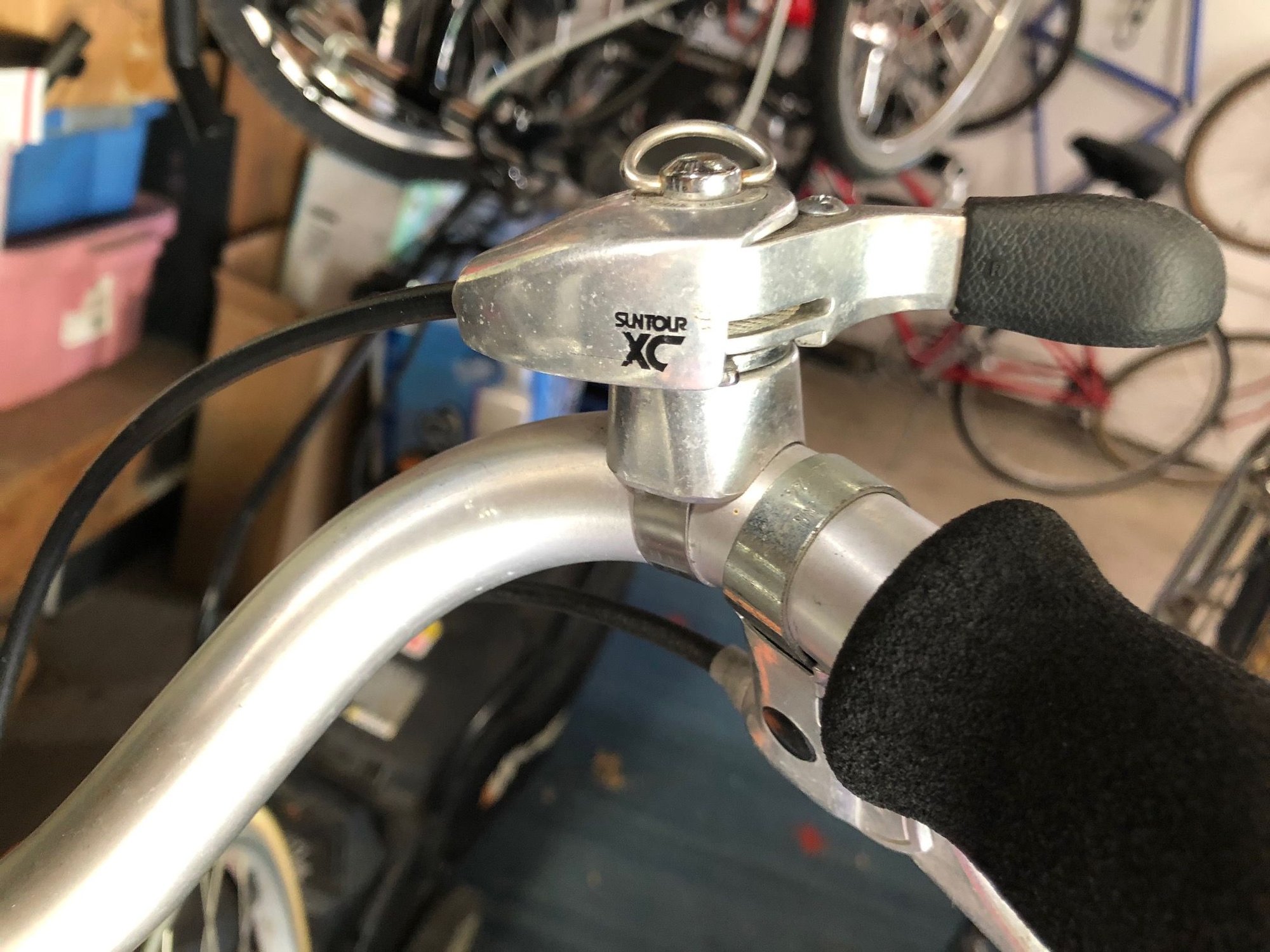

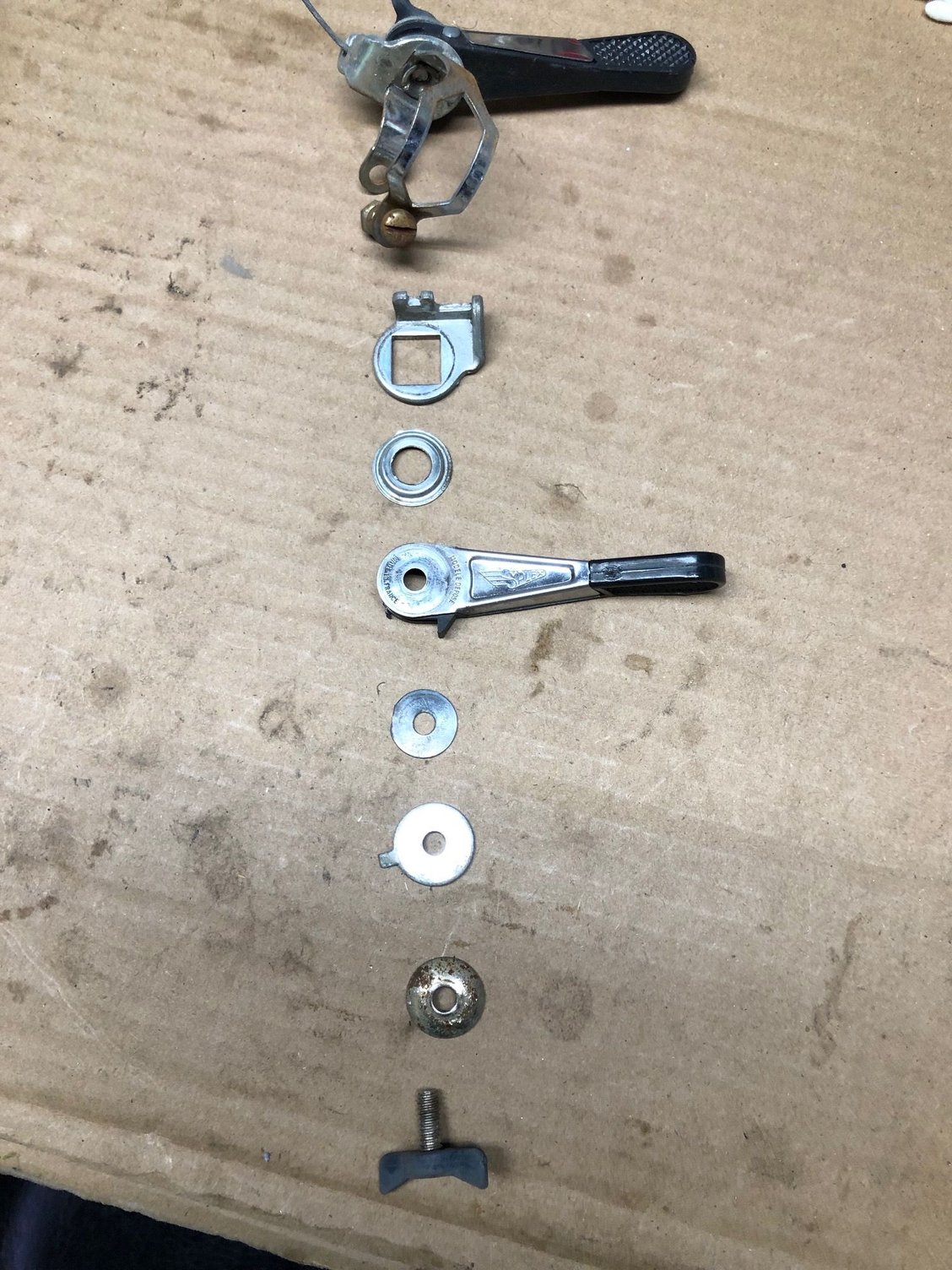

I don't see the clamp screw. Am I supposed to loosen that top hook and go in from the top? I don't like the idea of taking a shifter apart if I don't have to. See photo #2 for why. That is a Simplex downtube shifter for Peugeot mixtes that had a special braze-on only on the driveside of the frame. You French aficionados can file that away for future reference.



Peugeot mixte shifter.
sunburst is offline
Old 06-03-21, 03:55 PM
  #2
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 429

Bikes: yes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 208 Times in 106 Posts
Yes, remove that top screw. The shifter ‘innards’ won’t come spilling out— they’re contained within the shifter lever, and likely held within by a pair of tiny snap rings.
panzerwagon is offline
Old 06-03-21, 04:01 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,006

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Liked 944 Times in 573 Posts
Yep, remove the shifter and it will expose the nut that holds the base onto the handlebar. You might want to take note which of the three holes your shifter prong fits into, but it's easy to figure that out once you're reassembling if you forget. The prong/hole sets the position of the shifter relative to your thumb.

Maybe you can take a picture once you've done it and upload it here -- for some reason, it seems pretty difficult to find a pic of a disassembled shifter on the web. I'd do it myself, but mine are buried right now.
noobinsf is online now
Old 06-03-21, 04:56 PM
  #4
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,737
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 1,480 Times in 441 Posts
This is an older Suntour ratchet shifter, but it probably looks the same at the mount.

Roger M is offline
Likes For Roger M:
Old 06-03-21, 08:42 PM
  #5
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,710

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 55 Times in 36 Posts
Thx everyone!
sunburst is offline
Old 06-04-21, 07:09 AM
  #6
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,016

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 2360 Post(s)
Liked 999 Times in 591 Posts
Originally Posted by sunburst View Post
Thx everyone!
How'd it go?
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 06-30-21, 11:36 AM
  #7
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,710

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by The Golden Boy View Post
How'd it go?
Forgot to respond. It was a piece of cake. I ended up swapping the bar and levers to a mixte I was prepping for sale. Kept the shifters for myself.
