Half-step + granny fail! Help please.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Half-step + granny fail! Help please.

Old 06-15-21, 09:59 PM
  #1
davester
Senior Member
Thread Starter

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,039

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 382 Times in 196 Posts
Half-step + granny fail! Help please.

I'm trying to set up my Raleigh "International" as a worthy touring bike. It came with an Ofmega 50-46-30 triple and Suntour Winner 14-30 6-speed cluster. So, I did a careful gear charting and decided to set up a different half-step + granny (46-42-24), which gives me what I thought would be a nice setup with an uber-low 22" hillclimbing gear (see the lower gear chart below).


half-step gear chart
Unfortunately, when on the small chainring and shifting up to the 21 or smaller cogs, the chain hits the 42T middle chainring. It works sorta but accompanied by unpleasant clanking sounds and probable fast chainring wear. Unfortunately the Ofmega crankset has a 144BCD so I'm stuck with 42T middle chainring. I'm trying to figure out the best way to fix this. The options seem to be
a) give up on the low gearing and go back to the 30T small chainring (see upper chart above) - really don't want to do that if I'm going to do any loaded touring since I'm old and usually ride very hilly country,
b) switch to the 30T chainring and buy an expensive IRD 13-32 freewheel for a tiny bit lower low gear (26") - that's almost not worth doing since it is only 2 teeth different to what I've got.
c) Try to find a 34T Winner cog to trade out my 30T for - good luck with that!...also would probably require a new derailleur
d) Buy a whole new crankset with a different BCD ($$$$) and ditch the idea of half-step.
e) Find a longer spindle and push the chainline out (which would put the middle and large chainrings out of alignment).
f) Something else I can't think of right now.

Advice would be appreciated.

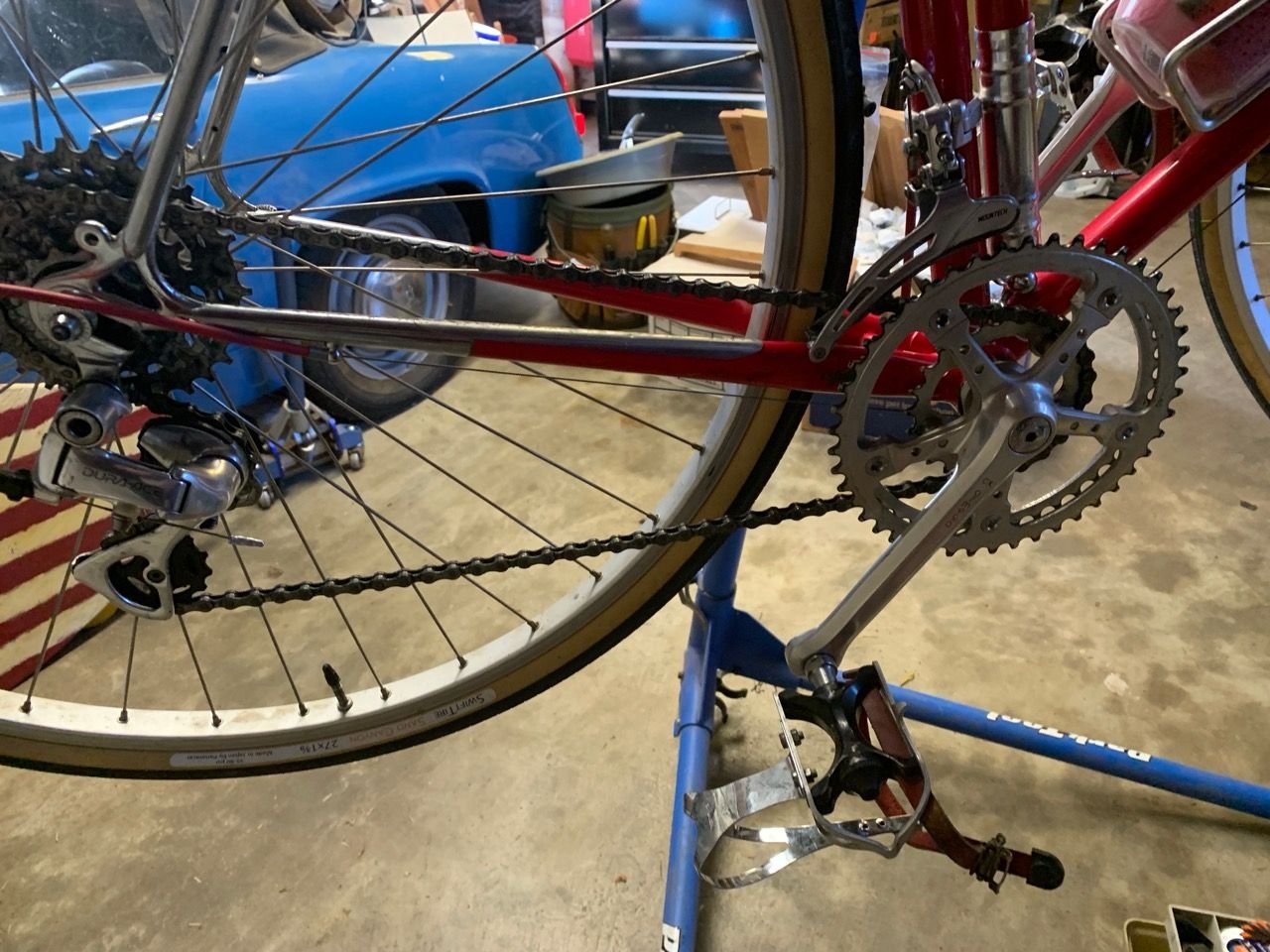

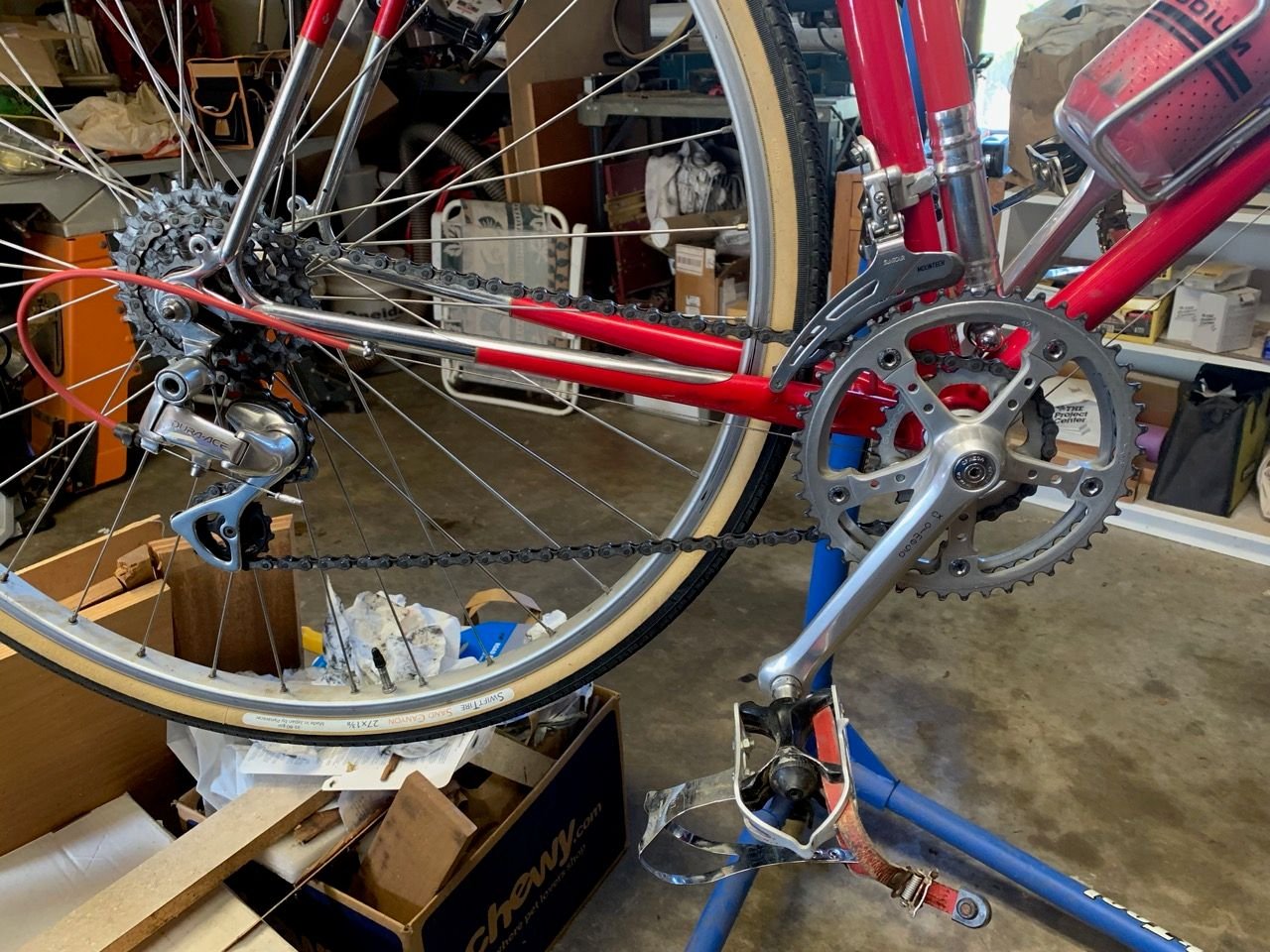

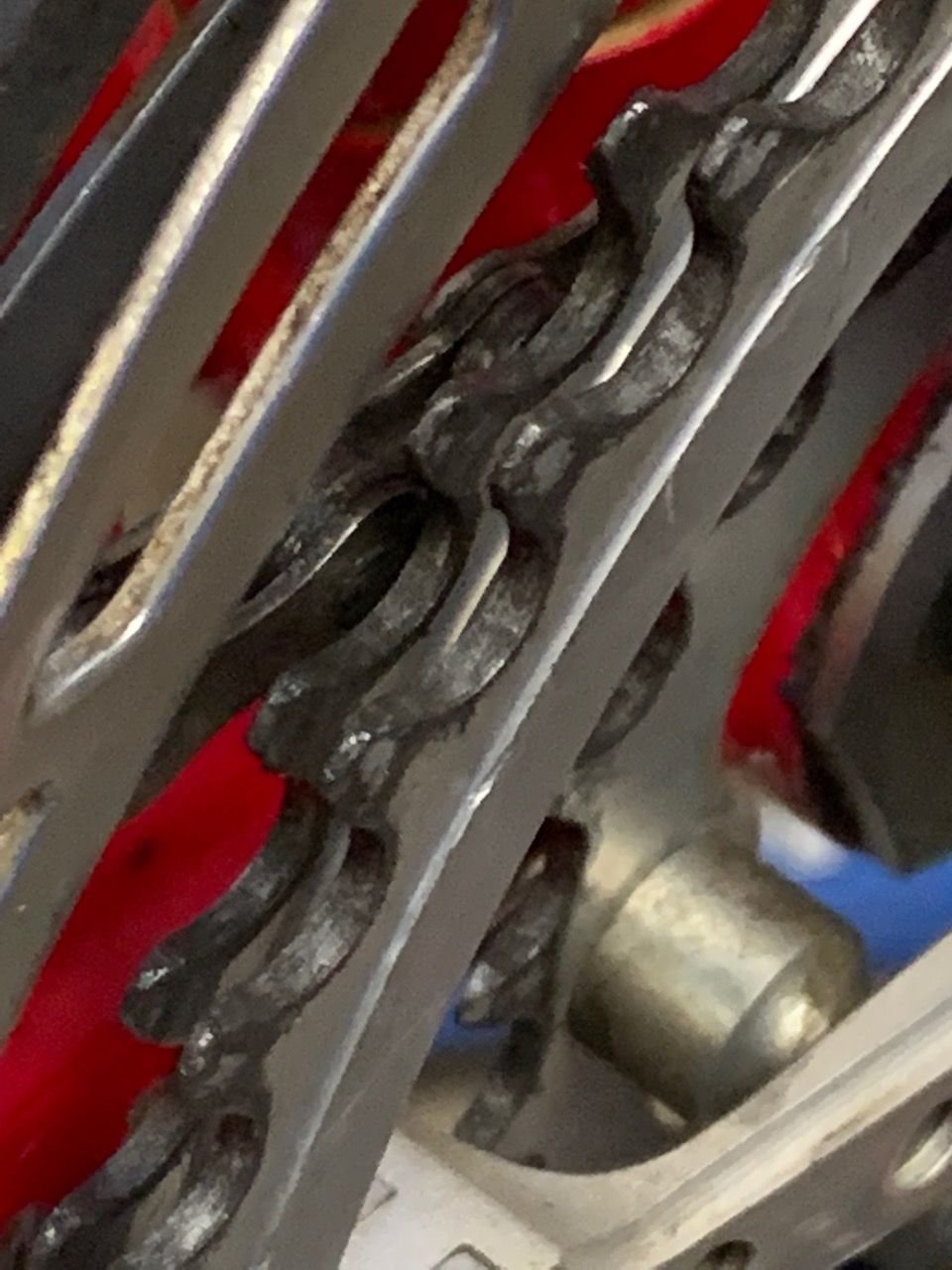

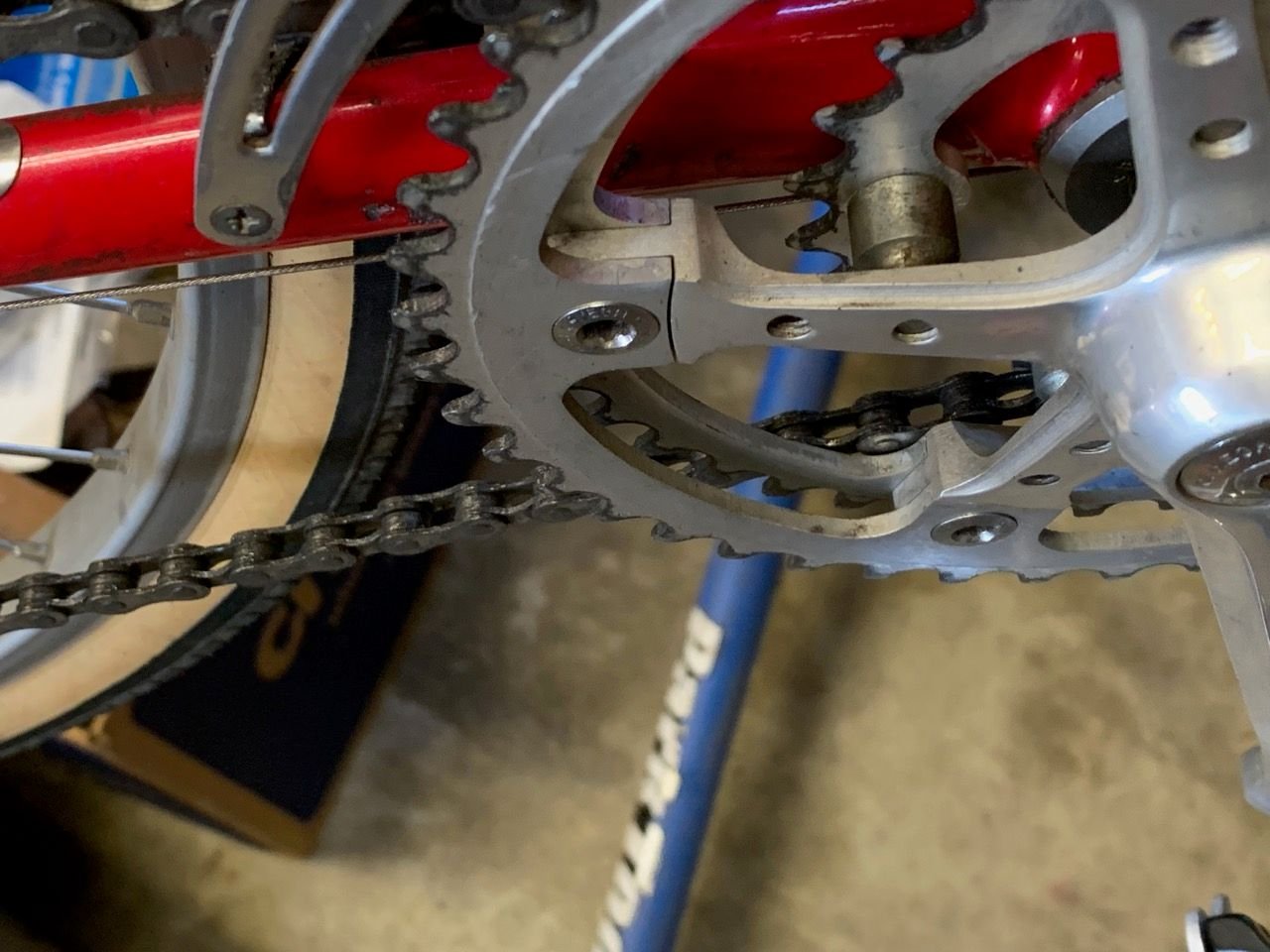

Some pictures of the drivetrain below:





Last edited by davester; 06-15-21 at 10:22 PM.
davester is offline
Old 06-16-21, 12:31 AM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,346

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 162 Post(s)
Tagged: 0 Thread(s)
Quoted: 2537 Post(s)
Liked 1,806 Times in 1,215 Posts
I would bring the middle ring tooth count down as much as you can to lessen the airgap and help it make the jump, maybe even bring the granny up a couple of teeth if you have to.

I see you already talked about the smaller middle ring and you're right, they are hard to come by and not cheap. 40 teeth can be had though. None of it will be cheap. You should be able to change to a smaller bcd crank for this, many here have plenty of spares that could be made to work, co-ops too.

Last edited by merziac; 06-16-21 at 01:21 AM.
merziac is online now
Old 06-16-21, 02:09 AM
  #3
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,234

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 477 Times in 350 Posts
I ran the same chainset for a while on two different bikes and didn't have the problem you're having. Not sure what difference within your set up is causing the chain to rub the middle ring, though. i really don't think a bigger granny ring will be the fix, either. Nor will a bigger low cog/s. How wide is your bottom bracket? I ran a 113 in both instances with my set up. Plus, a seven speed cassette on a 130 OLD
thook is offline
Old 06-16-21, 03:31 AM
  #4
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,299

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 406 Post(s)
Liked 448 Times in 235 Posts
Maybe a spacer or two behind the fixed BB cup to move the DS crank out a little bit? That might give you a noise-free 24x21. Maybe. Of course, it may cause problems with the FD reaching our far enough to get into the big chainwheel. Might be worth trying as it's a relatively easy and cheap fix, if it works.

Also, maybe ever-so-slightly thicker/wider spacers for the small chainwheel bolts? Maybe all of the above?

Just spit-balling here. I have no idea if any or all of this would work.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 06-16-21, 05:06 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,491
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by davester View Post

f) Something else I can't think of right now.
If the chainring teeth are offset, flip one for more spacing where you need it; check the chain does not fall in the gap.

And Alpha splined sprockets fit, I think the AG 38 will as well.
oneclick is offline
Old 06-16-21, 06:01 AM
  #6
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,707
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1000 Post(s)
Liked 927 Times in 490 Posts
I think you've identified all of the viable options.
In my HS+G arrangement, I only use 3 of the 7 cogs in back before similar rubbing occurs, so I don't think there's any big error in your configuration.

Depending on the bottom bracket, the easiest thing might be to install a couple of mm spacer under the fixed cup, which will move the crank to the right.
There might be a chance to use spacers to move the small chainring away from the middle ring a few mm too. Not sure what spacers are available, though.

Another option might be to look at where the chain is rubbing. Could you file some of that off?? It might not be essential.

Steve in Peoria
steelbikeguy is offline
Old 06-16-21, 06:30 AM
  #7
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,813
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 757 Times in 442 Posts
The answer is in the name: half-step plus granny. Translation: shift as if you're using a two-chainring setup except when you need your one or two super-low bailout gears. (Quoting Sheldon Brown on half-step plus granny: "The idea is to use the half-step gears for general cruising, and to have the granny chainring as a "bail-out" gear for the serious hills.")

In other words, respect the "limitations" of the half-step/granny setup. You've got beautifully spaced gear choices with the bigger rings; you've also got the lowest gears you're likely to need. Expecting to be able to use your granny ring with more than two or three sprockets in that bike's gear configuration is about as reasonable as expecting to be able to shift in front or back or both while pedaling backward.

Or---a pet peeve of mine---like expecting all derailleur-equipped bikes to allow pedaling backward in all gear combinations, including large to large and small to small. It might or might not be possible with any one bike, but no derailleur system was ever designed with pedaling backward in mind, obviously.

Last edited by Trakhak; 06-16-21 at 06:34 AM.
Trakhak is offline
Likes For Trakhak:
Old 06-16-21, 07:01 AM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,530

Bikes: Lots. Just...lots.

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 1550 Post(s)
Liked 997 Times in 465 Posts
On my setup, I can only use the granny in the two or three largest cogs.
Also agree that a 40 tooth middle ring would be slightly better.
Am also of the opinion that using the granny for anything but grinding up a big hill slowly is inefficient & try to remain in the largest possible chainring for as long as possible.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 06-16-21, 07:31 AM
  #9
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,495
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 848 Times in 642 Posts
^^^^ The issue is, the OP only gets the _two_ largest cogs with the granny. Looking at the chart, that means a jump from 28 gear inches (24/24) to 39 (42/30). The 24/21 would fill that gap, but (pardon the pun) there's the rub. Maybe a 1mm spacer on the BB as mentioned above would make that possible, and be little enough not to throw off the chainline elsewhere.

Last edited by madpogue; 06-16-21 at 07:36 AM.
madpogue is offline
Old 06-16-21, 07:57 AM
  #10
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,783
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 437 Times in 299 Posts
I would check the chain line, your setup sounds inboard. I use those cranks and I'm not having any issues but I'm running stock 6 gear.
Mr. 66 is online now
Old 06-16-21, 08:57 AM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,112

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1106 Post(s)
Liked 561 Times in 395 Posts
Originally Posted by Mr. 66 View Post
I would check the chain line, your setup sounds inboard. I use those cranks and I'm not having any issues but I'm running stock 6 gear.
Yeah, possibly the frame was spread, with the weaker driveside chainstay doing all of the bending(?).

A switch to Shimano 9s chain would give added clearance for sure. I say "Shimano" 9s chain because it does actually grab teeth better than all other 9s chains out there, and which might preclude the chain skating atop or between cogs.

Steelbikeguy mentioned removing superfluous protruding metal from the middle ring. I've done this in the past when I had a clearance problem, and it did cure the issue.
A spacer material and a strip of coarse belt-sander stock can be forced in between the middle ring and the chainstay, Then the cranks can be rotated to act as a machining operation. Keep the "sandpaper" moving slightly or it will load up. Have the grit facing in the right direction, lol. Best to protect the paint with thick tape as well before proceeding.
dddd is offline
Old 06-16-21, 10:04 AM
  #12
davester
Senior Member
Thread Starter

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,039

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 382 Times in 196 Posts
OK, good advice so far. Keep it coming! My thoughts on the suggestions so far:

I don't think removing chainring metal is going to help given where the chain hits would mean removing a lot of metal probably including parts of the teeth.

Adjusting the inner ring inwards with spacers would be difficult given the unusual spacers used with the Ofmega crank, not to mention increasing the risk of dropping the chain into the rather large gap between chainrings.

I will definitely take a look at both the front and rear chainline measurements to see whether adding or moving spacers can bet me a few millimeters.

As far as getting a smaller middle ring (i.e. getting a new crankset), these cranks are so pretty (if you followed my earlier thread on this bike they appear to be pristine and essentially unused) that I'm not that keen on changing them out. That would be a last resort solution.

Interesting thought on using a 9-speed chain. I hadn't thought about that. Are there any issues with that approach? Actually, I'm thinking that the Sedisport chain that is on there may be wider than even standard modern 8-speed chains so just getting a thinner 8-speed might be a possibility (Wipperman Connex chains seem very narrow in my experience).

I don't think the frame was spread, so I'm thinking the alignment is probably fine, though it wouldn't hurt to check using Sheldon's string method.

Last edited by davester; 06-16-21 at 10:12 AM.
davester is offline
Old 06-16-21, 10:12 AM
  #13
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,108

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 800 Times in 493 Posts
@davester - IIRC the overall width of chains is what differentiates chain speed labels. The inner (tooth) dimensions are much the same. I may need to be calibrated.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 06-16-21, 03:44 PM
  #14
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,240

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 496 Post(s)
Liked 364 Times in 203 Posts
Originally Posted by Trakhak View Post
The answer is in the name: half-step plus granny. Translation: shift as if you're using a two-chainring setup except when you need your one or two super-low bailout gears. (Quoting Sheldon Brown on half-step plus granny: "The idea is to use the half-step gears for general cruising, and to have the granny chainring as a "bail-out" gear for the serious hills.")

In other words, respect the "limitations" of the half-step/granny setup. You've got beautifully spaced gear choices with the bigger rings; you've also got the lowest gears you're likely to need. Expecting to be able to use your granny ring with more than two or three sprockets in that bike's gear configuration is about as reasonable as expecting to be able to shift in front or back or both while pedaling backward.

Or---a pet peeve of mine---like expecting all derailleur-equipped bikes to allow pedaling backward in all gear combinations, including large to large and small to small. It might or might not be possible with any one bike, but no derailleur system was ever designed with pedaling backward in mind, obviously.
Not just half plus granny this is good advice for any vintage wider range triple rather road, touring or mountain.
zukahn1 is offline
Likes For zukahn1:
Old 06-16-21, 03:58 PM
  #15
73StellaSX76
Senior Member

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 241

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 67 Times in 40 Posts
Dave, if you’re currently using an old Sedis chain and it is stiffer side to side then I would consider switching to a more modern chain such as the 9 speed one suggested, and widening your bb spindle, following your option e). Your concern about pushing chain line becomes less critical with more modern chains. Did you mention how wide your current spindle is?
73StellaSX76 is offline
Old 06-16-21, 06:23 PM
  #16
davester
Senior Member
Thread Starter

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,039

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 382 Times in 196 Posts
Originally Posted by 73StellaSX76 View Post
Dave, if you’re currently using an old Sedis chain and it is stiffer side to side then I would consider switching to a more modern chain such as the 9 speed one suggested, and widening your bb spindle, following your option e). Your concern about pushing chain line becomes less critical with more modern chains. Did you mention how wide your current spindle is?
I'm pretty sure that it's a NOS sedisport, which was if I recall correctly is a bushingless relatively flexible chain. Nevertheless, a 9-speed chain will definitely be skinnier and adding that difference to a 1 or 2mm spacer may get me the clearance I need. Not sure how wide my current spindle is. Time to get my caliper out and measure a few things.
davester is offline
Old 06-16-21, 06:50 PM
  #17
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,341

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 514 Post(s)
Liked 248 Times in 136 Posts
Eighteen teeth difference between the granny and the middle ring is a lot. The rule of thumb used to be 14 teeth of difference or less. I have several bikes with half-step and granny setups, all with the traditional 14-tooth difference. No problems with any of them. You may not want to use a bigger granny, but that would likely solve your problem.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 06-16-21, 06:56 PM
  #18
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,535

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1013 Post(s)
Liked 438 Times in 320 Posts
Your 42-24 drop of 18 teeth is pushing the limits of most systems. I have never heard of a 40T ring for 144mm BCD, but 41s can be hand for a price.

I used to run 48-40-28, alternating with 48-40-24, on my mountain bike. As most of the respondents here, I used the granny ring with the inboard cogs in back. I had to be very careful when performing a 24-to-40 shift, using a SunTour XCD front derailleur. The 28-40 shift went much more smoothly, with much less fuss.

I recently changed my outer rings to 46-38, and I plan to try the 24 again the next time I either overhaul the BB or convert to a cartridge. I don't like to put aluminum cranks through too many remove/replace cycles, and I can't swap granny rings without pulling the crank.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 06-16-21, 09:04 PM
  #19
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,234

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 477 Times in 350 Posts
davester you might want to read this. It covers a couple of points brought up here in your thread. Namely chain deflection.

https://veloapocalypse.wordpress.com...d#comment-4276

Last edited by thook; 06-16-21 at 10:28 PM.
thook is offline
Old 06-16-21, 10:26 PM
  #20
davester
Senior Member
Thread Starter

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,039

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 382 Times in 196 Posts
Hi thook , I don't see the link you appear to be directing me to.

The previous comments about 14T rule of thumb are interesting. I've never heard such a thing but wish I had before buying and modifying the 24T ring to fit my crankset (yes, modifying...though a standard 74bcd, Ofmega in their wisdom decided to make the bolts a nonstandard larger size, requiring drilling out all of the bolt holes in the new chainring). Knowing that might have persuaded me to back off a little and only try a 16T difference (I always like to push the limits a little) instead of 18T.

As for the warnings about only being able to use the granny on the lowest few cogs, I've always been well aware of that limitation but two cogs is definitely too few.

Last edited by davester; 06-16-21 at 10:29 PM.
davester is offline
Old 06-16-21, 10:29 PM
  #21
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,234

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 477 Times in 350 Posts
Originally Posted by davester View Post
Hi thook , I don't see the link you appear to be directing me to.
.
sorry...my brain left the building for a minute
thook is offline
Old 06-16-21, 10:39 PM
  #22
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,234

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 477 Times in 350 Posts
Originally Posted by davester View Post
Hi thook ,

The previous comments about 14T rule of thumb are interesting. I've never heard such a thing but wish I had before buying and modifying the 24T ring to fit my crankset (yes, modifying...though a standard 74bcd, Ofmega in their wisdom decided to make the bolts a nonstandard larger size, requiring drilling out all of the bolt holes in the new chainring). Knowing that might have persuaded me to back off a little and only try a 16T difference (I always like to push the limits a little) instead of 18T.
.
I'd never heard that, either...hmm
Modern compacts are 16 tooth difference, typically. And, I've seen more than a few successful wide range doubles with a 20t difference. 18t difference is kinda big, but not unheard of much less non-doable. Really, it's not the tooth difference, though, being your problem. IF it were, I would have that problem running the same set up in front and I didn't. I used a 7spd chain and, again, a 113mm bottom bracket
thook is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
