BB overhaul help: Raleigh DL1 Tourist

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

BB overhaul help: Raleigh DL1 Tourist

Old 06-17-21, 08:33 PM
  #1
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 132

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
BB overhaul help: Raleigh DL1 Tourist

Hearing a squeak, I resolved to overhaul the bottom bracket of my '75 Raleigh DL1 Tourist. Glad I did since this is what I found:



Top: adjustable cup. Bottom: remains of ball bearing cage.
My question is: how do I put it back together? Do I try to find a new cage for the bearings, do I try to find more ball bearings to fill the gap, or something else?

Any help is appreciated, thanks!
thorstein is offline
Old 06-17-21, 08:48 PM
  #2
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 3,234

Bikes: Astron Corsaro, Fuji Espree and Takara GT

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 962 Post(s)
Liked 440 Times in 343 Posts
thorstein
Toss the old broken cage. Fill space with two more bearings (for 11 total) and waay more grease. repeat on opposite side. 11 loose bearings is the standard set per side of a BB

Ps. Some oddities out there allow only 10 bearings (if 11 they rub). In that case, stay with 10.

Ps Unsure what size bearings for headset of DH-1. Might ask before you rebuild....l.l

Last edited by WGB; 06-17-21 at 09:05 PM.
WGB is online now
Likes For WGB:
Old 06-17-21, 08:57 PM
  #3
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 3,234

Bikes: Astron Corsaro, Fuji Espree and Takara GT

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 962 Post(s)
Liked 440 Times in 343 Posts
Some Raleigh's have different BB bearing sizes (I've never handled one though I did get caught with a Raleigh headset (takes 5/32nd bearings) and 3/16 will not work!!
Simply pointing this out because 15/64" versus 1/4" is only 1/64th of an inch difference and DH-1's haven't been made in many years

Per Sheldon Brown:

​​​​​​By far the cheapest option is to keep the original 26 TPI Raleigh cups, and install a new spindle with the tapered square ends needed to fit cotterless cranks. Because the inside diameter of the bearing cups is slightly smaller than for other brands, not all spindles will fit, unfortunately, unless you replace the standard 1/4" bearing balls with 15/64" or 6 mm bearing balls. Bicycle shops do not usually stock these sizes, but Internet vendors carry them.

Last edited by WGB; 06-17-21 at 09:04 PM.
WGB is online now
Old 06-17-21, 09:15 PM
  #4
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 132

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by WGB View Post
thorstein
Toss the old broken cage. Fill space with two more bearings (for 11 total) and waay more grease.
Thanks!

Yes, more grease is needed, I just put in enough to hold the bearings in place.

I'll try to figure out the size of the bearings or are you saying they're 6mm / 15/64"?

Last edited by thorstein; 06-18-21 at 05:24 AM.
thorstein is offline
Old 06-17-21, 09:26 PM
  #5
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,823 Times in 1,051 Posts
Original bearings should measure out to be 1/4" and they should not be caged from factory.

Check the bearings you have with a caliper, and replace them if they're smaller than 1/4". I don't recall how many go in each cup, but just fill them on the raceway surface until you run out of space. Use nice sticky synthetic grease to hold them in the cups, and don't let the spindle dangle once you've bottomed it against the drive side; have the left-side cup ready in your other hand to spin it on.

-Kurt
__________________







cudak888 is offline
Old 06-18-21, 05:49 AM
  #6
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 132

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
I think my reading skills were a little suspect. Seems clear he was saying 1/4" is the correct size.

Odd about the cage being in there if it's not original.
thorstein is offline
Likes For thorstein:
Old 06-18-21, 06:17 AM
  #7
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,598
Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 904 Post(s)
Liked 419 Times in 251 Posts
Replace all the bearings. If they look like that they are toast. 11 on each side at 1/4".
Narhay is offline
Old 06-18-21, 06:28 AM
  #8
Sierra
Uff Da!

Join Date: Sep 2003
Posts: 1,083
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 50 Times in 25 Posts
Also from Sheldon Brown, don't just add bearings. Replace them all.
Bearings from different batches vary slightly in size so if some are a bit larger, they are going to take all the force & wear.
Fill the cups with as many balls as will fit, then remove one.
Sierra is offline
Likes For Sierra:
Old 06-18-21, 07:29 AM
  #9
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 15,428

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 104 Post(s)
Tagged: 1 Thread(s)
Quoted: 7079 Post(s)
Liked 890 Times in 605 Posts
Originally Posted by thorstein View Post
I think my reading skills were a little suspect. Seems clear he was saying 1/4" is the correct size.

Odd about the cage being in there if it's not original.
Not odd at all. It's a much easier way to do it, and it normally functions just fine.
__________________
Originally Posted by Bah Humbug View Post
Auto-pause is a honey-tongued devil whispering sweet lies in your ear.


seedsbelize is offline
Old 06-18-21, 07:41 AM
  #10
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,688
Mentioned: 362 Post(s)
Tagged: 0 Thread(s)
Quoted: 2397 Post(s)
Liked 2,273 Times in 1,125 Posts
Yeah, either that's all Raleigh had on hand in 1975 (it's probably cheaper to do caged bearings) or someone o'hauled it along the way and made that replacement. As long as your cups are good, it should all button up fine.
nlerner is offline
Old 06-18-21, 07:45 AM
  #11
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,823 Times in 1,051 Posts
Originally Posted by thorstein View Post
I think my reading skills were a little suspect. Seems clear he was saying 1/4" is the correct size.

Odd about the cage being in there if it's not original.
No worries; just wanted to make it clear if it wasn't (also for those who dig up this thread in future). Also, wasn't sure what size the ones you have now are.

My guess is that at some point in the past, a mechanic who'd never worked with non-caged bearings overhauled it - and installed a caged unit thinking it should be there. Most caged units for conventional 24tpi Japanese/US/EU bottom brackets won't fit the Raleigh BB cup and spindle correctly and I dare say that's what happened here.

The cage was probably bent out of shape by the bearings trying to squeeze in on it. Eventually, the bearings caught the cage itself, tore it apart, and spat the remains it into the BB shell.

-Kurt
__________________







cudak888 is offline
Old 06-18-21, 11:39 AM
  #12
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 132

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by Narhay View Post
Replace all the bearings. If they look like that they are toast. 11 on each side at 1/4".
Yeah, I figured they didn't use copper bearings, but maybe that exploded cage chewed all the chrome plating off.
thorstein is offline
Likes For thorstein:
Old 06-18-21, 03:23 PM
  #13
bikerosity57
Senior Member

Join Date: Apr 2007
Posts: 956
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 22 Times in 12 Posts
Originally Posted by thorstein View Post
Hearing a squeak, I resolved to overhaul the bottom bracket of my '75 Raleigh DL1 Tourist. Glad I did since this is what I found:



Top: adjustable cup. Bottom: remains of ball bearing cage.
My question is: how do I put it back together? Do I try to find a new cage for the bearings, do I try to find more ball bearings to fill the gap, or something else?

Any help is appreciated, thanks!
Just get new balls and put it back together without the cage: you’ll have an extra ball or two and it will work just as well or better. Put new grease in and place enough balls to fill it completely up all the way around and then remove one ball it’ll work great.
bikerosity57 is offline
Old 06-18-21, 05:31 PM
  #14
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 132

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
sad turn with an upshot

Sad turn of events, the spindle is pitted!


The upshot is that my LBS is retiring a DL-1 frame for wall art & they let me nab the spindle & the wheels.

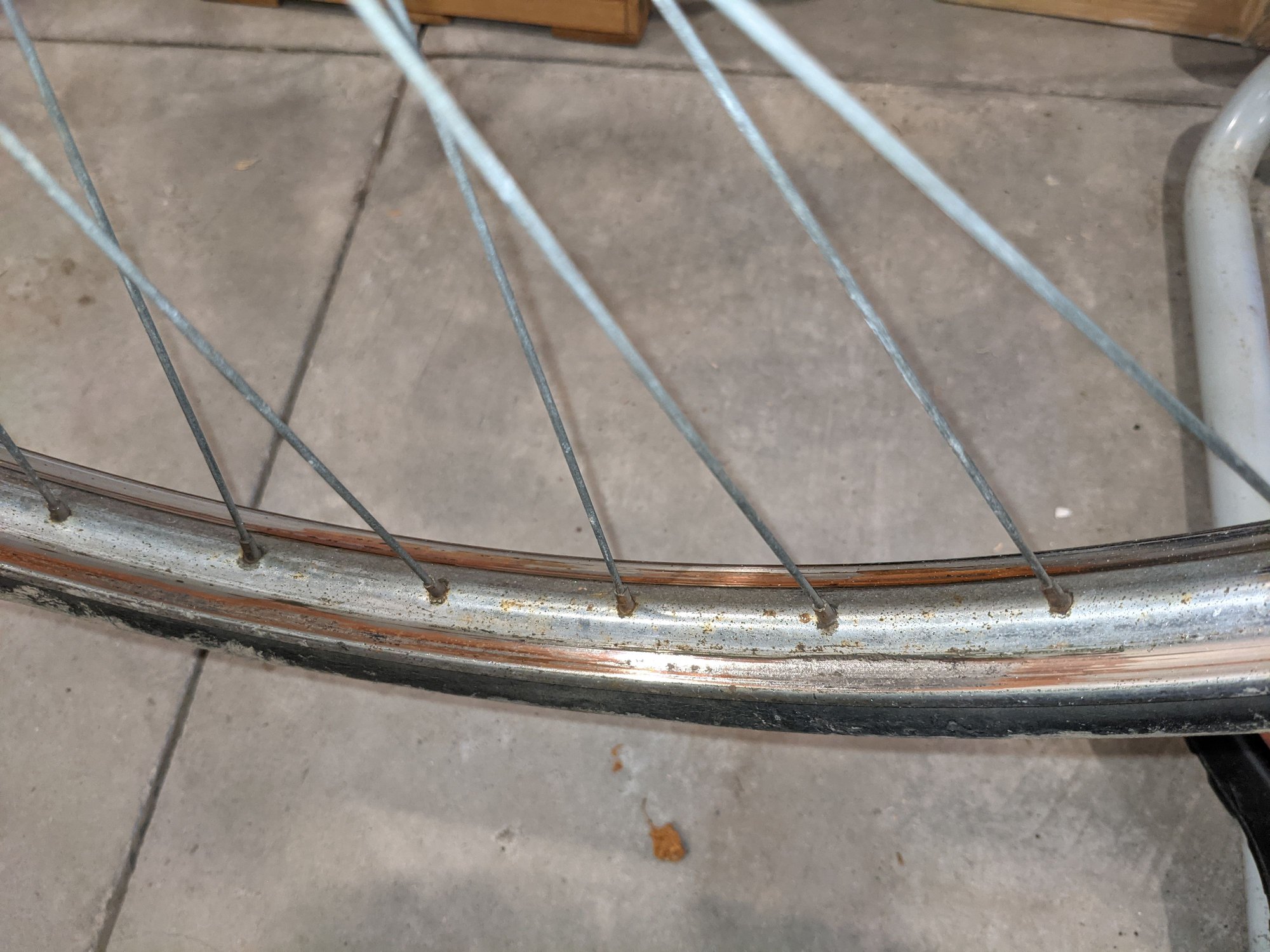

Old wheels:


Notice the chrome has been worn through. It is also bent out of round so hard breaking resulted in stuttering.

New wheels!


They need to be cleaned up, but are in great shape!

The spindle is also in amazing condition, so this ’75 Tourist (with some '68 Tourist parts) will be on the road for many more years.
