Mystery Bike help…

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mystery Bike help…

Old 07-09-21, 04:02 PM
  #1
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
Mystery Bike help…

Mystery bike help… hoping someone with a good eye can help me identify this one. Not mine yet. Unicanitor saddle, some Nuovo Record, maybe Sheffield pedals? Way Assuato headset maybe? Lugs are pretty distinctive, especially the arrow point on the fork crown. Anyway any assistance appreciated!!




devinfan is offline
Old 07-09-21, 05:12 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

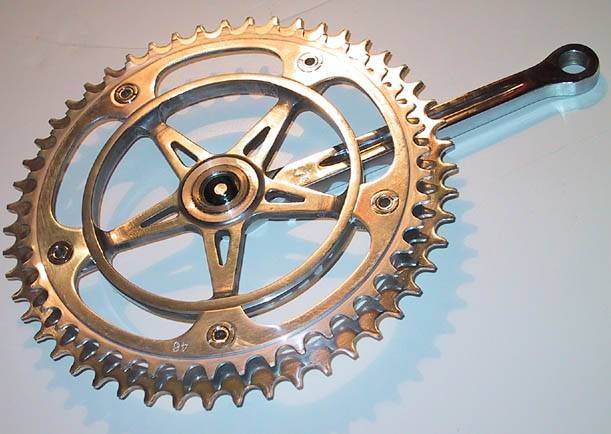

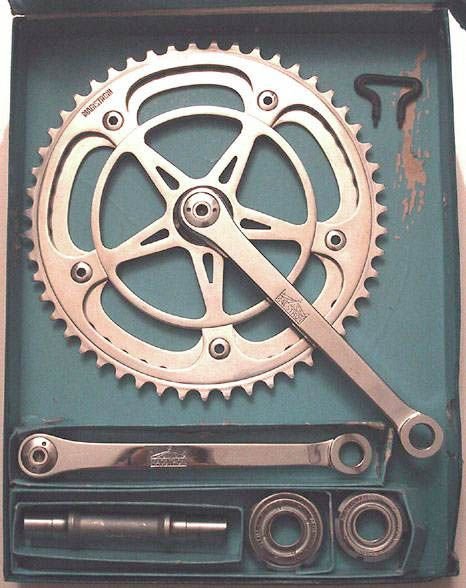

chainset is Magistroni Super Zenith, produced only for a brief time ca. 1964-1965, just before Giostra closed the marque -




lug pattern is Agrati "SPORT" Art. 0808050/U

crown created with addition to a stock model

stem/bar set is the quite rare FIAMME




yes, headset is Way-Assauto

rear mech a replacement, original likely Record model

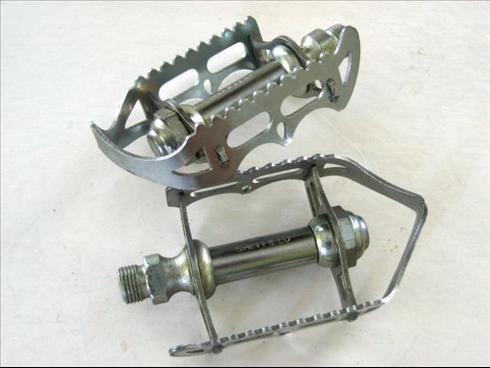

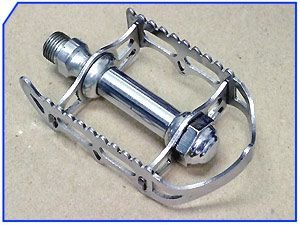

Sheffield pedals from Noli-Cattaneo are model Corsa 655 -



-----

Last edited by juvela; 07-09-21 at 07:30 PM. Reason: addition
juvela is offline
Old 07-09-21, 05:24 PM
  #3
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
Hmm.. thank you Juvela that is super interesting. There’s something that intrigues me about this bike, I was thinking 60’s, trying to ascertain whether it’s worth the considerable travel, expense and trouble it would take me to get it or not. Appreciate your help very much! I was not familiar with the crankset and I’ve seen a lot of cranks. Very much appreciate your help.
devinfan is offline
Old 07-09-21, 05:41 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

dating -

would think machine pretty much has to be ~1965

---


unable to make any guesses as to maker

iab & MauriceMoss may be able to enlighten us all


-----
juvela is offline
Old 07-09-21, 06:03 PM
  #5
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
I hope so! I know iab has a deep familiarity with 60’s bikes. I only know enough to know my spider sense started tingling when I saw this one…
devinfan is offline
Old 07-09-21, 06:13 PM
  #6
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,303

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1260 Post(s)
Likes: 0
Liked 1,358 Times in 768 Posts
Geeze - go get it! Were it available to me and if it were my size and, of course, workable in my bike budget, I would be refurbishing it already. I love chrome lugs! And that fork crown -woFNw.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 07-09-21, 06:44 PM
  #7
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,455

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
Liked 1,323 Times in 917 Posts
THat is a super cool bike...frame is nice enough, but that crankset and stem are big winners...brake levers are interesting...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 07-09-21, 07:17 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
Originally Posted by jdawginsc View Post
THat is a super cool bike...frame is nice enough, but that crankset and stem are big winners...brake levers are interesting...
-----

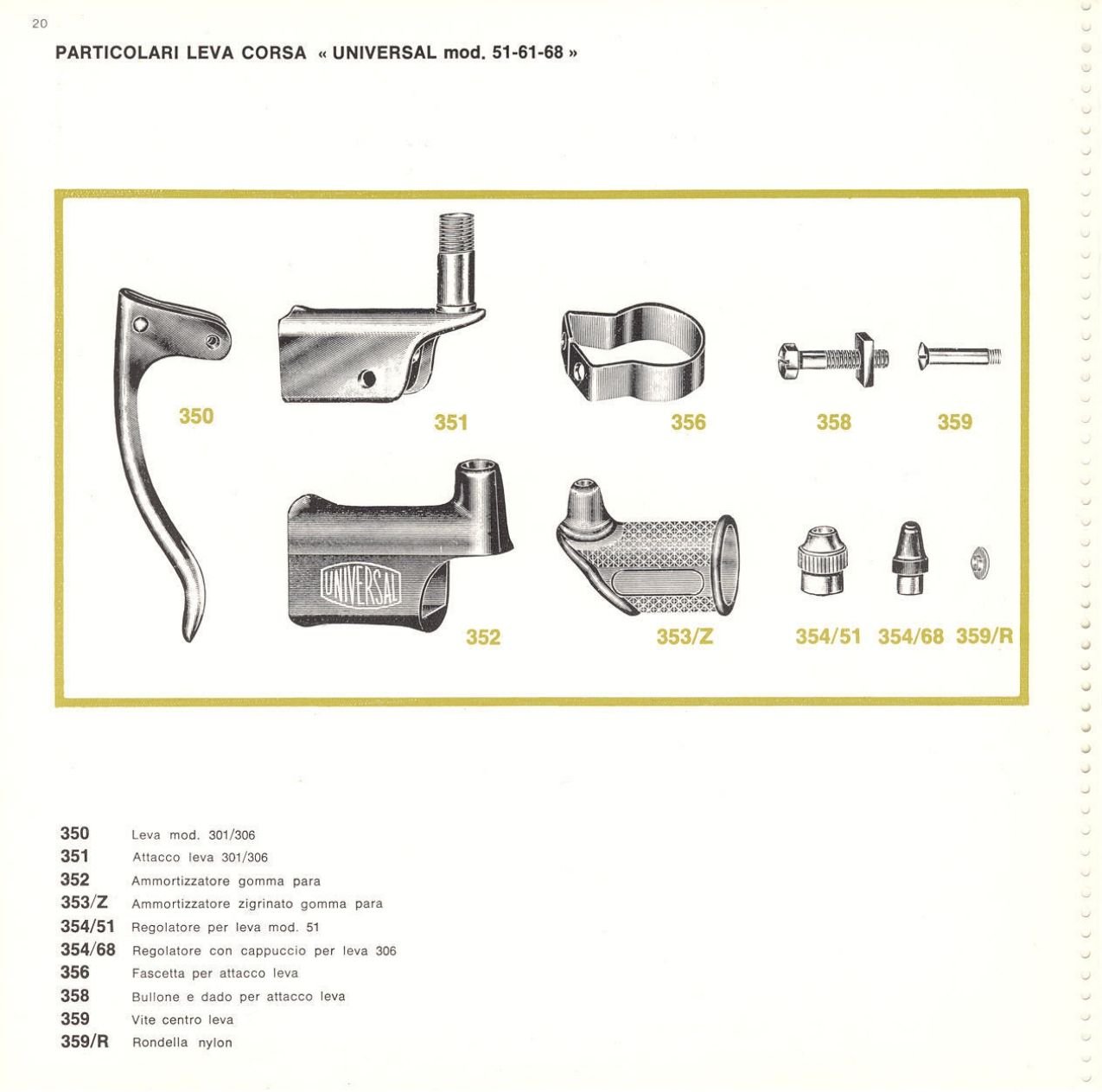

brake levers are standard Universal Nr.301 model with adjusting barrel nr. 354

it is the aftermarket booties which contribute to the appearance...



-----
juvela is offline
Likes For juvela:
Old 07-09-21, 07:31 PM
  #9
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
Originally Posted by randyjawa View Post
Geeze - go get it! Were it available to me and if it were my size and, of course, workable in my bike budget, I would be refurbishing it already. I love chrome lugs! And that fork crown -woFNw.
I hear you Randy. I’ve found though, with little storage space, 3 kids with bikes and a pretty sizeable collection I have to be very selective in what I pick up. This one spoke to me because I just happen to love that 60’s aesthetic, but if it’s not something really interesting I don’t need another bike just for laughs. I have a lot of nice bikes already. Also I don’t want to be materialistic and just want to possess things like a magpie. I do like it though, we’ll see…
devinfan is offline
Old 07-09-21, 07:35 PM
  #10
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
jdawginsc I agree, the components are cool. I’ve got boxes of cool components though so honestly the frame would have to be something interesting for me to buy it. My gut says it is, but was hoping it might ring a bell for someone here. I was thinking Garlatti but some of the details don’t add up. It has the feel of a bike that was actually built up to race though. Decisions, decisions…
devinfan is offline
Old 07-09-21, 08:16 PM
  #11
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts

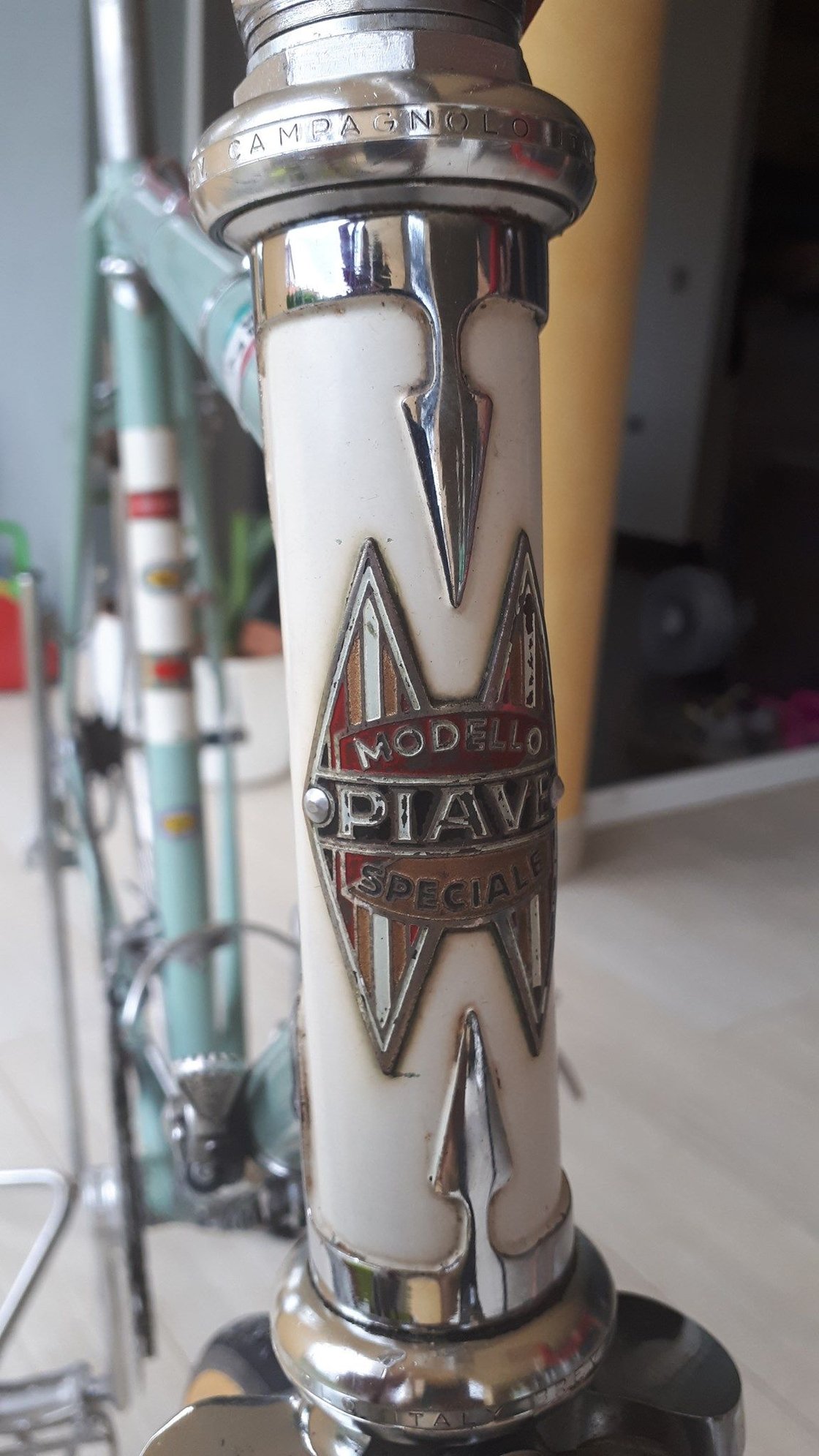

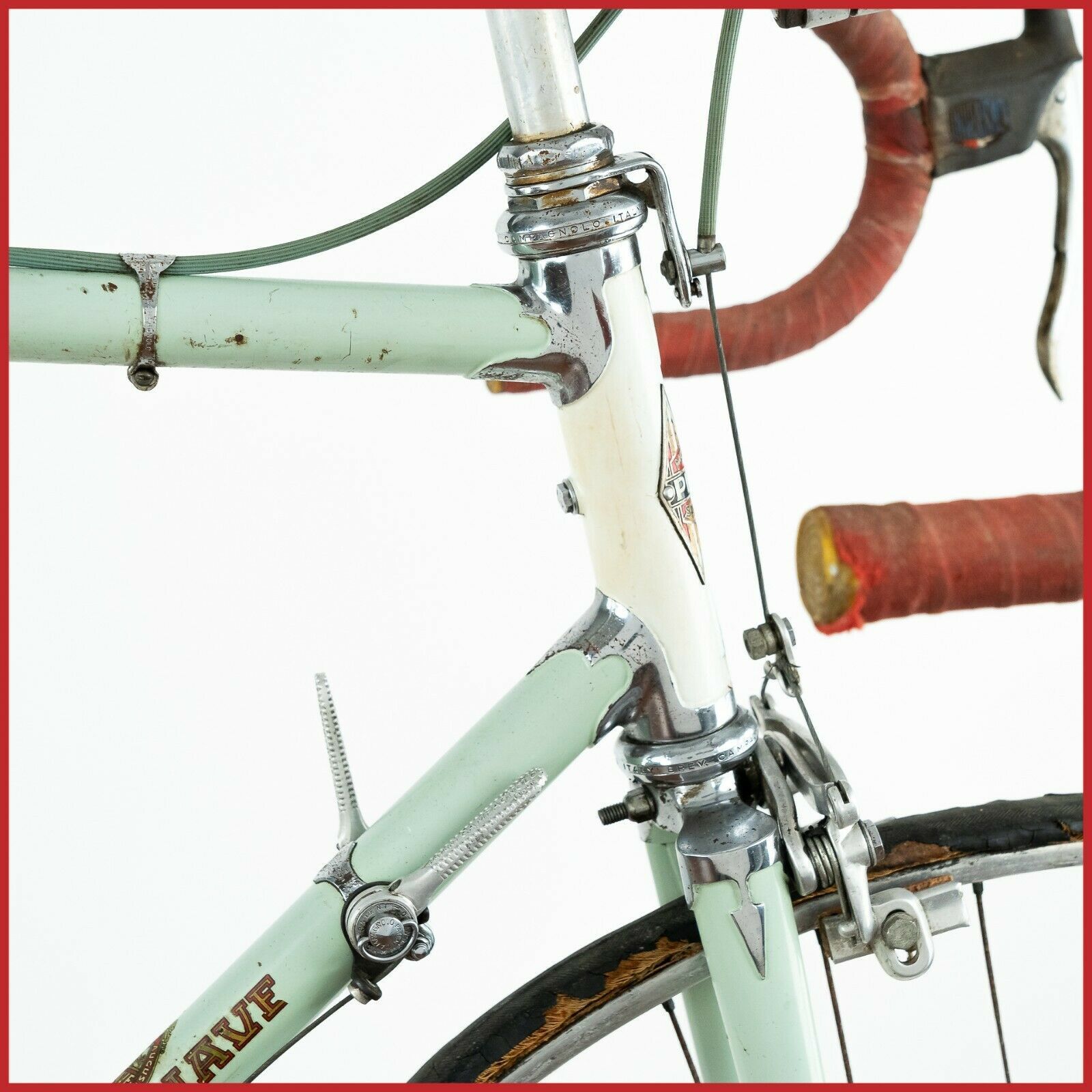

It looks like a Piave:




Ciclo Piave (by the Michelin family) is a very underrated marque, especially outside of Italy. Not sure why, since the craftsmanship is excellent plus, come on, those chromed spears points are just cool.


It's hard to tell from the pics but there's something going on around the seat lug. I've never seen a Piave with half chrome/half painted seat lug. Actually, I've never seen that on any frame with original paint. Maybe this is a repaint?


I would expect the head lugs to have the spears on the front.

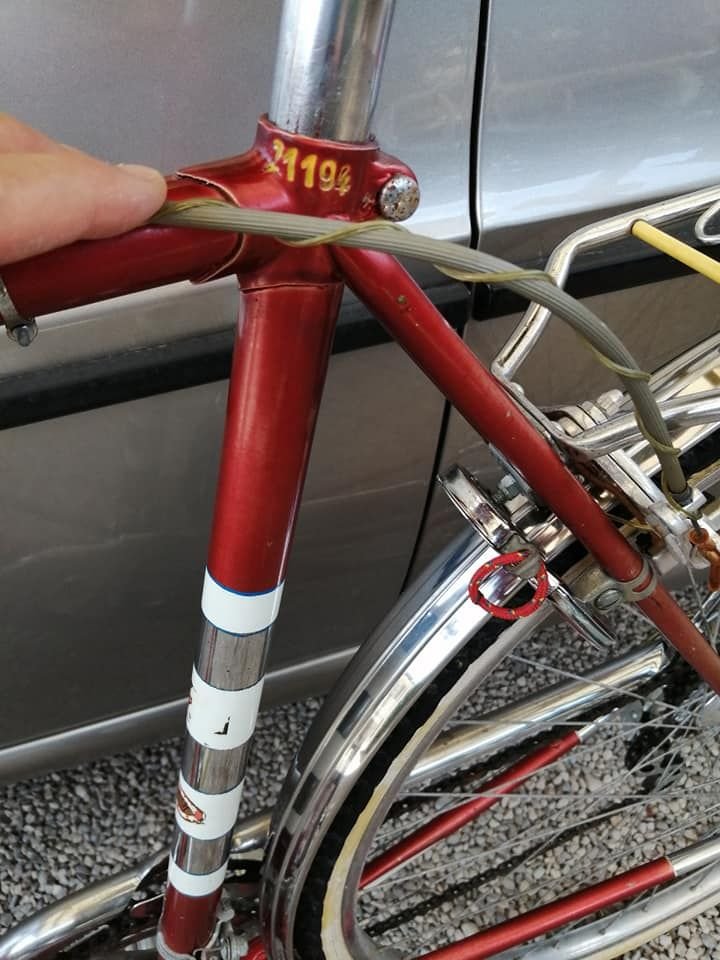

I would also expect a serial number along the seat lug edge on the NDS.

MauriceMoss is offline
Likes For MauriceMoss:
Old 07-09-21, 08:24 PM
  #12
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,303

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1260 Post(s)
Likes: 0
Liked 1,358 Times in 768 Posts
Originally Posted by devinfan View Post
I hear you Randy. I’ve found though, with little storage space, 3 kids with bikes and a pretty sizeable collection I have to be very selective in what I pick up. This one spoke to me because I just happen to love that 60’s aesthetic, but if it’s not something really interesting I don’t need another bike just for laughs. I have a lot of nice bikes already. Also I don’t want to be materialistic and just want to possess things like a magpie. I do like it though, we’ll see…

Trust me, I feel you and have gone through the lots of bikes thing a few times now. I, too, have minimal storage space since selling my city property and on several occassions sold of groups of bikes to manage some sort of control of my over achieving inventory...



These days, I live at the lake cottage during decently warm to cool weather and bail for Jamaica during the really cold months (five approximately). My storage capacity is four bikes and I do have four bikes (1958 Rabeneick, 1968 Legnano GP, 1969 Torpado and my 2000 Marinoni). Unfortunately, I also have a few project bikes or frame sets (1962 Torpado Professional. 199? Quintanna Roo, 1968 Carlton Corsair, early seventies Torpado LUXE). I am totally crammed for space but I am also addicted to "the find".

I love it when I find another vintage bike. Tomorrow, for the first time in a year, or more, I am going yard sale hunting and who knows what will show up. If nothing, I still have the GR fitted Torpado to fall back on. Hopefully, I can withstand the urge to buy.

Will I ever do an inventory clean up again? Right now, if I could but the market is weak and so is my resolve to reduce my collection of grossly unneeded steeds.

Oh ya - tomorrow is see what I can find at the dump day also.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 07-09-21, 08:27 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----





notice how easy he makes it all seem folks

even if i had ten lifetimes to gather information on vintage lightweight cycles i could never reach Maurice's galaxy

-----
juvela is offline
Likes For juvela:
Old 07-09-21, 08:37 PM
  #14
devinfan
Senior Member
Thread Starter

devinfan's Avatar

Join Date: Aug 2006
Location: Toronto, Ontario
Posts: 2,001
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 39 Times in 20 Posts
Originally Posted by MauriceMoss View Post
It looks like a Piave:




Ciclo Piave (by the Michelin family) is a very underrated marque, especially outside of Italy. Not sure why, since the craftsmanship is excellent plus, come on, those chromed spears points are just cool.


It's hard to tell from the pics but there's something going on around the seat lug. I've never seen a Piave with half chrome/half painted seat lug. Actually, I've never seen that on any frame with original paint. Maybe this is a repaint?


I would expect the head lugs to have the spears on the front.




I would also expect a serial number along the seat lug edge on the NDS.

Wow, I think you’ve got it! Thank you so much for this. Very much appreciated! 🙏🙏🙏
devinfan is offline
Likes For devinfan:
Old 07-09-21, 09:46 PM
  #15
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts
Originally Posted by juvela View Post
-----





notice how easy he makes it all seem folks

even if i had ten lifetimes to gather information on vintage lightweight cycles i could never reach Maurice's galaxy

-----
You are too kind. Thank you.

I picked up a lot of my knowledge (and still keep learning new stuff) from your many posts here on BF and on the CABE, so there's that .
MauriceMoss is offline
Old 07-09-21, 09:58 PM
  #16
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

while ye are here perhaps you can help this poster...


Need help ID this vintage frame from 50s or 60s


-----
juvela is offline
Likes For juvela:
Old 07-10-21, 05:26 AM
  #17
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,455

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
Liked 1,323 Times in 917 Posts
They definitely chose the right hoods to "cool up" the look of them.

Originally Posted by juvela View Post
-----

brake levers are standard Universal Nr.301 model with adjusting barrel nr. 354

it is the aftermarket booties which contribute to the appearance...



-----
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 07-10-21, 05:33 AM
  #18
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,455

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
Liked 1,323 Times in 917 Posts
Maybe a repair? The painted inner chain stay graphic was a Piave thing I guess...lovely lug work.

Originally Posted by MauriceMoss View Post
It looks like a Piave:




Ciclo Piave (by the Michelin family) is a very underrated marque, especially outside of Italy. Not sure why, since the craftsmanship is excellent plus, come on, those chromed spears points are just cool.


It's hard to tell from the pics but there's something going on around the seat lug. I've never seen a Piave with half chrome/half painted seat lug. Actually, I've never seen that on any frame with original paint. Maybe this is a repaint?


I would expect the head lugs to have the spears on the front.




I would also expect a serial number along the seat lug edge on the NDS.

__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 07-10-21, 07:43 PM
  #19
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts
Originally Posted by jdawginsc View Post
Maybe a repair? The painted inner chain stay graphic was a Piave thing I guess...lovely lug work.
You're probably right. Hopefully we'll get to see some closeups. Either way, it's a very nice bike and I'd definitely get it if it were near me and my size.
MauriceMoss is offline
Likes For MauriceMoss:
