Enjoying this build thread. I hope it motivates me to build up a '68 Schwinn paramount I picked up last year. It has the 610/750 Weinmann center pulls as well.
bikemig is offline
Old 07-24-21, 09:51 PM
  #27
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Starting on wheel build.....

Starting now on building the wheels for this Paramount. Campy high flange, 120mm spacing rear, flat skewers, 70 dated lock nuts...

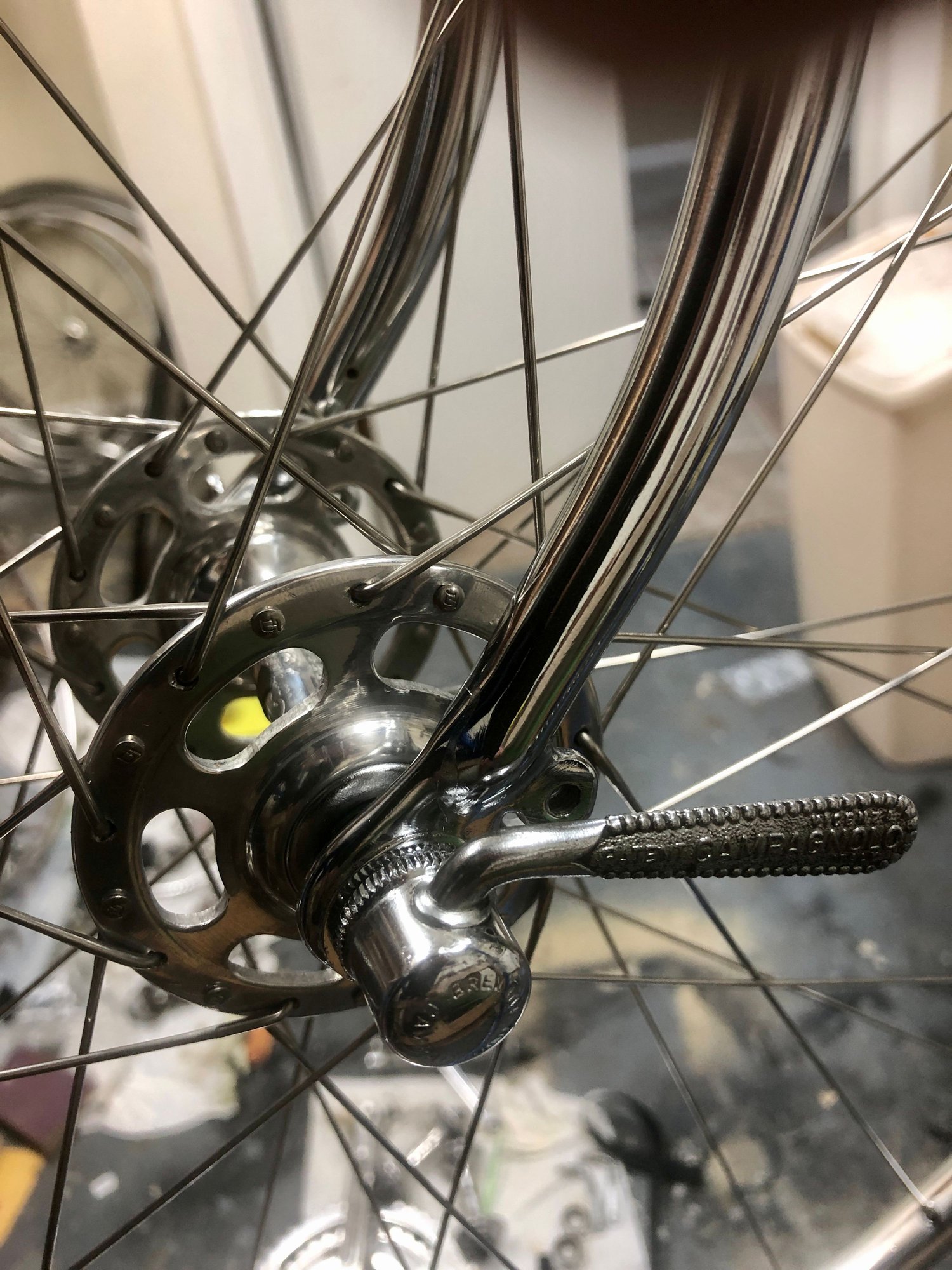

Front hub

Lacing three cross...

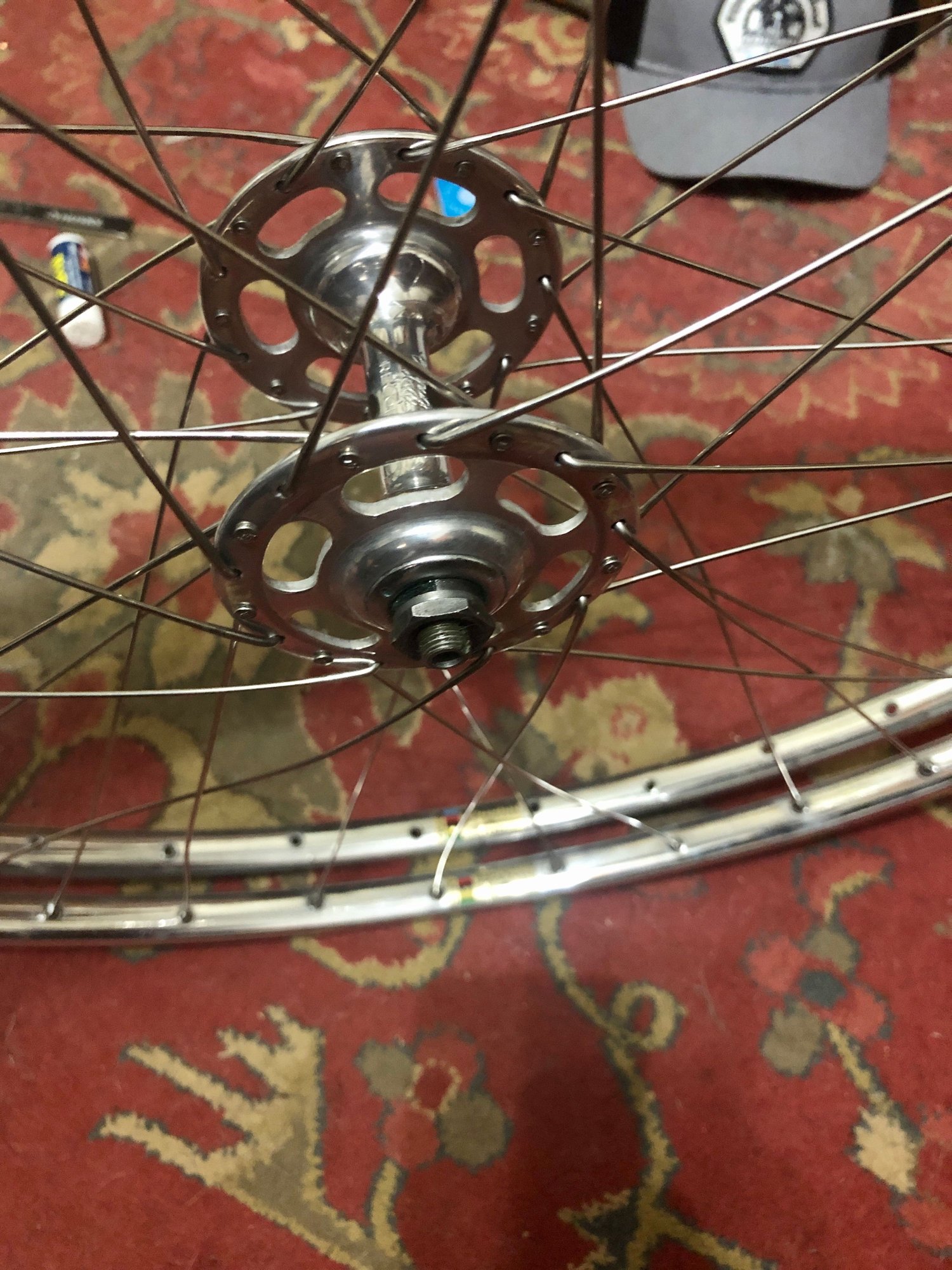

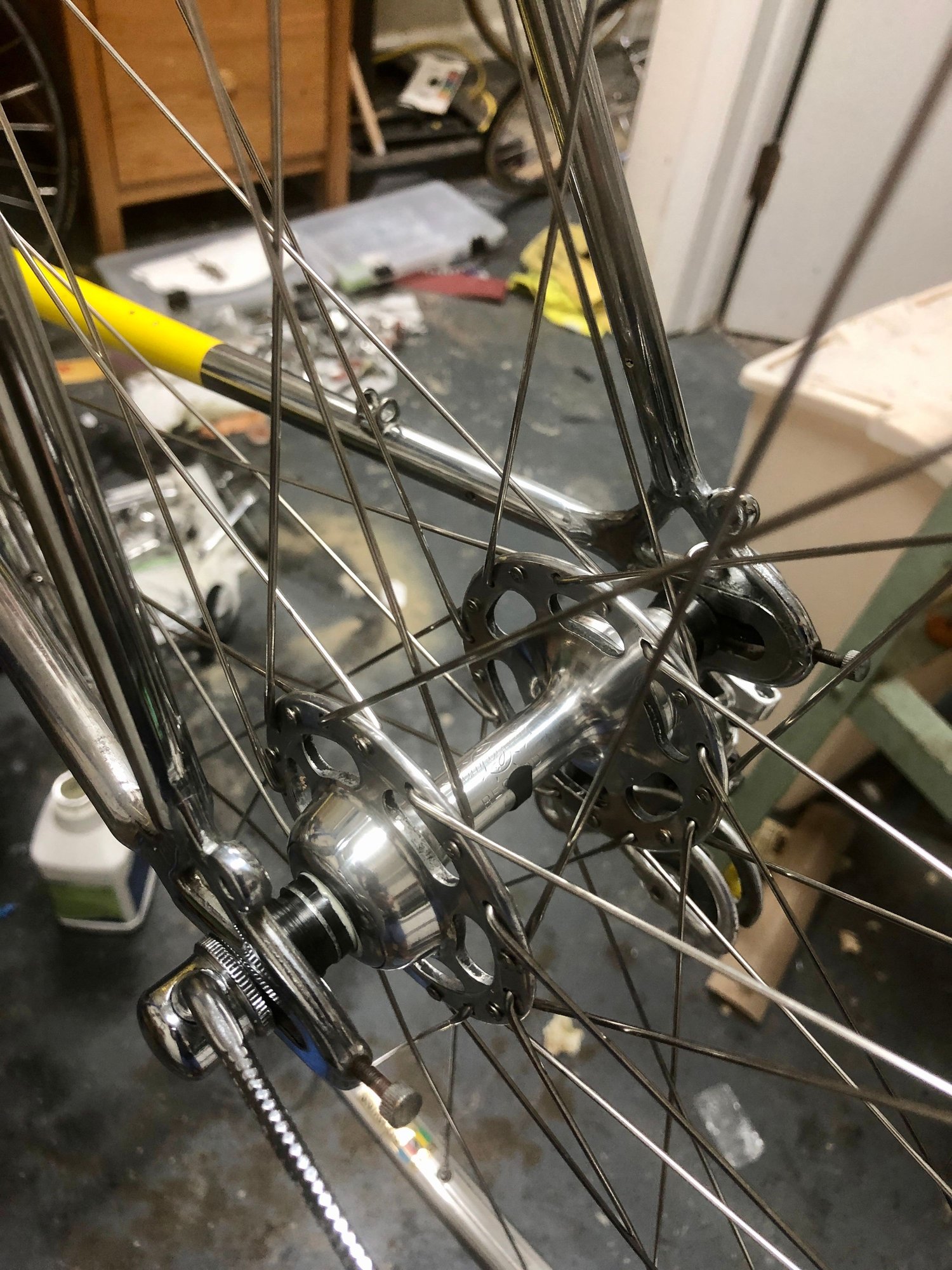

all laced, ready to start truing...
75lechamp is offline
Likes For 75lechamp:
Old 07-25-21, 08:51 AM
  #28
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts

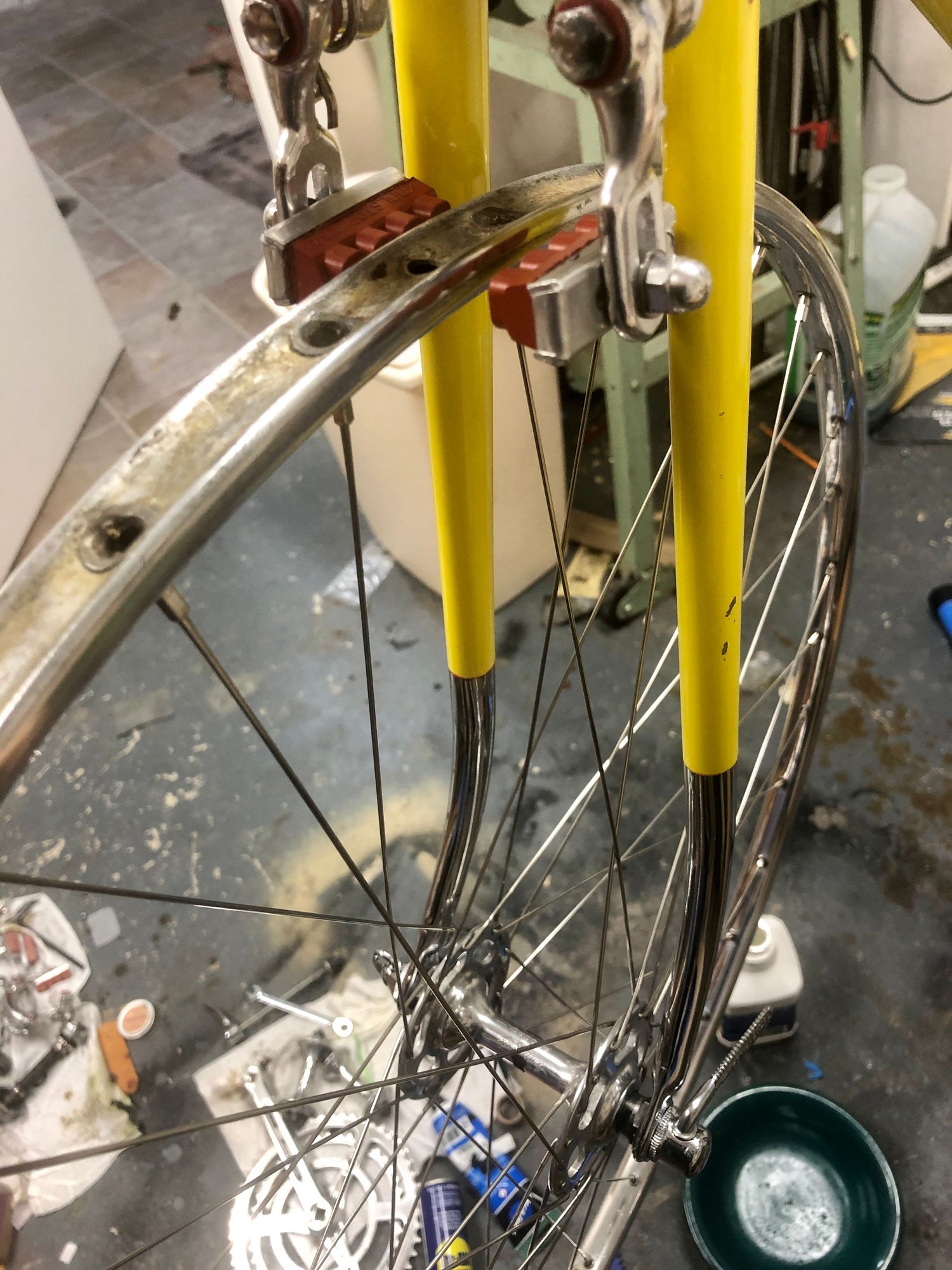

Testing brake reach front

Testing the reach of the Weinmann 610 on the front. Had to extend the shoes out all the way to fit! Lots of clearance on this frame...






Using DT Revolution double butted spokes - they are really light but strong.
75lechamp is offline
Likes For 75lechamp:
Old 07-25-21, 11:01 AM
  #29
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Rear brake clearance check

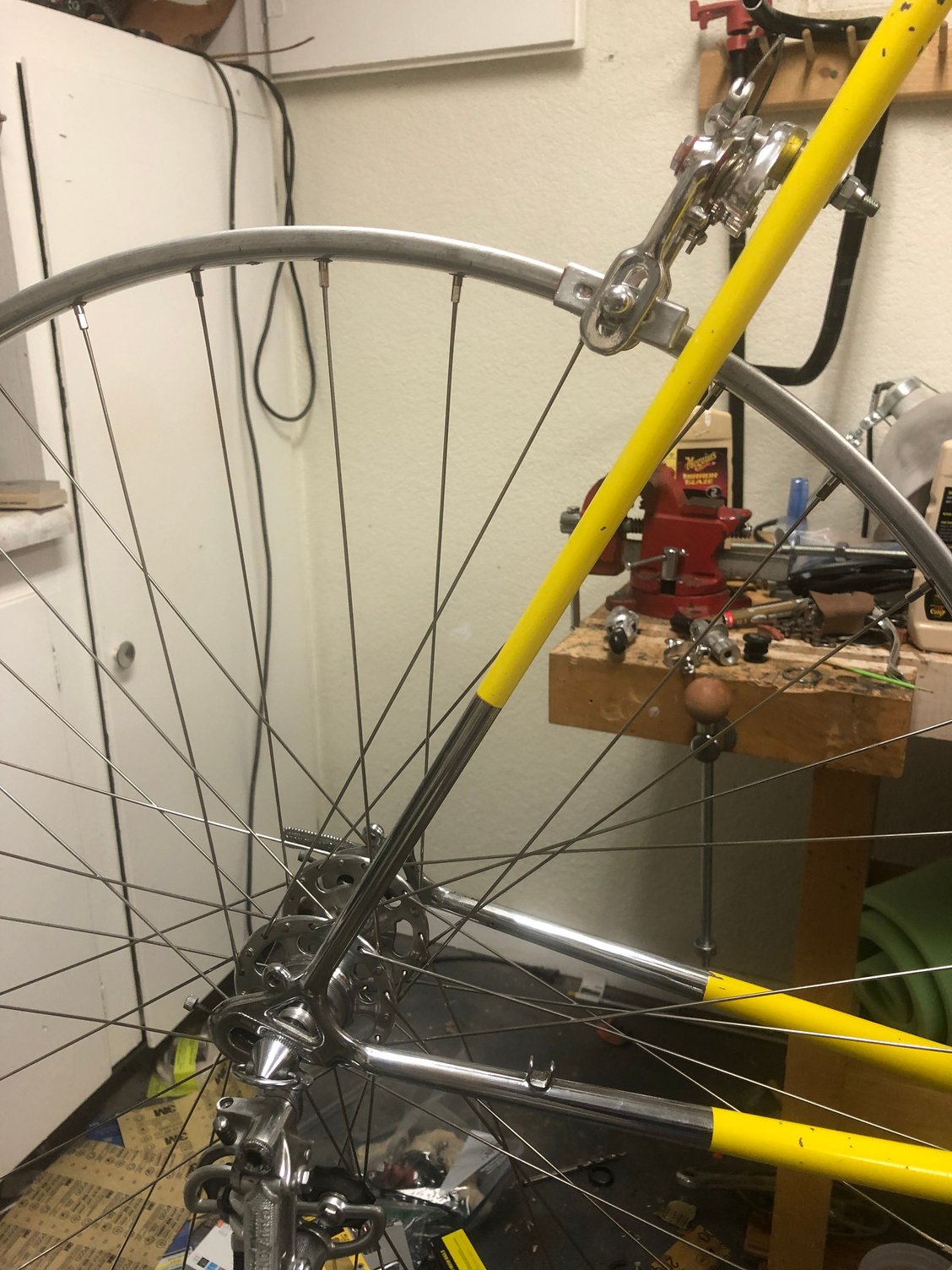

Built up rear wheel now, checking clearance on the Weinmann 750.... looks like it won't need to adjust all the way out....



Plenty of clearance.....





Starting to resemble an actual bike....!

Last edited by 75lechamp; 07-25-21 at 11:02 AM. Reason: Update comments
75lechamp is offline
Likes For 75lechamp:
Old 07-25-21, 11:58 AM
  #30
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,475
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 908 Times in 706 Posts
Are the DT spokes née production?
for a while the flange capacity was modified to make them too big for vintage hubs.
those appear better.

repeatable source?
repechage is offline
Old 07-25-21, 02:47 PM
  #31
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Yes, these are current production, got them from wheelbuilder.com. These seem to be a good fit. I used to buy spokes regularly from yojimbo on eBay but I think he had a bit of trouble during the height of coronavirus....

Andy Grout
Arvada CO USA
75lechamp is offline
Old 07-29-21, 07:45 PM
  #32
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Weinmann front brake cable

Got this off eBay from a seller that unfortunately is a bike shop in Honolulu that closed last year and is selling off remaining inventory....


Schwinn Approved ......

good fit....

Cool sticker that came in the package...
75lechamp is offline
Likes For 75lechamp:
Old 07-30-21, 03:09 AM
  #33
mech986
Senior Member

mech986's Avatar

Join Date: Sep 2010
Location: La Habra, California
Posts: 691

Bikes: Italvega Super Speciales and Superlights

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 312 Post(s)
Liked 122 Times in 93 Posts
Originally Posted by 75lechamp View Post

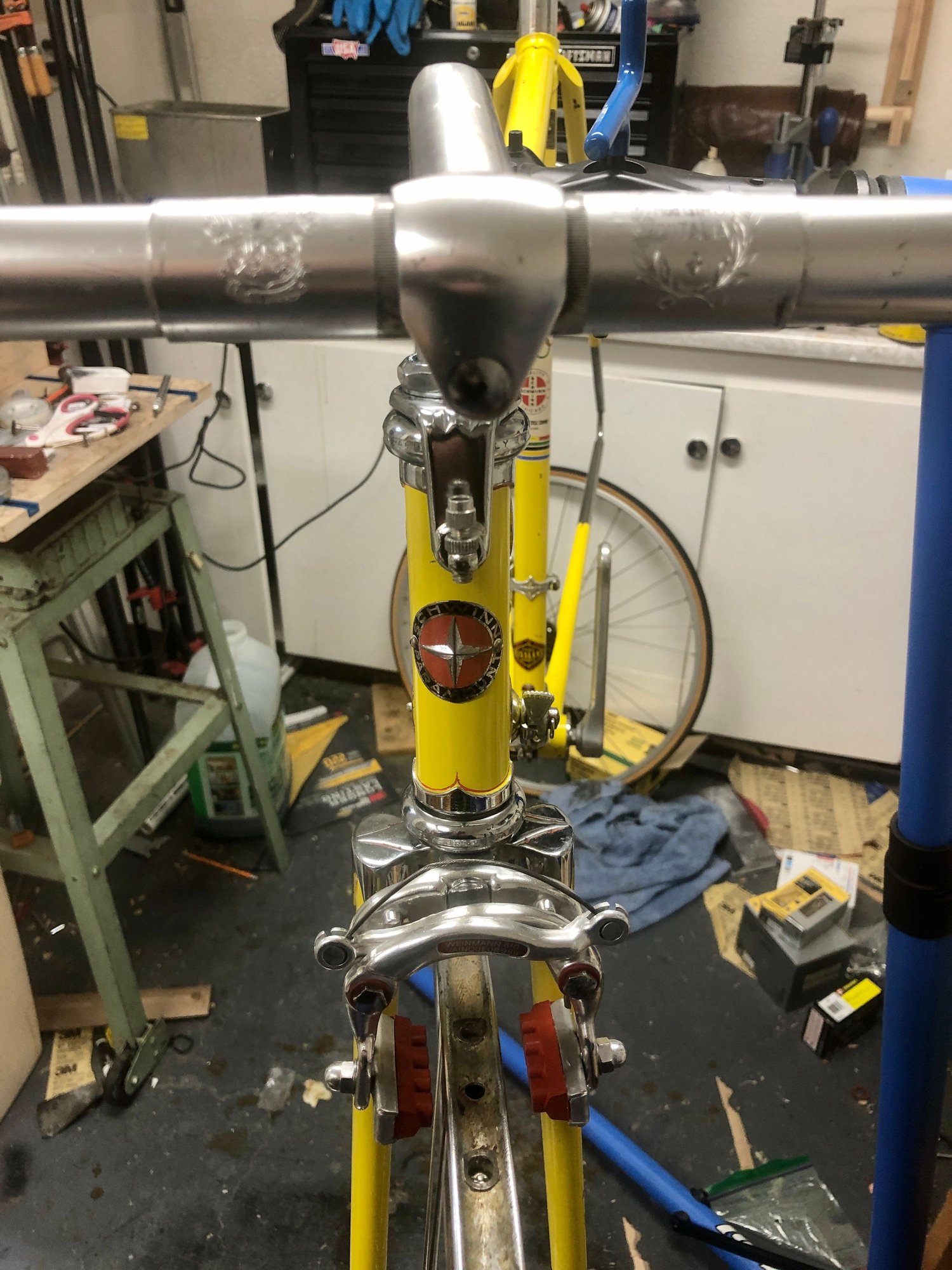

Campy NR headset installed...



My only issue is that I have a Weinmann front brake hanger that has a flat spot for alignment with a head tube that also has a flat spot. However, I have discovered this Paramount has a slot, so I need a hanger that has such a slot....
Note, when photographic highly polished reflective surfaces, always be sure you're wearing something. At least that's what it looks like.
__________________
Italvega and Torpado Enthusiast
mech986 is offline
Likes For mech986:
Old 08-05-21, 09:31 PM
  #34
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Schwinn Approved.....

I have seen conflicting evidence on the "Schwinn Approved" components for this year Paramount. I am pretty sure that the original tubulars on the P-13-9 were likely Weinmanns, and the Schwinn Approved (Super Champions) came later. However, since the entire impetus for this build came from an accidental purchase of a single NOS "Schwinn Approved 330" rim, I decided to go with that. Carrying on with that theme, I've decided to replace my Weinmann branded 610/750 brakeset with a "Schwinn Approved" set. No difference, but doesn't it give you peace of mind that in 1971 Mr. Schwinn may have approved of this brakeset?



As found... a little crusty....

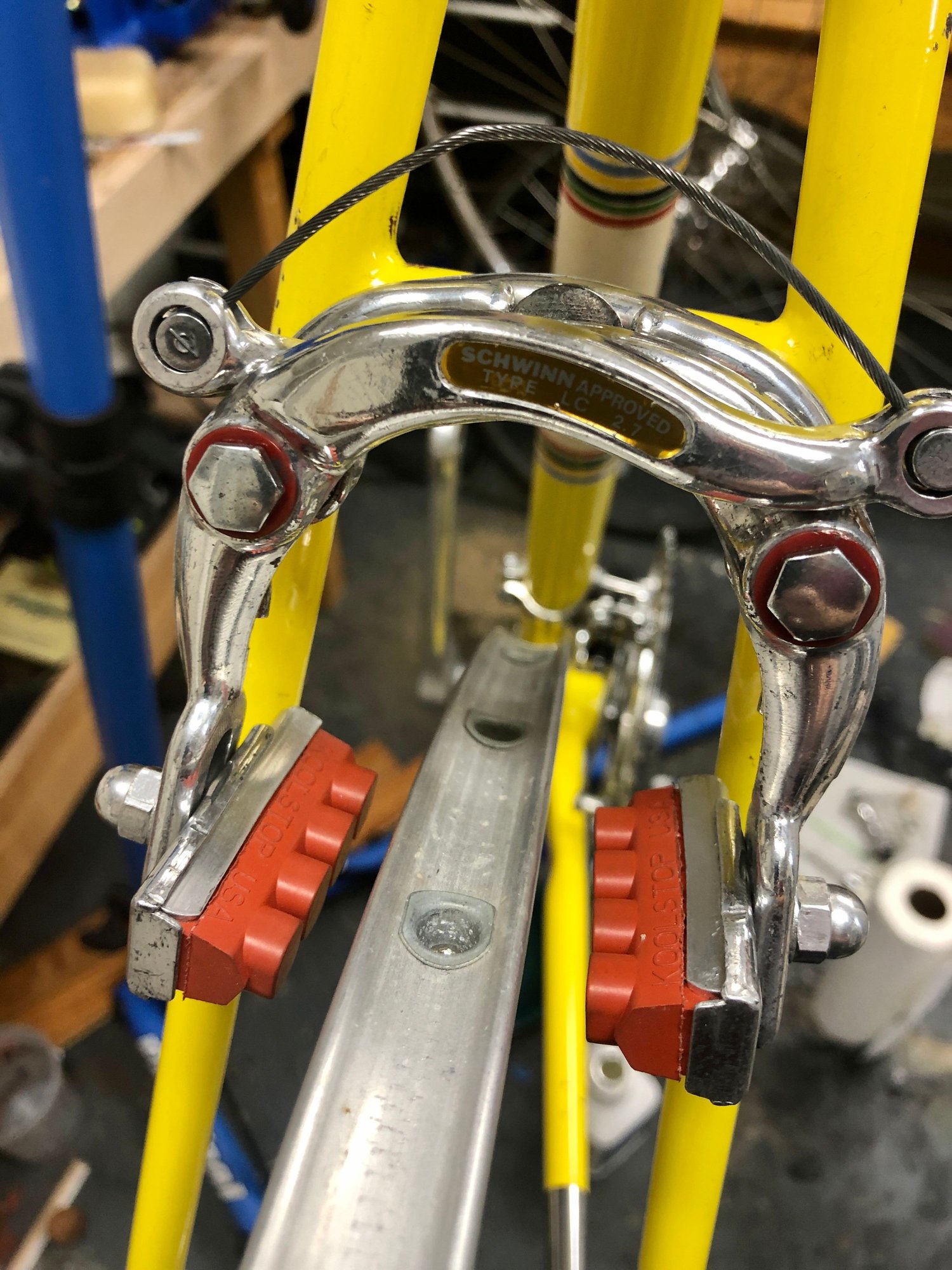

Cleaned up a bit, with Koolstop pads....

Mr. Schwinn would most definitely approve...

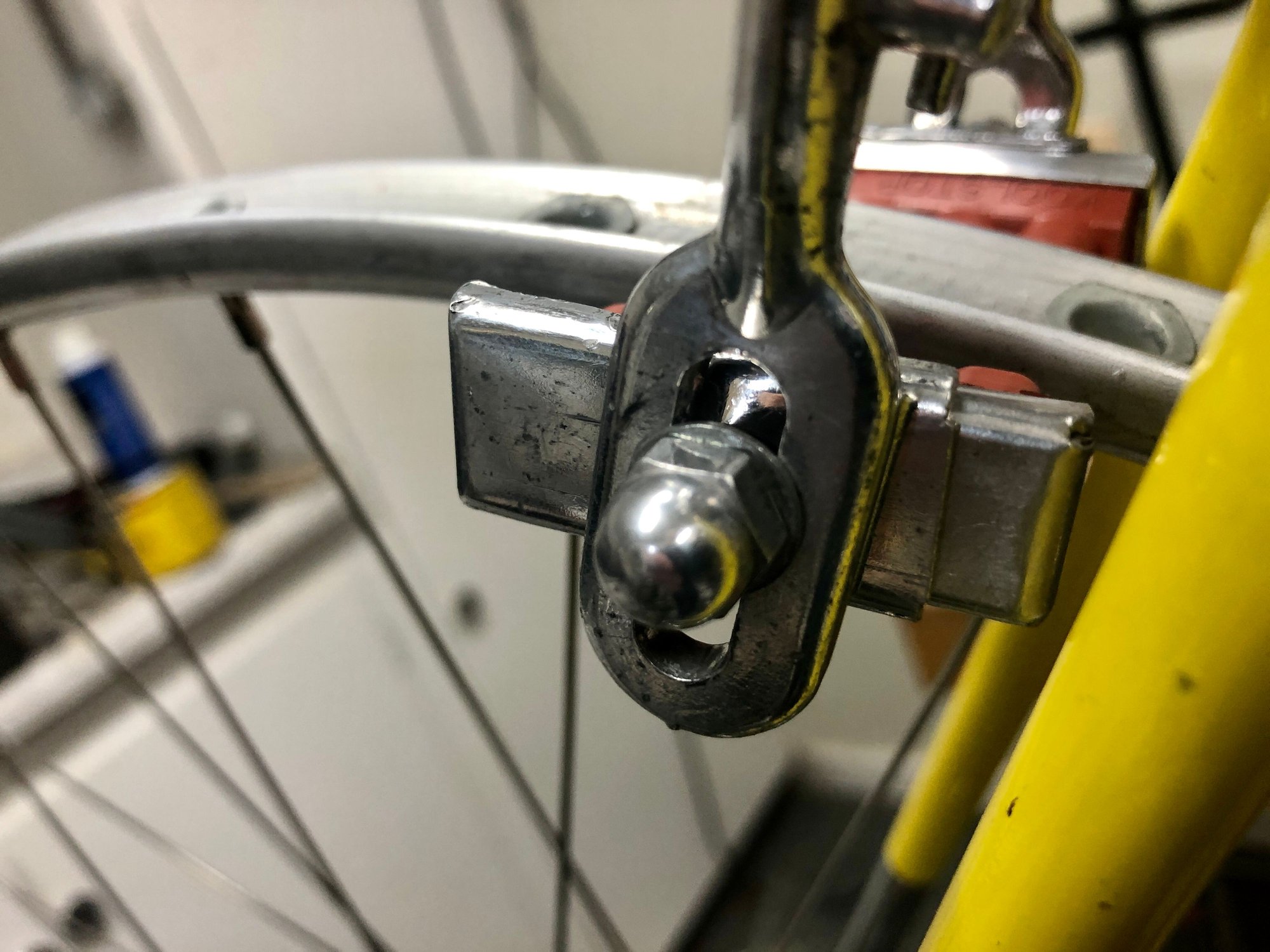

Only at Schwinn, they required Weinmann to add a safety sleeve to their brake pad holders to ensure both ends were covered, so they would not slip off....
75lechamp is offline
Likes For 75lechamp:
Old 08-06-21, 06:49 AM
  #35
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,778

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Liked 442 Times in 269 Posts
You wouldn't want the pads to slip out when reversing and braking on a decline!
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA Coast the rest of the year!
https://hosting.photobucket.com/albums/p71/pastorbobnlnh/Bike%20Scenes/.highres/286ca3ae-7c02-418d-951a-43ca7af61593_zps50b30b35.jpg?width=590&height=370&fit=bounds
Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com


pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 08-06-21, 12:19 PM
  #36
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,475
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 908 Times in 706 Posts
Originally Posted by 75lechamp View Post
I have seen conflicting evidence on the "Schwinn Approved" components for this year Paramount. I am pretty sure that the original tubulars on the P-13-9 were likely Weinmanns, and the Schwinn Approved (Super Champions) came later. However, since the entire impetus for this build came from an accidental purchase of a single NOS "Schwinn Approved 330" rim, I decided to go with that. Carrying on with that theme, I've decided to replace my Weinmann branded 610/750 brakeset with a "Schwinn Approved" set. No difference, but doesn't it give you peace of mind that in 1971 Mr. Schwinn may have approved of this brakeset?



As found... a little crusty....

Cleaned up a bit, with Koolstop pads....

Mr. Schwinn would most definitely approve...

Only at Schwinn, they required Weinmann to add a safety sleeve to their brake pad holders to ensure both ends were covered, so they would not slip off....
preceded the CPSC and allowed for pad exchange. Reasonable idea. Schwinn was the big player so was a liability target.

the shop I worked for faced a lawsuit along with the bike importer, from a customer who claimed her bike was unsafe as the front tire could drop through the parallel to the road storm grate and was not advised about that specific hazard. As a result of that the city did weld in cross tie straps perpendicular to the roadway afterward.
repechage is offline
Likes For repechage:
Old 08-06-21, 04:51 PM
  #37
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Continuing the build...

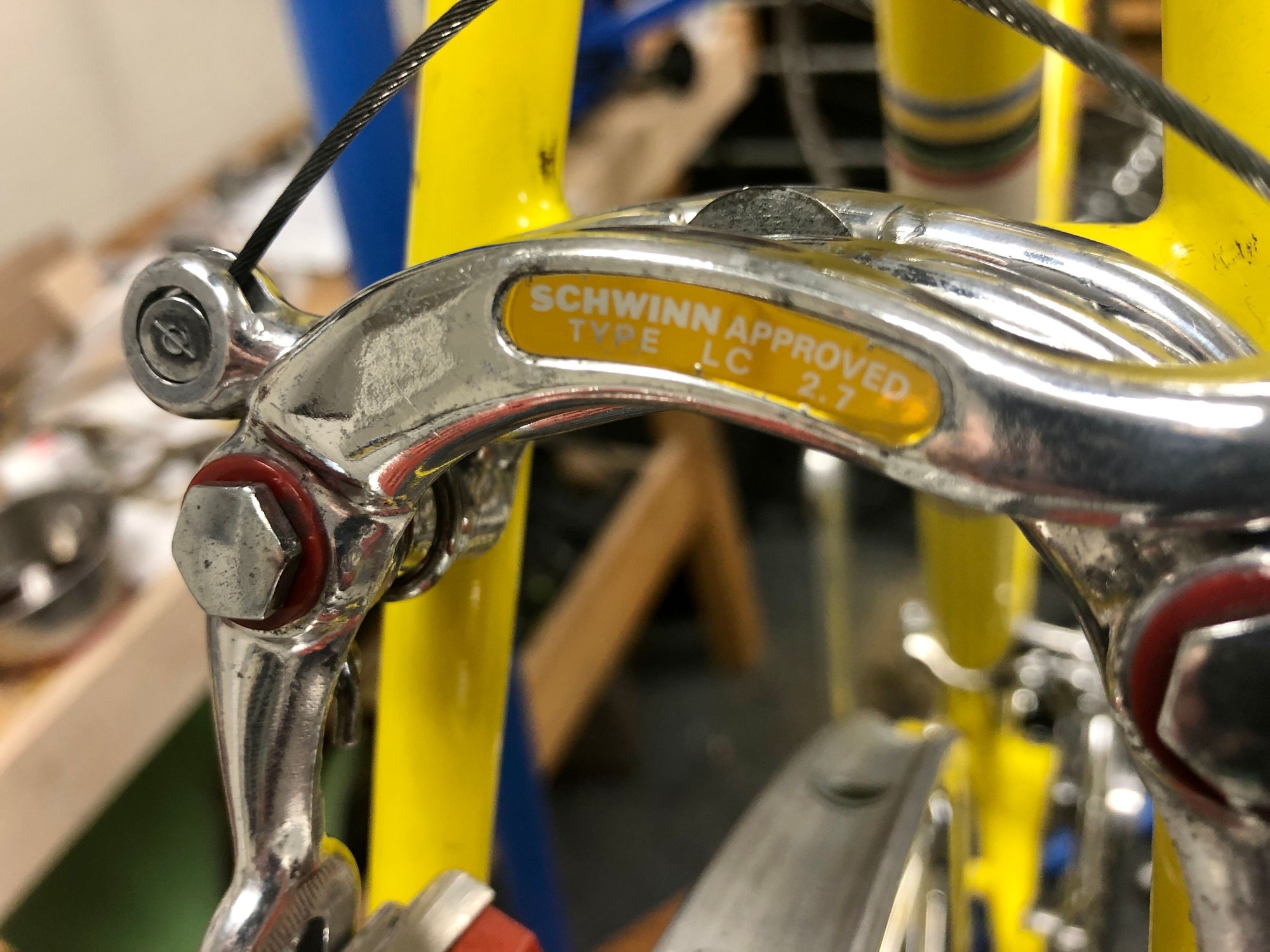

Kinda grungy front caliper "Schwinn Approved"...

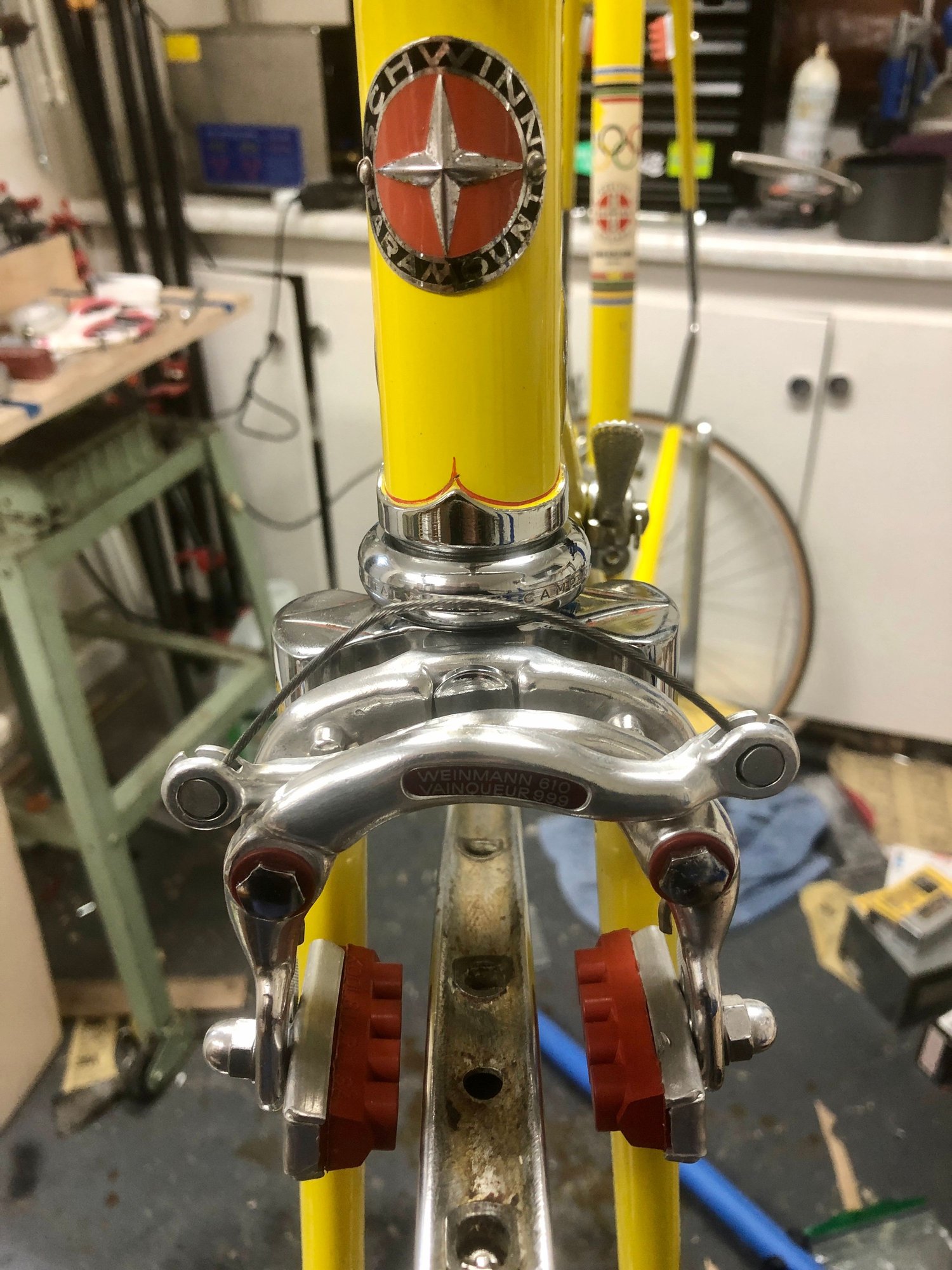

Cleaned up and installed...

Undated crank (appropriate for pre-73)

Patent Campagnolo 52, not quite on the money as it does have a pin...

42 tooth...

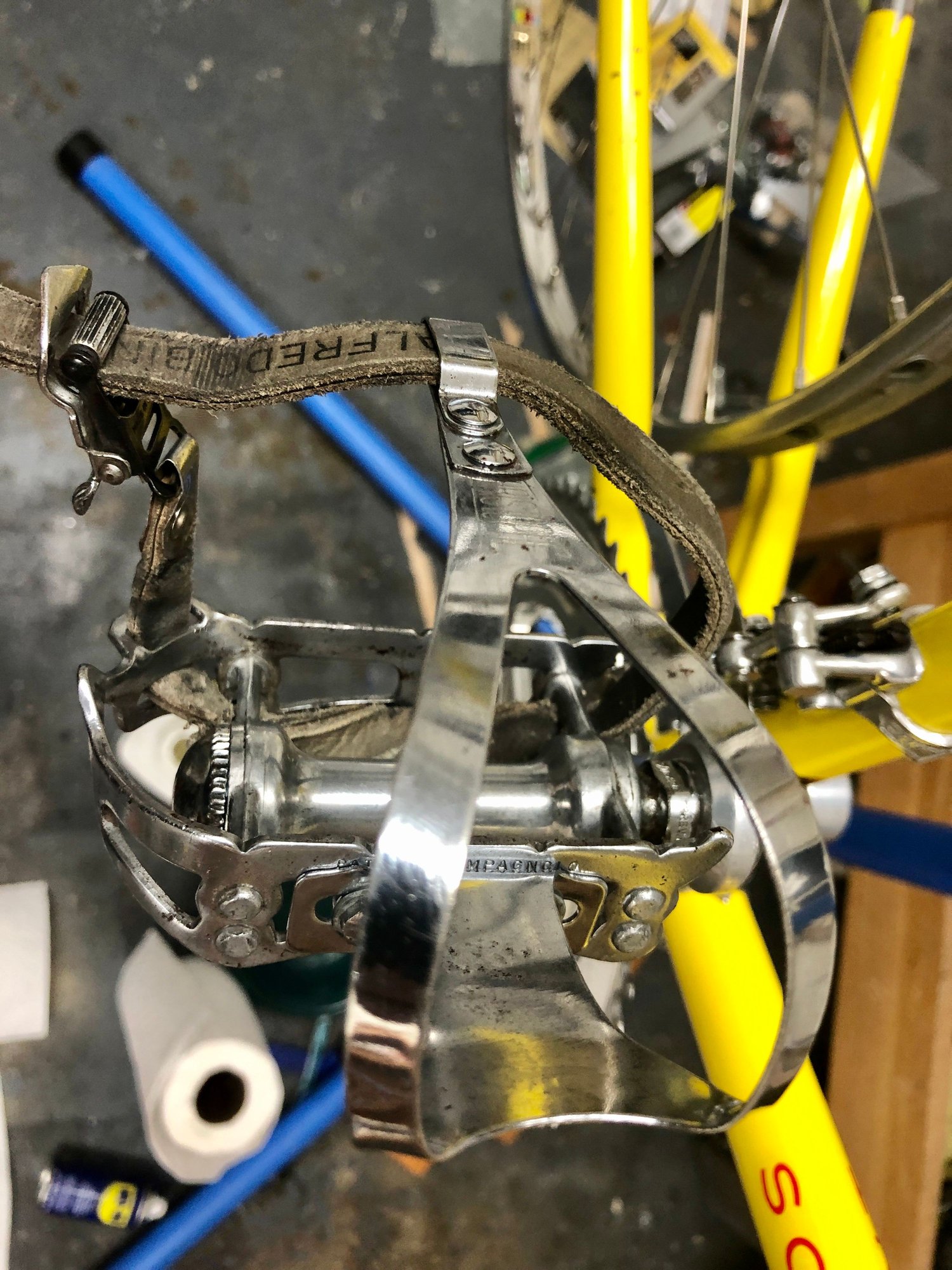

Nuovo Record pedals, toestrap loop, with Binda Extras and Christophe clips...
75lechamp is offline
Likes For 75lechamp:
Old 08-07-21, 08:13 AM
  #38
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Rear derailleur - Eroica

Well, my latest thought is I am considering taking this bike to Eroica if I can get it ready by then. I found out in 2018 these knees are way too old to go with 52/42 x 14/28, so I would need to use my 14-34 SunTour, and there's no way my NR will work on that. So, this monstrosity came in the mail:


In good shape, plenty of bling, but....

This thing is a boat anchor, almost a full pound!


Also, I think this thing needs a claw as the top bolt does not mate with the dropout.... any ideas?

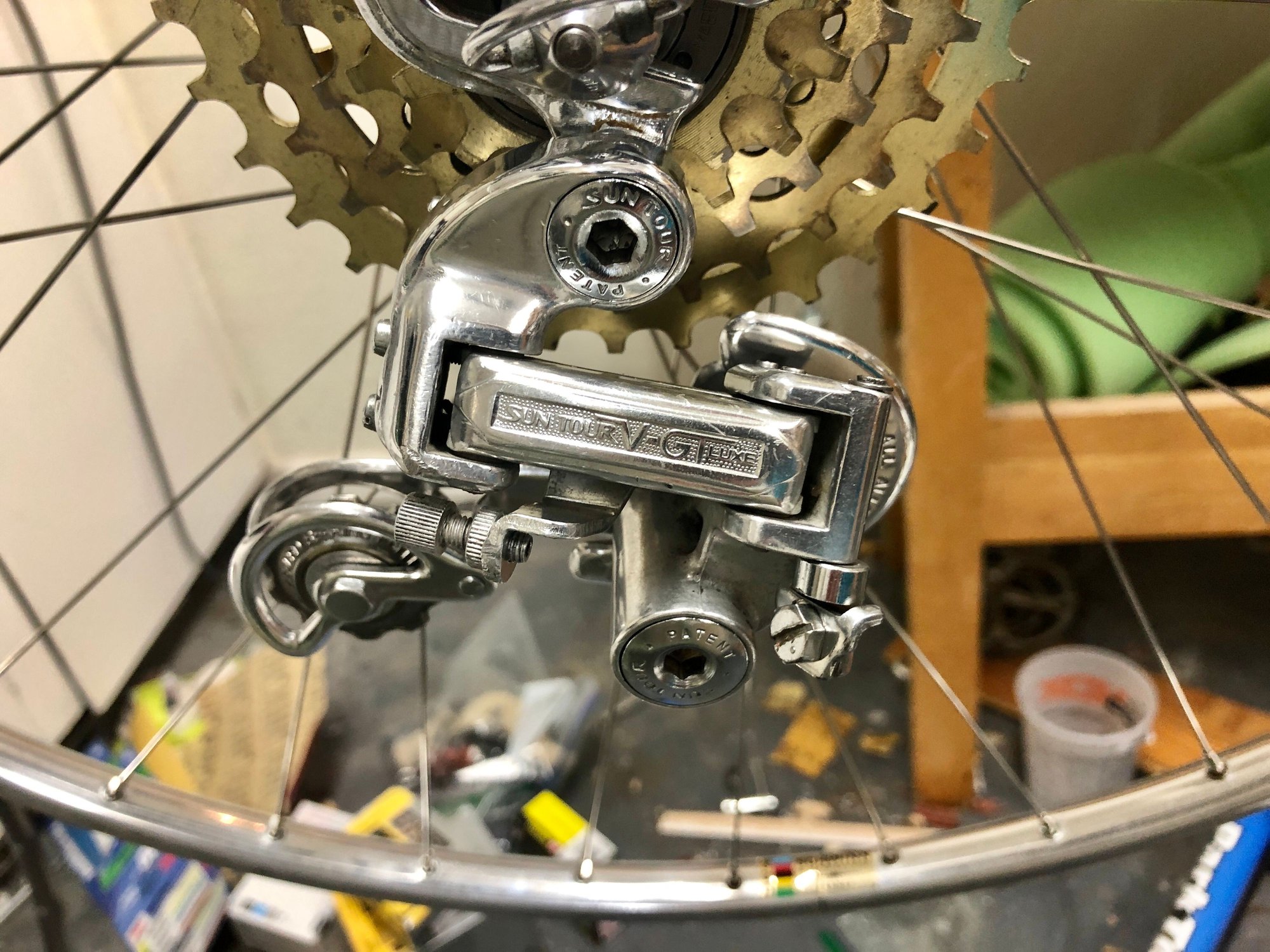

So, I decided to go "off-Campy" for this purpose, and my parts bin yielded this, which I think came off an old Grand Touring I had...



I think the date code on this is 1975 (RJ), so a little further out, but period-is correct?

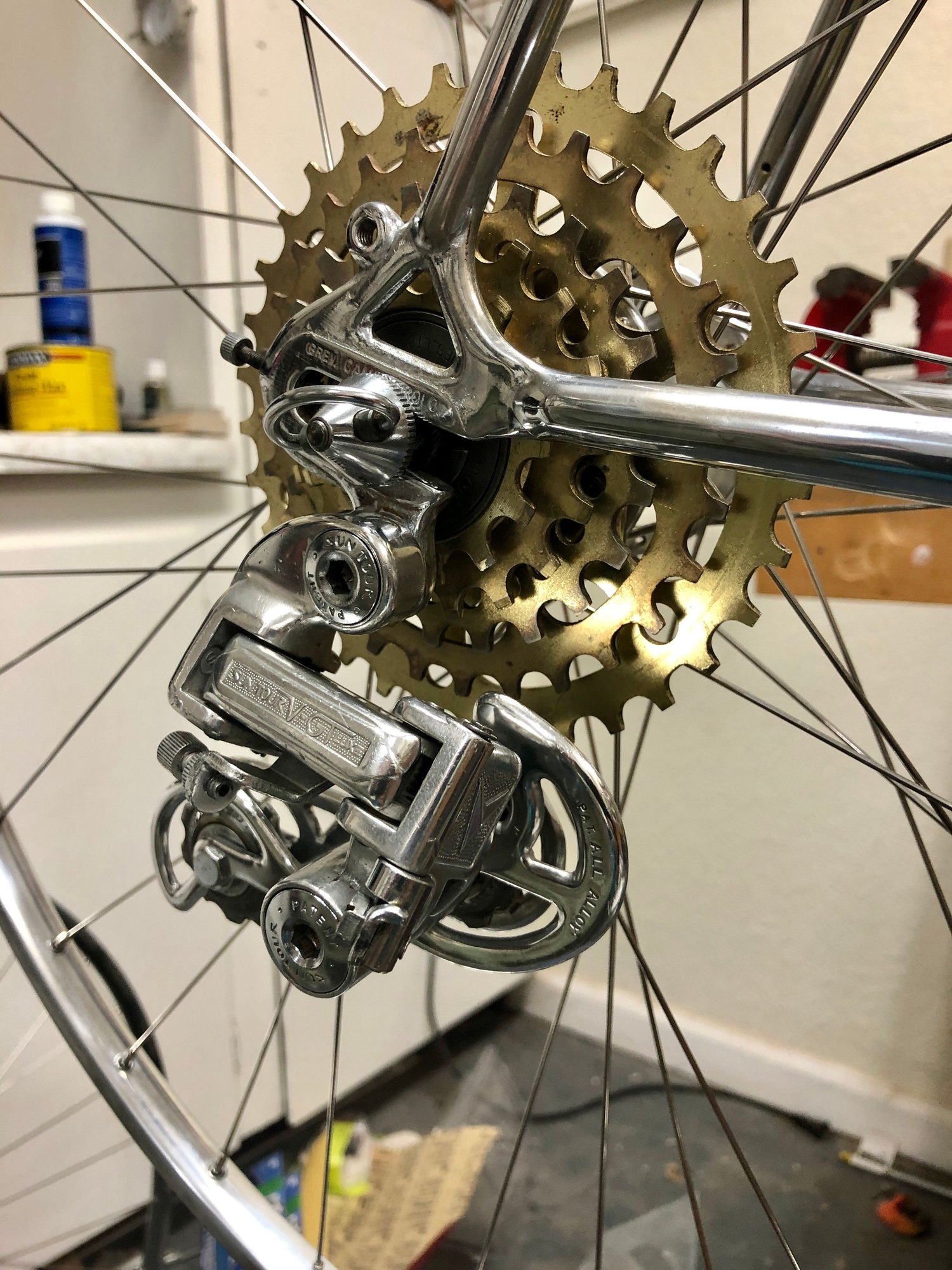

Looks like it should work with the 14-34

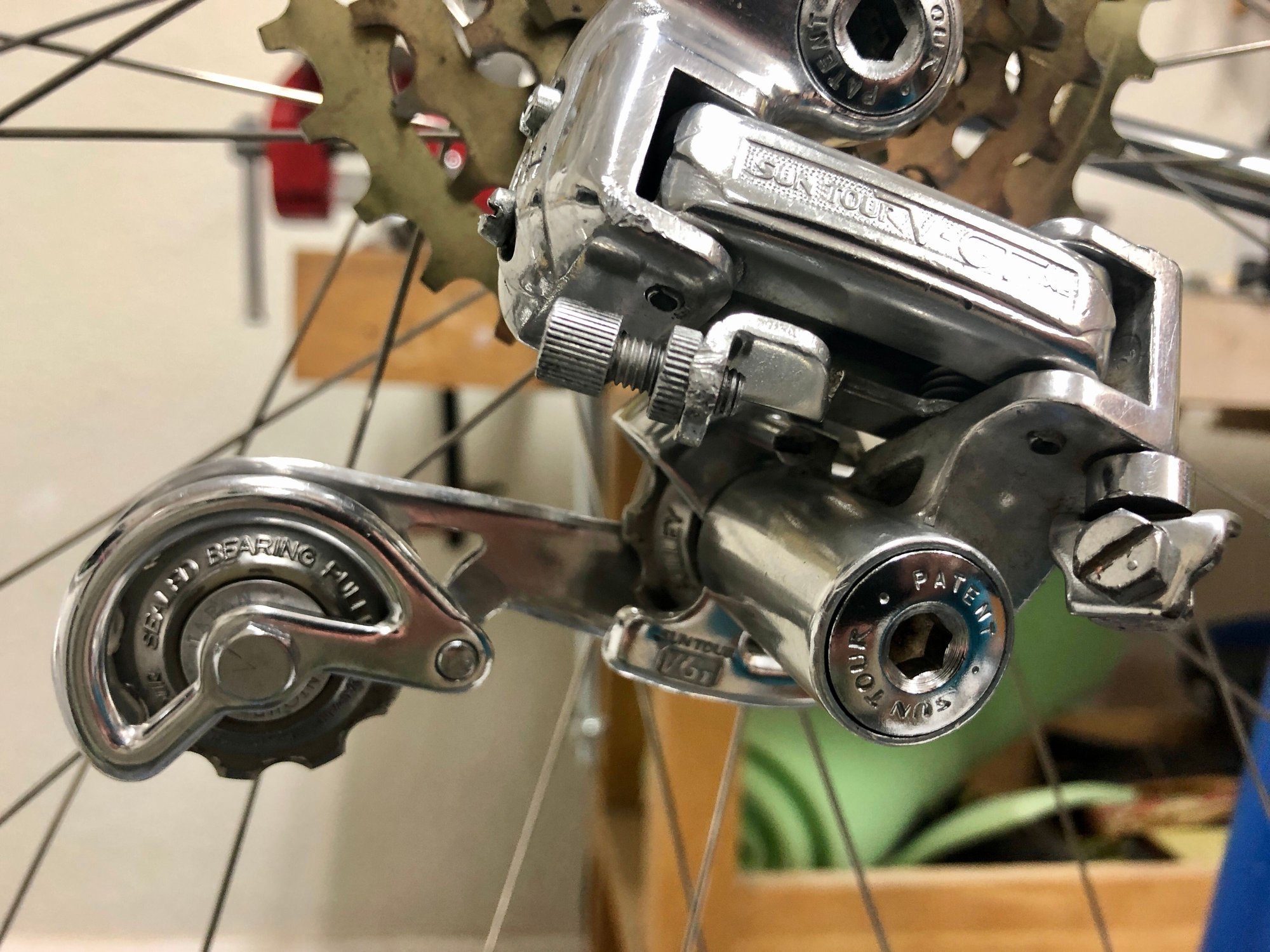

Swapped in a set of SunTour sealed pulleys, a nice improvement over the original pulleys...

Cleans up real nice, I think this might work if I can get this build together by early September...
75lechamp is offline
Old 08-15-21, 05:05 PM
  #39
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Getting closer.....

Getting closer on this build; I might just be able to make Eroica on this thing......



Wrapped bars...

Now have the "Schwinn Approved" Weinmanns...

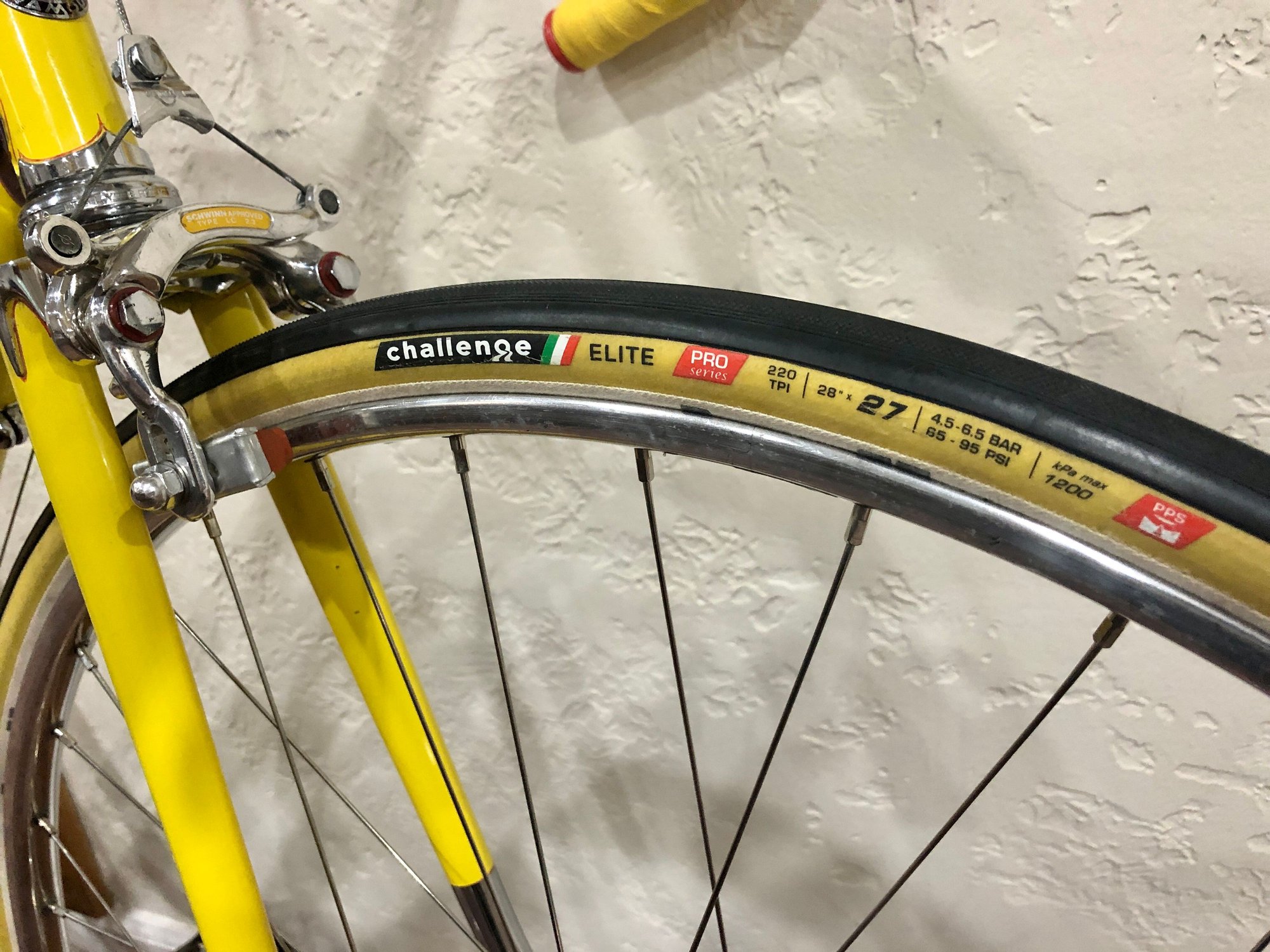

I only ride tubies and have found the Challenge Elite Pro to be well made and durable. Going with a 27mm wide on this build, in case I take it to Eroica...

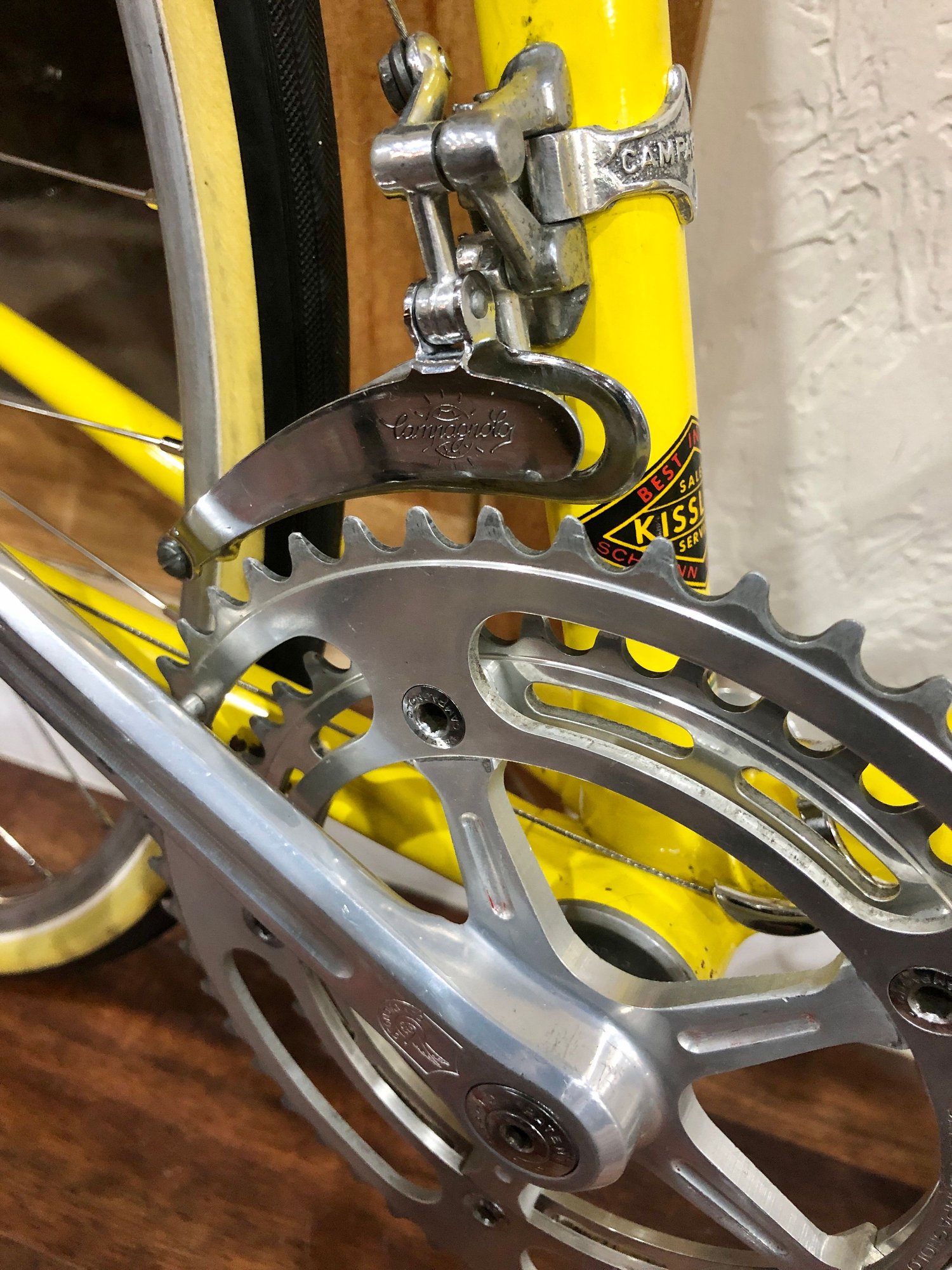

Now have the correct front Campy, with no clip...

On the fence about this Gran Turismo - we'll see if I can get it to work and shift well.... if not I think I will go with the Suntour VGT Luxe


Every day it starts to look more and more like a bike....
75lechamp is offline
Old 08-17-21, 04:45 PM
  #40
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 149

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 188 Times in 65 Posts
Fini!

Well, the build is now complete, and I plan to take this bike to Eroica next month. Need to get it set up right, tightened, adjusted, then go riding and see how it does....



This came today - the final piece of the puzzle, a rear brake cable....

Original Weinmann hoods, they're a bit dried and cracking but still fairly solid...

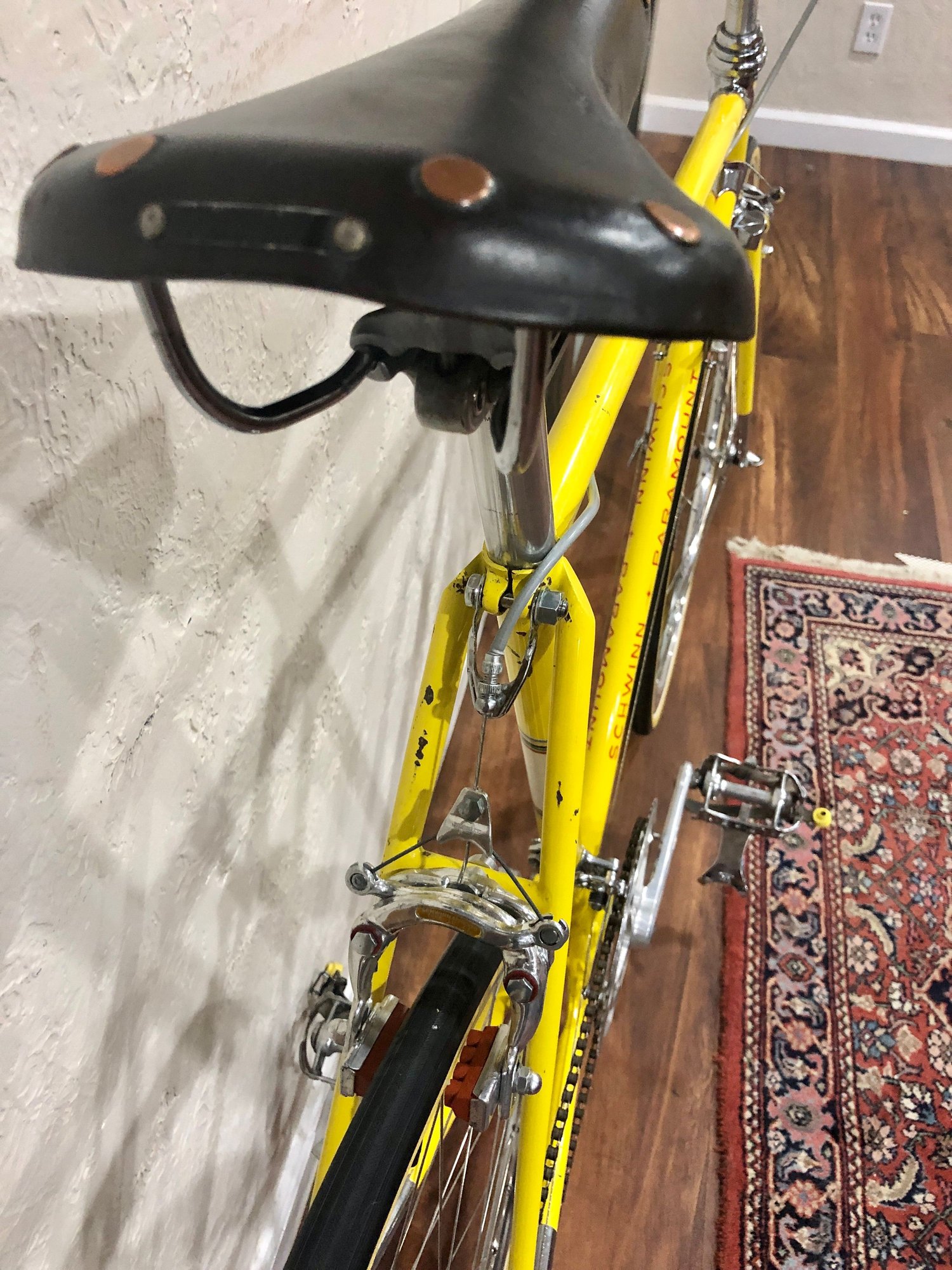

Brooks Pro...

The Gran Turismo (aka Boat Anchor) actually seems to work pretty well, despite all I have heard, but we'll see how it does on the road. ..

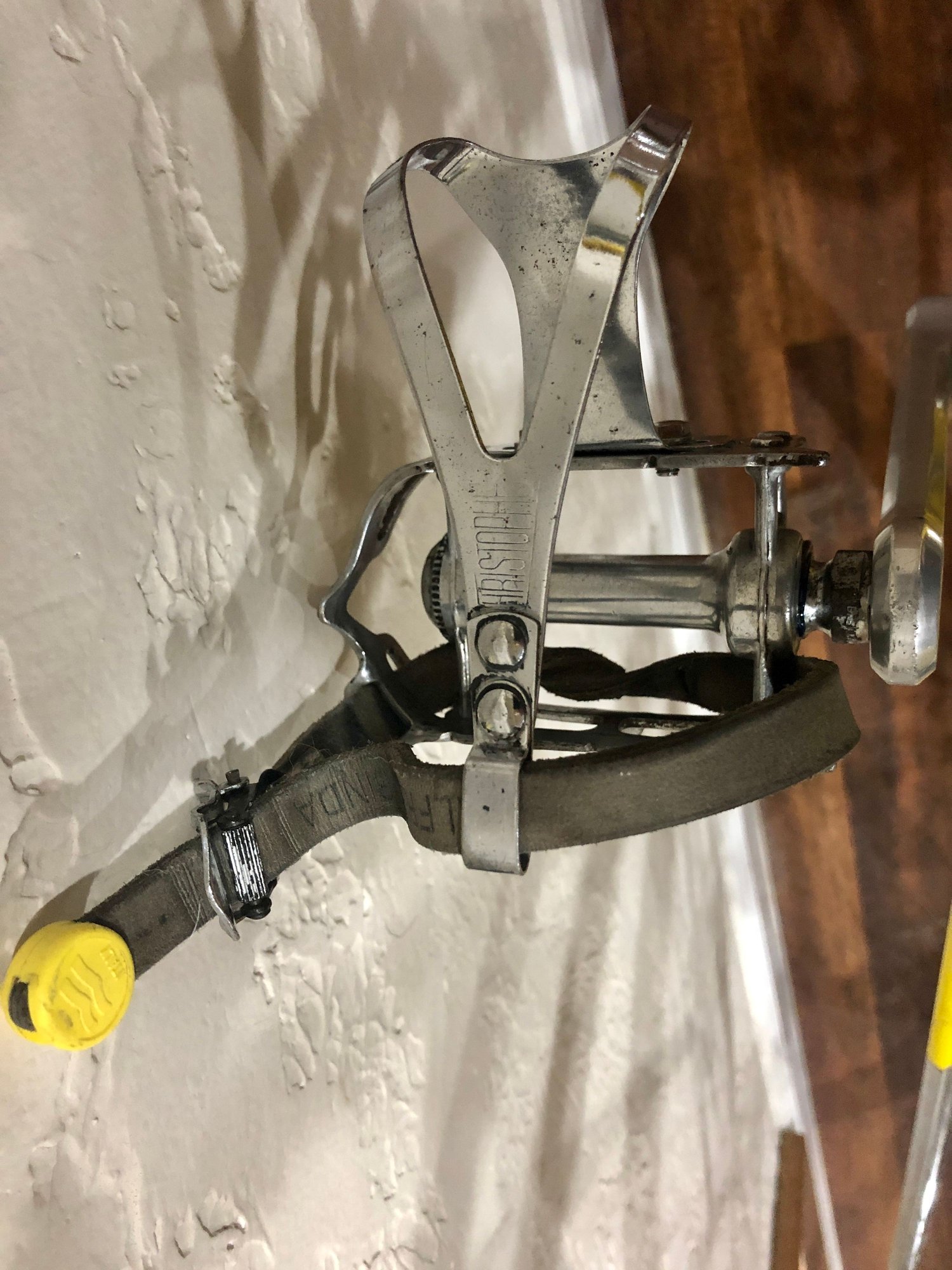

NR pedals with toe loop, Binda Extra straps, Christophe clips and yellow REG buttons...

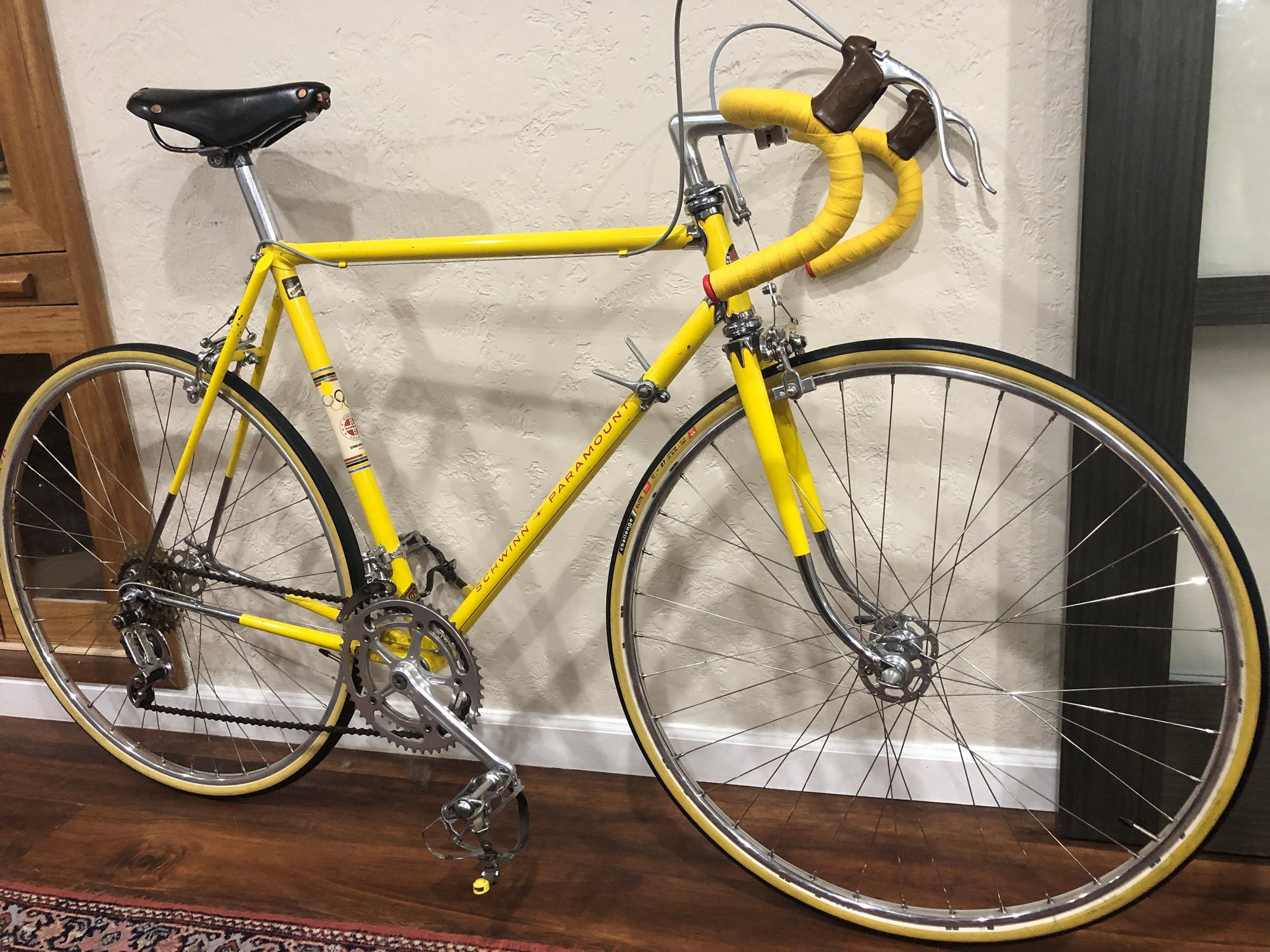

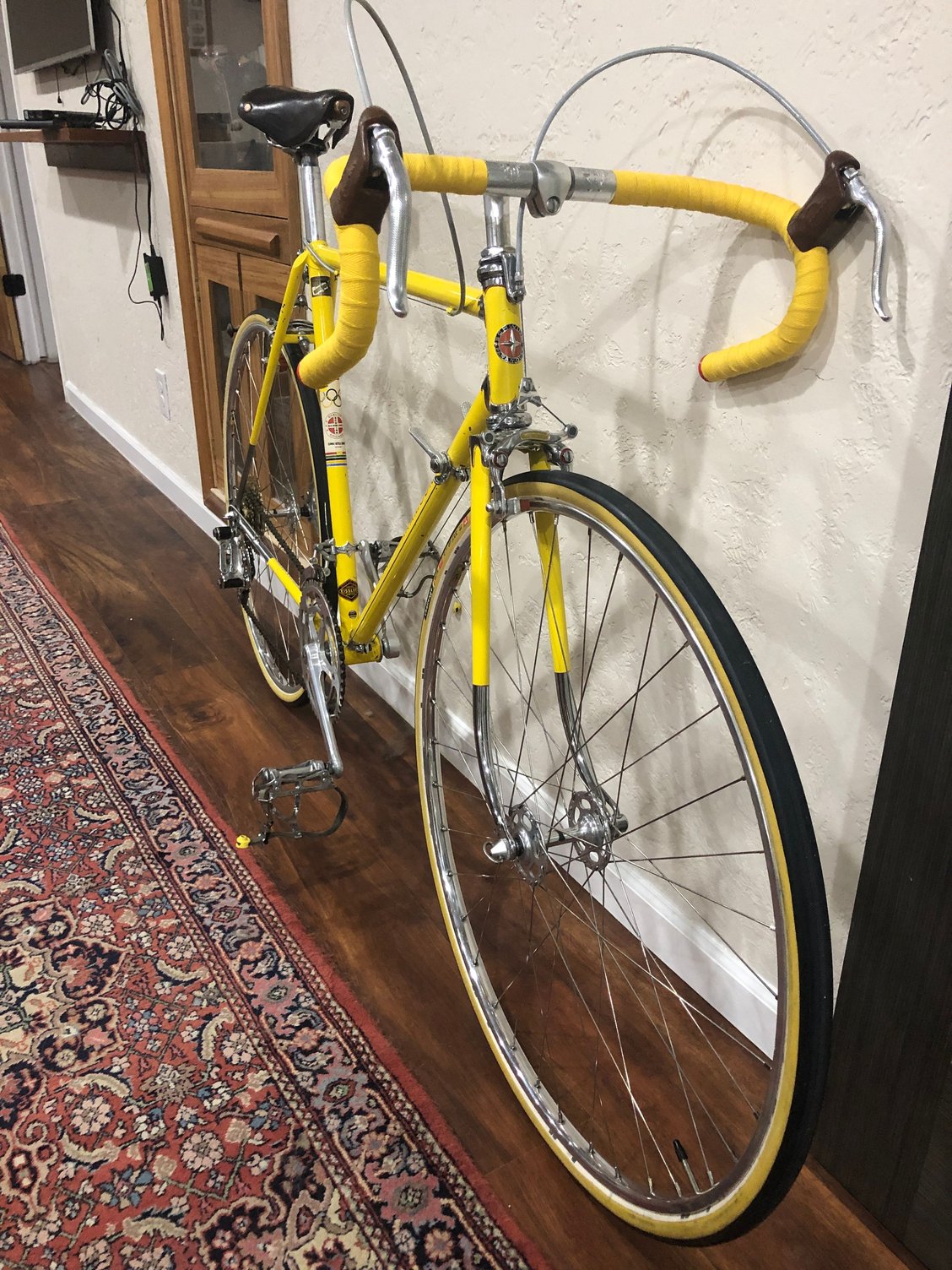

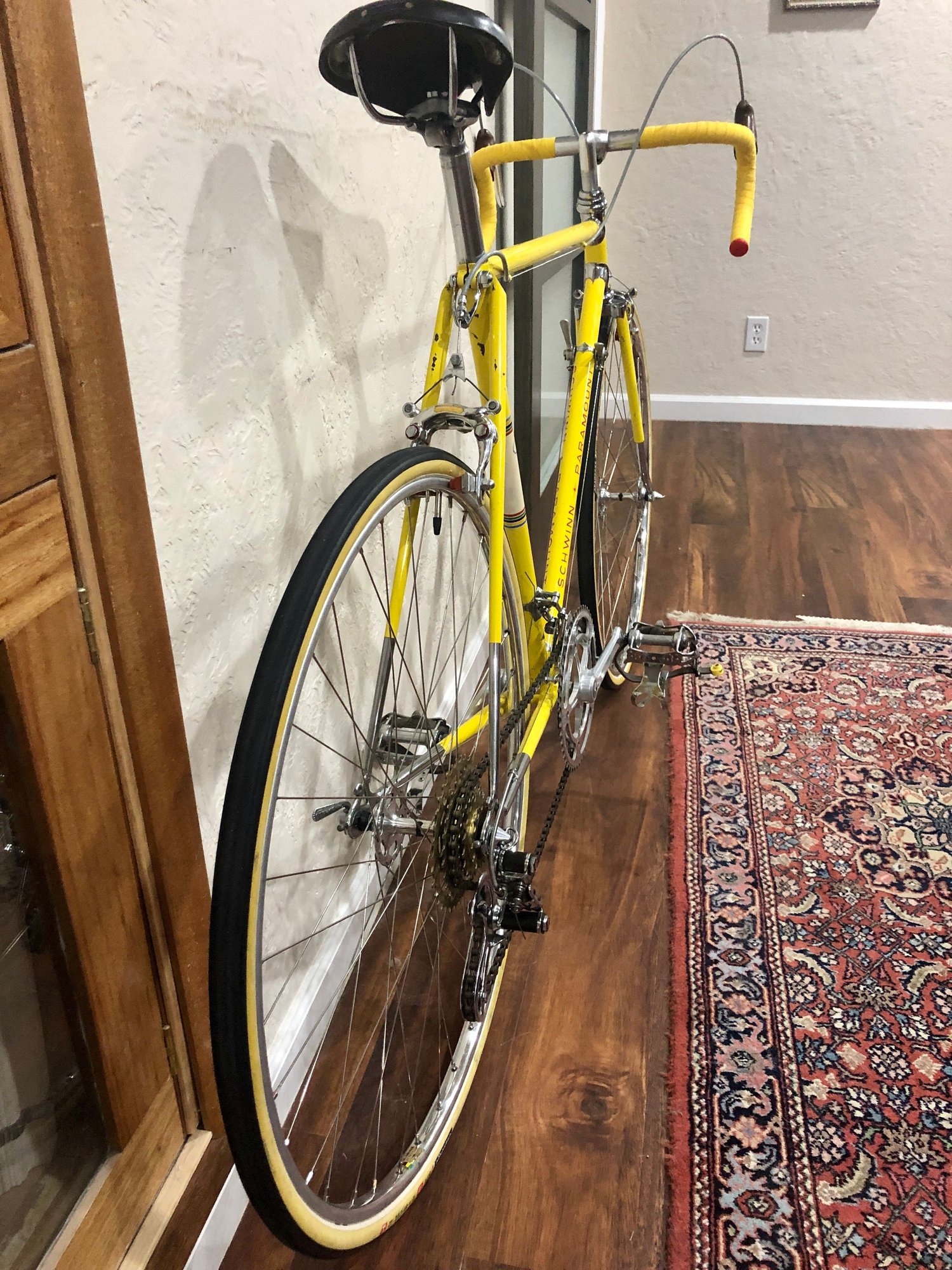

All put together...
75lechamp is offline
Likes For 75lechamp:
Old 08-17-21, 05:28 PM
  #41
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,778

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Liked 442 Times in 269 Posts
Magnificent!
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA Coast the rest of the year!
https://hosting.photobucket.com/albums/p71/pastorbobnlnh/Bike%20Scenes/.highres/286ca3ae-7c02-418d-951a-43ca7af61593_zps50b30b35.jpg?width=590&height=370&fit=bounds
Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com


pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 08-17-21, 07:02 PM
  #42
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,700

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,962 Times in 1,317 Posts
I love it when this happens.

Great work, nice job.
