Frame ID help! 1950s? British?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Frame ID help! 1950s? British?

Old 07-12-21, 06:23 AM
  #1
tonyfourdogs
Senior Member
Thread Starter

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 259

Bikes: Marin Palisades Trail (1991)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked 3 Times in 3 Posts
Frame ID help! 1950s? British?

Hi folks

I was hoping that some of you fine people might be able to help me identify this frame I picked up the other day. I have a feeling it might be something a little bit special, but I can't find any identifying marks on it other than on the bottom bracket lug.

It does have 597mm rims/ tyres though, which leads to me to believe it could quite possibly be a 1950s British bike (I'm in the UK) but apart from that, I don't really know where to begin.

Pictures attached, and any assistance very gratefully received.

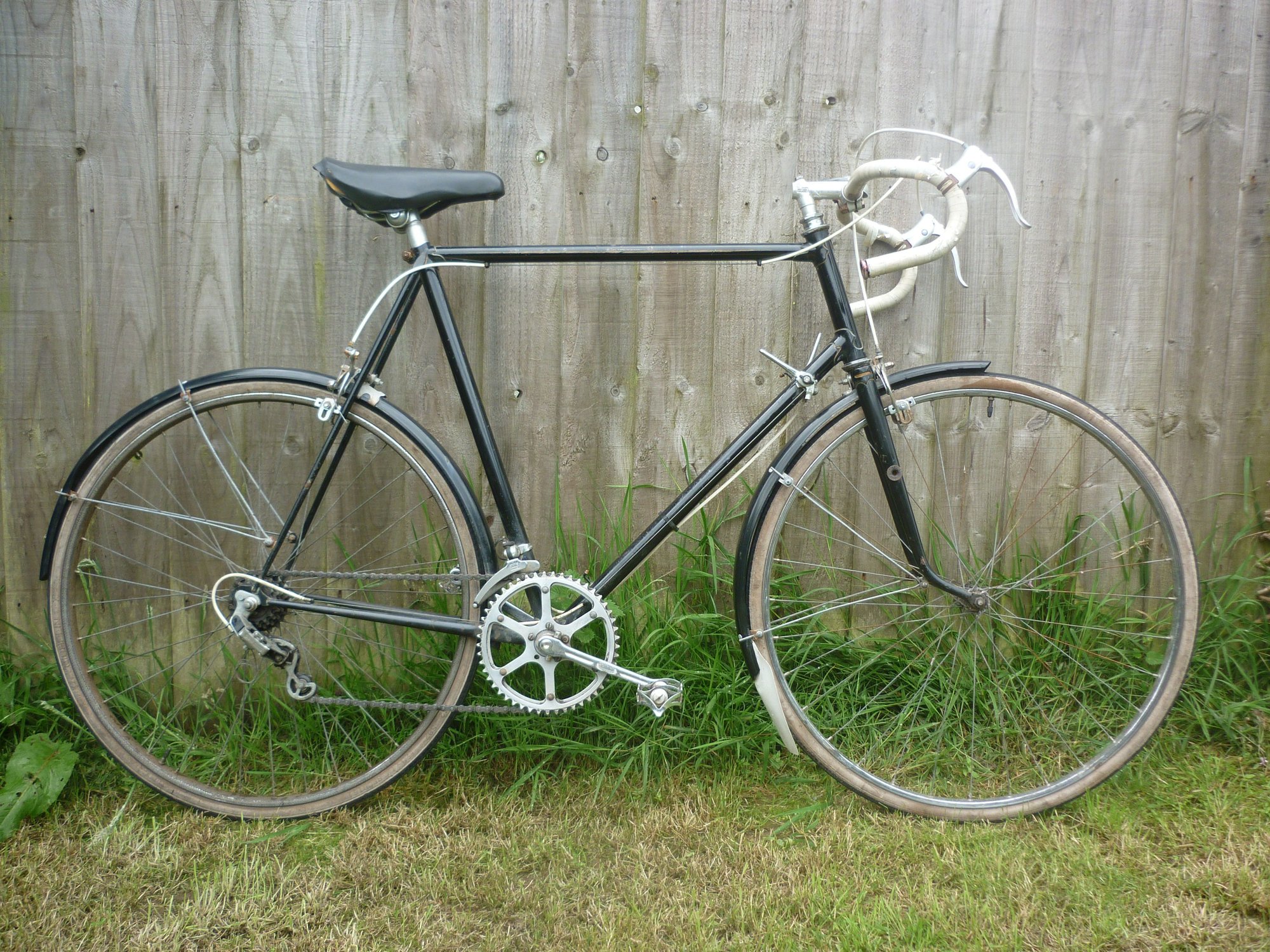

She's a beaut, eh?

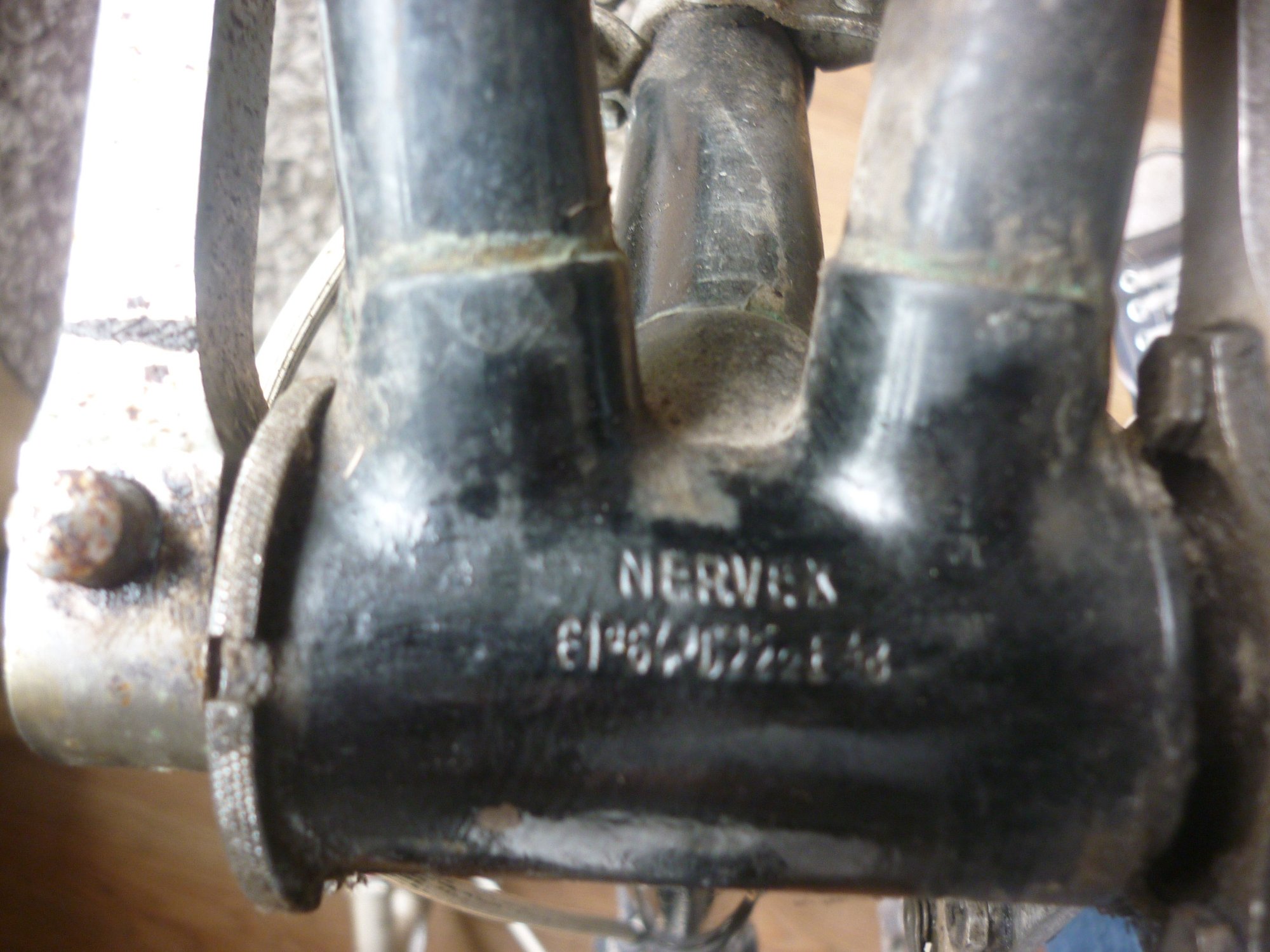

Never seen these numbers stamped on a BB lug before...

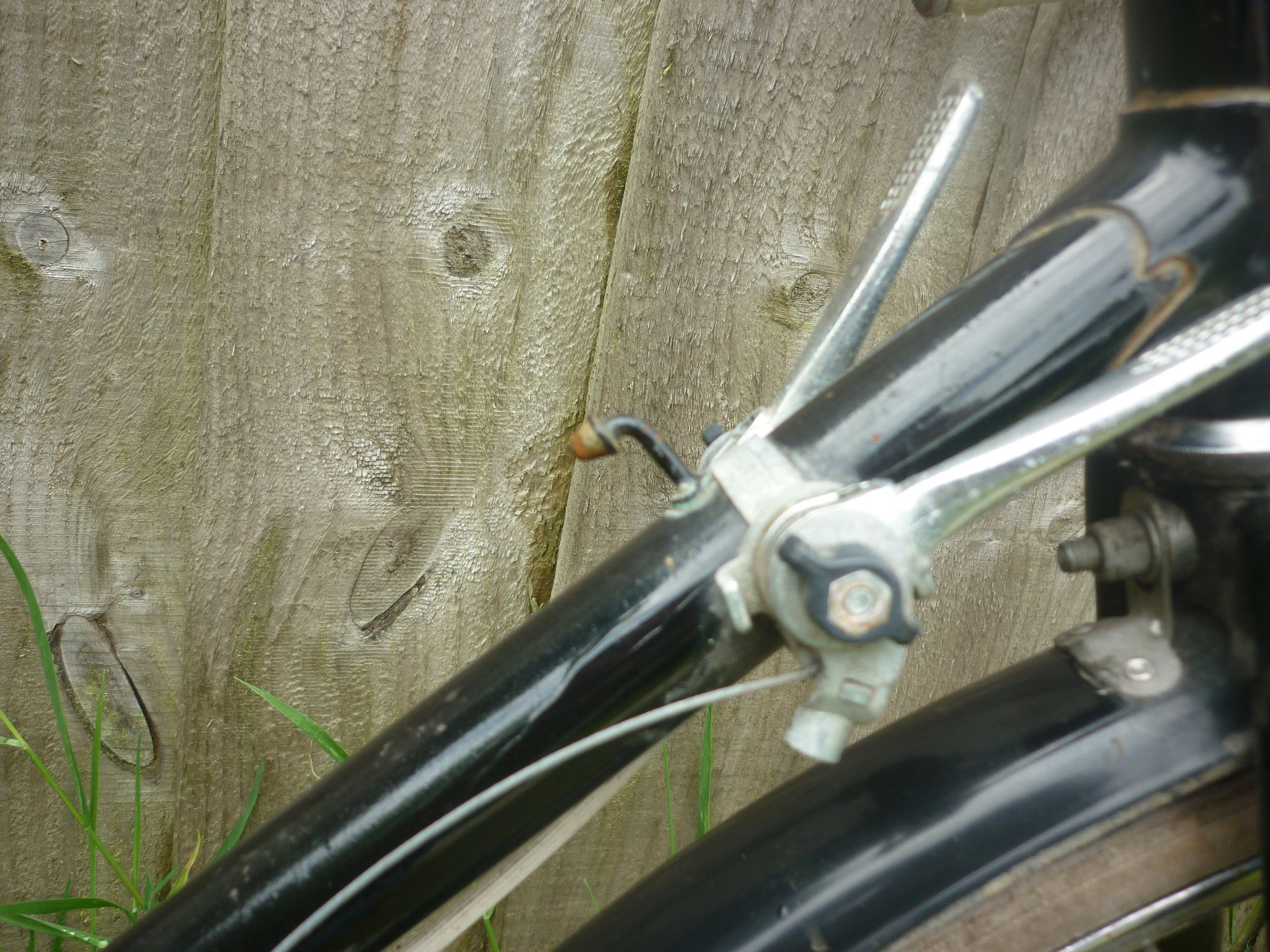

No braze ons for front mech cable

Nice lining





tonyfourdogs is offline
Likes For tonyfourdogs:
Old 07-12-21, 06:27 AM
  #2
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,822 Times in 1,051 Posts
The elements appear British and the lamp bracket is in the right place for it too. The smattering of French parts is interesting though.

What diameter is the tubing and have you had a chance to check the threading?

-Kurt
__________________








Last edited by cudak888; 07-15-21 at 08:08 PM.
cudak888 is offline
Old 07-12-21, 06:50 AM
  #3
tonyfourdogs
Senior Member
Thread Starter

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 259

Bikes: Marin Palisades Trail (1991)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked 3 Times in 3 Posts
Hi Kurt, thanks for your reply. Those are good questions to which I don't have answers, nor the tools to provide them... Of course, a right hand lamp bracket is a strong identifier, thanks for the info!
tonyfourdogs is offline
Old 07-12-21, 07:37 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,113
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2634 Post(s)
Liked 966 Times in 751 Posts
-----

markings on shell are its specifications (not a serial)

lug pattern is NERVEX 86 bis/158

pump pegs appear British rather than NERVEX

mudguard stay eyelets on taper tubes appear they may be NERVEX Ref. 890

pretty clear we are in the 1950's here

because of date could have been designed for multi-plateau drive train with manual ("suicide") front mech

seat binder is Gripfast

GB Hiduminium stem/bar set likely original to cycle

chainset and pedals look as though they may be original, or at least contemporaneous with cycle

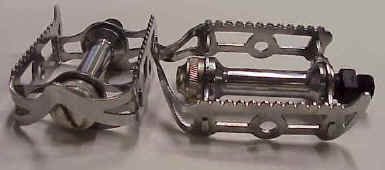

pedals appear they may be Phillips Grande Vitesse model No. 49





---

MauriceMoss

-----

Last edited by juvela; 07-13-21 at 11:11 AM. Reason: addition
juvela is offline
Likes For juvela:
Old 07-12-21, 09:50 AM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,658
Mentioned: 361 Post(s)
Tagged: 0 Thread(s)
Quoted: 2383 Post(s)
Liked 2,234 Times in 1,108 Posts
If British, I'm surprised it doesn't have a single shifter mount for a Cyclo lever (though the chain stay cable stop shows it was built as a geared bike). What size seatpost? As others have said, confirming that the threading is NOT French, would be helpful.
nlerner is offline
Likes For nlerner:
Old 07-12-21, 09:57 AM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,113
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2634 Post(s)
Liked 966 Times in 751 Posts
Originally Posted by nlerner View Post
If British, I'm surprised it doesn't have a single shifter mount for a Cyclo lever (though the chain stay cable stop shows it was built as a geared bike). What size seatpost? As others have said, confirming that the threading is NOT French, would be helpful.
-----



dunno why a frankish machine would place a lamp boss on the right blade

...then there are features such as a GB Hiduminium stem/bar set and a Gripfast seat binder...

-----
juvela is offline
Old 07-12-21, 10:03 AM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,658
Mentioned: 361 Post(s)
Tagged: 0 Thread(s)
Quoted: 2383 Post(s)
Liked 2,234 Times in 1,108 Posts
Originally Posted by juvela View Post
-----



dunno why a frankish machine would place a lamp boss on the right blade

...then there are features such as a GB Hiduminium stem/bar set and a Gripfast seat binder...

-----
Oh, I'm just a gawker on the internet making WAGs, that's why. But a repaint, which it seems to be, could also include a replacement fork. I'd like to see more clues rather than more speculation.
nlerner is offline
Old 07-12-21, 04:23 PM
  #8
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,917

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 684 Times in 442 Posts
Always nice to see a grease port on the BB shell.
3speedslow is offline
Old 07-13-21, 07:51 AM
  #9
tonyfourdogs
Senior Member
Thread Starter

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 259

Bikes: Marin Palisades Trail (1991)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked 3 Times in 3 Posts
Wow, thanks for your detailed and interesting responses folks! Great to know a lot of the bike is likely to be original or at least period correct.

Like I said, I don't have calipers, but I've had the seatpost out and measured it to the best of my ability with a metal rule, and it's around 26mm. No idea if that is useful in any way?

Excited to have a bike so old in such good condition. My hunch is that the sachs huret levers and derailleurs are a more recent addition?
tonyfourdogs is offline
Old 07-13-21, 08:22 AM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,113
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2634 Post(s)
Liked 966 Times in 751 Posts
-----

thank you for this update

pillar size - your measurement of 26mm tells us it is likely either 26.2 or 26.4mm actual size, this would tend to suggest it is constructed of a quality plain gauge tube set such as Reynolds 531 plain gauge, Accles & Pollock or Truwell

yes, the Sachs items are very much later than the cycle

you may be able to find a date on them

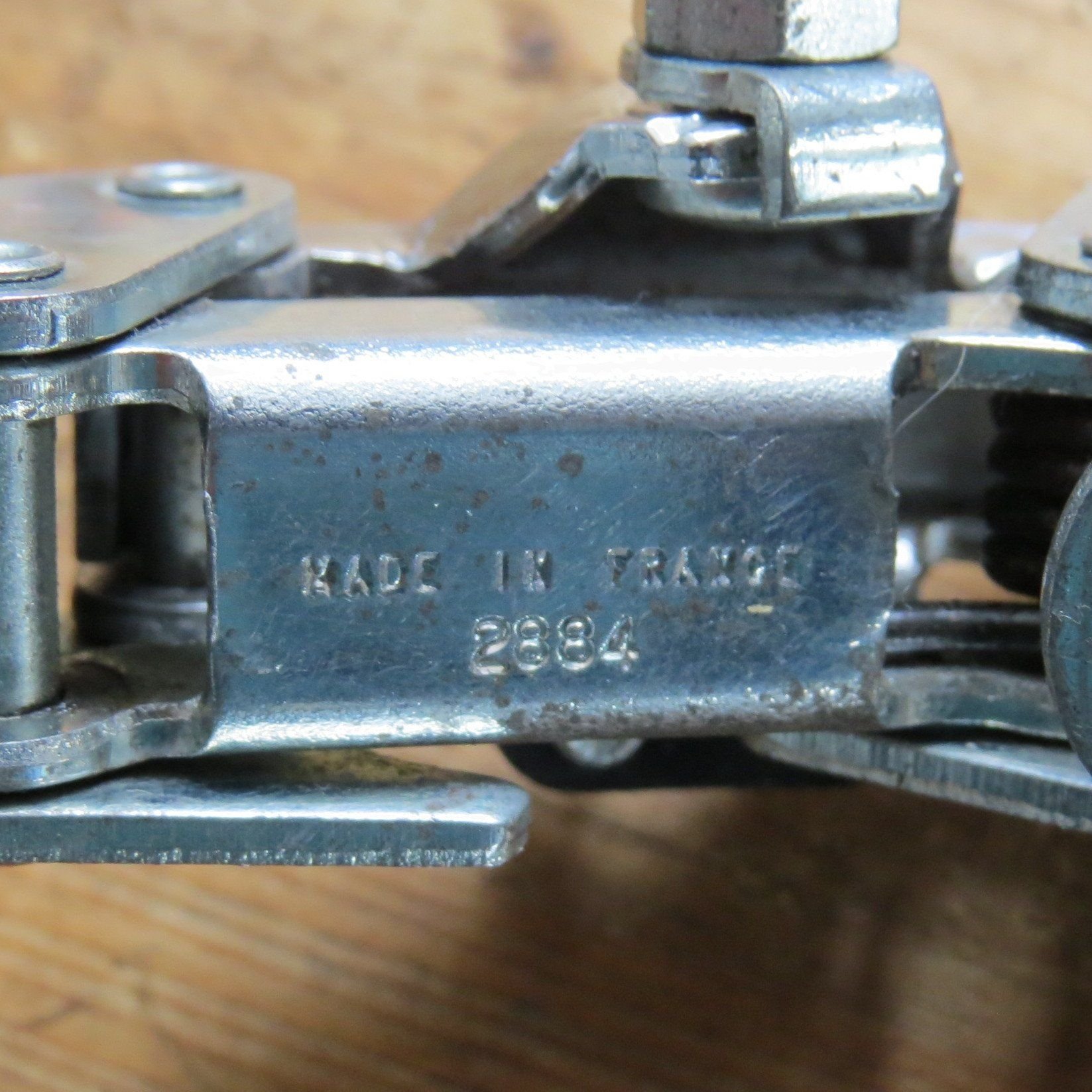

they began date marking their products in 1978 with a four digit numeric code

the first two digits refer to the week within the year of manufacture and the second two to the year:


-----

Last edited by juvela; 07-13-21 at 08:42 AM. Reason: addition
juvela is offline
Likes For juvela:
Old 07-14-21, 11:54 PM
  #11
tonyfourdogs
Senior Member
Thread Starter

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 259

Bikes: Marin Palisades Trail (1991)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked 3 Times in 3 Posts
Thanks Juvela

Good to know about the Sachs Huret parts for future reference too.

Guess I better give this thing a test ride then!
tonyfourdogs is offline
Old 07-16-21, 05:02 AM
  #12
tonyfourdogs
Senior Member
Thread Starter

tonyfourdogs's Avatar

Join Date: Oct 2017
Location: Devon, UK
Posts: 259

Bikes: Marin Palisades Trail (1991)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked 3 Times in 3 Posts
I decided to have one last look for any identifying marks, and just noticed that the non drive side rear drop out is stamped P1238. I wonder if that means anything to anyone?

Thanks again for all your helpful replies
tonyfourdogs is offline
