Old 07-27-21, 05:59 AM
  #26
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 1,983

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 495 Post(s)
Liked 689 Times in 364 Posts

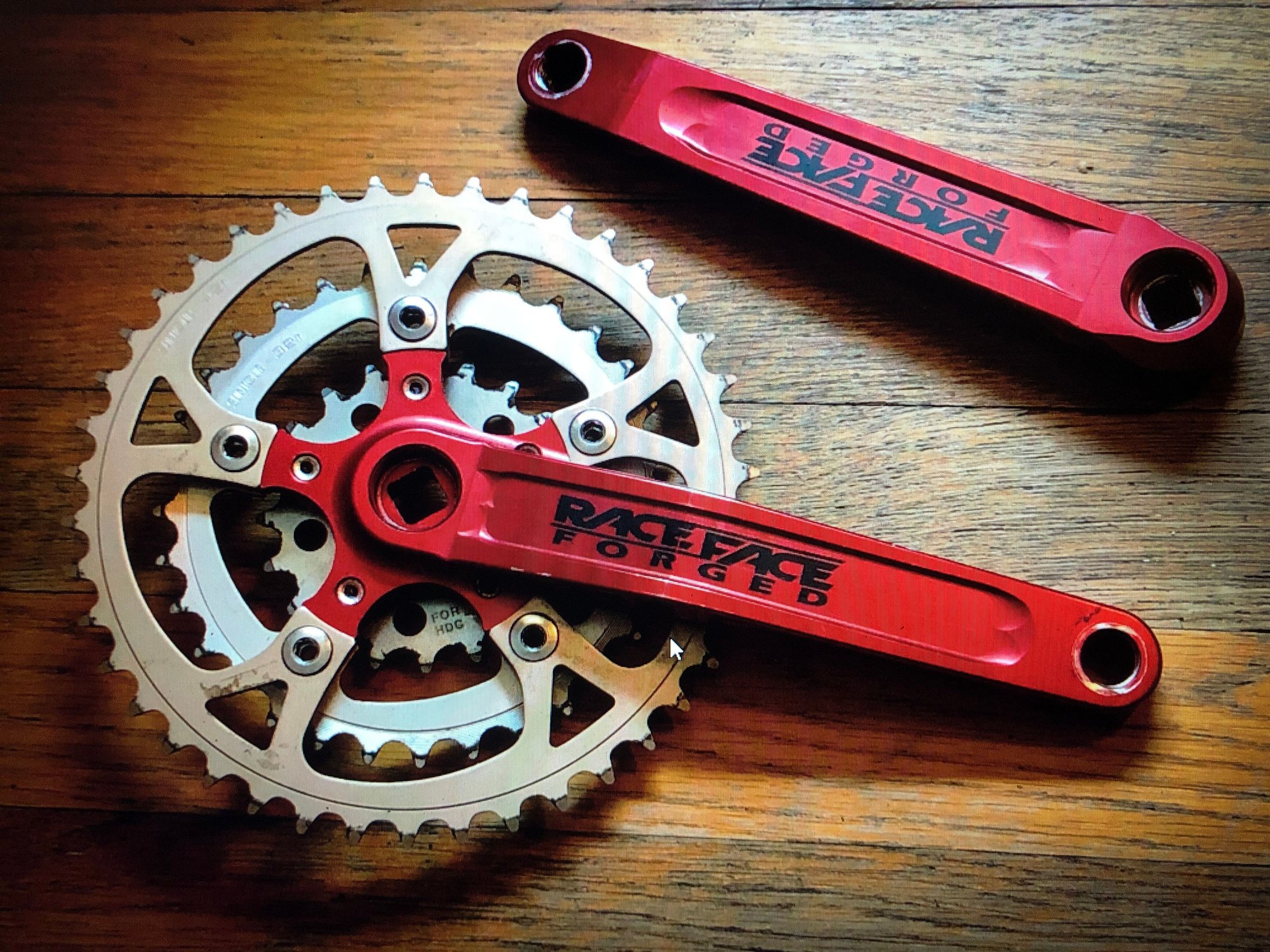

RaceFace Turbine LPs came in at about 460g for the arms IIRC. I used to have Toplines but they cracked on me twice. After swapping to these, my feet hurt at first from the improved stiffness. I still have them and many sets are still alive. Pictured is my red microdrive model, my black 110/74 is still in action.

Last edited by DorkDisk; 07-27-21 at 06:09 AM. Reason: Uses 113 spindle, is very Low Profile
DorkDisk is offline
Likes For DorkDisk:
Old 07-27-21, 06:14 AM
  #27
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,476

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked 252 Times in 178 Posts
I've got an Avocet triple crankset that from the thinness of the crank arms is probably pretty light. I'm missing the unobtainium inner bolts and spacers, and theoretically, it needs an IOS triple leangth bottom bracket. I've seen them go on Ebay for under a $100. I'm not an expert on old Campagnolo stuff, but I believe that some of the older double cranks where converted into triples by drilling bolt holes for the inner ring into the crank spider.
bark_eater is offline
Likes For bark_eater:
Old 07-27-21, 06:20 AM
  #28
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,056

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2772 Post(s)
Liked 1,546 Times in 956 Posts
FWIW, Stronglight made drillium 86mm BCD rings for the mod. 99 and 100 cranks; here mounted on a Sakae Ringyo Apex:
Attached Images
File Type: jpg
JohnDThompson is online now
Likes For JohnDThompson:
Old 07-27-21, 06:44 AM
  #29
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,304
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 1,031 Times in 692 Posts
Here is something else to consider/look for. Some of these cranks came with smaller diameter holes/bolts for the third ring. The smaller bolts can be hard to find. Both the Sakae CR and Takagi Tourney AD pictured here have the small holes. (I don't know why the pic loaded upside down)



Last edited by seypat; 07-27-21 at 06:47 AM.
seypat is offline
Old 07-27-21, 01:16 PM
  #30
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,302
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 113 Times in 76 Posts
Originally Posted by philpeugeot View Post
Specialized "flag" triple?
Nicely made and reputed to be light, but also said to have a tendency to crack where the spider meets the arm.
rando_couche is offline
Old 07-27-21, 01:19 PM
  #31
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,302
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 113 Times in 76 Posts
It seems that nobody has mentioned the 110/74 Ritchey Logic cranks. Reputed to be very light and well-engineered (no tendency to crack). I have two pair of 180's that I'd love to trade for 175's.

Scott Peterson
Newport, OR
rando_couche is offline
Old 07-27-21, 01:49 PM
  #32
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,938

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '75 Peugeot PR-10L, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 720 Times in 258 Posts
Another possible option is the Red Clover Components triplizer ring (forum member @jonwvara):
https://www.redclovercomponents.com/
gaucho777 is offline
Likes For gaucho777:
Old 07-27-21, 03:30 PM
  #33
cstar
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 20 Times in 9 Posts
Originally Posted by steelbikeguy View Post
Any interest in a Sugino AT? It is a fine 110/74 crank that can be set up as a double or triple. I happen to have a set of bare crank arms sitting out at this time, and could toss them on the scale.

Steve in Peoria
I love the AT, it would be amazing if you could weigh them!!!

Thank you all SO MUCH for all this info!! Love it. You given me tons of great options to ponder. I really appreciate it!
cstar is offline
Old 07-27-21, 03:36 PM
  #34
cstar
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 20 Times in 9 Posts
Originally Posted by Dfrost View Post
FWIW, since I’m certainly not a weight weenie, I weighed these three 110/74 cranks, all weighed as just the arms (length as noted), no rings or BB

Sugino AT, 170 arms: 480gm. BTW, I suspect 175’s would weigh the same, the pedal hole would just be 5mm farther out
Ritchey Logic (early 90’s version, made by Sugino) with “hidden fifth arm”, 175 arms: 475gm
Specialized “flag”, 170 arms: 465gm

If one is counting grams, the AT takes the longest BB at 127.5. Lots of steel there.

Might not be considered sufficiently “vintage” - wife’s custom ‘96 Erickson had a very light and pretty set with “”ball-shaped” ends at both the pedal and spindle, but the brand name escapes me. DS crank was swaged to the spider, which was a weak point, but never a problem for her. Also, the pedal threads were blind, so some pedals couldn’t be used. Photo below:

Thanks for all this info!

I have a Sugino AT crank arm set I could use​​​​​, nice to know there isn't THAT much of a difference weight wise between those, the Ritchey logic ones, and the Flag crank. I had a very, very nice Flag Crank with BB that I just sold on eBay and I was starting to feel some sellers remorse but this helped a lot haha. Wish I could keep it all, that crank definitely would have stayed in the stash
cstar is offline
Old 07-27-21, 03:38 PM
  #35
cstar
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 20 Times in 9 Posts
Originally Posted by seypat View Post
The Sugino AT mentioned above is a very attractive crank. This one takes a 3U spindle. It took me a long time to find a bolted one. The Shimano 600 FC-6206 is a high quality, attractive crank. Somewhat hard to find in 170 crankarm size.

Luckily I have many spindles I've slowly accumulated, I usually have what I need!

I like the Shimano 600 triple that has been suggested. Hadn't seen one before. Very attractive crank.

As a Centurion owner I appreciate a nice Centurion- gorgeous bike!
cstar is offline
Old 07-27-21, 03:41 PM
  #36
cstar
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 20 Times in 9 Posts
Originally Posted by seypat View Post
I had to have a black crank for the latest build. This one is part of the Suntour X1 MTB group. It was made by Sakae or Sugino, though. I did some weight weenieing before I got it. It beat out some of the other black cranks, including some Shimanos. All of the ID marks on the components have been blacked out with a Sharpie.

That is a sharp looking bike. Nothing like a nice Centurion. Turbos are classy.
cstar is offline
Old 07-27-21, 03:49 PM
  #37
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,873
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 1,129 Times in 583 Posts
Originally Posted by cstar View Post
I love the AT, it would be amazing if you could weigh them!!!

Thank you all SO MUCH for all this info!! Love it. You given me tons of great options to ponder. I really appreciate it!
207 grams for the left crank, and 275 grams for the right.
The cranks are 170mm, but the same forging is used for 175mm, and maybe(??) for 165mm.







Steve in Peoria
steelbikeguy is offline
Old 07-27-21, 06:44 PM
  #38
Erzulis Boat
3rd Grade Dropout

Erzulis Boat's Avatar

Join Date: Oct 2005
Location: Santa Barbara Calif.
Posts: 1,437
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 190 Times in 98 Posts

Nothing stopping you from getting a "compact" or "semi compact" double. The small chainring gets you just about as low as a triple without tracking down a wide BB, and looks much more elegant. It's also totally compatible with some rear sprockets well into the 30's with a medium cage.

I just got this from Ben's Cycle and it's well made.

ETA- They have a sweet Sugino triple for 2 bills that looks "vintage" for the most part.

Last edited by Erzulis Boat; 07-27-21 at 06:49 PM.
Erzulis Boat is offline
Old 07-27-21, 07:10 PM
  #39
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,023

Bikes: A bunch of old bikes and a few new ones

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 5315 Post(s)
Liked 2,010 Times in 1,313 Posts
Originally Posted by Erzulis Boat View Post

Nothing stopping you from getting a "compact" or "semi compact" double. The small chainring gets you just about as low as a triple without tracking down a wide BB, and looks much more elegant. It's also totally compatible with some rear sprockets well into the 30's with a medium cage.

I just got this from Ben's Cycle and it's well made.

ETA- They have a sweet Sugino triple for 2 bills that looks "vintage" for the most part.
the sugino stuff is very good and looks right on an old bike. In terms of gear ratios, a triple may make more sense than a compact if running 5, 6, or 7 on the back. You can get the same highs and lows with a compact but you may lose smooth progressions. When you run more gears on the bike with modern gearing this problem disappears.
bikemig is offline
Old 07-28-21, 07:26 AM
  #40
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,056

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2772 Post(s)
Liked 1,546 Times in 956 Posts
Originally Posted by gaucho777 View Post
Another possible option is the Red Clover Components triplizer ring (forum member @jonwvara):
https://www.redclovercomponents.com/
Yes, I have one mounted on a Stronglight 93:
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
JohnDThompson is online now
Likes For JohnDThompson:
Old 07-28-21, 08:04 AM
  #41
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,023

Bikes: A bunch of old bikes and a few new ones

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 5315 Post(s)
Liked 2,010 Times in 1,313 Posts
Originally Posted by JohnDThompson View Post
Yes, I have one mounted on a Stronglight 93:
That is such a pretty crank. Buying a 122 bcd triplizer is tempting. Finding those long stronglight spindles is not that easy though.
bikemig is offline
Old 07-28-21, 08:18 AM
  #42
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,245

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1129 Post(s)
Liked 918 Times in 543 Posts
@JohnDJohnson - What an interesting mix of parts!
Did you swap the long cage on the RD?
Were you able to use the SL spindle?
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 07-29-21, 06:58 AM
  #43
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,214

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3234 Post(s)
Liked 1,374 Times in 927 Posts
Among vintage aluminum square-taper triple cranks, it's hard to think of one that would be lighter than the Rene Herse design. But after RH started making whole bikes, I don't know how many of his cranks were made for the aftermarket, so perhaps that doesn't count for this thread.


(Picture snarfed from https://saarf.london/2014/12/24/rene...ur-circa-1973/ )
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 08-02-21 at 12:31 PM.
ThermionicScott is offline
Old 07-29-21, 01:03 PM
  #44
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,788

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 234 Times in 149 Posts
A suggestion for several of these vintage cranks such as the Sugino AT and “Flag” cranks: Do a bit of stress relief filing and polishing where the DS arm meets the spider, as well as frequent inspections. That spot is known to develop tiny cracks that can lead to disastrous failure. Here’s what I did to the Flag cranks posted above:

Before:



After:

Dfrost is offline
Likes For Dfrost:
Old 07-29-21, 03:25 PM
  #45
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,056

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2772 Post(s)
Liked 1,546 Times in 956 Posts
Originally Posted by SJX426 View Post
@JohnDJohnson - What an interesting mix of parts!
Did you swap the long cage on the RD?
Were you able to use the SL spindle?
The rear derailleur is a 3rd generation Rally; the long cage was stock. The front derailleur is a pre-CSPC Record. The bottom bracket spindle is a Stronglight 125mm triple spindle. Shifters are Simplex retrofriction downtube levers.
JohnDThompson is online now
Old 07-29-21, 09:32 PM
  #46
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,568
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 346 Times in 226 Posts
Originally Posted by 70sSanO View Post
For a 90’s triple crank with 110-74 I would think an XTR M900 would be pretty light. Couple it to a titanium BB and your in business.

I’d guess the M950 with the spider system might be lighter, but I’m not a pure C&Ver and even I have a tough time looking at it, especially after a few years of riding.

John

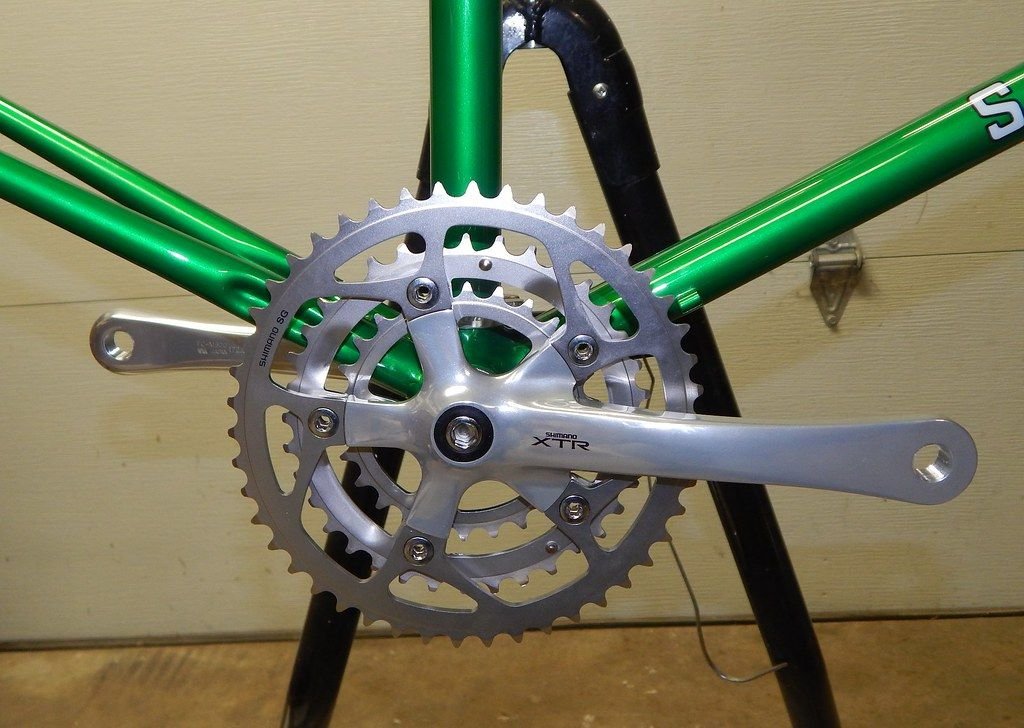

I have a M900 XTR crank on my Green Superior. These are hard to find, even in OK shape, but I managed to score a NOS set with 172.5mm arms. (I have nice friends.)

I don't know how much they weigh. Considering the size of my post-COVID belly... I don't care.

__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Likes For Jeff Wills:
Old 07-29-21, 10:48 PM
  #47
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 637
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Likes: 0
Liked 272 Times in 186 Posts
Originally Posted by Jeff Wills View Post
I have a M900 XTR crank on my Green Superior. These are hard to find, even in OK shape, but I managed to score a NOS set with 172.5mm arms. (I have nice friends.)

I don't know how much they weigh. Considering the size of my post-COVID belly... I don't care.

Early XTR stuff is so, so pretty. That finish looks like the bodywork on the 300SL Gullwing that you drive down Hwy 1 from Santa Cruz to Pismo Beach in your dreams... in Heaven.

Great Ghu, I think I need a cold shower.

--Shannon
ShannonM is offline
Old 07-29-21, 11:08 PM
  #48
scozim
Ellensburg, WA

scozim's Avatar

Join Date: Aug 2008
Location: Ellensburg, WA
Posts: 3,686

Bikes: See my signature

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 291 Post(s)
Liked 280 Times in 117 Posts
Originally Posted by seypat View Post
Here is something else to consider/look for. Some of these cranks came with smaller diameter holes/bolts for the third ring. The smaller bolts can be hard to find. Both the Sakae CR and Takagi Tourney AD pictured here have the small holes. (I don't know why the pic loaded upside down)


I agree on the CR. Velobase says the double with 170 arms was 596 grams. I have a CR triple with 175mm arms that weighs more than I expected but I think it's because the middle ring is bulky. Replacing it with a lighter one would make a difference.

__________________
1984 Gitane Sprint; 1984 Gitane Tour de France; 1982 Trek 610; 1968 Peugeot PL8; 1982 Nishiki Marina 12; 1972 Peugeot PX-10; 1984 Peugeot PSV; 1993 Trek 950 mtb; 1997 Klein Pulse Comp mtb; 1989 Peugeot Limestone hybrid (for touring); 1975 Gitane Olympic; 1982 Nishiki Maxima, 1983 Vitus 979; Custom late-80's Rodriguez


scozim is offline
Old 07-30-21, 11:51 AM
  #49
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,586
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Likes: 0
Liked 552 Times in 347 Posts
Originally Posted by seypat View Post
Here is something else to consider/look for. Some of these cranks came with smaller diameter holes/bolts for the third ring. The smaller bolts can be hard to find.
I recently saw a crank with holes like that - unthreaded.

Can't remember what it was, but I remember thinking "if a fellow wanted a triple..."
oneclick is offline
Old 07-30-21, 11:56 AM
  #50
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,586
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Likes: 0
Liked 552 Times in 347 Posts
Originally Posted by thumpism View Post
I'm a fan of the Stronglight 99, but could not tell you its weight.
I just weighed a pair of triples, both with rings and ring-bolts but nothing else:

Stronglight 99 28-40-52 668g
Nervar Star 38-47-54 733g

I suspect most of the difference is the Nervar having bigger rings in each position.
oneclick is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
