Lightweight vintage triple cranksets

I have a question that I realize is probably an oxymoron.

Among vintage triple cranksets, are there any that are notably lightweight compared to other vintage triple cranks? I'm thinking square taper only, 90s or older. I like 110/74 BCD but it does not necessarily have to be that.

Normally I'm not a weight weenie but I am planning a build with a steel frame that's lighter and nicer than what I'm used to, so I'm trying to minimize weight where I can while still maintaining features that I like, such as a triple crank.

Thanks in advance.
cstar is offline
Old 07-26-21, 03:17 PM
  #2
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,227

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 915 Times in 532 Posts
The classic Spécialités T.A. Pro-5-Vis comes to mind as well as the Stronglight 107?

But I'm not much of a weight weeny myself so perhaps others can come up with some better options.
JaccoW is offline
Likes For JaccoW:
Old 07-26-21, 03:45 PM
  #3
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 7,679

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2204 Post(s)
Liked 1,154 Times in 841 Posts
I'm a fan of the Stronglight 99, but could not tell you its weight.
thumpism is offline
Old 07-26-21, 03:51 PM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,267
Mentioned: 210 Post(s)
Tagged: 0 Thread(s)
Quoted: 14855 Post(s)
Liked 2,628 Times in 1,950 Posts
Did Shimano incorporate Hollowtech in their octalink cranksets? Perhaps I should weigh one.
CliffordK is offline
Old 07-26-21, 04:13 PM
  #5
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,861
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 1,115 Times in 577 Posts
here's a little weight info on the T.A. Cyclotouriste and Stronglight 99...





Any interest in a Sugino AT? It is a fine 110/74 crank that can be set up as a double or triple. I happen to have a set of bare crank arms sitting out at this time, and could toss them on the scale.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 07-26-21, 04:24 PM
  #6
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,839
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Liked 1,211 Times in 604 Posts
Velobase lists this Deore XT set at 698 grams.
VeloBase.com - Component: Shimano FC-M737, Deore XT M737

The same site lists the TA Cyclotouriste at 611 grams.
BFisher is offline
Old 07-26-21, 04:26 PM
  #7
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,109

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1263 Post(s)
Liked 1,133 Times in 723 Posts
For a 90’s triple crank with 110-74 I would think an XTR M900 would be pretty light. Couple it to a titanium BB and your in business.

I’d guess the M950 with the spider system might be lighter, but I’m not a pure C&Ver and even I have a tough time looking at it, especially after a few years of riding.

John
70sSanO is offline
Likes For 70sSanO:
Old 07-26-21, 04:36 PM
  #8
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
I only ride triples and have a lot of them. Mostly 110/74, but a Stronglight 99 as well. Also have a 130/86 Takagi AD. I've got Suginos, Sakae/SRs, Shimanos, etc. Weight wise, not enough differences to matter. What does matter these days is finding the correct BB spindle. If you prefer a spindle that uses bolts, a 3U bolted spindle is very hard to find. You can find cheap, nutted 3U spindles if you can use those.

To summarize, make sure you can get a spindle that works before you get the crank. Otherwise, you might be looking for a long time.
seypat is offline
Old 07-26-21, 04:39 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,105

Bikes: old ones

Mentioned: 286 Post(s)
Tagged: 0 Thread(s)
Quoted: 22348 Post(s)
Liked 5,403 Times in 3,926 Posts
.
...the old Avocet square taper cranks from the '70's were infamously light, but they were drilled in the crank spider to mount the small ring, so they had a tendency to self destruct after a while, I think they were made by Ofmega, maybe. Remember the old adage about light and durable being on two sides of a fine line. Build yourself some nice wheels, with lightweight modern rims and equip them with decent lightweight tyres (that have at least some puncture resistance and will inflate to 120 or 130). You won't notice whatever ounces you add on there for crank durability.
3alarmer is online now
Old 07-26-21, 04:43 PM
  #10
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,787

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 234 Times in 149 Posts
FWIW, since I’m certainly not a weight weenie, I weighed these three 110/74 cranks, all weighed as just the arms (length as noted), no rings or BB

Sugino AT, 170 arms: 480gm. BTW, I suspect 175’s would weigh the same, the pedal hole would just be 5mm farther out
Ritchey Logic (early 90’s version, made by Sugino) with “hidden fifth arm”, 175 arms: 475gm
Specialized “flag”, 170 arms: 465gm

If one is counting grams, the AT takes the longest BB at 127.5. Lots of steel there.

Might not be considered sufficiently “vintage” - wife’s custom ‘96 Erickson had a very light and pretty set with “”ball-shaped” ends at both the pedal and spindle, but the brand name escapes me. DS crank was swaged to the spider, which was a weak point, but never a problem for her. Also, the pedal threads were blind, so some pedals couldn’t be used. Photo below:

Dfrost is offline
Old 07-26-21, 04:52 PM
  #11
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
The Sugino AT mentioned above is a very attractive crank. This one takes a 3U spindle. It took me a long time to find a bolted one. The Shimano 600 FC-6206 is a high quality, attractive crank. Somewhat hard to find in 170 crankarm size.

seypat is offline
Old 07-26-21, 04:54 PM
  #12
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
The majority of Japanese JIS triples I have take a spindle in the 121-122.5 range.
seypat is offline
Old 07-26-21, 05:00 PM
  #13
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,056

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 811 Post(s)
Liked 218 Times in 155 Posts
Any 110 bcd 5 bolt double (square taper) crank can be outfitted with an IRD triplizer mid ring (36 or 34 tooth I believe) to accept a 74 bcd inner ring. I'm sure there are high quality, lightweight 110 bcd doubles that are very lightweight that would be a trick set up with the IRD triplizer middle ring.
masi61 is offline
Old 07-26-21, 05:07 PM
  #14
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 3,441

Bikes: Astron Corsaro, Fuji Espree and Takara GT

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1015 Post(s)
Liked 532 Times in 416 Posts
I have a Takagi Tourney GS set in box 50-45-30 IIRC. Very nice and seems light, though don't have a scale and can't see a weight recorded online. If you can find one you'll be pleased.
WGB is online now
Old 07-26-21, 05:32 PM
  #15
hazetguy
PutABitOfPaperOnThem

hazetguy's Avatar

Join Date: Nov 2004
Posts: 569
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1352 Post(s)
Likes: 0
Liked 1,262 Times in 689 Posts
Originally Posted by seypat View Post
The Shimano 600 FC-6206 is a high quality, attractive crank. Somewhat hard to find in 170 crankarm size.
I agree, and have a 170 stashed away for a "someday" build, which might not be that far off....
Weight as shown, 700g

hazetguy is online now
Old 07-26-21, 06:01 PM
  #16
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,704

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,971 Times in 1,322 Posts
Originally Posted by Dfrost View Post
FWIW, since I’m certainly not a weight weenie, I weighed these three 110/74 cranks, all weighed as just the arms (length as noted), no rings or BB

Sugino AT, 170 arms: 480gm. BTW, I suspect 175’s would weigh the same, the pedal hole would just be 5mm farther out
Ritchey Logic (early 90’s version, made by Sugino) with “hidden fifth arm”, 175 arms: 475gm
Specialized “flag”, 170 arms: 465gm

If one is counting grams, the AT takes the longest BB at 127.5. Lots of steel there.

Might not be considered sufficiently “vintage” - wife’s custom ‘96 Erickson had a very light and pretty set with “”ball-shaped” ends at both the pedal and spindle, but the brand name escapes me. DS crank was swaged to the spider, which was a weak point, but never a problem for her. Also, the pedal threads were blind, so some pedals couldn’t be used. Photo below:

Topline?
merziac is offline
Old 07-26-21, 06:03 PM
  #17
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,861
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 1,115 Times in 577 Posts
Originally Posted by Dfrost View Post
.......

Might not be considered sufficiently “vintage” - wife’s custom ‘96 Erickson had a very light and pretty set with “”ball-shaped” ends at both the pedal and spindle, but the brand name escapes me. DS crank was swaged to the spider, which was a weak point, but never a problem for her. Also, the pedal threads were blind, so some pedals couldn’t be used. Photo below:

I pulled out my old Bike Pro catalog, 'cause I recognized the shape of the cranks too, but couldn't think of the name.
I'm guessing Topline cranks....




but my second guess is Cook cranks....




Steve in Peoria
(haven't looked at the Bike Pro catalog in a looong time!)
steelbikeguy is offline
Old 07-26-21, 06:42 PM
  #18
philpeugeot
Senior Member

Join Date: Aug 2017
Location: San Mateo, CA
Posts: 214

Bikes: Bike Friday PRP, Bike Friday NWT, Bromton M6R, Miyata 710, 1991 Miyata 1000

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 85 Times in 59 Posts
Specialized "flag" triple?
philpeugeot is offline
Old 07-26-21, 07:06 PM
  #19
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,014

Bikes: A bunch of old bikes and a few new ones

Mentioned: 164 Post(s)
Tagged: 0 Thread(s)
Quoted: 5314 Post(s)
Liked 2,003 Times in 1,308 Posts
I would have think that the lightest triple would be a cold forged crank given that's the strongest way to make alloy parts. The 1992 Bridgestone catalog has a good description of the various ways to make alloy parts. This is from that catalog:

"Cold-forged parts are typically thinner, lighter, stronger, more accurately made, and more expensive than cast parts."
bikemig is online now
Old 07-26-21, 07:24 PM
  #20
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,024

Bikes: Seriously downsizing.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 230 Times in 131 Posts
Originally Posted by seypat View Post
The Shimano 600 FC-6206 is a high quality, attractive crank. Somewhat hard to find in 170 crankarm size.

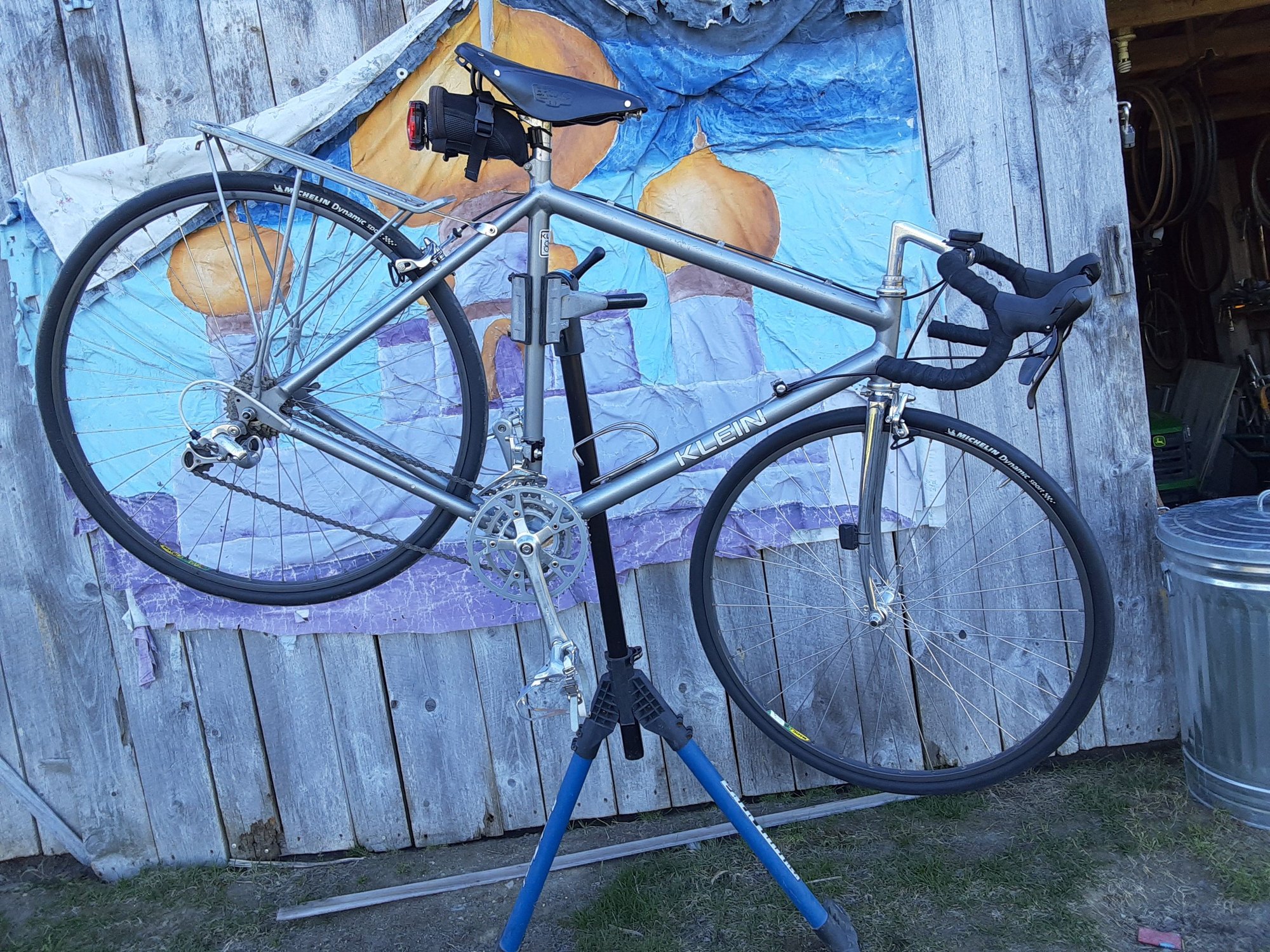

Graces my latest Klein build, Biopace and all.


__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 07-26-21, 07:27 PM
  #21
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
Originally Posted by hazetguy View Post
I agree, and have a 170 stashed away for a "someday" build, which might not be that far off....
Weight as shown, 700g

I have one as well. It's my high end Shimano sub when a bike needs a compact or triple.

seypat is offline
Old 07-26-21, 07:35 PM
  #22
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
I had to have a black crank for the latest build. This one is part of the Suntour X1 MTB group. It was made by Sakae or Sugino, though. I did some weight weenieing before I got it. It beat out some of the other black cranks, including some Shimanos. All of the ID marks on the components have been blacked out with a Sharpie.

seypat is offline
Old 07-26-21, 07:43 PM
  #23
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,295
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2041 Post(s)
Liked 1,020 Times in 689 Posts
The Shimano FC-1057 is a good crank with a relatively short spindle. Ramped/pinned also. The finish can look yea or nea depending on the bike.

seypat is offline
Old 07-26-21, 11:52 PM
  #24
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,787

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 234 Times in 149 Posts
Originally Posted by philpeugeot View Post
Specialized "flag" triple?
Here it is - note the small engraved flag marking near the crank bolt, hence the nickname. It’s a nice crank set. I’m using it on a 113mm UN-55 BB with a 3.0mm DS spacer for proper chainline.


And here’s the Velobase listing:
VeloBase.com - Component: Specialized Touring triple (flag emblem)

Thanks @merziac and @steelbikeguy for the memory jogs. Pretty sure hers was a Topline, but Cook Brothers was a good thought, too. Good idea to look in my old Bike Pro catalog next time! It’s a great resource for questions like this.

Last edited by Dfrost; 07-27-21 at 12:04 AM. Reason: Added BB length
Dfrost is offline
Old 07-27-21, 12:13 AM
  #25
Rooney
Senior Member

Join Date: Apr 2018
Location: Pennsylvania
Posts: 168

Bikes: '85 Schwinn Voyageur SP; '80 Trek 710

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 110 Times in 57 Posts
They’re not vintage, but I believe the SunXCD cranks are lighter-weight.
Rooney is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
