1986 Miyata 210 - Front Derailleur Cable Routing

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1986 Miyata 210 - Front Derailleur Cable Routing

Old 08-02-21, 06:21 PM
  #1
Harold74
Full Member
Thread Starter

Join Date: Jul 2020
Location: Calgary, AB Canada
Posts: 218

Bikes: 1992 Miyata 1000, 1997 Trek 730, 2001 Airborne Zeppelin, 1980+ Nishiki Olympic

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 31 Times in 22 Posts
1986 Miyata 210 - Front Derailleur Cable Routing

The front derailleur on this bike as something built into the side of it that strongly suggests a cable clamp into which I'd expect housing to run. However:

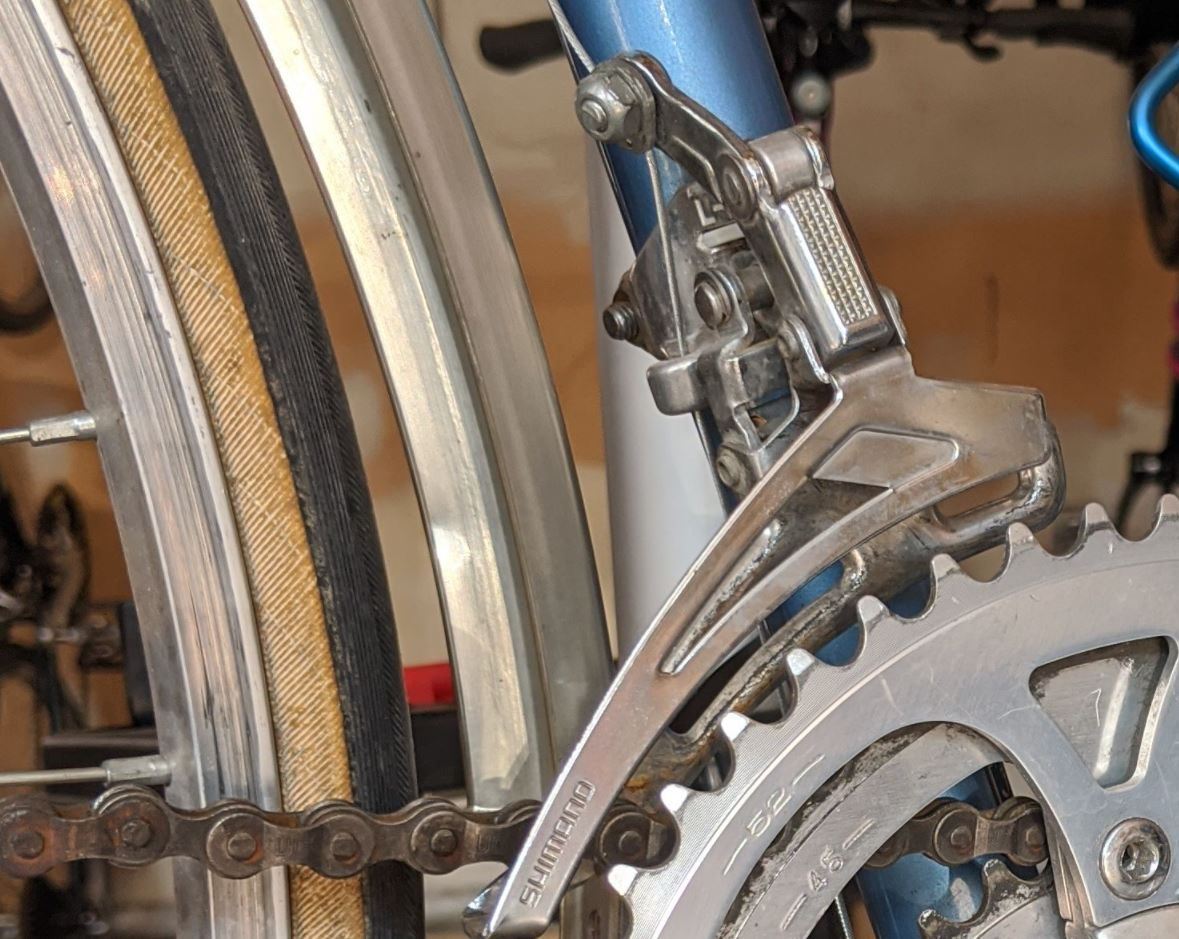

1) When I got it, per the photo below, there was no such housing.

2) Coming off of the bottom bracket, there's really no opposing cable clamp. There's just the guide piece screwed on to the bottom.

3) Even if there were housing, the derailleur pinch bolt is not well aligned with the would be cable stop. The cable would just rub against the side of the housing end cap much as it would the cable stop in the absence of the housing.

So my question is this: should there be a housed cable running into this thing? It seem kind of weird but I could install a cable stop at the bottom of the seat tube and get a 5" piece of housing in there I guess. Or do we think that there was never intended to be housing at this location? My concern is that, with the cable rubbing against the cable stop, the metal there is basically sawing away at the cable. I'd be grateful for any advice that anyone has to offer.

What I know of the bike history is this:

4) Two owners before me.

5) Reported to have sat in the garage untouched from 1991 until now. Wear patterns would support this.

6) Last owner tried to redo the cabling for the sale, got frustrated, and gave up part way. What was done wasn't done well.



Harold74 is offline
Old 08-02-21, 07:05 PM
  #2
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,076
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 254 Times in 176 Posts
On my '85 610 there's just that plastic guide piece on the bottom bracket and the bare cable. It goes straight from the plastic guide to the cable clamp on the front derailleur. I would see if it doesn't interfere with that cable stop and if you can just bypass it & go straight from the bottom bracket guide piece to the cable clamp on the derailleur. It should be a straight run with no interference. Maybe someone replaced the derailleur at some point.
Hobbiano is offline
Old 08-02-21, 07:46 PM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,484

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 775 Times in 547 Posts
The amount of motion that the front derailer cable sees isn't going to wear away anything, and I see plenty of bikes with redundant cable housing stops that contact the cable but do nothing and cause no problem.
I suspect this is just as the bike was first sold, when many front derailers still had housing stops that increasingly served no purpose.

Housings were troublesome in that they trapped dirt and water coming off the front tire, leading to rusted and broken front derailer cables. The current style of open-groove plastic guides took over for good reasons, including reduced weight and SIS compatibility. They improve rear shifting performance even on friction-shifted bikes.
dddd is offline
Likes For dddd:
Old 08-02-21, 08:49 PM
  #4
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,076
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 254 Times in 176 Posts
Take a look at the 2 photos in post #4 here: Miyata 210 (1985)
As dddd says, looks like it came with that setup.
Hobbiano is offline
Old 08-03-21, 09:19 AM
  #5
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,302

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2118 Post(s)
Liked 1,512 Times in 968 Posts
Yup, the 86 catalogue says it's a Z -204GS.
clubman is offline
Old 08-03-21, 11:11 AM
  #6
Harold74
Full Member
Thread Starter

Join Date: Jul 2020
Location: Calgary, AB Canada
Posts: 218

Bikes: 1992 Miyata 1000, 1997 Trek 730, 2001 Airborne Zeppelin, 1980+ Nishiki Olympic

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 31 Times in 22 Posts

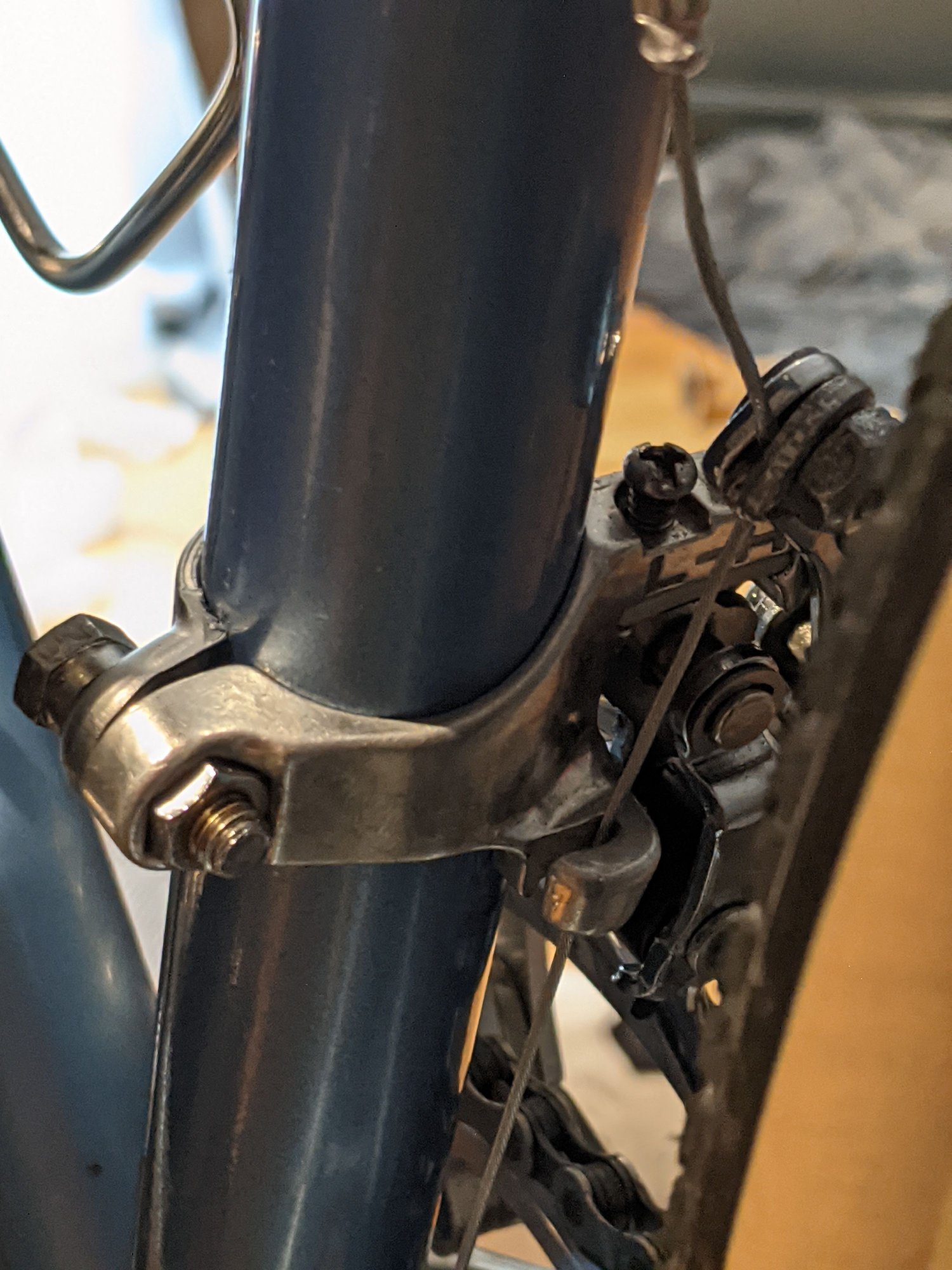

Thanks for the assistance guys. I wound up taking a stab at it without the housing after all (photo below). The cable kind of cuts across at an angle from the bottom bracket which improves matters some. It seems to work fine for now without excess shifting resistance etc. My wife will likely only be riding this bike for an hour at a time, close to home. So, as long as the derailleur jumping down to the granny ring doesn't trigger a crash, the risks are small.
