Kool-Stop Fit Issues: Rod brake + John Bull pads undersized

I was originally going to post this in my 1945/6 Humber build thread, but held back until Kool-Stop had a chance to reply. They've since replied...and, well - read on:

Back in 2019, I discovered Kool-Stop had begun producing direct-replacement John Bull brake pads; direct replacements for many 1960's Raleigh and Raleigh-produced 3-speeds.

At the time, I didn't have a need for them, but with the Humber in need of some replacement rod brake pads - which Kool-Stop also makes - I thought I'd get a set of each and give them all a try:



To my surprise, I found both the rod brake pads and the John Bull pads fit terribly loose in their holders:

The John Bull #25 replacement:





Unfortunately, I don't have an original John Bull to compare against (the holder had a generic Japanese replacement, and I can't find it at the moment), though if anyone has one they can lend for a side-by-side, I'd appreciate it.

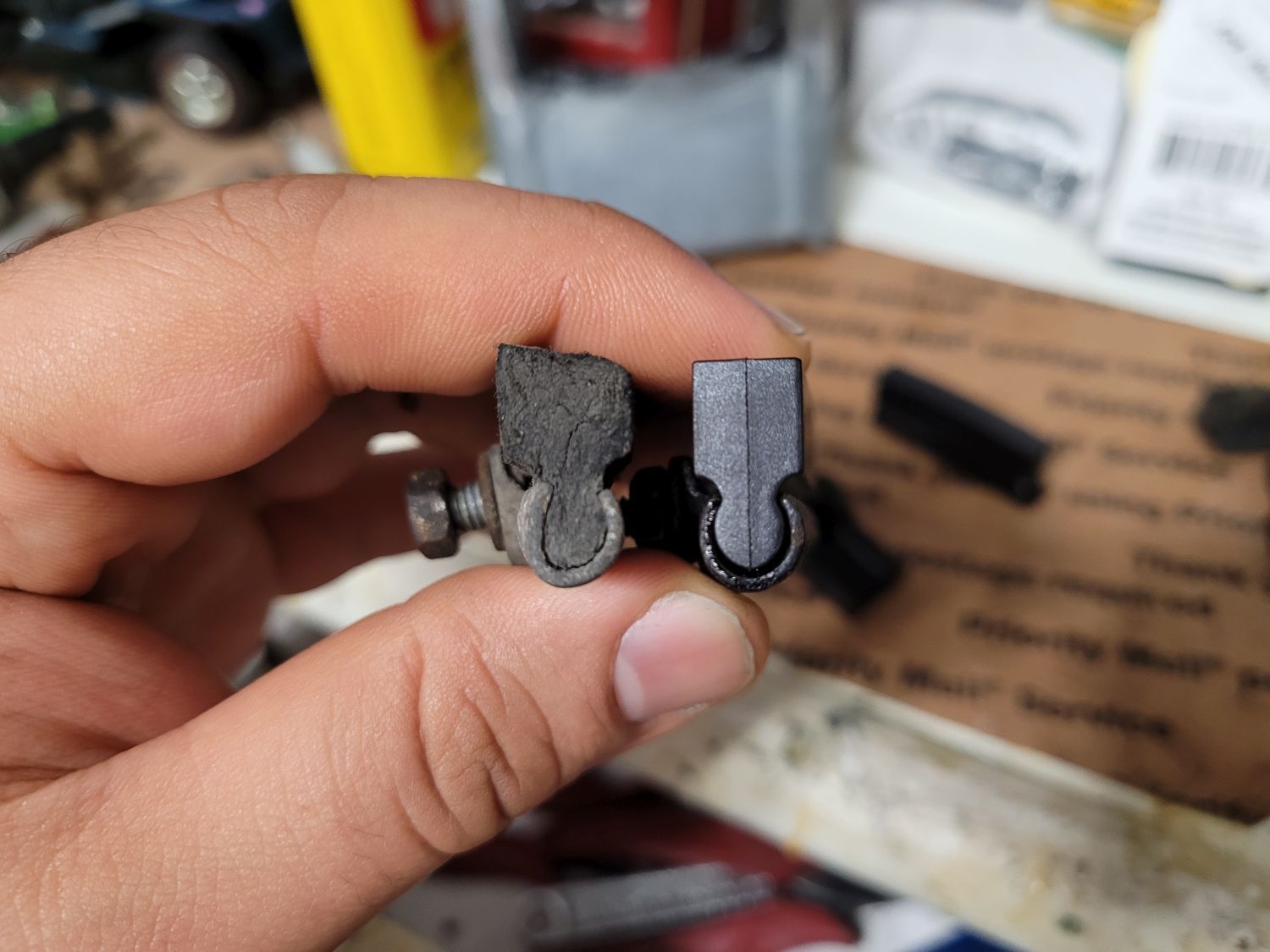

The rod brake replacement in the wartime holder at right, compared against an extra-long 1950's holder with a Fibrax 70/2 in it:

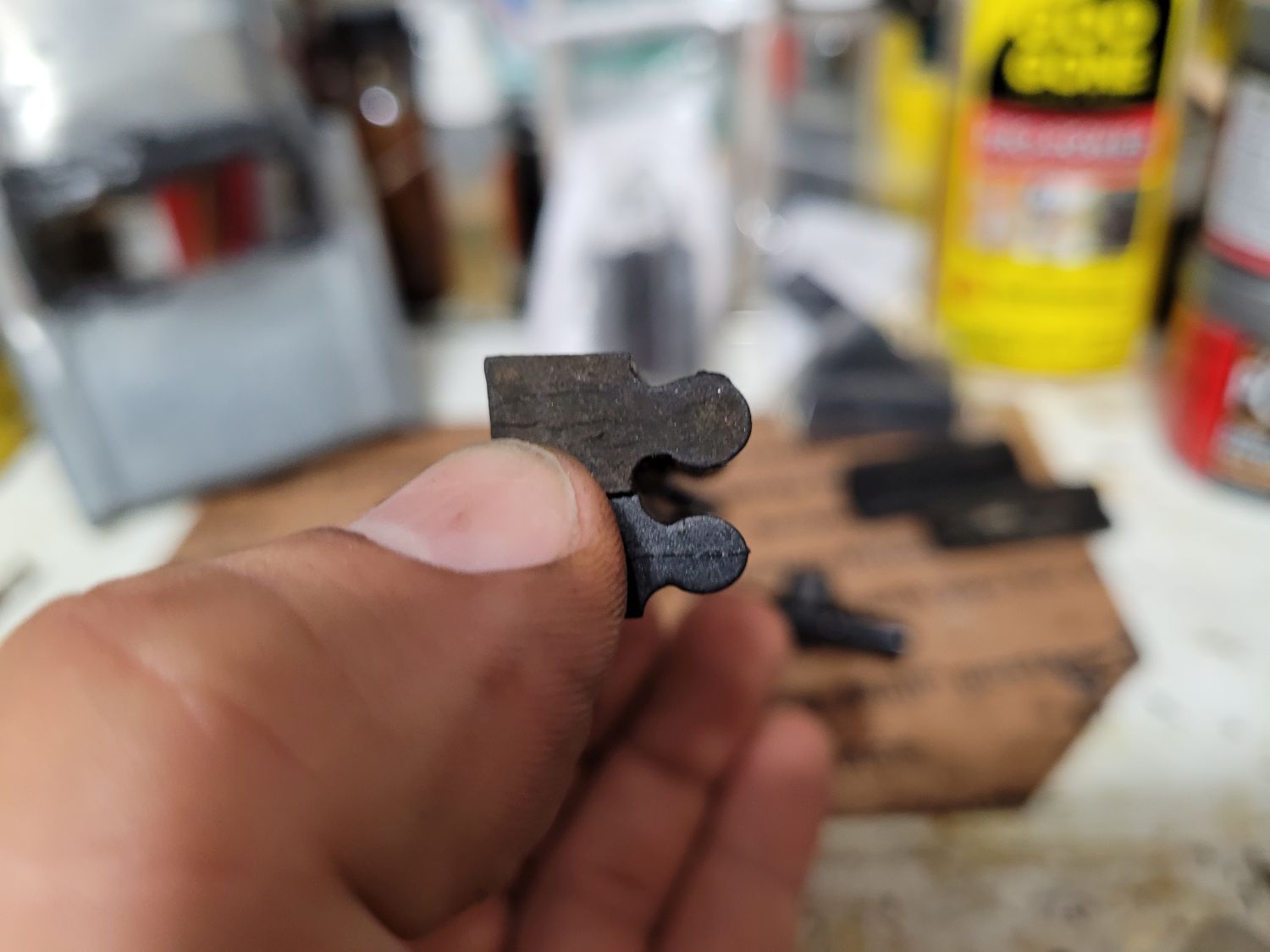

For a more conclusive comparison, here's the Kool Stop rod brake pad compared with the pad that came out of the wartime rod brake holder:



It's as if every dimension for the holder area is undersized. Yes, I realized these are supposed to be crimped to an extent, but a proper fitting pad should fit snug to begin with. If I were to "crimp" the wartime rod brake holder, I'd probably make it nearly unusuable for the next time around.

I brought these issues to Tim, from Kool-Stop, who replied as follows:

When we built the tooling on the rod pull we used the best NOS holder from a collector that send several pieces into our factory. We know that the holders are meant to be hand crimped on each end when new rubber was inserted. There is a possibility that new molding tooling was made in different spec's (thus your pads and holders shown)

The John Bull holders that you have show look like they also will need to be crimped with pliers once the pads are set to depth. Can you send in more images one you have the holders crimped shut?
I disagree - but I'd like to hear if the forum agrees or disagres with Tim's counterpoint. Personally, I don't think there's any more practical crimping to be had on that John Bull holder. There's a limit to how much one can crimp these before ruining the holder. The JB holders are made out of some pretty stout steel that doesn't bend easily without causing the outer surface of the holder to bow - something that is not required when fitting any period replacement pad of the proper size. To even suggest that it's within any tolerance of fitting - especially since they've seen these photos - is a joke, in my book. Same for the rod brake holder.

I'd argue that the obvious cross section difference between the rod brake pads is only further indication that Kool-Stop has undersized their measurements.

I'm curious to hear what others think, based on these photos, and would be open to anyone who wants to add to the comparisons with their own pads and holders. Likewise, I'd be more than willing to cover shipping to and from to check additional original pads and/or holders against the Kool-Stops.

I've sent Tim this thread, FYI.

-Kurt
__________________








Last edited by cudak888; 08-08-21 at 12:24 PM.
cudak888 is offline
Old 08-08-21, 12:32 PM
  #2
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
My only guess is that the dimensions of the pads and holders changed over time. The only thing I have to go by is that the Kool Stop rod brake pads fit about as good as can be into the holders on my mid-'70s Tourist - nowhere near loose like the image you showed. Perhaps the sample holders Kool Stop was working off of were later production than what you have?
BFisher is offline
Likes For BFisher:
Old 08-08-21, 01:02 PM
  #3
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Elvis Land, USA
Posts: 1,104

Bikes: A few. Define "few".

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Liked 302 Times in 153 Posts
I have a '74 DL-1 with red Kool Stops. A perfect fit for me, nice and tight. BFisher may be right on dimensions changing over time. Seems unlikely, but....
PilotFishBob is offline
Likes For PilotFishBob:
Old 08-08-21, 01:12 PM
  #4
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by BFisher View Post
My only guess is that the dimensions of the pads and holders changed over time. The only thing I have to go by is that the Kool Stop rod brake pads fit about as good as can be into the holders on my mid-'70s Tourist - nowhere near loose like the image you showed. Perhaps the sample holders Kool Stop was working off of were later production than what you have?
Originally Posted by PilotFishBob View Post
I have a '74 DL-1 with red Kool Stops. A perfect fit for me, nice and tight. BFisher may be right on dimensions changing over time. Seems unlikely, but....
Glad to hear this input. I'm waiting on a break in the weather to grab a pad and holder off the '79/80 Rudge to check against it.

I'm still on the fence about those John Bulls though. The #25 pad, to my knowledge, never changed dimensions.

-Kurt
__________________







cudak888 is offline
Old 08-08-21, 03:06 PM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,534
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2087 Post(s)
Liked 938 Times in 726 Posts
Thatís a bummer, I recently saw those as listed and could use fresh pads on my 1964 roadster with rod brakes.

they took the best info they could but visibly looks different than yours.

might consider a brass shim.
extra work.
repechage is offline
Old 08-08-21, 03:28 PM
  #6
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Ok, pulled the holders off the '79 DL-1. These are capped at both ends and required a bit of bending to open up.

I see no major difference in overall girth from the wartime holder. In fact, it looks slightly fatter.

Photo below: Kool-Stop in prewar holder, '79 holder w/original pad, Kool-Stop w/o holder:



I didn't try undoing the 79 pad from its holder, as it has a couple of extra pinch points built into it. But even the side-by-side with the Kool-Stop above suggests it'd be a very loose fit.



@BFisher - do you have photos of your holders, by chance?

-Kurt
__________________







cudak888 is offline
Old 08-08-21, 03:52 PM
  #7
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts



I recall these being a nice snug fit. Both ends are open on these holders - no caps. I had to open up the rears a tad for installation, left the front facing ends crimped.

Last edited by BFisher; 08-08-21 at 04:07 PM.
BFisher is offline
Likes For BFisher:
Old 08-08-21, 04:09 PM
  #8
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by BFisher View Post
I recall these being a nice snug fit. Both ends are open on these holders - no caps. I had to open up the rears a tad for installation, left the front facing ends crimped.
Which end is the one I'm seeing in the second photo? The factory crimped end?

If so, they're probably backwards. Can't tell for sure.

-Kurt
__________________







cudak888 is offline
Old 08-08-21, 04:15 PM
  #9
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
Originally Posted by cudak888 View Post
Which end is the one I'm seeing in the second photo? The factory crimped end?

If so, they're probably backwards. Can't tell for sure.

-Kurt
That's the end toward the back of the bike, front wheel. Both ends actually were crimped when I did the pad change. I opened up the ends that face the rear, and left/tightened slightly the ends that face the front. Prying them open was a bit tougher than I expected. The pads went in snugly with a little soap to help along.
BFisher is offline
Old 08-08-21, 04:18 PM
  #10
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by BFisher View Post
That's the end toward the back of the bike, front wheel. Both ends actually were crimped when I did the pad change. I opened up the ends that face the rear, and left/tightened slightly the ends that face the front. Prying them open was a bit tougher than I expected. The pads went in snugly with a little soap to help along.
I think I follow. So neither end was rolled into domed like the pre-war model, or this Fibrax 50/2 at top?




-Kurt
__________________







cudak888 is offline
Old 08-08-21, 04:21 PM
  #11
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Elvis Land, USA
Posts: 1,104

Bikes: A few. Define "few".

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Liked 302 Times in 153 Posts
Looks like I misspoke in my case. I remember them going very snugly, but it looks like that was at the pinch points. Here's a fore-and-aft shot, it's definitely a bit loose in the rear. They brake well though, no motion.

PilotFishBob is offline
Likes For PilotFishBob:
Old 08-08-21, 04:23 PM
  #12
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
No roll/cap. Just a pinch at the opening on each side. A bit of a closing of the open circle.
BFisher is offline
Old 08-08-21, 04:32 PM
  #13
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,017
Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 2324 Post(s)
Liked 1,691 Times in 747 Posts
Find another manufacturer. Problem solved.
iab is offline
Old 08-08-21, 05:19 PM
  #14
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by PilotFishBob View Post
Looks like I misspoke in my case. I remember them going very snugly, but it looks like that was at the pinch points. Here's a fore-and-aft shot, it's definitely a bit loose in the rear. They brake well though, no motion.
That looks about like what I expected. What year DL-1 is it?

Originally Posted by BFisher View Post
No roll/cap. Just a pinch at the opening on each side. A bit of a closing of the open circle.
Interesting, seeing as PilotFishBob's has the roll. Also curious what year yours is.

-Kurt
__________________







cudak888 is offline
Old 08-08-21, 05:21 PM
  #15
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
Originally Posted by cudak888 View Post
That looks about like what I expected. What year DL-1 is it?



Interesting, seeing as PilotFishBob's has the roll. Also curious what year yours is.

-Kurt
Hub date code of 75.
BFisher is offline
Likes For BFisher:
Old 08-08-21, 06:40 PM
  #16
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Elvis Land, USA
Posts: 1,104

Bikes: A few. Define "few".

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Liked 302 Times in 153 Posts
Originally Posted by cudak888 View Post
That looks about like what I expected. What year DL-1 is it?

-Kurt
Mine is a '74.
PilotFishBob is offline
Likes For PilotFishBob:
Old 08-09-21, 10:33 PM
  #17
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by BFisher View Post
Hub date code of 75.
Originally Posted by PilotFishBob View Post
Mine is a '74.
Interesting. I'm trying to ascertain whether these are the same holders or not at this point - @BFisher, do you have a photo of the front of your holders, similar to @PilotFishBob's picture?

-Kurt
__________________







cudak888 is offline
Old 08-10-21, 07:10 AM
  #18
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,780

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Liked 442 Times in 269 Posts
My speculation would be that the holders Kool Stop received and used for these reproductions might have been crimped more than normal. Thus leading to the undersized pads you received. Might there be a practical way to shim the pads as you insert them into the holders? Possibly, thin aluminum strips from a beverage can?
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA Coast the rest of the year!
https://hosting.photobucket.com/albums/p71/pastorbobnlnh/Bike%20Scenes/.highres/286ca3ae-7c02-418d-951a-43ca7af61593_zps50b30b35.jpg?width=590&height=370&fit=bounds
Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com


pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 08-10-21, 08:23 AM
  #19
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,515
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked 467 Times in 250 Posts
Originally Posted by pastorbobnlnh View Post
My speculation would be that the holders Kool Stop received and used for these reproductions might have been crimped more than normal. Thus leading to the undersized pads you received. Might there be a practical way to shim the pads as you insert them into the holders? Possibly, thin aluminum strips from a beverage can?
It looks a bit tight for a beer can shim, but shim stock isn't expensive
Germany_chris is offline
Old 08-10-21, 08:34 AM
  #20
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
No pic at the moment, but I can say that the front looks exactly like the rear but with the corners pinched inward.

Currently I don't know of another replacement pad producer for these pads. Given that, if it was me I would find a piece of round stock the diameter of the Kool Stop pad insert section and reform the holder around it - close it up a tad. Grab a couple pairs of pads and be good for a lifetime. I also wouldn't hesitate to make the John Bull holders fit if I was confident it would work without mangling things. Who else is making replacement pads for them?
BFisher is offline
Old 08-10-21, 08:38 AM
  #21
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,249

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1129 Post(s)
Liked 926 Times in 544 Posts
What is missing for me is the measured dimension of the radius base of all pads shown. Are they the same or different?
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 08-10-21, 09:06 AM
  #22
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,848
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 1,211 Times in 604 Posts
All I can say is that Kool Stop's rod brake pads fit my holders perfectly. They make great products. If multiple specs exist, and that seems so, they can't be expected to meet every one. Consistency of the British cycling industry being what it was. You can see tool marks on both ends where they were pinched in manufacturing.




BFisher is offline
Old 08-10-21, 10:37 AM
  #23
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by pastorbobnlnh View Post
My speculation would be that the holders Kool Stop received and used for these reproductions might have been crimped more than normal. Thus leading to the undersized pads you received. Might there be a practical way to shim the pads as you insert them into the holders? Possibly, thin aluminum strips from a beverage can?
Possibly, but to @BFisher's point about variation in manufacturing - why risk patterning the new replacement against the holder when it's safer to copy the pad?

Thin strips from a beverage can won't cut it for the Humber. I didn't pay $24.95 for brake pads for a fit that's worse than the cheapest Indian repops money can buy. Ditto for the John Bulls, which - unlike the rod pads - are downright unusable.

Originally Posted by SJX426 View Post
What is missing for me is the measured dimension of the radius base of all pads shown. Are they the same or different?
Excellent point. Here you go:




Originally Posted by BFisher View Post
All I can say is that Kool Stop's rod brake pads fit my holders perfectly. They make great products. If multiple specs exist, and that seems so, they can't be expected to meet every one. Consistency of the British cycling industry being what it was. You can see tool marks on both ends where they were pinched in manufacturing.
It looks as if you had to round out the normally open end to get it to stay in the holder, more so than one would have to do with a stock pad.

It's a method of making them work, but I dare say that there's a larger gap to the bottom of the pad here than it appears, due to the crimping.

-Kurt
__________________







cudak888 is offline
Old 08-10-21, 01:17 PM
  #24
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,225

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3238 Post(s)
Liked 1,376 Times in 929 Posts
Rather than a metal shim, would bonding a layer of inner tube around the base be an option? Not that you should have to, just thinking of ways the part could be made right.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 08-10-21, 01:44 PM
  #25
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by ThermionicScott View Post
Rather than a metal shim, would bonding a layer of inner tube around the base be an option? Not that you should have to, just thinking of ways the part could be made right.
It's amazing what Gorilla Glue can do...

-Kurt
__________________







cudak888 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
