Old 08-12-21, 09:48 AM
  #26
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,239

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1724 Post(s)
Liked 1,809 Times in 1,123 Posts
Originally Posted by StuBotNYC View Post
I just ordered gatorskin 28mm hope they fit!
Good luck with them. There is no standard, or quantified tolerances, on what actual inflated dimensions of a tire need to fall within to be classified as a certain size. I’ve had 25’s measure out at 22mm.

If you are using the original skinny road rims, with around a 14mm internal width, you’ll have a better chance than the newer wider road rims.

There are tons of threads discussing tire width based on rim width. In my experience I have found this to be true. As an example, when going from MA-40’s to TB-14’s, my same tires grew a mm.

This only becomes a problem when pushing the tire size limit and you need automotive feeler gauges to check the tire clearance… lol.

John
70sSanO is offline
Likes For 70sSanO:
Old 08-12-21, 10:54 AM
  #27
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by 70sSanO View Post
Good luck with them. There is no standard, or quantified tolerances, on what actual inflated dimensions of a tire need to fall within to be classified as a certain size. Iíve had 25ís measure out at 22mm.

If you are using the original skinny road rims, with around a 14mm internal width, youíll have a better chance than the newer wider road rims.

There are tons of threads discussing tire width based on rim width. In my experience I have found this to be true. As an example, when going from MA-40ís to TB-14ís, my same tires grew a mm.

This only becomes a problem when pushing the tire size limit and you need automotive feeler gauges to check the tire clearanceÖ lol.

John
I guess I will know in 5 days when they finally arrive. I lucked out on my 1986 sr400, from all I know, it's the same frame, so I'm hoping it will work.

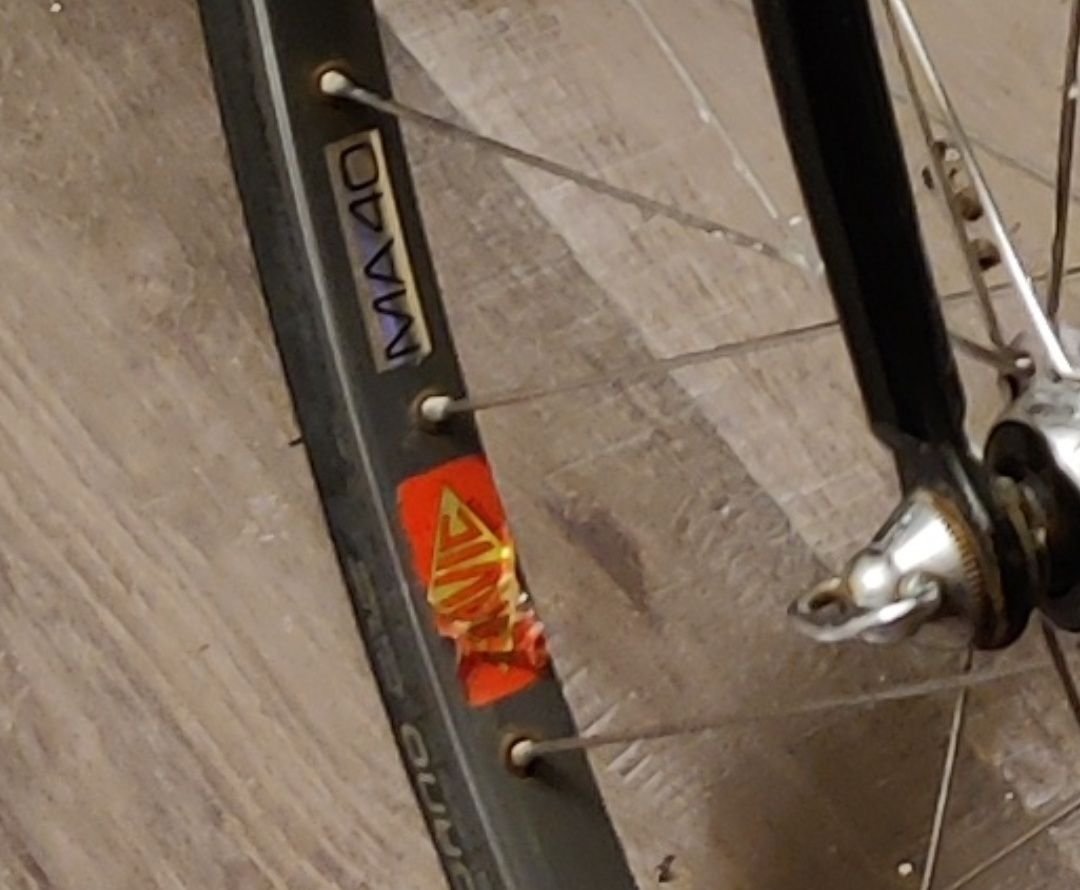

The rims are mavic MA40

I asked my LBS if they lace up rims and there's only one guy who does and he may or may not be in the mood to do it I was told... Want to keep the Superbe pro hubs, go black spokes, was hoping to keep the mavic rims, may be a folly.
StuBotNYC is offline
Old 08-12-21, 11:53 AM
  #28
KCT1986
Full Member

Join Date: Jan 2016
Posts: 405
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 119 Times in 89 Posts
During the winter, my 48cm SR800 run Vittoria Corsa 2.0 28 on older 14mm rims. Similar DiaCompe brakes to the RGC, and the rear is as tight as possible. The closest point on mine is the mount on the rear brake bridge. Clearance to chainstays and seat tube not a problem. Have non-stock forks, so can't comment of front clearance.

Rear chainstay bridge can be an issue in getting the wheel in. May need to install before inflating the tire or remove the quick release skewer.

Your rims seems to be OK. Maybe get them trued and plan to rebuild them yourself at some point. Lots of resources available to learn this. Building a wheel with 32 or 36 spokes is not too difficult. Sheldon Brown's web site has good info and tutorial on wheelbuilding.
KCT1986 is offline
Likes For KCT1986:
Old 08-12-21, 03:12 PM
  #29
EricWade
Black Eyed Dog.

EricWade's Avatar

Join Date: Jul 2021
Location: Sacramento Ca.
Posts: 30

Bikes: 80ís / 90ís Mystery Machine.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 14 Times in 8 Posts
Awesome score. You play drums too.
Here is a picture of my acoustic rig.
EricWade is offline
Likes For EricWade:
Old 08-14-21, 03:33 PM
  #30
zazenzach
Senior Member

zazenzach's Avatar

Join Date: Aug 2010
Posts: 1,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
absolute crime to allow superbe pro stuff to get in that condition.
zazenzach is offline
Likes For zazenzach:
Old 08-15-21, 08:43 PM
  #31
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by zazenzach View Post
absolute crime to allow superbe pro stuff to get in that condition.
I couldn't agree more. I only wish I could re-anodize and re stencil, but these are out of my abilities. I will continue to search for another just to use this one as a backup or sell. I needed a new nut for the dia compe Gran royal brakes, yellowjersey quoted me $41 for one conical nut, and two stock washers delivered, glad PayPal was giving me difficulty paying it after 6 attempts I was on the 'bay and found a complete black pair in case I go full Darth Vader/Batman, at least I got 2 sets of brakes and hardware in better shape than mine for $38.
StuBotNYC is offline
Old 08-15-21, 08:50 PM
  #32
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Turning this thread to a (pre) Black Lightning restoration update

So far, need to install new gatorskin rubber arriving soon, black silicone tape is on, it's been cleaned and lubed, next up is a thorough tear down from a passionate veteran racer and mechanic who is a huge fan of this exact bik, it was the first bike he raced on in the 90s, was his stepmother's, she had the coral version with the pink bar tape.

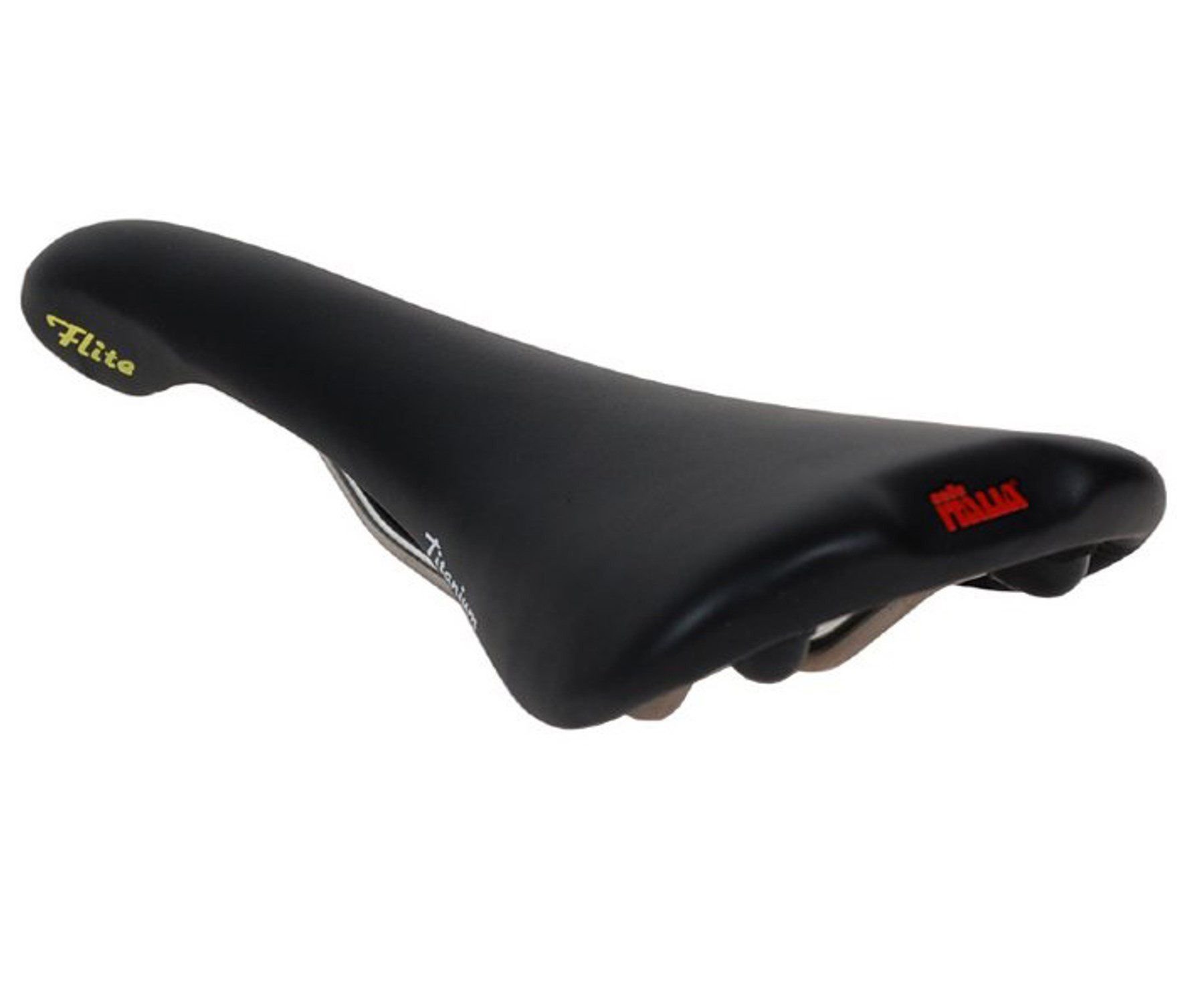

Got a 1990 Selle Flite for my buns. Cinelli goes in storage.

StuBotNYC is offline
Old 08-15-21, 08:52 PM
  #33
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by 70sSanO View Post
Good luck with them. There is no standard, or quantified tolerances, on what actual inflated dimensions of a tire need to fall within to be classified as a certain size. Iíve had 25ís measure out at 22mm.

If you are using the original skinny road rims, with around a 14mm internal width, youíll have a better chance than the newer wider road rims.

There are tons of threads discussing tire width based on rim width. In my experience I have found this to be true. As an example, when going from MA-40ís to TB-14ís, my same tires grew a mm.

This only becomes a problem when pushing the tire size limit and you need automotive feeler gauges to check the tire clearanceÖ lol.

John
Such great advice, love the idea of installing them deflated!
StuBotNYC is offline
Old 08-16-21, 10:58 AM
  #34
shunt12
Junior Member

Join Date: Aug 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
great restore
shunt12 is offline
Likes For shunt12:
Old 08-16-21, 05:16 PM
  #35
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by shunt12 View Post
great restore
Wow thanks! Not even done yet gonna fix the paint for real, full tear down and lube, new bearings, rubber, saddle (Selle Flite 1990 redux)
StuBotNYC is offline
Old 08-17-21, 12:11 AM
  #36
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by EricWade View Post
Awesome score. You play drums too.
Here is a picture of my acoustic rig.
Excellent!!!

Here's one of my two kits: Early 90s Yamaha pre stage and recording custom brand kit, a trend with me I guess
StuBotNYC is offline
Likes For StuBotNYC:
Old 08-20-21, 01:07 PM
  #37
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Black Lightning alert... Connecticut pickup

https://www.ebay.com/itm/Cannonade-R...-127632-2357-0
StuBotNYC is offline
Old 09-09-21, 04:21 PM
  #38
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts

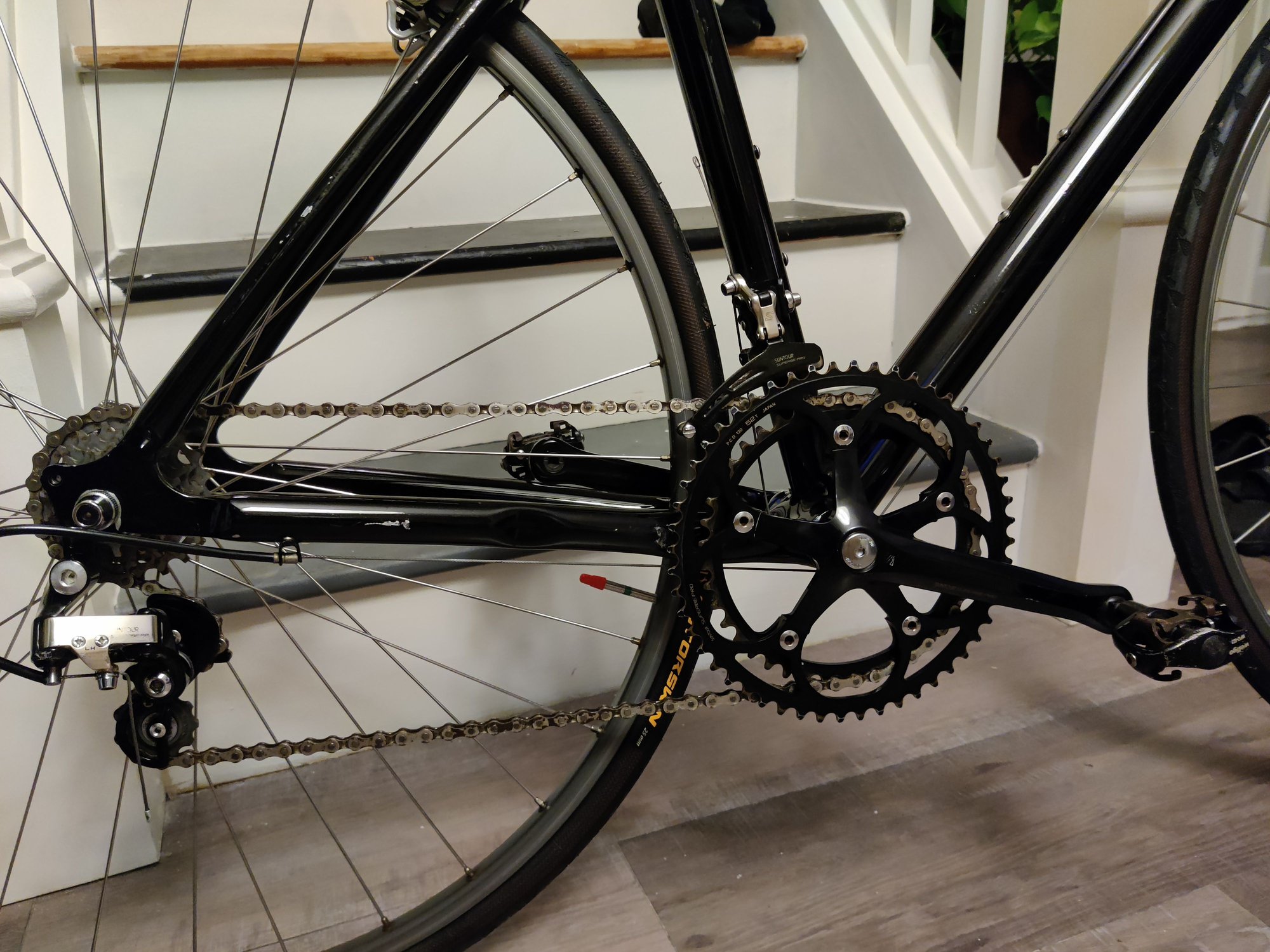

Restoration complete.




StuBotNYC is offline
Likes For StuBotNYC:
Old 09-10-21, 10:32 AM
  #39
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,886
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 393 Times in 271 Posts
@StuBotNYC Looks awesome! Well done. You did justice to this little slice of Cannondale history. I am glad you picked this up and saved it instead of someone that would just continue to neglect it.
tricky is offline
Likes For tricky:
Old 09-10-21, 12:02 PM
  #40
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by tricky View Post
@StuBotNYC Looks awesome! Well done. You did justice to this little slice of Cannondale history. I am glad you picked this up and saved it instead of someone that would just continue to neglect it.
Thank you!

What a joy it is to ride, just rode it to the bike shop to thank the head mechanic, and after joking to him how my wife wanted me to ask him for a job, he said YES! Wants to talk to me in January when they start hiring, he said he would teach me how to be a mechanic! I have been working on bikes since 1978 believe it or not at the age of 10, creating Frankenstein bikes but never learned more than simple bike mechanics, I am floored that he thinks I have the right stuff

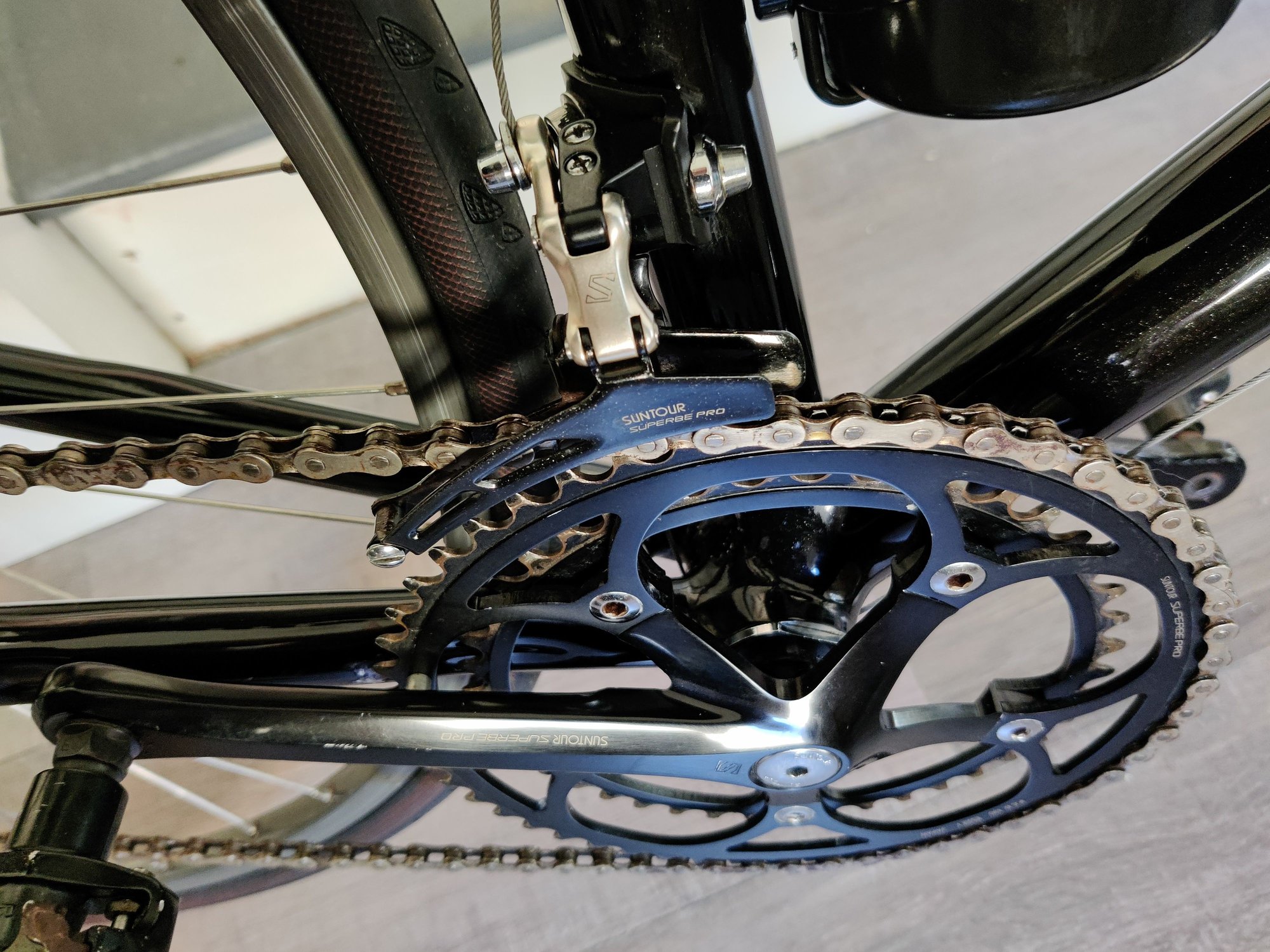

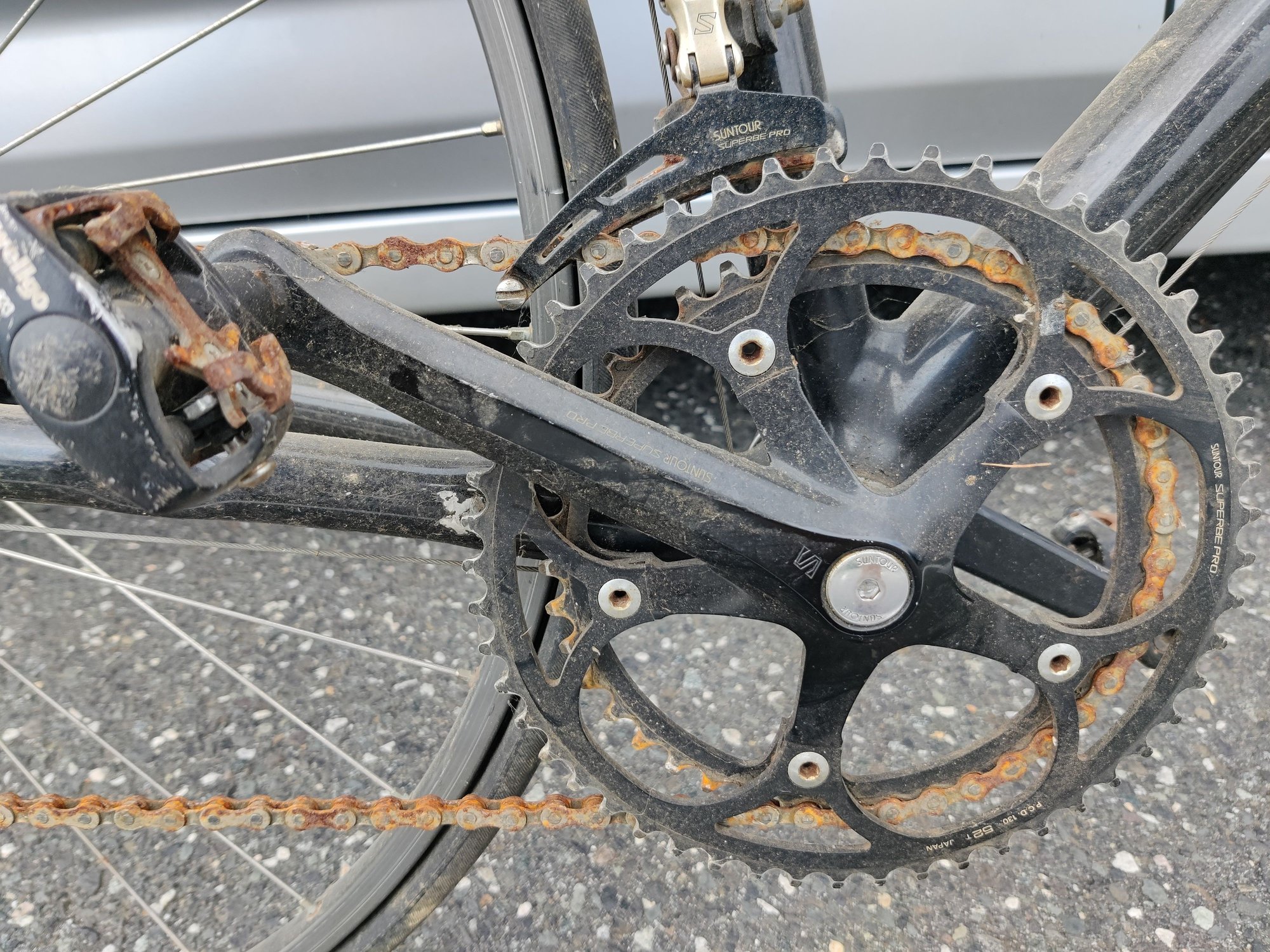

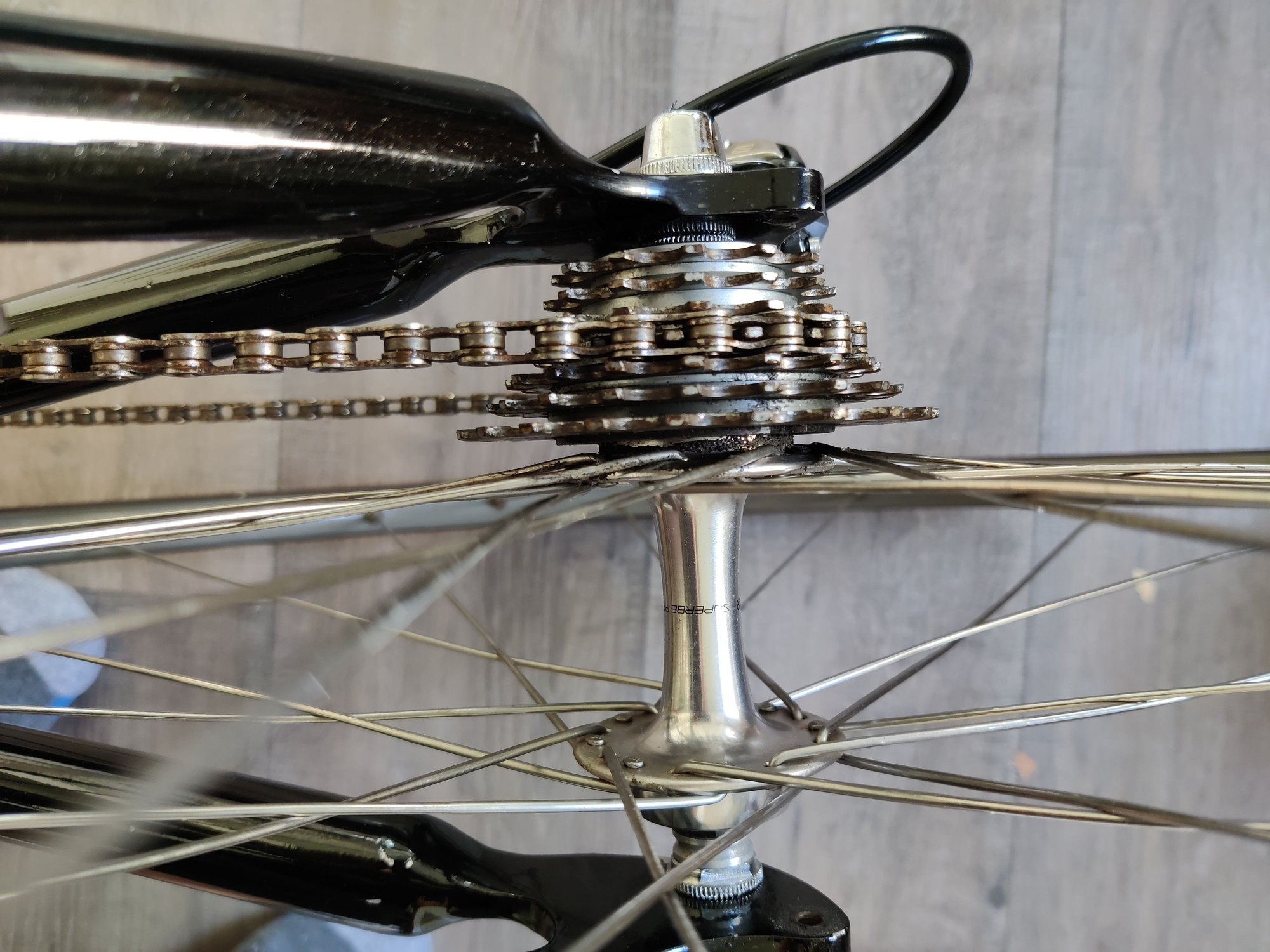

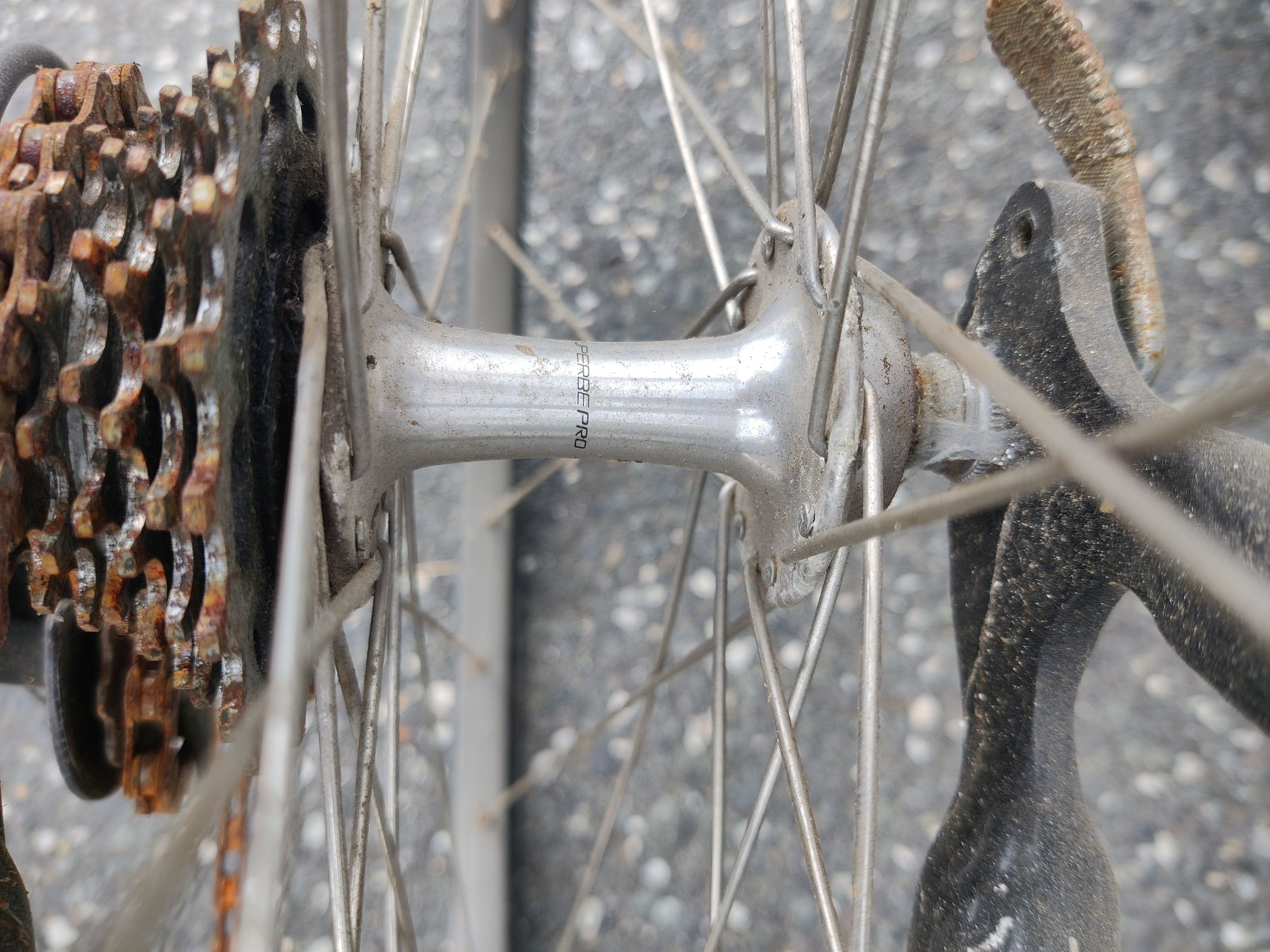

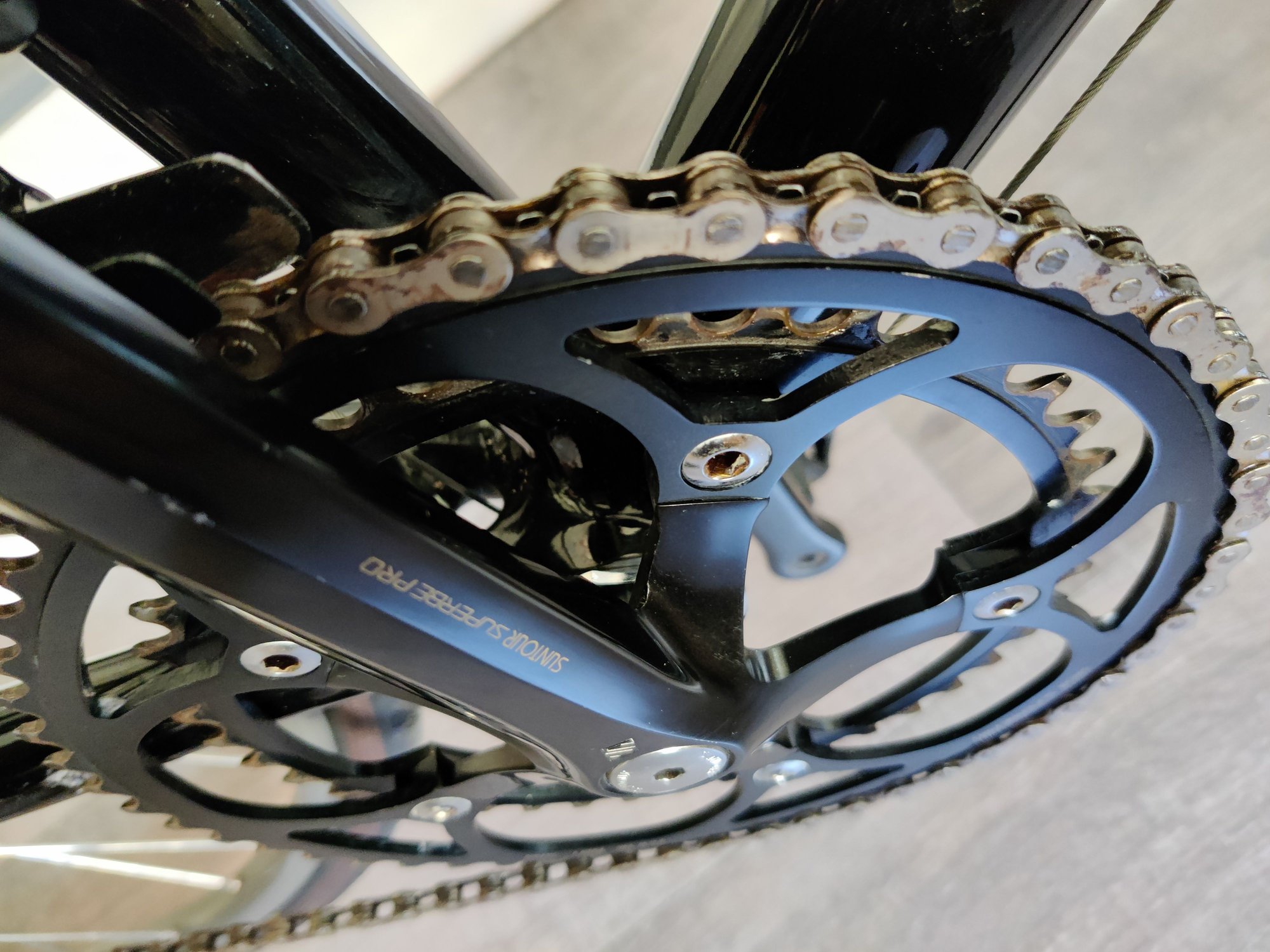

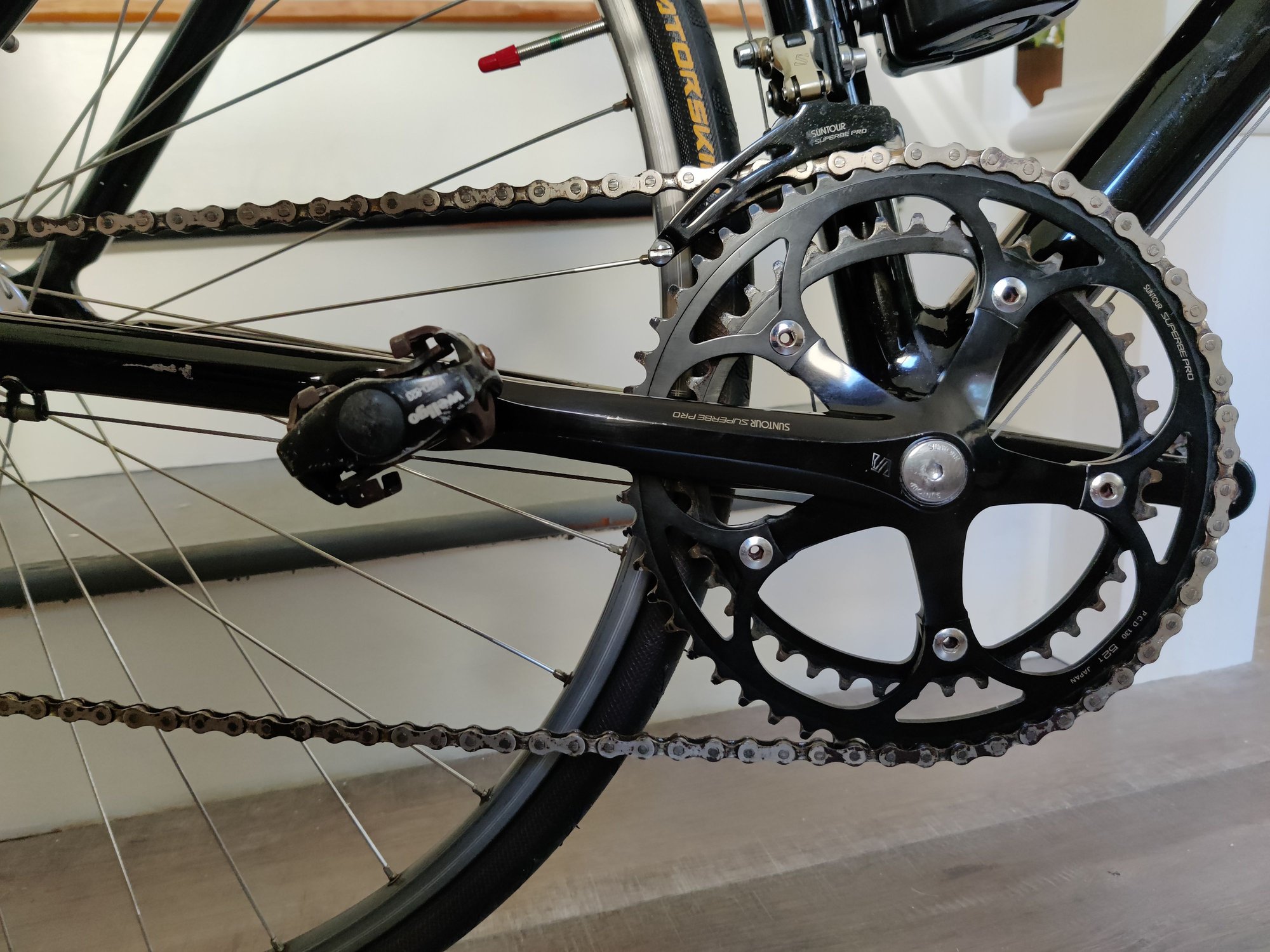

Oh btw, here's the drivetrain before and after...
No new parts besides brake cables and a saddle, the Cinelli went in to storage.









StuBotNYC is offline
Likes For StuBotNYC:
Old 09-10-21, 12:07 PM
  #41
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts





StuBotNYC is offline
Likes For StuBotNYC:
Old 09-10-21, 12:18 PM
  #42
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,886
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 393 Times in 271 Posts
Originally Posted by StuBotNYC View Post
Thank you!

What a joy it is to ride, just rode it to the bike shop to thank the head mechanic, and after joking to him how my wife wanted me to ask him for a job, he said YES! Wants to talk to me in January when they start hiring, he said he would teach me how to be a mechanic! I have been working on bikes since 1978 believe it or not at the age of 10, creating Frankenstein bikes but never learned more than simple bike mechanics, I am floored that he thinks I have the right stuff
Congrats! That'll be a fun adventure.
tricky is offline
Likes For tricky:
Old 09-11-21, 01:41 AM
  #43
CleanClassics
Junior Member

Join Date: Jun 2021
Location: United States
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 5 Times in 4 Posts
That is one cool looking retro bike. Thanks for sharing the before and after photos!
CleanClassics is offline
Likes For CleanClassics:
Old 09-13-21, 11:34 AM
  #44
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by 70sSanO View Post
Good luck with them. There is no standard, or quantified tolerances, on what actual inflated dimensions of a tire need to fall within to be classified as a certain size. Iíve had 25ís measure out at 22mm.

If you are using the original skinny road rims, with around a 14mm internal width, youíll have a better chance than the newer wider road rims.

There are tons of threads discussing tire width based on rim width. In my experience I have found this to be true. As an example, when going from MA-40ís to TB-14ís, my same tires grew a mm.

This only becomes a problem when pushing the tire size limit and you need automotive feeler gauges to check the tire clearanceÖ lol.

John
I can confirm, 28mm tires do not fit the 1986 sr800 "Black lightning", probably doesn't fit the other late 80s bikes but hard to tell, mine has Dia Compe Gran Comp brakes, may fit other brake setups on the tange steel fork, results may vary.

I installed 25mm continental gatorskin tires, works great

​​​​​
StuBotNYC is offline
Old 09-13-21, 11:40 AM
  #45
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by zazenzach View Post
absolute crime to allow superbe pro stuff to get in that condition.

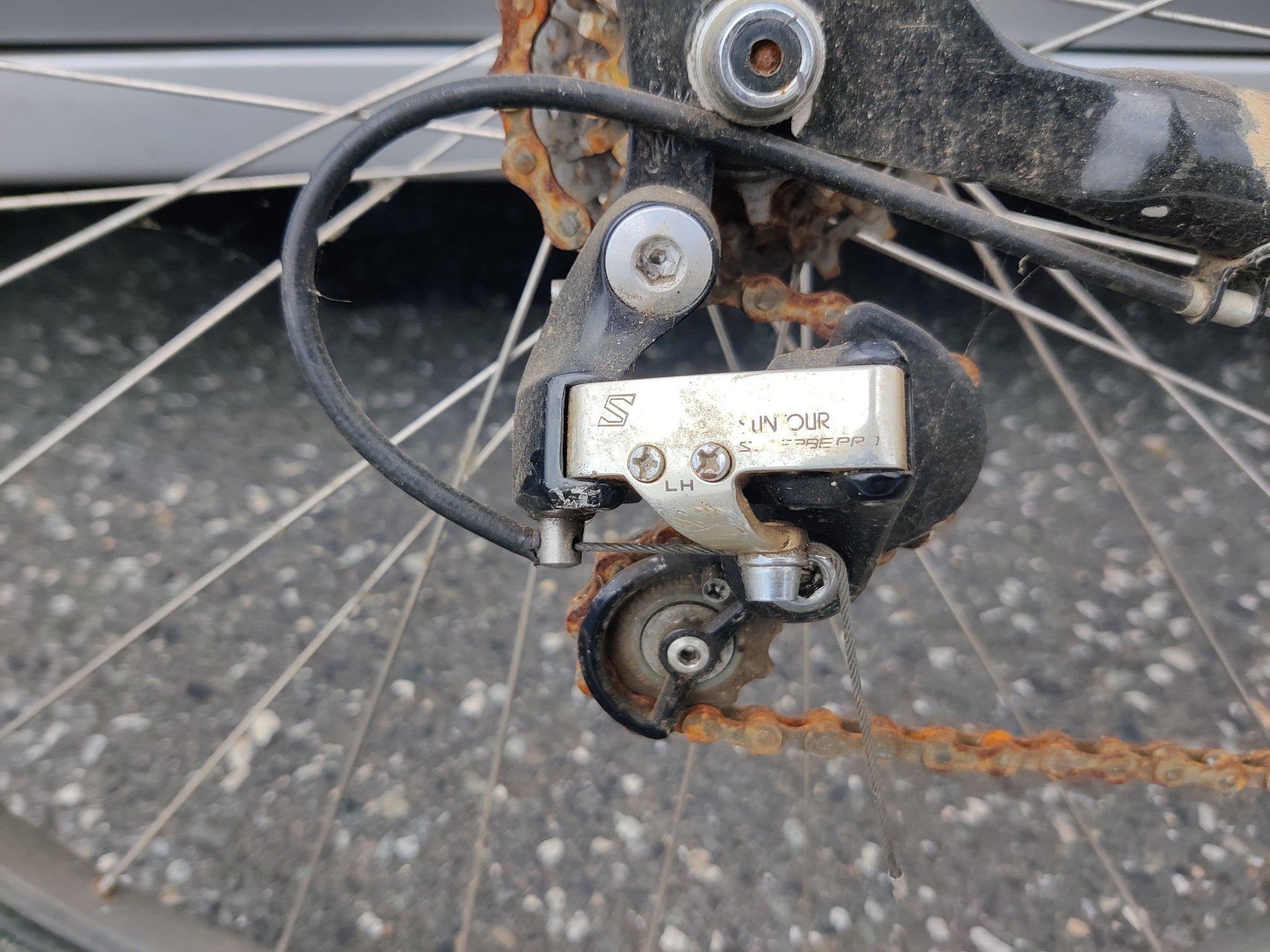

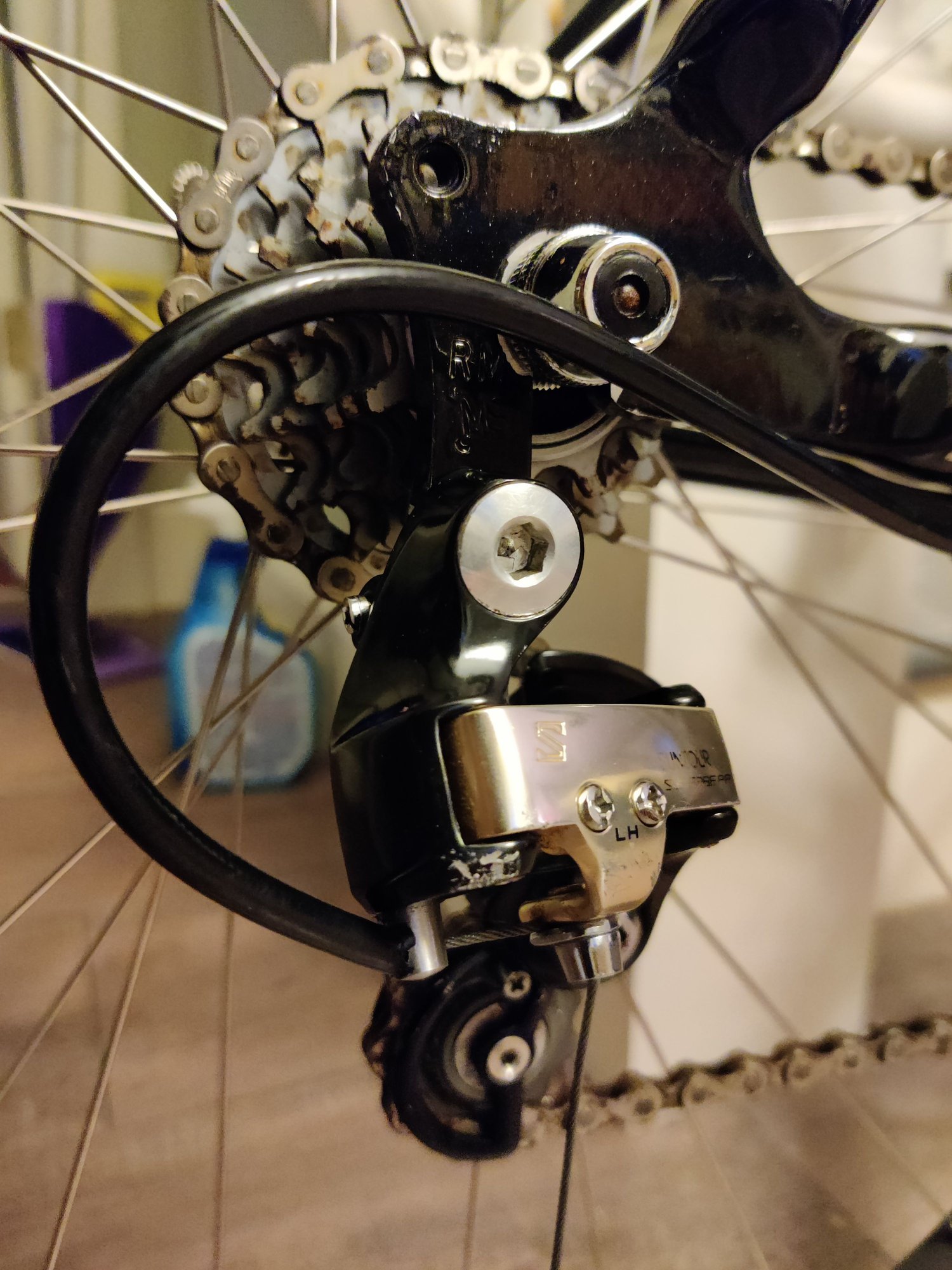

All good now! With the exception of one bad pilot wheel and worn off lettering on the rear derailleur.

See pics?


StuBotNYC is offline
Old 09-13-21, 11:46 AM
  #46
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by CleanClassics View Post
That is one cool looking retro bike. Thanks for sharing the before and after photos!
Thanks! Funny the term retro to me when all the bikes that interest me still were made in my lifetime. This bike was offered for sale when I was 18, I would have really loved to own it then, but I do now!
StuBotNYC is offline
Old 09-13-21, 11:47 AM
  #47
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by tricky View Post
Awesome find. Excited to see this one cleaned up!

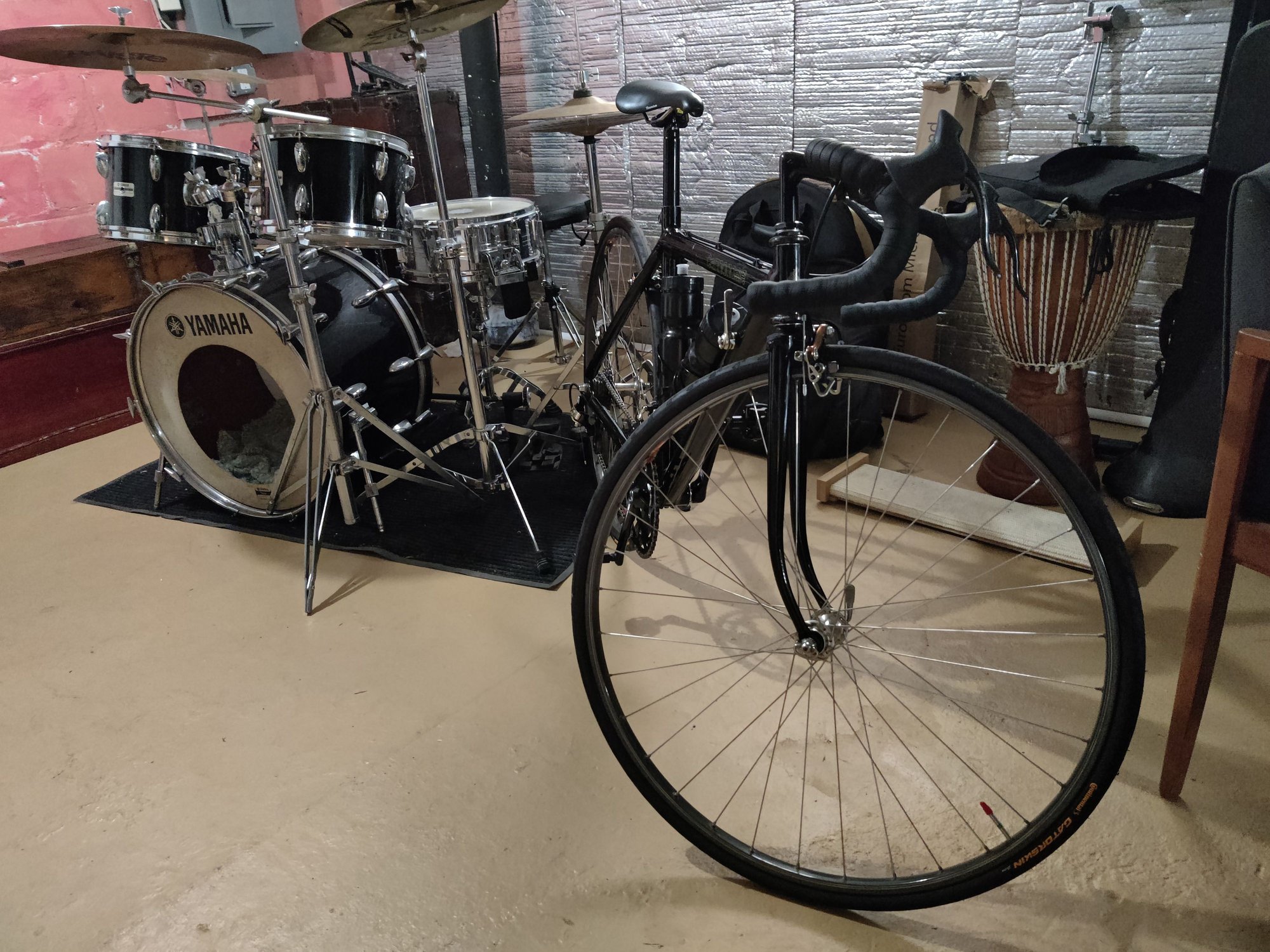

Check her out... All done 😊
StuBotNYC is offline
Likes For StuBotNYC:
Old 09-13-21, 11:52 AM
  #48
StuBotNYC
Senior Member
Thread Starter

Join Date: Jul 2008
Posts: 69
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by EricWade View Post
Awesome score. You play drums too.
Here is a picture of my acoustic rig.

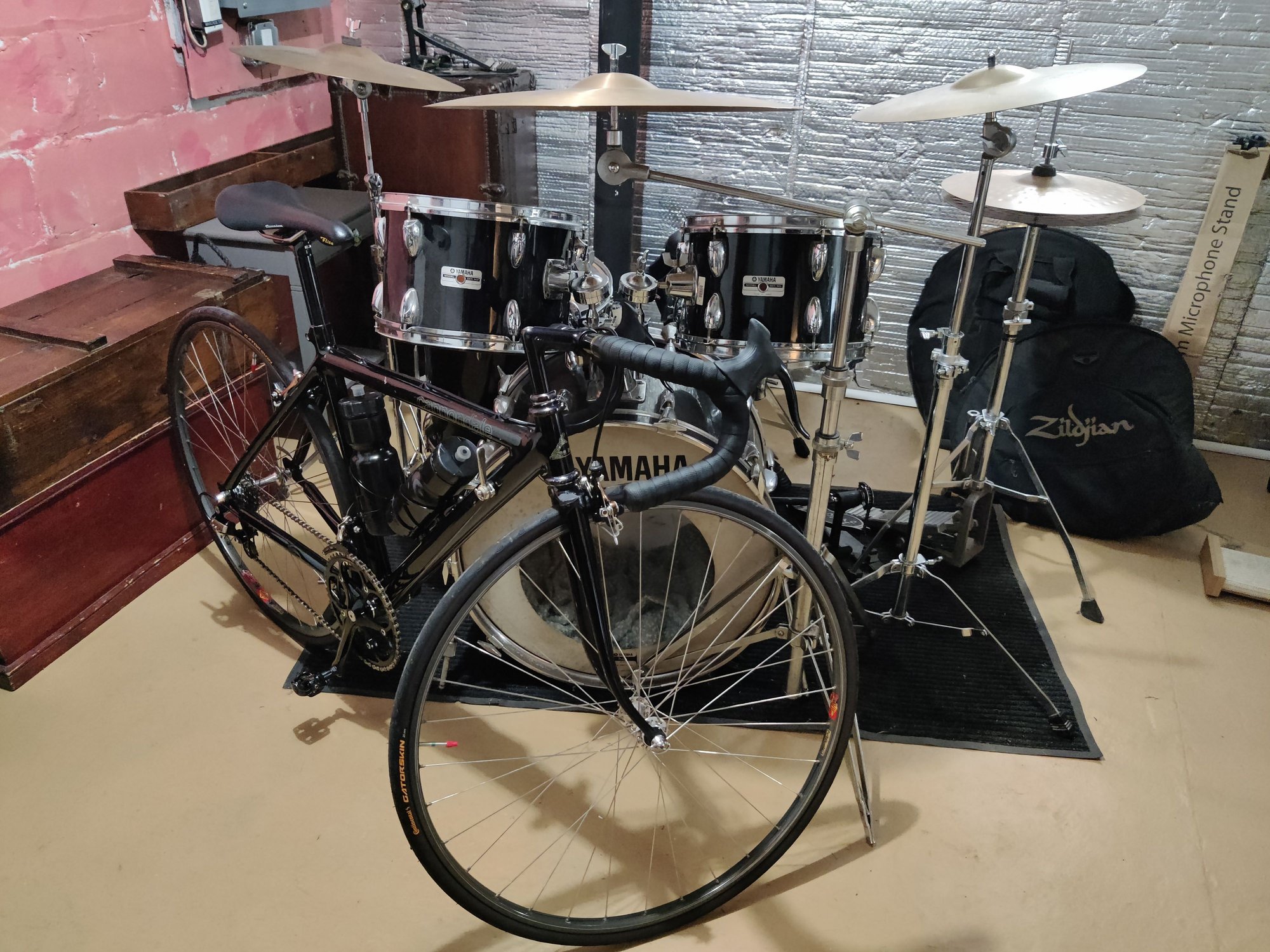

Both the drum kit and the bike are from just about the same year! This amazing Yamaha kit is also an outlier: this all black Yama kit pre-dates the subsequent kits named Pro "recording series" and Stage series kits, this kit was the jump off design for these two legendary drum kits, same as my SR800 Ebony Special edition!

StuBotNYC is offline
Old 09-13-21, 12:46 PM
  #49
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,239

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1724 Post(s)
Liked 1,809 Times in 1,123 Posts
Originally Posted by StuBotNYC View Post
I can confirm, 28mm tires do not fit the 1986 sr800 "Black lightning", probably doesn't fit the other late 80s bikes but hard to tell, mine has Dia Compe Gran Comp brakes, may fit other brake setups on the tange steel fork, results may vary.

I installed 25mm continental gatorskin tires, works great

​​​​​
It all depends on the tire and the rim. Brakes have an impact when it comes to height. I would think seat tube angle also impacts tire size as it gets slacker.

All 1986 SR's have the same geometry (pre-criterium) regardless of the exact model. The only differences are the groups and the fork material. SR600+ CroMo, SR500- Mangalloy.

All 1988 SR's have the same criterium geometry regardless of the exact model. The only differences are the groups and the fork material. SR700+ CroMo, SR500- Mangalloy.

What is noteworthy is that even though the criterium geometry changed, the chainstay length 15.75" remained the same between the 1986 and 1988 for every size; 48cm to 63cm. Seat angle gets slacker with larger sizes size.

I can fit a 28mm on my 1986, but I don't think it is possible on my 1988. But if I ran the exact same tire on the same rim it should make no difference. I should be able to swap out the rear wheels; except there might be differences in brake caliper clearance.

Something I learned, that is not applicable to this discussion, is the top tube length didn't change with the criterium geometry. I realize that this is not the design approach taken, but it is almost as though someone ran a pre-criterium Cannondale into the back of a car and slightly crumpled the downtube, loved the handling, and it became a revelation for the steeper head angle.

John
70sSanO is offline
Likes For 70sSanO:
Old 09-13-21, 02:21 PM
  #50
CleanClassics
Junior Member

Join Date: Jun 2021
Location: United States
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by StuBotNYC View Post
Thanks! Funny the term retro to me when all the bikes that interest me still were made in my lifetime. This bike was offered for sale when I was 18, I would have really loved to own it then, but I do now!
lol don't worry it's happening to all of us. I was playing a racing game the other day and it had the Ferrari 360 in the category of "Retro Super Cars" and I was floored. I was like no... that's modern... but I'm out numbered in my thinking. "Retro" is cool now right now, so we'll enjoy the wave.

I'm glad you got the bike you wanted and it's in good hands. I have never seen this bike before but it looks absolutely amazing.
CleanClassics is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
