Raleigh Connoisseur


Hi All

I ride Raleighs for may years now.
I bought this Coinnesseur many moons ago. AG 4/1982 3 speed

https://cimg0.ibsrv.net/gimg/bikefor...84a965e0c6.png

It was shiny of burgundy and gold. In need of small tlc.
So, it got a small make over to fit my purpose, And it did. Well.

https://cimg8.ibsrv.net/gimg/bikefor...b9eae58db4.png
https://cimg2.ibsrv.net/gimg/bikefor...5b09e44c5b.png
https://cimg8.ibsrv.net/gimg/bikefor...174658e85c.png
That until recently.

Its colour faded, its crank lost some bearings [i presume], and last its dropouts got wider.
Just envious of its other sibling, the Superbe.
And now it in need of a fix.

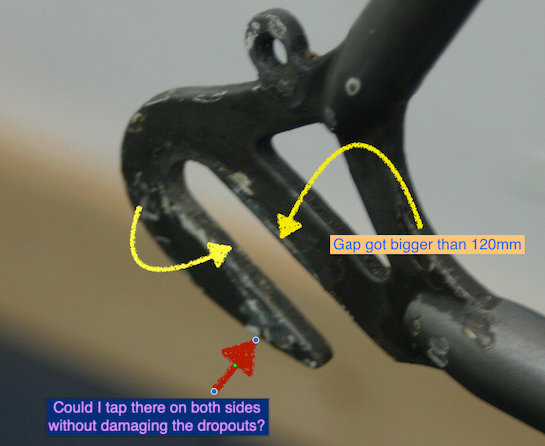

Cannot explain how the dropout got wider from 12mm to 17mm+
But the wheel is getting off.. " Let me out, let me out"..

The question is how do i get them into place without creating more damage?
I thought of using a tube/pipe but the space between the dropouts is small.

Any thoughts? Thanks

https://cimg6.ibsrv.net/gimg/bikefor...97d039f3a2.png
Cannot make the pic smaller

.

https://www.bikeforums.net/classic-v...-images-2.html
https://www.bikeforums.net/classic-v...ut-repair.html

-----

​​​​​​DAMAGED AXLE SLOT

IN REAR DROPOUT

When a rear derailleur is shifted past the inner- most gear and caught by the rear wheel, it can dam- age the axle slot in the right-rear dropout by spread- ing it open.

This damage can look very severe and still be re- pairable. Even if cracks are evident before or after, re- pair reliability is not an issue, because the stressed and cracked area does not normally experience any signifi- cant load during riding.

The rule of thumb when dealing with this prob- lem is to tell the customer that the frame should be considered a loss, but there is a simple repair that can be attempted that is quite effective as long as the drop- out does not break in two during the repair.

There are two tricks to the repair. First, the drop- out must be sandwiched firmly between two surfaces so that it does not collapse sideways while being pushed back. A dropout-alignment tool supplies the necessary support. Second, the hole for the derailleur mounting bolt must be filled to prevent it from collapsing while force is applied to the dropout through the derailleur hanger.
The repair is done when the width of the slots in both dropouts are equal. Normal dropout align- ment and derailleur-hanger alignment should be done afterwards.

HHmm, dont know what to do with that, but thanks

I would cautiously apply channelock pliers to close the gap, as per [MENTION=319010]Narhay[/MENTION] in other thread. Clamp the dropout gently (sandwich) to prevent any skewing. Perhaps put a spare axle in the slot as gauge. Just make sure to not mis-align the drops in other directions. Check the width or spread on the rear dropouts with the OLD of the hub to make sure its a good fit.
This should be any easy repair.

I will try. The gap is supposed to be 12mm. I have a spare hub , so will try it to check. Or a digital calliper.
Presumed thoughts that steal could not be bend that easily. Thanks
.

That would work if I wanted anyone to fix any my of my bikes.
If I dont know how, I just ask. I learn and I can do it myself if the problem reoccur. It's been working that way from the beginning. Hopefully till the end.
Far more satisfying. But thanks.
