Use cable stops on top tube ??

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Use cable stops on top tube ??

Old 08-12-21, 12:06 AM
  #1
sdn40
Senior Member
Thread Starter

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 642

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 141 Times in 88 Posts
Use cable stops on top tube ??

Random thought. Instead of having the brake cable housing snake across the entire top tube, anyone ever try using stops on the 2 end eylets, with bare brake cable in between ?? I guess it would mimic some mountain bikes in that regard. IMO it would clean up the top tube and get rid of that slightly dated look. Bonus if your middle eyelet has rusted or broken off. If you have to invent one that works, I want naming rights and 80% of the profits
sdn40 is offline
Old 08-12-21, 01:03 AM
  #2
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,433

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2694 Post(s)
Liked 3,829 Times in 2,028 Posts
Originally Posted by sdn40 View Post
it would get rid of that slightly dated look.
My old 1960 Paramount uses two stops with bare cable between.
SurferRosa is offline
Old 08-12-21, 01:04 AM
  #3
brooklyn_bike
Full Member

Join Date: Sep 2007
Location: PDX
Posts: 403
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 35 Times in 13 Posts

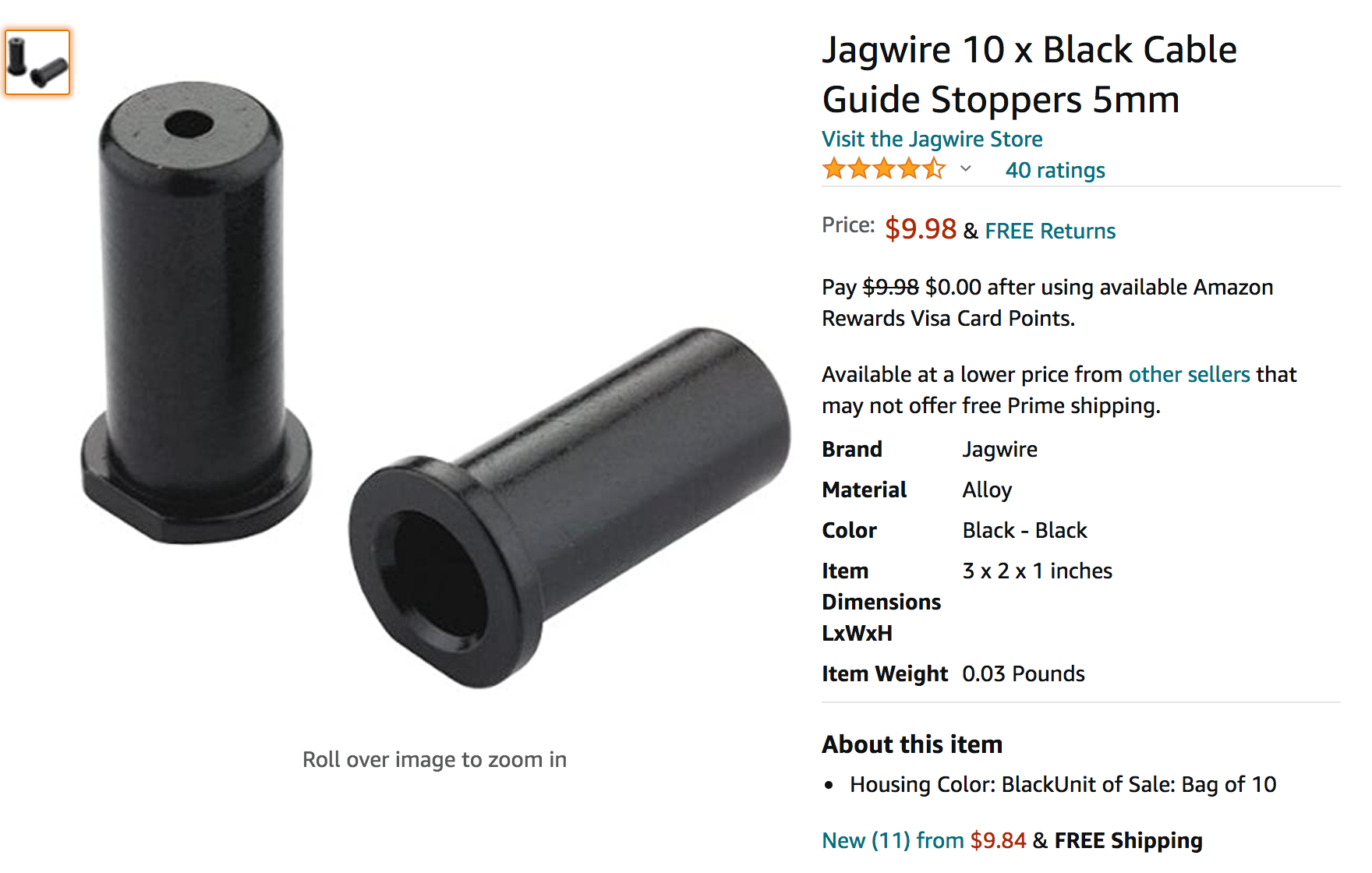

i'm not positive but would these Jagwire Cable Guide Stoppers work for what you're describing? one in the front and rear brake cable housing guide with bare brake cable in between?

brooklyn_bike is offline
Old 08-12-21, 01:07 AM
  #4
brooklyn_bike
Full Member

Join Date: Sep 2007
Location: PDX
Posts: 403
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 35 Times in 13 Posts
looks like they have split versions too for easier brake cable removal:
brooklyn_bike is offline
Old 08-12-21, 01:16 AM
  #5
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 4,144
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1909 Post(s)
Liked 1,188 Times in 573 Posts
Originally Posted by sdn40 View Post
anyone ever try using stops on the 2 end eylets, with bare brake cable in between ??
Yes. My Bridgestone RB-T was built like that.

and get rid of that slightly dated look.
Hmm. I've never thought of continuous housing as being a notable part of making a bicycle look "dated."

Actually, zero exposed cable is kind of in vogue at the moment. Hydraulic lines obviously require continuous housing, and a lot of cable connections these days keep the cables hidden to prevent contamination.
HTupolev is offline
Old 08-12-21, 02:25 AM
  #6
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,319

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4430 Post(s)
Liked 2,522 Times in 1,634 Posts
Yeah, a couple of years ago I considered trying that on my Ironman, replacing the cable housing with lightweight cable liner. I hoped the cable stops would eliminate the problem with cable housing creep, which pulls the brake calipers off center, causing brake rub. Same setup as my early 1990s Univega Via Carisma (a MTB-lite or hybrid), which needs cable stops and hangers to function properly with cantilever brakes.

Never got around to trying that. But now that I'm rebuilding a 1993 Trek 5900, also with external brake cable housing along the top tube, I might revisit that idea. It might save a whole gram, which isn't a futile gesture with that carbon fiber bike. It's still lightweight even by contemporary standards.
canklecat is offline
Old 08-12-21, 03:00 AM
  #7
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 2,614

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 696 Post(s)
Liked 1,014 Times in 596 Posts
I did that on a Fuji Ace I recently rebuilt. I did not like the cable rubbing or slapping against the top tube and used some cable donuts. I really did not like the look and returned to using housing. It was strictly aesthetics.
delbiker1 is online now
Likes For delbiker1:
Old 08-12-21, 03:47 AM
  #8
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 709

Bikes: Raleigh Classic 15, 84; Miyata 912, 85; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 87 Times in 51 Posts
My Marinoni has 2 cable stops on the top tube.

The bare cable does rub the paint off, so I ended up running some automotive stripe along the top tube to protect it.
John Nolan is offline
Old 08-12-21, 04:54 AM
  #9
Shrevvy
Senior Member

Join Date: May 2017
Location: NE Ohio
Posts: 751

Bikes: 77 Trek TX900, 81.5 Trek 950, 83 Trek 970, 84 Schwinn Peloton, 88 Schwinn Premis, 85 Pinarello Montello, 88 Lemond Pro, more...

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Liked 278 Times in 135 Posts
Originally Posted by sdn40 View Post
IMO it would clean up the top tube and get rid of that slightly dated look.
This is C&V, all my bikes have a "slightly dated look." That's what I like...
__________________
#GCVintageBicycles for pics of C&V bikes and parts.
Shrevvy is offline
Likes For Shrevvy:
Old 08-12-21, 06:27 AM
  #10
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,096

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 1,944 Times in 988 Posts
Originally Posted by Shrevvy View Post
This is C&V, all my bikes have a "slightly dated look." That's what I like...
I remember being thrilled when I got a bike with brazed on cable housing guides.
52telecaster is offline
Likes For 52telecaster:
Old 08-12-21, 06:31 AM
  #11
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,681

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 829 Times in 443 Posts
Like this? Looks slightly dated though.
Tim

tkamd73 is offline
Likes For tkamd73:
Old 08-12-21, 07:41 AM
  #12
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,096

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 1,944 Times in 988 Posts
Originally Posted by tkamd73 View Post
Like this? Looks slightly dated though.
Tim

looks freaking awesome!
52telecaster is offline
Old 08-12-21, 07:53 AM
  #13
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,319

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4430 Post(s)
Liked 2,522 Times in 1,634 Posts
Originally Posted by delbiker1 View Post
I did that on a Fuji Ace I recently rebuilt. I did not like the cable rubbing or slapping against the top tube and used some cable donuts. I really did not like the look and returned to using housing. It was strictly aesthetics.
That's kinda what I anticipated too. But I still might try it on my old Trek 5900, just because that bike was born to be a weirdo. It may have been the very first full-zoot ultra-light bike built for mountain stages, with a mish-mash, hodge-podge of mismatched components, all selected for light weight rather than to match a groupset. At the time it was the only 5xxx series carbon fiber Trek high end road bike still equipped with downtube shifters rather than integrated brakes/shifters, to save weight.

Now, if I can only find some carbon fiber or titanium donuts for the bare cable...
canklecat is offline
Old 08-12-21, 08:25 AM
  #14
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,681

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 829 Times in 443 Posts
[QUOTE=52telecaster;22181266]looks freaking awesome![/QUOTE

Thanks, Tim
tkamd73 is offline
Old 08-12-21, 08:40 AM
  #15
AJI125
Full Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 419

Bikes: 1972 Fuji The Finest | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 275 Times in 129 Posts

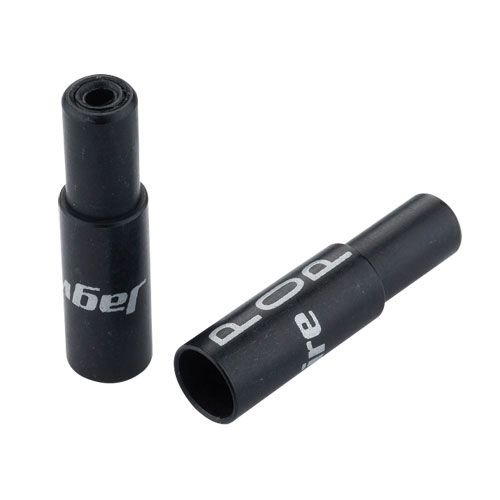

I've done this with my '82 Trek, thought it'd look neat. Let me dig up a picture. I used these which I had bought for another purpose, but they fit snug in the TT cable guides as cable stops. The previously mentioned inserts above didn't fit in my cable guides (also had a set for another purpose). No significant improvement or deterioration in braking.

https://jagwire.com/products/small-p...nless-end-caps

AJI125 is offline
Likes For AJI125:
Old 08-12-21, 08:44 AM
  #16
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,815

Bikes: It's complicated.

Mentioned: 1199 Post(s)
Tagged: 0 Thread(s)
Quoted: 4196 Post(s)
Liked 3,943 Times in 1,716 Posts
What you're describing has been done for decades, as the Raleigh Super Course posted above shows. Raleigh was doing it out of their Carlton workshop in the 60's.

IMO, there's an optimal place to put them. Older Italian racing bikes had them brazed on the top of the top tube. Sweat from riding gets trapped between the guide and cable housing, and they get very rusty after awhile. Put them on the bottom of the top tube, and every time you pick up the bike and throw it over your shoulder that cable digs in to you, and the exit at the far end makes for an ugly bend. I prefer to braze them on at the 4:30 position if you're looking from the front of the bike, pretty much how that Raleigh above is done. For "right rear" brakes (lever on the right operates the rear brake), I put them on the non-drive side for a nice, clean arc of the cable housing. Left rear (motorcycle style) I'll braze them on the drive side for the same reason.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 08-12-21, 09:31 AM
  #17
sdn40
Senior Member
Thread Starter

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 642

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 141 Times in 88 Posts
Great info guys.
Yes, I know it's partly an aesthetic thing, and therefore subjective. My first thought was for bikes with the cable running on top of the top tube, as I was staring at my Ironman with the housing not laying flat, or straight, and because of how tight the eyelets are on some bikes (my Ironman included), rust inevitably starts on the inside of the eyelet and shows up in the early stages as it transfers to the housing. The housing on my Ironman is even cut from how tight the eyelets are, and dirt and slight discoloring is showing where things are tight near each eyelet. That's not gonna fly with me since only bad things happen because of that. IIRC the Tenax Schwinns had the same issues. Cannondales are an example where there is a bit more breathing room. So the idea is functional as well. At least for me, no sense in waiting for the rust to take hold before wondering what to do. IMO the Super Course is a great example of how it "cleans up" the top tube even though it runs on the bottom


Last edited by sdn40; 08-12-21 at 10:10 AM.
sdn40 is offline
Old 08-12-21, 12:11 PM
  #18
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,433

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2694 Post(s)
Liked 3,829 Times in 2,028 Posts
^ Use black housing.

You could probably clean that cable guide up quite a bit. I'd start with naval jelly. Maybe paint the inside of it. Mask off the top tube first.
SurferRosa is offline
Old 08-12-21, 12:46 PM
  #19
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,027

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3713 Post(s)
Liked 2,550 Times in 1,668 Posts
Dave Levy at TiCycles keeps wanting to put those guides on the bikes he builds me. I always insist on the old pure housing only guides because I have always felt they nailed it in the early '80s with the brazed on top ot the tube guides and full run of housing. Cables never damage the paint, even when the bike is handles clumsily by the top tube or the rider sits on the top tube. Full length housing depowers the rear brake and adds "sponge" to better compliment the front in hard stops and minimize rear tire skidding. Cables have two fewer entrance/exit points to develop issues or incur water/sweat entry (and that forward one is under the sweat zone for a lot of us).
79pmooney is offline
