Specialized CF Epic Road bike. Do I have to worry about 30 y/o CF?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Specialized CF Epic Road bike. Do I have to worry about 30 y/o CF?

Old 09-07-21, 12:05 PM
  #1
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Specialized CF Epic Road bike. Do I have to worry about 30 y/o CF?

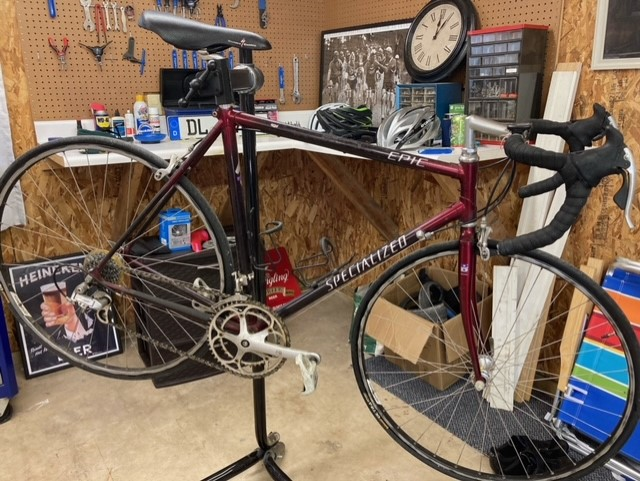

Anyone have one of these? Before I went to look at the bike, I assumed it was lugged steel. Still wanted it because of the full Campy group, but was curious if I had to worry about 30 y/o CF.

edit: also, a good place to find replacement hoods for the Campy stratos brifters?
dpicare26 is offline
Old 09-07-21, 12:11 PM
  #2
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 2,167

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1966 Schwinn Deluxe Racer, 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1559 Post(s)
Liked 846 Times in 586 Posts
Nab it if it fits. Your major areas of concern will be the bonded joints, which should give you plenty of warning before a failure. Ride it but chase down any creaks or groans to see where they're coming from. Pay close attention to any obvious points of impact.

Trek had a series of bonded carbon bikes as well in the early 90's with the usual complaint being that the ride can be harsh. Trek only had the main triangle as CF, while the fork and stays were aluminum. Current wisdom is that the main triangle can be aluminum or steel, while the stays and fork are carbon for their greater flexibility.
Unca_Sam is offline
Old 09-07-21, 03:06 PM
  #3
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,750

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 328 Times in 216 Posts
Hmmmm.

Originally Posted by dpicare26 View Post


Anyone have one of these? Before I went to look at the bike, I assumed it was lugged steel. Still wanted it because of the full Campy group, but was curious if I had to worry about 30 y/o CF.

edit: also, a good place to find replacement hoods for the Campy stratos brifters?
I used a mid-90's 2120 which certainly spent a lot of time outside exposed to UV, (as the clear coat was ratty), and likely some time soaking in sea water, (as evidenced by the corrosion of the aluminum bits, the likes of which I'd never seen.) After cleaning and refreshing it became my "Beater Bike" and it never let me down, no matter how much I overloaded it. Trek used overbuilt CF "tubes" because they had no clear notion of their durability, (CF being a new material in a new application). Experimenting on Customers can be Costly!

I've read where very early ones had "separation issues" at the BB joints, so keep an eye for that. Like the guy said falling as he passed the eighth floor window when asked how it was going, "so far, so good!"

I've retired the frame as I found the ride "uninspiring." But it did survive my abuse! And I can be quite abusive, to wit:

Originally Posted by onyerleft View Post
CF holds up better over time than steel due to rusting. The only possible exception is if the bike is left out in the sun for years on end (UV rays), which obviously isn't the case here. Just sayin.
I am unaware of any Scientific Evidence supporting these assertions.

Steel and Aluminum have long, rigorously documented histories of being used in stressful environments for extended durations.
CF, not so much. Early CF used a variety of epoxies to bind the carbon fibers. There were no SOPs for the production of the fibers, either, at that time. CF has only been used in Bicycles since the early 1970s.
machinist42 is offline
Old 09-07-21, 03:14 PM
  #4
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,899

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 882 Times in 584 Posts
Originally Posted by onyerleft View Post
CF holds up better over time than steel due to rusting. The only possible exception is if the bike is left out in the sun for years on end (UV rays), which obviously isn't the case here. Just sayin.
This is complete BS/uninformed statement in terms of steel holding up due to rusting. lots of people on this forum are riding 40,50,60 plus year frames

any bike left out in the elements for years on end is going to have problems, but even then I would personally bet on the steel being more able to get back to runnin.
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Likes For squirtdad:
Old 09-07-21, 06:49 PM
  #5
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,838
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 582 Post(s)
Liked 1,210 Times in 603 Posts
Originally Posted by squirtdad View Post
This is complete BS/uninformed statement in terms of steel holding up due to rusting. lots of people on this forum are riding 40,50,60 plus year frames

any bike left out in the elements for years on end is going to have problems, but even then I would personally bet on the steel being more able to get back to runnin.
Don't take it seriously. It was a troll post, as are most of the person's posts.
BFisher is offline
Likes For BFisher:
Old 09-07-21, 07:07 PM
  #6
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,575
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Likes: 0
Liked 319 Times in 230 Posts
Uhmmm.... make sure the bike was not regularly put away wet after rides. Moisture is one of the things that can kill the glued bond between the lugs and frame tubes, due to galvanic corrosion between the CF and aluminum.
If you see dark crud creeping out between the tube and lug seams.......run away....
Some lugged CF bike were worse with this than others, but the good news is, IIRC, Specialized did make some effort to improve the seal between the elements and the lug seams by painting over the lugs on their later version of this bike. Plus, I think they also added isolating material (I think it was fiberglass) between the lug sockets and the CF tube ends to minimize chances of corrosion.

Last edited by Chombi1; 09-07-21 at 07:16 PM.
Chombi1 is offline
Likes For Chombi1:
Old 09-08-21, 12:47 PM
  #7
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,634

Bikes: It's complicated.

Mentioned: 1053 Post(s)
Tagged: 0 Thread(s)
Quoted: 3483 Post(s)
Liked 2,163 Times in 1,026 Posts
I've been through 2 Epic CF frames, back before I decided steel was the material for me. Both failed at the bottom bracket/down tube joint due to galvanic corrosion/dissimilar materials The first one was a first generation Specialized CF, the second generation supposedly "fixed" this per @Chombi1's post. This was a second gen model, check to see if there's any bubbling of the clear coat at all of the joints. If not, it's good (for now).
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 09-08-21 at 04:20 PM.
gugie is offline
Old 09-08-21, 03:43 PM
  #8
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Thanks for all who have replied so far. As for the hood replacement. It seems like the Campy Stratos were only used for one year (1994) before Stratos was replaced with Avanti. So not sure if I can find the exact hoods I need. I have never really worked with Campy, so don't know much about their compatibility. These hoods look like my best bet. agreed?

Edit: they (EC-RE500) seem to be sold out everywhere. I'm ok with a knock-off, like Hudz, but I can't seem to find what I need with them, either.

Last edited by dpicare26; 09-08-21 at 04:03 PM.
dpicare26 is offline
Old 09-08-21, 04:33 PM
  #9
Oldairhead
RUSA #3100

Oldairhead's Avatar

Join Date: Feb 2012
Location: Oregon City
Posts: 664

Bikes: Yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 159 Times in 76 Posts
I had a 1989 "Epic Allez" carbon bike. I rode the crap out of it and then sold the frame in 2002. The problem was with these early "bonded" carbon lugged frames is that a bonded joint would eventually fail, usually catrastrophically. I do not know if they fixed that with later models but it was a real issue through at least 90 or 91.

On a side note I replaced that with a 2002 Pegoretti Palo Santo. What an eye opening difference! That steel bike was such a joy to ride. Looking back now I think that the carbon bike was starting to feel a little dead and the Pego was just so good! That experience sold me forever on steel!
__________________
https://utahrandonneur.wordpress.com
Oldairhead is offline
Old 09-08-21, 04:43 PM
  #10
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,000

Bikes: 1985 Trek 620 - 1982 Trek 728 - 1989 Trek 420 - 2008 Trek 1.5 - 1985 Fuji del Rey

Mentioned: 204 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,104 Times in 608 Posts
The painted lugs/tubes are the generally assumed safer or fixed ones. I had one of these as well. Aside from some fisheye bubbling here and there in the clearcoat, it was in great shape. Totally silent, and a wonderful ride! 60cm (62cm CTT more or less) was too small for me (saddle to bar drop too much), but one if large enough, would have been a keeper. Lovely steering and handling as well. Great comfort, aluminum fork included (I've had Cannondale road/race frames around this time, also with aluminum forks, and those forks felt good--never harsh). That red one you're considering is beautiful!

RiddleOfSteel is offline
Old 09-09-21, 12:25 PM
  #11
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by squirtdad View Post
This is complete BS/uninformed statement in terms of steel holding up due to rusting. lots of people on this forum are riding 40,50,60 plus year frames

any bike left out in the elements for years on end is going to have problems, but even then I would personally bet on the steel being more able to get back to runnin.
I could not agree more. I'm definitely a steel-phile.
dpicare26 is offline
Likes For dpicare26:
Old 09-09-21, 12:28 PM
  #12
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by Oldairhead View Post
I had a 1989 "Epic Allez" carbon bike. I rode the crap out of it and then sold the frame in 2002. The problem was with these early "bonded" carbon lugged frames is that a bonded joint would eventually fail, usually catrastrophically. I do not know if they fixed that with later models but it was a real issue through at least 90 or 91.

On a side note I replaced that with a 2002 Pegoretti Palo Santo. What an eye opening difference! That steel bike was such a joy to ride. Looking back now I think that the carbon bike was starting to feel a little dead and the Pego was just so good! That experience sold me forever on steel!
I believe this is a 1994. thanks for the perspective.
dpicare26 is offline
Old 09-09-21, 12:31 PM
  #13
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by RiddleOfSteel View Post
The painted lugs/tubes are the generally assumed safer or fixed ones. I had one of these as well. Aside from some fisheye bubbling here and there in the clearcoat, it was in great shape. Totally silent, and a wonderful ride! 60cm (62cm CTT more or less) was too small for me (saddle to bar drop too much), but one if large enough, would have been a keeper. Lovely steering and handling as well. Great comfort, aluminum fork included (I've had Cannondale road/race frames around this time, also with aluminum forks, and those forks felt good--never harsh). That red one you're considering is beautiful!

Very nice!

This bike in question is also too small for me. I normally don't see vintage specialized bikes come up too often, so this piqued my interest. Also, it's always good to have a project.

A friend of mine recently expressed interest in training for a triathlon. He does not have a bike. Of course, he has asked if he could borrow one of mine. Being a good friend, I said yes. But I'm still apprehensive, so have been looking at a possible entry bike for him to train with.
dpicare26 is offline
Old 09-09-21, 04:06 PM
  #14
VtwinVince
Senior Member

Join Date: Jul 2018
Posts: 288
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Likes: 0
Liked 85 Times in 50 Posts
I had a '96 which I rode until it got stolen in 2014. Great bike with no frame issues.
VtwinVince is offline
Old 09-10-21, 11:31 AM
  #15
dpicare26
Senior Member
Thread Starter

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 462

Bikes: '15 BMC Granfondo '11 Stevens Carbon Team CX, '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by Chombi1 View Post
Uhmmm.... make sure the bike was not regularly put away wet after rides. Moisture is one of the things that can kill the glued bond between the lugs and frame tubes, due to galvanic corrosion between the CF and aluminum.
If you see dark crud creeping out between the tube and lug seams.......run away....
Some lugged CF bike were worse with this than others, but the good news is, IIRC, Specialized did make some effort to improve the seal between the elements and the lug seams by painting over the lugs on their later version of this bike. Plus, I think they also added isolating material (I think it was fiberglass) between the lug sockets and the CF tube ends to minimize chances of corrosion.
I had it completely disassembled this morning. I compressed the seat stays and chainstays and tried to stress the frame in other ways. I did not find anything out of the ordinary. Also, the BB was in incredible shape, leading me to believe it was never exposed to the elements for a period of time. I think it will be fine.
dpicare26 is offline
Likes For dpicare26:
