Huret Jubilee capacity question.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Huret Jubilee capacity question.

Old 09-16-21, 10:26 AM
  #1
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Huret Jubilee capacity question.

My new to me Raleigh competition came with incredibly cool huret derailleurs. It also came with the 3 pin t.a. crank, which due to the scarcity of rings will be repurposed on my super course 3 speed. It's 42 tooth ring will be excellent.

However I now am using a cyclotourist crank with 26, 46 chainrings. The front mech handles the two rings extremely well. The rear mech shifts through a 14-28 6 speed freewheel beautifully. With the current chainlength I can do 46-28 just fine but I would hesitate to shorten the chain any more. My real issue is that the chain wrap will only work well with the three largest rear cogs on the 26 tooth chainring. Is it prohibitively expensive to get a long cage for this derailleur?


Last edited by 52telecaster; 09-16-21 at 11:08 AM.
52telecaster is offline
Old 09-16-21, 11:01 AM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,246
Mentioned: 312 Post(s)
Tagged: 1 Thread(s)
Quoted: 2672 Post(s)
Liked 1,061 Times in 807 Posts
juvela is offline
Old 09-16-21, 11:07 AM
  #3
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Lovely illustration.
52telecaster is offline
Old 09-16-21, 11:32 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,246
Mentioned: 312 Post(s)
Tagged: 1 Thread(s)
Quoted: 2672 Post(s)
Liked 1,061 Times in 807 Posts
juvela is offline
Old 09-16-21, 12:15 PM
  #5
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,715

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1392 Post(s)
Liked 303 Times in 244 Posts
Huret Jubilees are notably very light, very beautiful, very fragile, strongly in demand, and very expensive. If I had your bike I would treat it with kid gloves and be careful not to compromise the specifications. The derailleurs will be hard to replace.

Based on the pics shared by Juvela, I think there are basically two versions: short cage and long cage. Based on your photo, I think your bike has the short cage, or "racing bike" version. The limit for the short cage seems to be freewheel 13-24 and chainset 26-53. The capacity (ability to wrap up the chain) is (53-26)+(24-13) = 38 teeth. For the long cage version it's (53-26)+(28-13)=42 teeth. I'm a little doubtful about these capacities, but that's how the arithmetic works, if I'm interpreting correctly. Your gearing is (46-26)+(28-14)=34 teeth, so your gearing should not kill the derailleurs in terms of over stretching it. But if you don't have to shorten the chain, (the tension is adequate on small-small) I would not do it.
Road Fan is offline
Likes For Road Fan:
Old 09-16-21, 12:35 PM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,246
Mentioned: 312 Post(s)
Tagged: 1 Thread(s)
Quoted: 2672 Post(s)
Liked 1,061 Times in 807 Posts
-----

the Sutherland values for the short cage are 24T large cog and 30T wrap

yes, the values posted on the Huret catalogue page are misleading


-----
juvela is offline
Old 09-16-21, 12:37 PM
  #7
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by Road Fan View Post
Huret Jubilees are notably very light, very beautiful, very fragile, strongly in demand, and very expensive. If I had your bike I would treat it with kid gloves and be careful not to compromise the specifications. The derailleurs will be hard to replace.

Based on the pics shared by Juvela, I think there are basically two versions: short cage and long cage. Based on your photo, I think your bike has the short cage, or "racing bike" version. The limit for the short cage seems to be freewheel 13-24 and chainset 26-53. The capacity (ability to wrap up the chain) is (53-26)+(24-13) = 38 teeth. For the long cage version it's (53-26)+(28-13)=42 teeth. I'm a little doubtful about these capacities, but that's how the arithmetic works, if I'm interpreting correctly. Your gearing is (46-26)+(28-14)=34 teeth, so your gearing should not kill the derailleurs in terms of over stretching it. But if you don't have to shorten the chain, (the tension is adequate on small-small) I would not do it.
13-24 must be extremely conservative. It shifts really well into the 28. I have done some reading and am aware that this is delicate and somewhat valuable. I am pondering putting a suntour on it but I know that will be complicated by the fact that the dropout is made for huret.
52telecaster is offline
Old 09-16-21, 12:39 PM
  #8
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Also I never use small-small. My main focus is to not have big, big destroy anything.
52telecaster is offline
Likes For 52telecaster:
Old 09-17-21, 11:40 AM
  #9
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,715

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1392 Post(s)
Liked 303 Times in 244 Posts
Originally Posted by juvela View Post
-----

the Sutherland values for the short cage are 24T large cog and 30T wrap

yes, the values posted on the Huret catalogue page are misleading


-----
Thank you for sharing the Sutherland values. I keep recalling that he stated in his early pages that much of his data is not confirmed by the anufacturer or copied from other wise authoritative sources but was obtained more "practically" (my word, not Howard Sutherland's). I've used the book quite a lot for BB and BB part interchangability, and I have not found anything which does not match my own work.

As far as using the Huret literature as a reference, based on the usual practical skepticism on this and other forums (they say 28? HAAA! I routinely use 32!!), I recently saw something that makes me return to respecting Huret. My Duopar Eco on my 610 Trek Mule has been shifting 46/30 and 13-34 riding on the trainer. I recently re-lubed the chain and saw the cage pulling out in big-big, to a degree I did not like. I saw that Berto quoted Huret that maxsprocket and max capacity are both 36 and I was using a 34 big cog. I changed the freewheel out for first one with max 32 and max 30 and both shifted far better. But both freewheels needed overhauls, so I went to my 13-28 for road use. And I'm a lot more confident that I'm not likely to bend my DuoparEco if I flub up some shifts. So I recommend caution with even more fragile parts, like members of the Jubilee product line.

Lest one may think that all Huret were superlight and fragile, consider the once ubiquitous Alvit, which invaded out shores on the late '60s Varsinental family of bikes, sometimes with French labelling and sometimes as Schwinn-Approved. They certainly met the standards for durability, but of my friends' bikes there were very few that worked well as road bike shifters on a road bike, or a 10-speed Stingray. I recall the comment they work terribly, but they neer really break, so it's hard to justify replacement based on "it's too old."
Road Fan is offline
Old 09-17-21, 12:42 PM
  #10
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
I think I am going to adapt a suntour and save the fancy stuff. The derailleurs are working well as long as I don't ask too much of them. I have ordered a 44 outer ring for the crank which will drop my top gear to 85 inches. Plenty for this old man. That should make it so I can use all 6 gears in the big ring and the 4 biggest in the small until I figure out a suntour adaptation.
52telecaster is offline
Likes For 52telecaster:
Old 09-17-21, 01:30 PM
  #11
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,736

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 283 Times in 167 Posts
I looked into converting my short Jubile to long. The long cage plates (2233 and 2238) are sometimes available on eBay (though not at the moment), and you also would need the return spring (2239) which is: https://www.ebay.com/itm/28433507994...item4233b10204
__________________
The man who dies with the most toysÖis dead. - Rootboy
jeirvine is offline
Likes For jeirvine:
Old 09-17-21, 02:31 PM
  #12
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by jeirvine View Post
I looked into converting my short Jubile to long. The long cage plates (2233 and 2238) are sometimes available on eBay (though not at the moment), and you also would need the return spring (2239) which is: https://www.ebay.com/itm/28433507994...item4233b10204
very cool
52telecaster is offline
Old 09-17-21, 07:47 PM
  #13
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,437

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 166 Times in 115 Posts
Just checked out a topographic map of Peoria. I'm thinking 13T-22T and 47T-50T.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 09-17-21, 07:56 PM
  #14
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by tiger1964 View Post
Just checked out a topographic map of Peoria. I'm thinking 13T-22T and 47T-50T.
for you maybe.

Actually I just modified a washer to make the dropout work for an old suntour derailleur.
Most of the roads up and down the bluff were made with no consideration for how steep they are. I am in the older part on the east bluff and routinely drag my 65 yo out of shape body up and down the hills. I did my closest valley to bluff route recently with a 66" gear on a three speed clunker but it was no fun. Low gears for me baby!
52telecaster is offline
Old 09-17-21, 10:29 PM
  #15
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 739
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 43 Times in 38 Posts
Does this Raleigh Competition have an Huret drop out? There were Jubilee derailleurs that were intended for use with what is now the standard stop placement on the Drop outís mount, but my Super Tourer (apparently the same production line for the frames) has an Huret drop out. With that Suntour VGT, it looks like the more traditional stop placement.
elcraft is offline
Old 09-17-21, 11:59 PM
  #16
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by elcraft View Post
Does this Raleigh Competition have an Huret drop out? There were Jubilee derailleurs that were intended for use with what is now the standard stop placement on the Drop outís mount, but my Super Tourer (apparently the same production line for the frames) has an Huret drop out. With that Suntour VGT, it looks like the more traditional stop placement.

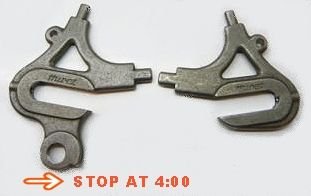

it is a huret dropout with the 4 o'clock stop. I made a washer that hits that stop and creates a 7 o'clock stop. With that washer I can now use any modern style derailleur.
52telecaster is offline
Old 09-19-21, 11:22 AM
  #17
no67el
Senior Member

Join Date: Oct 2018
Location: Mad River Valley, VT
Posts: 232

Bikes: How many is too many?

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 150 Times in 75 Posts

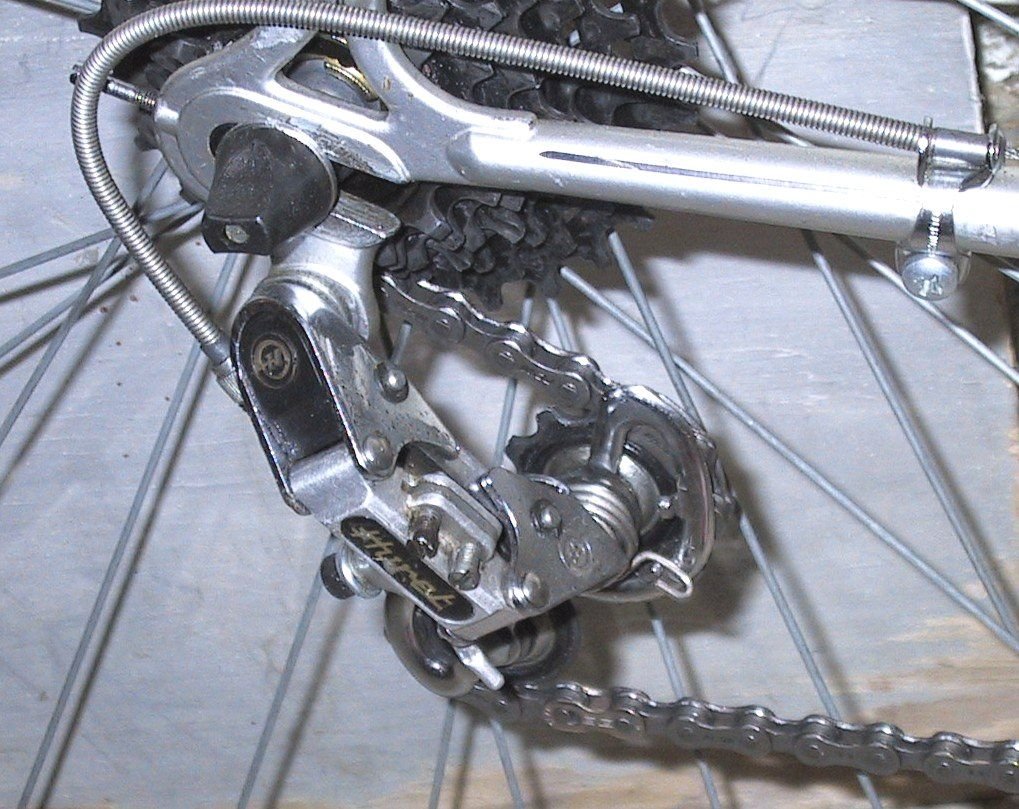

If you want an option for the Huret dropout, there's always the Huret Challenger rear mech--- I've found it to be smooth-shifting and durable on my Super Course MkII, so now I grab them whenever I come across them. The Jubilee is beautiful to look at, but they seem kind of finicky when it comes to actually shifting!


no67el is offline
Likes For no67el:
Old 09-19-21, 11:43 AM
  #18
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by no67el View Post
If you want an option for the Huret dropout, there's always the Huret Challenger rear mech--- I've found it to be smooth-shifting and durable on my Super Course MkII, so now I grab them whenever I come across them. The Jubilee is beautiful to look at, but they seem kind of finicky when it comes to actually shifting!


did that come in a long cage?
52telecaster is offline
Old 09-19-21, 12:57 PM
  #19
no67el
Senior Member

Join Date: Oct 2018
Location: Mad River Valley, VT
Posts: 232

Bikes: How many is too many?

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 150 Times in 75 Posts
Hmm... good point: not to my knowledge. However the lower pivot point is adjustable to handle either 13-24 or 13-28t max cog sizes. The stated range for the front is 36-53.
no67el is offline
Likes For no67el:
Old 09-19-21, 01:20 PM
  #20
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,576
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 548 Times in 345 Posts
Originally Posted by 52telecaster View Post
did that come in a long cage?
No, but the lower knuckle has two cage-mounting holes, one for 24T max, one for 28T.
oneclick is offline
Likes For oneclick:
Old 09-19-21, 01:36 PM
  #21
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,209

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3232 Post(s)
Liked 1,373 Times in 926 Posts
Originally Posted by 52telecaster View Post
Tangential: you know you're missing a couple of crankbolts, right?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 09-28-21, 12:52 AM
  #22
52telecaster
ambulatory senior
Thread Starter

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,748

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 662 Times in 371 Posts
Originally Posted by ThermionicScott View Post
Tangential: you know you're missing a couple of crankbolts, right?
I run three of six bolts for the inner ring. I've done that for years. I may be dumb.
52telecaster is offline
Old 09-28-21, 02:54 AM
  #23
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,730

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 896 Post(s)
Liked 744 Times in 455 Posts
Saving Weight With Less Chainring Bolts

Originally Posted by 52telecaster View Post
I run three of six bolts for the inner ring. I've done that for years. I may be dumb.
"Hey watch this" "Hold my beer"

I've always carried spare TA chainring bolts - both the bolts for mounting the large ring to the crankarm and the ones for the smaller rings to the large one. They are sooo fragile, I've had a number of them break on and off the road....

Also I've ovalized a number of TA 26T chainrings and have since switched to 28T or 30T which solved the problem.

Back to the topic at hand.

From the 1940's maybe even the 1930's the standard setup for touring gears was a 13/14 to 24/26T freewheel with a 26T granny gear chainring and a 46T-50T large chainring. This was true especially with Huret rear derailleurs which were designed to wrap a lot of chain from the chainrings but not a big gap on the FW cogs.

With the Bike Boom Fad came the advent of "alpine gears" - 14-28T FWs with 40T-52T or 42T-52T chainrings. Simplex RDs with sprung upper pivots could easily handle those sprockets. The Huret Allvit RDs, not so well. The Sveltos less so.

The Jubilee RDs were a take off of the Svelto design and meant for a 24T or 26T maximum size freewheel.

There were a lot of variations in the Huret Jubilee RDs with mostly poorly or undocumented changes. Even Todson the US Huret importer/distributor were usually unaware of the changes.

When they first came out (hit the streets) in 1973, there were 2 version of Jubilees: the most common ones were designed to mount on Huret dropouts with proprietary hangers, a little later they produced ones for Campy style hangers.



Those for Campy style hangers were listed as "...sur patte de cadre italienne" or just "patte italienne" which meant nothing to cyclists in the US.

Also, there were NO markings on the derailleurs indicating the Ref number.



Huret dropouts



Campy dropouts



no67el mentioned the Huret Challenger RDs. They first appeared on a few Raleighs in 1973. The Huret Allvits had such a poor reputation plus the Challenger bodies were made of stamped sheet metal and looked tinny so we just ignored them.

Jump ahead to 2007, I picked up a 1974 Motobecane Grand Jubile frame that was rescued from the dump. The person who sold it to me threw in this 1st generation Challenger RD. I was skeptical but gave it a try. It's the smoothest shifting friction RD I've ever used. That's a 13-30t 7 speed FW. The Jubilee shift levers help too.



Anyone curious? PM me I have a bunch of them.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 09-28-21 at 03:05 AM.
verktyg is offline
Old 09-28-21, 07:19 AM
  #24
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,861
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 1,114 Times in 577 Posts
Originally Posted by tiger1964 View Post
Just checked out a topographic map of Peoria. I'm thinking 13T-22T and 47T-50T.
you haven't been on Brimfield-Jubilee road!



this isn't the worst, though.... it's just the easiest to get a photo of.
My commute used to go up a 14% grade, going up out of the Illinois river valley (on Cedar Hills Drive). To some degree, this is typical of many river towns.

I'm thinking that Russell's plan to use a SunTour might be best. My only question is about whether the derailleur hanger is compatible.
edit: I see that this has been addressed....

Steve, also in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 09-28-21, 07:28 AM
  #25
DMC707
Senior Member

DMC707's Avatar

Join Date: Jan 2013
Location: Oklahoma City
Posts: 4,582

Bikes: Too many to list

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1193 Post(s)
Liked 524 Times in 354 Posts
Jubilee long cage on my Competition

DMC707 is offline
Likes For DMC707:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
