C&V Resto-Mod Bicycles STI Optional

I enjoy doing "Resto-Mods". I have several of them (at least 4 with others either on the way or being contemplated). To be clear, I deal almost exclusively with C&V bicycles, and while I may select "brifters" as a component of my re-imagining of a classic bicycle, these were not original equipment, and when making equipment selection, one of the two that have received brifters, is set up with a not-early Microfocus 2 x 10 drivetrain.

I wish to make clear the distinction between this thread and one old, beloved and relocated thread. A Resto-mod may, or may not happen to be fitted with "early brifters" (which are what exactly, hyper-punctual?), It is a C&V bicycle that has been given updates - possibly to the extent of totally transforming the bicycle. If your intent is to highlight your usage of "early brifters", please do not post here, but rather in the other Forum (found at the link in the paragraph above).

If you have an interesting story about your specific build, I suggest a separate thread for it, which certainly can be linked to here, but for the purpose of this thread, let's keep it to pictures, explaining what it is, what components were used, and related comment (along with the aforementioned links to separate threads).

I realize there may be some redundancy, but not everyone who visits C&V even realizes there is a separate micro-forum for non-pedal-assisted mass-produced bicycles that came standard with integrated controls that enabled indexed click shifting of the rear derailleur to support cassettes that had seven, eight or nine cogs, AND activation of braking via the very same mechanism. This one is not intended for the purpose of discussing the merits of the components beyond possibly inquiring "what is that?", but rather for displaying the beautiful (or semi-beautiful) outcomes achieved when re-imagining and generally modernizing a classic bicycle frame. We DO like pictures!

I'll start with my personal favorite. 1972 Raleigh Competition that's been converted from a 700c sport-tourer/racer to a 650B randonneuse - with a bit of help from my friends here (most notably including gugie and ihm)



Link to build thread, here. Flickr album link here.

Next, celebrating the spirit of whimsy and "why not?" of a previous generation, and most definitely inspired by the late, great and very missed Sheldon Brown, is an 81 speed, 1971-ish Raleigh Super Course. This could absolutely not been achieved by me without the very creative thinking of the geniuses at Sturmey Archer, who created and marketed for a time, the CS-RF3 rear hub. This was made 100% with the intention of being a conversation piece, but still with some comfort and function.




Hard to tell, but the front chainrings are actually a closely spaced triple. 3 x 3 x 9 = 81 (there are 3 or 4 duplications of gearing in this set-up, so if someone cares to undertake the challenge of exceeding the number of distinct gearing ratios of this, I welcome the chance to see the result).

Creating a resto-mod can be a fun excuse to create something that's a bit excessive (as is clear from above). Along with the bicycle above, the conversion of a mid 90's Giant Iguana (I had no idea what kind of bike it was until I sanded it down to metal and hit the layer with the original graphics) from a mountain bike to an All Terrain Vehicle of sorts was the most fun. I had been contemplating what to do with this about the time that Compass released Rat Trap Pass tires. I'll tell you, high performance 54mm tires are a blast, and sand might not even be able to stop you when you're rolling on them. This was set up with 2 x 10 Microshift brifters, and retains it's old nickname, "the Hippie Bike"




Link to my Flickr album with shots of the build is here.

and what's a Resto-mod gallery without a bit of sacrilege?

Here's part of why I don't feel constrained by condition when I am on a mission. Certainly, there's a place for lovely vintage bicycles in original condition, or even better, excellent original condition. Reality doesn't always present that opportunity though, and perhaps an overdose on creativity (or absurdity if you insist) can move you past that. I was once in the position to acquire an actual 1977 Raleigh Team Professional frame in my ideal size for a rather reasonable outlay. The frame and fork are straight and sound, however "original paint" had already left the building.

I could have asked to have it repainted in the familiar Team livery of Red/black/yellow, but it is notably difficult to match those colors well, and doing so would have either produced something that looked "off", or would have looked too much like it was original for my liking. So I chose Yellow/red/black, specifying paint colors used by Porsche. The result was "Crayola" (thanks to Dr. Deltron, wherever he may be these days). At the time I was setting this project up, I wasn't certain how it would end up, so I initially set it up as a fixed gear - a role which it filled very capably. I eventually drafted a different frame for that purpose and decided that I'd like to try out a 2 x 9 set-up (brought over from another bicycle that wasn't working for me). While building that previous bicycle up, I happened across a bargain set of shifters (yes, they're brifters - not yet a glimmer in the eye of the good folks at Ilkeston who brazed the frame), at a bike swap and decided, "why not?" That initial set-up attempted using an ISIS bottom bracket and Nashbar chainrings - neither of which proved satisfactory. It does work better now, though at some point I plan to explore using clincher rims.



Flickr build album link here.

I have a couple other re-imaginations sitting on the glacier that has been my build queue the past couple years. I expect to be adding more to this at some point, but I am hoping that others who have end results created in a spirit much like these will share their passions before I reach that point.

Please. have at it.
__________________
In search of what to search for.
USAZorro is offline
Old 09-21-21, 08:02 PM
  #2
jingy2
Member

Join Date: Oct 2020
Location: Minneapplepuss
Posts: 47

Bikes: 1996 Rivendell All-Rounder, 2000 Chris Kvale, 1989 Eddy Merckx 7-11 Corsa Extra, Rivendell Clem Smith Jr, Rivendell Roadini, 86 Mercian Vincitore, 85 Vitus 979, 89 Vitus Carbone 9, 83 Bianchi Tipo Corsa, 79 Motobecane Grand Touring,2013SurlyPugsley,

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 47 Times in 17 Posts
The handlebar position on the yellow bike-yeesh! You're halfway to the Marlboro position, you might as well go all the way!
jingy2 is offline
Old 09-21-21, 08:17 PM
  #3
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,357

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 776 Times in 491 Posts
I don’t get it.

C&V road frames with modern STI/Ergo
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 09-21-21, 09:04 PM
  #4
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 901
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 65 Times in 42 Posts
There is no more sleek a cockpit then a set of bar end shifters, though I always run the cable under the tape all the way up and use mostly aero levers. Good looking bikes.
degan is offline
Old 09-22-21, 04:10 AM
  #5
USAZorro
Señor Member
Thread Starter

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,123

Bikes: Mostly English - predominantly Raleighs

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1121 Post(s)
Liked 438 Times in 297 Posts
Originally Posted by Classtime View Post
Thanks. I was not aware of that thread. However... not all modernizations involve STI, and even though there's a place for sub-10's in the other forum, their inclusion in C&V is not obvious.
__________________
In search of what to search for.
USAZorro is offline
Old 09-22-21, 01:49 PM
  #6
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,180
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 695 Post(s)
Liked 1,599 Times in 774 Posts
Sure. Why not? Here's one of mine. I took an '86 Miyata 912 frameset and Campagnoloed it, because, well...because! The paint was just rough enough, and I've always wanted an orange bike, so I had the fine folks at Groody Bros. give it a spray and bake. Tis quite a smooth machine. From today's short ride:
BFisher is offline
Likes For BFisher:
Old 09-22-21, 03:12 PM
  #7
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,738
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 1,489 Times in 442 Posts

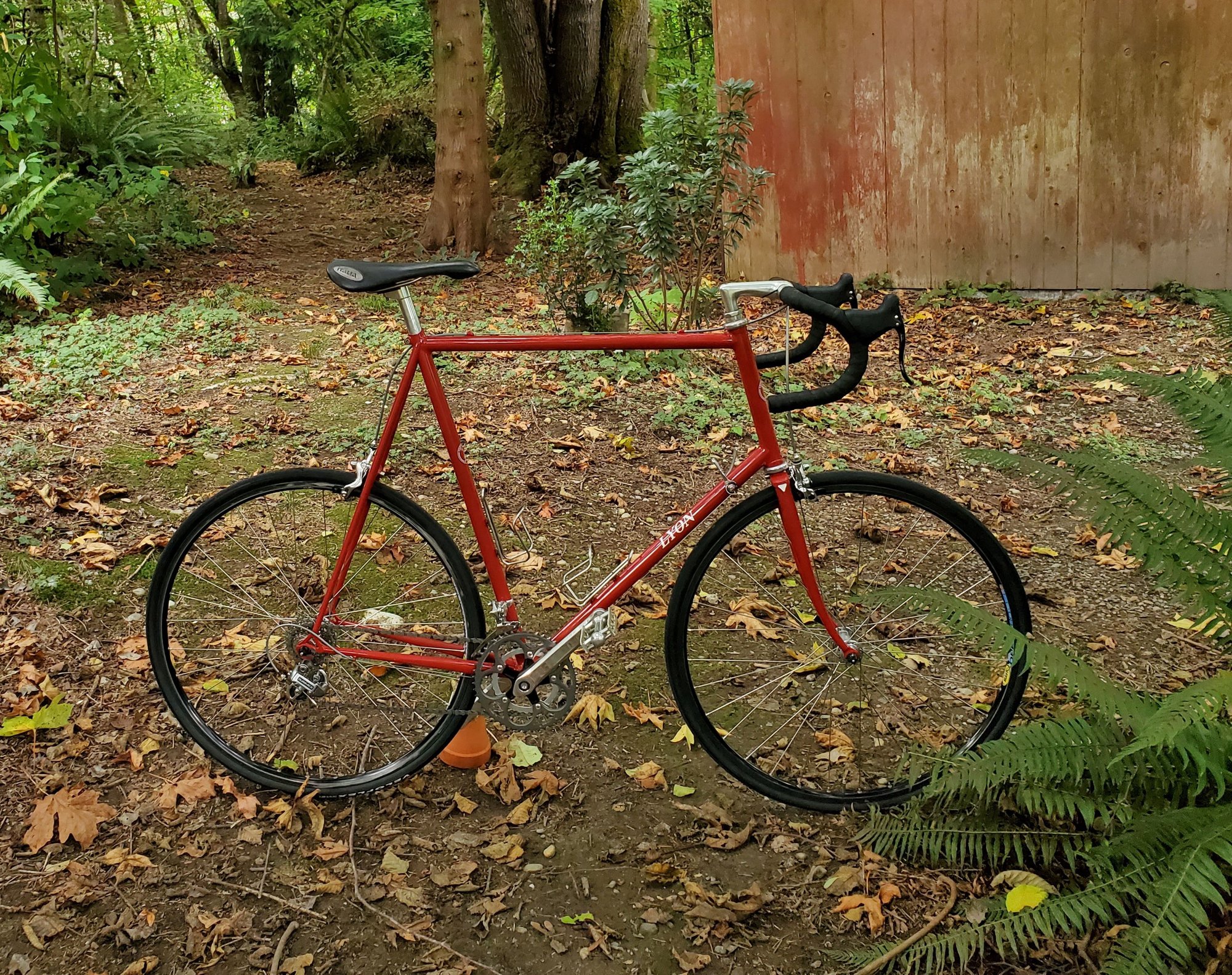

I suppose this bike fits into your category. My most recent purchase, a 1986 Jeff Lyon. It came to me with 6 speed Dura Ace shifters and derailleur, and a freewheel.

I changed out some parts to the following:
Chris King Classic hubs/Open Pro rims
7700 shifters
7402 derailleur
9 speed cassette

The 7700 shifters work great with the 7402 rd(I might install 7700 bar ends in the future). I like the hubs, but they're a tad noisy.

Roger M is offline
Likes For Roger M:
Old 09-22-21, 03:34 PM
  #8
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,789

Bikes: Yes

Mentioned: 444 Post(s)
Tagged: 0 Thread(s)
Quoted: 2604 Post(s)
Liked 1,936 Times in 824 Posts
Here's one of my builds that's a bit of a resto-mod but lacks indexed shifters. It's a 1969 (or maybe even '67) Raleigh Competition. This is the only bike I own that's as old as I am.

There's a bit of a heretical element to this build, because when I bought it most of the original components were still intact -- Zeus crank, Delrin Simplex derailleurs, GB handlebars, Atom pedals, possibly everything but the saddle and seatpost. I just didn't like those components, so I set about reimagining the bike. I do generally have some sort of vision for all of my builds. Most of them end up with the same components -- 10-speeed Campy triple drivetrain, Specialized Phenom saddle, Soma HWY One bars, etc. -- but I decided to make this one a bit different. I was going for a retro touring bike, but not feeling bound by any particular period for the components.



I kept the original Simplex shifters, and have actually come to really like them. The headset is also original, and given Raleigh's threading proclivities I may not have much of a choice there.

I tried the original brakes and levers for a while, but I was just never comfortable descending with that setup. Center pull brakes usually work well enough for me, but with the cheap Weinmann levers I just wasn't happy with the leverage, so I went with cheap Tektro-clone levers (surprisingly good functionally) and Tektro dual pivot brakes.

The Zeus crankset was really cool, but I just don't have a lot of use for a 52-45 double, especially not in a touring build. So, I found a Specialized "flag" triple crank and gave it 46-36-24 rings. That left me needing a derailleur that could wrap a lot of chain. I started with a 3-pulley LePree rear derailleur that I had gotten from @gugie, but about seven miles into the first ride the return spring snapped. Next, I went with Raleigh branded SunTour derailleurs, front and rear. Those worked well enough, but I have kind of a fetish for 3-pulley derailleurs, so I got a SunTour XC and put it on there. I think I'm using a SunTour AG front derailleur.

The wheels are 27" Mavic Module E rims with Specialized hubs (rebranded Sanshin, I think). I got these wheels with a Pinarello that should have had 700c. I like them enough that I've been trying to find bikes to build that suit them. I had them on a Trek 614 with Superbe components, and that was nice, but I think I like them better on this bike. Panaracer Pasela tires seem like the best available 27" with tan sidewalls.

Finally, I had @gugie braze on some water bottle bosses and front mid-fork barrels for a Nitto rack. Glossy black enamel Rust-Oleum turned out to be a perfect match for the paint. And I found some chrome tape on Amazon to recreate the original seat tube bands.

A pre-aged Brooks B17 and dark brown Salsa gel bar tape round out the details.

Since I've described the evolution of the build, here's a pic of one mid-point with the Raleigh derailleurs and before the torch work.

__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 09-22-21, 04:12 PM
  #9
Wilbur76
Senior Member

Join Date: Mar 2020
Location: California
Posts: 204

Bikes: 2020 Lynskey GR300, 1987 Diamondback Ascent, 1991 Skykomish Marble Point, 1994 Specialized Stumpjumper FSR, 1996 Specialized Stumpjumper M2 FS, 1992 GT Karakoram

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 199 Times in 76 Posts
Gravel bikes are what the cool kids are riding these days. And cooler kids are converting 30 year old hybrids and mtbs just to one up.
Here’s my entry. I call it The Warthog. 1994 Specialized Stumpjumper FSR. Was 3x7 square taper bb, now 1x10 with Hollowtech2 bb. Microshift Advent X full set, Suntour fork, Velo Orange Happy Stem, Salsa Cowchipper bars. Smoke and Dart tires for that old school vibe. Frame, seatpost and canti brakes are the only OG parts.

Last edited by Wilbur76; 09-22-21 at 07:39 PM. Reason: Fixed a thing
Wilbur76 is offline
Likes For Wilbur76:
Old 09-22-21, 06:18 PM
  #10
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 850
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 543 Times in 254 Posts

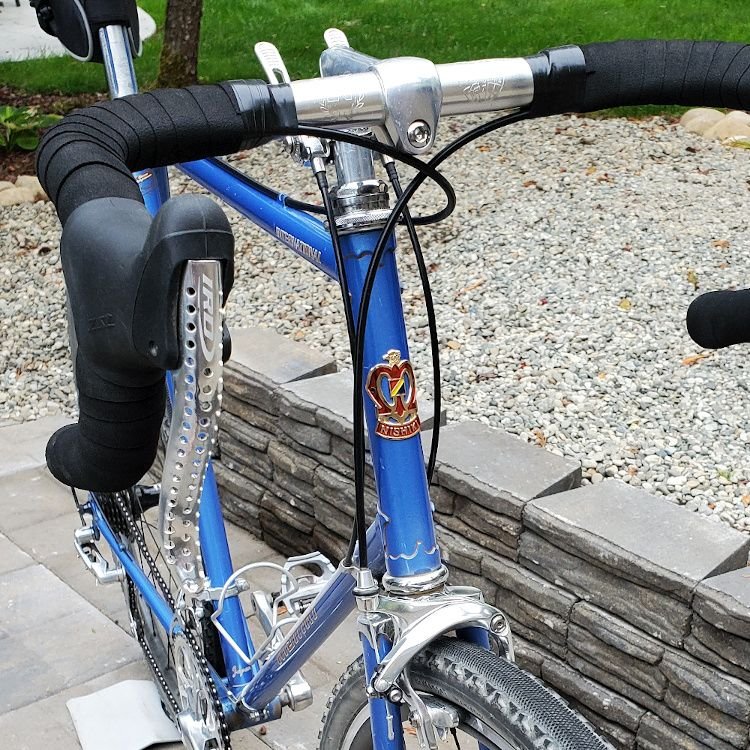

81 Nishiki International
IRD levers with Tektro 559 dual pivots, modern wheels 700x38, clipless/flat dual purpose pedals, and CO2 in the bag.


__________________
droppedandlost is offline
Likes For droppedandlost:
Old 09-22-21, 06:22 PM
  #11
samkl
Senior Member

Join Date: Feb 2017
Location: Chicago, IL
Posts: 489

Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 83 Times in 45 Posts
My 1976 Vent Noir randonneur. At this point the only original parts are the brakes, cable guides, and frame/fork.
samkl is offline
Likes For samkl:
Old 09-22-21, 06:23 PM
  #12
justcynn
Senior Member

Join Date: Feb 2020
Location: Little Rock, AR
Posts: 273

Bikes: (2) 1980 Schwinn Voyageur 11.8 All Chrome, 1985 Schwinn Peloton, 1987 Schwinn Tempo, 1987 Schwinn Prelude, 1988 Schwinn Premis, 1987 Trek 520,, 1985 Schwinn Voyageur, 1985 Schwinn LeTour Luxe, 1989 Schwinn Voyageur, 2011 Specialized Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 216 Times in 103 Posts
I too really like a classic frame updated with modern components. Both of these have been posted in other threads but I do like to show them off so here goes

this was my first attempt -1980 Voyageur 11.8 all chrome, Outfitted with a Tiagra Triple crank, mavic ksyrium wheels with 700x32 Gravel King SK's. 21.1 to 28.6 quill adapter with carbon bars and Tiagra Brifters and Tektro brakes. . I like this ride a lot, I find myself picking this one as often as any in my fleet - but it has a twin in my fleet and the twin is just as nice with the original Super Maxy Crank and Altus derailleurs. The original is smoother I have to admit but my engine is better equipped to push the triple up the hills than a 52/40. This was originally a 26 lb bike (11.8 KG's), as built including pedals and rear rack came in just under 24 lbs.




Hot Springs National Park, Ark.

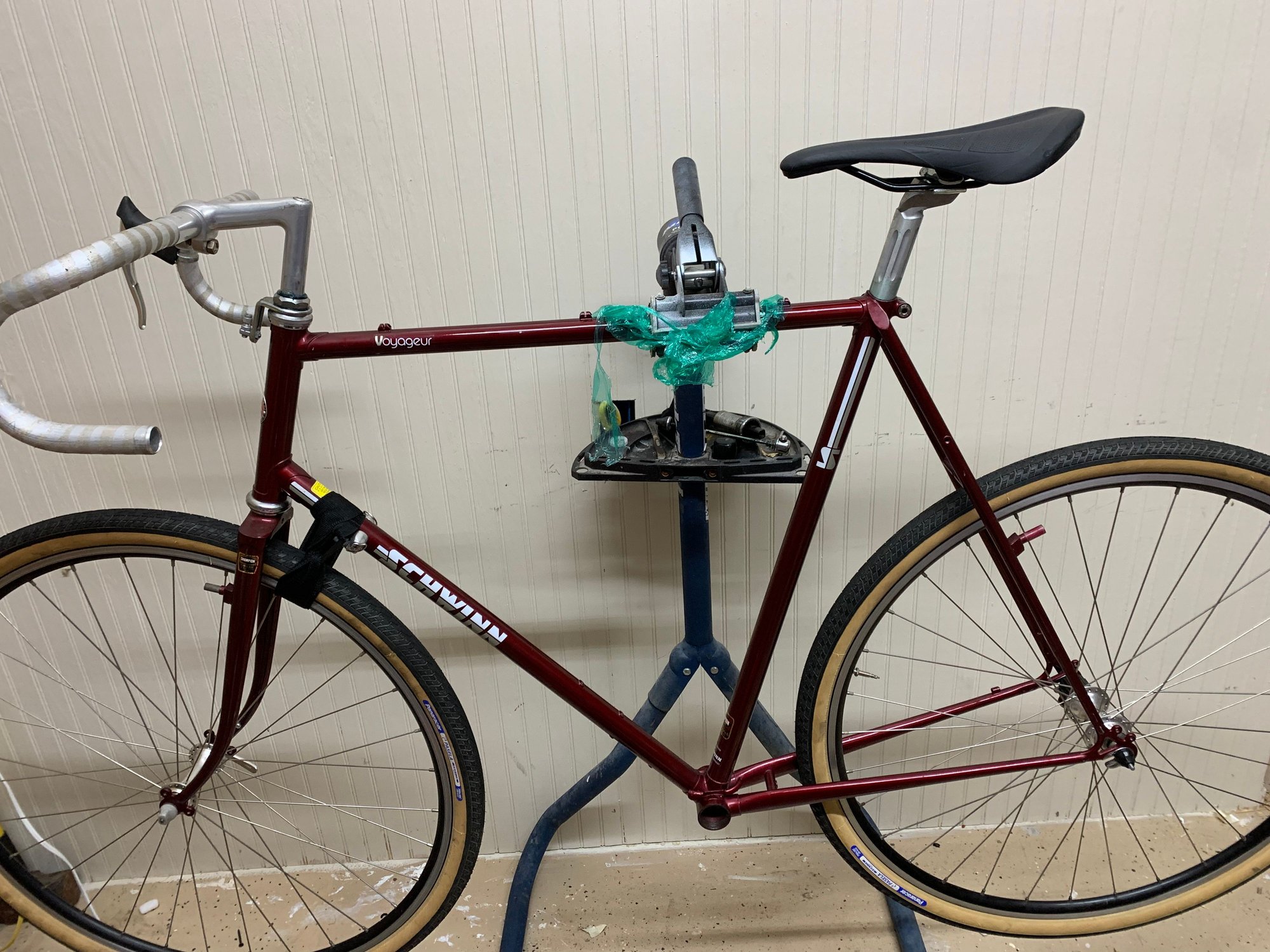

This is my current project. 1984 Voyageur. The frameset was new old stock bought off Ebay last year - it actually came in the original box that shipped originally from Japan. Building it as a 50/34 10 spd with Praxisworks Crankset, Ultegra Medium cage rear derailleur, Dura ace 10 spd bar cons, older 700 wheelset with Shimano 105 hubs, Pasela 700x38, Specialized Power Saddle, Cane Creek SCR-5 Brake Levers Dia Compe 981 Cantilevers with Koolstop thinlines,
justcynn is offline
Likes For justcynn:
Old 09-22-21, 06:27 PM
  #13
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,784

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 733 Times in 540 Posts
Originally Posted by droppedandlost View Post
81 Nishiki International
IRD levers with Tektro 559 dual pivots, modern wheels 700x38, clipless/flat dual purpose pedals, and CO2 in the bag.


Wow!! That's stupendous! The everything on it is great, but those tires make it really growl
thook is offline
Old 09-22-21, 06:29 PM
  #14
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,784

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 733 Times in 540 Posts
Originally Posted by Wilbur76 View Post
Gravel bikes are what the cool kids are riding these days. And cooler kids are converting 30 year old hybrids and mtbs just to one up.
Here’s my entry. I call it The Warthog. 1994 Specialized Stumpjumper FSR. Was 3x7 square taper bb, now 1x10 with Hollowtech2 bb. Microshift Advent X full set, Suntour fork, Velo Orange Happy Stem, Salsa Cowchipper bars. Smoke and Dart tires for that old school vibe. Frame, seatpost and canti brakes are the only OG parts.
FIFY
thook is offline
Likes For thook:
Old 09-22-21, 06:49 PM
  #15
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 850
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 543 Times in 254 Posts
Originally Posted by thook View Post
Wow!! That's stupendous! The everything on it is great, but those tires make it really growl
Thanks, I've been pleased with this one. Swapping tires makes a nice road bike, too.
