Mystery magnet wheel accessory

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mystery magnet wheel accessory

Old 09-25-21, 09:38 PM
  #1
canklecat
Me duelen las nalgas
Thread Starter

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,221

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 4386 Post(s)
Liked 2,418 Times in 1,568 Posts
Mystery magnet wheel accessory

This doodad was on the hub of a 1990s wheelset I got recently. It's a magnetic ring inside a plastic retainer clipped to the spokes.

The magnetic ring is rubbery and under it is a circlip type ring, presumably to provide a little more retention for the magnetic ring.

I'm guessing it was part of a speed or distance sensor. I didn't notice it until later so I didn't ask the seller.

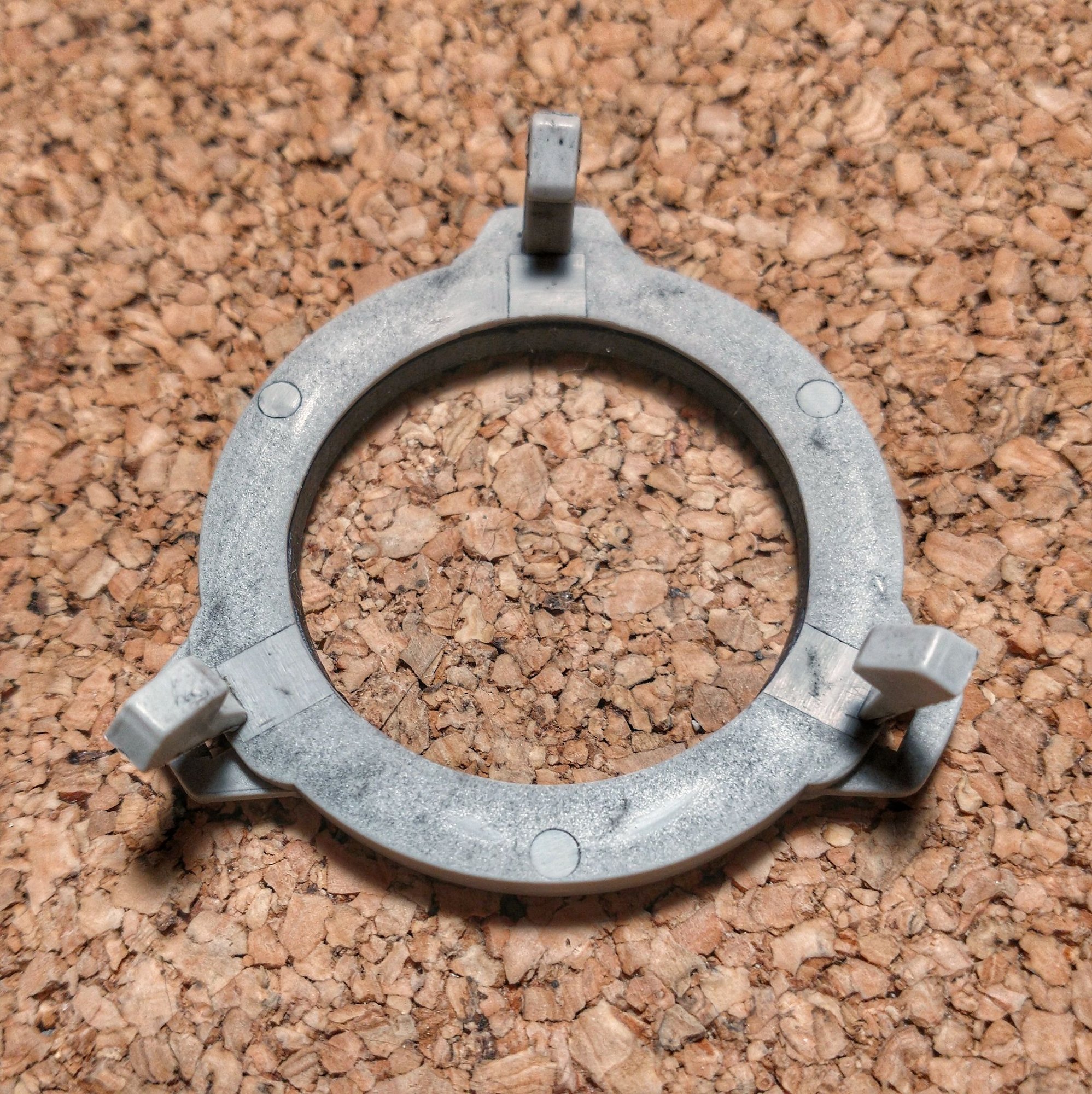

Outer surface.

Inner surface, clipped to spokes.
canklecat is offline
Old 09-25-21, 09:56 PM
  #2
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,745

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3491 Post(s)
Liked 1,799 Times in 1,162 Posts
Looks like the one from an Avocet bike computer.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 09-25-21, 10:15 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 9,818

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 3046 Post(s)
Liked 2,615 Times in 1,707 Posts
Yep, oldschool exciter ring.
merziac is online now
Likes For merziac:
Old 09-25-21, 11:11 PM
  #4
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,914

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 773 Post(s)
Liked 451 Times in 274 Posts
Back To The....Well You Know?

Flux Capacitor for Bicycle.

(Never really took off because still needed to reach 88 mph to take off.)
machinist42 is online now
Likes For machinist42:
Old 09-25-21, 11:33 PM
  #5
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 616
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 182 Times in 99 Posts
I know that part. The ring would not zip tie to my hi flange hub when I got my Avocet back in the 80s. So I pulled out the magnet and glued it to the hub. Itís still thereÖ

Mr. Spadoni is offline
Likes For Mr. Spadoni:
Old 09-26-21, 12:12 AM
  #6
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,794
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1349 Post(s)
Likes: 0
Liked 438 Times in 302 Posts
Yes, that's a magnet ring for Avocet (I think it worked with model 20, 30 and 40) bike computers from the 80's.
They actually came with different mounting prong locations to work with either 36 or 32 hole front hubs.
A time. pickup sensor for it is mounted just above the fork dropout with a small zip tie. A very clean design for the time.
The Avocet model 20 I bought for my Peugeot PSV back in 1984, is still on the bike and still works!

Last edited by Chombi1; 09-26-21 at 12:17 AM.
Chombi1 is offline
Likes For Chombi1:
Old 09-26-21, 12:27 AM
  #7
canklecat
Me duelen las nalgas
Thread Starter

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,221

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 4386 Post(s)
Liked 2,418 Times in 1,568 Posts
Thanks, all!

I won't use it, but now I'm curious to see what those older sensors looked like. I'll Google around later.
canklecat is offline
Old 09-26-21, 05:10 AM
  #8
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,163
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1204 Post(s)
Liked 1,432 Times in 729 Posts
Originally Posted by canklecat View Post
Thanks, all!

I won't use it, but now I'm curious to see what those older sensors looked like. I'll Google around later.
I've got Avocet speedometers of this style on three bikes. They have their quirks, but I like them. A couple of photos of them in use...





Steve in Peoria
steelbikeguy is offline
Old 09-26-21, 07:10 AM
  #9
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,846

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 818 Post(s)
Liked 1,343 Times in 580 Posts
+1 on old Avocets steelbikeguy

Finally had to give up on them because temps below 40 degrees would scramble their brains, even with new batteries.
thinktubes is offline
Old 09-26-21, 11:21 AM
  #10
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,163
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1204 Post(s)
Liked 1,432 Times in 729 Posts
Originally Posted by thinktubes View Post
+1 on old Avocets steelbikeguy

Finally had to give up on them because temps below 40 degrees would scramble their brains, even with new batteries.
Boy, I haven't had mine in the cold weather for a long time... mine are on my shiny bikes that just get ridden on nice days. The bikes that get used and abused are fitted with more modern Cateyes, and they've tolerated all sorts of horrors.

Some LCDs don't handle freezing temperatures, and will get very sluggish. I've also had problems with one or two Avocets where the electrical contacts to the LCD were held in place by the two halves of the housing. When it got older and the plastic "relaxed" a bit, the pressure on the contacts was reduced and the display segments would fade and disappear. A rubber band around the housing often fixed this, but it wasn't a great solution.

Avocet was a great innovation, but other companies with more experience and resources eventually produced products without the chronic issues of the Avocets. I don't think any of them ended up being as inconspicuous and unobtrusive as the Avocet, though.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 09-26-21, 01:57 PM
  #11
ManekiNico
Member

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 46

Bikes: ’85 Pinarello Treviso

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 24 Times in 19 Posts
Yup, that’s the hub flange-mounted transmitter for an Avocet Cyclometer. Here’s a scan from the Cyclometer 20 owner's manual showing the part and how to mount it.

EDITED TO ADD: I think this is from a later model (30 and up?). The transmitter for the model 20 was made of black plastic and the mounting tabs and slots were offset (see image below).


Last edited by ManekiNico; 09-26-21 at 02:05 PM. Reason: Edited to add info.
ManekiNico is offline
Old 09-26-21, 02:32 PM
  #12
ManekiNico
Member

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 46

Bikes: ’85 Pinarello Treviso

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 24 Times in 19 Posts
Partial threadjacking: steelbikeguy How are you routing the wire down your fork leg? I donít see any zip ties.
Originally Posted by steelbikeguy View Post
ManekiNico is offline
Old 09-26-21, 03:17 PM
  #13
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,163
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1204 Post(s)
Liked 1,432 Times in 729 Posts
Originally Posted by ManekiNico View Post
Partial threadjacking: steelbikeguy How are you routing the wire down your fork leg? I donít see any zip ties.
I use clear packing tape to stick it to the inboard side of the fork blade. It's a low-tech way of doing it, but it works much better than it has a right to. Here's a cropped photo of the Raleigh International that (sort of) shows the wire routing and the tape:




Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 09-26-21, 04:04 PM
  #14
etherhuffer
Senior Member

etherhuffer's Avatar

Join Date: Aug 2007
Location: West Seattle
Posts: 966

Bikes: Surly Long Haul Trucker,81 Fuji Gran Tour SE, 83 Fuji S12S LTD, Voyageur 11.8 chrome, Raleigh R300 Touring, Voyageur 11.8

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 167 Times in 76 Posts
Looks like one of the rings in a Turbo Ecabulator
etherhuffer is offline
Likes For etherhuffer:
Old 09-26-21, 06:14 PM
  #15
ManekiNico
Member

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 46

Bikes: ’85 Pinarello Treviso

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by steelbikeguy View Post
I use clear packing tape to stick it to the inboard side of the fork blade.
Clever! Iíll have to try that with helicopter tape.
ManekiNico is offline
Likes For ManekiNico:
Old 09-26-21, 08:49 PM
  #16
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,794
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1349 Post(s)
Likes: 0
Liked 438 Times in 302 Posts
When I mounted my Avocet model 20 Cyclometer on my PSV back in 1984, I routed the sensor wires through the top and bottom brazing vent holes on the right fork leg so the wires are not visible below the fork crown and down the fork leg, making for a very clean looking installation. I remember using a thread sucked from the top hole down and through the bottom hole using a vacuum cleaner, to fish the wires through the fork leg.

Last edited by Chombi1; 09-26-21 at 09:00 PM.
Chombi1 is offline
Likes For Chombi1:
