interesting vintage find....need ID

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

interesting vintage find....need ID

Old 09-28-21, 05:00 PM
  #1
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
interesting vintage find....need ID

i recently picked up this vintage bike - in rather tough shape, but very interesting

as found....no decals or badges. Campy dropouts, headset and two-bolt seat post. Cinelli stem and bars. Superbe RD. Sugino single ring crank. DiaCompe brakes and levers. Lyotard pedals.
. Look at the pics and comments please and help with ID.
Tedbaz is offline
Old 09-28-21, 05:03 PM
  #2
philpeugeot
Senior Member

Join Date: Aug 2017
Location: San Mateo, CA
Posts: 304

Bikes: Bike Friday PRP, Bike Friday NWT, Bromton M6R, 1991 Miyata 914, 1991 Miyata 1000, 1986 Raleigh Portage, many more frames

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 183 Times in 104 Posts
Raleigh Professional Mk. IV perhaps?
philpeugeot is offline
Old 09-28-21, 05:05 PM
  #3
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
More Pics ...

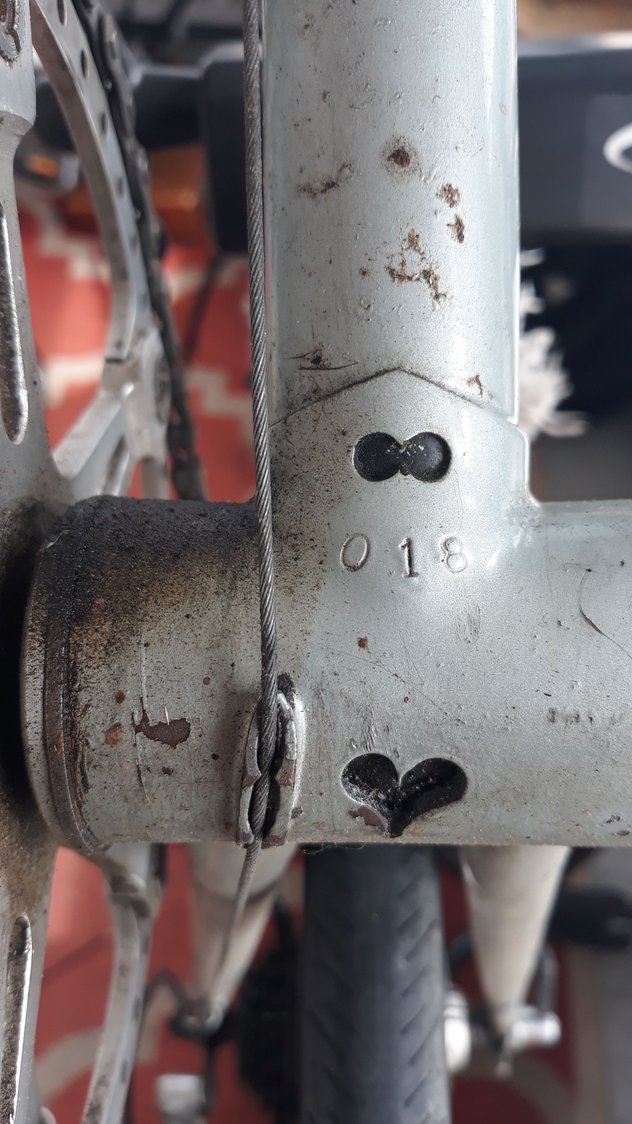

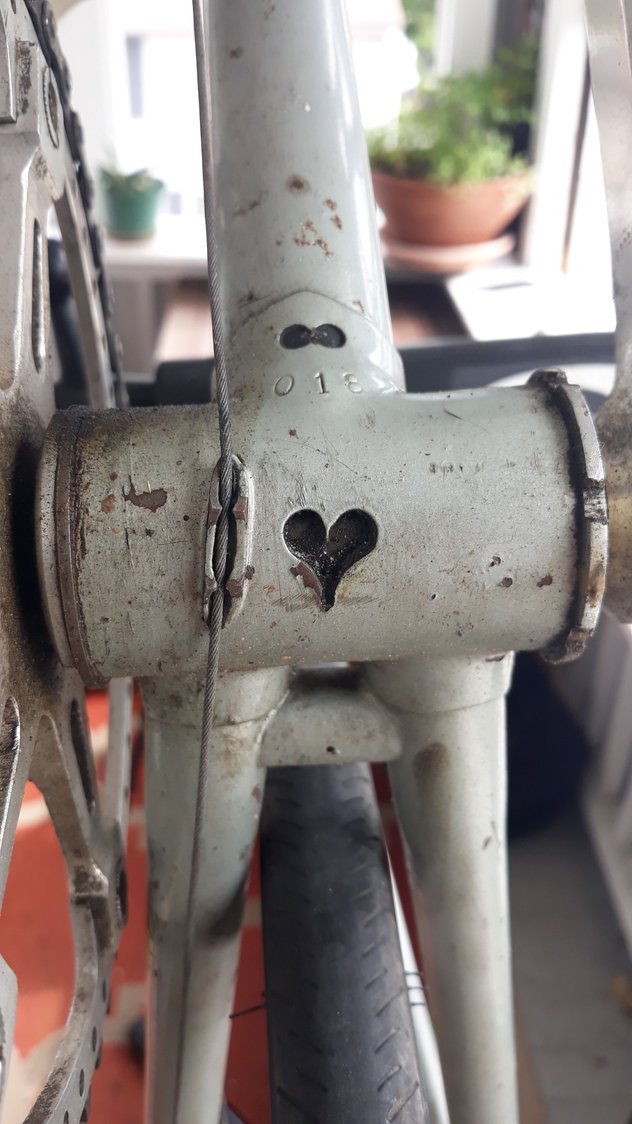

BB has heart and bean cutouts - single cable guide.

Serial number #018

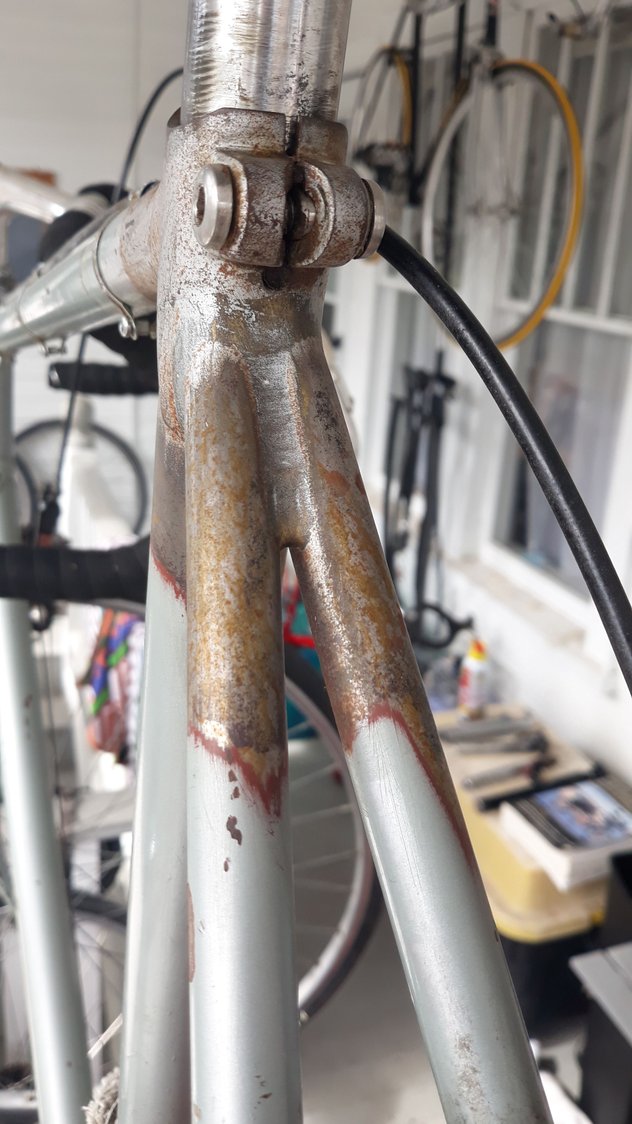

there is some damage. Note the fastback Anstays - the owner said he was "preparing it for restoration."

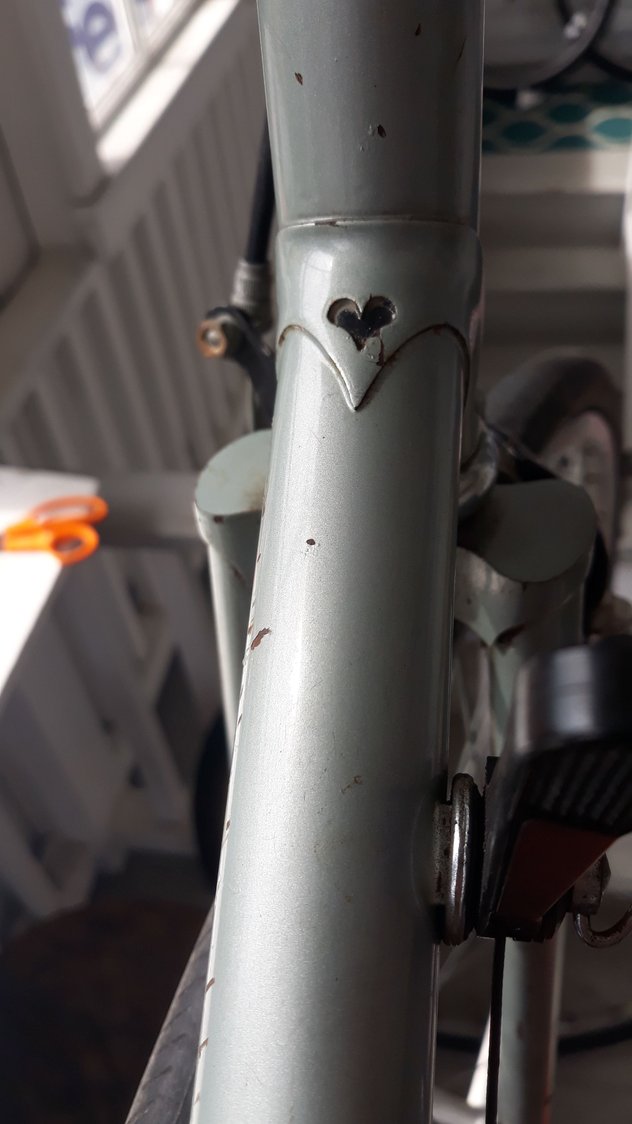

Another heart on the head lug. Only a RD braze on post -no FD post. Crit bike?
Tedbaz is offline
Old 09-28-21, 05:06 PM
  #4
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
i dont think so. look at the next pics...
Tedbaz is offline
Old 09-28-21, 05:13 PM
  #5
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
Another thing - the inside of the Sugino cranks is stamped with Jeffery Joiner Cycles. I live on the North Shore in Massachusetts and found this bike locally.
Tedbaz is offline
Old 09-28-21, 07:21 PM
  #6
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 895
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 60 Times in 40 Posts
Know anything about it, like the BB threading or serial number? My guess would be a custom build by a small builder. The heart-shaped cutouts are a bit off from the DeRosa hearts, maybe as homage.
degan is offline
Old 09-28-21, 07:39 PM
  #7
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,796
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 1,083 Times in 566 Posts
This looks like a job for @MauriceMoss
P!N20 is offline
Likes For P!N20:
Old 09-29-21, 06:37 AM
  #8
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,871

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 840 Times in 451 Posts
Originally Posted by P!N20 View Post
This looks like a job for @MauriceMoss
Yes. Though I am inclined to think an American framebuilder created this. I think it was a dedicated time-trialing bike, though, so perhaps U.K.? The use of the Simplex Prestige shifter makes sense in a way - it's very, very light. And someone was thinking very hard to run a housing tunnel and a housing stop on the underside of the chainstay. Actually kinda smart. Cool bike, and shows hand-crafted imperfections that are endearing.

EDIT: Wait - or is it a dedicated hill-climbing bike?
rustystrings61 is offline
Likes For rustystrings61:
Old 09-29-21, 07:42 AM
  #9
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
A few more pics - closeups

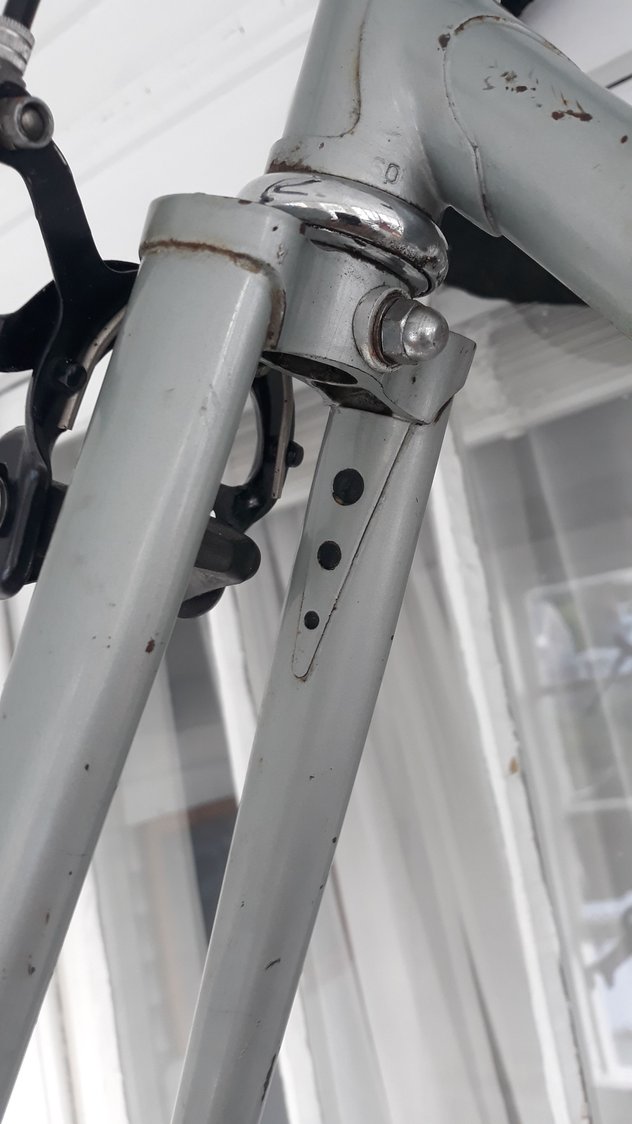

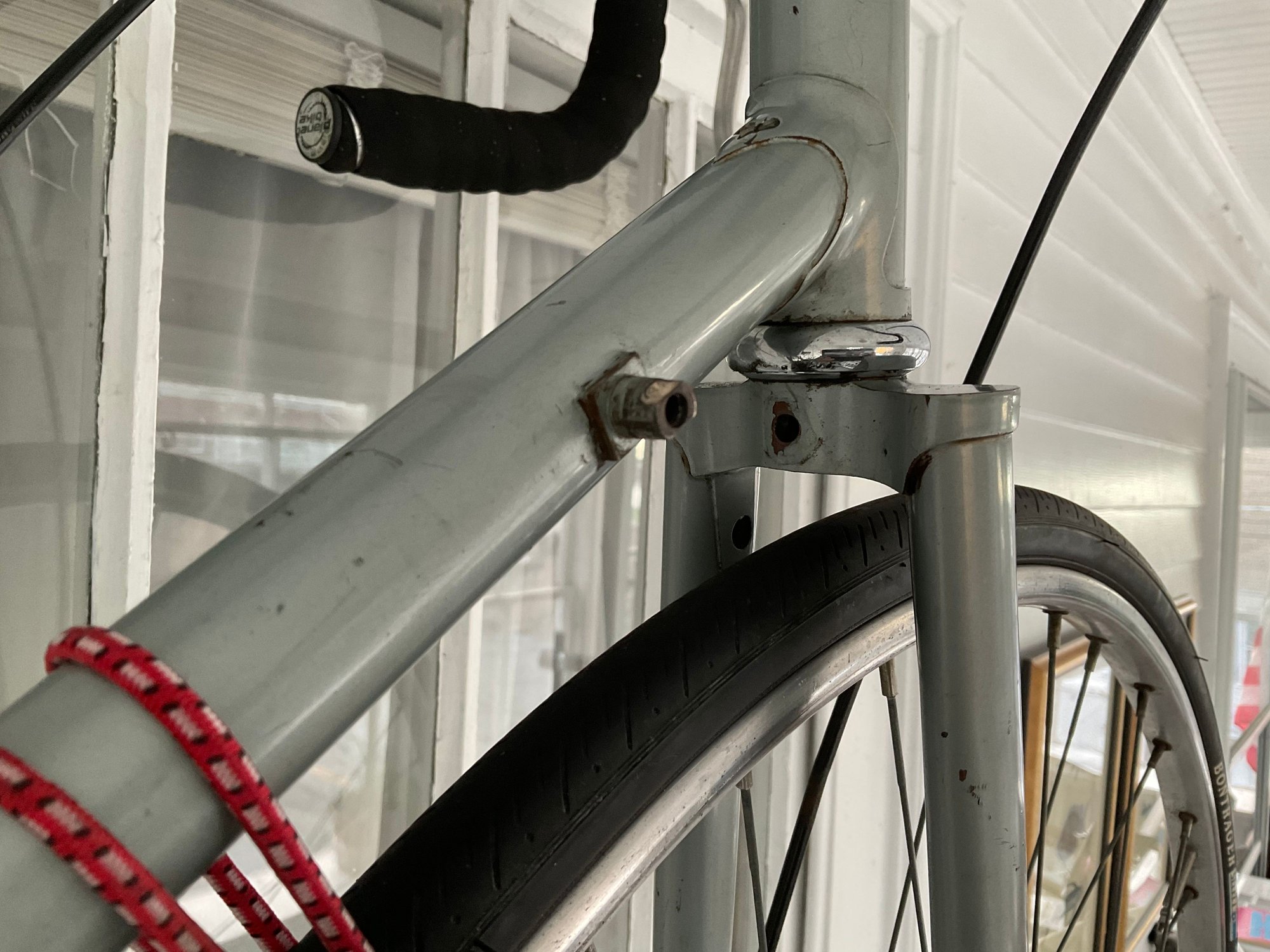

Fork closeup . Also 60 degree angle stamp on the lug
Tedbaz is offline
Old 09-29-21, 10:36 AM
  #10
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,827
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 955 Post(s)
Liked 478 Times in 391 Posts
that's got some very odd touches but very likely the product (no. 18) of an individual builder. The Campy verticals and that cut-down forkcrown are sort of less common in general but to me sort of push to "Brit" rather than "Yank". Still not conclusive.
Can we confirm if the threading is all BSC/ISO and the seatpost is 27.2, like wise there's no rifling in the steerer butt?
Some very careful details like the "fish-mouth" stay ends yet the heart cut-outs are kind of distorted/sloppy. It's built by hand (or a couple of hands), some things may have been added or modded later in life.
unworthy1 is online now
Likes For unworthy1:
Old 09-29-21, 01:43 PM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,728
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2829 Post(s)
Liked 1,364 Times in 999 Posts
-----

the combination of the Brampton Victor and the rapier pattern chainstays certainly screams "made in the English speaking world"

you might consider to check steerer for any markings, may discover serial to be repeated there if nothing else...

appears assembler ran into a chainline snag which required a two mm spacer; usually a one or one and one half is adequate...

date estimate - mcmlxxiii-lxxiv


-----

Last edited by juvela; 09-29-21 at 01:49 PM. Reason: addition
juvela is offline
Likes For juvela:
Old 09-29-21, 02:01 PM
  #12
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,611

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 575 Post(s)
Liked 630 Times in 308 Posts
All the detail seem to indicate custom smaller US build circa early 80's yet nothing really stands out other than the heart drill outs on the lugs which look hand done. I'm pretty sure someone here will recognize the work very nice bike.
zukahn1 is offline
Old 09-29-21, 04:02 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,728
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2829 Post(s)
Liked 1,364 Times in 999 Posts
-----

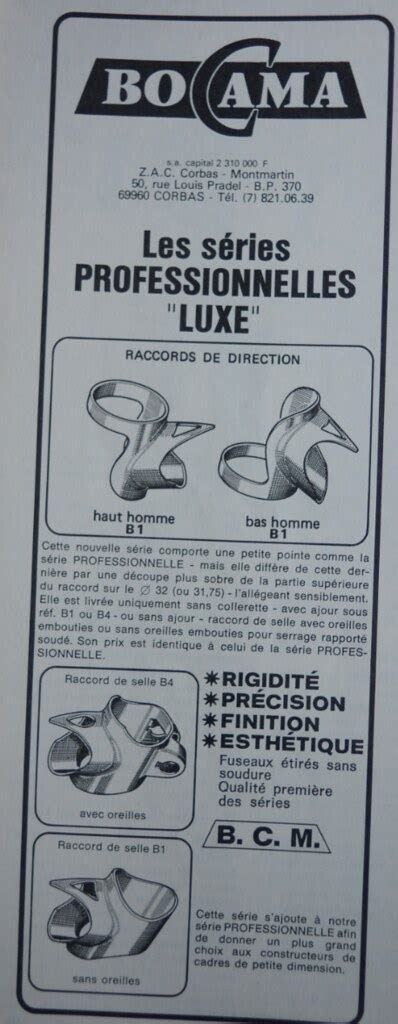

headlug pattern looks to be BOCAMA Professionelles "LUXE"

heart cutout may have been achieved by expanding upon one of the four BOCAMA stock cutout patterns or it may have been done to a blank (no cutouts) lugset




bottom bracket shell, prior to alteration, BOCAMA Professional -






ends set Campag Nr. 1060 with eyelets removed -



-----

Last edited by juvela; 09-29-21 at 04:03 PM. Reason: spellin'
juvela is offline
Old 09-29-21, 04:26 PM
  #14
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,068

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1295 Post(s)
Liked 1,165 Times in 820 Posts
I don’t ever remember seeing Campy vertical drops on a for real bike...

Very unique overall. Definitely hand made heart lugs, fish mouth stay ends, fastback stays, close tolerance to seat tube/rear wheel, under bracket brazed single guide, but no top tube cable guides...

Cottage built England?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is online now
Old 09-29-21, 04:34 PM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,776

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Liked 1,066 Times in 574 Posts
My Colin Laing has Campy vertical dropouts just like those.

He was also known to do that type of seatstay. He apprenticed with the Taylors in Britain and then moved to the USA.

On the other hand, I've never seen a fishmouth stay attachment on a Colin Laing bike.

Also doesn't explain how it would have ended up in massachusetts when Colin was primarily in Arizona and I feel like he worked mostly for local customers out west.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 09-29-21, 09:44 PM
  #16
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 359 Times in 128 Posts
That's a nice find Tedbaz .

I agree with most comments here - I think it's the work of a small builder. It also looks as if it may have had some work done post-production.
And, as rustystrings61 and unworthy1 have mentioned, it does feel a bit British and a bit American.
Perhaps it's a bit of both?

One builder who ticks several boxes here (custom builds, based in Massachusetts (Boston area), kind of smallish heart cutouts, the position of the serial number (018), and an American builder of English origin (born in London, apprenticed under Ron Cooper (who, btw, also put frame numbers on the down tube nozzle of the bb shell)) is Peter Mooney.

The mystery frame looks less refined than the most Mooneys I've seen, but #018 would indicate a very early example, so maybe that explains it? I think it would be pretty neat if this does turn out to be an early Mooney. You could contact Peter at Belmont Wheelworks and find out, one way or the other. Please let us know, whatever the answer ends up being.

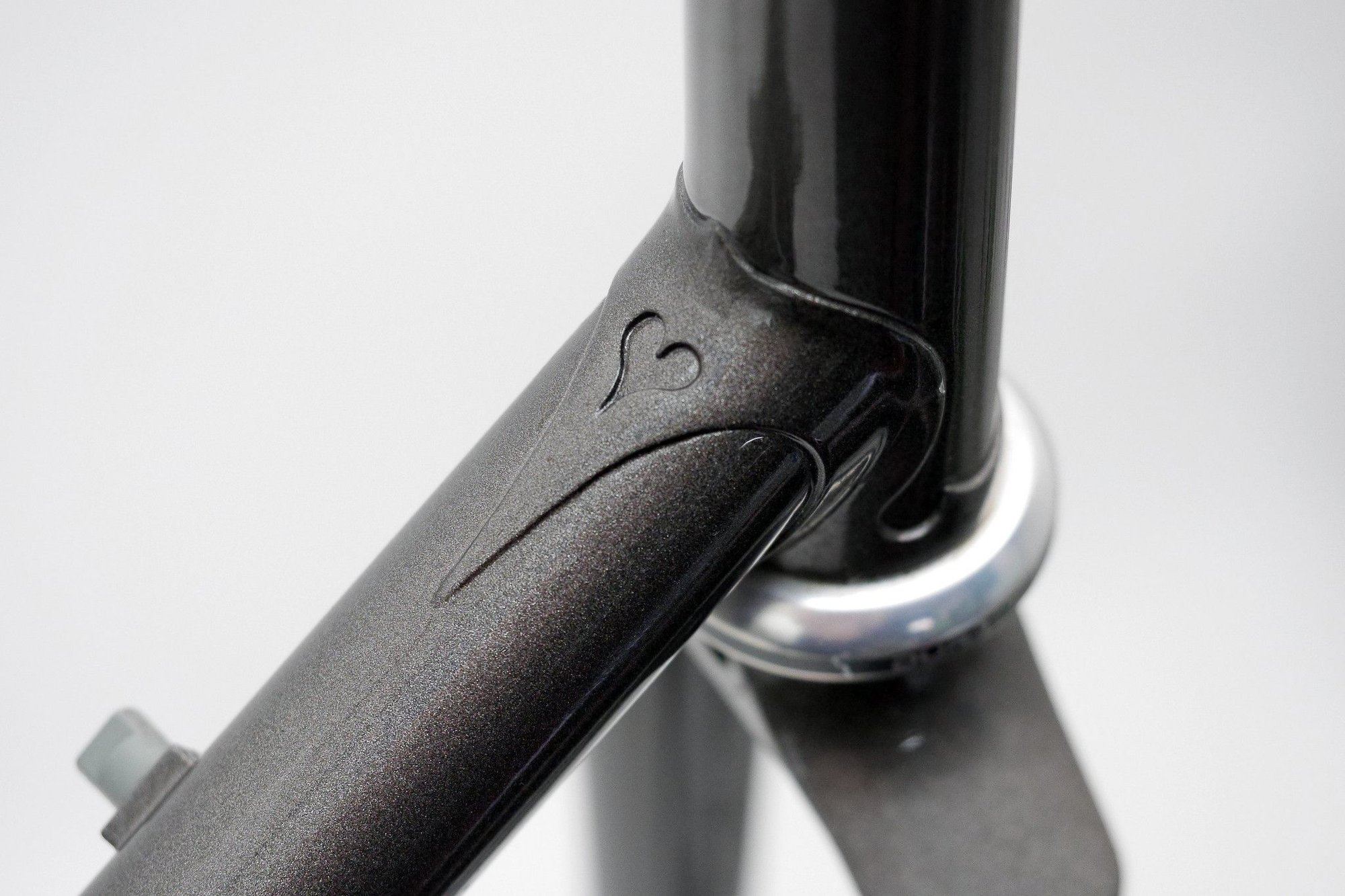

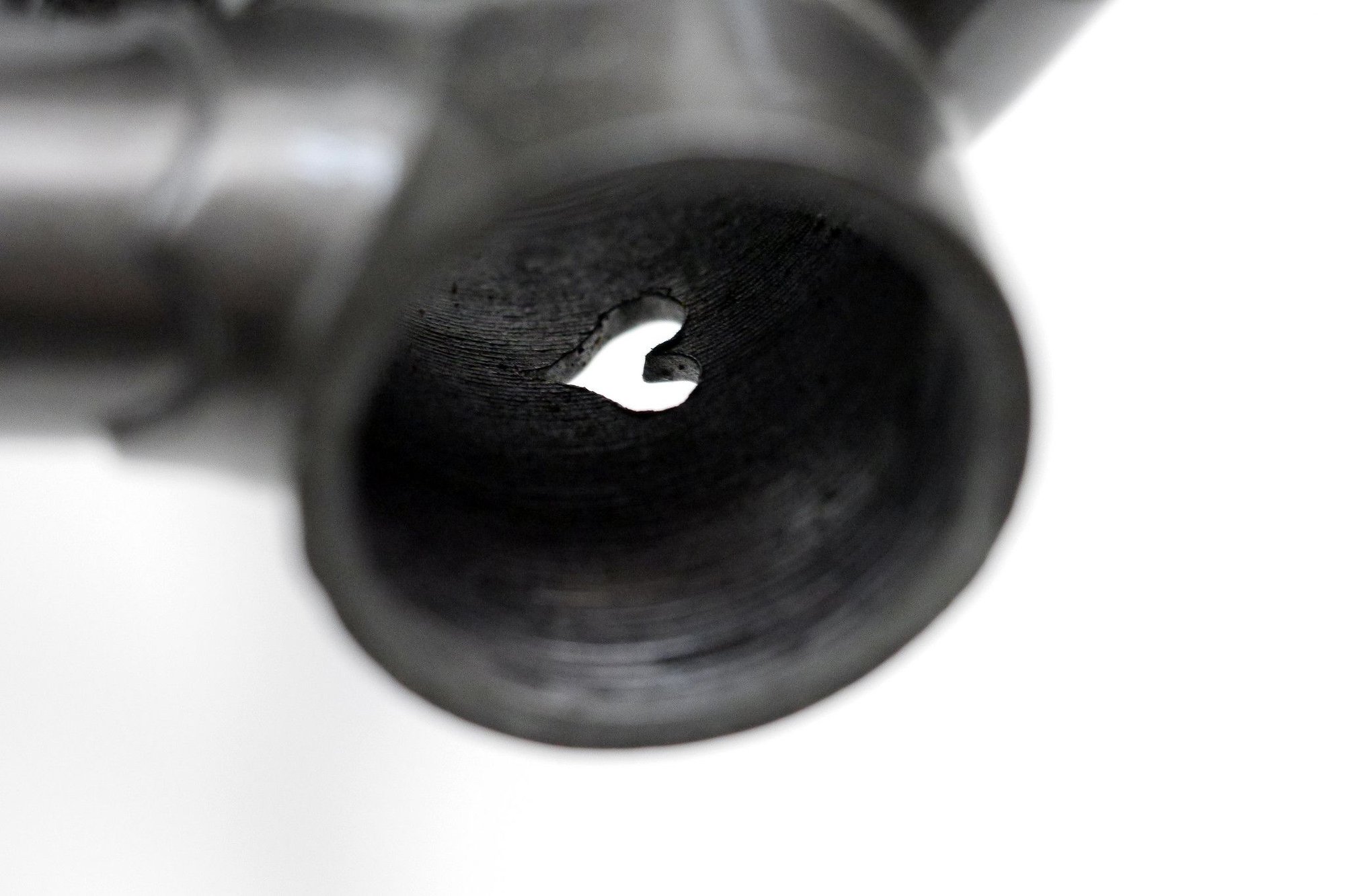

Here are some examples of the heart cutouts:




This is the earliest Mooney frame I've come across (forum member pcb used to own it), with the serial number of 044:





The rest of the pics of that bike can be seen here.
MauriceMoss is offline
Old 09-30-21, 12:16 AM
  #17
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,915

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 193 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 1,013 Times in 565 Posts
Custom Built Frame

Frame looks a little cobby for a custom builder of note???

Time Trial and Criterium frames were very popular in the UK up into the late 70's, early 80's. Those types of frames had very short wheel bases and chain stays so many were made with vertical dropouts. A lot of those style bikes were only 5 speeds.

BITD Simplex and Huret made vertical dropouts but in the UK and the US, Campagnolo 1060 stamped vertical dropouts were the first choice of most builders for short wheel base frames until Suntour and Shimano started making forged steel vertical dropouts in the mid 70's.



The wide cross section on the Campy verticals had a distinct look that said there was something special about a frame.

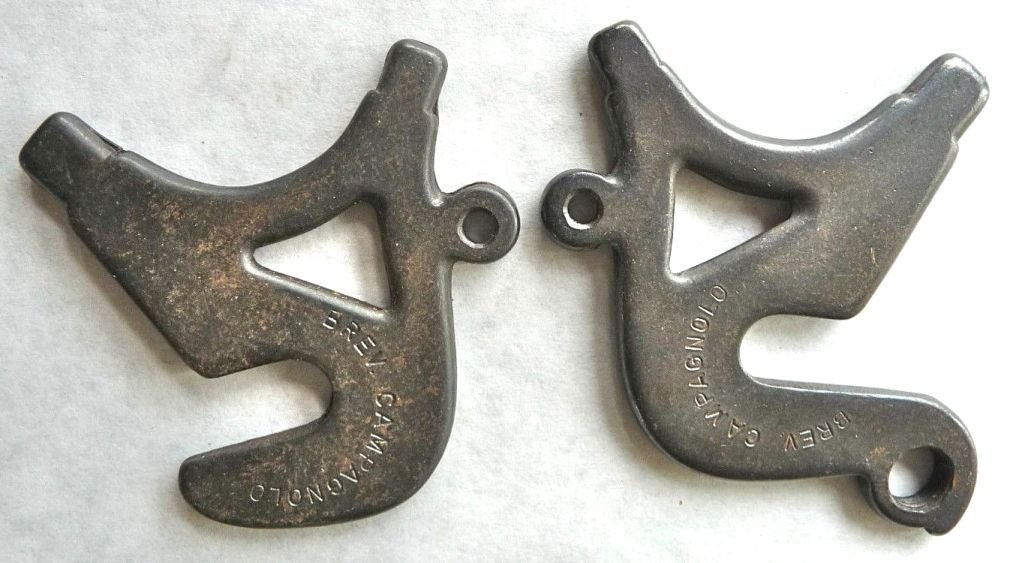

I have or have had a number of bikes/frames with Campy 1060 vertical dropouts. I even built a few frames with them. My 1973 Raleigh RRA has those dropouts along with all French components from the factory.




I picked up this mid 70's Alpine frame to build a beater bike. It was supposed to have been made by Tom Board in the UK. It sat around for a long time. When I finally built it up, on the first ride, after 50 feet, I realized that it was a full blown criterium frame!




Here's the dropout from a late 70's Raleigh SBDU time trial frame. Note the washer brazed onto the inside of the dropout. The Campy 1060 stamped dropouts were only 5mm thick vs. 7mm thick for standard forged dropouts.

The brazed on washers increased the thickness of the dropouts which allowed the use of any wheels with the correct width hubs to fit without having to adjust the quick release for a fast change during a race.



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 09-30-21 at 07:50 AM.
verktyg is offline
Likes For verktyg:
Old 09-30-21, 06:37 AM
  #18
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
thanks for all the information. I sent an email to Peter Mooney this morning and will let you all know his reply. Special thank to Maurice for putting all the clues together to point me in the right direction.
Tedbaz is offline
Old 09-30-21, 06:46 AM
  #19
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
to answer a few other questions :
- the seat post is 27.2
- the Campagnolo vertical dropouts do have spacers brazed onto the inside!
- the inside of the steering tube is smooth - I have not had the forks off the bike yet, so no info on any serial # or scribing in there
Tedbaz is offline
Old 10-07-21, 01:47 PM
  #20
Tedbaz
Steel rider
Thread Starter

Join Date: Mar 2021
Location: North Shore of Boston, MA
Posts: 25

Bikes: 83 RedK; 84 DeRosa; 95 Trek 750; 89 Univega Grantech; 78 Peter Mooney; 81 Schwinn SuperSport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 17 Times in 5 Posts
Response from PMooney!

Tue, Oct 5, 2021, 11:17 AM Peter Mooney <peter@wheelworks.com> wrote:That is an oldie. I'd guess 1977 perhaps 78. Reynolds 531 frame\fork. I built it for a bike shop that was located in Marblehead. Looks like it's had a hard life. It seems to have a homing instinct for the north shore. I'd be happy to give it a quick look over if you want to stop by at Wheelworks in Belmont. Call before you come, not always here.... Peter
Tedbaz is offline
Old 10-07-21, 01:54 PM
  #21
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,948

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 949 Post(s)
Liked 889 Times in 550 Posts
Originally Posted by Tedbaz View Post
Tue, Oct 5, 2021, 11:17 AM Peter Mooney <peter@wheelworks.com> wrote:That is an oldie. I'd guess 1977 perhaps 78. Reynolds 531 frame\fork. I built it for a bike shop that was located in Marblehead. Looks like it's had a hard life. It seems to have a homing instinct for the north shore. I'd be happy to give it a quick look over if you want to stop by at Wheelworks in Belmont. Call before you come, not always here.... Peter
Wow!
noobinsf is online now
Old 10-07-21, 02:59 PM
  #22
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,318

Bikes: Too many to list here check my signature.

Mentioned: 154 Post(s)
Tagged: 2 Thread(s)
Quoted: 2321 Post(s)
Liked 1,348 Times in 805 Posts
I think you you need to start schlepping around to some of the older shops around and talk with the guys who have been around a long time. Maybe look for guys who used to race in the '80s. If there was local guy named Jeffery Joiner building bikes some old racer dude knows him. Probably the guy who rides his late '80s Italian Super Record bike everywhere and still acts like it is the '70s

My guess it is a product of a frame building class and the builder tried to put all the stuff he wanted on one frame. If it only has one shifter boss it could have been built that way for the Mt Washington Hill Climb (do they still do that?) but that is a long shot. Guys used to do weird stuff for that. Single 30t front rings and the biggest FW they could find and all sorts of crap
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 10-07-21, 03:02 PM
  #23
Frank S
Senior Member

Frank S's Avatar

Join Date: Sep 2021
Location: Olympic Peninsula, USA
Posts: 55
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 18 Times in 16 Posts
Originally Posted by Tedbaz View Post
Tue, Oct 5, 2021, 11:17 AM Peter Mooney <peter@wheelworks.com> wrote:That is an oldie. I'd guess 1977 perhaps 78. Reynolds 531 frame\fork. I built it for a bike shop that was located in Marblehead. Looks like it's had a hard life. It seems to have a homing instinct for the north shore. I'd be happy to give it a quick look over if you want to stop by at Wheelworks in Belmont. Call before you come, not always here.... Peter
That is extremely cool!
Frank S is offline
Likes For Frank S:
Old 10-08-21, 08:34 PM
  #24
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 359 Times in 128 Posts
That's awesome. Thanks for getting that confirmation Tedbaz - this is now officially the earliest Mooney frame I've seen.
MauriceMoss is offline
Likes For MauriceMoss:
Old 10-08-21, 10:08 PM
  #25
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,147
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 1,093 Times in 416 Posts
This subject thread really caught my attention. It wasn't obvious to me who had built it. Clues pointed in different directions. While Peter Mooney was an option, I wouldn't have given him the final choice because it is a bit unrefined. Because it only had one shift lever boss, I thought that narrowed it down to a UK builder because of their love of time trail racing. There were lots and lots of small time builders over there when I was hunting for a place to learn in the early 70s that never got recognition outside of their local area. Otherwise if it was made in the US, I would have thought like Bianchigrill that it was a product of a framebuilding class.

Peter Mooney apprenticed with Ron Cooper in London in 1976. I remember that because it was one year after I learned at Ellis Briggs in Yorkshire in 1975. That means this was one of Peter's early frames when we couldn't charge much back then and he was still probably refining his process. I've repainted a couple of Peter's frames and everything about them was spot on.
Doug Fattic is offline
Likes For Doug Fattic:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
