35mm tires on 18mm CR-18 wheels?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

35mm tires on 18mm CR-18 wheels?

Old 10-04-21, 12:06 AM
  #1
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,559
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 706 Times in 344 Posts
35mm tires on 18mm CR-18 wheels?

Is 35mm pushing it for an 18mm wheel? The CR-18s seem to be well regarded for their price and Iím considering picking a set up but have never thought much about rim sizes until now. The charts and articles Iíve looked at have been a bit contradictory.
polymorphself is offline
Old 10-04-21, 05:10 AM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,552
Mentioned: 600 Post(s)
Tagged: 1 Thread(s)
Quoted: 4414 Post(s)
Likes: 0
Liked 2,400 Times in 1,558 Posts
The CR-18 is a hooked edge rim and should be good for tyres with even a 38mm section width. You've got a bit of extra safety factor with 35mm. If this was a non-hooked rim with the measurement across the inside of the flanges, a 35mm tyre would be right at my rule of thumb upper limit.
T-Mar is offline
Likes For T-Mar:
Old 10-04-21, 05:15 AM
  #3
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 1,138

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '91 Trek 750

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 293 Times in 176 Posts
Originally Posted by polymorphself View Post
Is 35mm pushing it for an 18mm wheel? The CR-18s seem to be well regarded for their price and Iím considering picking a set up but have never thought much about rim sizes until now. The charts and articles Iíve looked at have been a bit contradictory.
Absolutely

Sun Cr-18's with 35c Pasela's. I think they're good to go much bigger too. CR-18's were originally MTB rims when they came out. I've run upwards of 2.2's on them, no problem.
mechanicmatt is offline
Likes For mechanicmatt:
Old 10-04-21, 05:27 AM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,416

Bikes: Several, mostly not name brands.

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 2919 Post(s)
Liked 1,862 Times in 1,129 Posts
I've been running 38mm tires on CR-18 rims for years now, with no problems.
JohnDThompson is offline
Likes For JohnDThompson:
Old 10-04-21, 05:55 AM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,525
Mentioned: 394 Post(s)
Tagged: 0 Thread(s)
Quoted: 2879 Post(s)
Liked 3,450 Times in 1,567 Posts
I’ve done it with no problems.
nlerner is offline
Likes For nlerner:
Old 10-04-21, 06:39 AM
  #6
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,860

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Liked 824 Times in 442 Posts
Here's my 1973 Raleigh Competition with the Surly Dingle/Dos Eno combo - Sun CR-18s laced to Surly New Track (rear) and Ultra New Track (front) hubs with Continental Cyclocross Speed 35 mm tires.

rustystrings61 is offline
Likes For rustystrings61:
Old 10-04-21, 07:43 AM
  #7
majmt
Senior Member

majmt's Avatar

Join Date: May 2013
Location: Tropical Montana
Posts: 276
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 729 Times in 229 Posts
This summer, Iíve been running 35mm Rene Herse tires on over 40 year old Super Champion Gentleman rims having an id of around 15mm. About 500 mostly gravel miles, including this yearís Cino ride, with no death or destruction.

majmt is offline
Likes For majmt:
Old 10-04-21, 09:29 AM
  #8
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,559
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 706 Times in 344 Posts
Awesome. Thanks all. Was reading reports of tires getting squishy on the rim when you get too far away from the rim size and it got me wondering. Although Iíd never measured any of the rims Iíve used in the past, I just used them with 28-35mm tires and they worked so I didnít have much perspective.
polymorphself is offline
Old 10-04-21, 09:53 AM
  #9
Sluggo
Senior Member

Sluggo's Avatar

Join Date: Oct 2005
Location: Left bank, Knoxville TN
Posts: 606
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 110 Times in 51 Posts
Many (most?) early vintage MTBs had 22 mm rims and held 60 mm tires fine. You have a lot more flexibility than some would have you believe, although if you are starting from scratch, there are advantages to wider rims for for wider tires.
Sluggo is offline
Likes For Sluggo:
Old 10-04-21, 10:03 AM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,489

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 1,165 Times in 645 Posts
Not CR-18 but rather the stock rims on the 97 Rock Hopper. 2.2 tires If IIRC.
P1000217 by superissimo_83, on Flickr

Bit of a challenge getting the wheel removed with the brake noodle unhooked.
RockHopper_Sprung_2012_05 by superissimo_83, on Flickr

Getting the fender to not rub was a challenge
Wide Tire Commuter with Fenders by superissimo_83, on Flickr
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 10-04-21 at 10:07 AM.
SJX426 is offline
Likes For SJX426:
Old 10-04-21, 10:58 AM
  #11
stevel610
Senior Member

Join Date: Aug 2006
Location: Valley Forge: Birthplace of Freedom
Posts: 1,123

Bikes: Novara Safari, CAAD9, WABI Classic, WABI Thunder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
Liked 328 Times in 173 Posts
My Raleigh C500 came with 35c Randonneur Cross tires on CR-18's. As others mentioned I have fit larger tires as well.
__________________
Be watchful, stand firm in the faith, act like men, be strong. Let all that you do be done in love.
stevel610 is offline
Likes For stevel610:
Old 10-04-21, 11:01 AM
  #12
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,860

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Liked 824 Times in 442 Posts
Originally Posted by majmt View Post
This summer, Iíve been running 35mm Rene Herse tires on over 40 year old Super Champion Gentleman rims having an id of around 15mm. About 500 mostly gravel miles, including this yearís Cino ride, with no death or destruction.

Wait. Is that a 1st generation Austro-Daimler Vent Noir I see there? Richard Ballentine was right to call those sexy in his book all those years ago ...
rustystrings61 is offline
Likes For rustystrings61:
Old 10-04-21, 12:16 PM
  #13
majmt
Senior Member

majmt's Avatar

Join Date: May 2013
Location: Tropical Montana
Posts: 276
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 729 Times in 229 Posts
Originally Posted by rustystrings61 View Post
Wait. Is that a 1st generation Austro-Daimler Vent Noir I see there? Richard Ballentine was right to call those sexy in his book all those years ago ...
Not much escapes this crowd. Very sharp eyes, sir! I generally run fairly narrow tires but I like the still sexy look of the fatter tires on this bike and I like the ride even better.


Last edited by majmt; 10-04-21 at 12:29 PM.
majmt is offline
Likes For majmt:
Old 10-04-21, 12:42 PM
  #14
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,860

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Liked 824 Times in 442 Posts
Originally Posted by majmt View Post
Not much escapes this crowd. Very sharp eyes, sir! I generally run fairly narrow tires but I like the still sexy look of the fatter tires on this bike and I like the ride even better.

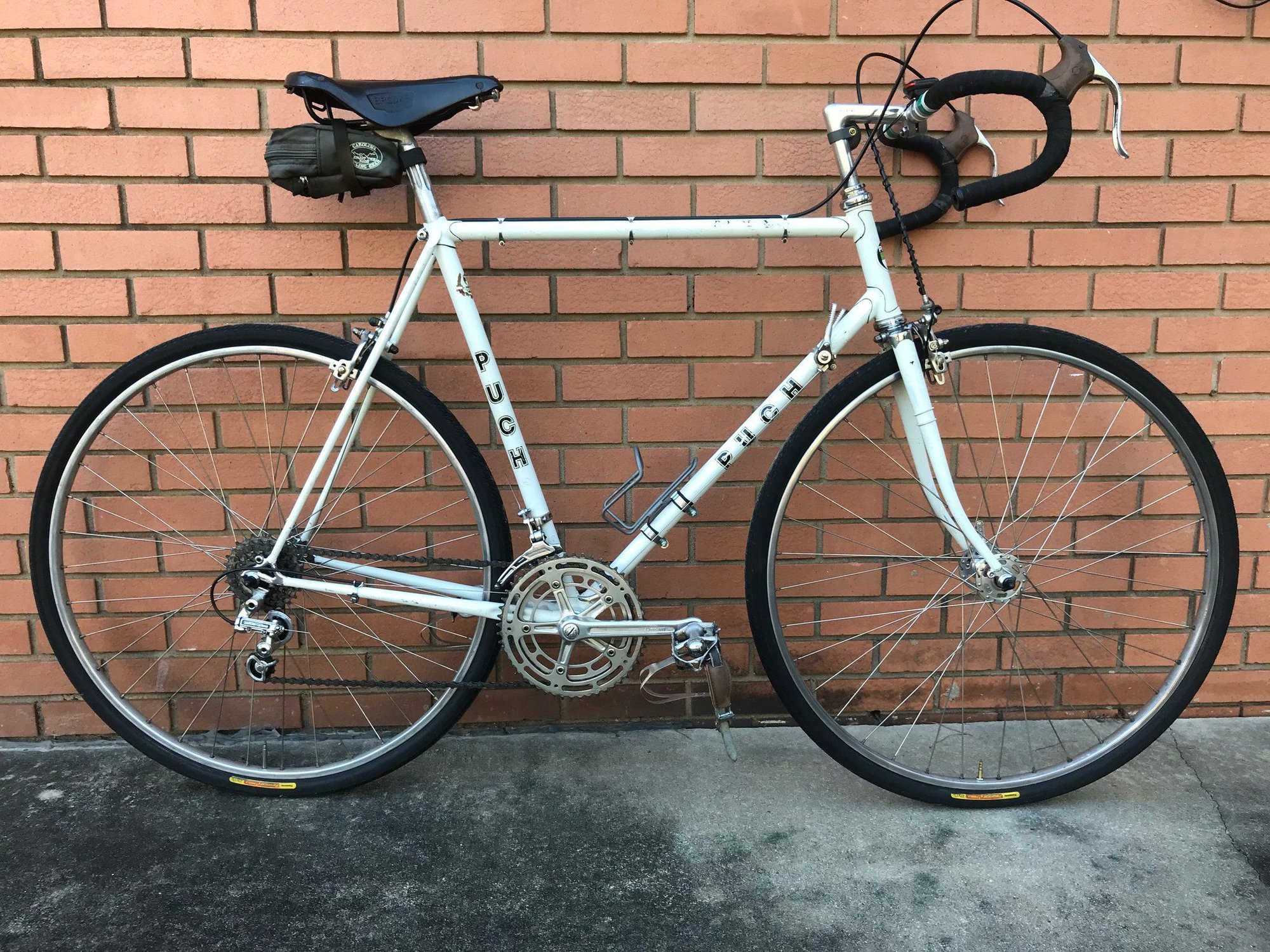

I have its kissing cousin, a 1976 Puch Royal X, which is currently riding on an almost stock set of 27 x 1 1/4. In its salad days I ran it with Hutchinson Supersprint tubulars, but I bet it would work beautifully with 35 mm tires, if I ever put together a 700C wheelset for it ...

... and to keep it semi on-topic, those are relatively narrow Mavic Module E 27-in rims shod with Panaracer Pasela 603/32 aka 27 x 1 1/4 tires.
rustystrings61 is offline
Likes For rustystrings61:
Old 10-04-21, 01:04 PM
  #15
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,357

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 695 Times in 490 Posts
The "squishy" feel of very wide tires on narrow rims is mostly going to be limited to users of tubeless tires, where pressures can be low enough to cause tire-roll during hard cornering.

That's not to say that the use of wider rims won't improve the steering feedback feel, it will tighten up the lateral stiffness of the tire carcass, to good effect.

I used to race XC using 700c MA40 rims with 13mm inside width and with 45mm Panaracer Smoke tires installed.
Never had an issue since I was running inner tubes and pressures no lower than low 40's, with me weighing only 155# or so.
dddd is offline
Likes For dddd:
Old 10-04-21, 01:45 PM
  #16
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 2,060

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Liked 765 Times in 404 Posts
CR18 was a straight up MTB rim in 26" form in the early 90's. 2.1" were common back then. You can see it listed in the online Bikepro catalog.
DorkDisk is offline
Likes For DorkDisk:
Old 10-04-21, 09:33 PM
  #17
etherhuffer
Senior Member

etherhuffer's Avatar

Join Date: Aug 2007
Location: West Seattle
Posts: 966

Bikes: Surly Long Haul Trucker,81 Fuji Gran Tour SE, 83 Fuji S12S LTD, Voyageur 11.8 chrome, Raleigh R300 Touring, Voyageur 11.8

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 167 Times in 76 Posts
I have built up 4 sets of CR18. Can't beat the price, looks good. But....every build was different. Two trued up right away, one I spents hours on and could not true and tension well. More modern rims seem more rigid and easier to build. The type of cross section profile affects rigidity
etherhuffer is offline
Likes For etherhuffer:
Old 10-05-21, 03:31 PM
  #18
SuperLJ
"part timer"

SuperLJ's Avatar

Join Date: Oct 2008
Location: Tidewater VA
Posts: 610

Bikes: 1975 Raleigh Gran Sport, 1978 Bertin C35, 1982 Trek 614, 1983 Trek 620, 1984 Nishiki Seral, 1995 Mercian KoíM, 1998 Fisher HKEK, 2000 Rivendell RS, 2001 Heron Touring, 2016 Nobilette Custom

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 129 Times in 51 Posts
Iíve been using CR18ís with 35-38mm tires on my loaded touring bike for years with no issues. Hereís a handy chart courtesy of Sheldon: https://www.sheldonbrown.com/tire-sizing.html#width


SuperLJ is offline
Likes For SuperLJ:
Old 10-05-21, 05:48 PM
  #19
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 402

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 184 Times in 95 Posts
That Sheldon Brown chart has always appeared far too conservative, and seemingly at odds with how some new bicycles were specified back in the day.

For example, my Trek 750 from 1990 came stock with Matrix Titan Tour II hard anodized rims. They are currently on my bench for hub maintenance, and I just measured their inner width at 13.5mm. They were originally specced with 35mm tyres. See the catalog page here: https://vintage-trek.com/images/trek/...tainspecs2.jpg. I'm about to mount new Gravel King SS tyres on those rims. I'd hoped to go as far as 32mm or 35mm, but sadly, their recipient frame (not the Trek 750) is limiting me to 28mm. The 750 frame would probably allow > 42mm, which makes that stock choice of rim width even more odd.

On another bike, I'm preparing a wheelset with Mavic 195 rims (inner rim width 13.4mm) to mount new Pasela 32mm tyres, and I don't anticipate any issues.
panzerwagon is offline
Likes For panzerwagon:
Old 10-05-21, 07:32 PM
  #20
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,559
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 706 Times in 344 Posts
Originally Posted by panzerwagon View Post
That Sheldon Brown chart has always appeared far too conservative, and seemingly at odds with how some new bicycles were specified back in the day.
Hence my apprehension when I started actually looking into this. Your sentiment was shared in most posts/articles I read in relation to not only that chart but others as well. Nice to have some of these good anecdotes though.
polymorphself is offline
Old 10-05-21, 07:33 PM
  #21
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,707

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 477 Times in 297 Posts
Originally Posted by panzerwagon View Post
That Sheldon Brown chart has always appeared far too conservative, and seemingly at odds with how some new bicycles were specified back in the day.
^^ This. Also, DorkDisk , dddd and a couple of others.
There is a wealth of information on the Sheldon site, and BF, but it seems to have a big blind spot in that there actually were high-performance 26" MTB's back in the 90's, and that, yes, 1.95-2.1" (50-52mm) on 17-19mm rims was the de rigueur setup on XC bikes, which were the predominant form of MTBs in that era.

For those of us who were young enough to have been riding and racing in that era, it's always worth a chuckle when someone worries if 37's are "too wide"
Ironfish653 is offline
Old 10-05-21, 07:36 PM
  #22
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,142

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 985 Times in 540 Posts
I have 35s and 38s on those rims. I love cr18s for the value and I have toured many miles on them.
52telecaster is offline
