Italian bike frame ID

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Italian bike frame ID

Old 10-04-21, 09:24 AM
  #1
chuck mili
Junior Member
Thread Starter

Join Date: Sep 2021
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 4 Times in 4 Posts

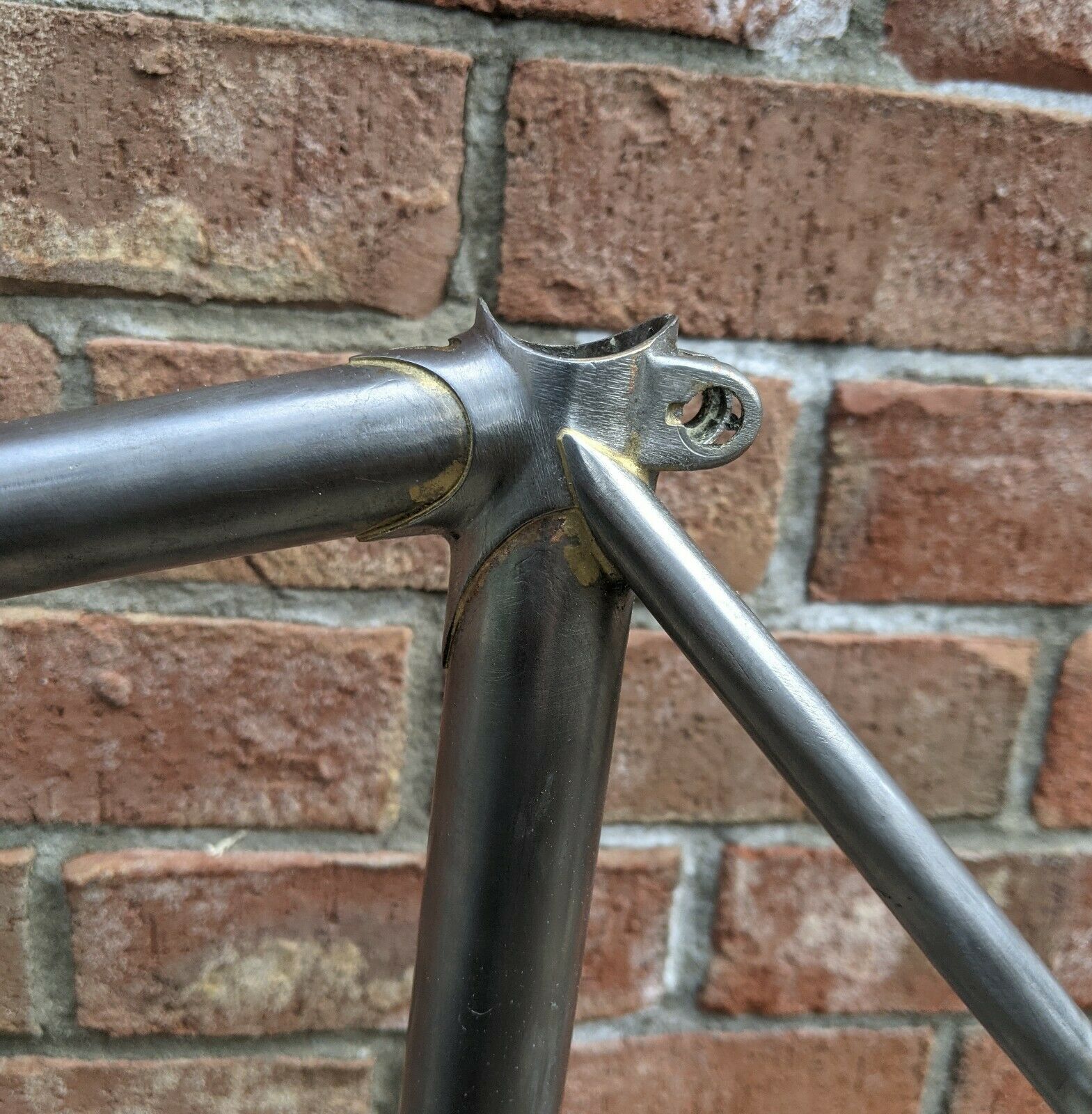

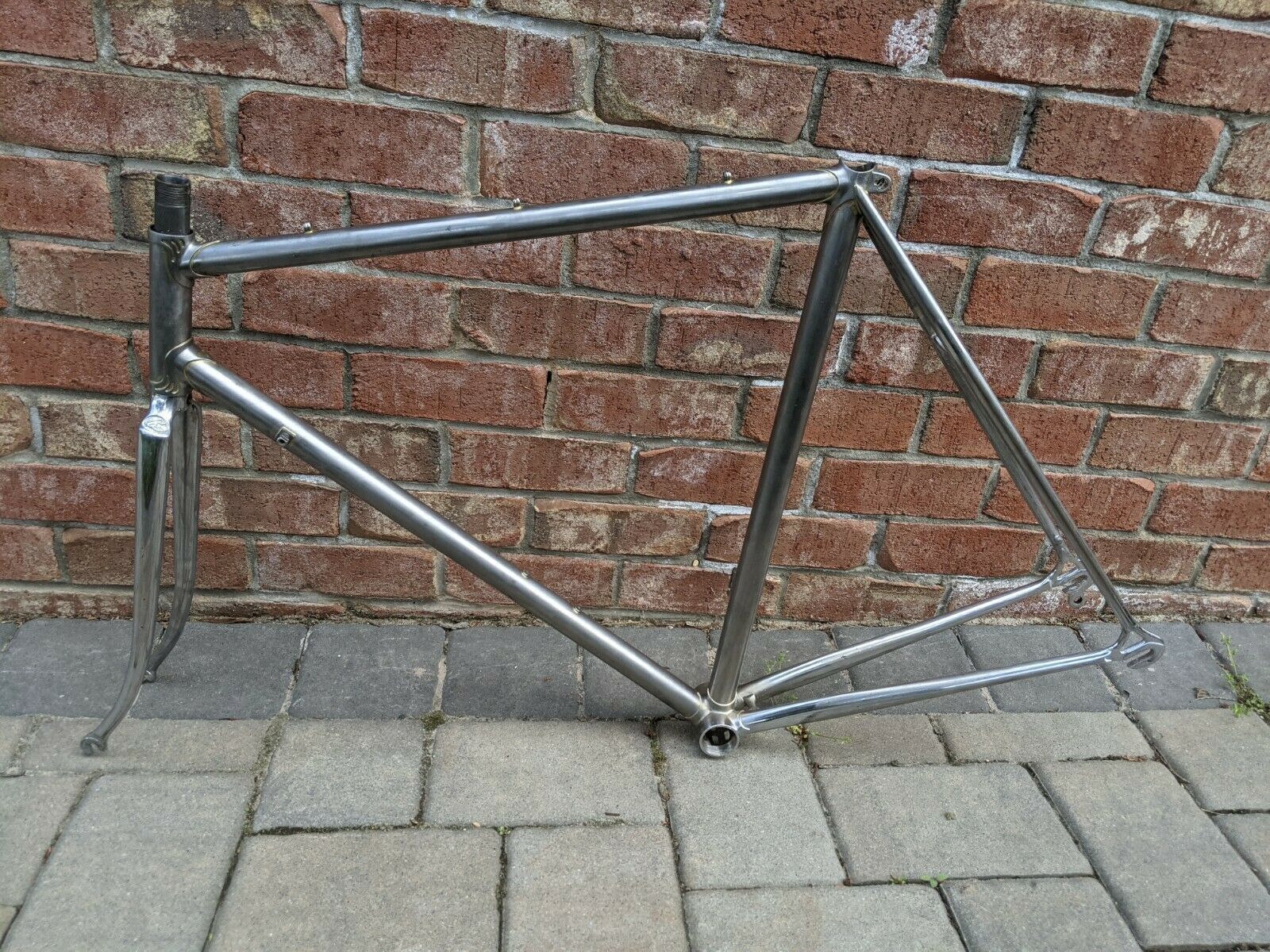

Italian bike frame ID

Hey! can anyone help identify this frame? italian bottom bracket, cinelli rear brake mount...some unique head tube lugs....steel with a bit of chrome. also has a little chain mount at the back
got it as a fun paint project but hate to put the wrong decals






chuck mili is offline
Old 10-04-21, 10:21 AM
  #2
fabiofarelli
Full Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 464

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 609 Times in 232 Posts

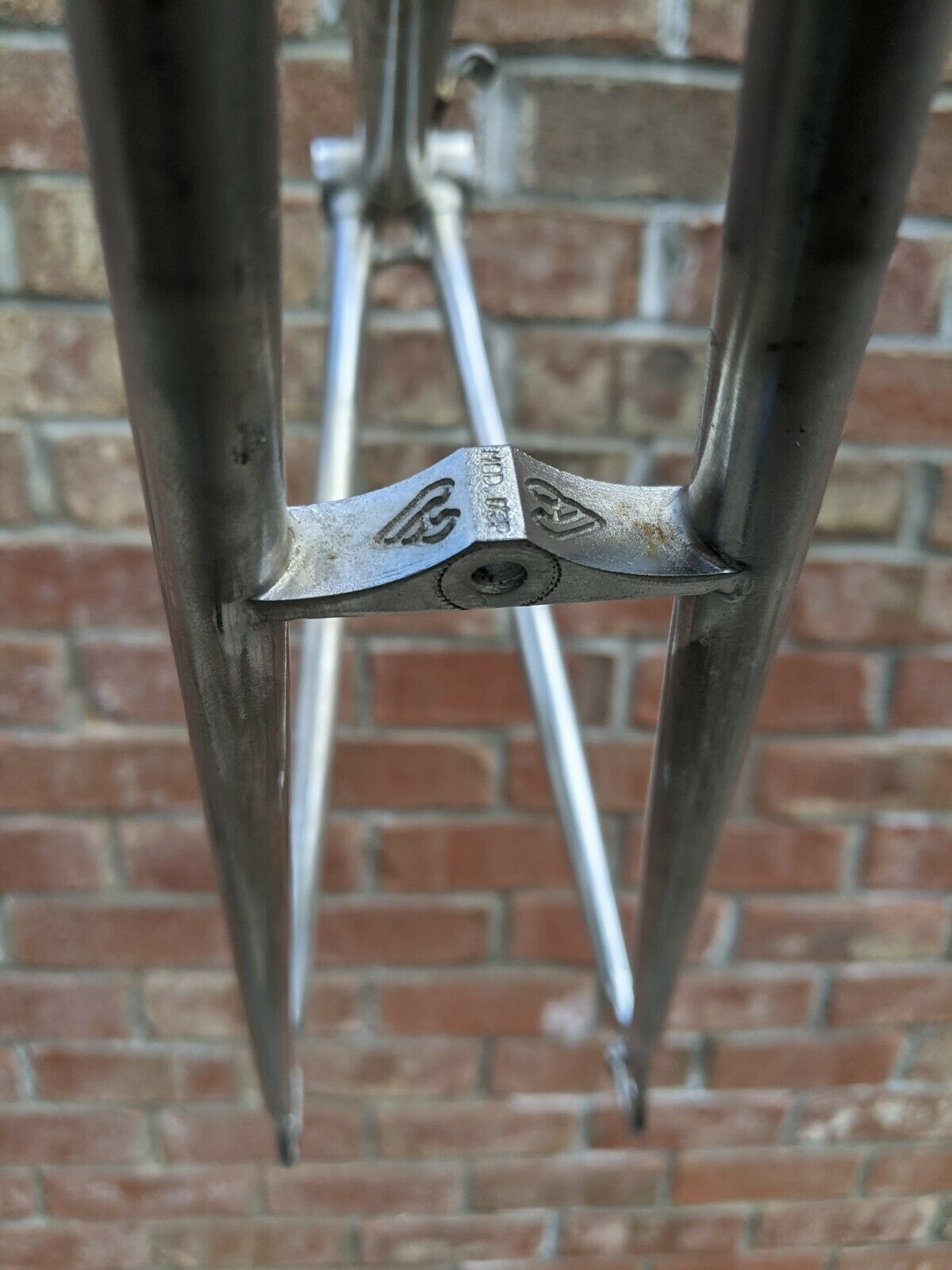

Cinelli, at least the fork and the bridge.

Last edited by fabiofarelli; 10-04-21 at 10:30 AM.
fabiofarelli is offline
Old 10-04-21, 10:46 AM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,923
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 985 Post(s)
Liked 503 Times in 412 Posts
Originally Posted by fabiofarelli View Post
Cinelli, at least the fork and the bridge.

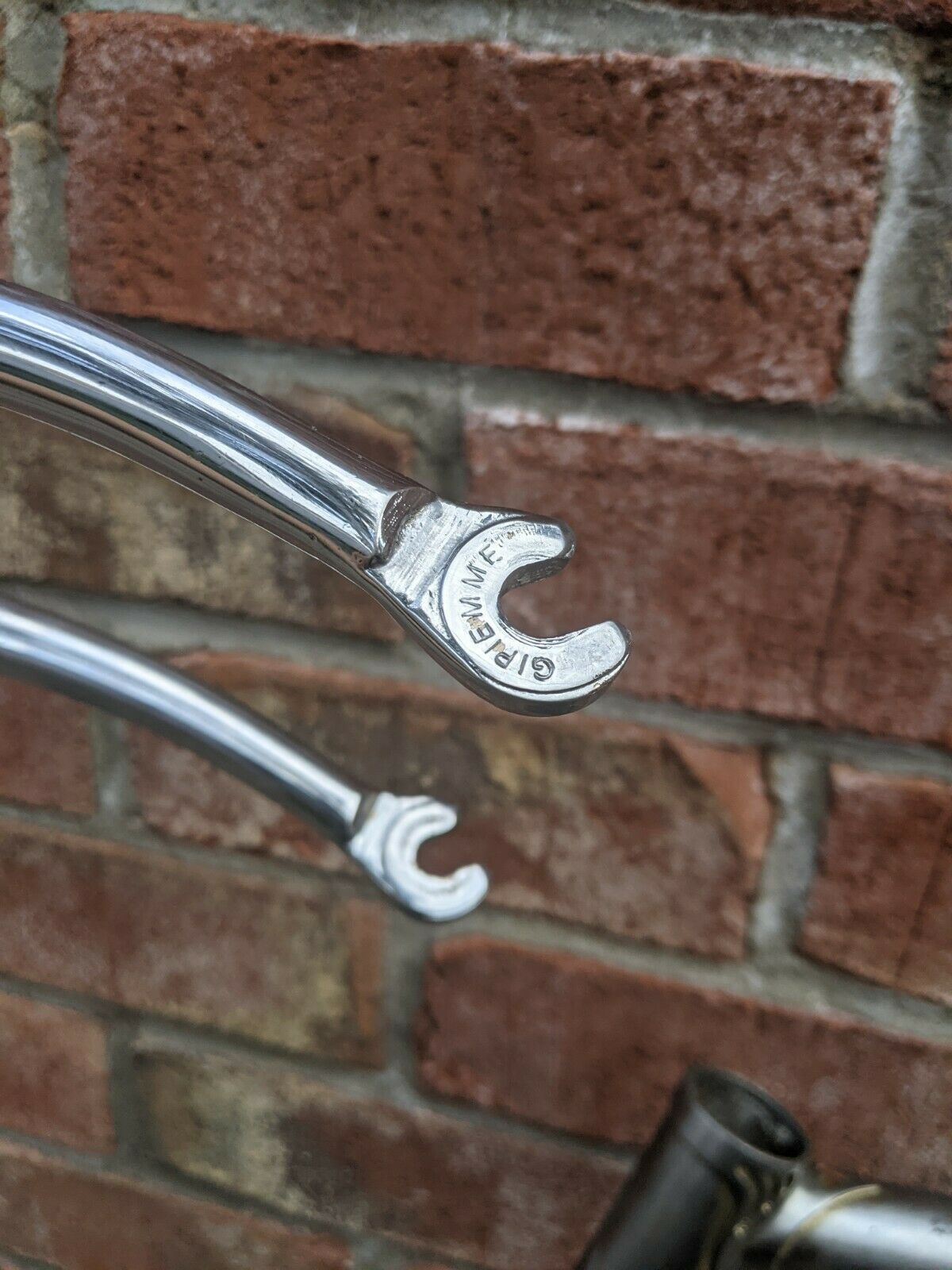

In this case I think those marks only ID the frame bits (fork crown and brake bridge) as made by Cinelli/Columbo in the "flying C" logo era, not the frame's marque. The BB shell for example is not a Cinelli, and the fork tips (and presumably the DOs) are GPM.

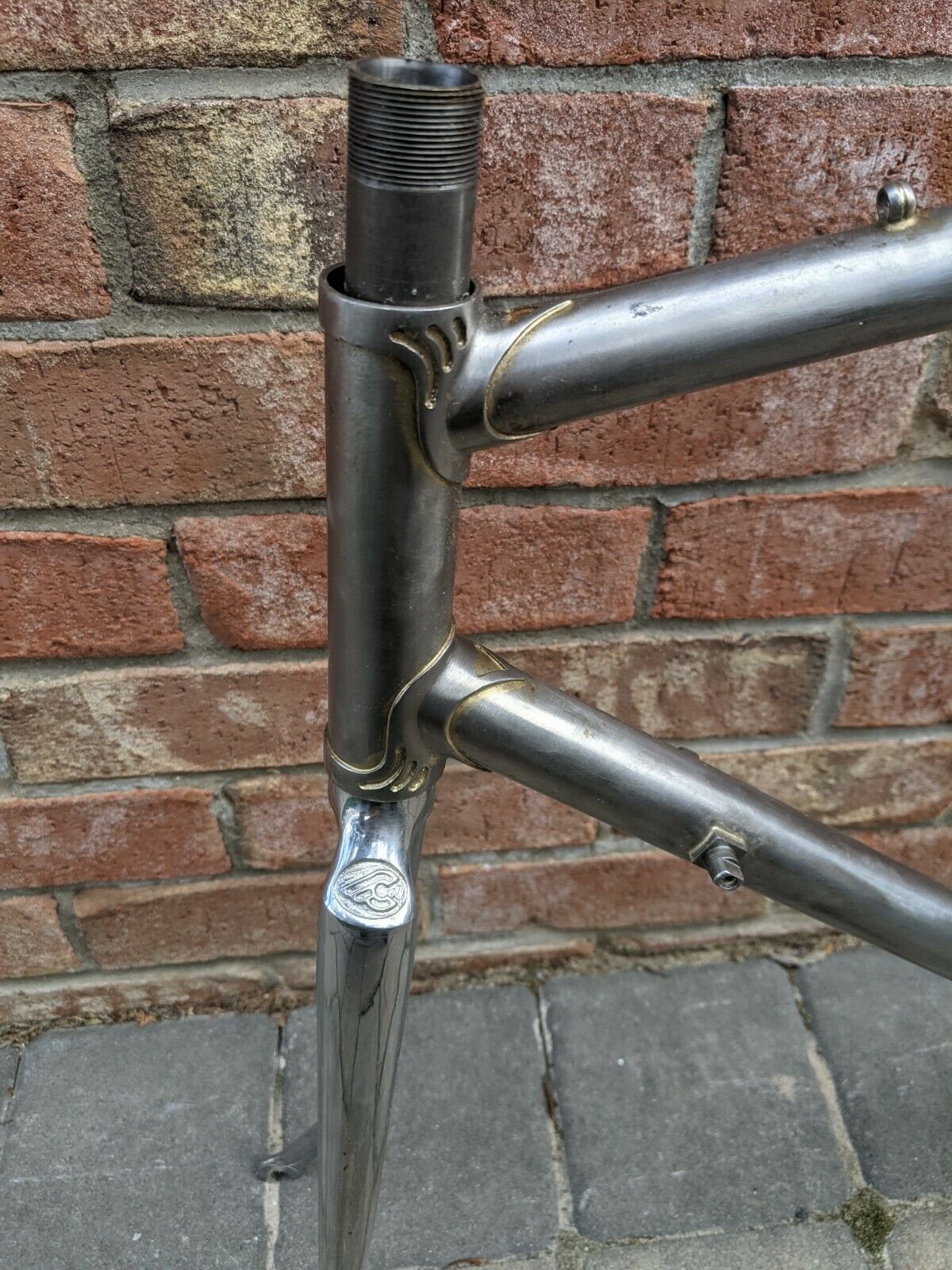

Those head lugs with triple curves are the best clue as to maker but they are not "speaking to me", maybe MauriceMoss will take an interest, bet he can nail this!
unworthy1 is offline
Likes For unworthy1:
Old 10-04-21, 10:54 AM
  #4
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,458

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1420 Post(s)
Liked 1,323 Times in 917 Posts
Sort of surprised by t he GPM drops for such a fine frame. Distinctive headlugs there.

That is a really nicely made frame.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Likes For jdawginsc:
Old 10-04-21, 10:56 AM
  #5
fabiofarelli
Full Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 464

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 609 Times in 232 Posts
Originally Posted by unworthy1 View Post
In this case I think those marks only ID the frame bits (fork crown and brake bridge) as made by Cinelli/Columbo in the "flying C" logo era, not the frame's marque. The BB shell for example is not a Cinelli, and the fork tips (and presumably the DOs) are GPM.
Those head lugs with triple curves are the best clue as to maker but they are not "speaking to me", maybe MauriceMoss will take an interest, bet he can nail this!
I agree with you.
fabiofarelli is offline
Likes For fabiofarelli:
Old 10-08-21, 09:01 PM
  #6
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts
This looks like a Vetta (the Taverna family of Padova and not the company that made computers, saddles, etc.).

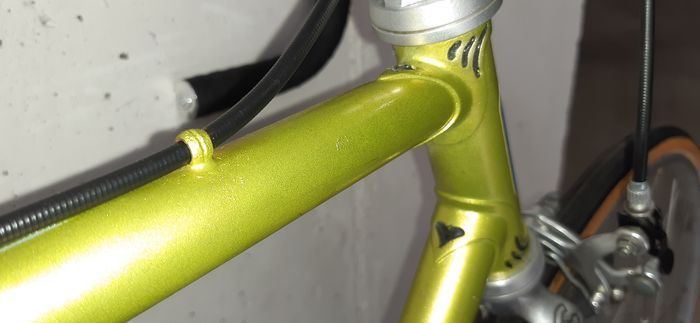

Vetta used those curved lug cutouts most frequently, although you'll find some with 3 straight lines (both horizontal and vertical).

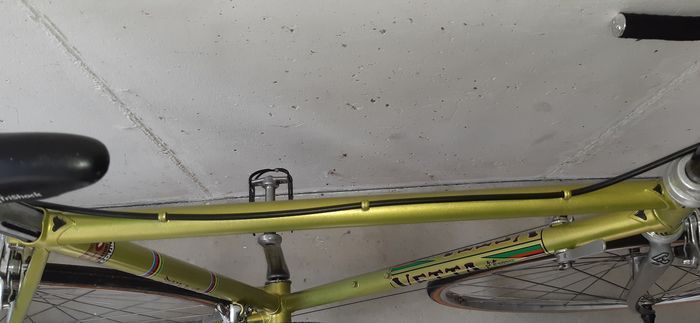

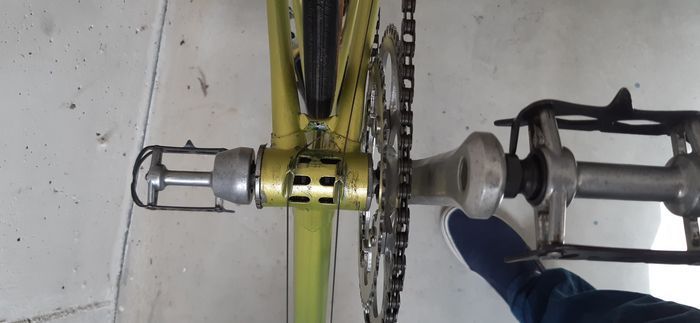

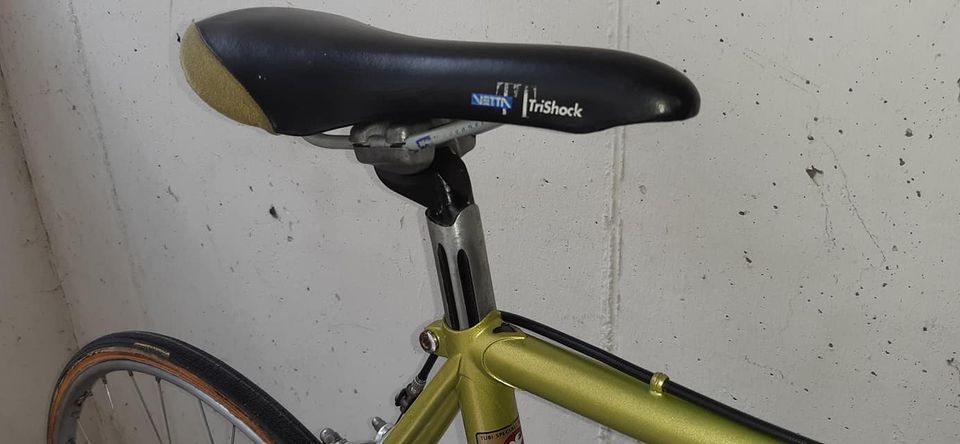

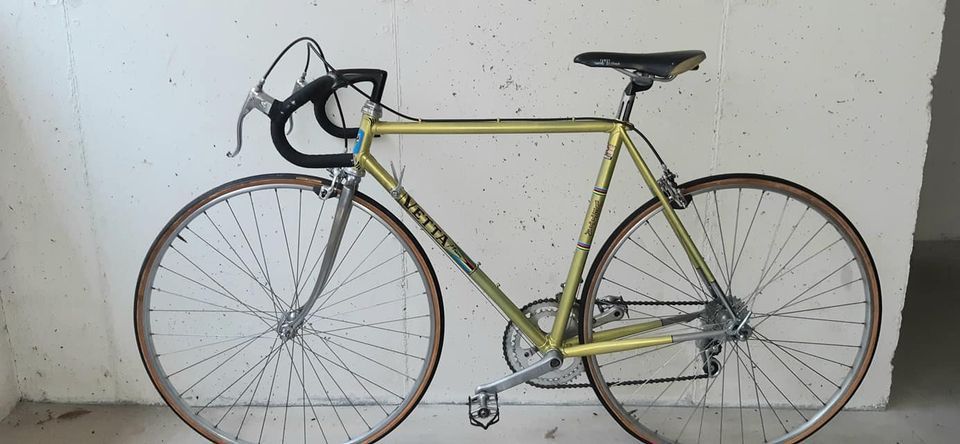

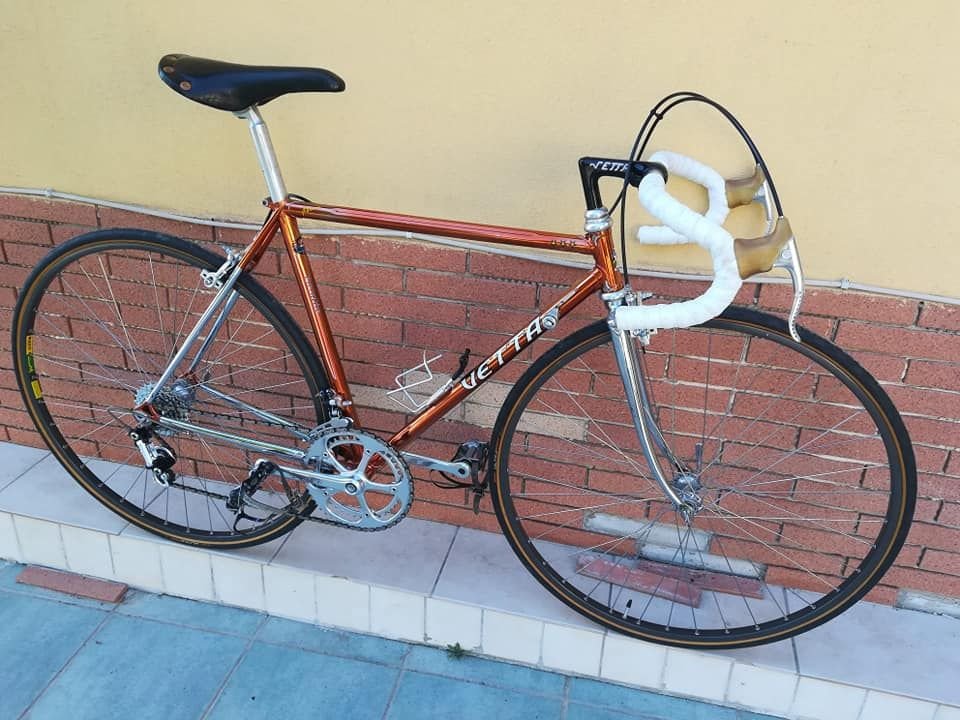

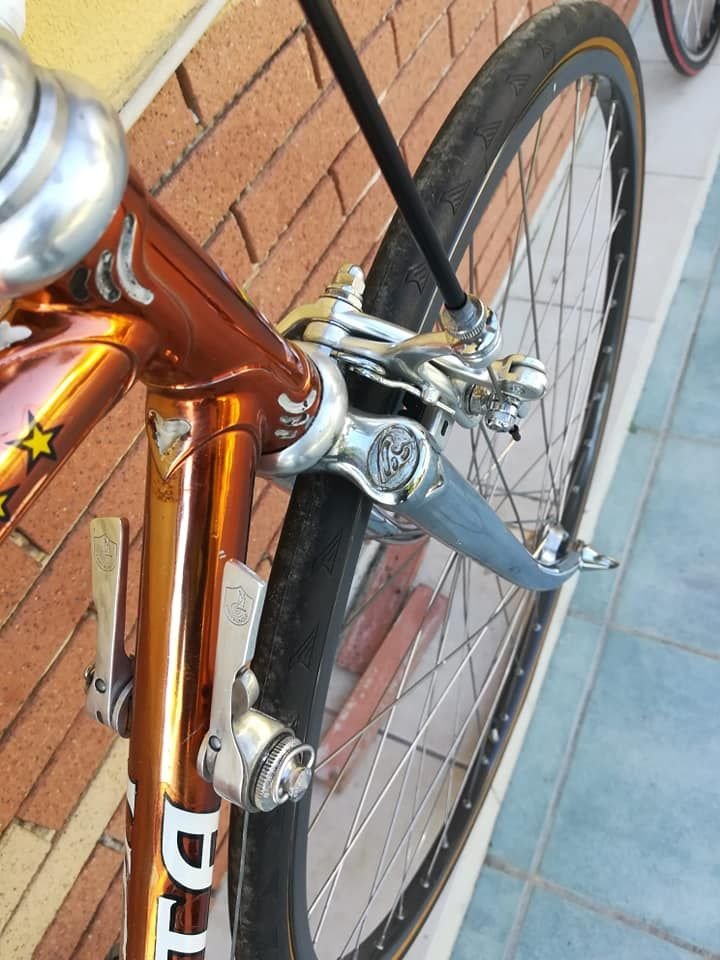

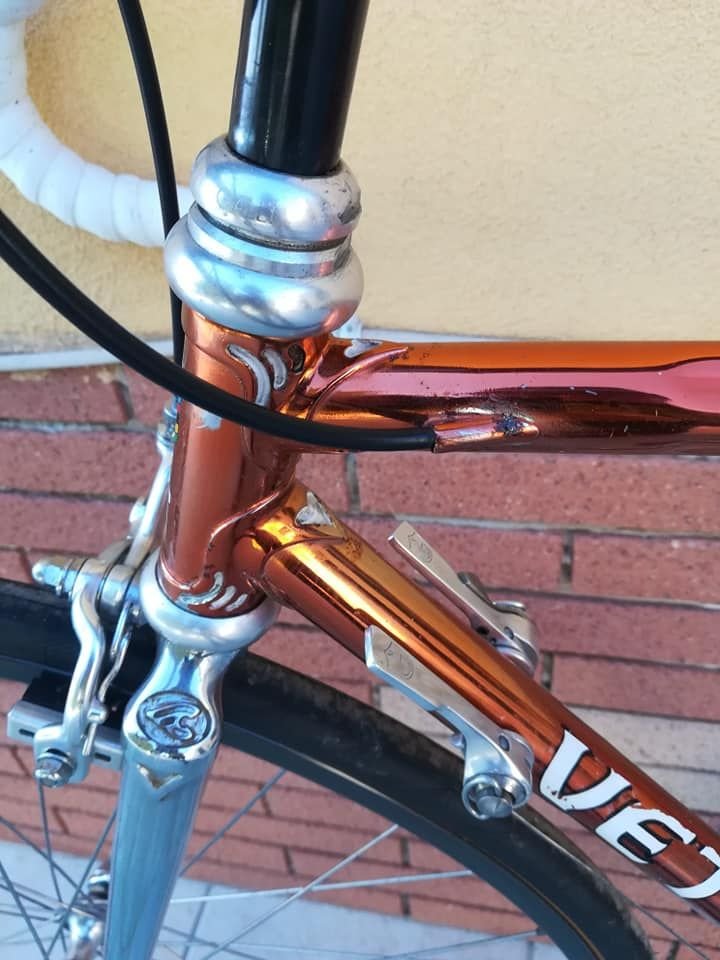

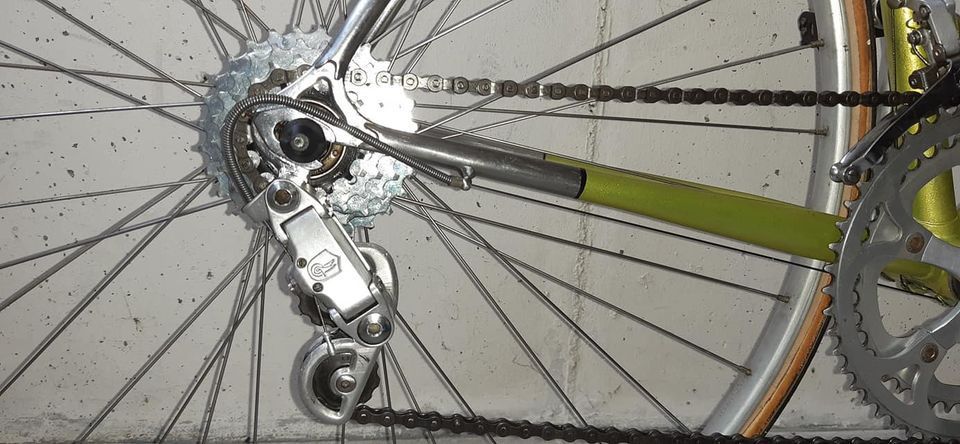

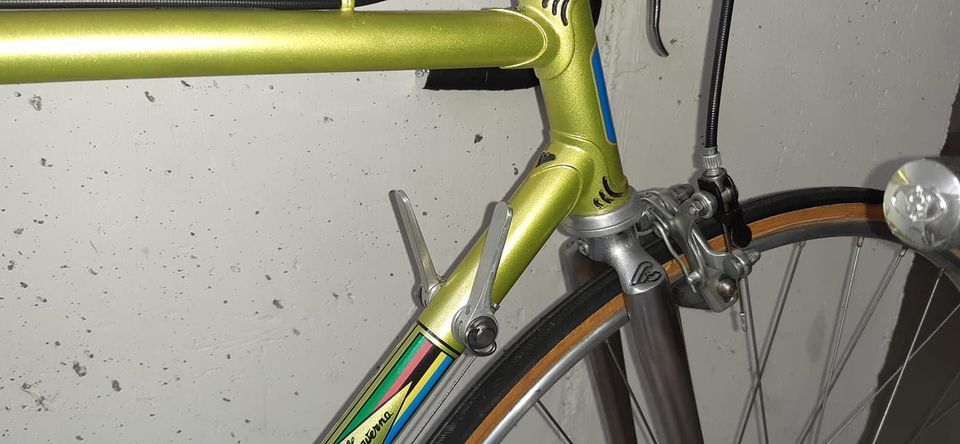

Here's a couple of examples:



























As to what the mystery frame looked like originally, it would be impossible to say. Vetta did so many contract builds for a lot of shops and other businesses - it really could have been badged as anything.
MauriceMoss is offline
Old 10-08-21, 11:50 PM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,540
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2443 Post(s)
Liked 1,372 Times in 1,031 Posts
I think Vetta as well. A few Motta frames looked this way too.

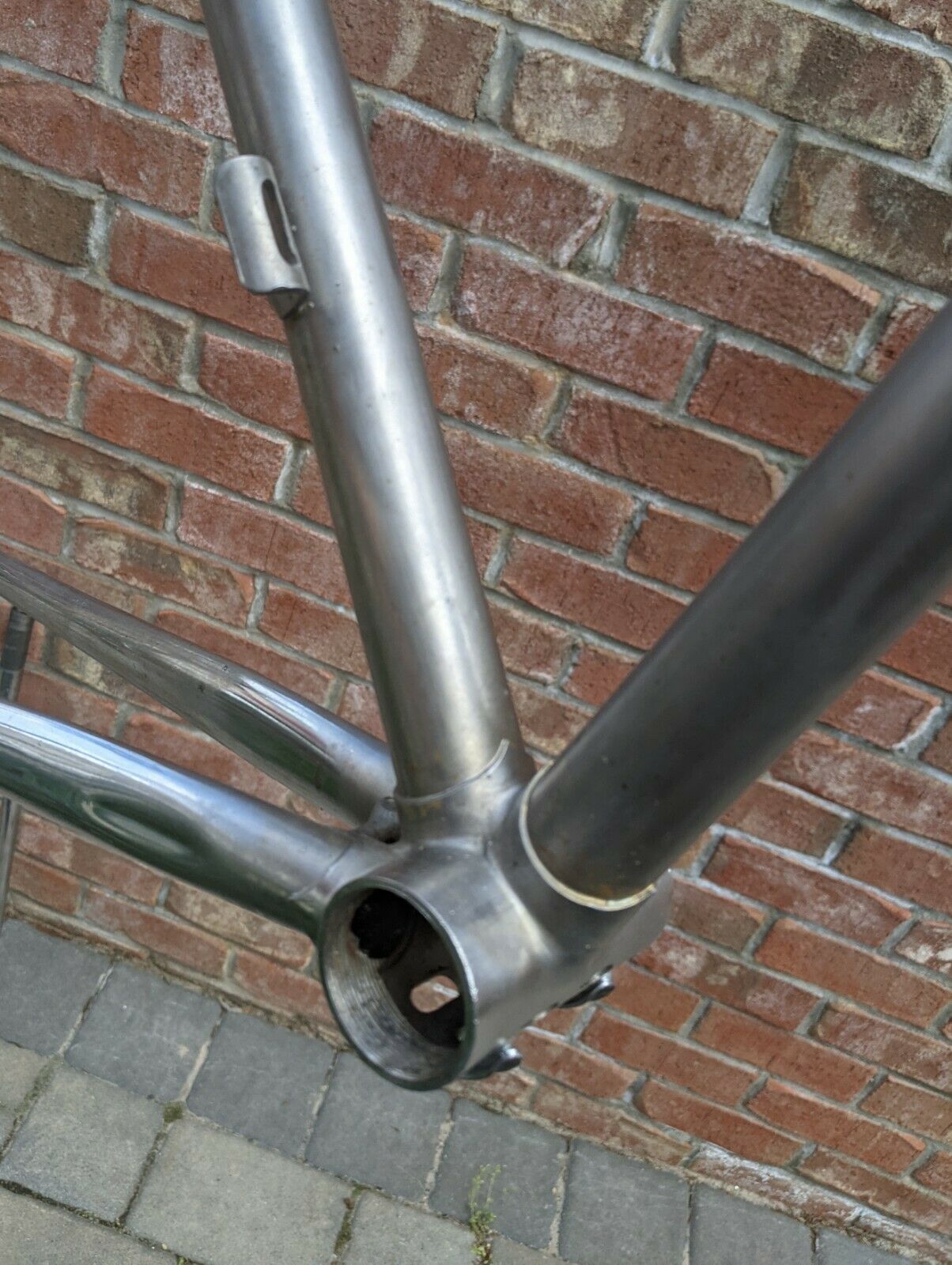

what I would do though is ditch the stamped front derailleur braze on.
they flexed way too much.
have it exchanged with one of the investment cast units that came out shortly after braze on mounts were a thing.
this bike is also probably SL - even a better reason to go with an investment cast part that wraps around the tube more, stiffens it up.
repechage is offline
Likes For repechage:
Old 12-27-21, 09:43 AM
  #8
chuck mili
Junior Member
Thread Starter

Join Date: Sep 2021
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 4 Times in 4 Posts
Just finishes painting this one



Came out nice (:

Last edited by chuck mili; 01-03-22 at 01:48 AM.
chuck mili is offline
Likes For chuck mili:
