French eccentricities, what can I expect?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

French eccentricities, what can I expect?

Old 10-05-21, 12:34 PM
  #1
The Trashman
Member
Thread Starter

Join Date: Aug 2021
Location: New Hampshire
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 6 Times in 4 Posts
French eccentricities, what can I expect?

I found a UO-10 recently, and was already aware of some of the oddities the French engaged in, but am less than enthused to find out that extends to needing $40+ specialty crank pullers.
I am aware of the potential of reverse threaded bottom brackets, odd seat post/stem diameters, french threaded pedals, what other oddities did they engage in that might cause potential issues or other inconveniences? I've noticed some smaller things, like the ball end straddle wires, the brake adjustments on the brakes.
The badge ~1980 from the chart I saw, and the strong light cranks are the french threading for the remover, (but 9/16-20 threaded pedals), which I read was pre 1982, so it is likely around that age, would it be likely be using the french threaded bottom bracket?
That aside, how do people delete reflectors that have the curved portion to fit the rear tube, can you buy curved spacers, or should I just cut off the curved portion?


Last edited by The Trashman; 10-05-21 at 12:52 PM.
The Trashman is offline
Old 10-05-21, 12:43 PM
  #2
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,826

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1982 Post(s)
Liked 2,332 Times in 1,268 Posts
I would guess only the headset is French. Leave the BB fixed up in place, and you won't have to worry about the bb threading. Pedals are standard. Just start tearing it down and see what works and what doesn't.
SurferRosa is offline
Likes For SurferRosa:
Old 10-05-21, 01:06 PM
  #3
Senior Ryder 00
Old bikes, Older guy

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 596

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 51 Times in 39 Posts
If you have to service the BB, try your LBS or co-op/bike kitchen if there’s one nearby. They should pull the arms for a small fee. At the co-op where I volunteer, we would do it for no charge in hopes that you would come back to buy stuff.
Cheers,
Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Old 10-05-21, 01:11 PM
  #4
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 7,669

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 2202 Post(s)
Liked 1,144 Times in 836 Posts
If you remove the reflector brackets you can find nesting pads for the front and the rear. The curvature is slightly different from one to the other, but you can probably just use flat washers or nothing at all. Your bike is late enough that the Frenchness of stuff is unlikely to pose many problems. Have fun!
thumpism is offline
Old 10-05-21, 03:48 PM
  #5
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,930
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Liked 524 Times in 342 Posts
Likely Swiss threading on the bottom bracket, removes like English.
Mr. 66 is offline
Likes For Mr. 66:
Old 10-05-21, 04:33 PM
  #6
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 648

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Liked 179 Times in 98 Posts
I have been working on an 83 UO14 and consider myself still a French virgin. Mostly standard stuff on the 83, and sounds like on yours too. Luckily the 76 Motobecane I got at the same time is lower end so I won’t get my French introduction there either. Good luck though.
sd5782 is online now
Old 10-05-21, 04:50 PM
  #7
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,594
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 881 Times in 478 Posts
There's most likely a baguette stuffed inside the bottom bracket shell.
P!N20 is offline
Likes For P!N20:
Old 10-05-21, 05:38 PM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,103

Bikes: old ones

Mentioned: 285 Post(s)
Tagged: 0 Thread(s)
Quoted: 22325 Post(s)
Liked 5,385 Times in 3,914 Posts
Originally Posted by Mr. 66 View Post
Likely Swiss threading on the bottom bracket, removes like English.
...Peugeot used Swiss threading ? I can see why people get discouraged by them.
3alarmer is offline
Old 10-05-21, 05:45 PM
  #9
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,103

Bikes: old ones

Mentioned: 285 Post(s)
Tagged: 0 Thread(s)
Quoted: 22325 Post(s)
Liked 5,385 Times in 3,914 Posts
.
...hard to tell about the BB threading, but by the time they made that one, it was not quite so idiosyncratic as their 70's bikes.
Rejoice in the fact that by the 1980's, the vast majority of the components on them were reusable, and longer lasting.

It's a glorious vintage for Peugeot, and it was created not too long before the end of such things.

3alarmer is offline
Likes For 3alarmer:
Old 10-05-21, 06:16 PM
  #10
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,575
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Likes: 0
Liked 319 Times in 230 Posts

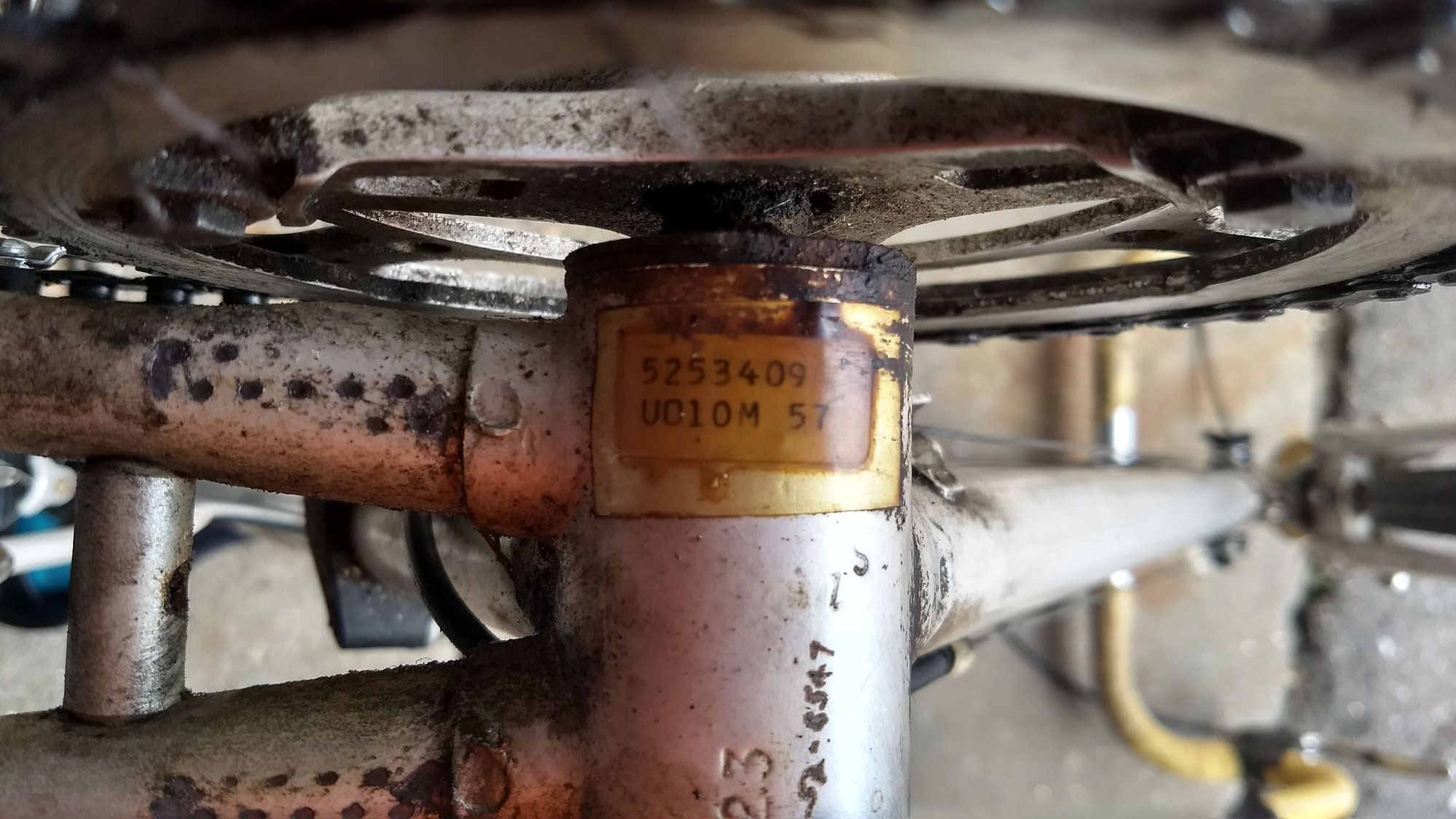

Per the label under the BB, it is a UO10 in size 57 cm.
The BB could either be French or Swiss, so be careful if you want to take off the fixed cup, as they will be threaded opposite from each other. You can determine the fixed cup threading by removing the easier to remove, non drive side cup and looking into the BB. The direction of the BB shell threads should be visible.

Last edited by Chombi1; 10-05-21 at 06:20 PM.
Chombi1 is offline
Old 10-05-21, 06:46 PM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,116

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1779 Post(s)
Liked 1,488 Times in 946 Posts
Originally Posted by The Trashman View Post
That aside, how do people delete reflectors that have the curved portion to fit the rear tube, can you buy curved spacers, or should I just cut off the curved portion?
Probably gets some at a coop or LBS as well.
​​​​​​https://www.ebay.com/p/1300003583
dedhed is offline
Old 10-05-21, 07:25 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,043

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2769 Post(s)
Liked 1,538 Times in 950 Posts
Originally Posted by Chombi1 View Post
The BB could either be French or Swiss, so be careful if you want to take off the fixed cup, as they will be threaded opposite from each other. You can determine the fixed cup threading by removing the easier to remove, non drive side cup and looking into the BB. The direction of the BB shell threads should be visible.
There may be marks on the fixed cup face that indicate whether French or Swiss thread.
JohnDThompson is offline
Likes For JohnDThompson:
Old 10-05-21, 07:57 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,575
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1268 Post(s)
Likes: 0
Liked 319 Times in 230 Posts
Originally Posted by JohnDThompson View Post
There may be marks on the fixed cup face that indicate whether French or Swiss thread.
Marks are inconsistent though, Companies marked them differently and some do not mark them at all, like on many mid to lower end Peugeots.. Surest way to find out is looking into the BB.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 10-06-21, 06:46 AM
  #14
Krov9
Senior Member

Krov9's Avatar

Join Date: Mar 2021
Location: Helsinki, Finland
Posts: 81
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 16 Times in 11 Posts
Slightly off topic, does the lug design tell anything about which standards a particular Peugeot model has? Looking at one 70's aztec/pyramid style specimen
Krov9 is online now
Old 10-06-21, 09:50 AM
  #15
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,103

Bikes: old ones

Mentioned: 285 Post(s)
Tagged: 0 Thread(s)
Quoted: 22325 Post(s)
Liked 5,385 Times in 3,914 Posts
Originally Posted by Krov9 View Post
Slightly off topic, does the lug design tell anything about which standards a particular Peugeot model has? Looking at one 70's aztec/pyramid style specimen

...AFAIK, the Aztec lugged Peugeots were all fully French. BB threading, tubing diameters, steerer, pedal threading, etc. were all French metric.
3alarmer is offline
Old 10-06-21, 11:38 AM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,211

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 1143 Post(s)
Liked 607 Times in 429 Posts
I'm confident that the OP's example is from 1979 or 1980.

Expect a reverse-threaded drive-side bb cup (either English or Swiss, I don't know). The original BB parts should be well made and durable, but use 11 balls for even better longevity.

Crank puller threads are normal here, pullers can be found for under $10.
I would buy one, since it allows you to position the right arm as many times as needed, at home, to find the best of four positions (for truest chainring axis).
I know that I can run through all four spindle positions in just a few minutes, torquing each position to well short of recommended torque before choosing the best one and really tightening.

Thinks like the straddle cables never seem to wear out, so are like any other part of the caliper.

Handlebar stem is likely 22.0 quill and 25.0 clamp, so bar and stem may need to be changed as a pair if the bar or stem has poor rider fit dimensions.

Front derailer will not be long for this world if it has a plastic body, so perhaps best not tighten the clamp screw much, if at all.

I'm still enjoying my same-sized 1979 UO9 Super Sport from this very same period:

Last edited by dddd; 10-06-21 at 11:44 AM.
dddd is offline
Old 10-06-21, 01:25 PM
  #17
The Trashman
Member
Thread Starter

Join Date: Aug 2021
Location: New Hampshire
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 6 Times in 4 Posts
Originally Posted by dddd View Post
I'm confident that the OP's example is from 1979 or 1980.
Crank puller threads are normal here, pullers can be found for under $10.
I would buy one, since it allows you to position the right arm as many times as needed, at home, to find the best of four positions (for truest chainring axis).
I know that I can run through all four spindle positions in just a few minutes, torquing each position to well short of recommended torque before choosing the best one and really tightening.
The crank is definitively the 23.3 stronglight threading, not the standard one.
The Trashman is offline
Likes For The Trashman:
Old 10-06-21, 01:30 PM
  #18
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 640
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 221 Times in 138 Posts
I feel for ya. I can do USA/Japanese bikes in my sleep, no longer up to the challenge of a French bike.
grizzly59 is offline
Old 10-06-21, 01:48 PM
  #19
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,379

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 439 Post(s)
Liked 529 Times in 274 Posts
Originally Posted by SurferRosa View Post
I would guess only the headset is French. Leave the BB fixed up in place, and you won't have to worry about the bb threading. Pedals are standard. Just start tearing it down and see what works and what doesn't.
I'm with SurferRosa. Unless you want to replace the entire BB for some reason, leave the fixed cup alone. It isn't hard to clean and regrease the bearing race with the fixed cup in place, and you can clean up the outside of it as easily on the bike as off.

Besides, if you pull the fixed cup and it is French threaded, you run the risk upon reinstallation of experiencing the self-removing fixed cup phenomenon endemic to French-threaded (and Italian-threaded) fixed cups unless you (a) use blue Loctite and (b) tighten the thing until it screams for mercy and then tighten it a little more. (Do not ask me how I know all this.) Leaving the fixed cup in place means you won't run that risk.

Hey, enough trouble comes into our lives unbidden. Why go looking for more?
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 10-06-21, 03:08 PM
  #20
ironwood
Senior Member

Join Date: Nov 2009
Location: Boston area
Posts: 1,942

Bikes: 1984 Bridgestone 400 1985Univega nouevo sport 650b conversion 1993b'stone RBT 1985 Schwinn Tempo

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked 94 Times in 59 Posts
Stronglight cranks require a Stronglight crank puller, not the standard French puller.
ironwood is offline
Likes For ironwood:
Old 10-06-21, 06:29 PM
  #21
The Trashman
Member
Thread Starter

Join Date: Aug 2021
Location: New Hampshire
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 6 Times in 4 Posts
What models that were sold in the US market are likely to have forged dropouts or 700c wheels, though probably close enough to see some Canadian models down here?
I'm curious since rear stamped dropouts drive me nuts especially since I remove rear wheels so often while working on them, plus the derailleur hangers look ugly. If I need a $45 crank puller, might as well get my use out of it and look for some more over the next few months since I probably won't tear this one down to bearings until next year, just get it clean and workable for now while other projects need to be finished.
There was a green marseille I saw a month or two ago for $50 that was very clean and had forged dropouts, but was too small for me.

Last edited by The Trashman; 10-06-21 at 06:34 PM.
The Trashman is offline
Old 10-06-21, 06:45 PM
  #22
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,007

Bikes: A bunch of old bikes and a few new ones

Mentioned: 164 Post(s)
Tagged: 0 Thread(s)
Quoted: 5312 Post(s)
Liked 1,994 Times in 1,303 Posts
There are a lot of neat French bikes with forged drop outs. Find a top end bike like a Gitane TdF, a Mercier 300, a Peugeot PX 10, a Moto Le Champion, etc. There are plenty of other models (and manufacturers) out there.

French bikes have their oddities and their charms. What's so special about French bikes?

They're cool in an old school way, there are a number of really great old French bikes out there, and they typically don't cost a lot. Plus they're easy to mod to turn them into good bikes for climbing. You live in an area with mountains. The Stronglight 99 crank and the TA crank both are very fine for a bike you want to use to climb with.

Stronglight switched over at one point so that the later ones use a regular puller. The 3 arm stronglight that came on my UO 10 uses a stronglight puller.

Last edited by bikemig; 10-06-21 at 06:49 PM.
bikemig is offline
Old 10-06-21, 07:29 PM
  #23
The Trashman
Member
Thread Starter

Join Date: Aug 2021
Location: New Hampshire
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 6 Times in 4 Posts
Not any mountains I'd be getting to in biking distance, but I certainly wouldn't mind having a 30t gear like I see on the stronglight you mention. Endgame I would like to build up a gravel capable bike, but I have no frames I feel like using for that end. Something with forged dropout/derailleur hanger,ligher frame set, braze ons for cages, the mafac brakes look like they'd reach far enough down if going from a 27 to a 700c, the 30T option on the crank would help with the overall looks since it wouldn't need as large of a rear cassette.
Though it's somewhat meaningless to talk little details since I buy whatever is cheap enough to lull me into a sense of it being a cheap project and looks interesting.
The Trashman is offline
Old 10-06-21, 07:57 PM
  #24
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,837
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 489 Times in 377 Posts
Originally Posted by JohnDThompson View Post
There may be marks on the fixed cup face that indicate whether French or Swiss thread.
This. OP's bike is in the crossover period of French/Swiss (79-81, +/- 1yr), but even if Swiss, just don't take off the fixed cup, and there's nothing to worry about. It's a no-brainer. I'd be shocked if the races of those cups were pitted. Possible, but doubted. Damn things were pretty stout by the late 70s.

Typically speaking, for this specific transitional era, whether NERVAR or Stronglight BB, if the edges and the face of the fixed cup are perfectly smooth, it's nearly always French**. If any of the following three are true, it's typically Swiss: Fixed cup is bronze/yellowish in color when cleaned, there's a line embossed around the entire circumference edge of the fixed cup, or there's an embossed line circling the hole in the fixed cup.
.
**Sometimes the bronze-yellow tinting on the metal fades and is almost undetectable until you hold it next to a Campy cup.
.
YMMV, but I've found one exception to the rule above, and I'm not convinced what I was seeing was actually stock, unmolested.

But really, going back to the 1st paragraph, just don't mess w/the fixed cup. With how low-end this bike is, there's not much reason to replace the BB, and if you need a replacement spindle because it's pitted to hell or you want to go single/triple, I may be able to recommend a few NOS replacements you should still be able to get fairly cheap.

French isn't that hard. People make it a much bigger deal than it really is. The biggest PITA for me is models requiring a 22.0 quill stem, which may be the case with this one.
__________________
███████████████

francophile is offline
Old 10-06-21, 08:07 PM
  #25
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,043

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2769 Post(s)
Liked 1,538 Times in 950 Posts
Originally Posted by ironwood View Post
Stronglight cranks require a Stronglight crank puller, not the standard French puller.
There is no "standard French puller." Stronglight, the inventor of the square-taper cotterless crank, used a 23.35mm diameter extractor thread. Why 23.35mm? Who knows? Maybe Stronglight got a great price on 16mm mounting bolts and calculated that 23.35mm would allow clearance for a typical 16mm socket wrench. What's harder to explain is why Zeus, which also used 16mm mounting bolts, used a 22mm diameter extractor thread, requiring a particularly thin-walled socket to remove the bolts. But TA (also a French crank manufacturer), used a 23.0mm extractor thread, with 15mm mounting bolts. And Nervar, another French crank manufacturer, used the by then widespread 22mm extractor thread diameter with 15mm mounting bolts. By 1982, even Stronglight had converted to using 22mm diameter extractor thread, with 14mm mounting bolts.
JohnDThompson is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
