Rebuilding my 1972 "LUPO" #221

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Rebuilding my 1972 "LUPO" #221

Old 10-11-21, 11:29 AM
  #26
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Originally Posted by satbuilder View Post
I have been looking for a Lupo frame in my size for a while. They are hard to come by.

A couple years ago I was fortunate enough to get a bike built by one of his acquaintances, Umberto Marnati. It is noticeably lighter for its size than other bicycles I have from the same era.
Except for one guy I met on the forum here, never heard of or have seen another Lupo. As mine is SN 221 clearly they were not common.
mdsalemi is offline
Old 10-11-21, 11:42 AM
  #27
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Cleaning the components

As mentioned in the first posting in this thread, back in the mid 1970s, "before it was cool", my brother and I decided to have all of our "alloy" components black anodized. This was before things like this were offered from the manufacturers. Well, it was cool until everyone was doing it. But, no matter, it looked great for many years. Like many coatings however, it wore off, aged off, faded and the like. So as part of this go around, I've de-anodized the components.

De-anodizing is not a perfect science. It's a combination of various dips and sprays with caustics (such as Oil Eater, or ZEP Purple degreasers) followed by acid sprays (Meguiars Chrome Wheel cleaner, with phosphoric acid and ammonium biflouride). Some mechanical action with scrubby pads and brushes.

So far, got the chainring set, Cinelli stem, and one brake done. I have one last brake to do, and then the cages on the Weyless pedals. Those are proving to be quite troublesome; only about 80% of the anodizing is coming off. I may have to come up with a plan B. No I don't yet have a plan B.

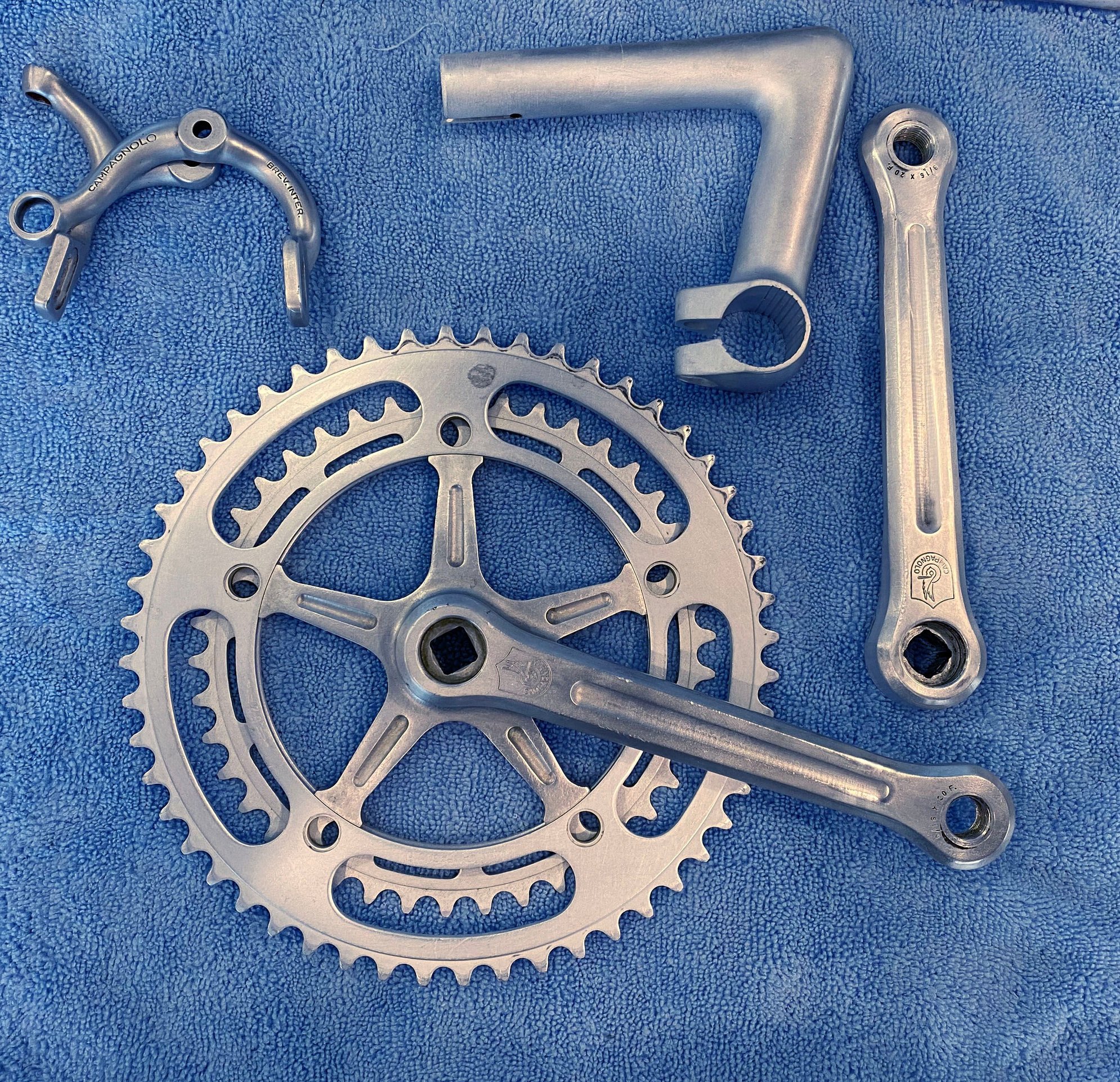

De-Anodized components
mdsalemi is offline
Old 10-11-21, 12:23 PM
  #28
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,552
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2449 Post(s)
Liked 1,377 Times in 1,036 Posts
looked up jasco anodizing remover, seems to be discontinued.

If you google removing anodizing, there are a number of strategies. there is a thread in the BMX museum forum on the subject.

Easy-off oven cleaner was good, but in California... not now.
repechage is offline
Old 10-11-21, 08:01 PM
  #29
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,401

Bikes: A few

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 101 Times in 57 Posts
Originally Posted by mdsalemi View Post
Except for one guy I met on the forum here, never heard of or have seen another Lupo. As mine is SN 221 clearly they were not common.
Michael Gamstetter has a blog with an entry concerning Lupo Mascheroni and his bikes.
https://fortyfour16.wordpress.com/gi...t-ive-learned/
satbuilder is offline
Old 10-11-21, 09:21 PM
  #30
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,489

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3258 Post(s)
Liked 3,148 Times in 1,969 Posts
@mdsalemi

De-anodizing is not a perfect science. It's a combination of various dips and sprays with caustics (such as Oil Eater, or ZEP Purple degreasers) followed by acid sprays (Meguiars Chrome Wheel cleaner, with phosphoric acid and ammonium biflouride). Some mechanical action with scrubby pads and brushes.

So far, got the chainring set, Cinelli stem, and one brake done. I have one last brake to do, and then the cages on the Weyless pedals. Those are proving to be quite troublesome; only about 80% of the anodizing is coming off. I may have to come up with a plan B. No I don't yet have a plan B.


De-Anodized components [/QUOTE]

I use industrial strength drain cleaner from HD, proceed with extreme caution, sometimes goes too fast, sometimes works just right.

Dip and soak for a few minutes then dip in plain water, scrub with plain sturdy rag and brass bristle brush if needed, repeat as necessary, again, proceed with caution.

Last edited by merziac; 10-11-21 at 09:25 PM.
merziac is online now
Old 10-12-21, 05:02 AM
  #31
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Originally Posted by satbuilder View Post
Michael Gamstetter has a blog with an entry concerning Lupo Mascheroni and his bikes.
https://fortyfour16.wordpress.com/gi...t-ive-learned/
Wow—thanks for that! There is a possibility I have a photo taken when either I ordered the bike or picked it up in July 1972. I am going to have to find my box of slides and look through it. That is a great photo in the blog you sent the link to, and I distinctly remember Lupo himself pulling down a bicycle off the hanger and letting me ride around the neighborhood; The signature on the frame was Roger DeVlaeminck.
mdsalemi is offline
Old 10-13-21, 06:58 AM
  #32
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,401

Bikes: A few

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 101 Times in 57 Posts

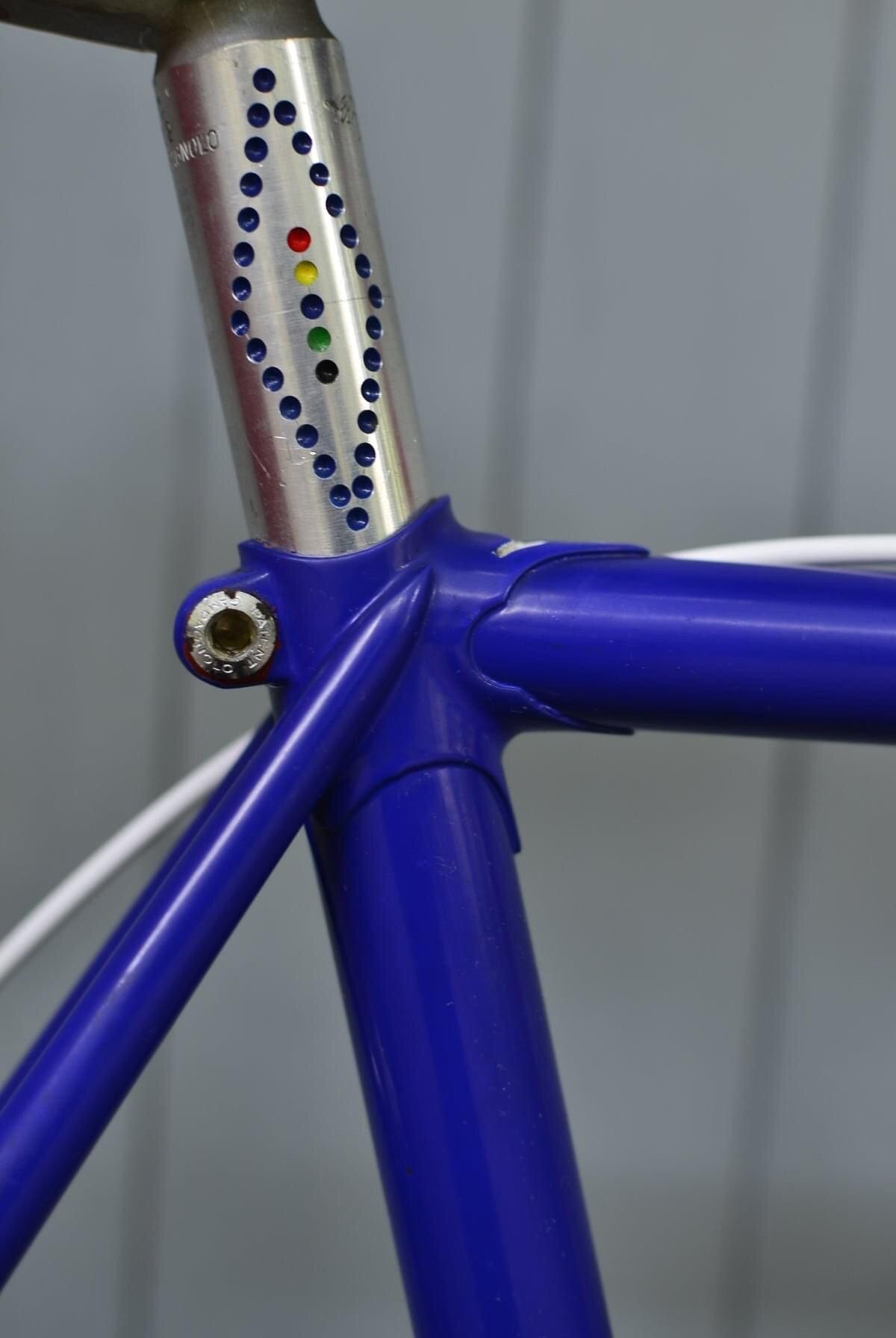

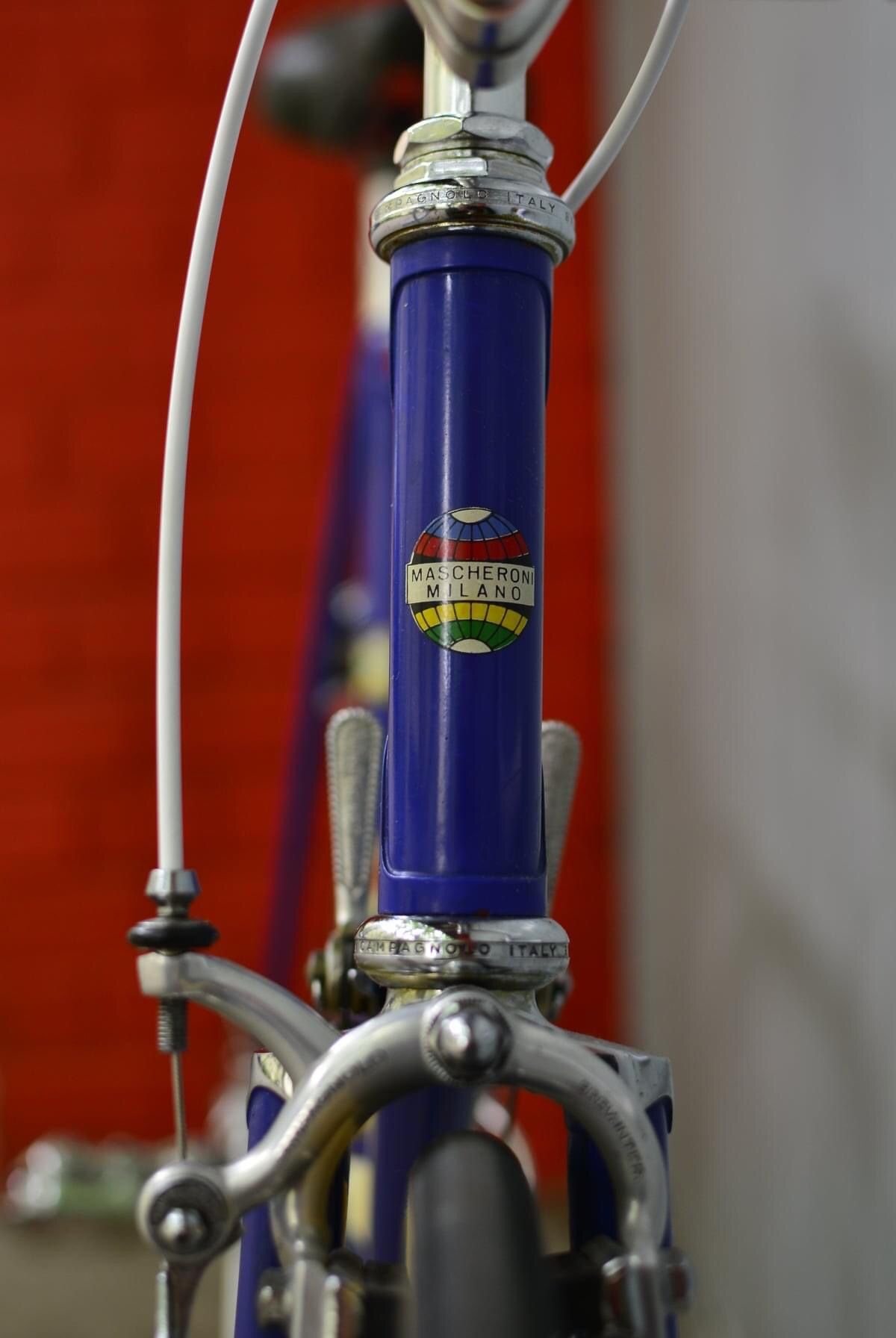

A new thread popped up on the Italian Vintage Bikes Facebook page, with some nice photos of a Lupo.





satbuilder is offline
Old 10-14-21, 04:51 PM
  #33
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Getting it back together…


Work in process

De-anodized crank, back to natural aluminum.

Olympic Rings decal

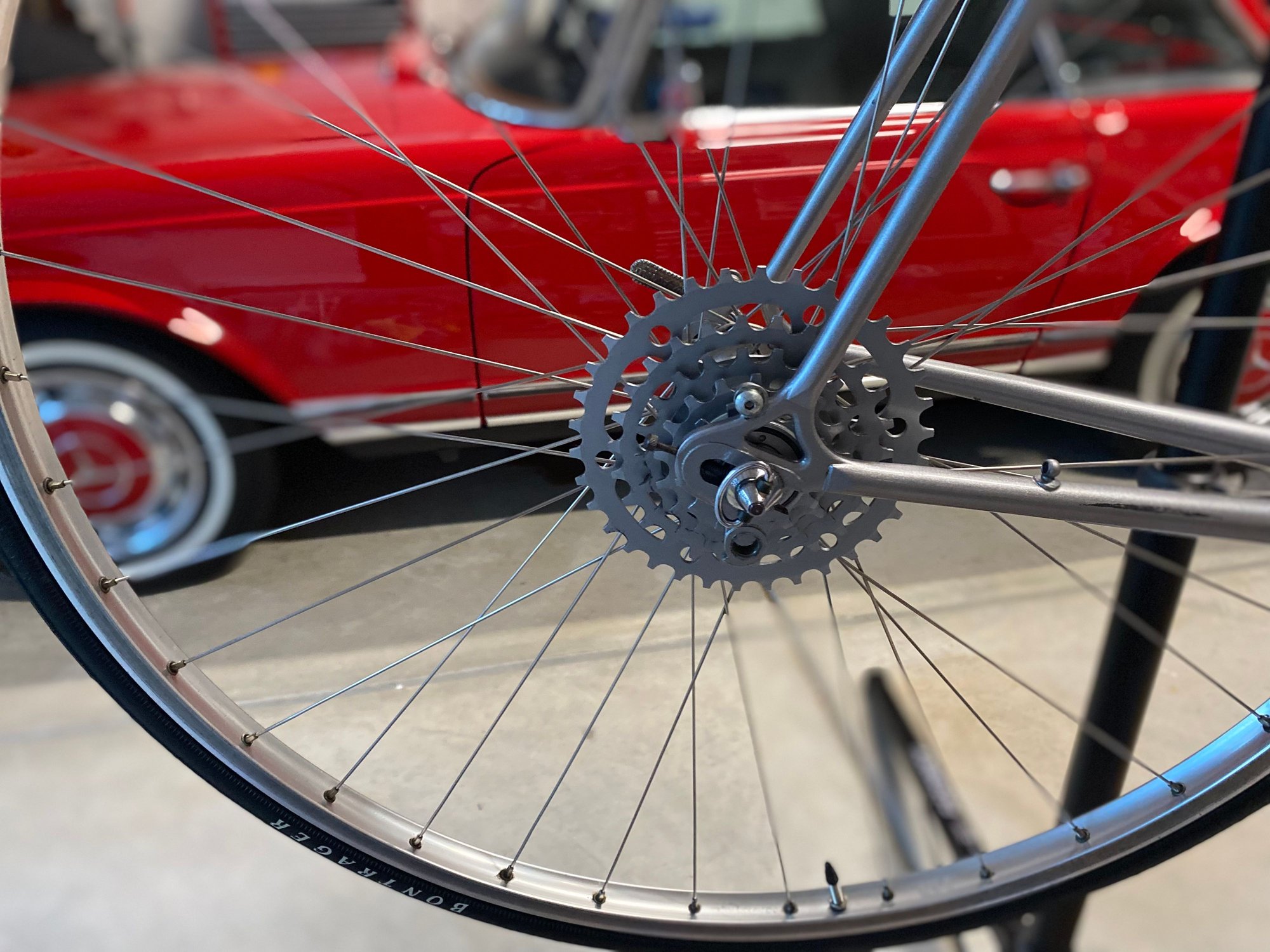

Rear wheel cleaned and re-installed
mdsalemi is offline
Likes For mdsalemi:
Old 10-14-21, 10:20 PM
  #34
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 782

Bikes: You had me at rusty and Italian!!

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 303 Post(s)
Liked 458 Times in 258 Posts
mdsalemi ....Deviation.... that Pagoda-top M-B is AWESOME!!
RustyJames is offline
Old 10-15-21, 06:58 AM
  #35
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,041

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 707 Times in 392 Posts
Originally Posted by RustyJames View Post
mdsalemi ....Deviation.... that Pagoda-top M-B is AWESOME!!
I beg to disagree--- the Suntour Winner wide-range five-speed freewheel is MORE AWESOME!!!!!

Actually, the Lupo is spectacular!
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 10-18-21, 05:36 AM
  #36
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Originally Posted by RustyJames View Post
mdsalemi ....Deviation.... that Pagoda-top M-B is AWESOME!!
Thank you—fully restored 1969 280SL. Been in the family since 1969, I rescued it in 1999, had it restored 1999-2001.
mdsalemi is offline
Likes For mdsalemi:
Old 10-18-21, 08:09 AM
  #37
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Originally Posted by repechage View Post
the difference in rim radius is 4mm. from the appearance of your bike, that should be possible to drop them down 4 mm. As a 1972, short reach (piccolo) calipers did not exist yet.
The bike appears a bit ahead of its contemporaries in tight clearances but not outrageous.
Installed the rebuilt brakes, and the pads are at the top of the adjustment, and perfectly aligned with the rims now. There does appear to be about 4-5mm of drop left in the brake arms...
mdsalemi is offline
Old 10-18-21, 09:42 AM
  #38
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
Originally Posted by pastorbobnlnh View Post
I beg to disagree--- the Suntour Winner wide-range five-speed freewheel is MORE AWESOME!!!!!

Actually, the Lupo is spectacular!
The Suntour wide range freewheel was a good find. At the time I made the change to a wider range, silly me forgot all the things that needed changing! My Nuovo Record rear changer could only handle what, 14-28? I wanted more. So I realized I needed a Rally changer, and found one NOS. Of course I needed a larger freewheel and found this Suntour that's 14-34, also found NOS. Once I got those parts in, it dawned on me immediately that I'd need a few more parts: a longer shift cable, and a a new longer housing in the back that runs from the chain stay to the Rally. But of course I needed a new chain, too, one a bit longer. The chain I had been running was a Shimano "Ultra Glide" with "bowed outer plates" which allowed for easier shifting; I'd had that on since the late 1970s. That chain was no longer available, and I thought a new one would be an easier find that it was. I found a proper sized 10-speed chain, buried at a local sporting goods shop amongst the chains designed for 6, 7 and larger cogs, the chains getting progressively narrower for less and less spacing between the gears.

Right now the bike is very close to being completely re-assembled. Derailleurs all installed, just needing final adjustment. Brakes are installed. I'm debating on dumping the Weyless seat post and returning to the original Campy. I've decided to change the pedals, and will sell the extremely rare Weyless set; though nice, and fully rebuilt, they were never original to the bike and thus no love lost in selling those. Ditto for the seat post.

Those Campy brakes are truly amazing. Something like 25 or 26 distinct parts, and they are a dream. They install easy, adjust easy, and stay adjusted. The poor man's version, the Weinmann 500s, we used to keep in our shop as replacements. The Weinmanns were a bit simpler. I am constantly infuriated by these modern "V-Brakes" that I'm seeing on a lot of mountain bikes. Not once has anyone brought a bike to me for repair that had them adjusted properly, and on some of them they simply cannot be adjusted; the quality isn't there. My older Trek 930 had simpler cantilever brakes that stayed adjusted for over 20 years.

But nothing beats those Campy brakes.
mdsalemi is offline
Old 10-18-21, 09:56 AM
  #39
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,552
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2449 Post(s)
Liked 1,377 Times in 1,036 Posts
Originally Posted by mdsalemi View Post
Thank you—fully restored 1969 280SL. Been in the family since 1969, I rescued it in 1999, had it restored 1999-2001.
Handsome car, myMom drove the car behind and to the immediate left as the family car, 1966 to 1982. My brother has it now, he needed a car as his truck was stolen.
repechage is offline
Old 10-19-21, 07:25 AM
  #40
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,041

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 707 Times in 392 Posts
I have the Campagnolo Record brake calipers on my '71 Schwinn Paramount and Super Sport and can't agree more. Keep their adjustment and stopping power always dialed in!
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 10-19-21, 10:44 AM
  #41
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,552
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2449 Post(s)
Liked 1,377 Times in 1,036 Posts
Originally Posted by pastorbobnlnh View Post
I have the Campagnolo Record brake calipers on my '71 Schwinn Paramount and Super Sport and can't agree more. Keep their adjustment and stopping power always dialed in!
Yes, but what pads are you using?

Does make a difference.
repechage is offline
Old 10-20-21, 06:09 AM
  #42
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,041

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 914 Post(s)
Liked 707 Times in 392 Posts
Originally Posted by repechage View Post
Yes, but what pads are you using?

Does make a difference.
Salmon Kool Stops, of course!
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 10-21-21, 02:51 PM
  #43
mdsalemi
Member
Thread Starter

Join Date: Aug 2012
Location: Davidson, NC USA
Posts: 26

Bikes: 1972 LUPO

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 11 Times in 5 Posts
I’ve been using original Campy brake pads. They stop like nobody’s business and they wear like iron.

Got my bike together yesterday completely. I realized the seat was a little too high so I lowered it and tightened the Campy seat post bolt. The seat still moved around so I went to tighten it up a little more and snap! 😞 there goes the bolt! So much for my





trial ride yesterday! I’m not about to pay $90 for a used Campy version so will settle for an $8 Sugino until I can find one a little more reasonable in price

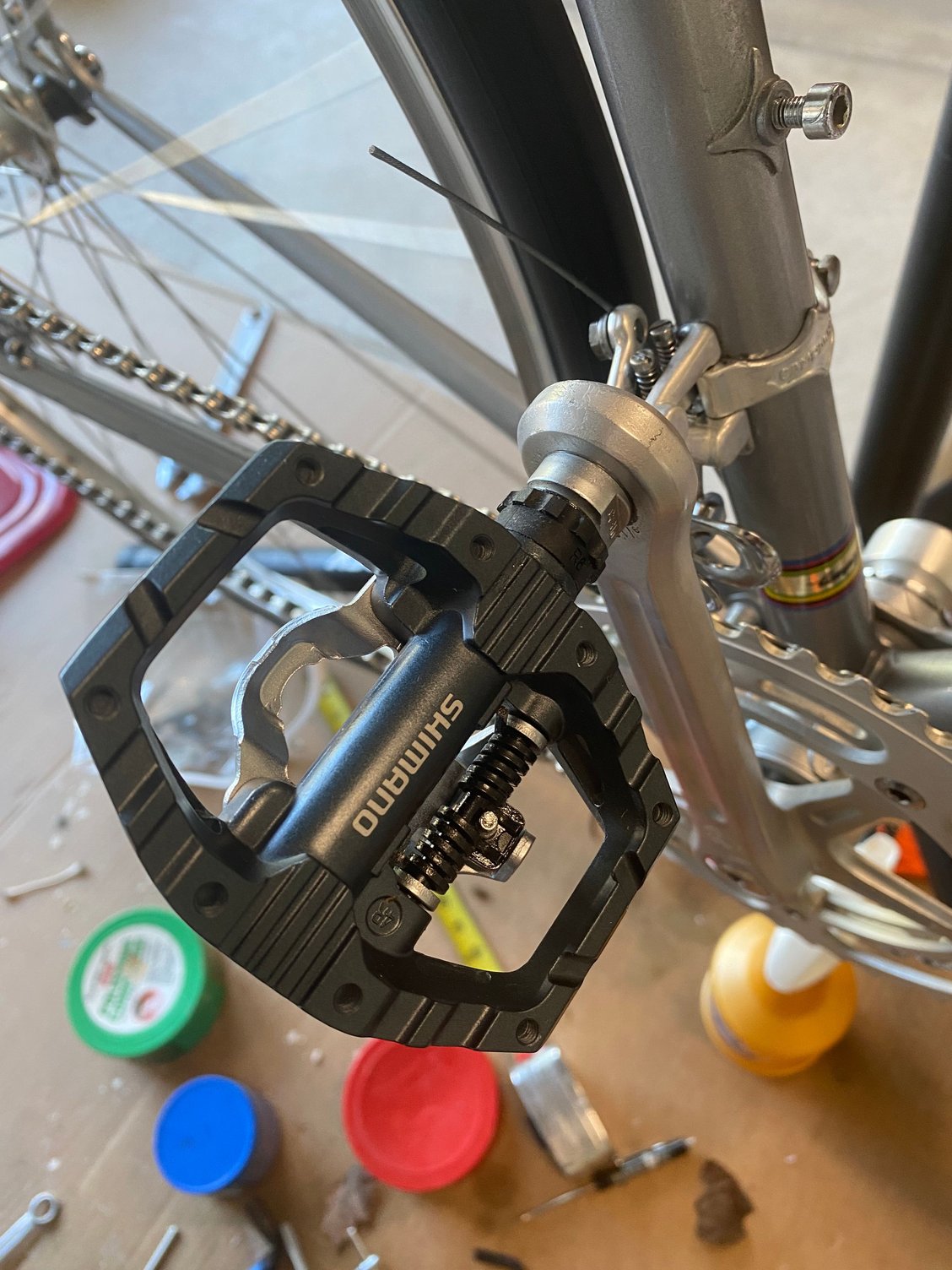

All new Shimano cables, everything went in as smooth as silk. I elected to change the pedals to Shimano‘s with STB fittings. My bike is not and has never been a museum piece and will be ridden so this is a concession to riding. I am in the process of restoring the Weyless pedals I’ve had on the bike since 1977 and will probably sell those when done.
mdsalemi is offline
Old 11-10-21, 07:07 AM
  #44
KonAaron Snake
Fat Guy on a Little Bike

KonAaron Snake's Avatar

Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 17,176

Bikes: Two wheeled ones

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 273 Times in 142 Posts
Originally Posted by satbuilder View Post
I have been looking for a Lupo frame in my size for a while. They are hard to come by.

A couple years ago I was fortunate enough to get a bike built by one of his acquaintances, Umberto Marnati. It is noticeably lighter for its size than other bicycles I have from the same era.
Correction - Daniel Marnati
KonAaron Snake is offline
Old 11-10-21, 08:10 AM
  #45
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,401

Bikes: A few

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 101 Times in 57 Posts
Originally Posted by KonAaron Snake View Post
Correction - Daniel Marnati

Hey Aaron,

After re-reading what I wrote, I can understand why it may be a bit confusing.
The Marnati I have is circa ~1974. I didn't have a frame built.

satbuilder is offline
Old 11-10-21, 08:24 AM
  #46
KonAaron Snake
Fat Guy on a Little Bike

KonAaron Snake's Avatar

Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 17,176

Bikes: Two wheeled ones

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 273 Times in 142 Posts
Originally Posted by satbuilder View Post
Hey Aaron,

After re-reading what I wrote, I can understand why it may be a bit confusing.
The Marnati I have is circa ~1974. I didn't have a frame built.

Got it! I’m also easily confused, so there’s that. Gorgeous bike.
KonAaron Snake is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
