OOPS! powdercoated over bottom race! help!

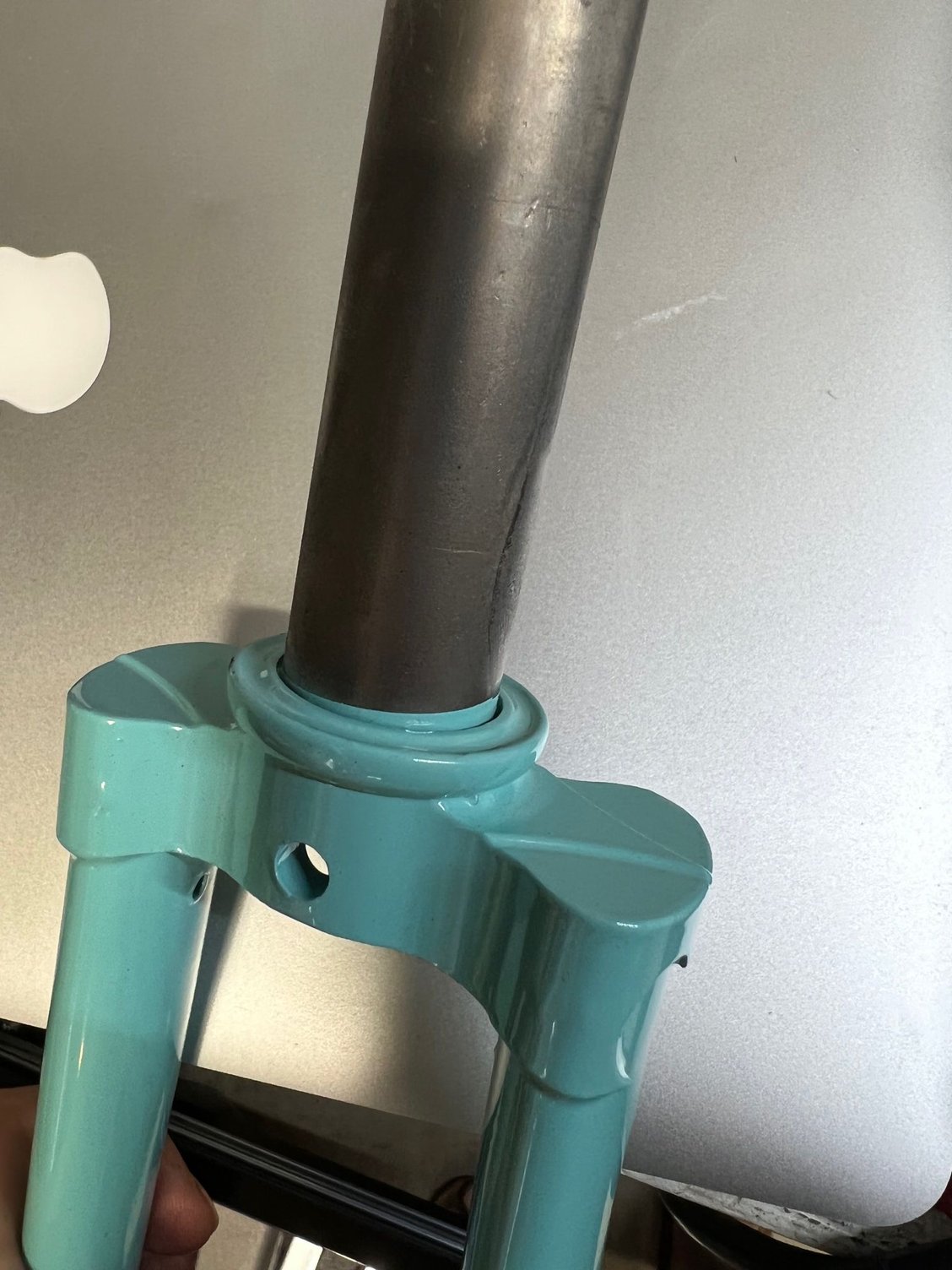

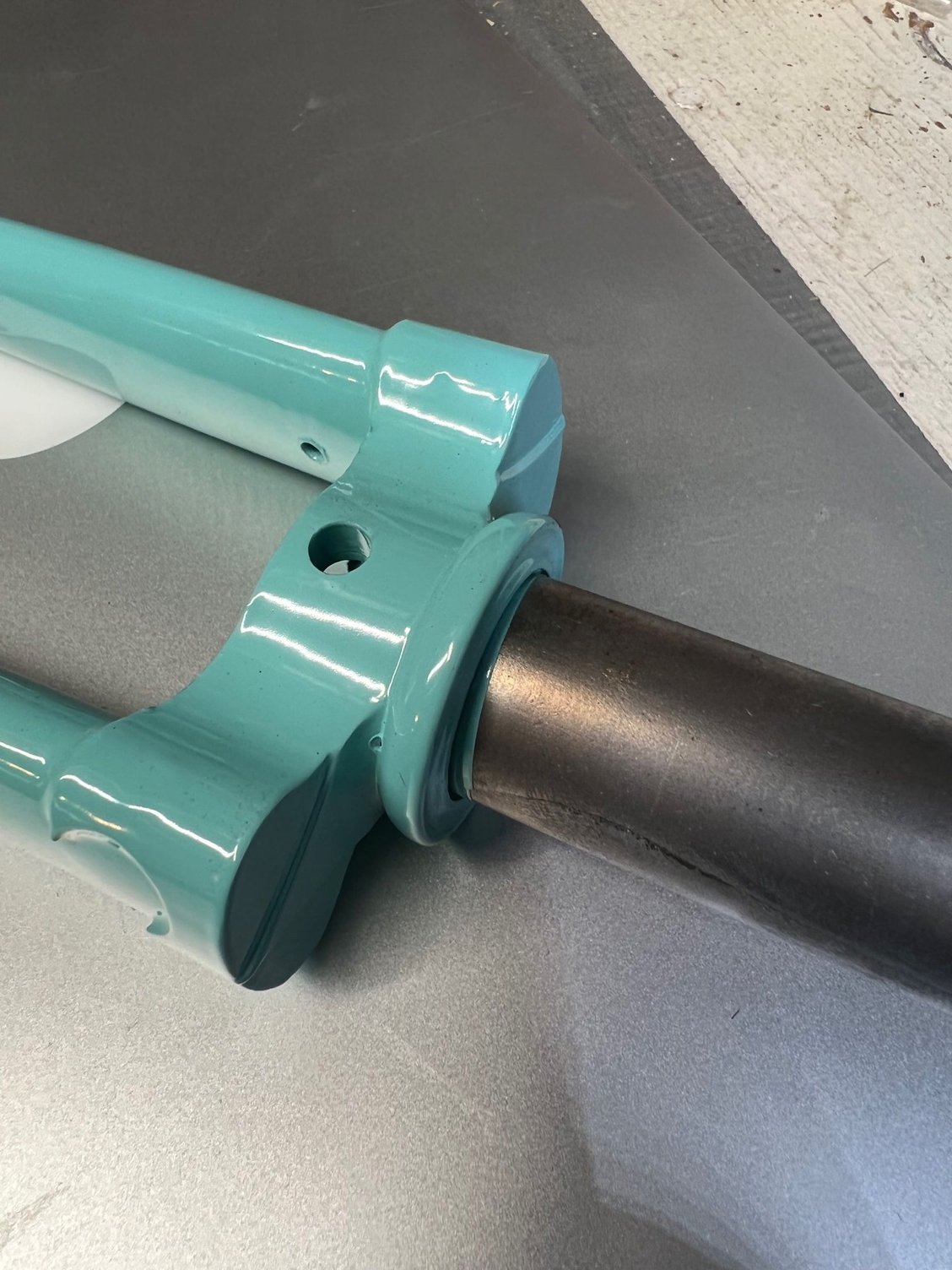

whelp, sent my old raleigh off to the powdercoater, only to have forgotten to remove the lower headset race, and it is now coated in beautiful RAL 6027..

how should i go about remedying the situation? painstakingly remove and sand the bottom race? remove and replace? would heavy duty paint stripper work on powdercioating?

thanks for the advice ahead of time.

neeonbrowwn is offline
Old 10-22-21, 09:31 AM
  #2
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,452

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 443 Times in 219 Posts
If it were mine, I'd take a razerblade and carefully cut around the underneath before removing the crown race. Might help to keep the powdercoat from chipping. I forget exactly what chemical dissolves PC, but if you search there was a recent thread about it. Maybe oven cleaner. I'd just remove the race, drop in in a container with that solvent.

As big of pain as it is to clean powdercoat off of crown race seats, I've never thought it a bad idea to put a sacrificial race on during painting.

Last edited by Dylansbob; 10-22-21 at 10:04 AM. Reason: more info
Dylansbob is offline
Old 10-22-21, 09:33 AM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,884
Mentioned: 365 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,516 Times in 1,224 Posts
I'd knock that race off and replace it with another.

P.S. Nice color!
nlerner is offline
Likes For nlerner:
Old 10-22-21, 09:45 AM
  #4
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,538

Bikes: Road, Touring, BMX, Cruisers...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Liked 141 Times in 88 Posts
Yep, razorblade to trim under the race and cut it from the fork, remove the race.
Use a small torch to burn the PC off. Polish with some ought steel wool and oil, then reinstall.
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Old 10-22-21, 10:04 AM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,475
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 908 Times in 706 Posts
Ask the powdercoater how they prepped the metal.
I have a hunch they media blasted it. The coarser the media, the bigger the need to find another race.
which might be a trick.
They would also know the approach to chemically remove the PC.
Razor blade to control the separation is probably not a bad idea.
Conversely, if you just assembled it, the powdercoat will degrade soon enough, you would feel it as the headset gets loose, might take a few headset repacks to clear out the plastic.
repechage is offline
Likes For repechage:
Old 10-22-21, 10:06 AM
  #6
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,300

Bikes: Yes

Mentioned: 403 Post(s)
Tagged: 0 Thread(s)
Quoted: 2344 Post(s)
Liked 1,167 Times in 561 Posts
This is what happens when you try to make a non-Bianchi Celeste. You got off easy. I've seen far worse.
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 10-22-21, 10:12 AM
  #7
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,576
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 548 Times in 345 Posts
Originally Posted by neeonbrowwn View Post
whelp, sent my old raleigh off to the powdercoater, only to have forgotten to remove the lower headset race, and it is now coated in beautiful RAL 6027..
How about just scraping the coating away from where the balls run; a small sharp blade should do, clean up with a wire brush.

Especially if the plating is poor.
oneclick is offline
Old 10-22-21, 11:27 AM
  #8
smoothness
Senior Member

Join Date: Jul 2009
Location: Hub of the Universe, MA
Posts: 544

Bikes: Centurions, Shoguns, and Stumpjumpers

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Bad News: It'll likely be a futile effort to clean off that crown race without doing abrasive/chemical damage.

Good News: You can definitely remove that crown race. Take a brand new carbide blade (boxcutter, snap-off) and score flush around the seat a bunch of times. Once you have a noticeable trough, remove with a crown-race puller. If you're going to use a homemade remover/chisel, cover the crown race with some high-friction tape, as the paint will be slippery. Get the seat re-faced, and coat the bare metal with boeshield before installing a new crown race.
smoothness is offline
Old 10-22-21, 11:35 AM
  #9
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,629

Bikes: It's complicated.

Mentioned: 1052 Post(s)
Tagged: 0 Thread(s)
Quoted: 3481 Post(s)
Liked 2,160 Times in 1,025 Posts
Originally Posted by Andy_K View Post
This is what happens when you try to make a non-Bianchi Celeste. You got off easy. I've seen far worse.
That's harsh!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 10-22-21, 11:36 AM
  #10
neeonbrowwn
Member
Thread Starter

Join Date: Aug 2008
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 6 Times in 1 Post
Update:

did the razor / paint stripper method, and it came off nicely, and stripped beautifully.. looks as good as new!

thanks everyone
neeonbrowwn is offline
Old 10-22-21, 03:04 PM
  #11
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,629

Bikes: It's complicated.

Mentioned: 1052 Post(s)
Tagged: 0 Thread(s)
Quoted: 3481 Post(s)
Liked 2,160 Times in 1,025 Posts
Originally Posted by repechage View Post
I have a hunch they media blasted it. The coarser the media, the bigger the need to find another race.
One of the things that doesn't work well to remove powder coat is media blasting. All of the powder coaters I've worked with send out the part for chemical removal. Also, you don't want to media blast a bearing surface, for what I hope are obvious reasons.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 10-22-21, 05:05 PM
  #12
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 887
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Liked 51 Times in 36 Posts
Leave it and install the fork and headset with the paint in there. Let the grinding of the flaking powder coat be a constant penance for your forgetfulness.
degan is offline
Likes For degan:
Old 10-22-21, 06:00 PM
  #13
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,475
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 908 Times in 706 Posts
Originally Posted by gugie View Post
One of the things that doesn't work well to remove powder coat is media blasting. All of the powder coaters I've worked with send out the part for chemical removal. Also, you don't want to media blast a bearing surface, for what I hope are obvious reasons.
I don't disagree, just have seen stuff at powdercoaters and the soda blast cabinet... places I did not use, but but one never knows unless you ask.
I agree about the bearing surface too, just when it gets left on... the initial image of the coated fork showed a burst bubble, makes me think there was some oil that got expelled.
repechage is offline
Old 10-23-21, 06:08 AM
  #14
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,609
Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Liked 430 Times in 256 Posts
Just an fyi- the bottom race and cup is not specific to any threading and just relies on the crown race diameter and the head tube diameter which in a Raleigh's case is one of the bog standard options. I think they are 26.4 crown races.

I know your race came off and you can reuse it but as an alternative you can buy a nice Tange headset with a sealed bottom cup and replace the lower portion of your headset.
Narhay is offline
Old 10-25-21, 09:21 AM
  #15
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,475
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 908 Times in 706 Posts
Originally Posted by gugie View Post
One of the things that doesn't work well to remove powder coat is media blasting. All of the powder coaters I've worked with send out the part for chemical removal. Also, you don't want to media blast a bearing surface, for what I hope are obvious reasons.
I was thinking that the original spray paint may have been blasted off.
repechage is offline
Old 10-25-21, 12:34 PM
  #16
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,930
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Liked 524 Times in 342 Posts
I heard that gasket remover works on powder coat.
