Originally Posted by 75lechamp View Post
Ha, I know a guy as well, and I have located a couple of appropriate parts for my '78 Pro....



This is the '78 year only front derailleur, with four holes, rather than the later 3. It has the front "lip" per CPSC mandate....

To accommodate the "lip" derailleurs, Campy also changed the offset of the crankset. Note this is a 1977 (), which is the first year that they had to do this, so this is a late 1977. Note the "dome" on the inside, which is smaller than the pre-late 77 dome...
Nice finds.... Dating campy stuff is a real challenge, it seems. You did well, sir. Do you have a build thread for your '78 Pro? Would love to check it out, if so.
jrg1244 is offline
Old 12-04-21, 10:30 AM
  #27
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts

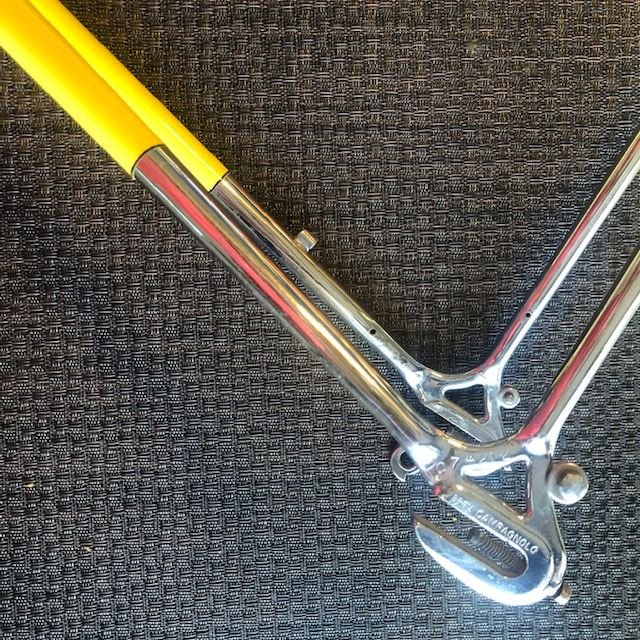

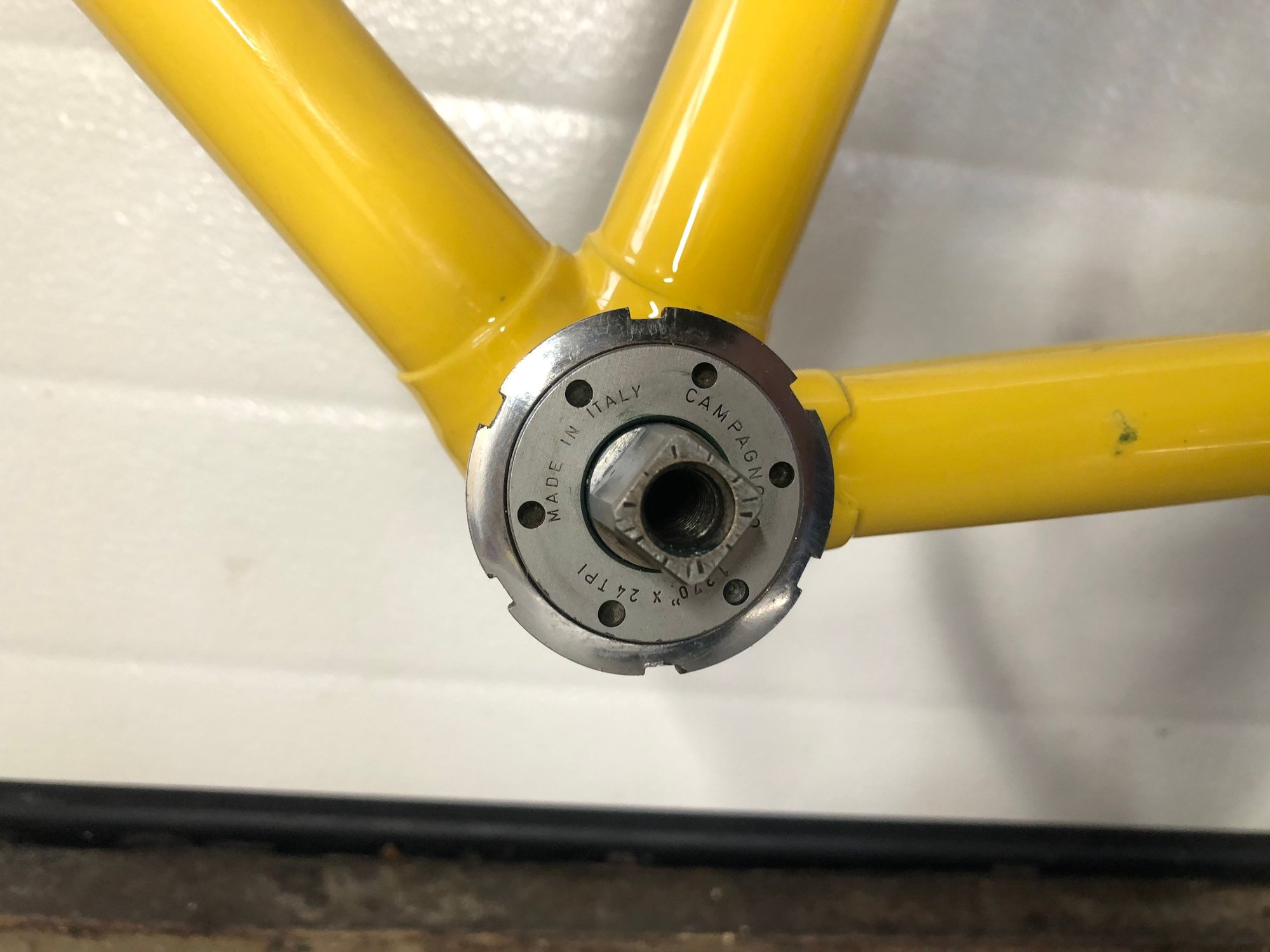

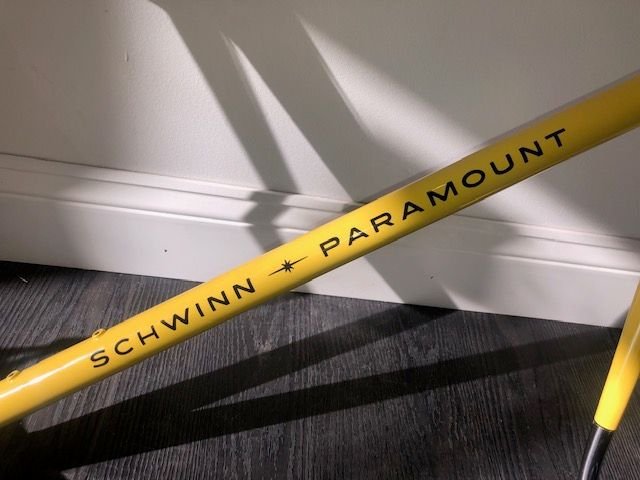

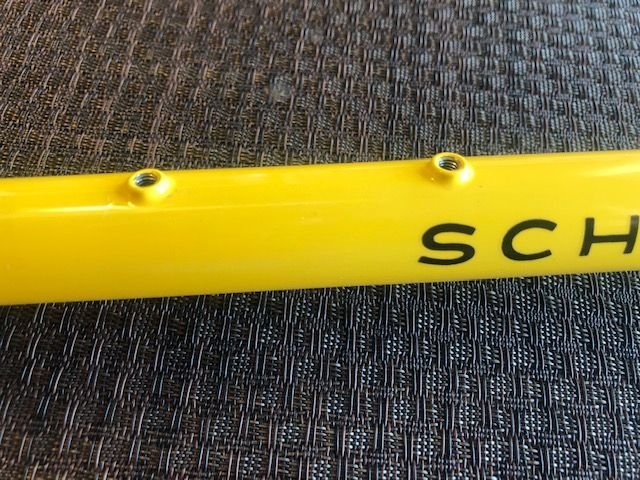

After about a week of tracking a FedEx box on an hourly basis, my Paramount finally arrived from Jack at Franklin Frames. He was a real pleasure to work with and I'm thrilled with the job he did. As I eluded to earlier in this thread, spike666c Kool Lemon Paramount looked so great I decided to go with the same color. Another last minute addition was a set of water bottle braze-ons. I have about 90% of the parts to build at this point, just waiting on some Sapim spokes and nipples to build up the wheelset, and consumables like bar tape and tires, etc. Can't wait to get started! I will update the thread with any progress...











jrg1244 is offline
Likes For jrg1244:
Old 12-04-21, 10:32 AM
  #28
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,735
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 820 Times in 316 Posts

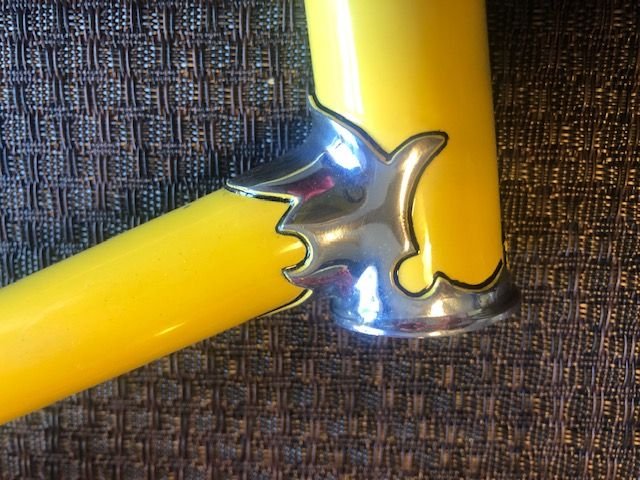

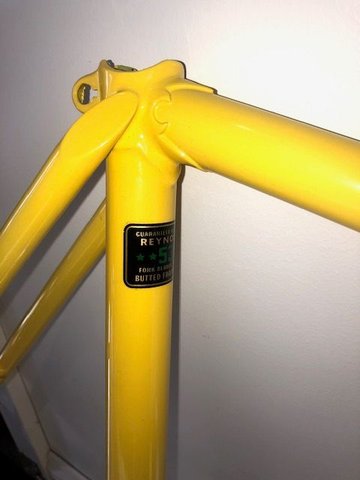

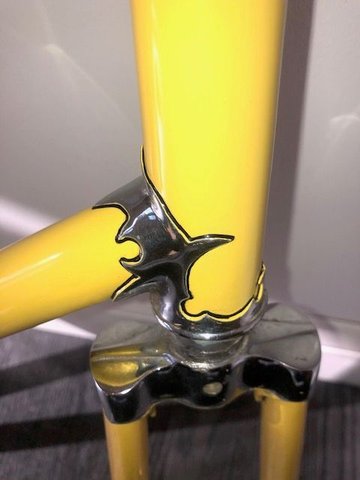

A very nice job on the frame restoration, indeed! I'm not a Paramount guy but it strikes me as odd that the lug lining doesn't extend to the seat cluster. Was that typical on stock Paramounts?

-Gregory
Kilroy1988 is offline
Old 12-04-21, 10:51 AM
  #29
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,429
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2399 Post(s)
Liked 1,313 Times in 992 Posts
Factory decoration retreated over the years.
there was hand striping in the early 60ís and prior.
lug lining was actually away from the lug a bit/ I have not seen anyone replicate that, it dropped off even from Schwinn by 1973 where there was no more lug lining.
repechage is offline
Likes For repechage:
Old 12-19-21, 04:03 PM
  #30
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts

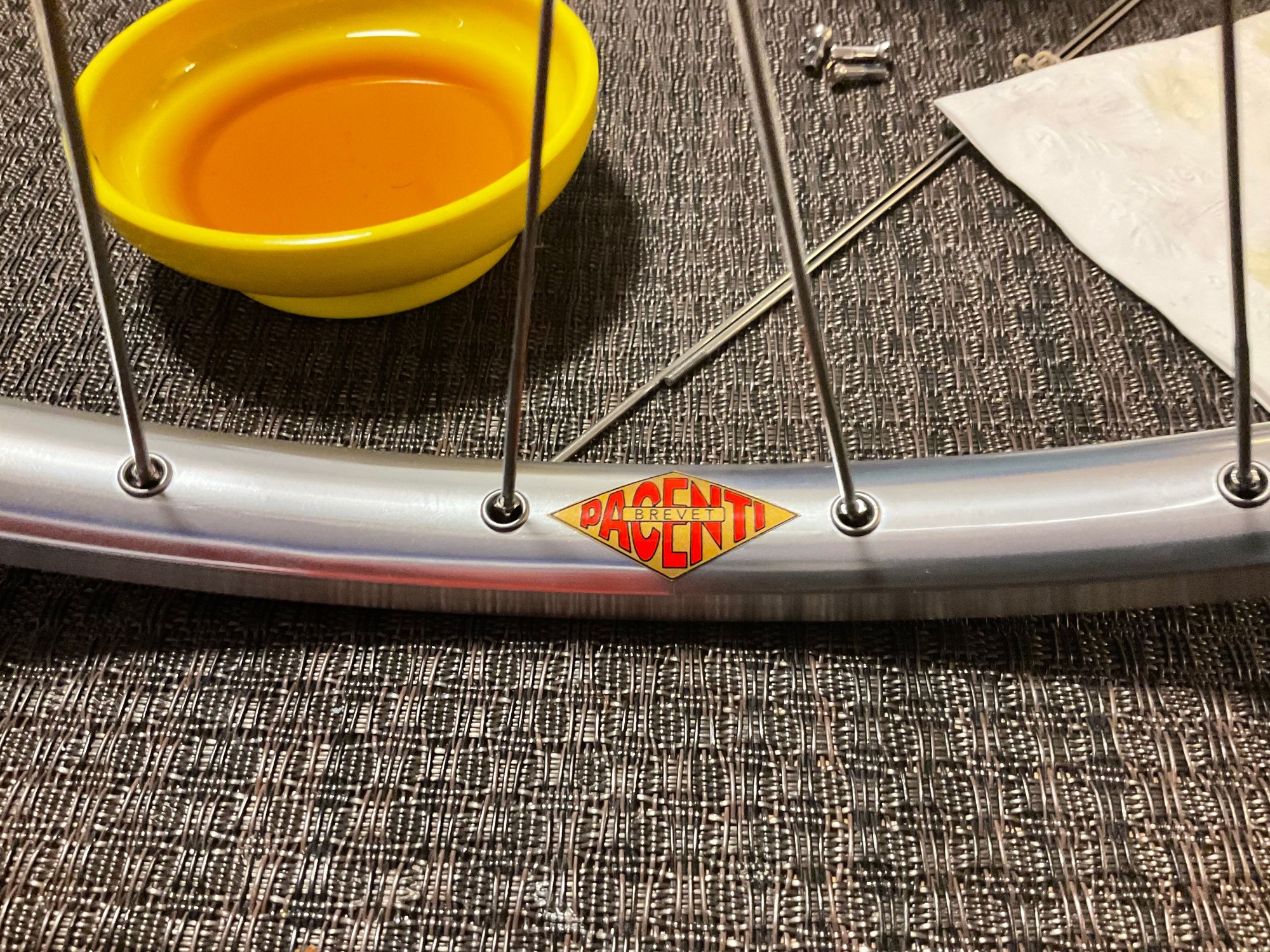

After waiting a few weeks, the Pacenti Brevet rims finally arrived. Shout out to ProWheelBuilder who provided awesome communication about the status of the back ordered rims and who provided spokes and nipples for the new wheelset.

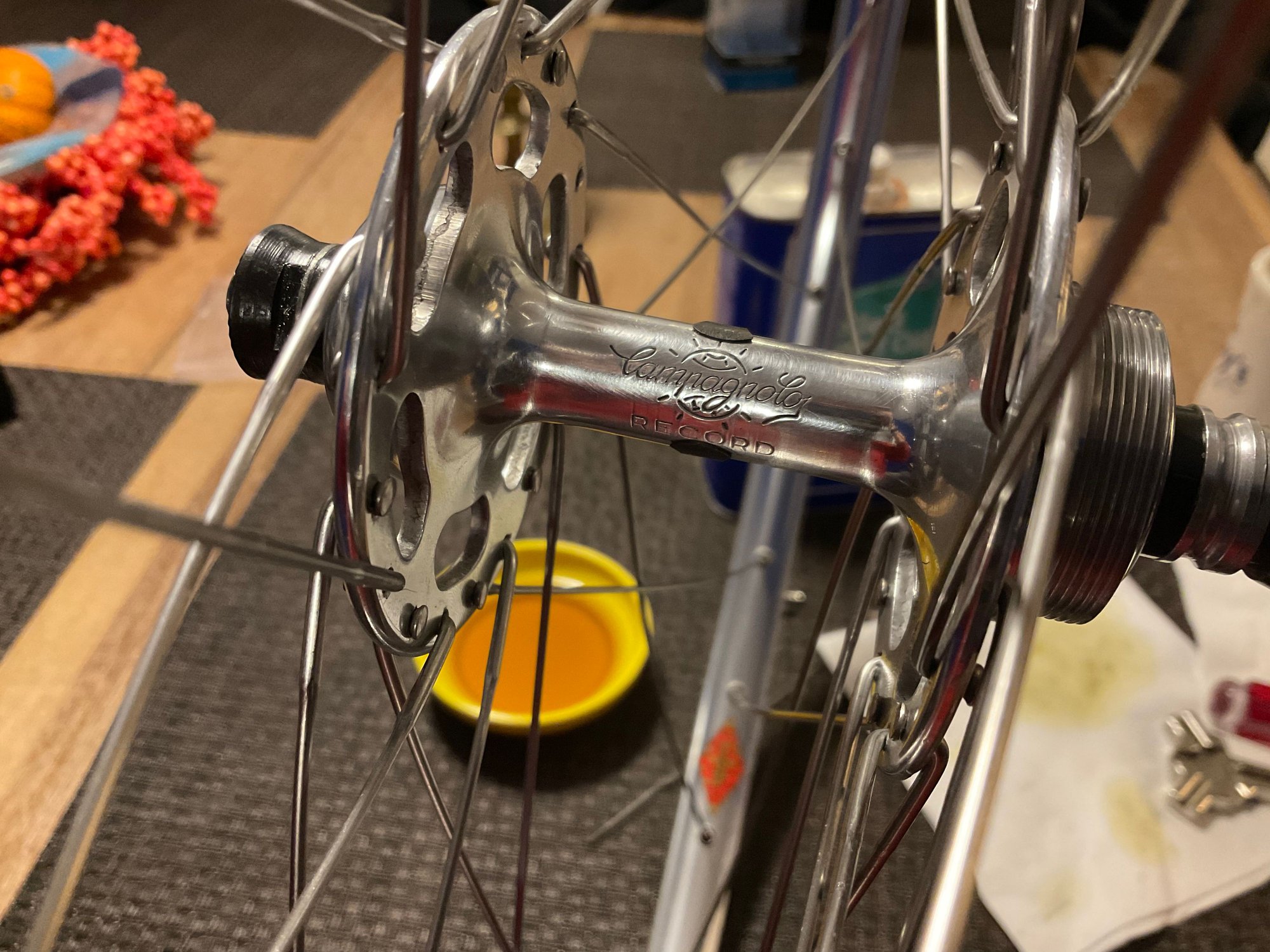

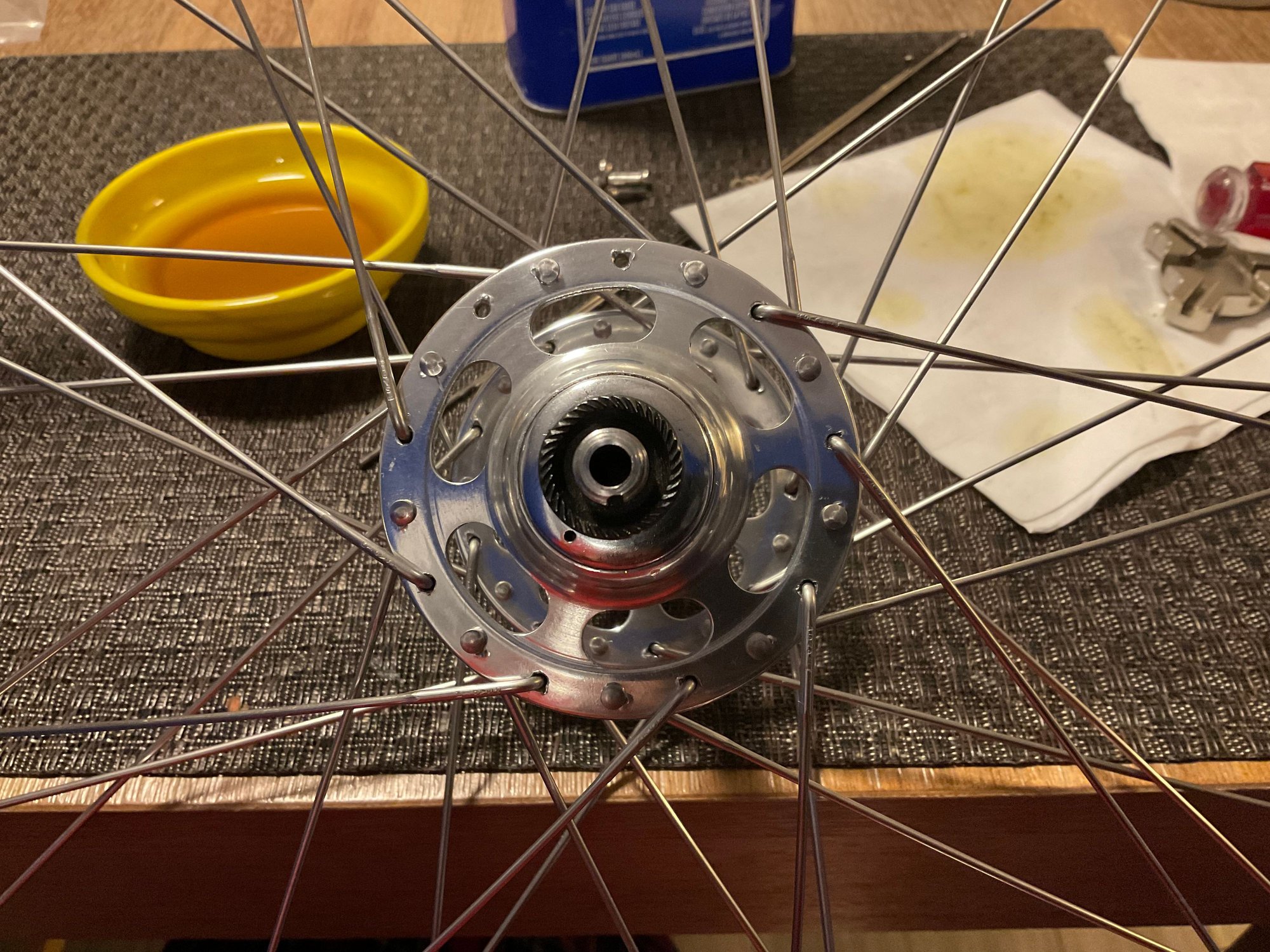

For this wheel build, I used the Campagnolo Record High Flange Hubs, with 1971 build stamp and which I overhauled last week. Also used new Pacenti Brevet 700c rims, and Sapim spokes and nipples. Front wheel and rear wheel NDS was Sapim Laser 2.0/1.6/2.0 and rear DS was Sapim Race 2.0/1.8/2.0. Nipples are brass - 100%, I refuse to use anything else. I’ve had great luck with this spoke combination on another wheelset of mine, Chris King R45 with H Plus Son Archetype which has proven to be bombproof.

Tonight’s work…. It’s time to grab a beer start turning nipples and strumming spokes.





jrg1244 is offline
Likes For jrg1244:
Old 12-19-21, 09:50 PM
  #31
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,797
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1711 Post(s)
Liked 500 Times in 346 Posts
Dang, that original paint and decals were in good shape :/
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 12-20-21, 11:19 AM
  #32
spike666c
Member

Join Date: Aug 2009
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 9 Times in 3 Posts
Very nice indeed! What's funny is that my $20 Paramount (totally mint) was way too small for me, so I offered it to my wife, who objected to the Kool Lemon (ugh!), so I had no choice but to sell it on eBay. Let's just say I made a tidy profit....
spike666c is offline
Old 12-21-21, 12:32 PM
  #33
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts
Originally Posted by spike666c View Post
Very nice indeed! What's funny is that my $20 Paramount (totally mint) was way too small for me, so I offered it to my wife, who objected to the Kool Lemon (ugh!), so I had no choice but to sell it on eBay. Let's just say I made a tidy profit....
Iím sure you did! Hopefully, the profits financed something new and shiny with 2 wheels!
jrg1244 is offline
Old 12-21-21, 12:49 PM
  #34
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts

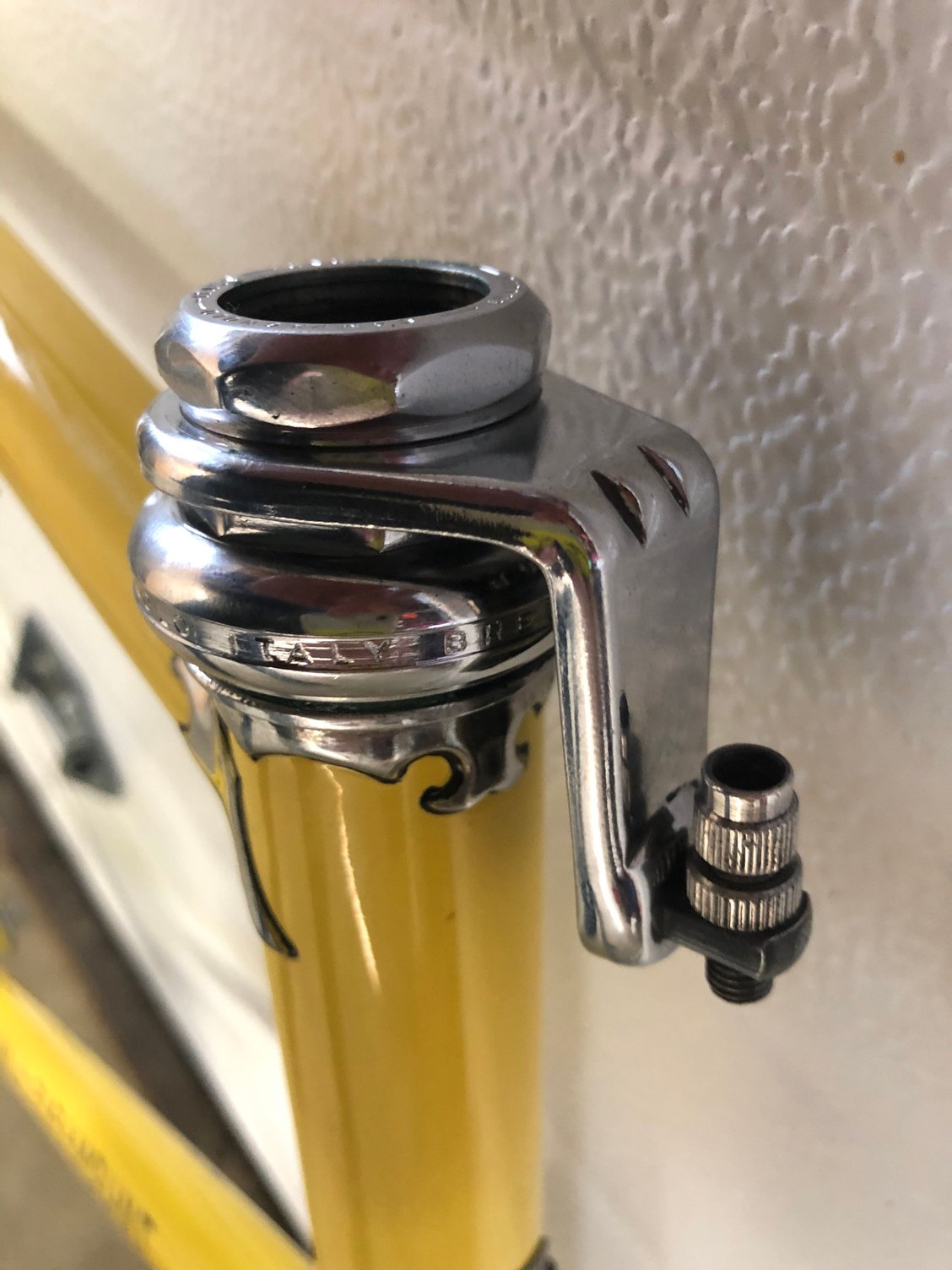

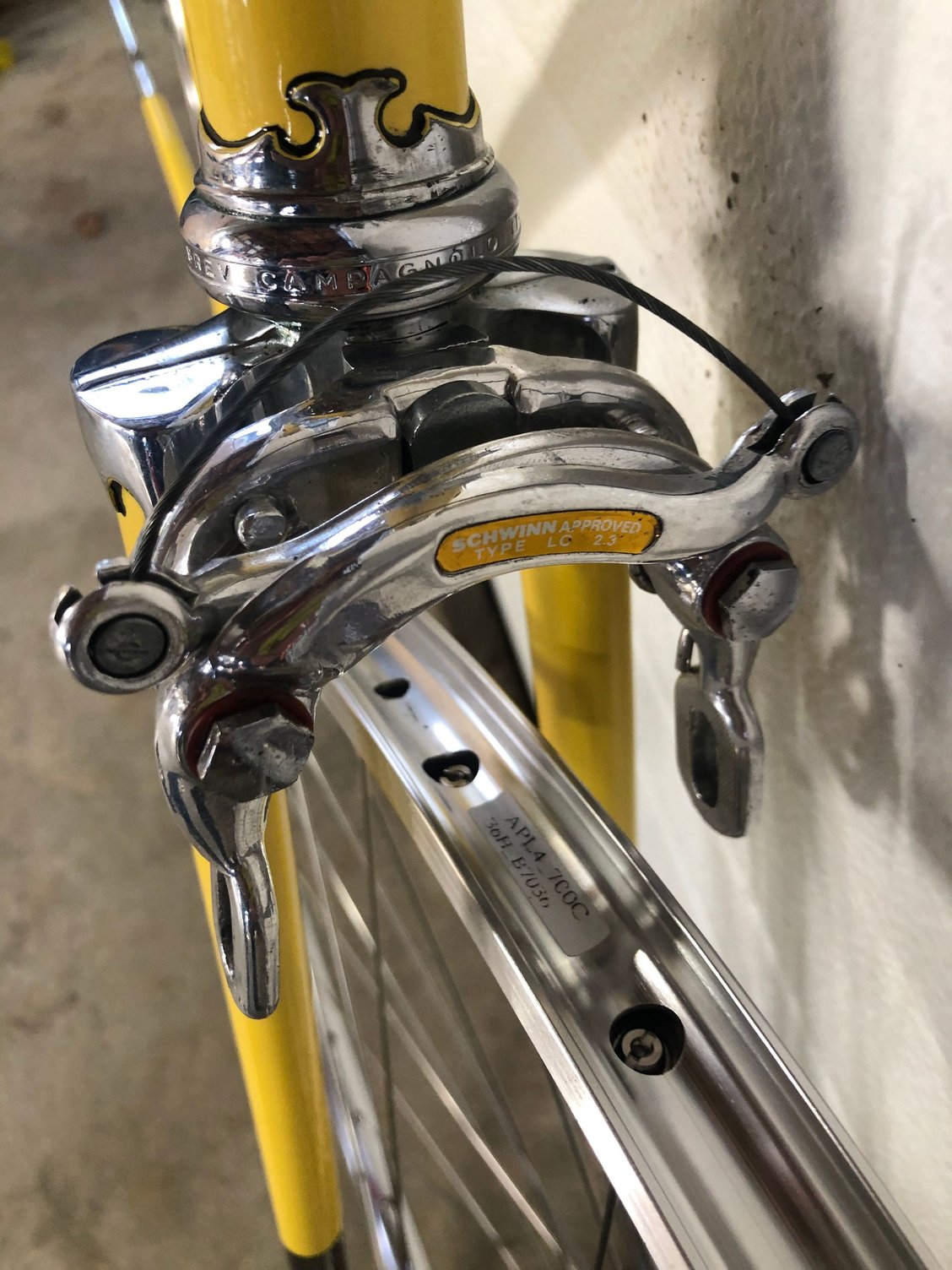

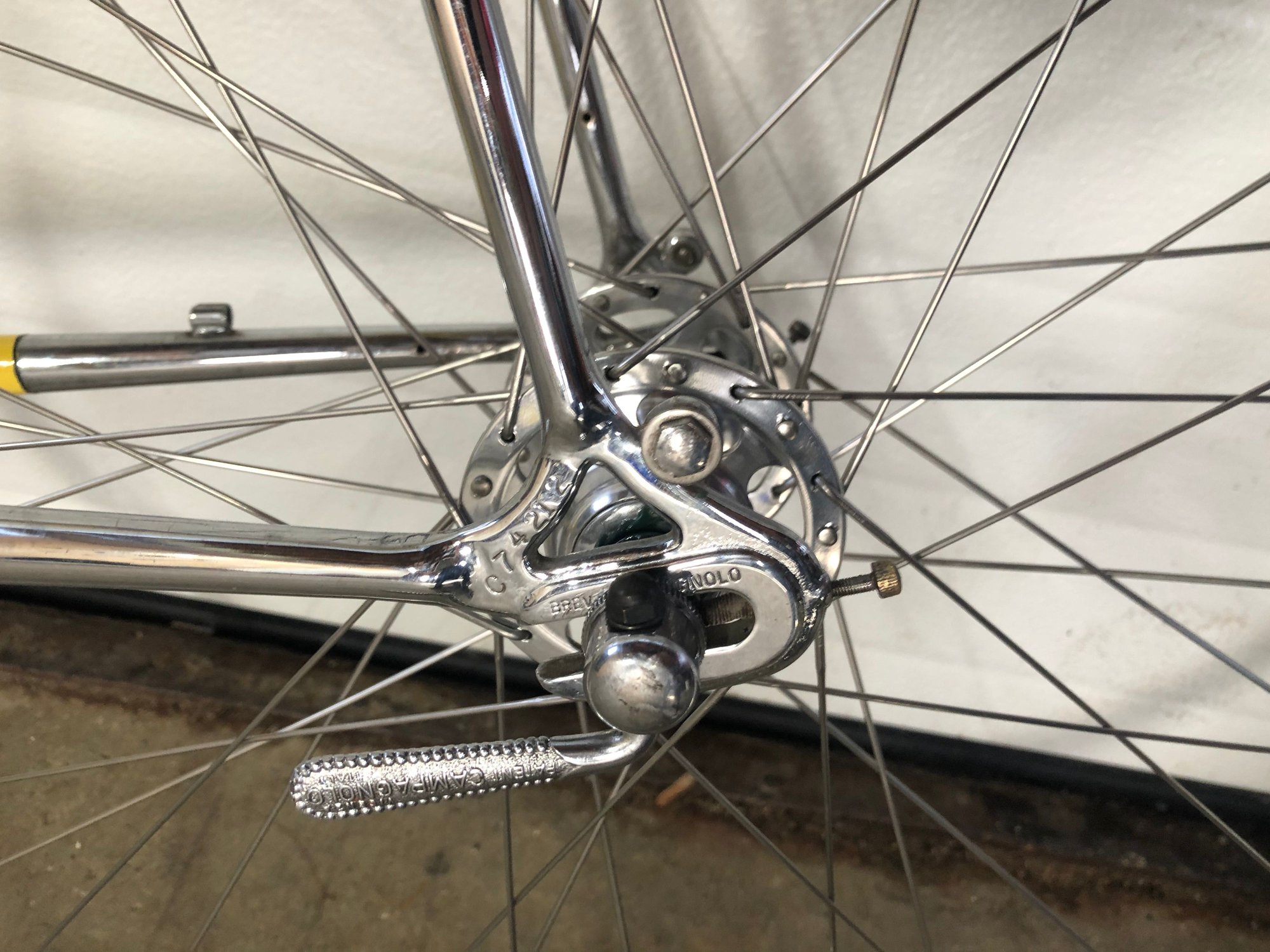

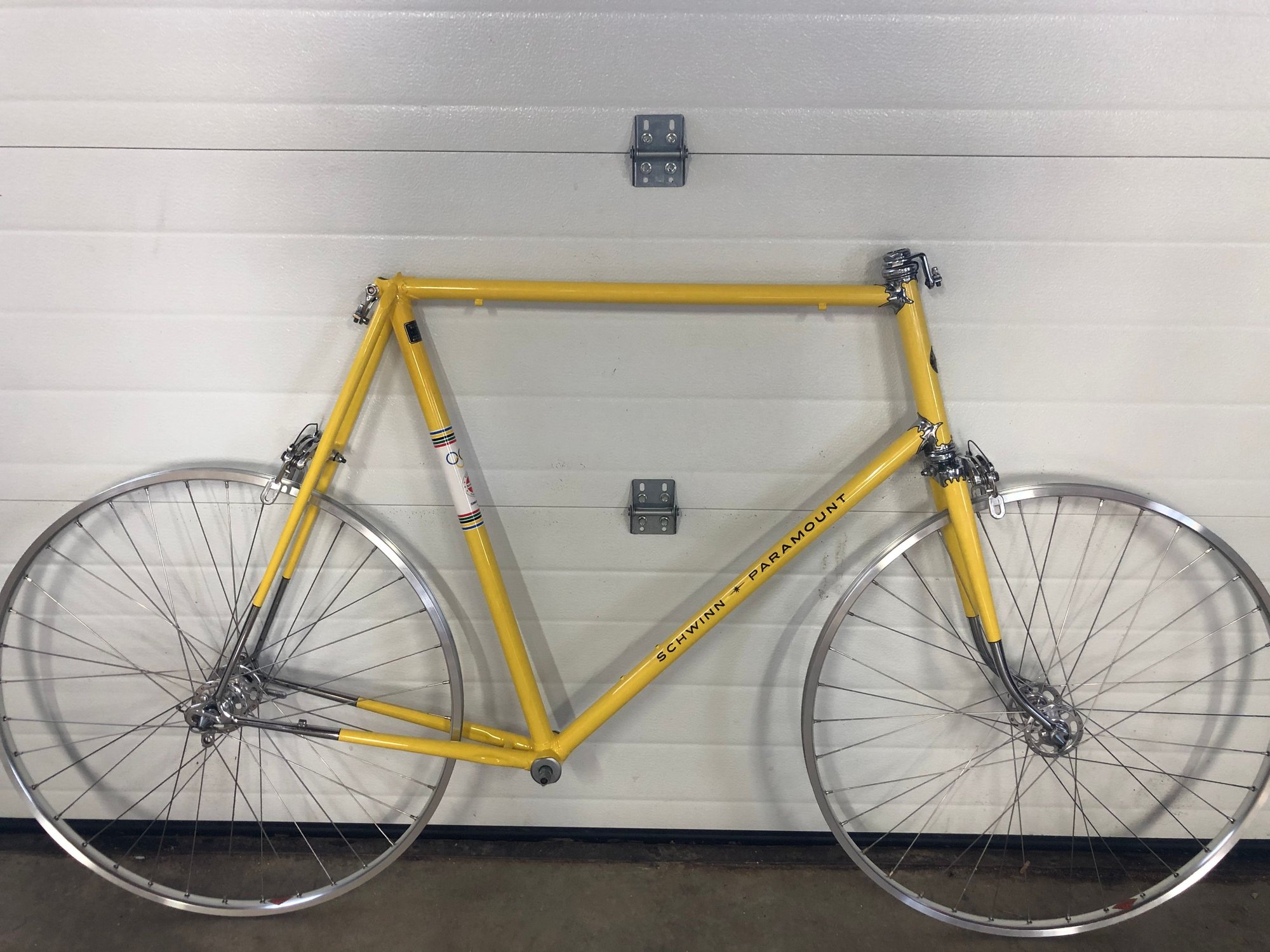

Spent some more time working on the Paramount last night and things are coming together, slowly but surely. This is turning out to be a fun project, too bad there’s 3” of snow on the ground right now and ice everywhere or I’d be working non-stop to get it on the road.

Things are looking good…. Well, except for one thing I can’t figure out.

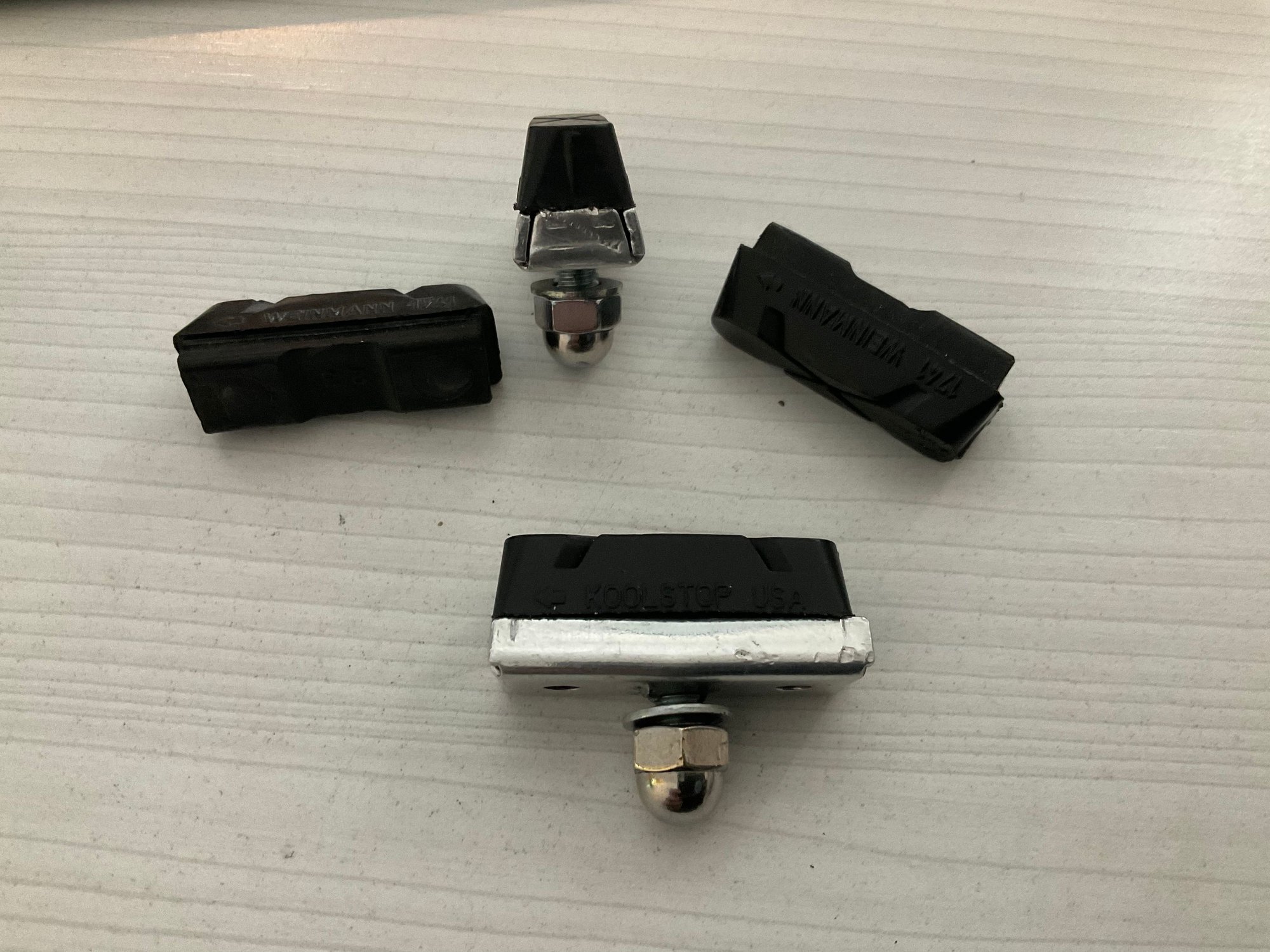

Any advice on getting the old Weinmann pads out and the new Kool Stops in? The pad holders I’m used to have one open end so you can slide the block out. Not these…. They’re metal on all 4 sides. I’m sure there’s a trick! Please enlighten me.


jrg1244 is offline
Old 12-21-21, 01:30 PM
  #35
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,157

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3148 Post(s)
Liked 2,923 Times in 1,848 Posts
@jrg1244

Make a bracket, handle that you can bolt them to so you can hang on to, overpower them and carefully pry them out by spreading the flanges with a small screwdriver, use dishsoap to lube them so they will pop out easier. You can use the soap, a piece of wood with a hole in it and a vise to press the new ones back in.
merziac is offline
Old 12-21-21, 07:09 PM
  #36
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,367

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1308 Post(s)
Liked 788 Times in 496 Posts
I just replaced some pads on my Motobecane. Lay the holder on its side on your workbench, push a screwdriver into the old pad along the edge of the holder, twist a little, move over and repeat, flip it over and repeat, repeat. It will mark the holder a little bit.

Beautiful bike. I am wondering why you chose the Pacenti rim and not TB14s after being so pleased with the Archetypes.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 12-22-21, 12:42 PM
  #37
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts
Wow…. That was a pain! I was hoping for a more elegant solution, but prying them out, bending the small tab just enough to slide the new ones in seemed to be the best method. I did mar the short edge of each pad just a tiny bit, but figured I could orient the brake pad so that the marred edge faced in towards the fork and down in the back. Not to mention, these pad holders are almost 50 years old at this point, so they deserve to have some marks. The only thing I can add is that soaking the old pads in hot water for 10 min seemed to help make it easier to pry them out with the screwdriver. As they say, “it is what it is.” Next time, I’ll likely just upgrade the pads and holders together.


jrg1244 is offline
Old 12-22-21, 12:48 PM
  #38
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts
Originally Posted by Classtime View Post

Beautiful bike. I am wondering why you chose the Pacenti rim and not TB14s after being so pleased with the Archetypes.

Thanks! Iím like a kid in a candy store with this thingÖ. Canít wait to get it on the road. I have a set of TB14ís on my Cannondale ST, which I use for commuting during fairer weather, paired to some 1980ís Campy hubs. While the rims are a work of art, I can honestly say that is my least favorite wheel set I ride and they feel a little ďdeadĒ to me. Iím no weight weenie, since Iím the heaviest thing on the bike, by far, but the TB14s are 490g and the Brevets are 450g, so I wondered if it wouldnít make the wheels feel a little livelier. But that that remains to be seen. Really, I knew what to expect from the TB14 rims, and wanted to see if there was anything better out there. Iíll report on the Pacenti Brevets as soon as I can get a real ride in.
jrg1244 is offline
Likes For jrg1244:
Old 01-19-22, 05:04 PM
  #39
jrg1244
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 118

Bikes: 2010 Cannondale CAAD 5 Potenza 66cm, 1984 Basso Gap Nuovo Record 65cm, 1989 Cannondale ST Racing Triple 27", 1974 Schwinn Paramount Nuovo Record 26", 198? Scapin MKII 66cm Victory

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 75 Times in 35 Posts
The project marches on…. Wish I would have had more time over the past few weeks to work on the bike, but work and kids have been kept me busier than a one legged man in an @ss kicking contest. I guess it’s politically correct to say that work and kids are more important anyways.

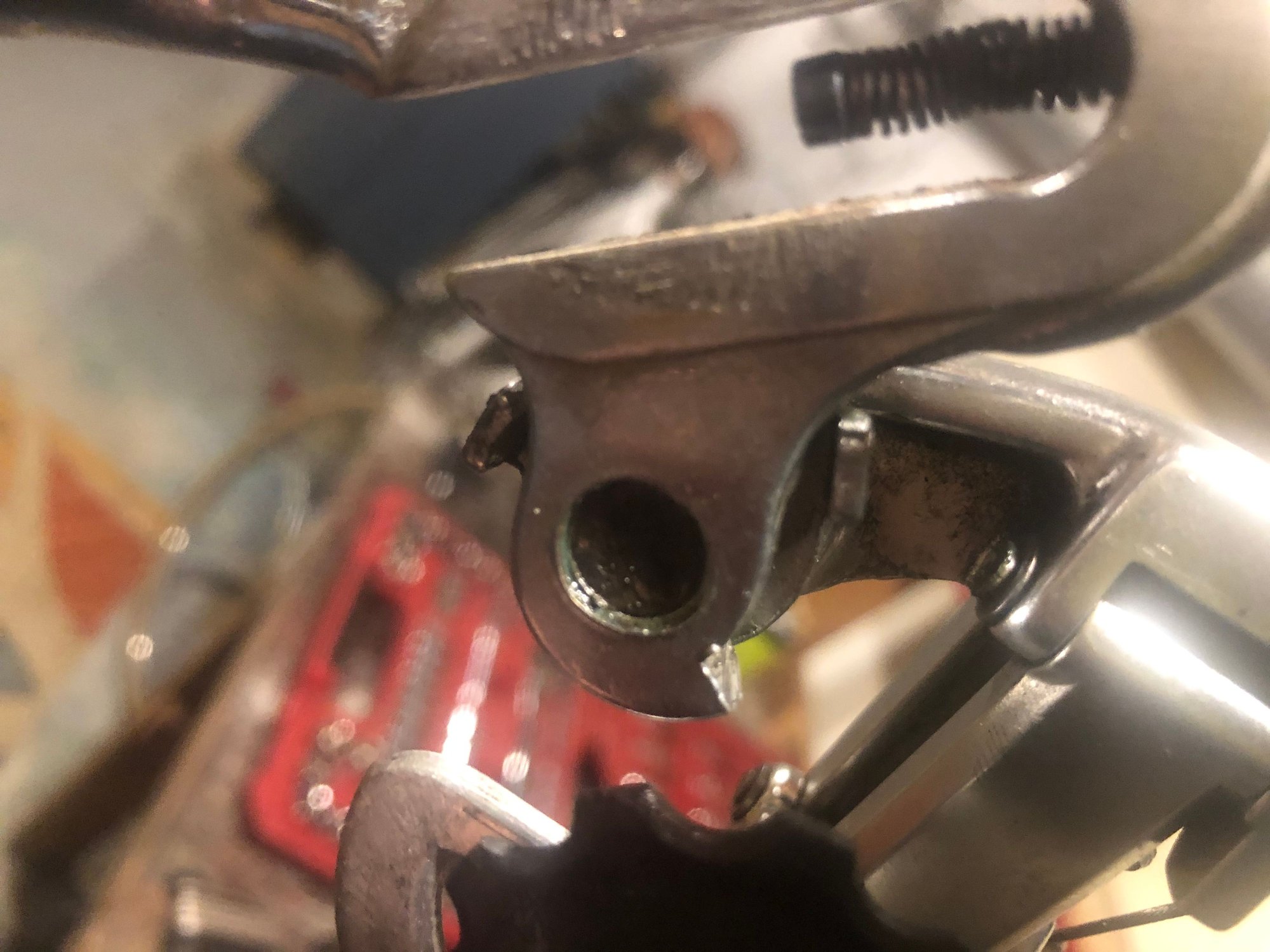

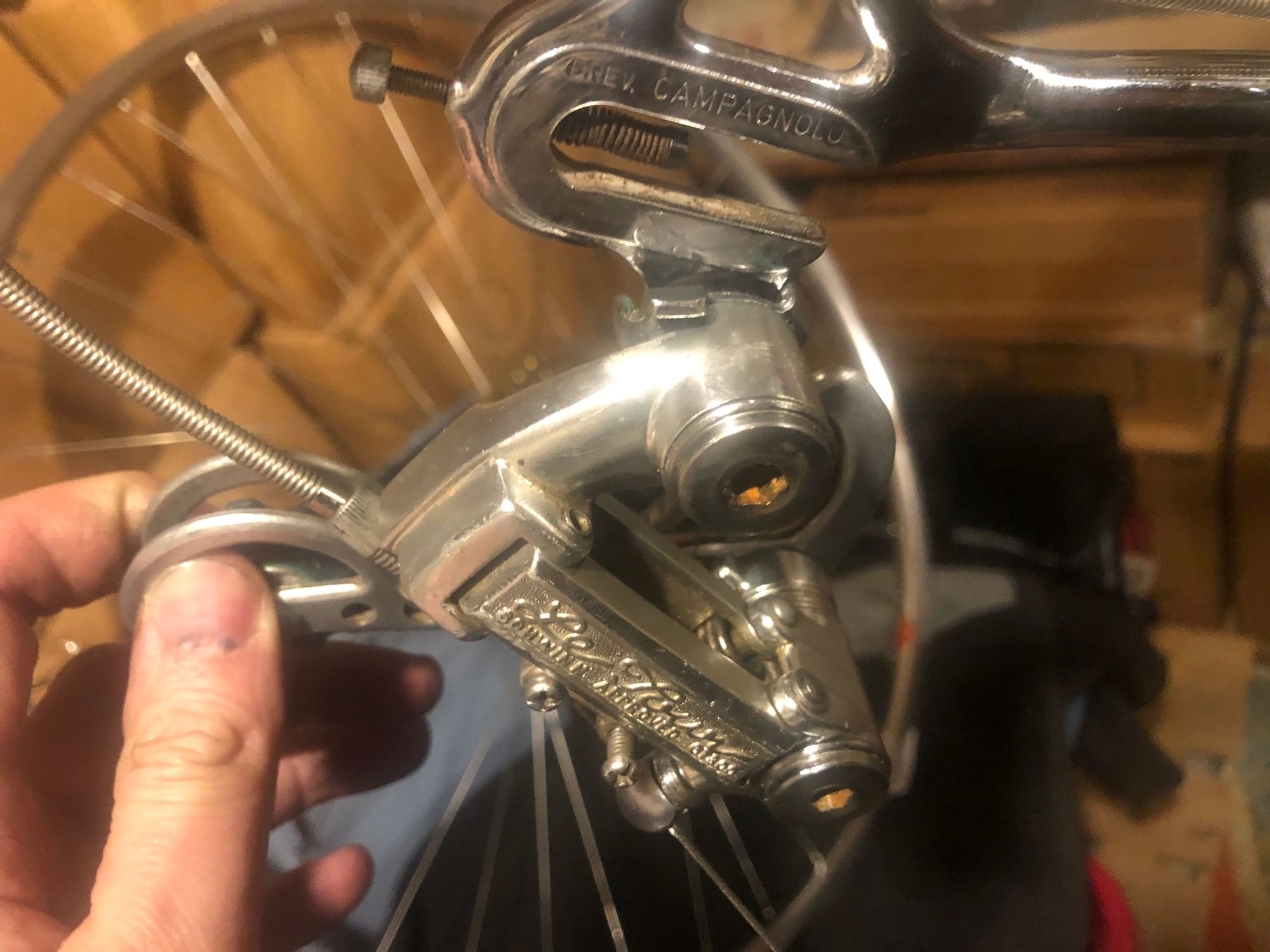

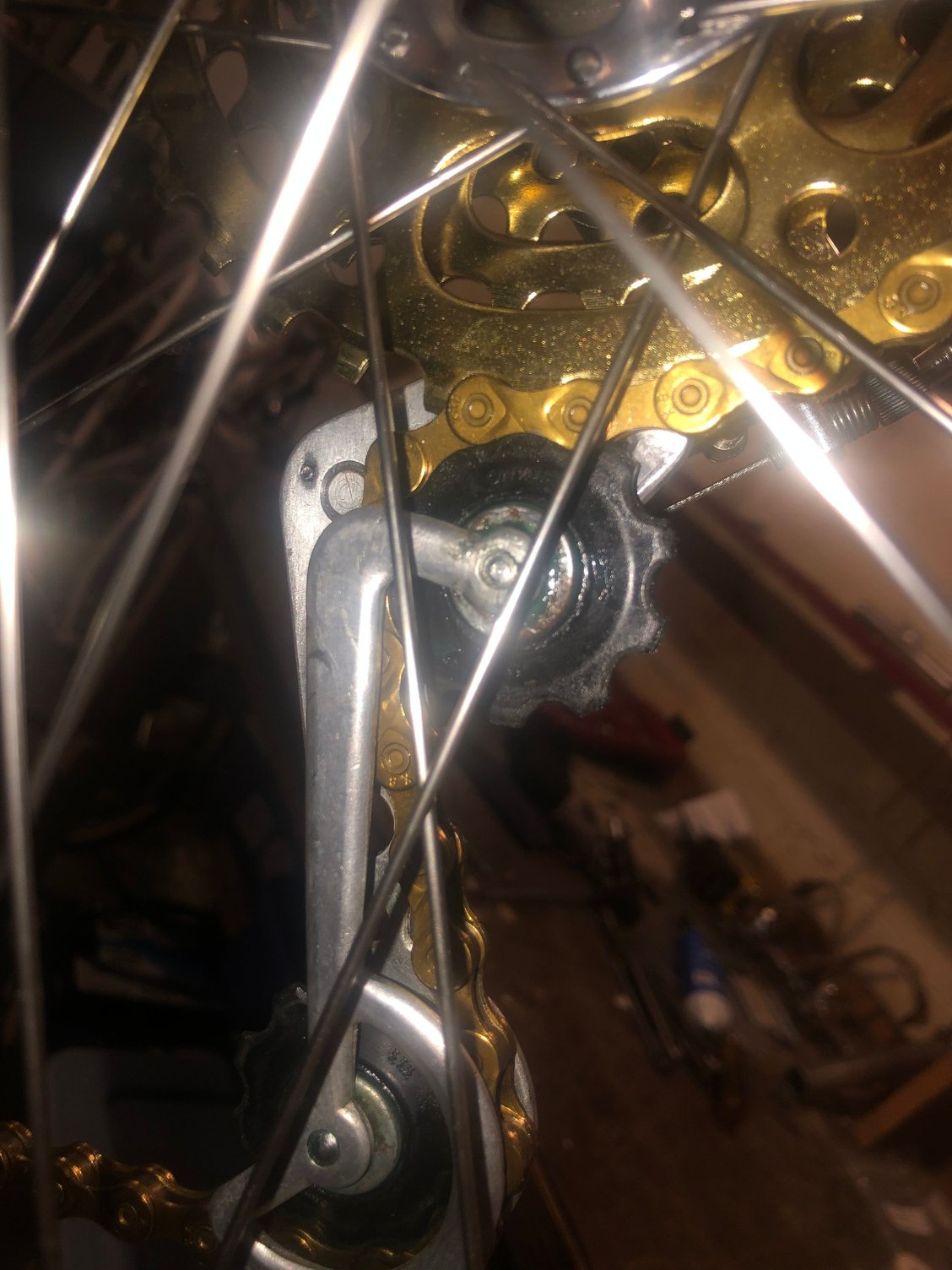

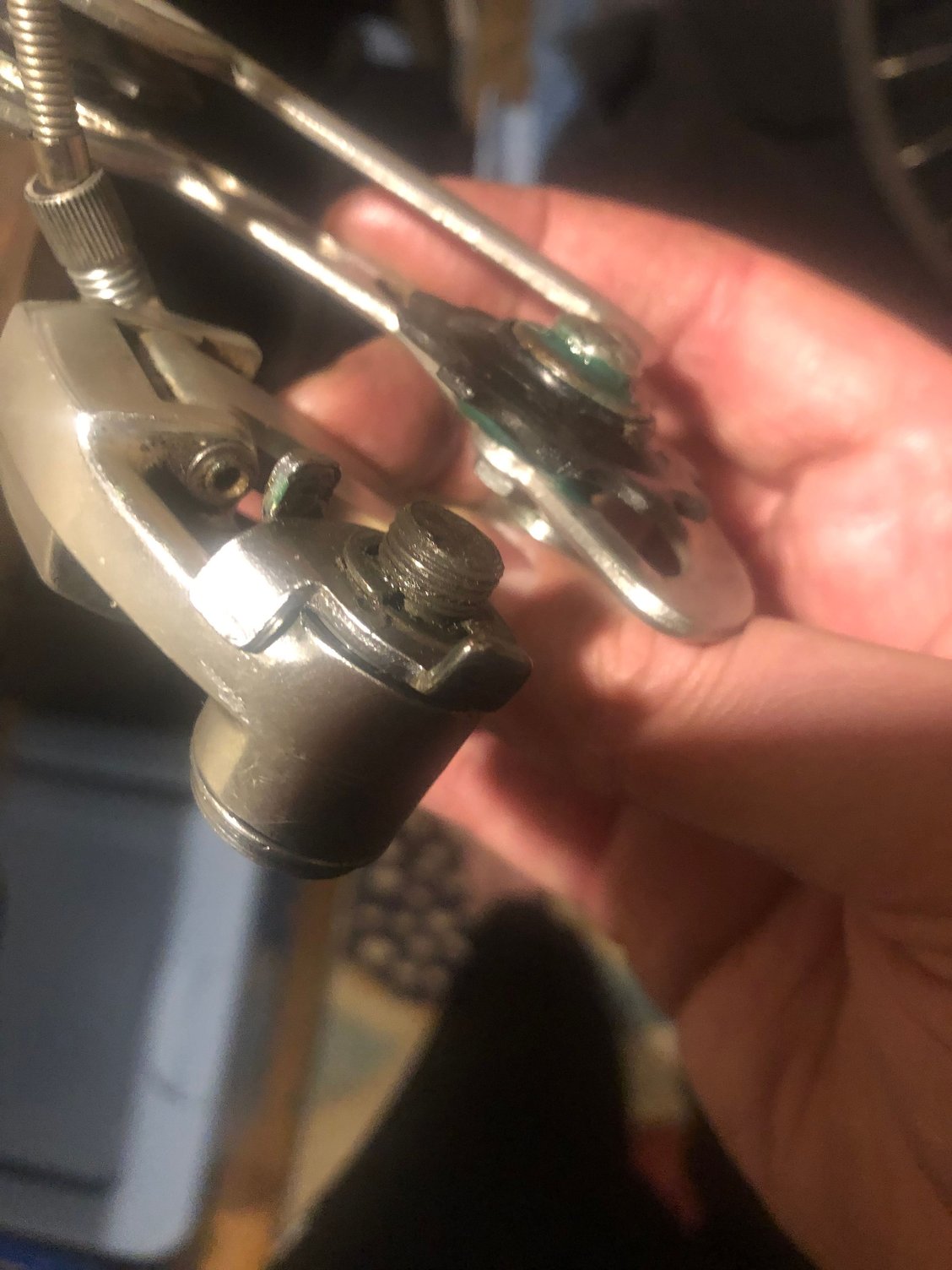

So, I could use some guidance on making the Schwinn rear mech (Shimano Crane GS) work with the 14-34 Suntour freewheel. Everything I read says they should play nice together, but shifting into the 34t is awfully messy and once there, especially when in the small ring, the top guide pulley rides on the 34t cog. I’m wondering if the sprung pivot is set up correctly? It seems like more tension may solve the problem here, but I can’t see how to get it. I’ve tried playing with chain length and it’s helped some, but now I can’t get into big/big, so there’s a new limitation that may/may not matter. Has anyone set one of these derailleurs up to work with 34t? Any advise? Some views of the derailleur…




jrg1244 is offline
Old 01-19-22, 07:20 PM
  #40
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,157

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3148 Post(s)
Liked 2,923 Times in 1,848 Posts
The Le Tour on my Paramount is a pita, never happy and always needs to be dialed in just right on the road, constant shifter oversight and still noisy often.




And while this isn't 34, I think these work better when set up properly.

And yes, I know I'm in the minority here.

merziac is offline
Old 01-19-22, 09:58 PM
  #41
frogman
Senior Member

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 854

Bikes: Wife says I have too many :-)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 229 Times in 147 Posts
Great looking frame. Chrome lugs, fork ends, seat stay ends and chain stay ends. Cool !
frogman is offline
