10 speed Chorus UT crank with Record 10 Speed groupset that was square taper?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

10 speed Chorus UT crank with Record 10 Speed groupset that was square taper?

Old 10-29-21, 01:03 PM
  #1
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 7,626

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 1937 Post(s)
Liked 2,259 Times in 1,004 Posts
10 speed Chorus UT crank with Record 10 Speed groupset that was square taper?

So, finally getting around to the build on the Olmo frame I've had waiting in the wings for awhile now.

I have a square taper Record 10 speed groupset and a Chorus Ultra Torque 10 speed groupset.

What I want to do is use the Chorus Ultra Torque crank with the Record shifters, FD, RD, and brakes. I can't find anything that says it won't work but I want to make sure. Basically I prefer a 172.5 crank which the Chorus one is and it's got carbon arms that match this build better than the silver. There's also a minor tear on the bottom of one of the Chorus hoods as well as the FD for it being a clamp on and I need a braze on. The record meets this need.

So just doing one final check with the knowledgeable ones here before I start down this path. Any reason why this won't work? Thanks!

The group:



The Crank part number:



The frame as I plan to use it. Save for getting a new black stem without the out of place red on it.



I'm thinking black bar tape and black housing, want to isolate the beauty of the off white frame.

After my recent snafu with the Cannondale I want to make sure I have everything sorted out properly this time.
__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-29-21, 01:13 PM
  #2
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 11,272

Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 6175 Post(s)
Liked 6,525 Times in 3,343 Posts
I replaced an old FSA Isis crank and BB with Centaur Ultra Torque crank and Record cups in a 10 speed Veloce groupset. Works fine. I did have a shop do the swap, but that's mostly because I didn't have ANY of the tools I'd need to do it.
__________________
"Don't take life so serious-it ain't nohow permanent."

"Everybody's gotta be somewhere." - Eccles
genejockey is offline
Old 10-29-21, 01:52 PM
  #3
Paul J
Senior Member

Paul J's Avatar

Join Date: Sep 2012
Location: Lancaster County PA
Posts: 1,054

Bikes: 1980's Spectrum 10 sp Campagnolo Centaur, 1990 Eddy Merckx 10 sp Campagnolo Centaur, Bushnell Tandem, Co-Motion Speedster Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 172 Post(s)
Liked 95 Times in 59 Posts
Can't wait to see the finished bike.
Paul J is offline
Old 10-29-21, 02:07 PM
  #4
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,795
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 1,742 Times in 491 Posts

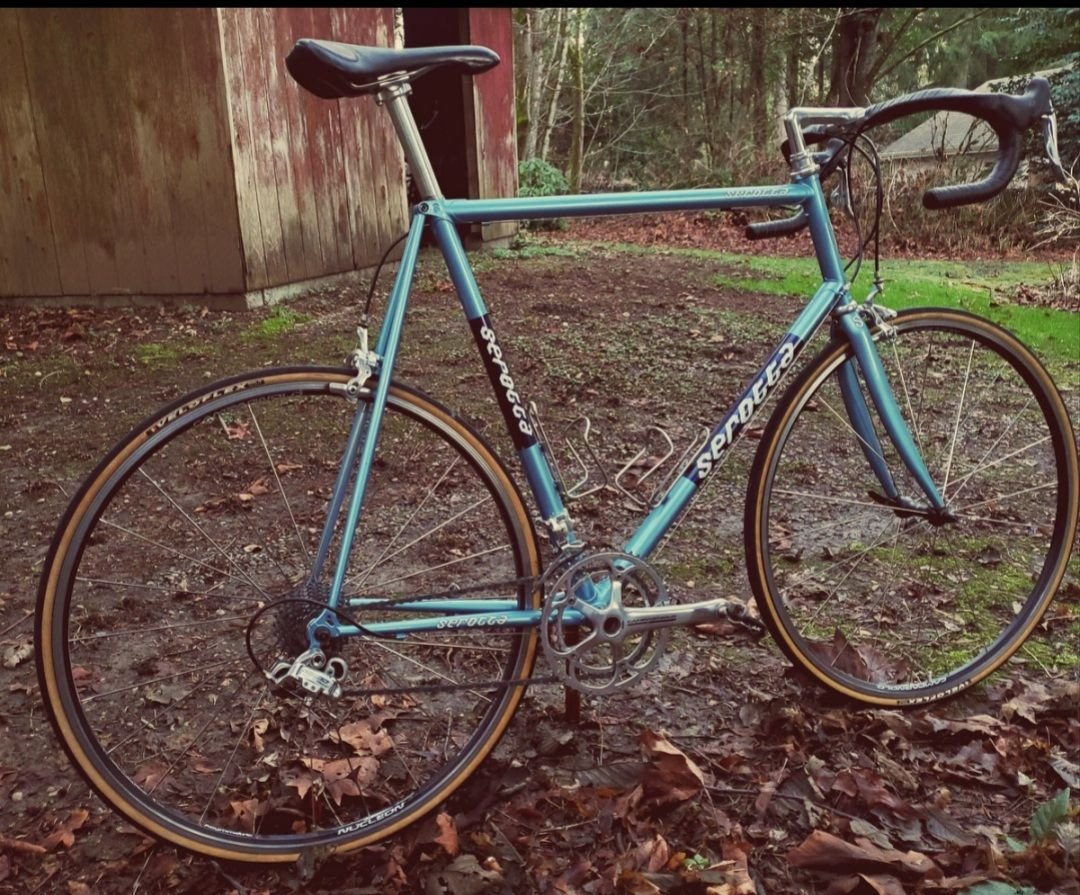

Yes it works fine. I have a 10 speed Chorus group on this Serotta. I changed out the square taper bottom bracket/Chorus crankset to this UT crankset a few thousand miles ago. No issues.

Roger M is offline
Old 10-29-21, 05:20 PM
  #5
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 583

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 238 Times in 137 Posts
this will work fine. The ultra tork crank is a dynamite part. Very solid.

Just install the outboard bearing cups and build it out from there.

you might add some Enduro bearings and an ebay crank bolt. you're going to need a 10mm allen socket and long extension.
mpetry912 is offline
Old 10-29-21, 05:30 PM
  #6
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 7,626

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 1937 Post(s)
Liked 2,259 Times in 1,004 Posts
Thanks all!

Turns out the one thing I don't have is the proper outboard bearing cups. I have one SR that's brand new yet says not to use with Record so I assume Chorus also. Then I have another Italian set that's used but look fine. Unfortunately there's no part numbers on these so I don't know how to check if it's compatible. Just ordered a new one in so the build isn't happening this weekend.
__________________
Steel is real...and comfy.
jamesdak is offline
