What Pinarello did I buy?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What Pinarello did I buy?

Old 10-30-21, 03:16 PM
  #1
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
What Pinarello did I buy?

So I bought this bike. It's metallic pink and it's a Pinarello. But there are no decals on it. Mostly Campy Record with a Sugino crankset. Both chainstays are chrome. The second set of bottle cage mounts on the seat tube may have been drilled and tapped later. So do you know model, year this is and what it may be made of? Thank you.





Last edited by Jicafold; 10-30-21 at 03:27 PM.
Jicafold is offline
Old 10-30-21, 04:22 PM
  #2
hose
Miyata Mike

hose's Avatar

Join Date: Jun 2021
Location: belchertown, MA
Posts: 170
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 59 Times in 42 Posts
An Oldie-but-a-Goldie
hose is offline
Old 10-30-21, 06:01 PM
  #3
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,980
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 858 Post(s)
Liked 1,276 Times in 651 Posts
Ď87 Tre Cime? https://bulgier.net/pics/bike/Catalo...arello87/2.jpg

Made of steel.

Whatís the serial number?

Why do you think the second bottle cage holes are later additions?

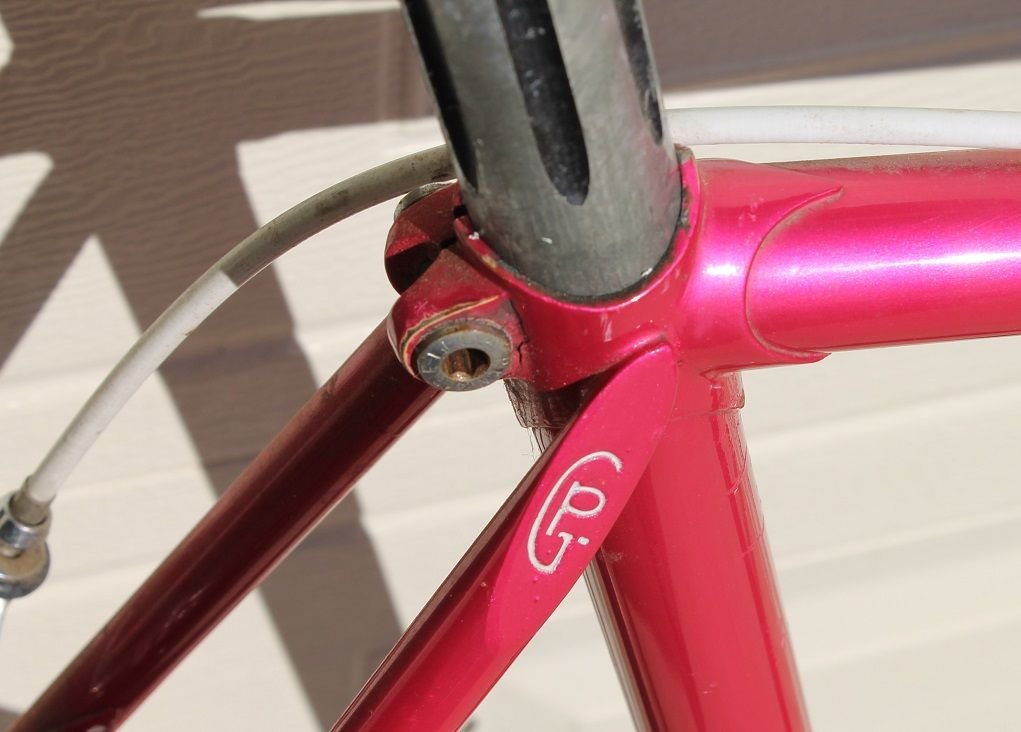

Hope thatís not a crack near the seat binder bolt.

Last edited by P!N20; 10-30-21 at 06:09 PM.
P!N20 is offline
Old 10-30-21, 06:58 PM
  #4
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Originally Posted by P!N20 View Post

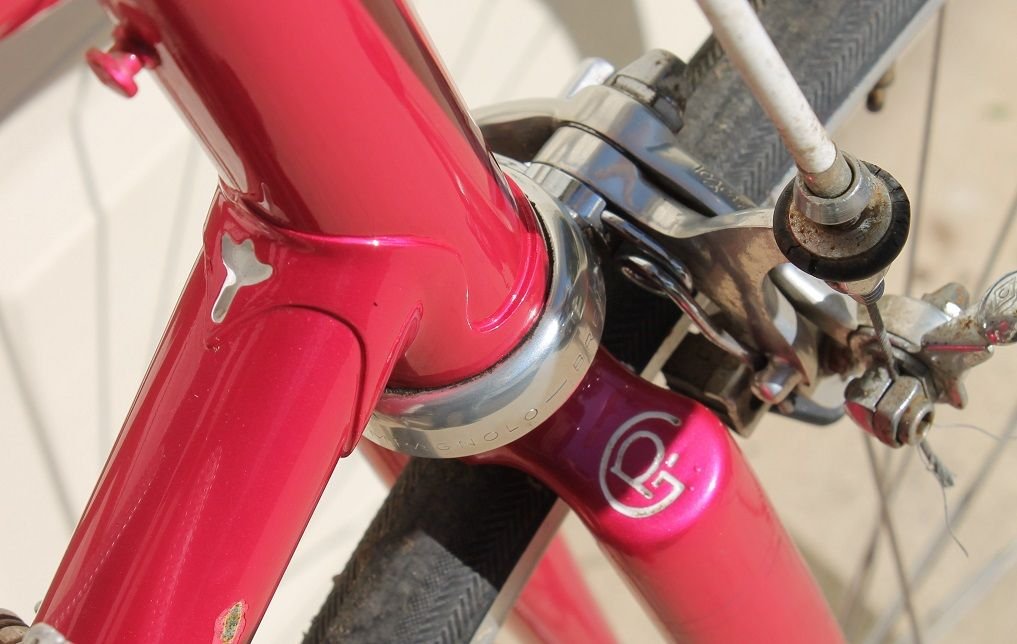

Well, it can't be that year/model because both of the chainstays on mine are chrome, and there is a logo on the fork crown. That link only shows chrome on the drive side and there in no logo on the fork crown.

The bosses are different for the bottle mounts....there are none on the seat tube. Serial number looks as if it says " A16" and that's it. That's just the paint by the seatpost.


Jicafold is offline
Old 10-30-21, 08:24 PM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,967
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1417 Post(s)
Likes: 0
Liked 534 Times in 358 Posts

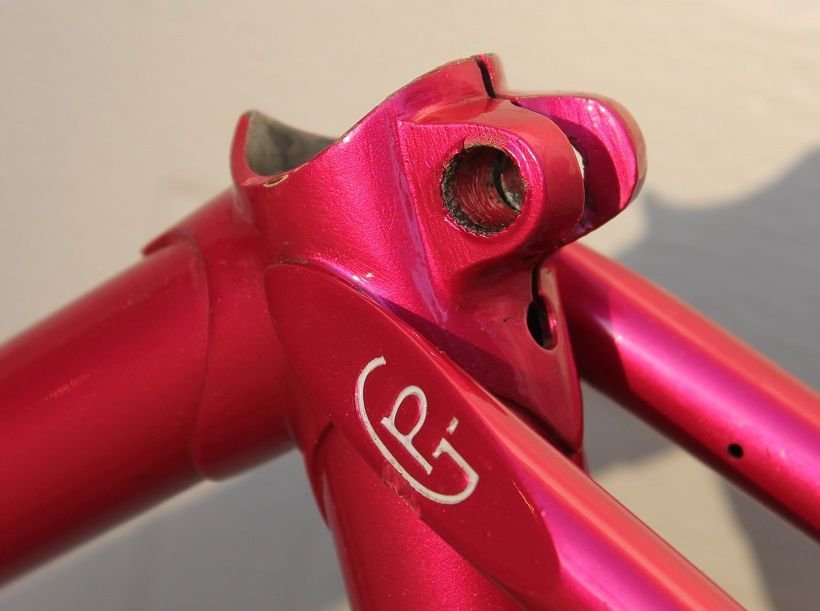

I agree about checking what that dark jagged line is at the base of the right seatlost clamp ear on the seat lug. I does look like it could be a crack.
it could also be just be the edge of the paint flaking off the clamp ear. It's good to be sure.....
Chombi1 is offline
Old 10-30-21, 09:37 PM
  #6
gkamieneski
Full Member

Join Date: Dec 2014
Posts: 333
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Likes: 0
Liked 57 Times in 38 Posts
Pretty sure they didn’t always use bosses. Simply drilled and tapped the tube.
gkamieneski is offline
Old 10-30-21, 11:36 PM
  #7
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,980
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 858 Post(s)
Liked 1,276 Times in 651 Posts
Originally Posted by Jicafold View Post
That link only shows chrome on the drive side and there in no logo on the fork crown.
True, I couldnít see properly on my phone. In that case itís probably a Treviso. Iím not convinced the paint is original as they didnít finish the paint off square like that on the chainstays.

Intersting serial number, doesnít fit in the common formats.

My Montello has bottle mount holes simply drilled and tapped sans boss, but they are both like that.
P!N20 is offline
Old 10-31-21, 06:11 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,017
Mentioned: 622 Post(s)
Tagged: 1 Thread(s)
Quoted: 4599 Post(s)
Likes: 0
Liked 2,781 Times in 1,748 Posts
I'll cast my vote for a circa 1985-1987 Treviso frame in Columbus SL.
T-Mar is offline
Old 10-31-21, 06:22 AM
  #9
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts
Thank you for that information. I'll have to take a better photo of the chainstay / bottom bracket area today.
Jicafold is offline
Old 10-31-21, 01:19 PM
  #10
ManekiNico
Newbie

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 56

Bikes: ’85 Pinarello Treviso

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 37 Times in 26 Posts
Originally Posted by gkamieneski View Post
Pretty sure they didnít always use bosses. Simply drilled and tapped the tube.
Thatís how my Treviso was set up: bosses on the downtube, drilled and tapped seat tube.

ManekiNico is offline
Old 10-31-21, 02:57 PM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,017
Mentioned: 622 Post(s)
Tagged: 1 Thread(s)
Quoted: 4599 Post(s)
Likes: 0
Liked 2,781 Times in 1,748 Posts

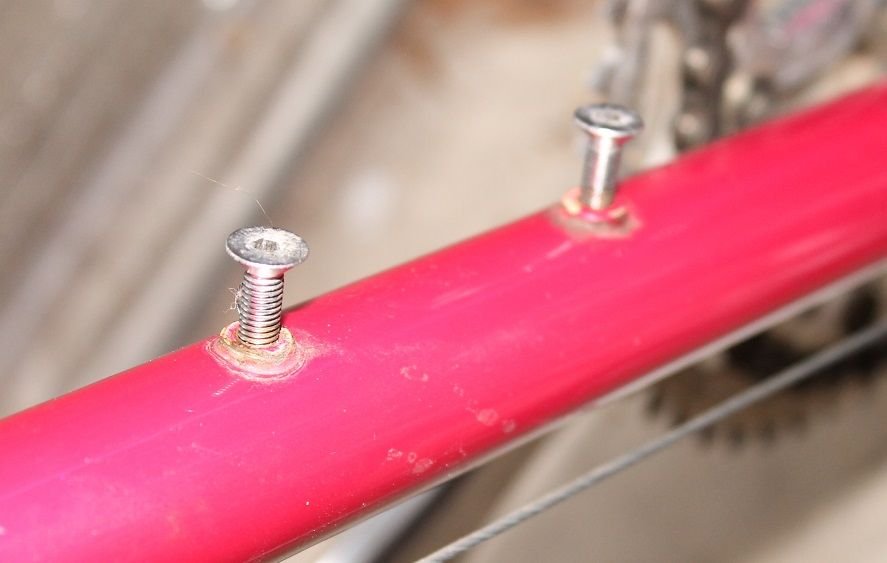

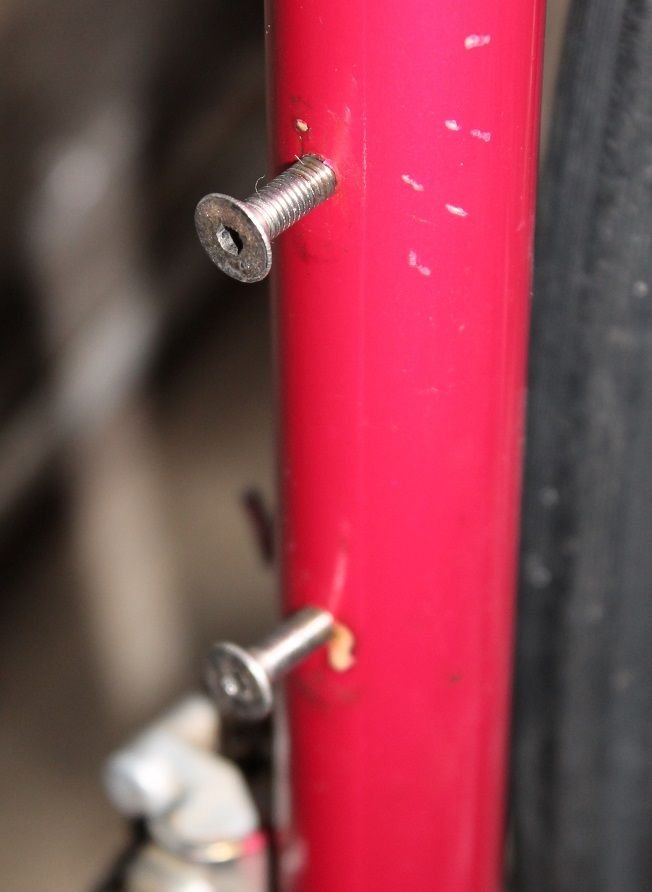

The seat tubes aren't just drilled and tapped for the bottle mounting holes. A typical SL seat tube has only 0.6mm wall thickness in that area, while a typical boss bolt uses and M5 x 0.8 thread. Consequently, a perfectly tapped SL tube would only engage a bolt for 3/4 of one thread! Take a look inside one of those threaded holes and you'll find there is lot more material than 0.6mm. It appears to be a standard boss that has been ground/filed down to a flush fit.
T-Mar is offline
Likes For T-Mar:
Old 10-31-21, 05:14 PM
  #12
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts

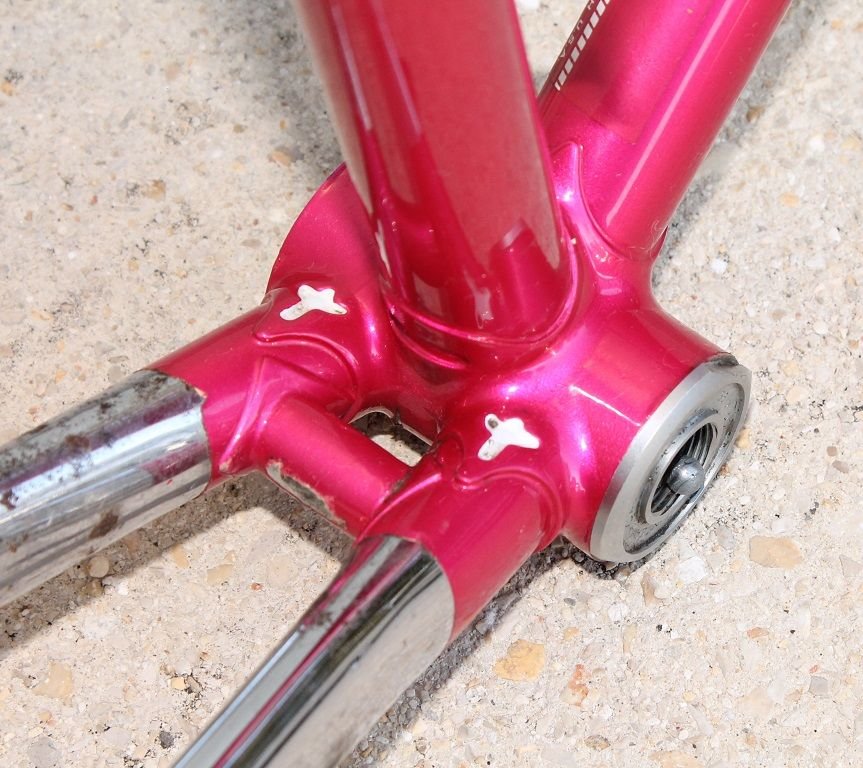

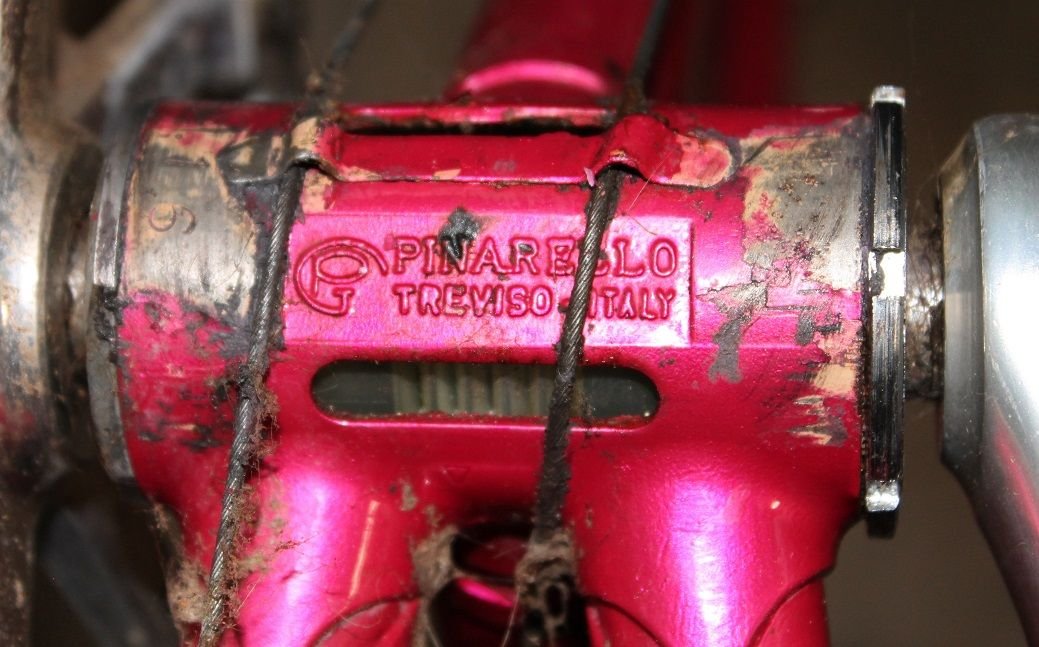

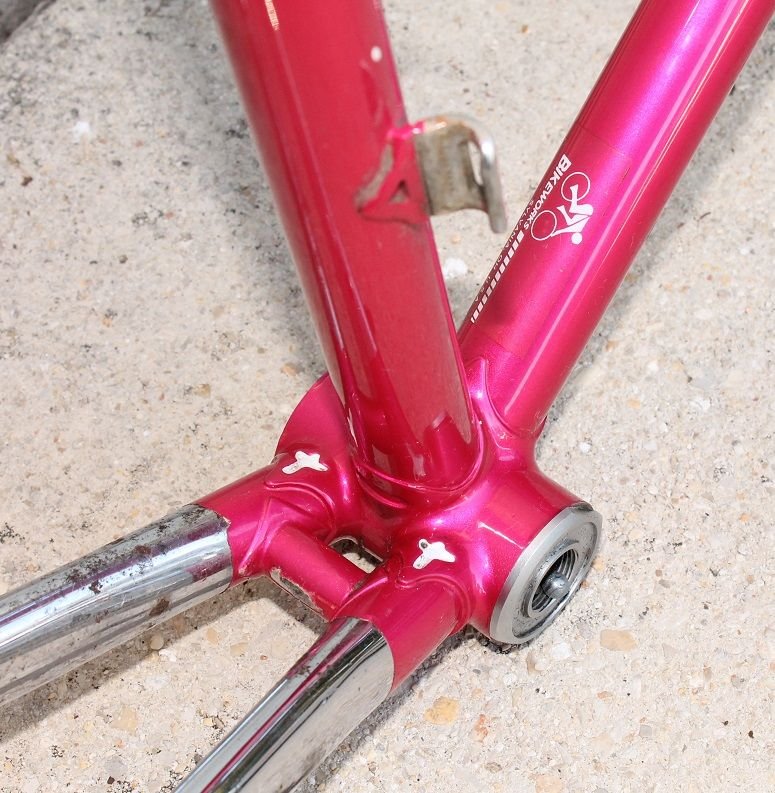

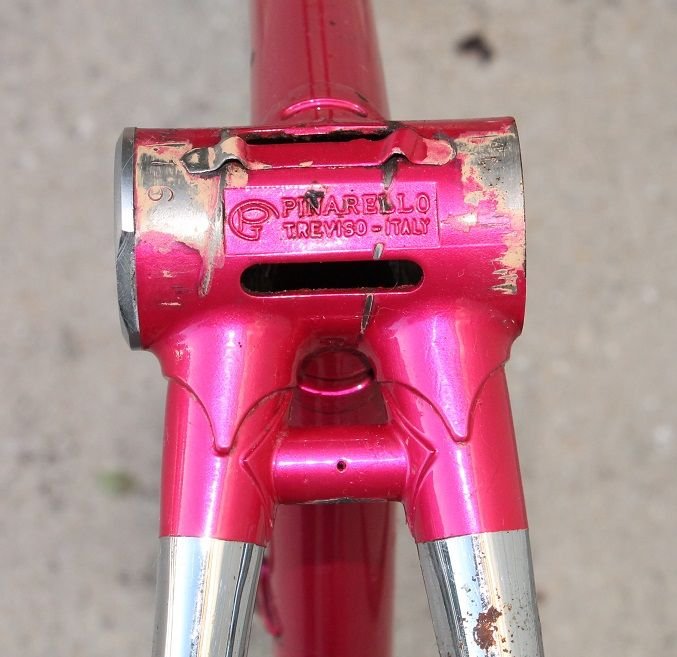

Thank you for that info T-Mar. Here are some other photos of the bottom bracket area. The dropouts say Campagnolo.




Last edited by Jicafold; 11-01-21 at 08:24 AM.
Jicafold is offline
Old 10-31-21, 05:49 PM
  #13
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 7,797

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1994 Post(s)
Liked 2,652 Times in 1,102 Posts
Digging that color!
__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-31-21, 08:10 PM
  #14
ManekiNico
Newbie

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 56

Bikes: ’85 Pinarello Treviso

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 37 Times in 26 Posts
Originally Posted by T-Mar View Post
The seat tubes aren't just drilled and tapped for the bottle mounting holes. Ö It appears to be a standard boss that has been ground/filed down to a flush fit.
Makes sense when you stop and think about it.
ManekiNico is offline
Old 11-01-21, 04:44 PM
  #15
Jicafold
Senior Member
Thread Starter

Join Date: Jun 2013
Posts: 940
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 85 Times in 63 Posts

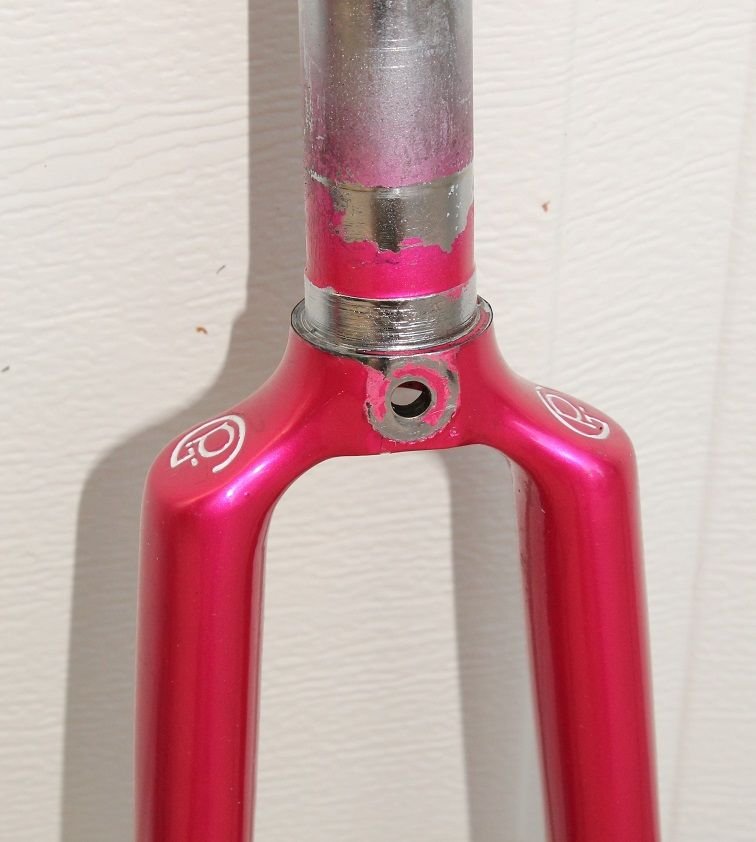

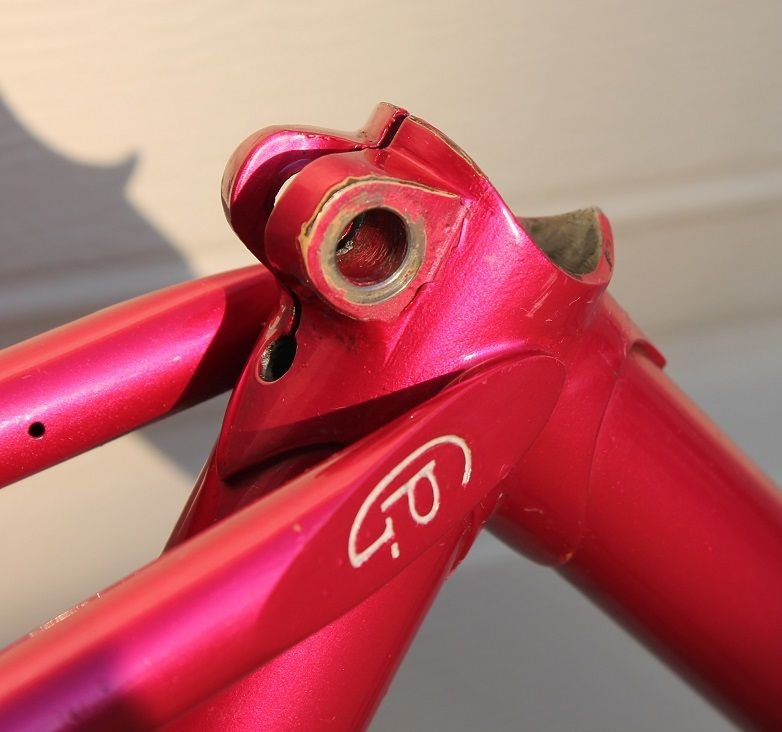

The seat lug looks fine. No cracks. The same color is inside the fork on the steering tube which leads me to think it is the original color, or it was an exact match.
