What type of CV road frame typically wouldn't have an integrated RD hanger?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What type of CV road frame typically wouldn't have an integrated RD hanger?

Old 10-31-21, 03:37 PM
  #1
jonny7
Full Member
Thread Starter

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
What type of CV road frame typically wouldn't have an integrated RD hanger?

Or to make the question a bit more precise: during the 1970s (because from what I understand, the shift to brazed-on derailleur hangers happened somewhere during the 70s), was the absence of derailleur hanger on a steel frame an indicator of anything quality-wise? I'm asking the question because I sort of took for granted that it was a sign of a lower quality bike. However, I just got my hands on what I would consider a relatively nice (though not necessarily high end) Marinoni and the dropout has no integrated hanger. It's not a huge deal for me as I wasn't looking for a gem, but it still makes me want to know more about this. Now that I'm looking for a claw to match my nuovo record rear derailleur, I even realize that these derailleurs were sometimes sold with such a claw (Campy 80A if I'm not mistaken), and NR sure is nice stuff!

jonny7 is offline
Old 10-31-21, 03:59 PM
  #2
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,934

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 903 Times in 487 Posts
It took a while for the Campagnolo style integrated derailleur ear to become the de facto standard. The claw adapter allowed use of not only Simplex or Huret but also Benelux and other pull-chain mechanisms. Nicer British bikes also often did not have integral hangers to permit them to do the seasonal shift to fixed gear for the winter.

Raleigh’s 1972-76 Gran Sport was one of the last production 531 bikes to require a claw adapter, though it seems to me that Mercian used plain dropouts for a long time on their lesser 531 bikes as well.
rustystrings61 is offline
Likes For rustystrings61:
Old 10-31-21, 04:10 PM
  #3
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,846
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Liked 185 Times in 126 Posts
What type of CV road frame typically wouldn't have an integrated RD hanger?

One that it it broken off.
jiangshi is offline
Likes For jiangshi:
Old 10-31-21, 04:15 PM
  #4
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 1,008
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 140 Times in 86 Posts
Originally Posted by jiangshi View Post
What type of CV road frame typically wouldn't have an integrated RD hanger?

One that it it broken off.
Or drewed !
OTS is offline
Likes For OTS:
Old 10-31-21, 04:18 PM
  #5
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,307
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 1,158 Times in 671 Posts
It's probably safe to say that there's never been any such thing as a low-end Marinoni. Your Marinoni had a derailleur hanger originally. Either it broke off, as suggested by Jiangshi above, or it was cut off crudely for the "fixie" conversion.
Trakhak is offline
Likes For Trakhak:
Old 10-31-21, 04:39 PM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,841
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2549 Post(s)
Liked 1,494 Times in 1,121 Posts
That looks like it could be a Simplex dropout, some referencing could be required, I do think some has been removed but I think that was a horn to help locate the rear wheel.
repechage is offline
Old 10-31-21, 05:03 PM
  #7
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,706

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1517 Post(s)
Liked 1,451 Times in 1,001 Posts
Almost certain that has been brutalized. No reason for the lower dropout "lip", unless like on the Uragos I have seen from the 60s, so I assume something was attached there. The lip was usually on the NDS, but I guess it could have easily been sourced for the DS.

Shame on a Marinoni. Looking for the horn...


And a Simplex offset claw. Which I suspect was the dropout type (without the drilled hole).


My suspicion is this dropout was dis-tabbed...

__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.






Last edited by jdawginsc; 10-31-21 at 05:07 PM.
jdawginsc is offline
Old 10-31-21, 08:09 PM
  #8
jonny7
Full Member
Thread Starter

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
I certainly will investigate/ask Marinoni about this. The single speed conversion that was made by the PO is a bit suspicious. Still I felt like it was possibly built like this since this is clearly one of the early Marinonis. I'd say 74 or 75. Will get confirmation soon.
jonny7 is offline
Likes For jonny7:
Old 10-31-21, 08:30 PM
  #9
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,499

Bikes: 48 Automoto, 49 Stallard, 50 Rotrax, 62 Jack Taylor, 67 Atala, 68 Lejeune, 72-74-75 Motobecanes, 73 RIH, 71 Zieleman, 74 Raleigh, 78 Windsor, 83 Messina (Villata), 84 Brazzo (Losa), 85 Davidson, 90 Diamondback, 92 Kestrel

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 55 Times in 43 Posts
Examine the dropout for evidence of cutting and filing. The chainstay has a brazed-on cable stop for a rear derailleur, and I would bet that the dropout originally had an integral hanger.
kroozer is offline
Old 11-01-21, 09:38 AM
  #10
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,226

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1579 Post(s)
Liked 471 Times in 359 Posts
Is this just curiosity /academic interest, or is there a problem where you need to understand history in order to decide how you're gonna finish the bike?
Road Fan is online now
Old 11-01-21, 09:54 AM
  #11
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 880

Bikes: You had me at rusty and Italian!!

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 521 Times in 294 Posts
Originally Posted by Road Fan View Post
Is this just curiosity /academic interest, or is there a problem where you need to understand history in order to decide how you're gonna finish the bike?
If you want originality there is sleuthing to be done. If you simply want a bike that rides well, anything goes.
RustyJames is offline
Old 11-01-21, 09:55 AM
  #12
jonny7
Full Member
Thread Starter

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
I'd say it's mostly curiosity. In any case I will try to find a matching claw in order to be able to use my NR groupset. For the past years I've been learning tons of things about vintage bikes but I still have a lot to learn and this forum is basically the only place where I can acquire a better understanding of the recent history of cycling. Here I'd say it's also a case of knowing more about the early days of Marinoni. In my area I see plenty of Marinonis. The one I just acquired definitely seems older than most. I've inspected the dropouts this morning and have not seen any sign of alteration. The left dropout is exactly the same as the right one. Here's a picture of the bike - left in a weird state by the previous owner.

jonny7 is offline
Old 11-01-21, 10:49 AM
  #13
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 12,108

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 264 Post(s)
Tagged: 0 Thread(s)
Quoted: 3312 Post(s)
Liked 3,116 Times in 1,532 Posts
Hadn’t heard the ‘conversion to winter fixie’ for British bikes. I now have a reason to explain lack of a hanger on my Raleigh Carlton Competition out of the Worksop factory.


To be honest - I bought it to have a Carlton. Kinda silly in retrospect, maybe even hasty! Oh well = Smile.

edit: everyone can use a Recovery Day bike.

Last edited by Wildwood; 11-01-21 at 10:52 AM.
Wildwood is offline
Old 11-01-21, 01:09 PM
  #14
jonny7
Full Member
Thread Starter

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
Originally Posted by repechage View Post
That looks like it could be a Simplex dropout, some referencing could be required, I do think some has been removed but I think that was a horn to help locate the rear wheel.
I'm 90% sure it is a Simplex dropout. I can read " S I M..." through the paint. Very similar to the dropout discussed here.

Finding the SN would help. There is a clear "C 48" on the BB shell but Marinoni suggests this is only for... the BB shell. Investigation on going.
jonny7 is offline
Old 11-02-21, 06:36 AM
  #15
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,226

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1579 Post(s)
Liked 471 Times in 359 Posts
Originally Posted by RustyJames View Post
If you want originality there is sleuthing to be done. If you simply want a bike that rides well, anything goes.

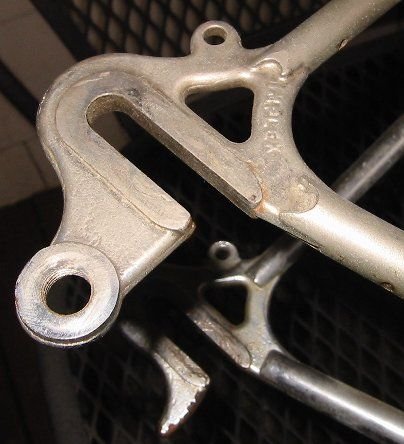

Gotcha! In my experience, which is not vast, I've mainly seen dropouts without derailleur hangers are flat stamped dropouts. Sometimes those are very flexy and other times pretty good quality. The ones on my 1952 Rudge seem rigid and hard to twist, while the ones on the 1974 Witcombs I'm working on are pretty easy to cold-set. I also have a UO-8 around and I've never even thought about D/O alignment with those. Rudge is 1952, Witcomb is 1974, Peug is about 1969 or 1970, and a 1973 Super Course. I've seen pics of Peugeots in the early PX marques with good butted tubing, but stamped dropouts dating back into the 1950s. I can't say I've ever seen an undamaged vintage (pre-vertical) forged dropout without the hanger, unless it was a track bike.

Edit: Sorry, the Witcomb's are 1974, not 1984!

Last edited by Road Fan; 11-04-21 at 05:37 PM.
Road Fan is online now
Old 11-02-21, 11:33 AM
  #16
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,139

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 808 Times in 555 Posts

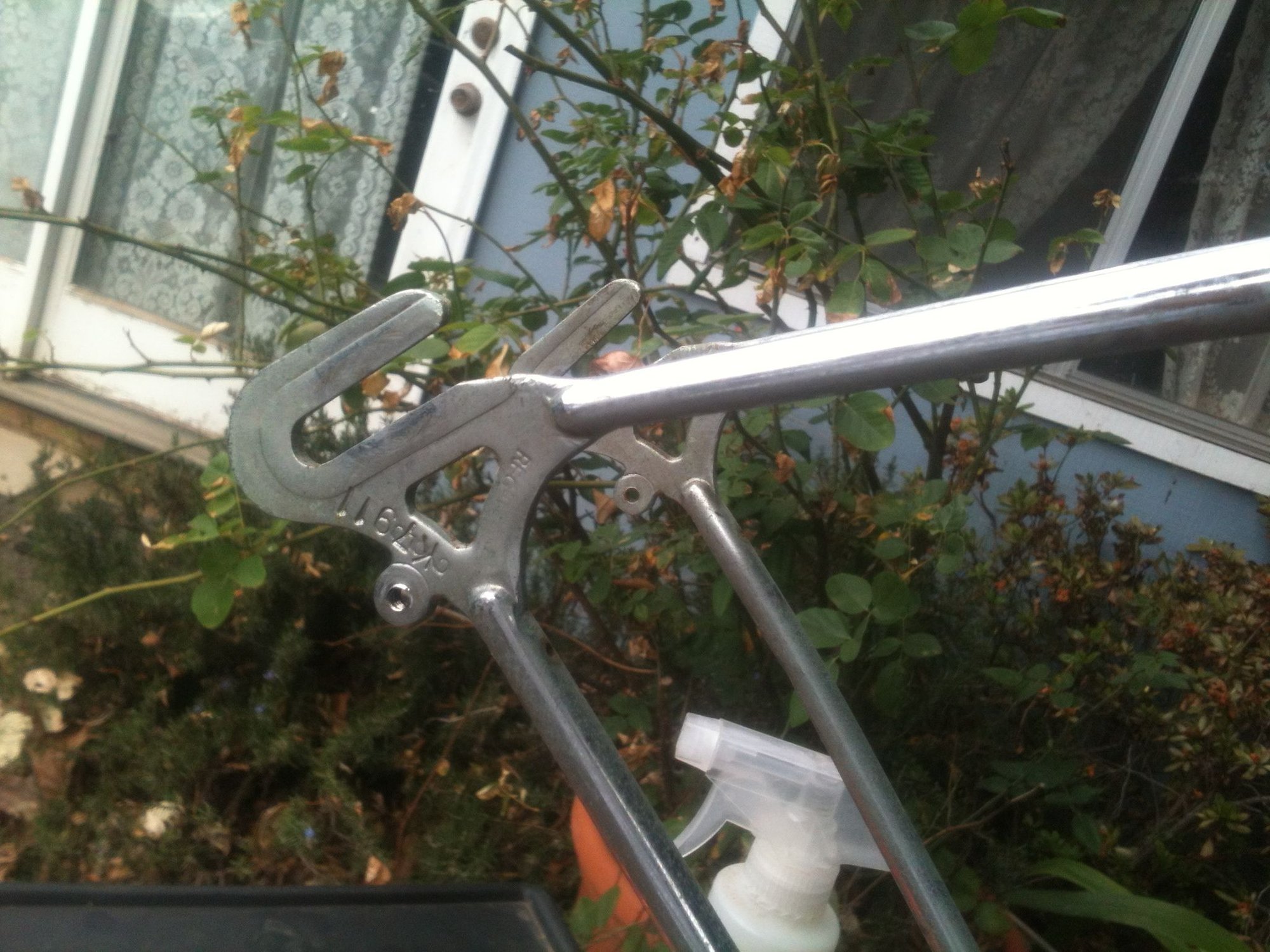

Ca. 1960, Capo used stamped dropouts with flat U-shaped braze-ons.


Repainted Cap Sieger frame, serial number very close to that of my other Sieger, so who was I to say no to it?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 11-02-21, 11:36 AM
  #17
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,139

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 808 Times in 555 Posts
Originally Posted by Wildwood View Post
Hadn’t heard the ‘conversion to winter fixie’ for British bikes. I now have a reason to explain lack of a hanger on my Raleigh Carlton Competition out of the Worksop factory.

To be honest - I bought it to have a Carlton. Kinda silly in retrospect, maybe even hasty! Oh well = Smile.

Same story with my 1962 Carlton "Worksop wonder." Full butted 531 frame, with very thick mild steel stamped dropouts and no derailleur tab.

__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 11-05-21, 02:29 PM
  #18
jonny7
Full Member
Thread Starter

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
I will deassemble the bike and carefully look for the SN (perhaps in the headtube?). Meanhile, could the components help me gather some more info on the bike? Paging the campagnolo experts here. The seatpost seems to be a Gran Sport, at least it is identical to this one here, except that the diameter is 26.2mm.

And here is a picture of the crankset. I'm having a hard time identifying it. Gran Sport? Nuovo Record? The only thing written on the back is Strada 170. No other number.

jonny7 is offline
