"Cross-hatch" Seat Post Scratches

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

"Cross-hatch" Seat Post Scratches

Old 11-09-21, 10:20 PM
  #1
Chuck M
Butted Hi-Tensile
Thread Starter

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 585

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 432 Times in 226 Posts
"Cross-hatch" Seat Post Scratches

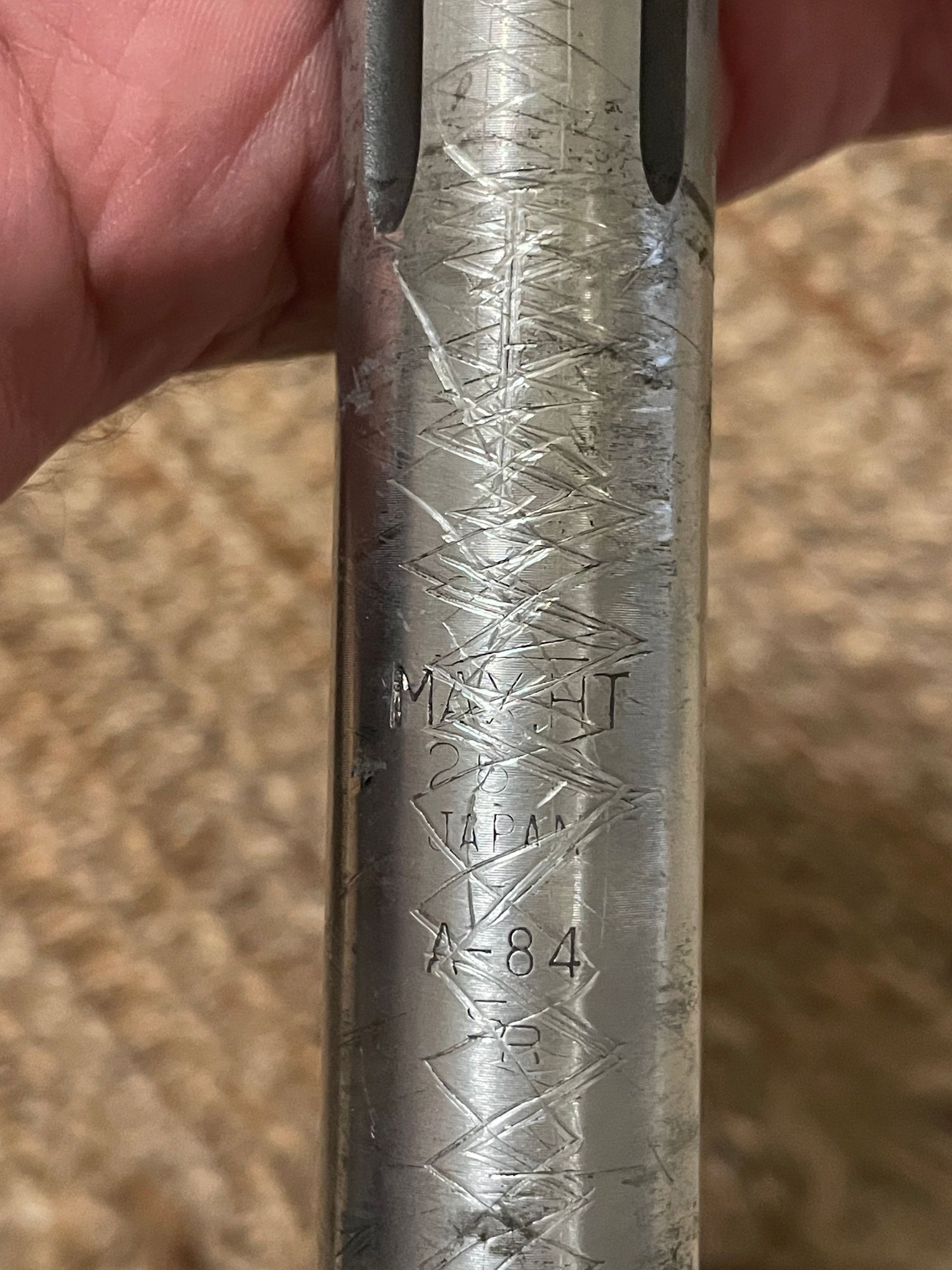

I hate these scratches on old seat posts. Why can't people be more careful? I loosened the binder bolt on this 37 year old Raleigh and lifted the seat straight out. Why did some nudnik feel the need to go full on neanderthal with this thing? Overall the rest of the bike, while dirty was in well enough cared for condition. I'll need to somehow polish out or otherwise hide every bit of those scratches above the Max Height insertion point.
At least it isn't an anodized post. I have similar scratches on two old anodized Strong Arm fluted posts.



__________________
"It is the unknown around the corner that turns my wheels." -- Heinz Stücke

Chuck M is offline
Old 11-09-21, 10:28 PM
  #2
TLaurent
Member

Join Date: Aug 2020
Location: Saint Paul, MN & Clear Lake, IA
Posts: 40

Bikes: CBT Italia, 73 Peugeot, Gary Fisher Joshua, John Deere custom hybrid, K2 EasyRider, Yakota tandem, Pinarello Montello, Colnago Mexico, Gitane Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 34 Times in 13 Posts
I understand and empathize. I purchased a pantographed Pinarello seat post with similar marks. Will post pics when I get back to the shop. Buy the right size and use lube, folks!
TLaurent is offline
Old 11-09-21, 10:35 PM
  #3
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,972

Bikes: Old school lightweights

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2056 Post(s)
Liked 2,490 Times in 1,350 Posts
Seen a lot worse. I've polished scratches like that on dozens and dozens of posts. Comes with the territory. Pick up an iron file from harbor freight with four different textures ... and some 600 grit paper.
SurferRosa is offline
Old 11-09-21, 11:51 PM
  #4
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 888
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 53 Times in 38 Posts
Originally Posted by SurferRosa View Post
Seen a lot worse. I've polished scratches like that on dozens and dozens of posts. Comes with the territory. Pick up an iron file from harbor freight with four different textures ... and some 600 grit paper.
Just don't get too crazy otherwise the post will be too small afterwords.
degan is offline
Likes For degan:
Old 11-10-21, 12:26 AM
  #5
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,972

Bikes: Old school lightweights

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2056 Post(s)
Liked 2,490 Times in 1,350 Posts
Originally Posted by degan View Post
Just don't get too crazy otherwise the post will be too small afterwords.
That's why you fit it and mark it appropriately before you start the work.
SurferRosa is offline
Likes For SurferRosa:
Old 11-10-21, 12:30 AM
  #6
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 888
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 53 Times in 38 Posts
Originally Posted by SurferRosa View Post
That's why you fit it and mark it appropriately before you start the work.
Yeah I was making a joke.
degan is offline
Old 11-10-21, 03:24 AM
  #7
sbrudno
Member

sbrudno's Avatar

Join Date: Oct 2021
Location: Northern Virginia
Posts: 26

Bikes: Motobecane Grand Record, Motobecane Super Mirage, Atala (unknown model), Peugeot mixte frame Tourist and Schwinn Sport

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 8 Times in 7 Posts
I was guilty of this some years ago and used progressively finer emery paper from 200 to 1200 grit. It did not completely resolve the deep scratches but, as degan points out, you can actually decrease the diameter so that it might be too loose for the post.
sbrudno is offline
Old 11-10-21, 05:02 AM
  #8
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,945

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 815 Times in 509 Posts
Scratches like that are hard to remove fully without some reduction in post diameter. To me , the fact that they are so deep tells me there was a burr or something that actually cut into the soft alloy. Maybe an over tightened cinch bolt that was not properly loosened or released , it is definitely worse than normal and there will probably be “witness” marks even after sanding and polishing.
Kabuki12 is offline
Likes For Kabuki12:
Old 11-10-21, 07:35 AM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,089
Mentioned: 585 Post(s)
Tagged: 1 Thread(s)
Quoted: 4225 Post(s)
Likes: 0
Liked 1,938 Times in 1,327 Posts
While a previous owner may not have loosened the seat post sufficently, the very heavy scoring suggests Raleigh did not ream/hone the seat tube and the LBS did not lubricate the post prior to installation. Had the seat tube been properly finished and the post properly lubricated, the scoring would have far less severe, even if the binder bolt was not fully loosened. This is a case where the manufacturer and LBS share at least as much blame, and arguably more, than the previous owner.

This type of scoring, primarily along the leading edge of the seat post, is quite common on mass produced frames with a vent hole drilled into the front of the seat tube, at the junction with the top tube. If the manufacturer does not deburr that hole, it will mark the seat post in this fashion. While other root causes are possible, this is the most probable.
T-Mar is offline
Likes For T-Mar:
Old 11-10-21, 09:42 AM
  #10
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,044

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1163 Post(s)
Likes: 0
Liked 1,090 Times in 647 Posts
These days and for many days before, I always clean up the seat tube cavity. I start by filing or champering the inside edge of the slot at the back (usually) of the seat tube lug. Then I use emery cloth to smooth out the bore of the seat tube cavity. Additionally, I ensure that the bore is round and that the seat tube ears are not collapsed in. I measure, using my Vernier calipers, the bore in several places to ensure roundness. With that all done, I test fit the intended seat post until I am convinced that it fits properly. Then I lube up the post and the bore of the seat tub lug liberally. In my mind, to skip a single one of these steps is a mistake.

Of course, once the seat post is badly scored, it it too late to repair the damage done. Cleaning the post and sanding or filing the score marks out will reduce the seat post diameter and allow for distortion of the seat tube bore and too much bending in of the lug ears.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 11-10-21, 10:56 AM
  #11
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,413

Bikes: Yes

Mentioned: 419 Post(s)
Tagged: 0 Thread(s)
Quoted: 2413 Post(s)
Liked 1,363 Times in 636 Posts
Wait. Are you saying there are vintage seatposts that aren't scored like that?
__________________
My Bikes
Andy_K is offline
Old 11-10-21, 09:14 PM
  #12
Chuck M
Butted Hi-Tensile
Thread Starter

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 585

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 432 Times in 226 Posts
Oh I'll buff it out the best I can and not lose sleep about it. I guess I'm just lucky this is the worst thing to happen to this bike and there is no evidence the seat post has ever been clamped too tight. This was probably as T-mar said, not correctly loosened for adjustment.
__________________
"It is the unknown around the corner that turns my wheels." -- Heinz Stücke

Chuck M is offline
Old 11-10-21, 09:18 PM
  #13
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 382

Bikes: You had me at rusty and Italian!!

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 207 Times in 114 Posts
Originally Posted by Andy_K View Post
Wait. Are you saying there are vintage seatposts that aren't scored like that?
RustyJames is offline
Old 11-10-21, 10:31 PM
  #14
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,925

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 3159 Post(s)
Liked 1,811 Times in 1,188 Posts
I have a Campy Chorus like that. It's on my rain/winter/city fix gear where it has served faithfully for years. Since I never look down at it riding, simply not an issue. (I bought it used with the markings; priced accordingly.) I also have an SR 100 something, that adjustable and huge setback MTB post that isn't scarred but doesn't look much better. I don't think I've ever seen one of those that wasn't very used and beat up.

I've seen what undersized posts do to seat lugs and ears. (And those lugs now scar the next one quite nicely.) No thanks. I'll just live with that abomination I cannot see when it matters.
79pmooney is offline
Old 11-11-21, 01:20 AM
  #15
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,779

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 828 Times in 490 Posts
Snake Skin Seatpost Scratches

Originally Posted by Chuck M View Post
I hate these scratches on old seat posts. Why can't people be more careful? I loosened the binder bolt on this 37 year old Raleigh and lifted the seat straight out. Why did some nudnik feel the need to go full on neanderthal with this thing? Overall the rest of the bike, while dirty was in well enough cared for condition. I'll need to somehow polish out or otherwise hide every bit of those scratches above the Max Height insertion point.
At least it isn't an anodized post. I have similar scratches on two old anodized Strong Arm fluted posts.



I just posted this thread. While it doesn't address getting rid of the hash marks, it shows how to prevent the problem:

Flexible Hone for cleaning seat tube

I bought a bike on eBay several years ago that was "just overhauled and ready to ride"...

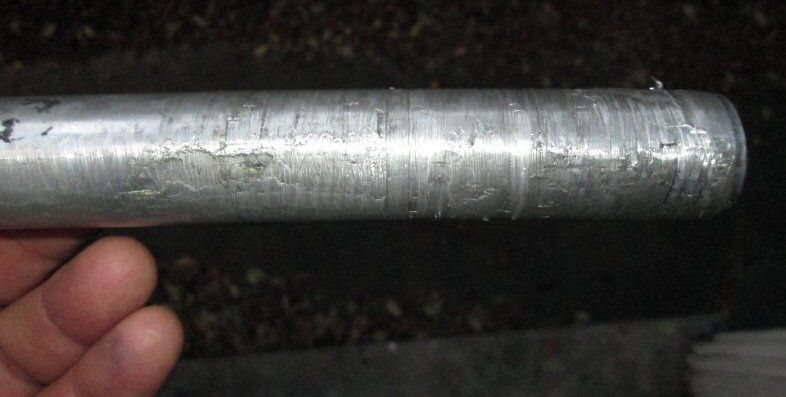

The worst snake skinned seatpost I've ever seen. It looked like it had been forced in and out many times!

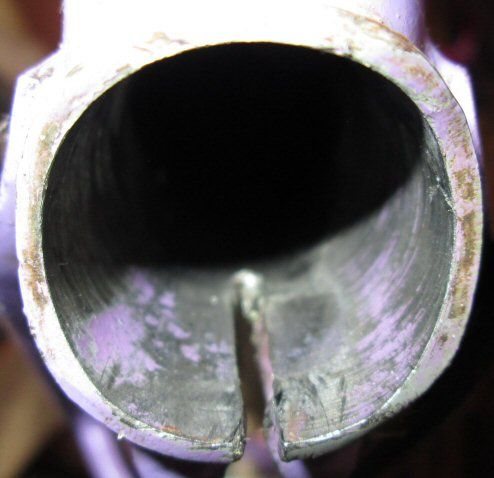

The inside of the seat tube before...

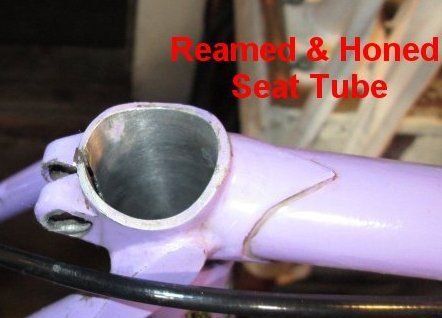

After...



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Old 11-11-21, 01:21 AM
  #16
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,642
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1286 Post(s)
Likes: 0
Liked 353 Times in 253 Posts
Most of those can buff out on most seatposts, but sometimes it is sad when one with nice psntographs of the bike brand or height measurements are scratched up so bad and you do not have a choice but to sometimes affect the legibility of the pantographs when pushing out the deep scratches.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
