Originally Posted by fishboat View Post
While I'm a good customer of my local Ace..for the last 30 years...you can buy step bits on amazon for $15-$25. Some are low quality(though some good brands are there too)..you're drilling out soft aluminum, slightly more challenging for a bit than a good hardwood. Actually a cheap bit might be a plus as you'd like it to stop cutting when it hits steel.

Seems like a good method as long as the starter hole is centered. I had a bike shop remove a stuck post years ago. While they got it out and only charged me $100(3+ hours they futzed with it), someone used a sawzall at some point and sliced a small (3/8ths inch) slit-hole in the seat tube. Small, but definitely there once the paint chipped off enough to see it. No idea if they knew they did it. It wasn't visible initially as it didn't come through the paint. Ended up giving the bike(a very nice bike..) to the son of a good friend. An added "decal" electrical tape pinstripe around the seat tube and good to go. He's 26 and starting an adult cycling habit. He loves the bike..so did I..

agreed, he had suggested going to a 1" max step bit which I only could find at Ace, I think that would be cutting it pretty close 25.4MM in a 27.2MM seat tube. I ordered the one he pictured with a max of 7/8 for $10 from Amazon. That should be 22MM which is the same as another person posted using a 22MM bit. I hope to avoid the saws all, but if I do need it, I have to bore the hole quite a bit bigger to fit it in there anyway. I could also use a hand hacksaw to finish it off if need be

thanks for the input, this sucker is coming out!

Last edited by justcynn; 11-15-21 at 07:38 AM.
justcynn is offline
Old 11-15-21, 07:46 AM
  #27
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,489

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 1,165 Times in 645 Posts
I have one experience with a stuck post.
Treated it for months with Kroil. At the time it belonged to a person who used the same storage room at work. The saddle clamp was a separate part and had broken free enough to just rotate.
First step was to drill a hole through it to use it as a leaver for twisting. No go.
The bike was partially stripped during a weekend (Wash DC) and he replaced the bike. I offered to purchase and he sold for $50 sans wheels, stem, handlebar and brake levers.
All my attempts of a mechanical removal failed to extract it but mangled the remains of the post.
P1030267 on Flickr
Even tried to saw it out but it was too far in, maybe 12". Note the bolt configuration to spread the saddle lug clamp.
P1030271 on Flickr

Gave up and attacked with Lye.
Did this outside because the chemical reaction is H2 and it gets hot. Tried to plug the clamp area and inverted the frame.
P1030273 on Flickr

Tried the Drano approach but it was not aggressive enough. Went directly to lye crystals. Pored it into the BB and got a quick reaction with lots of vapors and foam.
P1030283 on Flickr

Not enough heat to damage the paint but you can't touch the frame. Located the clamp as far from the saddle lug as possible, only 100cc of lye solution at a time.
I think I did 4 treatments. Some paint damage from the leaks.
There was progress.
P1030290 on Flickr

I finally got it out
WP_20160107_001 on Flickr

Paint damage is what it was. Better than trashing the frame.
Langster Seat Cluster by Patrick Boulden, on Flickr

The wheels were purchased off craigs list and the rest was in the stash except the BB needed replacement and the 42 tooth ring was replaced with 46. Rear 16t sprocket purchased as well along with a chain.
2010 Langster Steel 61cm on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 11-15-21, 08:05 AM
  #28
viperocco
Senior Member

viperocco's Avatar

Join Date: Sep 2020
Location: Monroe MI
Posts: 196

Bikes: 05 Fuji Outland Pro, Fuji cape may, Giant simple single, Peugeot Corbier, Miyata 215st

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 47 Times in 26 Posts
That has got to be the craziest seat post I have ever seen. I would go with drill it out till it is thin enough to peel away from seat tube?
I too would like to take a stab at a stuck seatpost bike just for ***** and giggles. Good luck!
viperocco is offline
Old 11-15-21, 10:23 AM
  #29
ZudeJammer
Senior Member

ZudeJammer's Avatar

Join Date: Oct 2019
Posts: 254

Bikes: Fuji Touring Series V 1985, Motobecane Grand Touring 1982, Specialized Stumpjumper 1993, Raleigh International 1972, Raleigh Grand Prix 1972, Kuwahara Count 1983, Trek Cirrus 1987

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 114 Times in 65 Posts
damn thats a thicky. the large drill bit method looks easiest method. I dont recommend using bismuth to embrittle the post cause you will still need to grind it out and its messy
ZudeJammer is offline
Old 11-15-21, 05:13 PM
  #30
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,024

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1272 Post(s)
Liked 1,143 Times in 804 Posts
Originally Posted by justcynn View Post

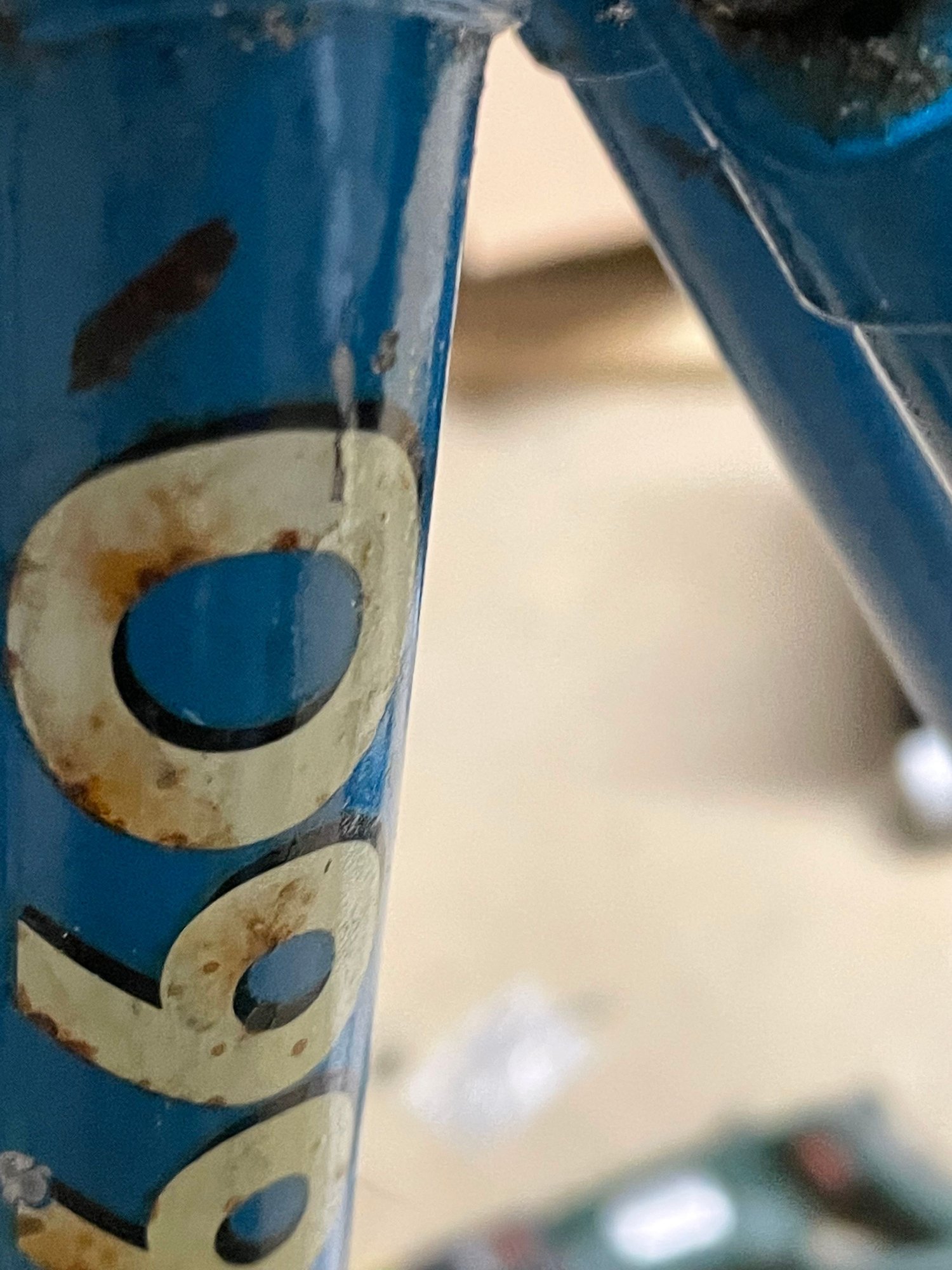

so, the find of the day turns out to have the thickest and very stuck seat post I have encountered. To make matters worse, is about 6-7 inches into the seat tube. This Reynolds 531 frame may not make it...

First I started with Drano, no luck. Then I cut it off and had planned to cut it out and discovered just how thick the side walls are...

I have read the lye ideas, prob not something I would want to try. Mostly interested in cutting it out, but I don't think my sawzall blade will fit. Maybe bore it out with a drill first? other ideas?


First of all, what the %$#^%@&#$ seatpost is that thick?

Secondly, that photo is cool...it almost looks like an acrylic painting.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is online now
Old 11-15-21, 05:59 PM
  #31
justcynn
Senior Member
Thread Starter

Join Date: Feb 2020
Location: Little Rock, AR
Posts: 273

Bikes: (2) 1980 Schwinn Voyageur 11.8 All Chrome, 1985 Schwinn Peloton, 1987 Schwinn Tempo, 1987 Schwinn Prelude, 1988 Schwinn Premis, 1987 Trek 520,, 1985 Schwinn Voyageur, 1985 Schwinn LeTour Luxe, 1989 Schwinn Voyageur, 2011 Specialized Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 214 Times in 103 Posts
Originally Posted by jdawginsc View Post
First of all, what the %$#^%@&#$ seatpost is that thick?

Secondly, that photo is cool...it almost looks like an acrylic painting.
yes! First was elation to get a Trek 660 Reynolds 531 with a full 600 tri color group for less than $100 less than 30 miles from my house. then despair to see the very stuck post and wall thickness.

fear not. That sucker is coming out one way or another. Even if it takes a year or more. It took 33 years to get that stuck.

and now that you say it- that seat post pic will make a good reminder in the bike shop. Framed and hung. (After the post is defeated!)
justcynn is offline
Old 11-15-21, 06:49 PM
  #32
sincos
Senior Member

Join Date: Nov 2020
Posts: 205
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 100 Times in 60 Posts
But what kind of seatpost is it? I've never seen anything remotely close to that thick.
sincos is offline
Old 11-15-21, 07:02 PM
  #33
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 606

Bikes: You had me at rusty and Italian!!

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked 343 Times in 180 Posts
That is quite a seat post!!

Iím liking the idea of threaded rod and a slide hammer. Second choice would be the step drill bit. Regular feeding with your favorite penetrating fluid is a given.

Personally, not a fan of caustics but Iím very averse to strong chemicals in general.
RustyJames is offline
Likes For RustyJames:
Old 11-15-21, 07:04 PM
  #34
justcynn
Senior Member
Thread Starter

Join Date: Feb 2020
Location: Little Rock, AR
Posts: 273

Bikes: (2) 1980 Schwinn Voyageur 11.8 All Chrome, 1985 Schwinn Peloton, 1987 Schwinn Tempo, 1987 Schwinn Prelude, 1988 Schwinn Premis, 1987 Trek 520,, 1985 Schwinn Voyageur, 1985 Schwinn LeTour Luxe, 1989 Schwinn Voyageur, 2011 Specialized Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 214 Times in 103 Posts
Originally Posted by sincos View Post
But what kind of seatpost is it? I've never seen anything remotely close to that thick.

the thickest SR Laprade I have ever seen!
justcynn is offline
Old 11-15-21, 08:06 PM
  #35
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,563

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 282 Times in 196 Posts
RJ The Bike Guy has a Youtube video illustrating the use of an impact driver to remove a seat post. I thing you might have enough of a stub left to try it.

bark_eater is offline
Likes For bark_eater:
Old 11-16-21, 07:24 AM
  #36
fishboat
Senior Member

Join Date: Feb 2016
Location: SE Wisconsin
Posts: 1,458

Bikes: Lemond '01 Maillot Jaune, Lemond '02 Victoire, Lemond '03 Poprad, Lemond '03 Wayzata drop bar conv(Poprad), '79 AcerMex Windsor Carrera Professional(purchased new), '88 GT Tequesta(purchased new), '01 Bianchi Grizzly, 1993 Trek 970 drop bar conv

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 543 Post(s)
Likes: 0
Liked 468 Times in 276 Posts
Originally Posted by bark_eater View Post
RJ The Bike Guy has a Youtube video illustrating the use of an impact driver to remove a seat post. I thing you might have enough of a stub left to try it.

https://www.youtube.com/watch?v=P-Yp...l=RJTheBikeGuy
Nice. "removing a stuck seatpost" just took a step forward. That method is very efficient at putting a serious amount of energy into the removal without destroying the portion of the seatpost you have available to work with. I like the slide hammer approach, but the energy used there pales in comparison to the impact driver. The way impact drivers work seems tailor made for seatpost removal.
fishboat is offline
Old 11-16-21, 10:39 AM
  #37
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
I can see how the high frequency cyclic torque is putting enough twist into the seatpost along it's length to progressively break the bond from top to bottom, so would work most effectively on thinner posts and which may be frozen along a greater length.
I've similarly used a back-and forth twisting, by hand, but which took a very long time to break a really-stuck post free.

For the OP's post, the thick walls up top allow more torque to be applied without tearing the post at the drilled holes.

It also might be possible to drill out the thick upper end of the post just enough to get a slender (or further slenderized, using a grinder, yes I've done this) sawzall blade well in there.

Note that a single slot, down to bare steel along the entire(!) length of the slot, will allow any post to be twisted out (the slot can remain bridged in the upper clamping area however).
But often one fails to remove some "bridge" of aluminum below the seat lug, which keeps the corrosion bond in compression, so the post won't move.

Even a sharpened (at the tip) Sawzall blade will not get any bite into the inside of the steel seat tube, unless it contacts the top edge of the seat tube where enough contact-force concentration (pressure) can allow the teeth to bite into the steel surface.
A steel probe like a sharpened and bent spoke can/should be used to verify that no more aluminum is bridging the slot anywhere along it's length before twisting it out.

Removed this stubborn post from my Bob Jackson after numerous other approaches (including dry ice) as shown below., and there was absolutely no evidence of any cutting into the steel ID of the seat tube. I probed it with the bent spoke and it was perfectly smooth inside after all of the Sawzall activity.









A couple of other considerations might be, 1) What tools does one have or want to buy, 2) Will there be too much stress on minimalist seatstay top eyes, and 3) What skillset does the operator feel most comfortable exploiting.

There is also this possibility, where an oversized steel post had been pounded in decades earlier and just was not wanting to budge (a steel post can not be sawed out):



Last edited by dddd; 11-16-21 at 10:47 AM.
dddd is offline
Likes For dddd:
Old 11-16-21, 12:17 PM
  #38
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,140

Bikes: Yes, please.

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 1862 Post(s)
Liked 2,472 Times in 1,105 Posts
Some more anecdotal evidence.

With a stuck seatpost I may be inclined to use brute-ish force, but with a stem I am more reluctant, afraid to damage the fork in one way or another.

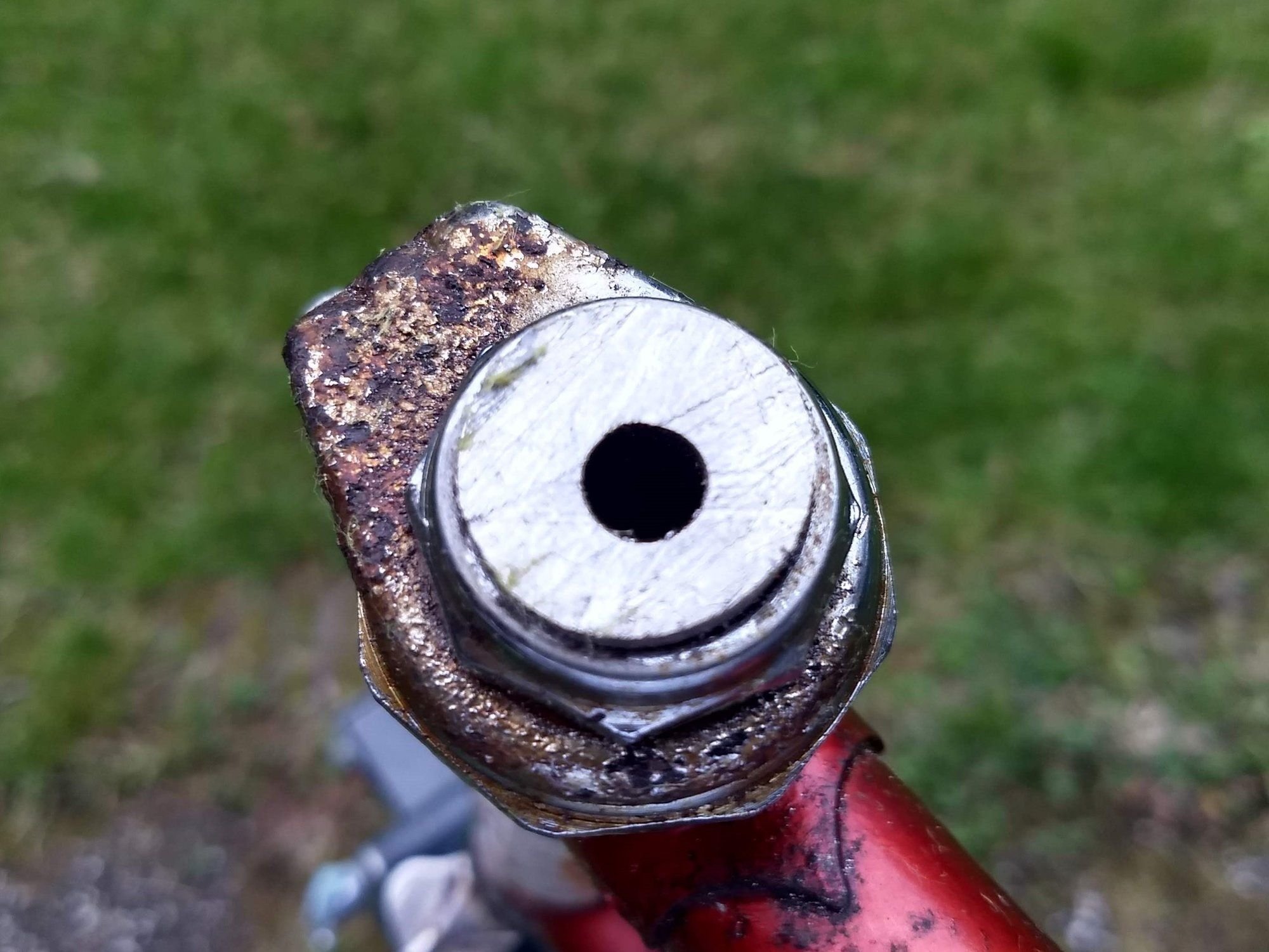

So when I was confronted with this stuck stem I did not see many options ...



... and I decided to get the drain cleaner, the vase and the gloves, as well as the adult beverage per dddd 's example. Sat for a couple of hours sipping the aforementioned beverage and looking at this happily bubbling away, adding some fresh drain cleaner every now and then:



It may have taken a couple of years off my life expectancy, but it was the easiest wrenching ever. Result!

__________________
Woo hoo!









non-fixie is offline
Likes For non-fixie:
Old 11-16-21, 03:22 PM
  #39
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,871
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15641 Post(s)
Liked 3,107 Times in 2,314 Posts
A little late now, but I don't think my first option would be to cut off the seat post.

That takes away a lot of options such as putting the post in a vise and using the frame as a wrench. Also, if you have access to the seat tube through the bottom bracket,an intact seat post would be easier to treat with a penetrating oil, or lye.
CliffordK is online now
Old 11-16-21, 03:47 PM
  #40
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,004

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1044 Post(s)
Liked 520 Times in 375 Posts
Just a couple of observations, having dealt with dozens of stuck posts and stems. The vise and twist method can sometimes work, but I can put more twisting force on a frame is designed to take. As a result I have bent frames.

Cutting them out is always an option, just be careful, Seat posts tend to have a thick wall. Frame seat tubes tend to be THIN.

As far as drain cleaners/caustic soda methods, I highly recommend people NOT do this unless they have complete safety gear including SPLASH googles. Worst industrial accident in my career was an employee who was BLINDED in both eyes by relatively dilute caustic soda. Another accident (fortunately not in the eyes) resulted in extensive skin grafts. Caustic soda works, and it will dissolve body tissue as well as aluminum seat posts.

With my background, I am willing and able to use a variety of chemical products. Caustic soda is one I avoid.

I've never tried the impact driver, but it makes a lot of sense and I will try it in the future!

bill
Chem E PE.

Last edited by wrk101; 11-16-21 at 03:57 PM.
wrk101 is offline
Old 11-16-21, 08:10 PM
  #41
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,426

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1069 Post(s)
Liked 1,384 Times in 752 Posts
Originally Posted by dddd View Post
I can see how the high frequency cyclic torque is putting enough twist into the seatpost along it's length to progressively break the bond from top to bottom, so would work most effectively on thinner posts and which may be frozen along a greater length.
I've similarly used a back-and forth twisting, by hand, but which took a very long time to break a really-stuck post free.







Looks like you used a "Generous" amount of "liquid" to remove the posts. What type did you use on the inside of the frame?
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 11-16-21, 08:27 PM
  #42
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Originally Posted by xiaoman1 View Post
Looks like you used a "Generous" amount of "liquid" to remove the posts. What type did you use on the inside of the frame?
Best, Ben
I recall using PB Blaster, from both ends. I kept trying to twist it loose, must have tried every other day for some weeks actually. I thought it was rusted in place, but wasn't, just that a bigger post had for some reason been pounded in back in 1964 or whenever, which no doubt made the owner happy at the time.

Not only did the 2-ton pulling force alone not remove the post, it took a simultaneous beating on the seat tube (using the 2# hammer and Trex block as shown) for some minutes in order for the post to slowly creep out of the seat tube.

Yeah, worked on that one for weeks, good reason for celebration!
dddd is offline
Old 11-16-21, 08:28 PM
  #43
justcynn
Senior Member
Thread Starter

Join Date: Feb 2020
Location: Little Rock, AR
Posts: 273

Bikes: (2) 1980 Schwinn Voyageur 11.8 All Chrome, 1985 Schwinn Peloton, 1987 Schwinn Tempo, 1987 Schwinn Prelude, 1988 Schwinn Premis, 1987 Trek 520,, 1985 Schwinn Voyageur, 1985 Schwinn LeTour Luxe, 1989 Schwinn Voyageur, 2011 Specialized Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 214 Times in 103 Posts
Victory! Sort of. So I went with a 7/8 Step Bit from Amazon ($10). quickly realized I needed some sort of extension, found that at my local Home Depot ($12). The step bit methodically, slowly drilled that sucker out. I did use gun oil as a cutter. Worked pretty well. This left about 5 MM of post (2.5MM thick) and a 22 MM hole. It was enough to get a saws all blade in there, I was able to cut a couple slots and peel the post back, it came out in pieces and there is a small piece down the tube that doesn't want to come out but it does move. I used the threaded rod appraoch and it slides down. but doesnt want to slide out . at this point I realized my mistake...
MY MISTAKE was I used too big of a screw driver too early in the process for leverage to peel the post back. This left two small creases in the seat tube! Could they be repaired? I hope so but IDK. but everything was going great till I did that. Thanks for all the advice, its not something I want to do again, but became a mission to get that sucker out! and in that sense, success!





nicked the top tube with saws all, not too bad

screw drivers will leave a mark! hate it that I did that. No need, just needed to keep methodically grind that sucker out.
justcynn is offline
Old 11-16-21, 09:13 PM
  #44
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,137

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 1250 Post(s)
Liked 981 Times in 536 Posts
Excellent!
52telecaster is offline
Old 11-16-21, 09:57 PM
  #45
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,871
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15641 Post(s)
Liked 3,107 Times in 2,314 Posts
Originally Posted by bark_eater View Post
RJ The Bike Guy has a Youtube video illustrating the use of an impact driver to remove a seat post. I thing you might have enough of a stub left to try it.

https://www.youtube.com/watch?v=P-Yp...l=RJTheBikeGuy
Interesting process. Probably slightly less traumatic than using "Big Daddy".



Although, I have found the weakness of electric impact wrenches. I got a HF Earthquake cordless impact that is stronger than my DeWalt corded impact, but met its match on some wheel studs on my BMW project. GRRR... Some things the impact does better than the breaker bar, other things not.

I've never liked drilling masonry bits into steel (and as is obvious from the video, the bit was TOAST after drilling). I did drill a similar socket a while ago using regular high speed steel bits (perhaps the HF Cobalt bits). Always start with a small bit, drill, then go to a larger bit.
CliffordK is online now
Old 11-16-21, 10:09 PM
  #46
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,871
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15641 Post(s)
Liked 3,107 Times in 2,314 Posts
I see you got the post out. A little banged up, but hopefully it will be OK.

In another thread, @woodcraft suggested using a "pipe saver" bit on a stuck Carbon Fiber post. Generally designed for plastic, but there are a variety of designs. And, some may be work on aluminum. The perfect guide, and it should keep your bit centered well.
CliffordK is online now
Old 11-19-21, 05:01 PM
  #47
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Lessons from this removal might include firstly to go slow, check progress often (probing the slot with a sharpened, bent-tip spoke to gauge progress, as the sharp point will glide across steel but "snag" on aluminum).

The cut(s) went too far up, so the teeth contacted the seat tube opening where resulting excessive contact pressure resulted in the blade's teeth cutting into steel). Keeping the working edge of the blade tilted slightly away from the edge of the seat tube opening is important.

There is no need to slot the post any higher than the bottom of the slot in the seat tube, since, above that point, no compressive bonding of the corrosion can occur.
No need to pry open the clamping ears either, for the same reason, and best not to. I would not bother with trying too hard to get any penetrant down in there, at least not beyond using a few thermal cycles. Safer to add penetrant to the ever-growing slot in the post.

A single cut slot is all that is ever needed to release the compressive bond, but the slot does have to be continuous and down to bare steel, from the bottom of the seat tube's clamping slot down to the end of the post (hence, the need to periodically probe the slot being cut into the soft-metal post).

My basic reciprocating saw sells for just over $20 and is a useful tool to have. Blades are a few bux each at any hardware store, and specialty blades are available even at Walmart for pruning live tree limbs, cutting nail-studded wood or for cutting steel. I find that the wood/metal combination blades cut through aluminum well, and that the few teeth near the tip end up doing all of the work since I keep the blade tilted slightly away from the edge of the seat tube opening. I have at times resorted to sharpening the leading teeth of a well-used blade, using a Dremel grinding/cutting disc (being very careful to under-cut and to not shatter the wafer-thin disc).
The blade's teeth will not cut into steel unless contact pressure is applied up near the seat tube opening, thus concentrating the pressure (just don't use a diamond-crusted blade).

Last edited by dddd; 11-19-21 at 05:11 PM.
dddd is offline
Old 11-19-21, 05:43 PM
  #48
martl
Strong Walker

martl's Avatar

Join Date: May 2007
Location: Munich, Germany
Posts: 1,148

Bikes: too many

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 313 Times in 169 Posts
I had that problem once with a Laprade SR (,iirc). I didn't care much about the frame at a certain point, because I thought it was scrap anyway, and went at it wit with a big hammer -- no dice. The saw blade method needed 4 pieces and I still went on to bend the Microfusione lug at removing the bits. The actual contact corroded spot was smaller than my pinkies fingernail. Contact corrosion is a *****. Don't be a miser applying grease to alloy posts in steel frames is the lesson learnt there.
martl is offline
Old 11-19-21, 06:57 PM
  #49
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Originally Posted by martl View Post
I had that problem once with a Laprade SR (,iirc). I didn't care much about the frame at a certain point, because I thought it was scrap anyway, and went at it wit with a big hammer -- no dice. The saw blade method needed 4 pieces and I still went on to bend the Microfusione lug at removing the bits. The actual contact corroded spot was smaller than my pinkies fingernail. Contact corrosion is a *****. Don't be a miser applying grease to alloy posts in steel frames is the lesson learnt there.
Once you get a continuous slot in the post that goes fully to bare steel, simply twisting the post now effects a lot more flexing motion along the length of the post.

How good of a bond can can there be when there is finally no more compression acting on it (once the slot goes fully through to the steel)?
It does help to apply back-and-forth torque to the slotted seatpost stub, as this doubles the range of motion that the post deforms, thus applying flex to break the bond (this in lieu of using limitless torque perhaps sufficient to crush the post).
Leaving the post un-slotted above the bottom of the seat tube clamping slot and perhaps inserting a dowel into the top end of the post remnant allows one to apply greater twisting force, while also protecting the seat tube opening from sawing scars (as the blade possibly concentrates it's force on the edge/end of the seat tube).
Emphasizing again that the teeth near the tip of the blade should be kept sharp, and made to do most of the work. I now keep a couple of slender new blades at home for use with seatpost removal, after which they are assigned to homeowner duties that make use of the rest of the sharp teeth.

Did you by chance probe the full length of the slots, to really verify that no bridge of metal was keeping the diameter of the post in compression against the inside of the seat tube?
I am recalling that someone (you?) posted photos of the 4-slotted seatpost pieces, and now wonder if those photos showed any bridging between the four bits(?).
That was the hard lesson that I learned the first time that I cut out a seatpost with a blade. It finally came out, but with great force required, revealing that a scant sliver of metal remained, bridging the structural "hoop" of the post and thus keeping it in compression.

I've only sawn out six or eight seatposts at this point, but all came out with only one slot being cut, and with many other forceful and thermally-shocking methods having already been tried (without success).

Last edited by dddd; 11-19-21 at 07:08 PM.
dddd is offline
Old 11-20-21, 03:22 PM
  #50
martl
Strong Walker

martl's Avatar

Join Date: May 2007
Location: Munich, Germany
Posts: 1,148

Bikes: too many

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 313 Times in 169 Posts
Originally Posted by dddd View Post
Once you get a continuous slot in the post that goes fully to bare steel, simply twisting the post now effects a lot more flexing motion along the length of the post.

How good of a bond can can there be when there is finally no more compression acting on it (once the slot goes fully through to the steel)?
The connection is sort of a chemical welding and not subject to compression (if i understand the question correctly)
It does help to apply back-and-forth torque to the slotted seatpost stub, as this doubles the range of motion that the post deforms, thus applying flex to break the bond (this in lieu of using limitless torque perhaps sufficient to crush the post).
Leaving the post un-slotted above the bottom of the seat tube clamping slot and perhaps inserting a dowel into the top end of the post remnant allows one to apply greater twisting force, while also protecting the seat tube opening from sawing scars (as the blade possibly concentrates it's force on the edge/end of the seat tube).
Emphasizing again that the teeth near the tip of the blade should be kept sharp, and made to do most of the work. I now keep a couple of slender new blades at home for use with seatpost removal, after which they are assigned to homeowner duties that make use of the rest of the sharp teeth.

Did you by chance probe the full length of the slots, to really verify that no bridge of metal was keeping the diameter of the post in compression against the inside of the seat tube?
I am recalling that someone (you?) posted photos of the 4-slotted seatpost pieces, and now wonder if those photos showed any bridging between the four bits(?).
no those photos werent mine, but it looked a bit like the picture from @justcynn (his specimen has even thicker walls than the Laprade, which looked a lot as if it has been cast. I had cut the slots not fully through, but squashing it with a big set of pliers
martl is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
