1950s? Atala ID

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1950s? Atala ID

Old 11-18-21, 04:55 PM
  #1
konakai
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 79
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 99 Times in 30 Posts
1950s? Atala ID

picked this up local today, 1950s? atala. I don't remember seeing these lugs, then again I don't know much about atala. it has internal cable routing, campy sport derail, not gran sport, the cool suicide shift. can anyone shed any light on year or model....thanks. I'll post some better pics if there's any interest





konakai is offline
Likes For konakai:
Old 11-18-21, 05:43 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,294
Mentioned: 350 Post(s)
Tagged: 1 Thread(s)
Quoted: 3020 Post(s)
Liked 1,729 Times in 1,245 Posts
-----

lug pattern is Agrati "BRIANZA"

head is bulge-formed and is item N. 000.8056

seat lug is item N. 000.8039

fork crown item N. 026.8058

bottom bracket shell N. 005.8057

dropouts item N. 000.8002

fork ends item N. 000.8010

metal knob on Simplex Competition front mech indicates it cannot be later than 1959

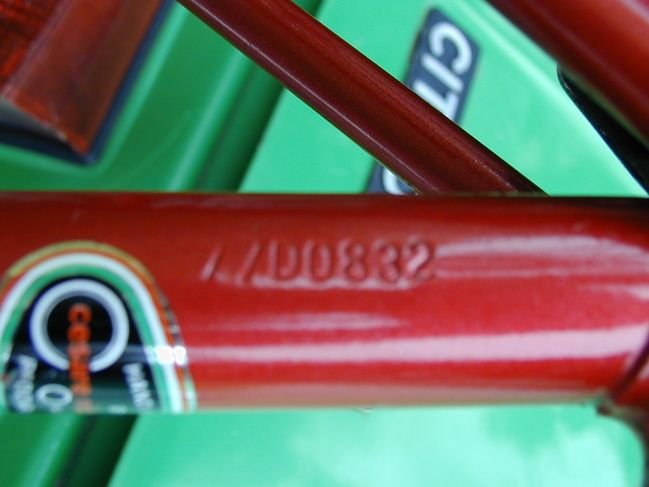

first two characters of serial on upper right side of seat tube will indicate year



cycle's wheel size is not mentioned. if 27" that would indicate it was produced for export to anglophone lands. if so, one would expect nominal frame size in inches, 21, to be marked in two places on the underside of the shell.

pedals appear to be Way-Assauto Sprint

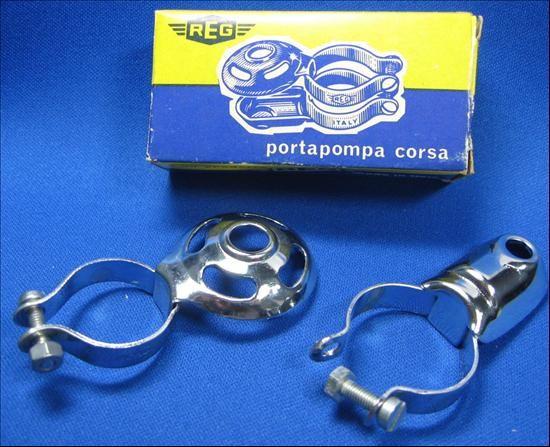

pump holder cup is REG (Rampinelli)




---


Oldairhead


-----

Last edited by juvela; 11-22-21 at 01:59 PM. Reason: correction
juvela is offline
Likes For juvela:
Old 11-18-21, 08:12 PM
  #3
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,476
Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 2581 Post(s)
Liked 2,494 Times in 1,012 Posts
The 1954 Atala catalog is filled with Simplex and no Campagnolo. Also, I have only seen derailleur internal cable routing through the chain stay with Simplex derailleurs. I suspect the Campagnolo is a replacement. Also, with the internal routing was typical with Sport models. 3 speeds in the rear. But could be a lower-end corsa model too.

Love the Nanni stem, very cool.
iab is offline
Old 11-18-21, 10:33 PM
  #4
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 1,000

Bikes: You had me at rusty and Italian!!

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Liked 611 Times in 341 Posts
Not much to offer regarding provenance but no question I would have brought that home.

There are at least 2 Sport rear mechs. Is yours the bolt on or the claw type?
RustyJames is offline
Old 11-19-21, 06:47 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,127
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Likes: 0
Liked 841 Times in 517 Posts
Originally Posted by RustyJames View Post
Not much to offer regarding provenance but no question I would have brought that home.

There are at least 2 Sport rear mechs. Is yours the bolt on or the claw type?
Both could use a claw - or not. A more fundamental difference is the presence/absence of a cable adjuster. This one appears to have one, so first style, early 50s.

Last edited by oneclick; 11-19-21 at 06:51 AM.
oneclick is offline
Old 11-19-21, 07:24 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,009
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2622 Post(s)
Liked 1,631 Times in 1,205 Posts
Will be a rewarding project.
cannot tell if those are the original hubs or not.
I would reference as much as possible the original rims.
repechage is offline
Old 11-20-21, 12:26 PM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,294
Mentioned: 350 Post(s)
Tagged: 1 Thread(s)
Quoted: 3020 Post(s)
Liked 1,729 Times in 1,245 Posts
-----


wrt gear ensemble -

me guess would be that all three components original

appreciate it sounds odd to speak of mixing Lucien & Tullio

the Juy Competition front mech is the Simplex of Italy version, Juy operated a facility in Italy during the 1950's

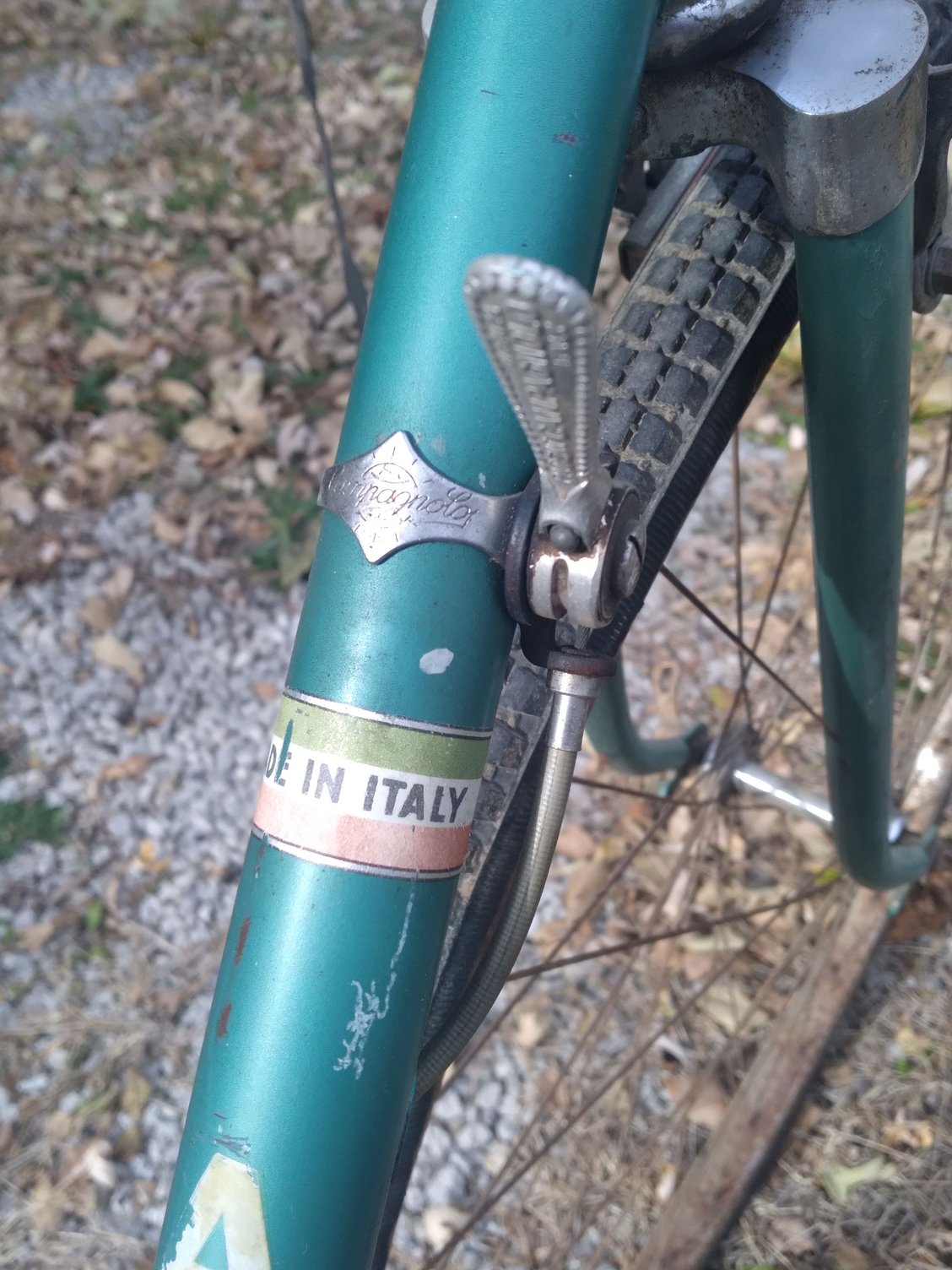

note that the shift lever is Campag which would seem to make it less likely that the Sport is a replacement

reticient to disagree with iab since his knowledge so much vaster than me own

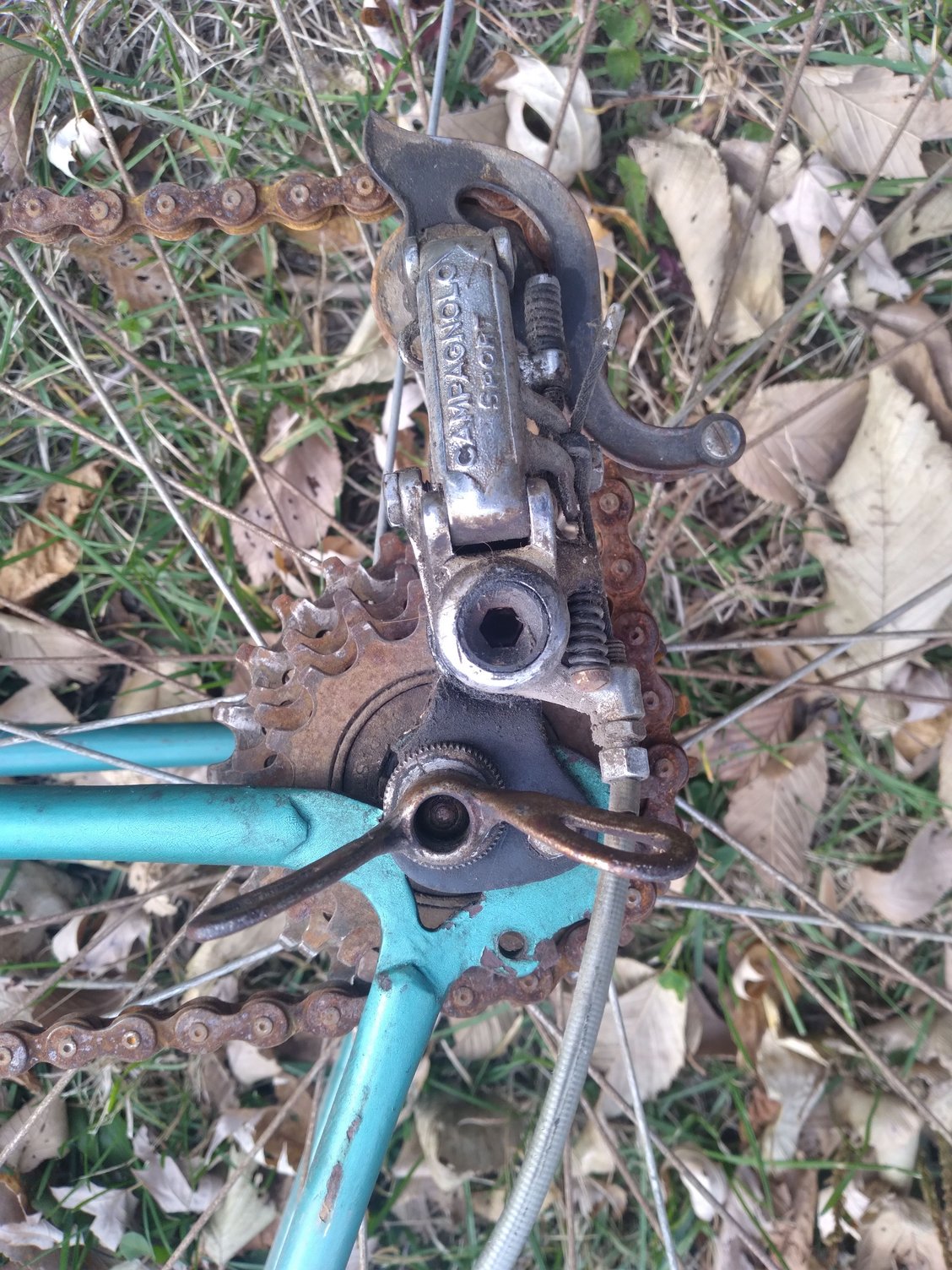

in the image below we can see that the gear block is at least 4V and may be 5V as the chain is stretched over two cogs. the cog in the number two position appears to be either loose or bent as it almost touches the cog in the number one position at one point in its circumference.

​​​​​​

-----
juvela is offline
Old 11-20-21, 01:06 PM
  #8
konakai
Junior Member
Thread Starter

Join Date: Jun 2021
Posts: 79
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 99 Times in 30 Posts

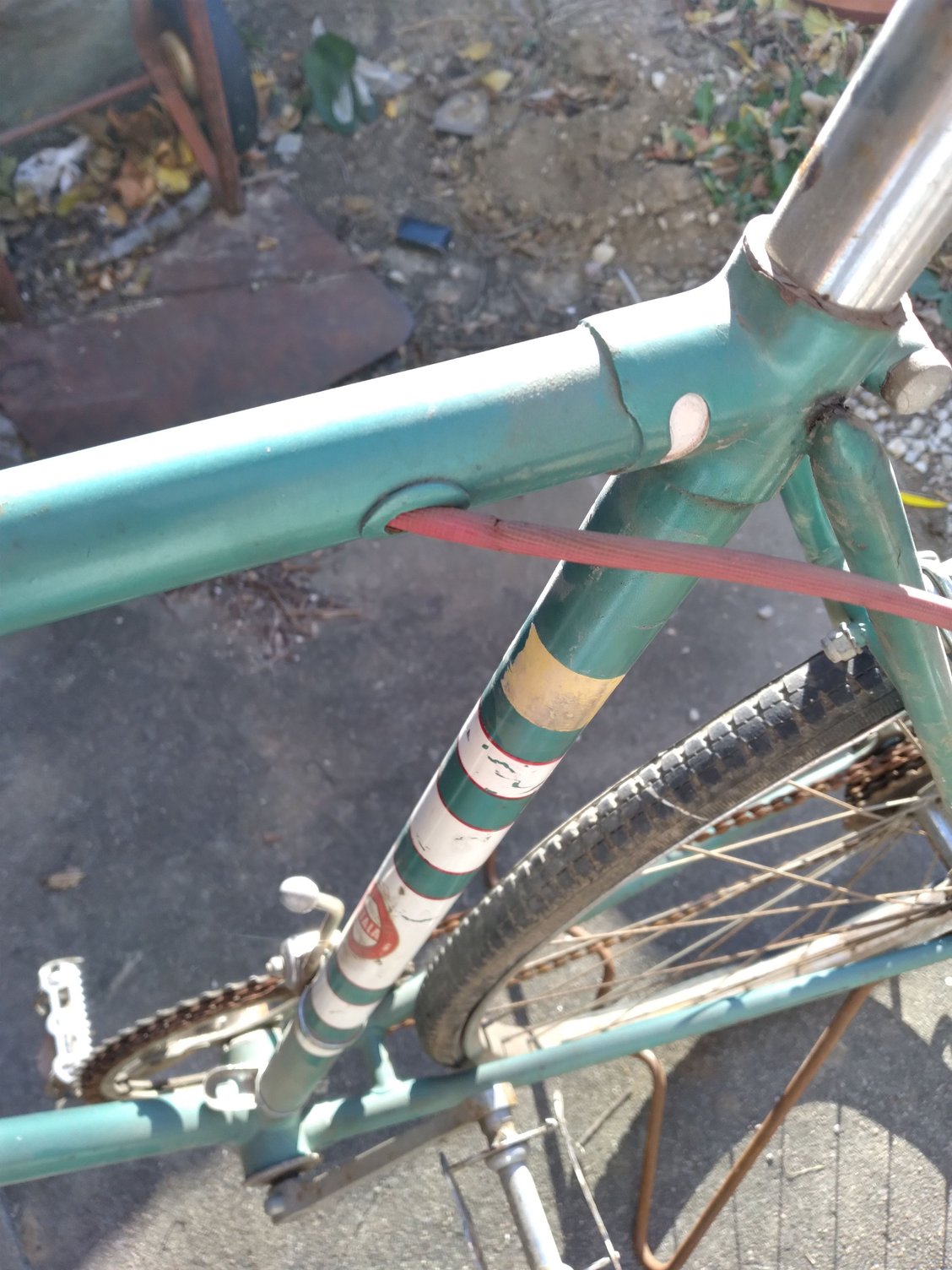

thanks juvela, here's a few more pics if anyone's interested. I'd still like to I'd the year of this bike, the serial numbers don't seem to make sense, first two year as was posted earlier..., is the campagnolo sport desirable,, I know it's early but is it of any note....thanks




konakai is offline
Old 11-20-21, 01:25 PM
  #9
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,476
Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 2581 Post(s)
Liked 2,494 Times in 1,012 Posts
Originally Posted by juvela View Post
--
reticient to disagree with iab since his knowledge so much vaster than me own

-
I don't know if you are disagreeing because this is to the best of my knowledge, not a fact.

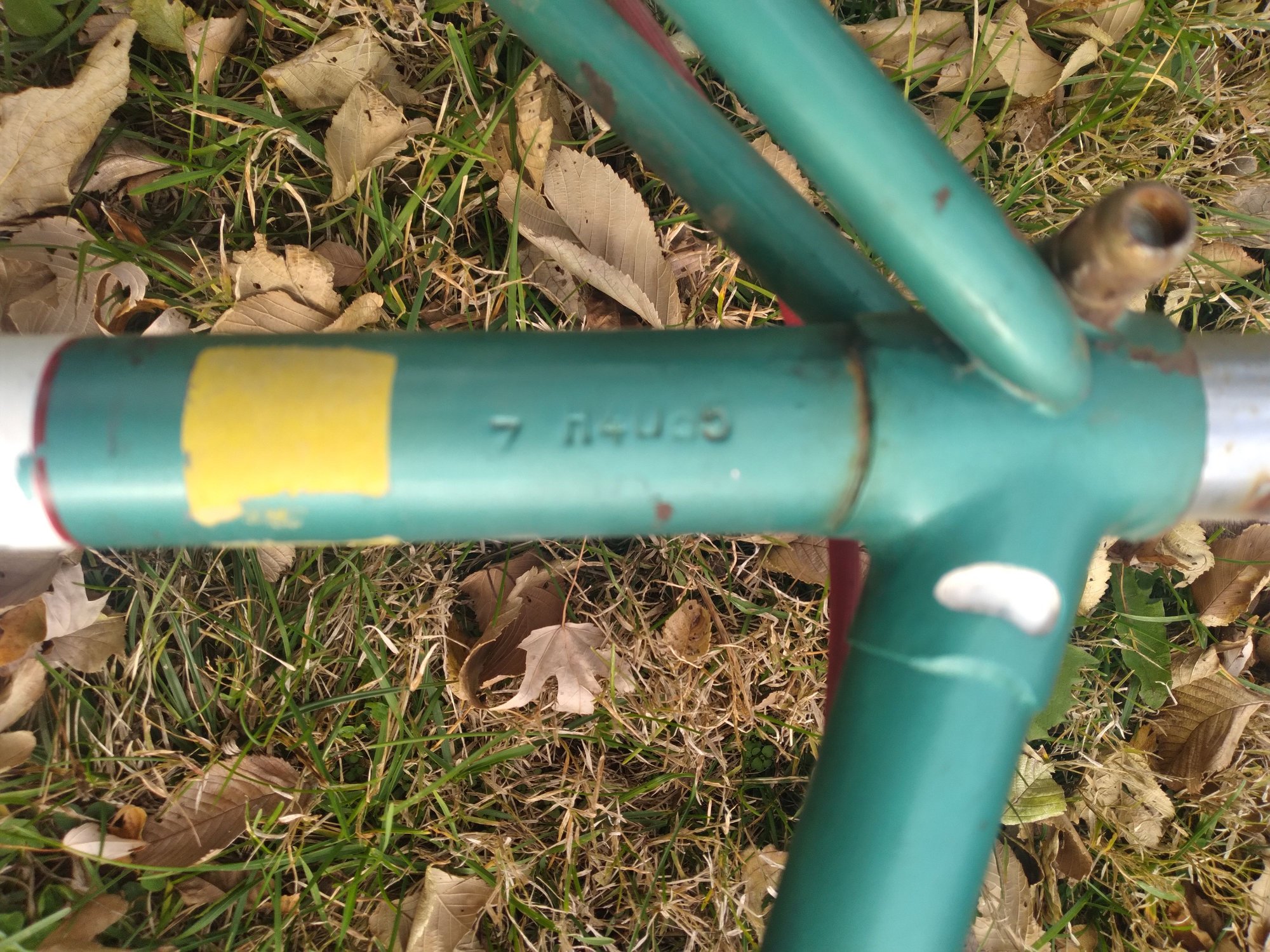

The 7H4055(?) serial indicates a 1957 frame build. Sport RDs factory spec was 3 or 4 cogs with a 6-tooth gap, not a 5-speed. I think the 5-speed there now is a replacement. Also, the "C" on the shift lever is closed, pointing to a later replacement. I replaced the coiled-spring Huret (much like the Simplex this bike may have had) on my 58-60 Cinelli because it shifts like crap (again, like the Simplex) when compared to a Sport or Gran Sport.

But again, to the best of my knowledge and certainly not knowing the last 60 years of this bike's life.
iab is offline
Likes For iab:
Old 11-20-21, 02:04 PM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,563

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1288 Post(s)
Liked 823 Times in 583 Posts
I agree that the derailer has been replaced, and that it was probably packaged with the single shifter. I see what look like witness marks from a change of band clamp on the downtube, and the Simplex lever as well had too large of a spool diameter to work well with that derailer.

Only today did I learn of the metal FD knob surviving through 1959!

Rims possibly may have been laced to the original hubs after bike left factory. Common to find such and 27" in steel would be the normal size/type for non-racers to choose.

This is a really cool bike find! If no frame damage then wow!

Check the back side of the crank spider to verify it's forged and not perhaps welded (this would indicate a higher-tier model).

The big chainring's integral 3-to-6 arm "adapters" would suggest a mid-range model, no?

Last edited by dddd; 11-20-21 at 02:10 PM.
dddd is offline
Old 11-21-21, 07:55 PM
  #11
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 583

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 241 Times in 138 Posts
that's a really special bike. whatever you do, don't "wax" it. you're just rubbing the dirt in. find somebody who knows how to restore the original paint.

I good wash might brighten it up a lot. Use Dawn Ultra and a splash of kerosene in the wash water

/markp
