I think I messed up - Are these track rims?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

I think I messed up - Are these track rims?

Old 11-19-21, 01:53 PM
  #1
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,751

Bikes: many

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 523 Times in 328 Posts
I think I messed up - Are these track rims?

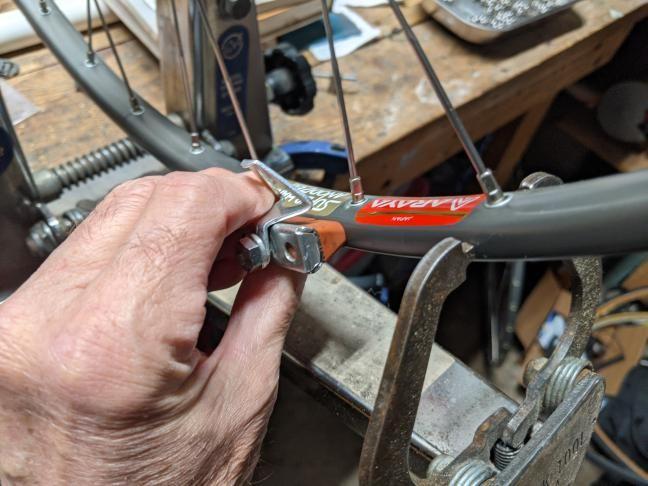

Several years ago I bought some Araya Red tubular rims from someone on CL. It took me another couple or three years to get around to lacing them to some hubs. Then I forgot about them again. I pulled them out the other day and was getting ready to glue things up and the brake track seemed pretty narrow. I looked on Velobase and saw that the 16B came in both road and track variants. It occurred to me that maybe they aren'r road rims, but track rims. Apologies for the rather poor quality images.


__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-19-21, 02:20 PM
  #2
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 655
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Liked 234 Times in 143 Posts
3955 is track, maybe 300grams
3956 is road, maybe 350g
Can you find any numbers like that anywhere on the rim?
grizzly59 is offline
Old 11-19-21, 02:25 PM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,808
Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 2182 Post(s)
Liked 1,076 Times in 815 Posts
They are probably light, from a time before machined brake tracks (other than Martano)
I would not worry, just make sure the brake pads are well adjusted.
You will probably dent them before the pad wear is too far.
repechage is offline
Old 11-19-21, 02:38 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,788

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 879 Post(s)
Liked 722 Times in 475 Posts
Looking at this catalog page, I think what it means is that the same rim is appropriate for road and track use, not that there are two different variations. The picture shows the polished version, but it lists hard anodized as an available color. The 16B Red is listed on the page third from the bottom. The catalogs of Japanese vintage bicycle

Last edited by noobinsf; 11-19-21 at 02:42 PM.
noobinsf is offline
Likes For noobinsf:
Old 11-19-21, 02:47 PM
  #5
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,429

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3348 Post(s)
Liked 1,561 Times in 1,026 Posts

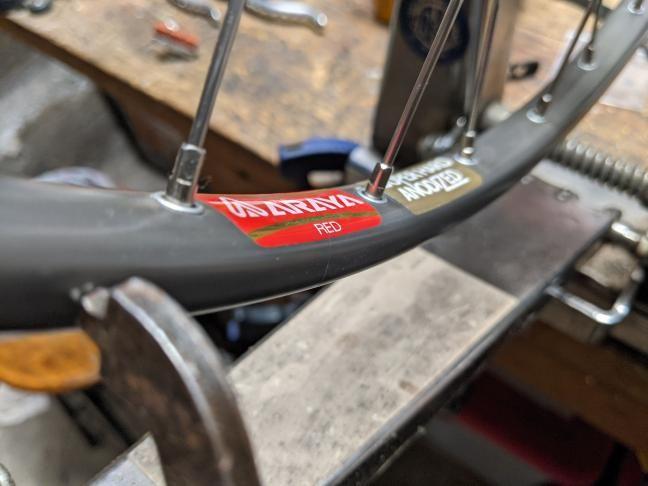

The track one would say "Gold" on the Araya label. I think you're good, Skip!

__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 11-19-21, 02:56 PM
  #6
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,084

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 606 Times in 391 Posts
Current production is Gold and 1.1mm sidewall. Previously, there was a Red 1.0mm and a Gold 0.9mm. Looks like you have the heavier vintage rim.
A thread from a ways back:
Mavic OR
Older Mavic rims were .7mm for the lightweights and 1.0 for the big guys.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.

Last edited by Classtime; 11-19-21 at 03:08 PM.
Classtime is offline
Old 11-19-21, 02:58 PM
  #7
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,751

Bikes: many

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 523 Times in 328 Posts
Originally Posted by grizzly59 View Post
3955 is track, maybe 300grams
3956 is road, maybe 350g
Can you find any numbers like that anywhere on the rim?

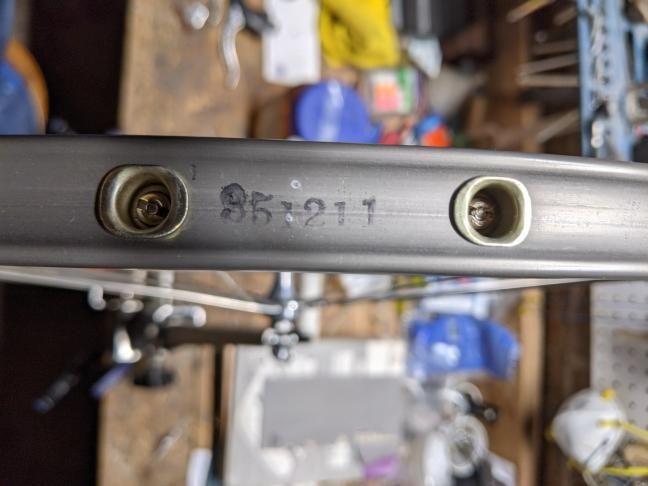

Nothing like that. In fact, I only inferred that they are 16B rims. I thought I saw that somewhere, but obviously not on Velobase. Maybe they are something else. The only number I see on the rims is in the rim bed. It looks like a lot number:

__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-19-21, 03:01 PM
  #8
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,751

Bikes: many

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 523 Times in 328 Posts
Originally Posted by ThermionicScott View Post
The track one would say "Gold" on the Araya label. I think you're good, Skip!
Excellent, thanks. To everyone who responded, I thank you, and my Griffon thanks you.
__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
