Old 11-20-21, 02:01 PM
  #1
gugie
Bike Butcher of Portland
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,811

Bikes: It's complicated.

Mentioned: 1078 Post(s)
Tagged: 0 Thread(s)
Quoted: 3582 Post(s)
Liked 2,410 Times in 1,122 Posts
Custom racks for a Rene Herse

I received an email from the proprietor of BikeRecyclery out of Portland, Oregon, buying & selling high end vintage/used bike parts. Justyne found a well preserved, classic 650b Rene Herse. I was commissioned to make racks for this bike, with some links to the drawings of Daniel Rebour to go by - it's important to get the details right on classics! Like a guy wanting to impress on a first date, I took some time for a well-needed clean up of the Atelier prior to the drop off.

The bike already had some kludgey, TIG welded racks that were obviously not original, and didn't look right on the bike. One of the complications of making new custom racks is that the racks the bike was delivered with were attached to the fenders. We didn't want to make more holes in them, so I had to make the racks fit the fenders and frame.

First, the glamour shot, taken with the new racks.


The real McCoy

First up, the front rack. I'm using 1/4" thinwall stainless tubing on this job. It's harder to bend these square than one would think. I splice the ends together with a "one size down". I've beefed up the bit near the fork crown attachment point, and since I'm using silver to braze, I like to pin all the connections, as fillet brazed silver joints aren't as strong as brass.



I brazed on the stainless rack tabs to a length of tubing. I got the tabs from Mitch Pryor a couple of years ago, tragically not long before the Paradise fire wiped out his shop in Northern California. I think of the incredible rando bikes he used to build every time I use these bits, and I'm inspired. After brazing and clean up, these get matching bends to attach to the cantilever posts, and are cut and mitered at a complex angle to meet the deck, then are brazed to the deck while on the bike to ensure everything meets up perfectly. I fold up several layers of aluminum foil to mask off the areas I'm working on - don't want to torch the fender or paint! A tombstone is added off the frame to match the head tube angle.


Deflux and cleanup next

A vintage Radio headlamp was provided so a rack mount was brazed on.



Time for the rear rack build. The deck is built off of the bike along with one of the cross pieces installed. This is bolted up to one of the current fender hole. The second cross piece is made up separately and dry fitted to make sure the miters and length are perfect. This gets bolted to the frame, aluminum foil is packed around the fender to protect it from my Oxy-Acetylene flame, and brazed into position.


That extra bolt? Someone put it there to patch an old hole, I believe.

Brazing the stays onto the rear rack was a bit nerve-racking, since I'd be working very close to the rear dropouts and seat stays that had 70 year old paint.. I decided to keep the wheels on the bike to make sure the fender stayed center, as the rack is bolted on top of the fender. Aiming the flame away from the painted frame was important, even with the heavy duty, aluminum foil I used for masking. A quick hit on the thin aluminum blows out a hole quickly. I folded it up several times, even then I used up several "lives" when the flame got too close. Luckily there were several layers left to protect the frame. 1/4" tubing doesn't need a big flame, I use about the smallest one I can adjust my #0 tip down to for stainless rack building.


In situ rack building - the bike is the jig.


Completed rack
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-20-21, 02:08 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,993

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 2742 Post(s)
Liked 2,175 Times in 1,437 Posts
H**Y CRAP, that's fantastic!
merziac is offline
Old 11-20-21, 02:14 PM
  #3
gugie
Bike Butcher of Portland
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,811

Bikes: It's complicated.

Mentioned: 1078 Post(s)
Tagged: 0 Thread(s)
Quoted: 3582 Post(s)
Liked 2,410 Times in 1,122 Posts
Bike details

Most of you are probably less interested in seeing how a bike butcher from Portland builds a rack than seeing details of a 70 year old classic and rare Rene Herse, so here you go!


Custom hand filed lugs

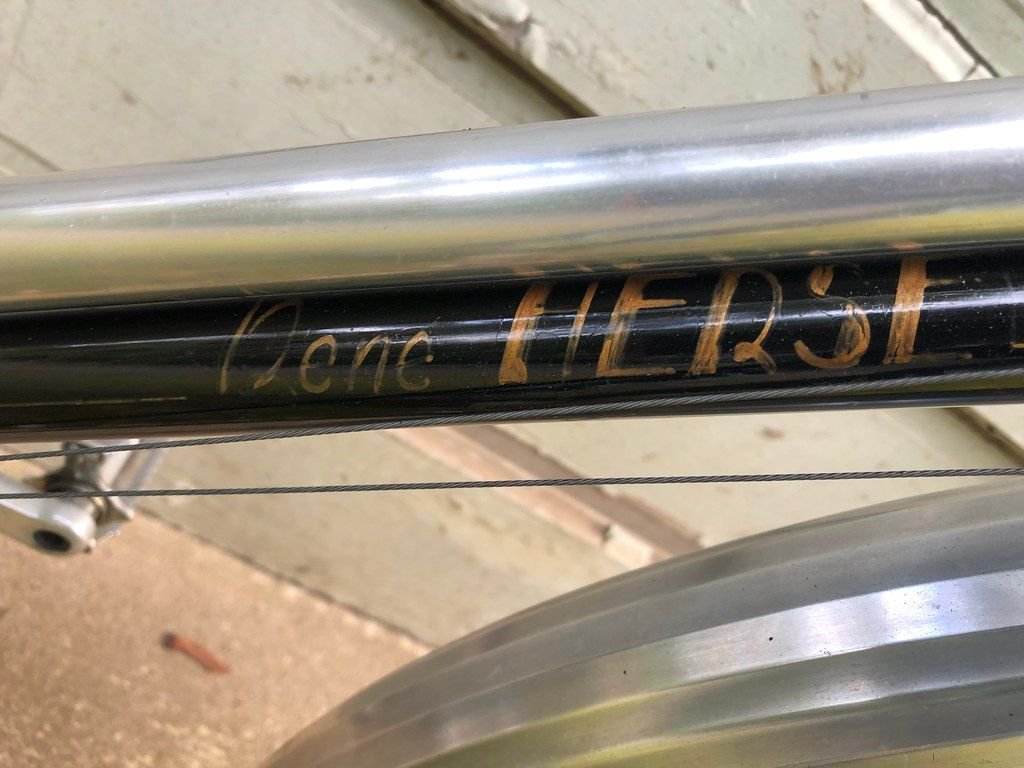

Hand lettered logo


Drive train. Rene Herse cranks and front derailleur.


Maxi-car hubs


Rene Herse proprietary stem


Rene Herse brakes

It was an honor and a challenge to have someone trust a rare and classic bike to me for a pair of custom racks. I spent a lot more time than usual studying the design before starting. This one had to look right! Rather than creating a mirror finish on my buffing wheel, the owner and I decided to make the racks look like they were made 70 year ago, so I polished them up, then knocked down the finish with some scotchbrite and fine steel wool.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-20-21, 02:22 PM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,993

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 2742 Post(s)
Liked 2,175 Times in 1,437 Posts
@gugie

Speaking for myself and the group.

I/we are always up for whatever you are working on. To have a go to fabricator/builder in our ranks and right here in PDX is golden for me.

If it was up to me, your publicist would chronicle and document all your projects and keep us updated weekly if not daily.
merziac is offline
Likes For merziac:
Old 11-20-21, 02:22 PM
  #5
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,160

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 732 Post(s)
Liked 524 Times in 254 Posts
Alors, c'est fantastique!
davester is offline
Old 11-20-21, 02:52 PM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,774
Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 2172 Post(s)
Liked 1,063 Times in 806 Posts
Now Herse if I recall often threaded wires through the rack?
Theses are Stainless, and Herse made his as I recall with steel tubing and had them chrome plated...
The plan to just polish the heck out of them?
repechage is offline
Old 11-20-21, 02:55 PM
  #7
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,993

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 175 Post(s)
Tagged: 0 Thread(s)
Quoted: 2742 Post(s)
Liked 2,175 Times in 1,437 Posts
Originally Posted by repechage View Post
Now Herse if I recall often threaded wires through the rack?
Theses are Stainless, and Herse made his as I recall with steel tubing and had them chrome plated...
The plan to just polish the heck out of them?
Check the last sentence of post #3.
merziac is offline
Old 11-20-21, 04:51 PM
  #8
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,741

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 545 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 367 Times in 240 Posts
Very cool, gugie ! :Thumb:
__________________
www.rhmsaddles.com.
rhm is offline
Old 11-20-21, 05:20 PM
  #9
northbend
Senior Member

northbend's Avatar

Join Date: Mar 2008
Location: North Bend, Washington State
Posts: 2,565

Bikes: 1937 Hobbs; 1974 Alex Singer; 1977 Bruce Gordon; 1987 Bill Holland; 1988 Schwinn Paramount (Fixed gear); 1999 Fat City Yo Eddy (MTB); 2018 Woodrup (Touring)

Mentioned: 244 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked 1,653 Times in 361 Posts
Impressive work, Mark!
I was just thinking about you this morning while out on a ride - thinking about that Gillott Mixte you did for that customer in England.
The treatment you did to the stays to make the fat tires and fender work was audacious and so well executed.

Then to see this post when I got home. Very cool!
northbend is offline
Old 11-20-21, 05:32 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,774
Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 2172 Post(s)
Liked 1,063 Times in 806 Posts
Originally Posted by merziac View Post
Check the last sentence of post #3.
thanks. There will be a increasing visible difference at the junctions with time.

I really do not know which way to go if I was making the decisions. Tough call.
repechage is offline
Old 11-20-21, 06:21 PM
  #11
gugie
Bike Butcher of Portland
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,811

Bikes: It's complicated.

Mentioned: 1078 Post(s)
Tagged: 0 Thread(s)
Quoted: 3582 Post(s)
Liked 2,410 Times in 1,122 Posts
Originally Posted by repechage View Post
thanks. There will be a increasing visible difference at the junctions with time.

I really do not know which way to go if I was making the decisions. Tough call.
There's a reason why 95% of the racks I make are stainless steel and brazed with silver. Chrome is problematic. For one, I don't have a good chrome plater nearby, I'd have to ship it somewhere. Second, unless you've got an established relationship with a chromer, it may be months for turnaround. Third, it's not exactly environmentally friendly. I don't TIG, so brazing is how I join tubes.

Standard 4130 CrMo is stronger than the 304 and 316 stainless tubing I typically use, but it's "strong enough".

Silver based filler does oxidize, just like Grandma's silverwear. Since I pin most junctions, I don't need a fillet, and there's very little visible filler at the joints, maybe a mm or so visible. My oldest rack that I personally use is about 4 years old, you have to look closely to find the small tarnished joints.

The call's easy for me. Less costly, much more environmentally friendly, and I don't have to wait a long time for the chromer to finish the job. In this particular case, it also wouldn't look right - too bright for a 70 year old bike!

Someone wants a shiny rack from me, I'll go stainless. Someone wants a super strong rack for expedition touring, I'll use CrMo and have it powder coated. I've had a few old rando bikes with 40-50 year old chrome plated racks on them, and most had chrome pitting. Stainless won't ever do that.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 11-20-21, 07:29 PM
  #12
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,923

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 439 Post(s)
Liked 797 Times in 499 Posts
Nice work! I like your attention to detail and focus. Great pictures, and even though the pics look flawless, I’m pretty sure it looks much better in person, thank you for sharing. Joe
Kabuki12 is offline
Likes For Kabuki12:
Old 11-20-21, 07:45 PM
  #13
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,056

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 596 Times in 385 Posts
I looked three times. The rear rack is supported only by the drop out rings and the fender!

(Am i the only one who wants to see the discarded racks?)
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 11-20-21, 08:05 PM
  #14
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,120
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 52 Times in 36 Posts
Originally Posted by gugie View Post
There's a reason why 95% of the racks I make are stainless steel and brazed with silver. Chrome is problematic. For one, I don't have a good chrome plater nearby, I'd have to ship it somewhere. Second, unless you've got an established relationship with a chromer, it may be months for turnaround. Third, it's not exactly environmentally friendly. I don't TIG, so brazing is how I join tubes.

Standard 4130 CrMo is stronger than the 304 and 316 stainless tubing I typically use, but it's "strong enough".

Silver based filler does oxidize, just like Grandma's silverwear. Since I pin most junctions, I don't need a fillet, and there's very little visible filler at the joints, maybe a mm or so visible. My oldest rack that I personally use is about 4 years old, you have to look closely to find the small tarnished joints.

The call's easy for me. Less costly, much more environmentally friendly, and I don't have to wait a long time for the chromer to finish the job. In this particular case, it also wouldn't look right - too bright for a 70 year old bike!

Someone wants a shiny rack from me, I'll go stainless. Someone wants a super strong rack for expedition touring, I'll use CrMo and have it powder coated. I've had a few old rando bikes with 40-50 year old chrome plated racks on them, and most had chrome pitting. Stainless won't ever do that.
Great work!
Feldman is offline
Old 11-20-21, 08:13 PM
  #15
gugie
Bike Butcher of Portland
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,811

Bikes: It's complicated.

Mentioned: 1078 Post(s)
Tagged: 0 Thread(s)
Quoted: 3582 Post(s)
Liked 2,410 Times in 1,122 Posts
Originally Posted by Classtime View Post
I looked three times. The rear rack is supported only by the drop out rings and the fender!

(Am i the only one who wants to see the discarded racks?)
Yep! That was typical BITD.



Here's the "original" front rack:


Most likely a VO rack that was mutilated.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-20-21, 08:40 PM
  #16
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,696

Bikes: Lots. Just...lots.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1618 Post(s)
Liked 1,138 Times in 533 Posts
Typical Gugie-level attention to detail. Chapeau, Sir!
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Likes For rccardr:
Old 11-20-21, 11:00 PM
  #17
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,107
Mentioned: 375 Post(s)
Tagged: 0 Thread(s)
Quoted: 2631 Post(s)
Liked 2,845 Times in 1,341 Posts
Cino ready!
nlerner is offline
Likes For nlerner:
Old 11-21-21, 12:39 AM
  #18
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,692

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 256 Times in 53 Posts
Excellent post and your detailed explanation is appreciated. Your efforts are an inspiration for the rest of us, thank you!
poprad is offline
Old 11-21-21, 09:24 AM
  #19
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,919
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 607 Post(s)
Liked 1,312 Times in 648 Posts
Stainless can be a bit of a pain to form for sure. Everything looks fantastic here. I think you've absolutely done the bike justice with these racks. How nerve racking the torch work must have been.
BFisher is offline
Old 11-21-21, 10:25 AM
  #20
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,224

Bikes: Too Many

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 94 Times in 62 Posts
Very well done. I just built my first front rack after building a couple of frames and forks. I can see building many more. One question, what tooling did you use for the larger radius bends in the rear rack?
__________________
I'm not one for fawning over bicycles, but I do believe that our bikes communicate with us, and what this bike is saying is, "You're an idiot." BikeSnobNYC
Cynikal is offline
Old 11-21-21, 11:45 AM
  #21
gugie
Bike Butcher of Portland
Thread Starter

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,811

Bikes: It's complicated.

Mentioned: 1078 Post(s)
Tagged: 0 Thread(s)
Quoted: 3582 Post(s)
Liked 2,410 Times in 1,122 Posts
Originally Posted by Cynikal View Post
Very well done. I just built my first front rack after building a couple of frames and forks. I can see building many more. One question, what tooling did you use for the larger radius bends in the rear rack?
I make wooden "pulleys" with hole saws of various diameters, a router with a 45 degree chamfer bit. Two of them sandwiched together with screws and glue and a big vise.



More details here.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 11-21-21, 12:50 PM
  #22
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 580

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 219 Times in 135 Posts
very nice work Mark ! On account of the rear rack mounting (dropouts and fenders only) "randonneur" racks like this are not really intended for heavy loads, like camping panniers.

Very clever work on tacking the rack together on the frame. I like your bending mandrel.

/markp
mpetry912 is offline
Old 11-21-21, 01:39 PM
  #23
bear_a_bug
Senior Member

bear_a_bug's Avatar

Join Date: May 2013
Location: Portland, Oregon
Posts: 307

Bikes: 650B'd '74 Raleigh Super Tourer and '83 Trek 620, '73 Zeus Competition, 2018 Rawland xSogn

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 73 Times in 36 Posts
Well done! Must have been fun/stressful to work on a such an archetypal Herse. Especially cool to have contributed to the history of that bike now, too.
bear_a_bug is offline
Old 11-21-21, 01:54 PM
  #24
Cynikal
Team Beer

Cynikal's Avatar

Join Date: Apr 2004
Location: Sacramento CA
Posts: 6,224

Bikes: Too Many

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 94 Times in 62 Posts
Originally Posted by gugie View Post
I make wooden "pulleys" with hole saws of various diameters, a router with a 45 degree chamfer bit. Two of them sandwiched together with screws and glue and a big vise.



More details here.
Thanks, that is really helpful.
__________________
I'm not one for fawning over bicycles, but I do believe that our bikes communicate with us, and what this bike is saying is, "You're an idiot." BikeSnobNYC
Cynikal is offline
Old 11-21-21, 01:54 PM
  #25
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,891

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2309 Post(s)
Liked 872 Times in 525 Posts
uhh... nice rack.



__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
