3TTT Record Regolabile Stem clamp bolt threading

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

3TTT Record Regolabile Stem clamp bolt threading

Old 11-26-21, 07:46 PM
  #1
Catnap
zungguzungguguzungguzeng
Thread Starter

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,459

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 137 Times in 61 Posts
3TTT Record Regolabile Adjustable Stem clamp bolt threading

I recently acquired one of these stems, and it was short one of the bolts for the sliding clamp piece. I have a lot of spare bolts on hand in my shop but none of them fit, in either diameter or threading. Anyone know what kind of bolt these stems use?

Alternatively, I have one of the bolts I need, so how do I figure out the key data (threading, diameter) from it so I can find a match?
Catnap is offline
Old 11-26-21, 08:01 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,732
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2831 Post(s)
Liked 1,368 Times in 1,001 Posts
-----



-----
juvela is online now
Old 11-26-21, 10:38 PM
  #3
Catnap
zungguzungguguzungguzeng
Thread Starter

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,459

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 137 Times in 61 Posts

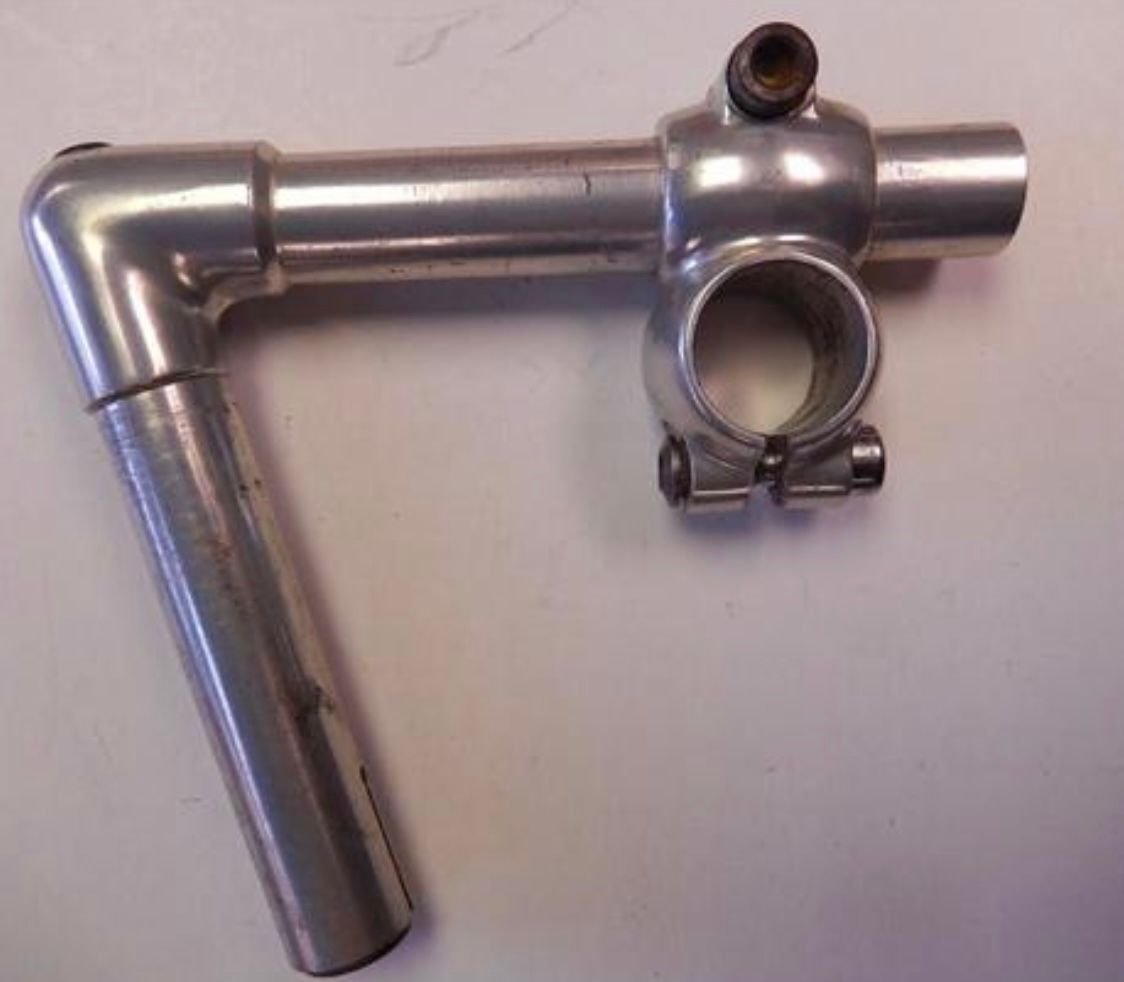

Itís this model of stem:


__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Likes For Catnap:
Old 11-27-21, 07:11 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,732
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2831 Post(s)
Liked 1,368 Times in 1,001 Posts
-----

thank you for the photo

here is the catalogue page -

​​​​​​

-----
juvela is online now
Old 11-27-21, 08:17 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,825
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 708 Times in 430 Posts
Originally Posted by Catnap View Post
Itís this model of stem:

I have one of the ones pictured - the Regolabile - and it's not the one in the photo. It has a triangular bottom section that rides in a V-groove in the quill. It's several bikes deep, but I think the bolt that clamps the bar-clamp to the stem has a cylindrical section that rides in whichever groove is chosen. This arrangement gives only a limited number of discrete adjustment positions, but is less likely to rotate under maximum power (which is a Bad Thing). For the infinitely-adjustable round version it looks as though any stem-clamp-bolt would do, given a pitch and diameter match. You say you have one that matches, almost certainly it is a metric thread, and similarly a normal- or fine- version is probably correct. Measure the diameter over the threaded section, if metric it will be a small amount smaller than a unit mm measure; then you only have two choices.
oneclick is offline
Old 12-13-21, 02:42 PM
  #6
Catnap
zungguzungguguzungguzeng
Thread Starter

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,459

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 137 Times in 61 Posts
quick update here: the issue was the bolt diameter. I measured it with my calipers and it was 6.8mm diameter. so, roughly 7mm. All of the bolts I had measured to either 5.8mm or 7.8mm diameter, which translate to M6 or M8 bolts. I guess 7mm is fairly uncommon. Ultimately I was able to find a matching 7mm and it worked well. case closed!
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Likes For Catnap:
Old 12-13-21, 08:52 PM
  #7
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,825
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 708 Times in 430 Posts
Originally Posted by Catnap View Post
quick update here: the issue was the bolt diameter. I measured it with my calipers and it was 6.8mm diameter. so, roughly 7mm. All of the bolts I had measured to either 5.8mm or 7.8mm diameter, which translate to M6 or M8 bolts. I guess 7mm is fairly uncommon. Ultimately I was able to find a matching 7mm and it worked well. case closed!
7mm is not often found - at least in the cycle world. The first time I met it was on the clamp-bolts for the triple-tree of a Gitane Testi (look it up, 50cc, 6 gears, disc brake, glass-fibre bodywork. Yes, lots of noise, lots of fun.).

The carbon-steel ones had seized in the aluminium clamps, drilled them out and bought a die and made new ones.
oneclick is offline
Old 12-15-21, 06:58 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,587
Mentioned: 600 Post(s)
Tagged: 1 Thread(s)
Quoted: 4423 Post(s)
Likes: 0
Liked 2,424 Times in 1,568 Posts
Originally Posted by oneclick View Post
7mm is not often found - at least in the cycle world...
No surprise here, as it's from the company that orignally used the atypical 7mm Allen key recess on their expander bolts. I'm sure lots of members can tell you stories of how frustrated they were trying to find said key for their 3TTT stem.
