Has anyone ever tried one of these? (Campy BB tool)

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Has anyone ever tried one of these? (Campy BB tool)

Old 11-30-21, 08:26 PM
  #1
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
Has anyone ever tried one of these? (Campy BB tool)

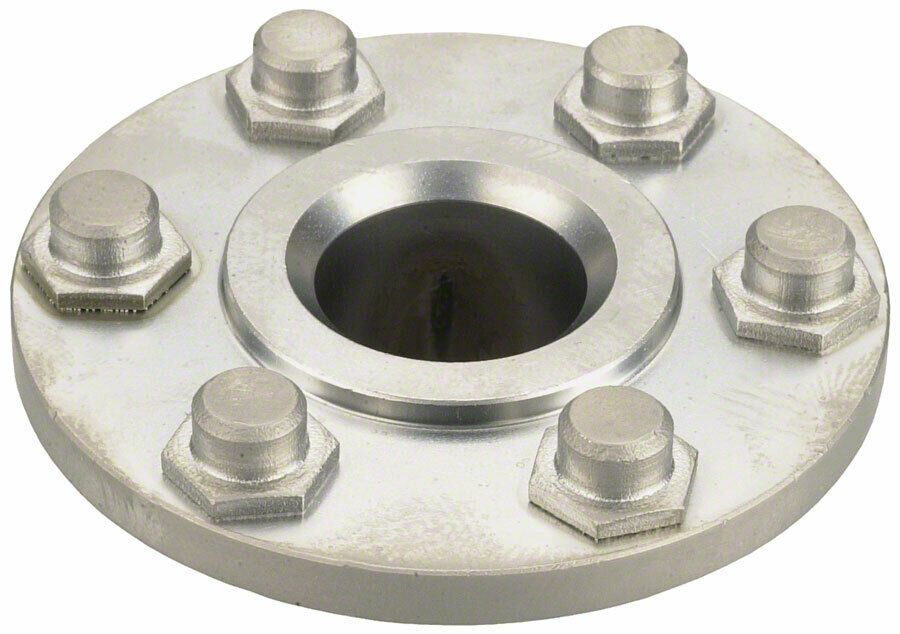

I mean, one of these.



I've been battling with a campy French adjustable cup for a few weeks now. It just won't move, but it's quite difficult to obtain a good mecanical advantage with the small pin holes. My Park Tool pin spanner just flexes. I broke the plastic pins on my HCW-4 tool a long time ago, but I don't see it working here anyway. The tool here displayed seems promising. I wouldn't pay that much for it but if it produces magic I might keep looking for it!
jonny7 is offline
Old 11-30-21, 08:34 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,398
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2389 Post(s)
Liked 1,306 Times in 986 Posts
I think the only thing in common is that it has six pins.

I recently ordered some tools from lecycleur.com
I did not order the adjustable cup tool but it looks promising.
my tools have not arrived yet, but they are traceable shipments.
repechage is offline
Likes For repechage:
Old 11-30-21, 08:36 PM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,876
Mentioned: 329 Post(s)
Tagged: 1 Thread(s)
Quoted: 2875 Post(s)
Liked 1,444 Times in 1,055 Posts
-----

have never found an adjustable cup with pin holes was not able to turn with the VAR tool Nr. 13

its pins are readily replaceable and it also works on headsets with pin holes



-----
juvela is offline
Old 11-30-21, 08:47 PM
  #4
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,834
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 180 Times in 122 Posts
That is for an ACH bottom bracket, like a Veloce sealed bottom bracket, not an older Record style.
jiangshi is offline
Old 11-30-21, 08:54 PM
  #5
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
Originally Posted by jiangshi View Post
That is for an ACH bottom bracket, like a Veloce sealed bottom bracket, not an older Record style.
oh you're absolutely right. I was seduced by the design and thought it'd fit. I actually didn't know much about the ACH design.

But LeCycleur's tool is pretty similar! maybe there are some other similar options out there (i.e. 6 pin tools)
jonny7 is offline
Old 11-30-21, 11:57 PM
  #6
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,104
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 66 Times in 57 Posts
You can find some six pin tools for loose ball bottom brackets. The Royce one is probably the most common, although I'm not sure it fits anything else. I have a couple odd ones, one is very cheap and for some kind of BMX crank/BB. The other is almost like a fixed cup tool, it can be threaded onto the cup to prevent slipping.
wesmamyke is offline
Old 12-01-21, 12:07 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,398
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2389 Post(s)
Liked 1,306 Times in 986 Posts
Originally Posted by jonny7 View Post
oh you're absolutely right. I was seduced by the design and thought it'd fit. I actually didn't know much about the ACH design.

But LeCycleur's tool is pretty similar! maybe there are some other similar options out there (i.e. 6 pin tools)
note the LeCycleur tool has provisions for two pin hole circle dimensions - Campagnolo and one other and I did not bother to note, Shimano?TA? Sugino matches Campagnolo.
the cited material for the bolts/ pins is pretty stout- the problem is the size- but by engaging all six- that should help.

if the adjustable cup is not threading in, chase the threads. If trouble removing it? Kroil soak for a warm day or two then dry ice to the cup.
wear thick gloves, or use tongs
repechage is offline
Old 12-01-21, 04:40 AM
  #8
Schlafen
Senior Member

Schlafen's Avatar

Join Date: Apr 2020
Posts: 206
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 64 Times in 41 Posts
That would be pretty easy to make for cheap.
I would consider making it a 6 pin though, not 2 pin.
After which I would fit the axle back in and use the bolt to counter it so it doesn't slip out. Half an hour tops to make I recon, if that.
Schlafen is offline
Old 12-01-21, 05:06 AM
  #9
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,941

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,041 Times in 579 Posts
For Campy Veloce - Mirage - Avanti - Centaur - BB Cartridges

Originally Posted by jonny7 View Post
I mean, one of these.



I've been battling with a campy French adjustable cup for a few weeks now. It just won't move, but it's quite difficult to obtain a good mecanical advantage with the small pin holes. My Park Tool pin spanner just flexes. I broke the plastic pins on my HCW-4 tool a long time ago, but I don't see it working here anyway. The tool here displayed seems promising. I wouldn't pay that much for it but if it produces magic I might keep looking for it!
That's a special tool for Campy Veloce, Mirage, Avanti, Centaur and Zenon sealed bearing BB cartridges that came out in 1994 and lasted into the 2000's.

They were made for both British and Italian threaded BBs, with 111mm double length and 115.5mm triple length asymmetrical spindles.

There were 3 quality levels:

AC-H - Aluminum Cups with hollow steel spindle (good)
AC-S - Aluminum Cups with solid steel spindle (OK)
SC-S - Steel Cups with solid steel spindle (cobby)

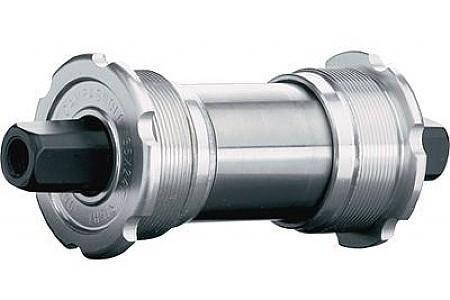

AC-H Cartridge

SC-S Cartridge

I bought a bunch of these BBs online for $15 to $20. You can still find them for ~$30. Some folks bad mouthed these but for the price and limited use they'd get, they're a no-brainer!

I HATE WORKING ON BBs!!!

Park makes this BBT-4 too to do the same thing. It's fine for occasional use. Installing these BBs is a "set it and forget it" operation. If I were doing a lot of work on these BBs, I get the "right" tool.



For adjustable cups with spanner pin holes these Park SPA-x Pin Spanners are easy to use and come in 2 sizes.



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 12-01-21 at 05:17 AM.
verktyg is offline
Likes For verktyg:
Old 12-01-21, 05:19 AM
  #10
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,233

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1345 Post(s)
Liked 1,237 Times in 866 Posts
Two screws into a piece of 1x3 wood cut to about 18”. Clamp and turn...experiment with screw length. File the screws a bit and viola! Custom made! (I also have an idea for an adjustable spanner that locks if there are any machinists out there.)
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...




Last edited by jdawginsc; 12-01-21 at 06:28 AM.
jdawginsc is offline
Old 12-01-21, 06:03 AM
  #11
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,216
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Liked 295 Times in 169 Posts

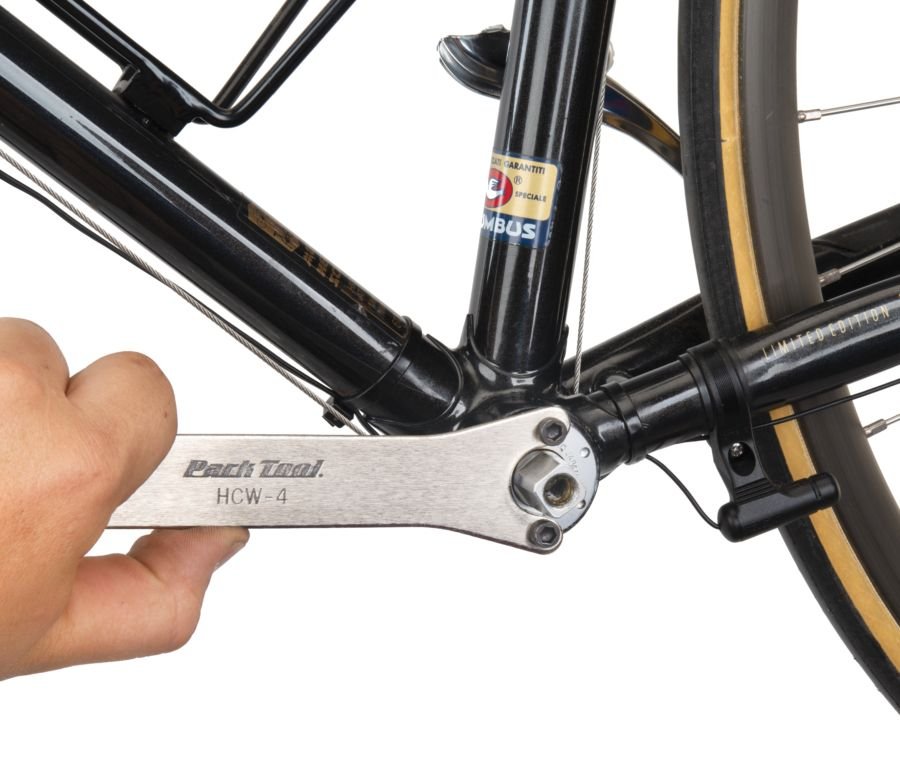

Campy made a two pin tool (expensive these days). Here is a park that looks a lot like it. Not sure if it will fit.

https://www.parktool.com/product/cra...ttom%20Bracket


Last edited by gearbasher; 12-01-21 at 07:05 AM.
gearbasher is offline
Old 12-01-21, 06:58 AM
  #12
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,398
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2389 Post(s)
Liked 1,306 Times in 986 Posts
I never bothered to look into those cartridge bottom brackets- too bad they ignored the French

seem to have a number of French bikes
repechage is offline
Old 12-01-21, 07:54 AM
  #13
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,941

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,041 Times in 579 Posts
French Threaded BBs

Originally Posted by repechage View Post
I never bothered to look into those cartridge bottom brackets- too bad they ignored the French

seem to have a number of French bikes
By the time those inexpensive Campy cartridge BBs came along, French threaded BBs were pretty much étaient morts!

I have some French bikes from the early 80's with British BBs and headsets but I also have a 1985-86 Bertin with French threads.

At the other extreme, I have a 1974 Gitane TdF that came from Australia that has British threads???

BTW, the early Shimano UN-72 sealed bearing BB cartridges had removable cups on both sides. They worked with Phil Wood mounting rings so you could use them in French BBs, also for old British 26 tpi BBs.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 12-01-21 at 08:05 AM.
verktyg is offline
Old 12-01-21, 09:04 AM
  #14
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,278
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 785 Times in 475 Posts
Have you tried penetrant?

The bolt, nut and washer method of getting a better grip could do the trick.

Careful use of heat can also help. I'll put some grease at cup and heat the cup until the grease wicks into the thread. I had to do just this on the removal of the NDS cup on a 50 year old Jack Taylor. Things can get pretty warm, like hot to the touch, well before and paint damage.
Mr. 66 is offline
Likes For Mr. 66:
Old 12-01-21, 09:38 AM
  #15
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,395

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 716 Times in 505 Posts
Since the bb threads fit the cups with some amount of freeplay/clearance, and since this freeplay is upon installation only in the inward direction (cups moving inward in the shell), I think that compressing the cup(s) into the shell is the best way to initiate movement of the stuck cup(s).
Even if a bb cartridge is still installed, the compressive force will act to compress the cartridge and thus allow the cups to move inward slightly, enough to break any corrosive bond (or perhaps hardened grease).

So I would try compressing the installed bb cups inward in a bench vise, to break their threads free in the shell.

Alternately, using impact directed in the same direction, forcing the stuck cup(s) into the shell, should allow the cup(s) to then be twisted out using moderate torque.
But I would back up the opposite cup with a chunk of wood resting on a concrete floor, to increase the return on one's effort.
dddd is offline
Old 12-01-21, 02:52 PM
  #16
Ex Pres
Cat 6

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,461
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 481 Post(s)
Liked 141 Times in 91 Posts
Originally Posted by jonny7 View Post
I mean, one of these.



I've been battling with a campy French adjustable cup for a few weeks now. It just won't move, but it's quite difficult to obtain a good mecanical advantage with the small pin holes. My Park Tool pin spanner just flexes. I broke the plastic pins on my HCW-4 tool a long time ago, but I don't see it working here anyway. The tool here displayed seems promising. I wouldn't pay that much for it but if it produces magic I might keep looking for it!
I am going to ask what I hope is a stupid question - you have removed the lockring, right?
Ex Pres is offline
Old 12-01-21, 03:33 PM
  #17
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
Originally Posted by Ex Pres View Post
I am going to ask what I hope is a stupid question - you have removed the lockring, right?
If only this was the problem
jonny7 is offline
Old 12-02-21, 12:40 PM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,398
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2389 Post(s)
Liked 1,306 Times in 986 Posts
Originally Posted by jonny7 View Post
If only this was the problem
another approach might be to remove the fixed cup, its French, they want to unwind naturally, remove the spindle and bearings, then use the Sheldon brown method of unwinding the fixed cup.
I would secure the bottom bracket wrench against the cup with a block of wood, 8mm bolt and a fender washer.
repechage is offline
Old 12-02-21, 04:46 PM
  #19
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
You're right, since it's a French BB I hoped the fixed cup would unwind with less effort, but as of now I've had no success with either cup.

Thanks everybody for the advice, I'll continue my efforts and make sure to post and update.
jonny7 is offline
Old 12-02-21, 04:55 PM
  #20
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,233

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1345 Post(s)
Liked 1,237 Times in 866 Posts
Originally Posted by jonny7 View Post
You're right, since it's a French BB I hoped the fixed cup would unwind with less effort, but as of now I've had no success with either cup.

Thanks everybody for the advice, I'll continue my efforts and make sure to post and update.
Time for RJ the BIke guy and his impact wrench!
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
