Another Colnago “Sport” to study

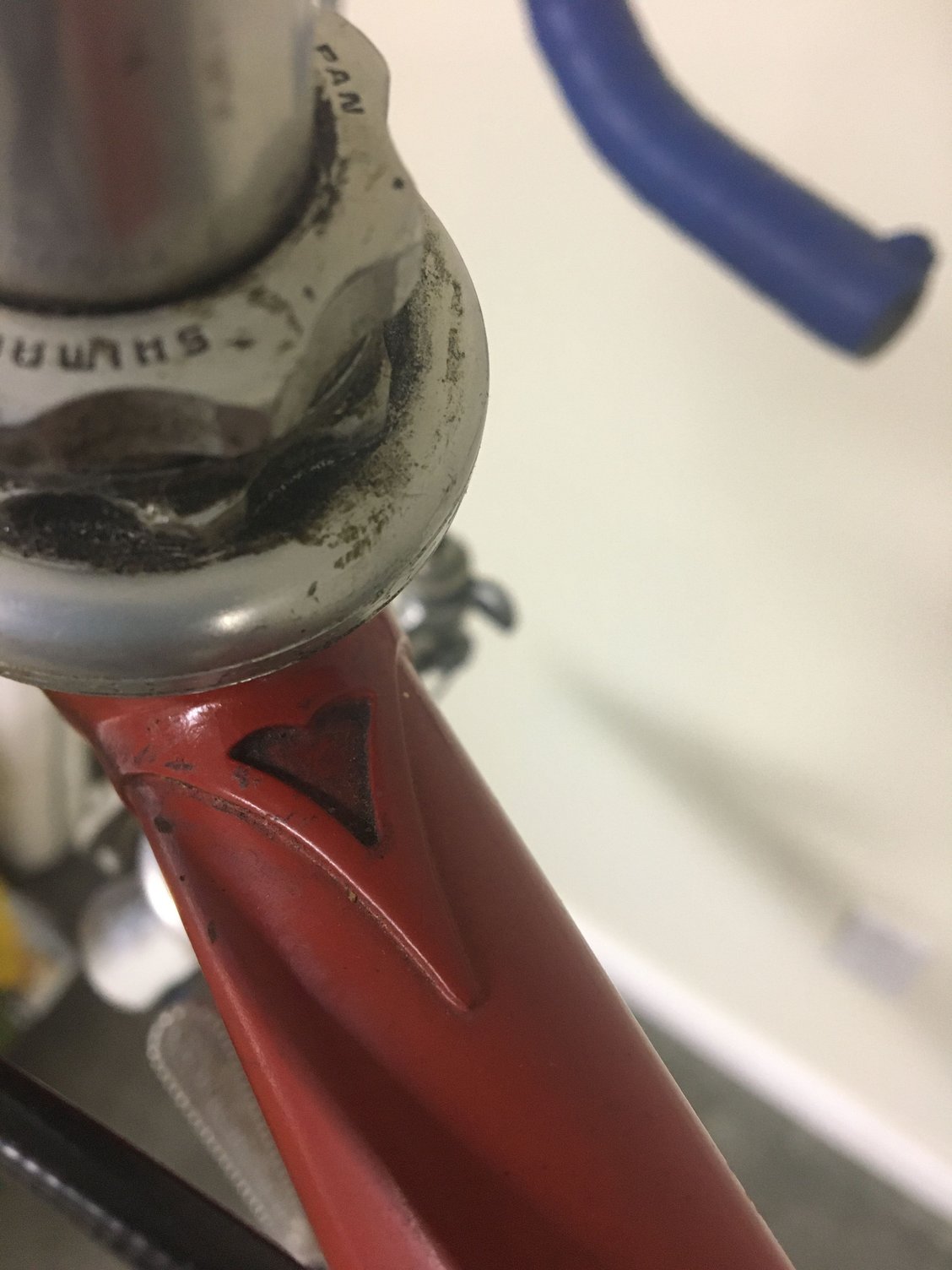

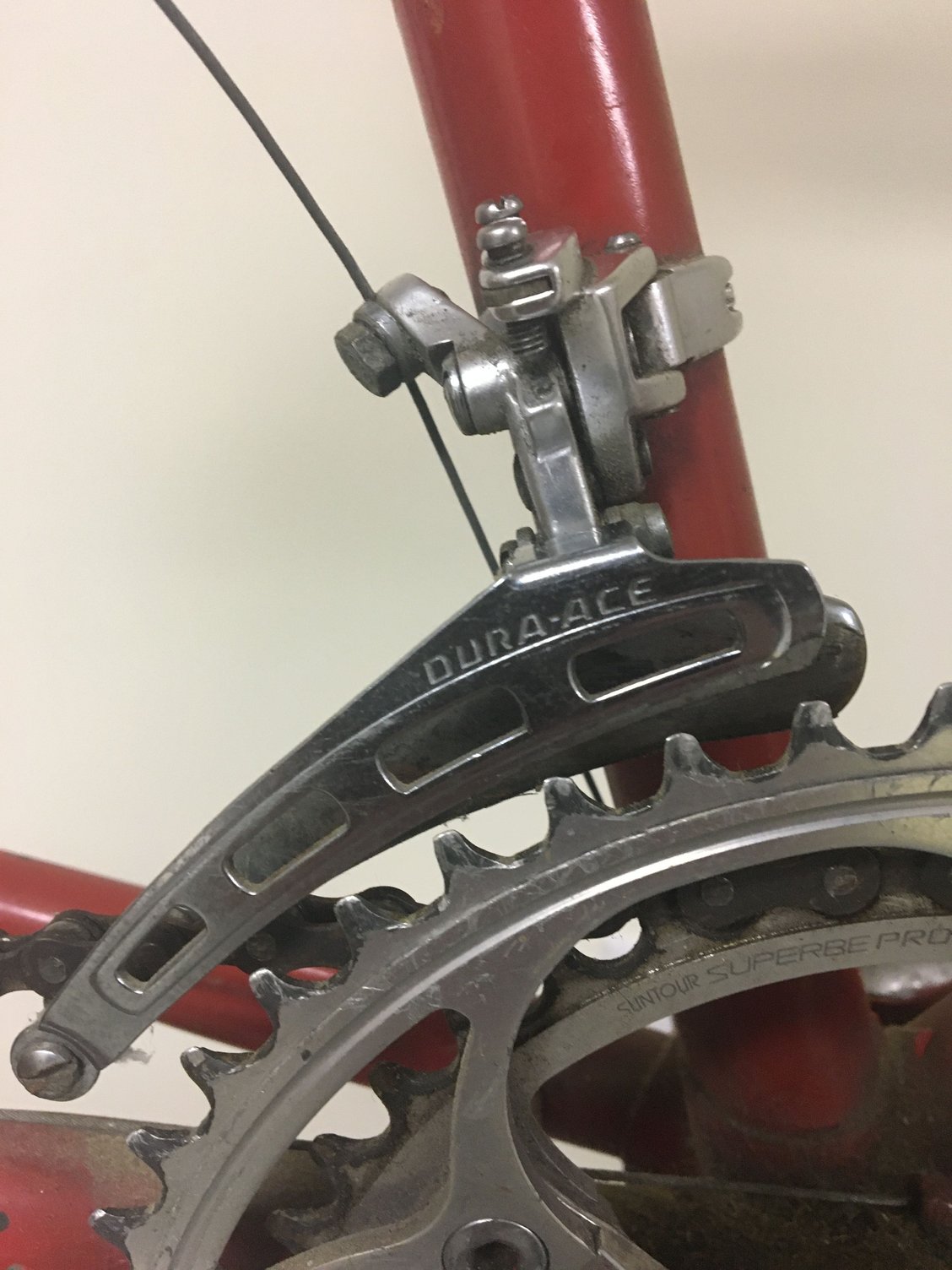

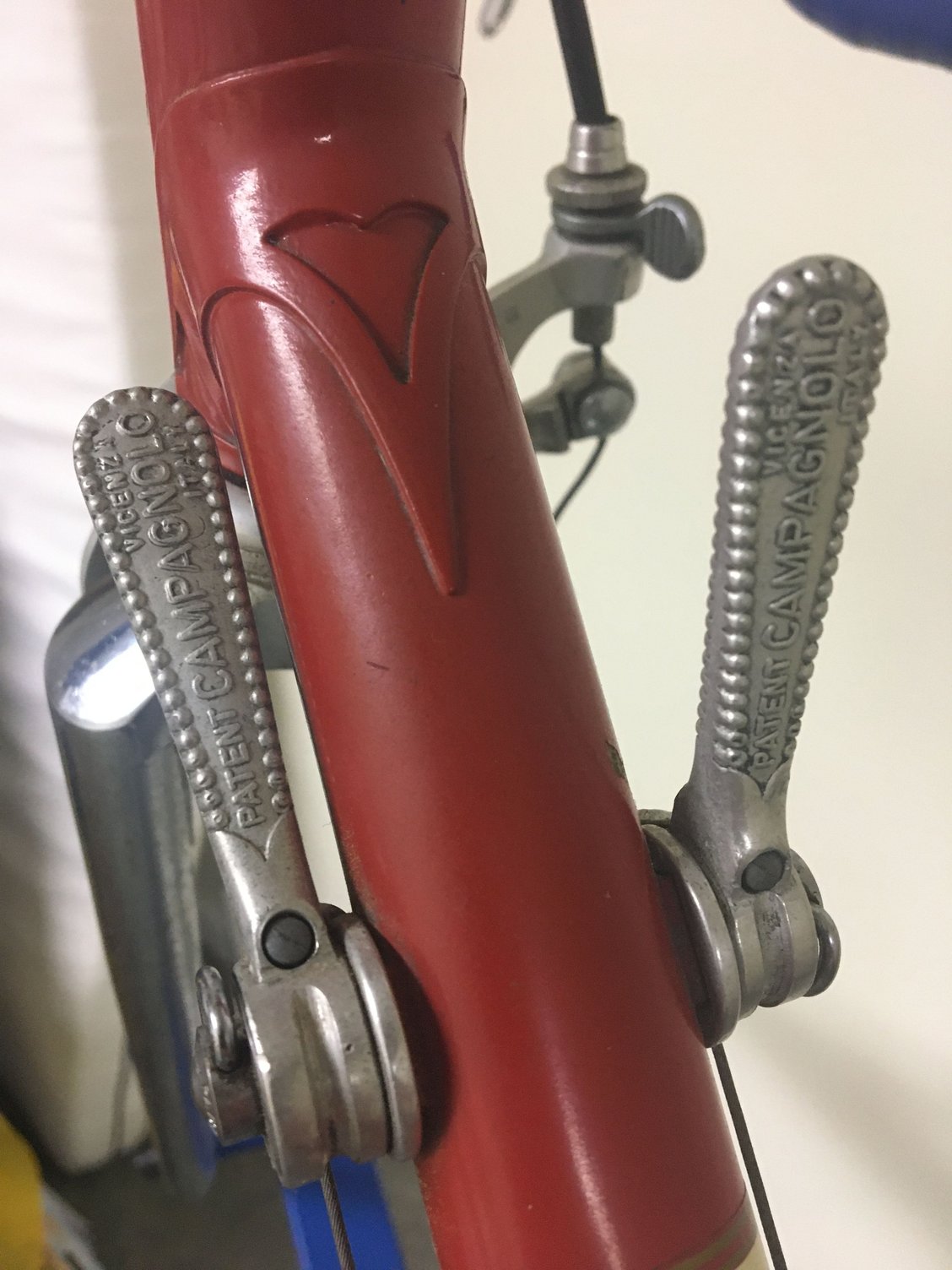

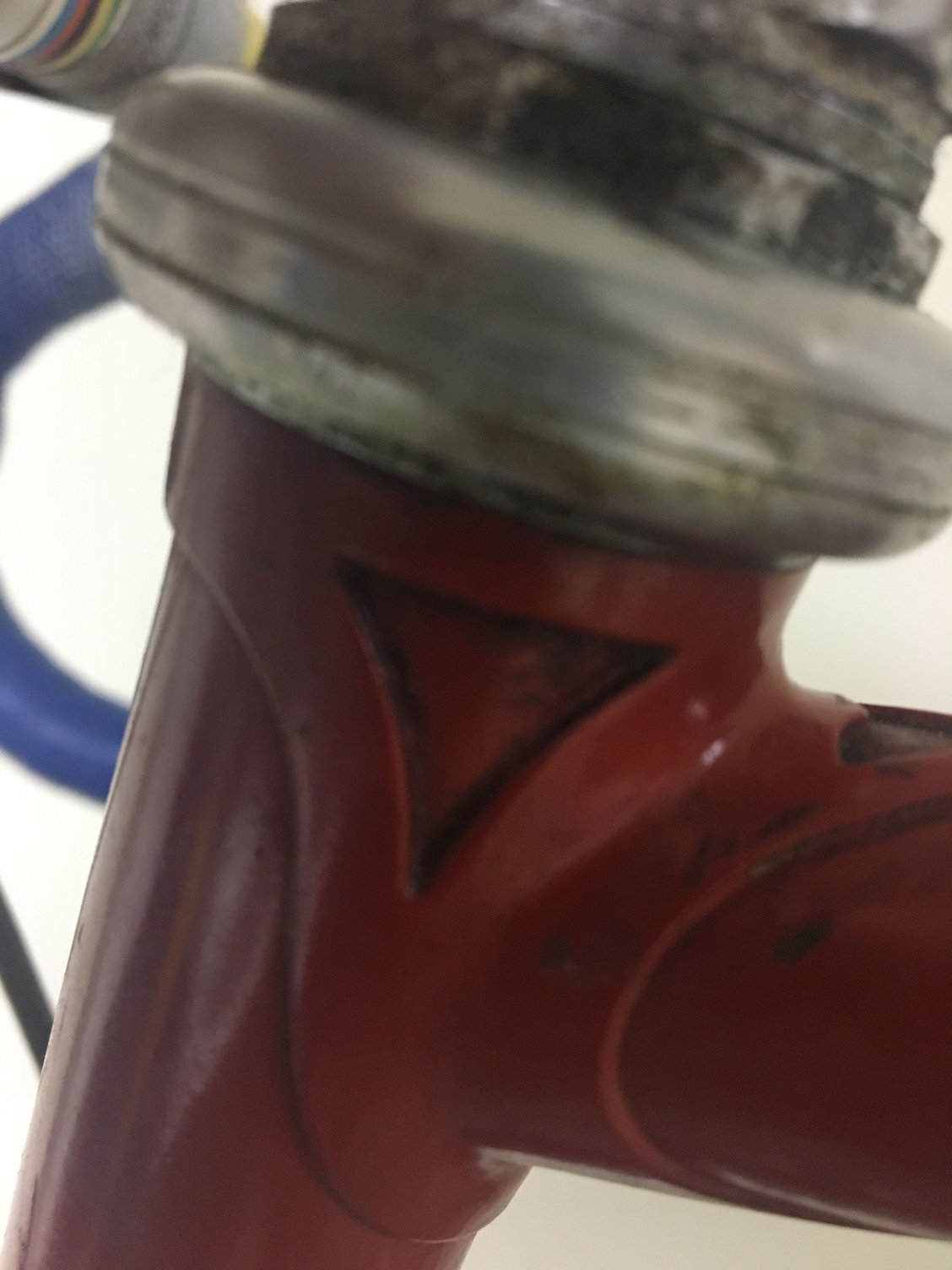

Just picked up an older Colnago badged bike for relatively cheap. Has the heart-shaped lug cutout’s associated with the Sport model, nicely thinned long-point lugs, three(3!) top-tube cable guides, over the top of BB derailleur cable guides, Colnago clover-leaf cutout under BB, campy rear dropouts, chrome front fork with full sloping crown and Tange TF dropouts, and a mix/mash of parts including Campy record shifters, Dura Ace stem, brake calipers, and front derailleur, Suntour Superbe hubs and rear derailleur, Shimano 600 headset, Shimano 105 crank,,,you get the idea! Decals are old and indicate made in Italy.


Similar to other Sport models shown on-line

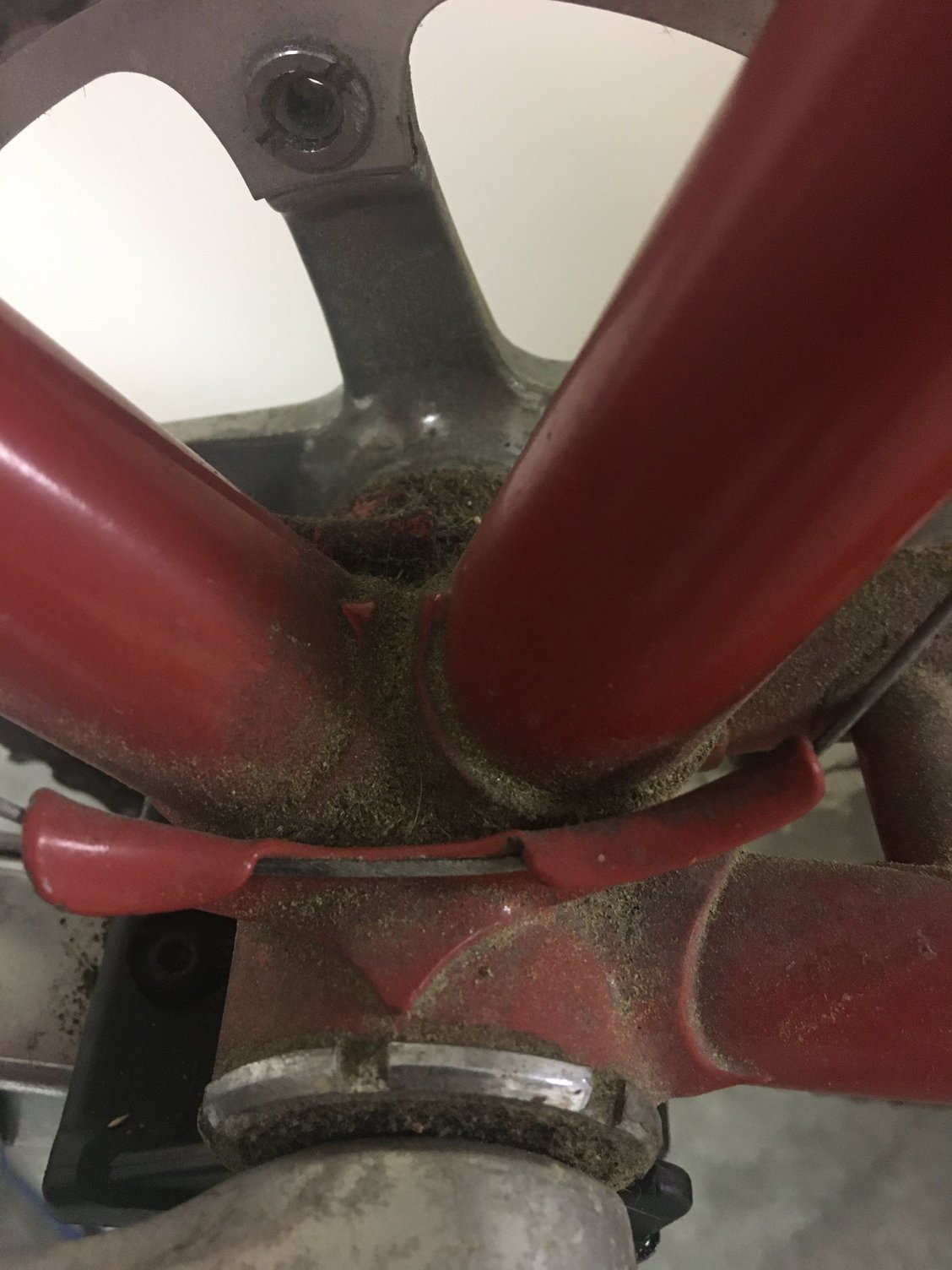

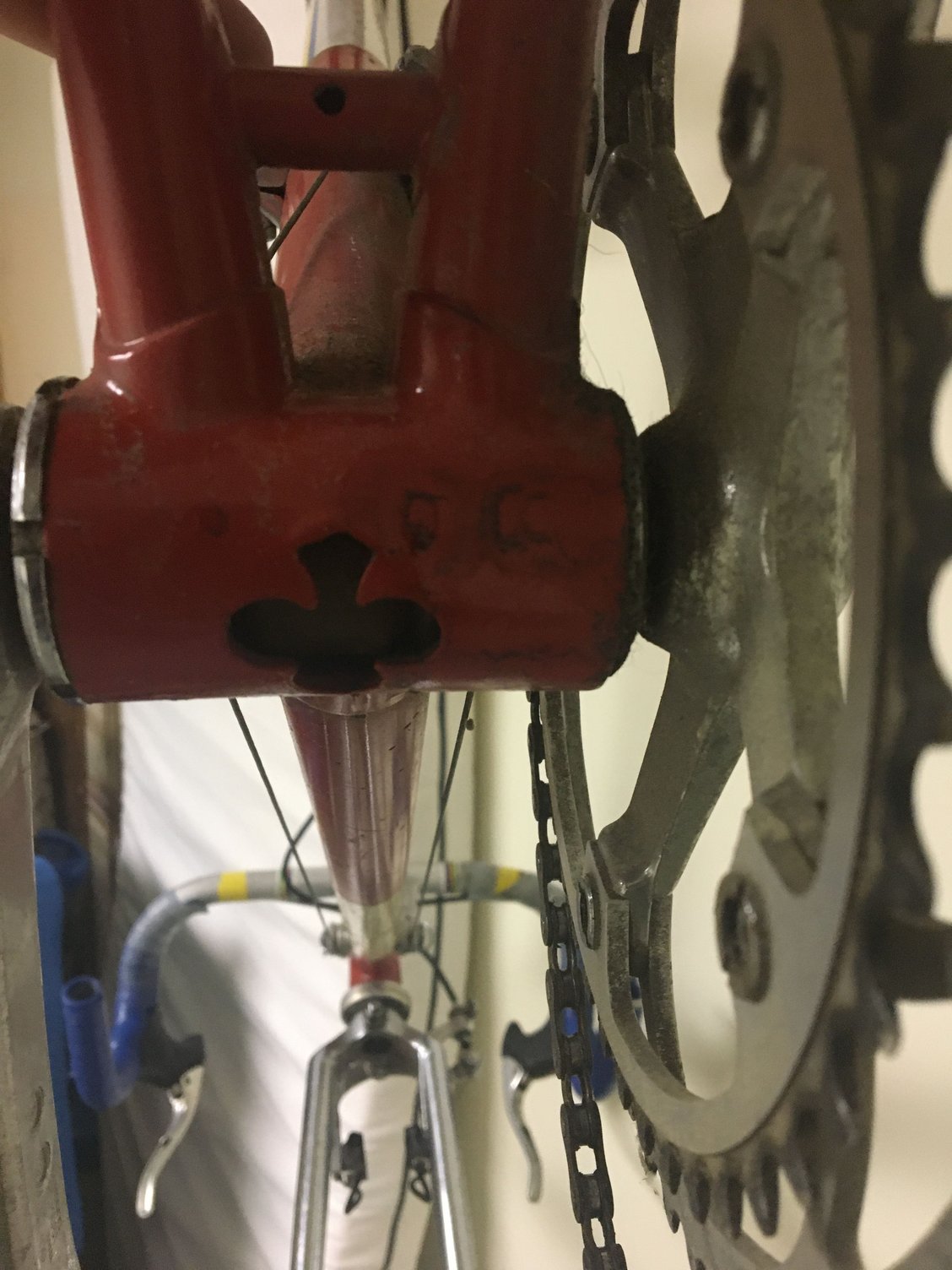

I finally a clover leaf someplace on the frame!

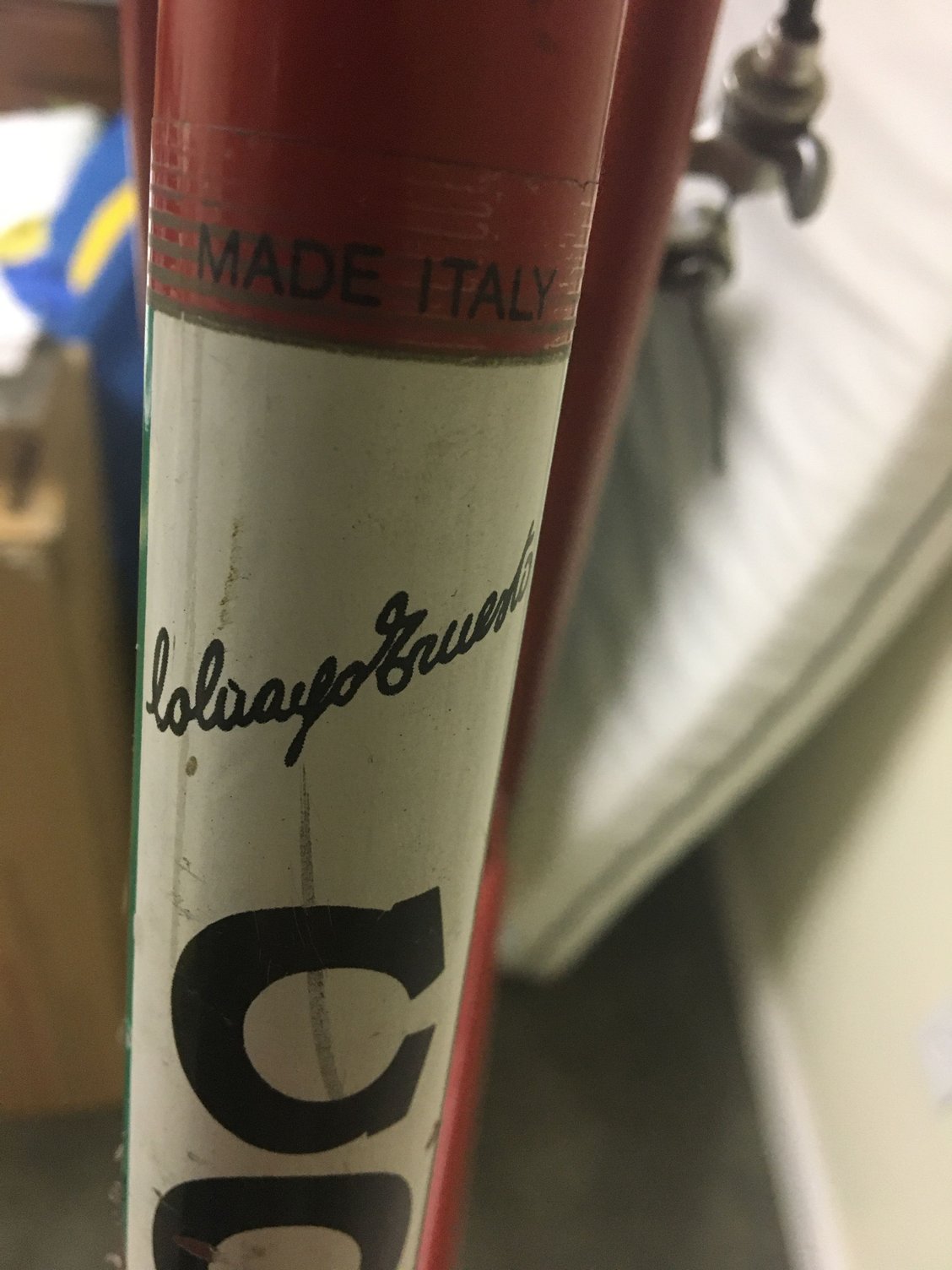

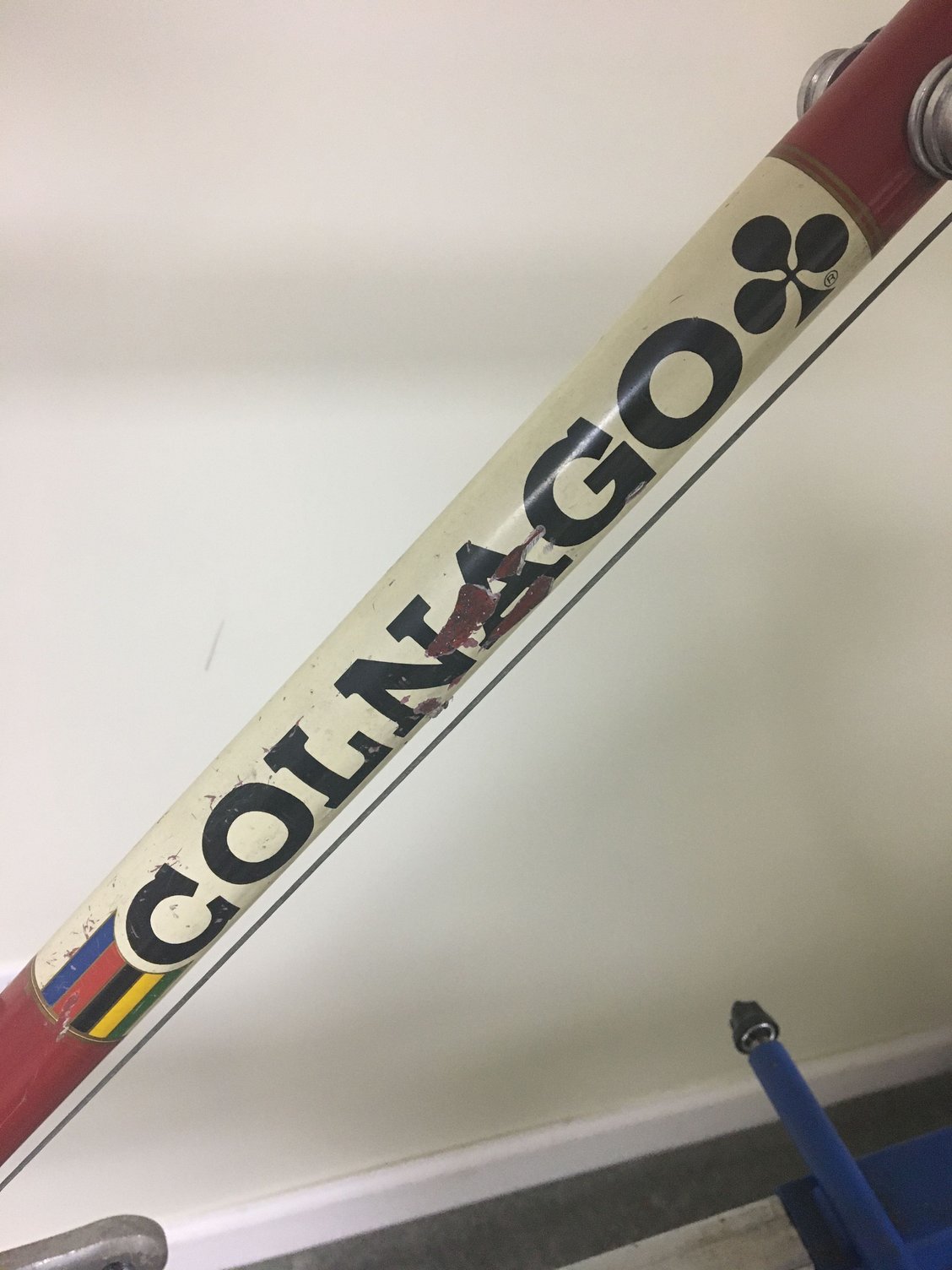

Ernesto spelled last name first,,,whhaatt?

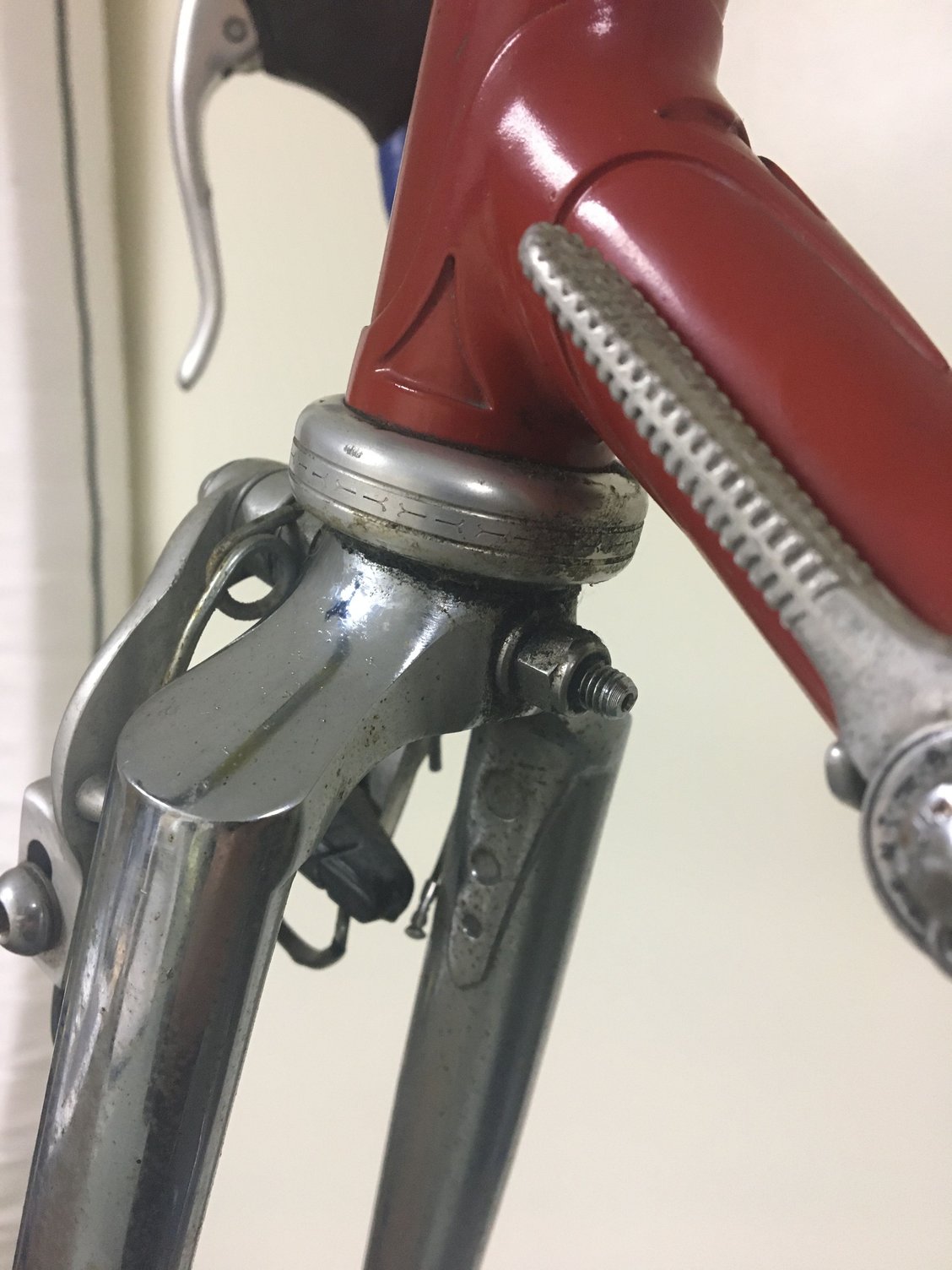

Questions include is this a Colnago? Is the fork original? How old is it?
evwxxx is offline
Likes For evwxxx:
Old 12-06-21, 11:28 PM
  #2
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,231

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 22 Times in 13 Posts
More pics,,,

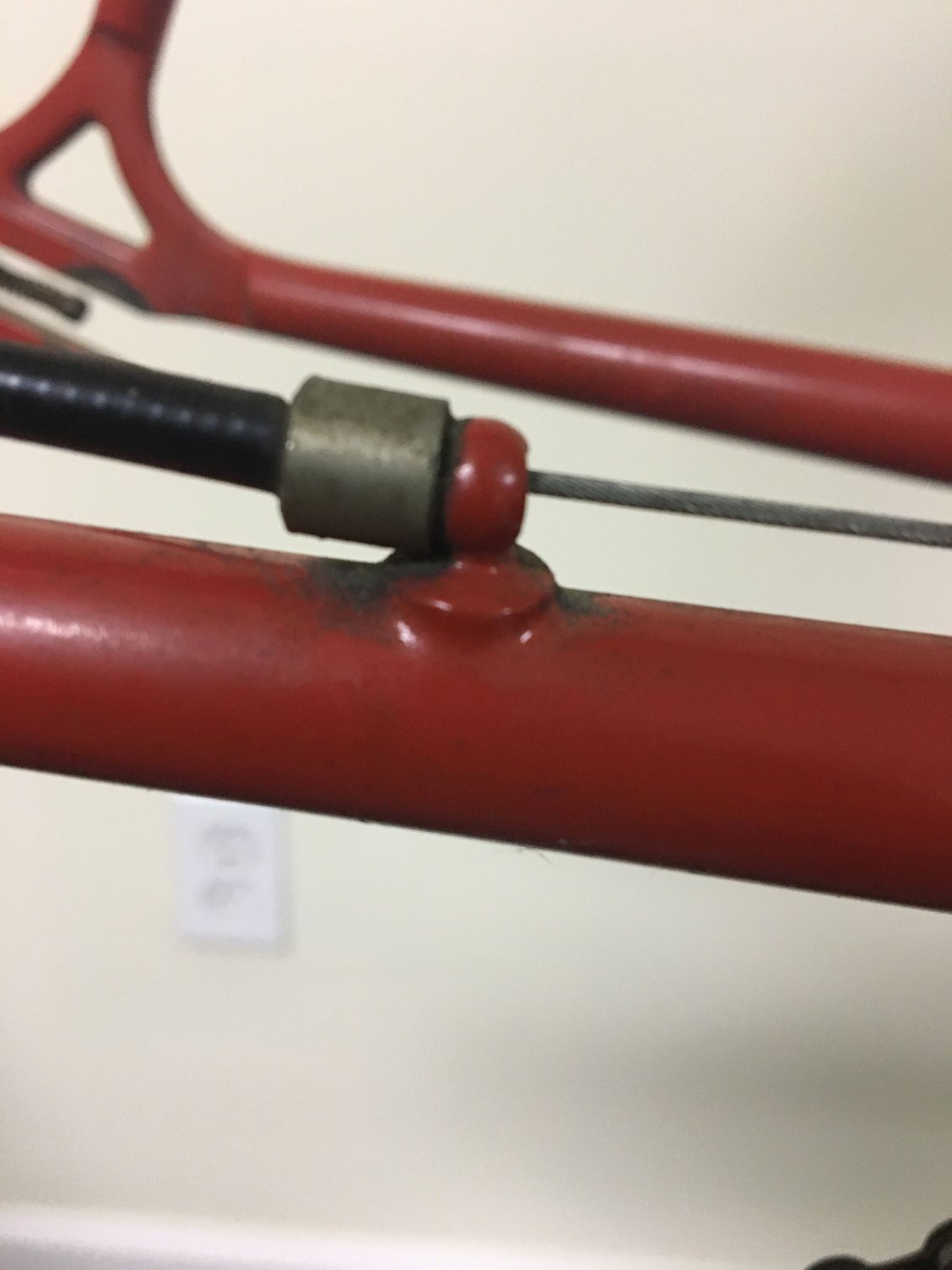

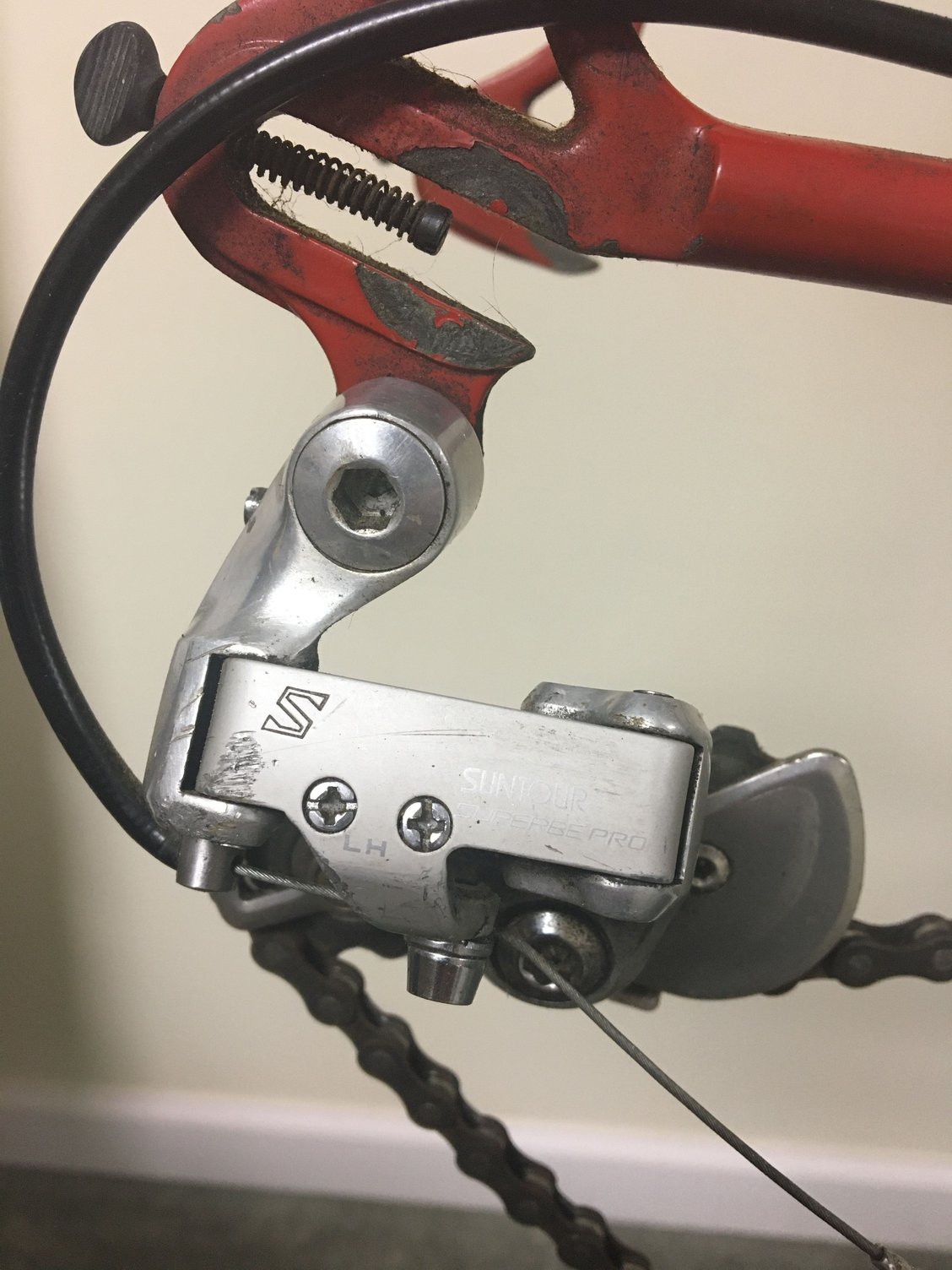

Rear derailleur cable stop






evwxxx is offline
Old 12-07-21, 01:20 AM
  #3
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Posts: 11,808
Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 2307 Post(s)
Liked 3,623 Times in 1,302 Posts

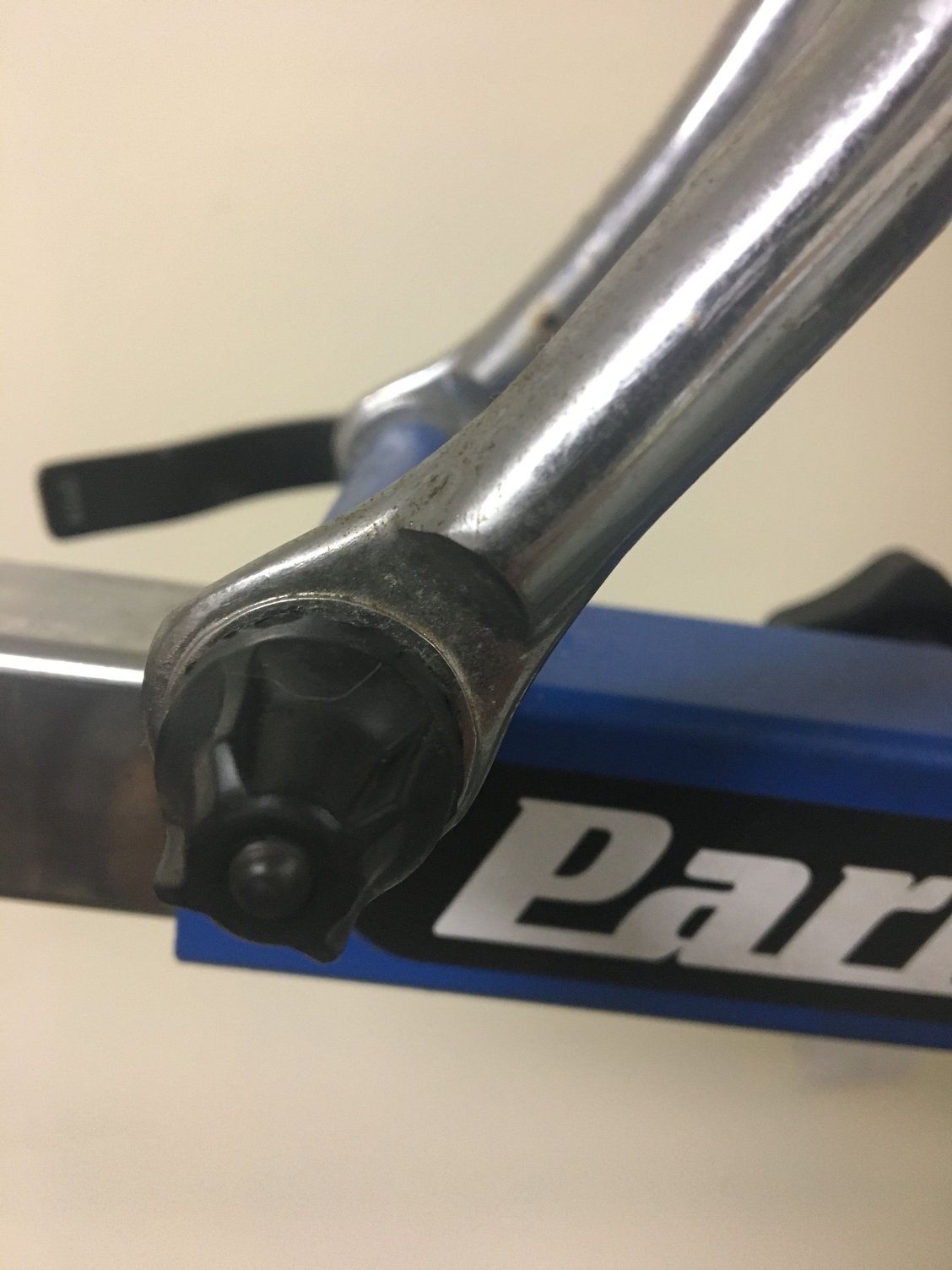

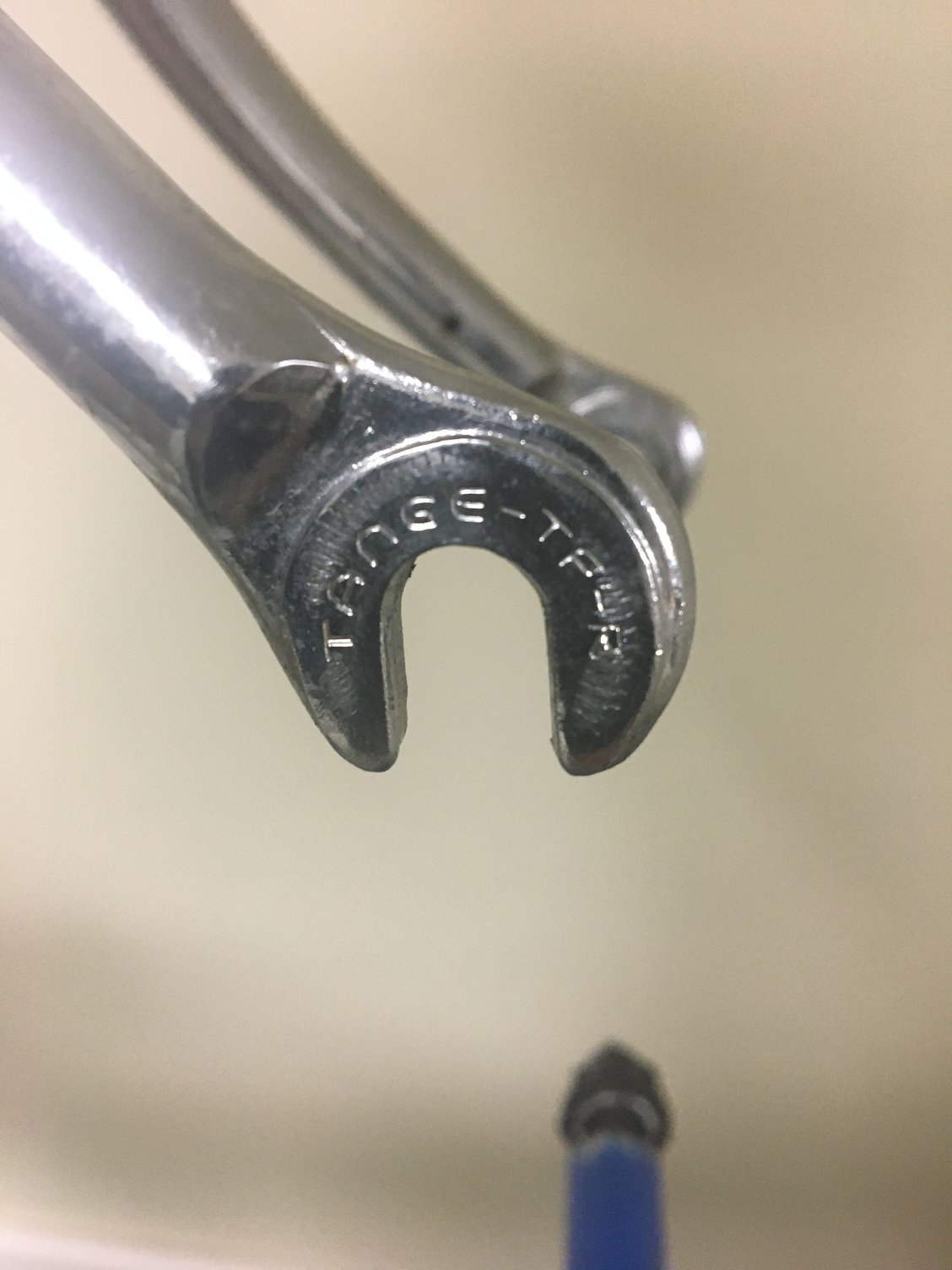

Tange dropouts on the fork? Probably not original.

Interesting frame, tho. From the rear end up to the head tube/head lugs it appears to be upper-tier, like a Super or Mexico. But the head lugs are all wrong for either of those models. Decals are late 70s/early 80s Super or Mexico, but of course could have been added at a later date.

Just spitballin' here, but I wonder if it was originally a Super or Mexico that had a header and received a new front end (lugs and head tube, perhaps even top and down tubes) in addition to the fork. Stranger things have been known to happen.

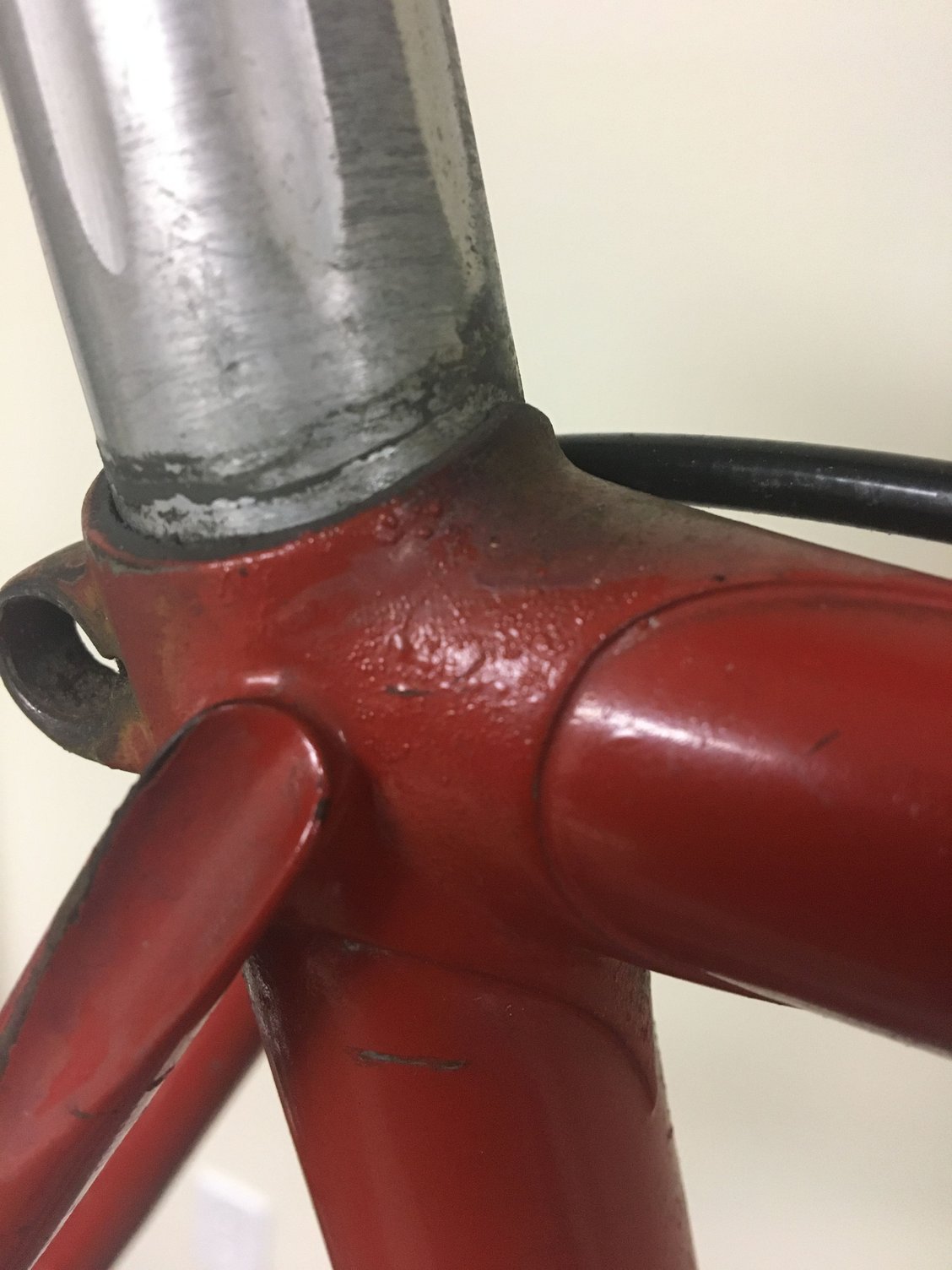

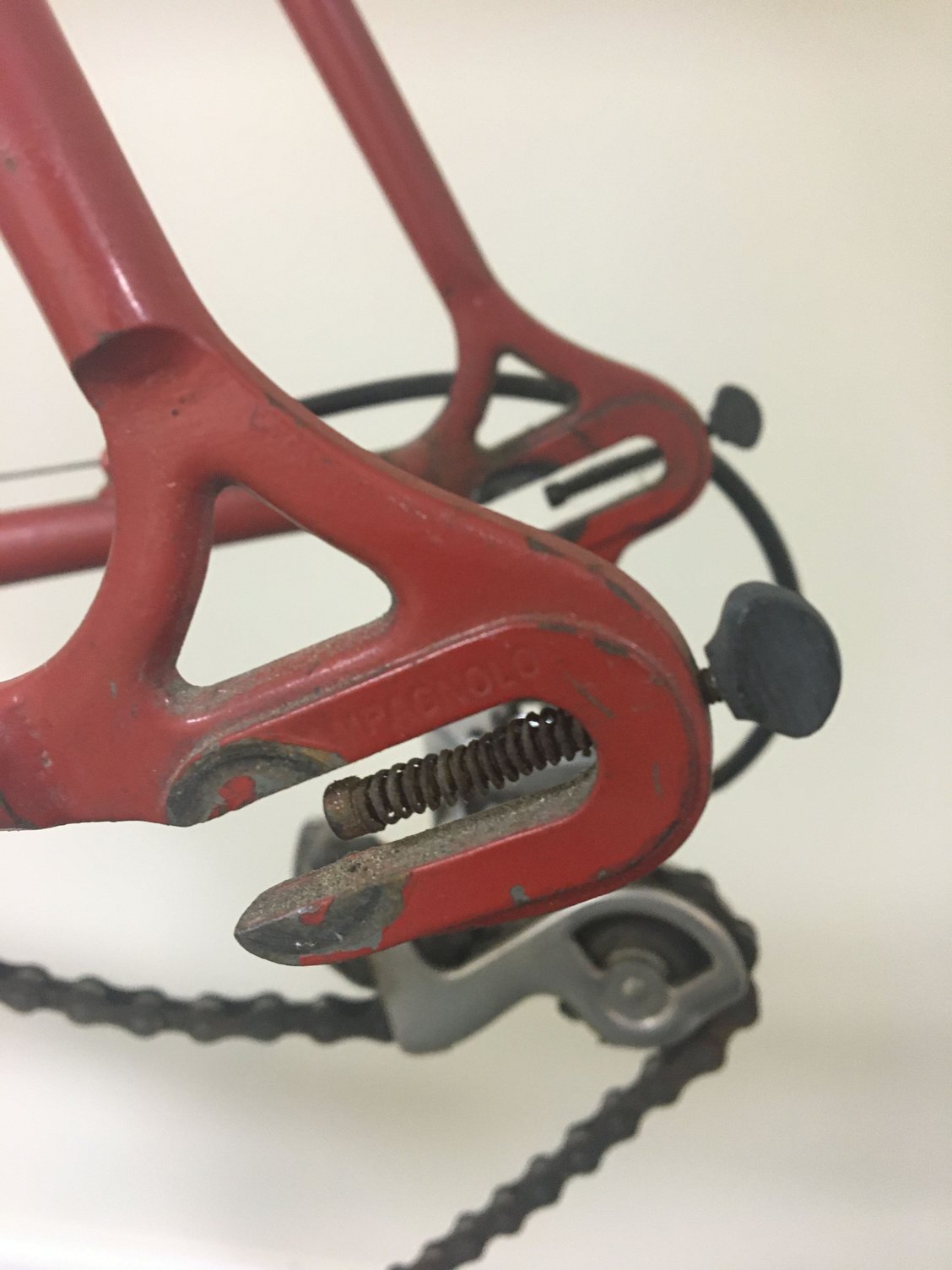

Clover cutout in BB shell, long Campagnolo rear dropouts, short fluted seatstay caps (Sports tended to have long, flat ones), mis-matched fork, paint which appears unoriginal, and a seat lug lacking the window cutouts of the head lugs.

This particular frame seems a mix of Super/Mexico and Sport identification cues, at least to my eye.

Edit: I'll also add that the fork resembles the replacement "Italian-style" forks once available through Bikecology/Bicycle Warehouse catalogs in the late 70s/early 80s. Unfortunately, I'm a couple thousand miles away from my reference library and cannot confirm the details. How about a detail shot of the rear brake bridge?

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/


Last edited by Drillium Dude; 12-07-21 at 01:58 AM.
Drillium Dude is offline
Likes For Drillium Dude:
Old 12-07-21, 10:16 AM
  #4
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,434

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 566 Post(s)
Liked 1,246 Times in 736 Posts
Also, didn't Colnago only have two top tube cable guides?
Kabuki12 is offline
Old 12-07-21, 10:45 AM
  #5
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,999

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 865 Post(s)
Liked 1,629 Times in 678 Posts
Fork looks very much like a "Tange 124" model.
thinktubes is offline
Likes For thinktubes:
Old 12-07-21, 01:17 PM
  #6
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,231

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 22 Times in 13 Posts
Thanks, seems to be a head scratcher for sure, will get an idea of the seat post diameter probably tomorrow, that may shed additional light,,,oh and nutted brakes,,,unlike my 1980 Super,,,
evwxxx is offline
Old 12-07-21, 01:20 PM
  #7
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,231

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 22 Times in 13 Posts

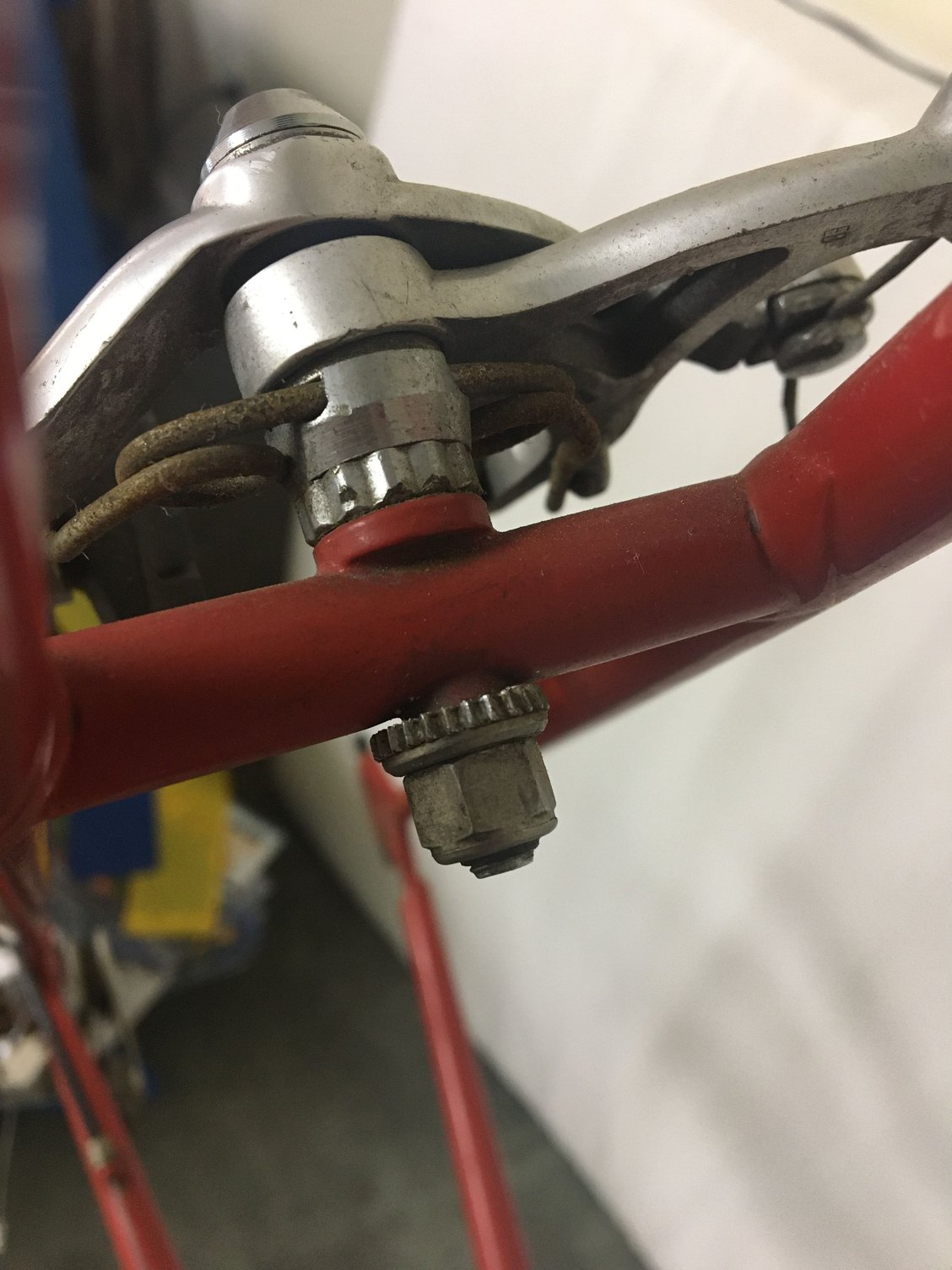

Rear brake bridge,,,

evwxxx is offline
Old 04-28-22, 11:11 AM
  #8
EdwardThigpen
Junior Member

EdwardThigpen's Avatar

Join Date: Apr 2022
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
It looks amazing) I recently read a book a long way home, so not to be verbose here is https://freebooksummary.com/category/a-long-way-gone an example of a student summary. It kind of inspired me to travel a lot, but I'm thinking of getting some kind of retro bike for it. I think it's going to be a fun vacation.

Last edited by EdwardThigpen; 05-02-22 at 05:19 AM.
EdwardThigpen is offline
Old 04-28-22, 11:16 AM
  #9
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,803

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 779 Times in 511 Posts
Is the lower arm on the front brake caliper bent upward?
smd4 is offline
Old 04-28-22, 12:34 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,835
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2545 Post(s)
Liked 1,489 Times in 1,118 Posts
Weird jumble of details, leaning also to crashed Super with a repaired front end and replacement fork.

One possible tell would be to remove the bottom bracket and see if there is a pin on the downtube.
most of the Supers were pinned.
check the seat tube too for a visual of how was done.
repechage is offline
Old 04-28-22, 12:52 PM
  #11
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,555

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Colnago Classic Rabobank

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 2793 Post(s)
Liked 4,762 Times in 2,815 Posts
Zombie thread
