drop bar w/classic bend and shorter reach?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

drop bar w/classic bend and shorter reach?

Old 12-14-21, 07:23 PM
  #26
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,053

Bikes: 1985 Trek 620 - 1982 Trek 728 - 1989 Trek 420 - 2008 Trek 1.5 - 1985 Fuji del Rey

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1322 Post(s)
Liked 1,167 Times in 632 Posts
Looks like you've found what you're after.
RiddleOfSteel is offline
Old 12-14-21, 07:26 PM
  #27
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,053

Bikes: 1985 Trek 620 - 1982 Trek 728 - 1989 Trek 420 - 2008 Trek 1.5 - 1985 Fuji del Rey

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1322 Post(s)
Liked 1,167 Times in 632 Posts
Originally Posted by ThermionicScott View Post
BTW, I think there's something to be said for a short stem and long-reach bars. Yes, it looks a bit goofy, or at least not very modern. But the longer ramps can give you a very comfortable position behind the hoods, assuming the bars don't have a weird shape that precludes it. And when you have chosen the right stem extension to put the hoods and drops in the right place, having the bar tops a little further back lets you sit up a little more when you want that. I'm really happy with the 80mm stem + B115 handlebars on my rando bike for those reasons.

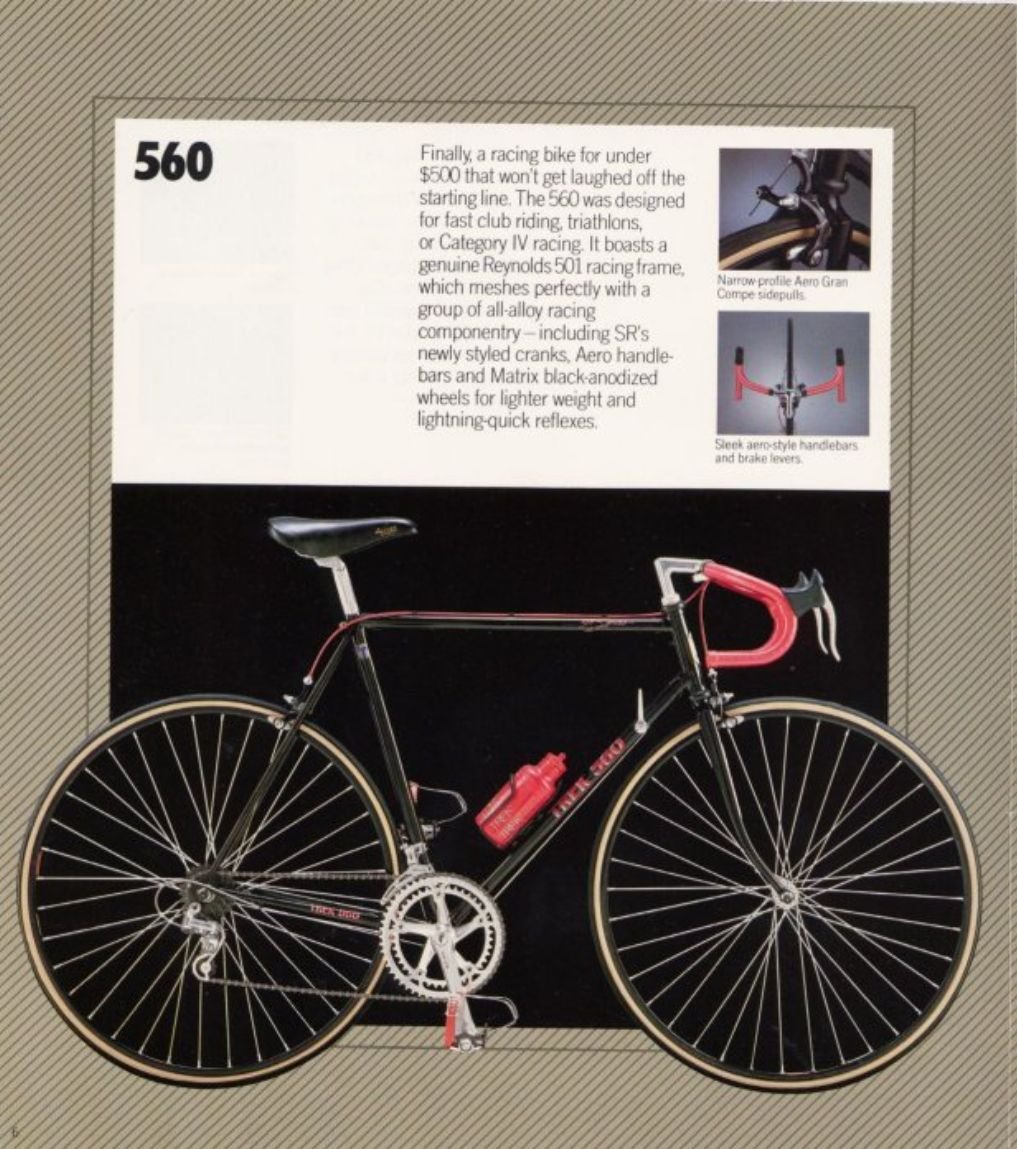

Trek did this on a few bikes, at least for the catalog shots. 1984 560. It has a nice gesture in this side view.

RiddleOfSteel is offline
Likes For RiddleOfSteel:
Old 12-14-21, 07:31 PM
  #28
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Originally Posted by ThermionicScott View Post
BTW, I think there's something to be said for a short stem and long-reach bars. Yes, it looks a bit goofy, or at least not very modern. But the longer ramps can give you a very comfortable position behind the hoods, assuming the bars don't have a weird shape that precludes it. And when you have chosen the right stem extension to put the hoods and drops in the right place, having the bar tops a little further back lets you sit up a little more when you want that. I'm really happy with the 80mm stem + B115 handlebars on my rando bike for those reasons.
Oh, I don't think it looks goofy to have a short stem. Maybe in the 50 or 60mm range it does. In that case, a rider does what it has to to get a good fit. Otoh, one could slide the seat forward a bit with or without a zero offset stem. My wife's Schwinn Mesa Runner has 60mm SR quill, but it's too short in height (for my needs) and it really does look like a stub.....although somehow it works aesthetically with her upright cruiser bars.
thook is offline
Likes For thook:
Old 12-14-21, 07:33 PM
  #29
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Originally Posted by RiddleOfSteel View Post
Trek did this on a few bikes, at least for the catalog shots. 1984 560. It has a nice gesture in this side view.

Oh man...those just look odd....lol!! I'm not biased, though
thook is offline
Likes For thook:
Old 12-14-21, 07:36 PM
  #30
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Originally Posted by RiddleOfSteel View Post
Looks like you've found what you're after.
Maybe. I did some poking around to get a better profile view, and really they look just like the Cinelli 64 you'd already suggested. Steep ramp and all. I was just tickled that indeed shorter reach classic bars are out there. And, that I discovered something I didn't know existed...haha
thook is offline
Old 12-14-21, 07:43 PM
  #31
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Originally Posted by ThermionicScott View Post
Okay, I wasn't crazy, at least in this instance. Nitto made "LD" and "RD" versions of the B105, which had only 65mm reach. I wonder if these are what I have seen for sale in the past?

Scroll down about half-way to page 10: The catalogs of Japanese vintage bicycle

P.S. Universal Cycles's mfg number for the 37cm B105 is "B105-RD-370MM" -- if you're interested in a bar that narrow, you could contact them and see if it has the shorter reach: https://www.universalcycles.com/shop...s.php?id=10113
I may contact them to see if they have the RD model. However, with 65mm reach they probably have no ramp at all. Sounds like a good dirt drop candidate if nothing else
37cm' s is way too narrow, though. 40mm is my limit.
thook is offline
Old 12-14-21, 08:10 PM
  #32
ofajen
Cheerfully low end

ofajen's Avatar

Join Date: Jun 2020
Posts: 1,242
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 579 Times in 389 Posts
Originally Posted by ThermionicScott View Post
BTW, I think there's something to be said for a short stem and long-reach bars. Yes, it looks a bit goofy, or at least not very modern. But the longer ramps can give you a very comfortable position behind the hoods, assuming the bars don't have a weird shape that precludes it. And when you have chosen the right stem extension to put the hoods and drops in the right place, having the bar tops a little further back lets you sit up a little more when you want that. I'm really happy with the 80mm stem + B115 handlebars on my rando bike for those reasons.
Yes. And this is a benefit that has been largely lost by the shift to threadless steerer tubes and stiffer modern frames with shorter chain stays, higher BBs and more drop from saddle to stem.

You have to have short reach bars and shallow drop because of where the stem clamp ends up. Putting hoods and drops in the same places with a classic round bar means taller, closer stem clamp which can be a good climbing grip and a comfortable spot for easy riding time.

Otto
ofajen is offline
Likes For ofajen:
Old 12-14-21, 11:33 PM
  #33
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Originally Posted by RiddleOfSteel View Post
Looks like you've found what you're after.
Okay...I've decided I'll look for and get some of those Cinelli's or the Deda's. The ramp's not perfect, but the brake levers I'll be using will make up for that. Either Cane Creek SCR-5 or the SRAM S500's I have. And, I can tweak any of the camber a tad.
Bruce Gordon did as much on this bike with Cinelli's..



So, with the 80mm Technomic I have and either of the bars, that's around 165mm worth of the overall reach. My 55cm frame uses an 80mm stem and 95mm bar with the saddle set back a couple of cm's. I may not even need to use a zero offset post for the Schwinn, though.
Heh...Italian bars for the Columbus frame <<win!!>>
thook is offline
Old 12-15-21, 02:06 AM
  #34
CMAW
Pining for the fjords

CMAW's Avatar

Join Date: Feb 2011
Location: Brussels
Posts: 560
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 220 Times in 73 Posts
Originally Posted by noobinsf View Post
My question for anyone who has the Nitto 174 (the "mini-noodles") -- Does the slight bend back toward the rider make that corner between the top and the ramp gradual enough to make it easy to thread through a quill stem clamp?
I had no trouble that I can remember, clamp slot on the outside of the bend does the trick.
__________________
CMAW is offline
Old 12-15-21, 04:38 AM
  #35
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,952
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 869 Post(s)
Liked 1,215 Times in 604 Posts
Originally Posted by thook View Post
<<ehem>>

https://www.ebay.com/itm/37262854981...40dbb4e560b8e4

(quietly leaves computer to go get another cup of coffee...)
That's a nice bar for sure. It's important to note that they measure outside to outside not center to center.
__________________
nomadmax is offline
Old 12-16-21, 11:37 AM
  #36
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,797

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1419 Post(s)
Liked 344 Times in 269 Posts
Originally Posted by CMAW View Post
There's a great Fairweather/Nitto bar with a classic shape but compact drop/reach dimensions, basically a compact version of the noodle (some curve-back and 25,4 clamp):


https://www.santucci-cycles.com/prod...v=3a52f3c22ed6

Unfortunately, these seem to be sold out everywhere. I ordered two some time ago and regret not having ordered a couple more, they're the perfect fit for me. Fairweather is the house brand of a Japanese shop, Blue Lug. Might be worth asking them if they're considering putting in a new order with Nitto in the near future.
That Fairweather looks pretty nice, but the real old Maes bends had the hood/top (called ramps?) area parallel to the bottom flat section, called the drop. The bend of the bar made a near 180 degree total bend. What's better is a matter of taste but if one really wants a MAES, I'd suggest Ebaying for a vintage GB MAES bend, at least to look at.
Road Fan is offline
Old 01-14-22, 10:27 PM
  #37
thook
Banned
Thread Starter

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,749

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 709 Times in 518 Posts
Found these. No bling points, but certainly a bit cheaper.....

https://www.modernbike.com/dimension...ndlebar-silver
