1987 Richey Ascent Homecoming

This Ritchey is the 1st high quality bike I owned, purchased as a frameset (fuselage) in 1988. With parents help it was purchased frame/fork/Suntour Rollercam & Ritchey stem for $600. I was already riding an 86’ BRC Sierra. Not a bad bike, probably cost $350-$400 back then.

While riding the BRC (before the Ritchey purchase) and enjoying it the bike bug was slowly starting to take hold. A good friend of mine had gone down the road bike path (rather than MTB) and bought a celeste green Bianchi c/w Super Record. After I rode it, I could not believe the high quality of ride it provided. It was like night and day comparing it with the department store 10 speeds I’d grown up with. This bike test really opened my eyes to what was possible using proper high quality gear.

Back in 88’ I pretty much read every bike magazine I could get my hands on. My riding buddies and I slowly made the transition from that BRC level of bike to the higher end models outfitted with Deore XT, etc. Some had GTs, some had Rocky Mountains, I chose a Ritchey. Some of the best days of my life. The riding was in Calgary Alberta (yes, the Canadian prairies). Fish Creek park is a massive valley system carved out by the Bow river and I have many fond memories riding my Ritchey through some pretty great single track there.

I used my BRC as a doner bike with the Ritchey fuselage purchase and eventually outfitted it with M735 brakes and shifting. Yep, it was my baby.

A couple years later I got myself a very sweet lugged Columbus SLX/Campy C-Record Marinoni road bike which I still have today (I love vintage road bikes too).

Fast forward to 2008. My Ritchey has had thousands of miles put on it many of which were as a winter commuter (I cycled 50km a day to work for two years in the 90s) and is getting ridden here and there up on Burnaby Mountain (I moved to Vancouver in 92’). Up on Burnaby mountain my new riding buddies make fun of me bouncing off everything not smooth while they shred the local mountains on their suspension wonder bikes. I finally cracked and picked up a FS Kona all rounder (6” front & rear), something I could still pedal up hill. It’s an amazing bike and it still gets ridden lot’s.

Okay, so pretty long background story but needed to help justify how I could ever have given my beloved Ritchey away: my Dad was giving his Super Record equipped 84’ Marinoni back to his kids (I helped him buy it in the 90s) and my older brother wanted it. Offering up my Ritchey to my brother was the only way I could secure that 84’ Marinoni road bike which was more important to me at the time. I already had my Kona FS MTB, what did I need this Ritchey for?

I built up the Ritchey to a decent spec and gave it away. At least it was still in the family. My brother enjoyed the Ritchey, it gained some horrible parts over the 10+ years under his ownership. Judging by the lack of wear on the red Kool stop brake pads still on it from before I gave it up it never saw a lot of miles.
retrodude is offline
Old 12-13-21, 01:51 PM
  #2
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
In 2021 I’ve restored more bikes than ever before (good COVID hobby right?) and it’s helping me hone my skills. After building up a couple mid 90s rigid Cannondales for my son and myself my brother asked me to keep and eye out for one to build up for his son. Cannondale #3 for 2021 was built up for my nephew (M800s and a spruced up M400). My brother then asked me “if you ever come across another one grab it for me”. I found a 4th fully rigid Cannondale (M800) a few weeks ago and suddenly realized: here’s my chance to get the Ritchey back! With all the work I put into these restorations it was a no brainer I’d get it back, the 95’ M800 I built up for him turned out pretty sweet and he was very happy with the deal.

Now finally I can talk about the Ritchey rebirth. I only needed to purchase tires, saddle, grips and stem. I bought a full XT Diamond Back Arrival for $50 this year (M730). Perfect for this build. I kept the newer brake calipers which have been on the Ritchey for 30+ years.

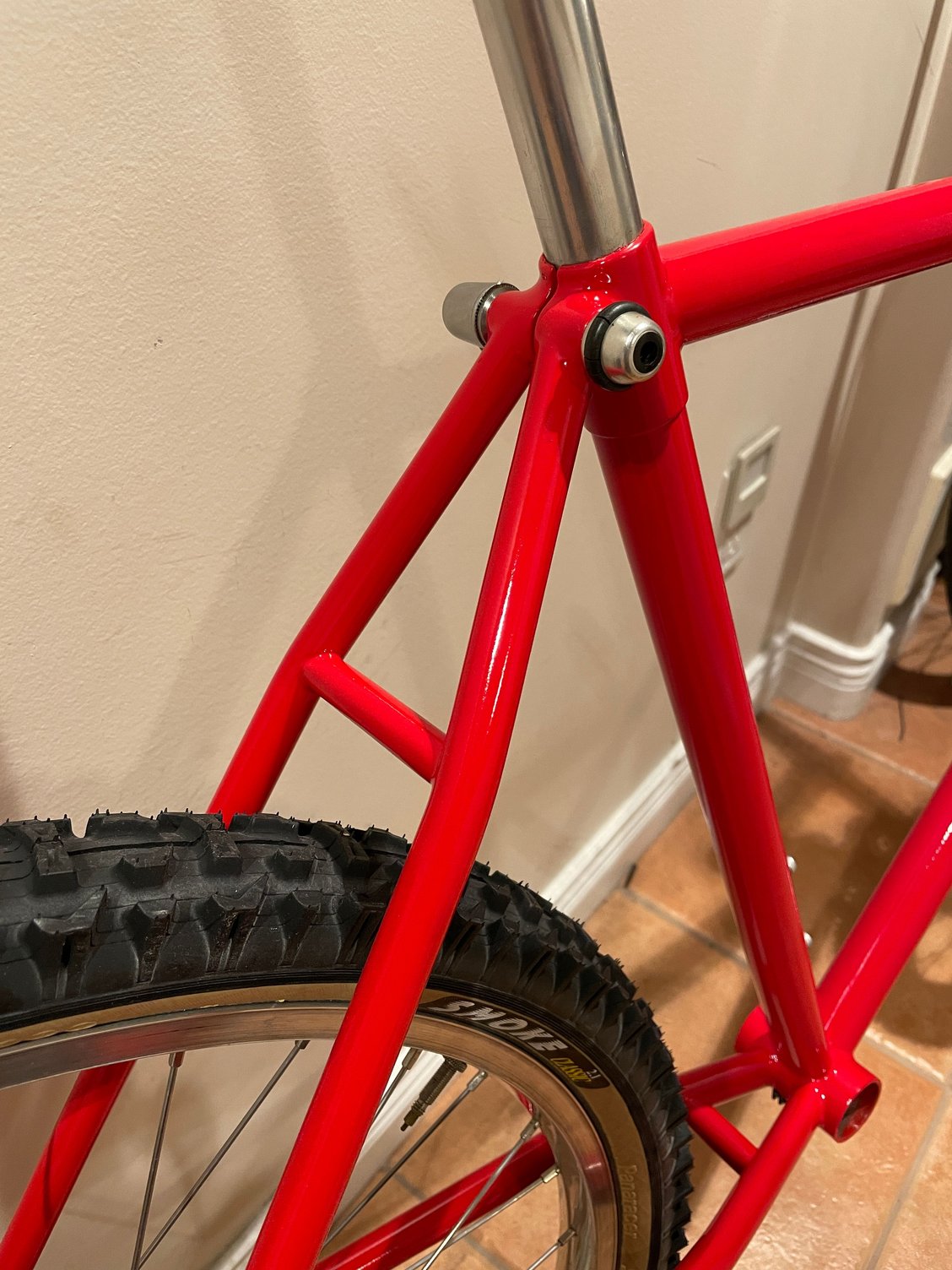

Back in the 90s I ground off the rear rack eyelets from the seatstays and drop outs (no regrets). The paint was pretty scratched up and needed touch ups anyway, I masked the decals and used the closest red rattle can paint I could find to clean things up. Not my best paint work but the start of things to come.

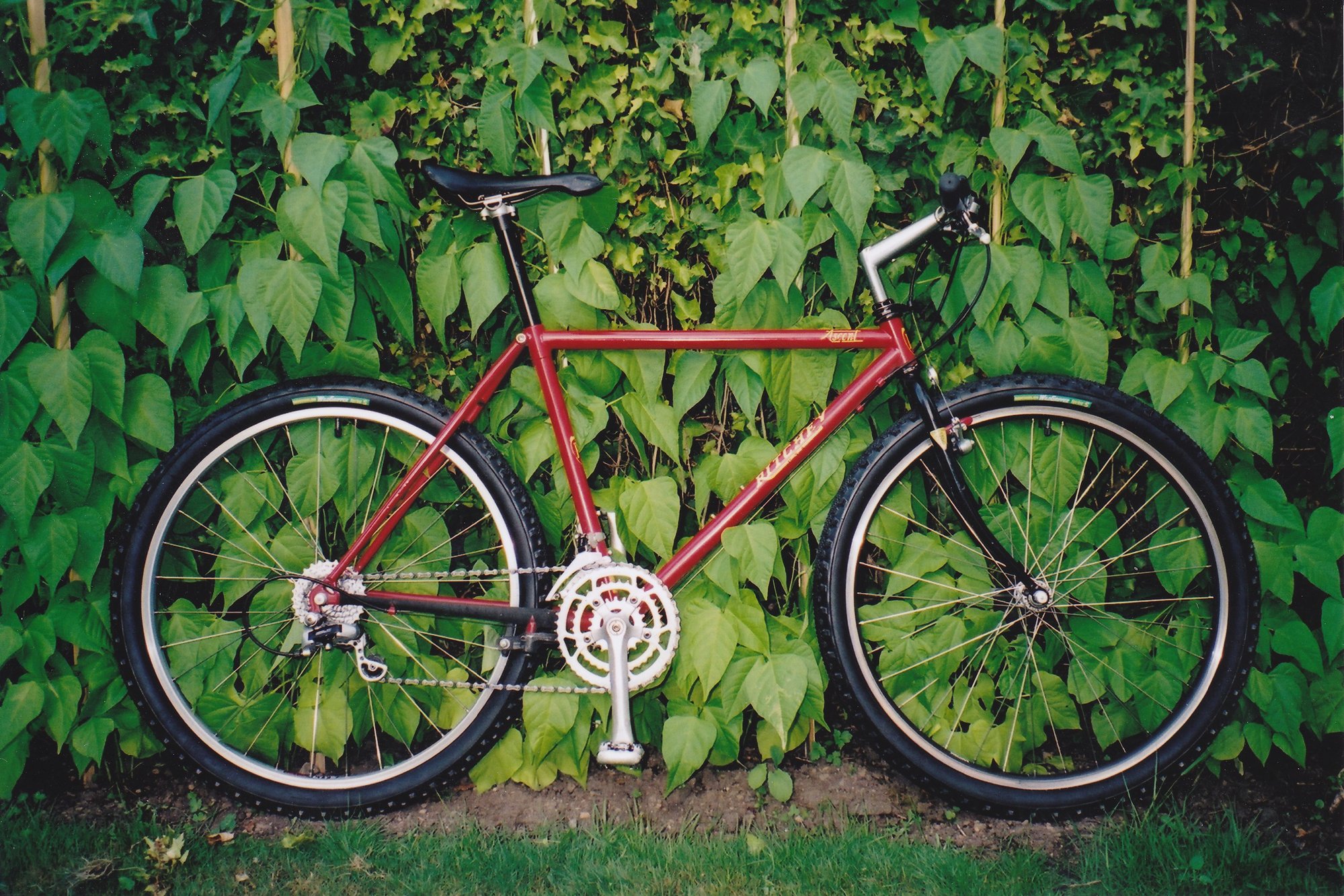

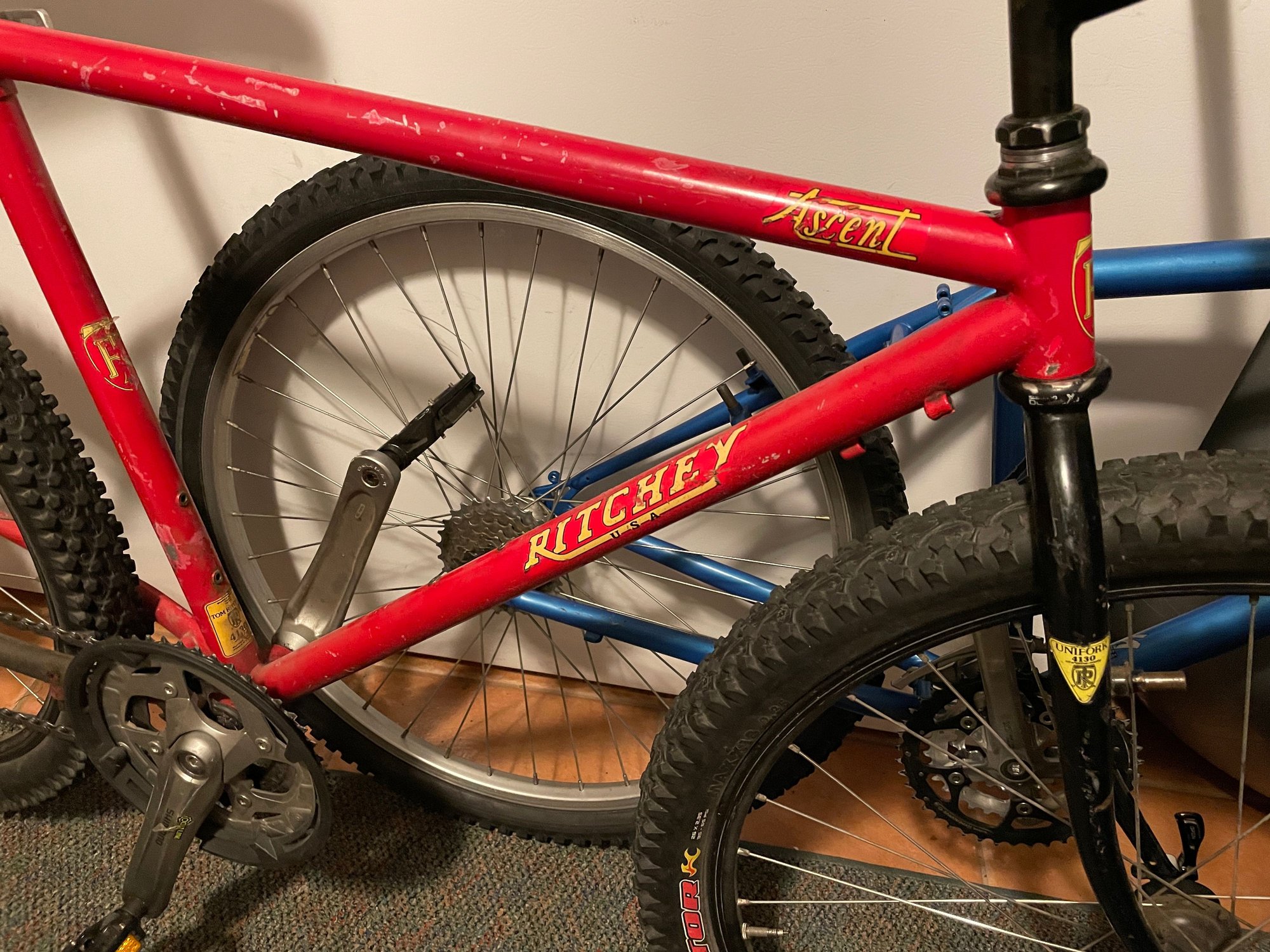

Here are a couple pictures. I do not have pictures of it from the late 80s/early 90s. These start early 2000s and the last one shows how it was given to me brother. I’ve chosen to keep the Ringle Mojo cable carrier.


retrodude is offline
Likes For retrodude:
Old 12-13-21, 01:53 PM
  #3
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts

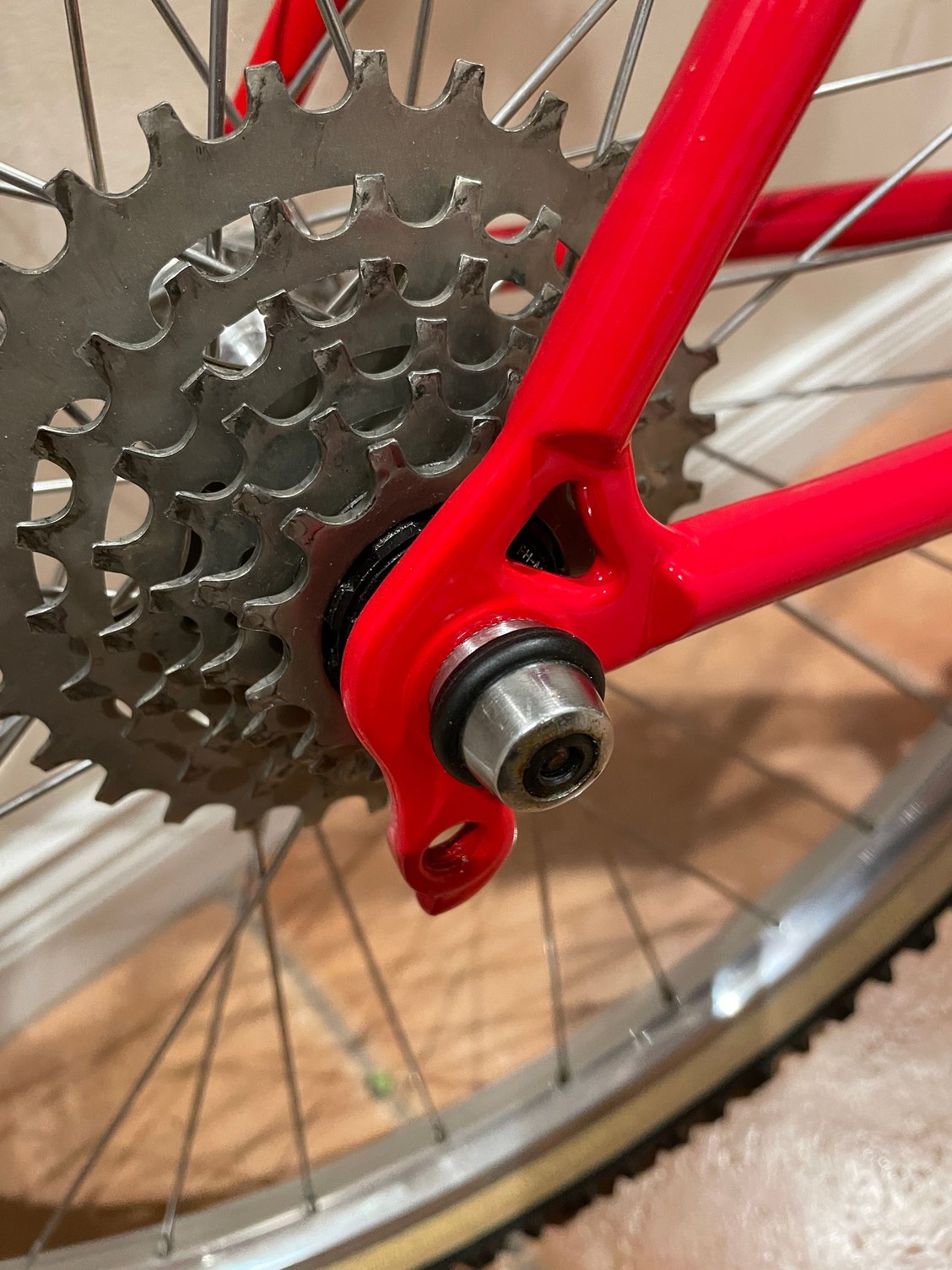

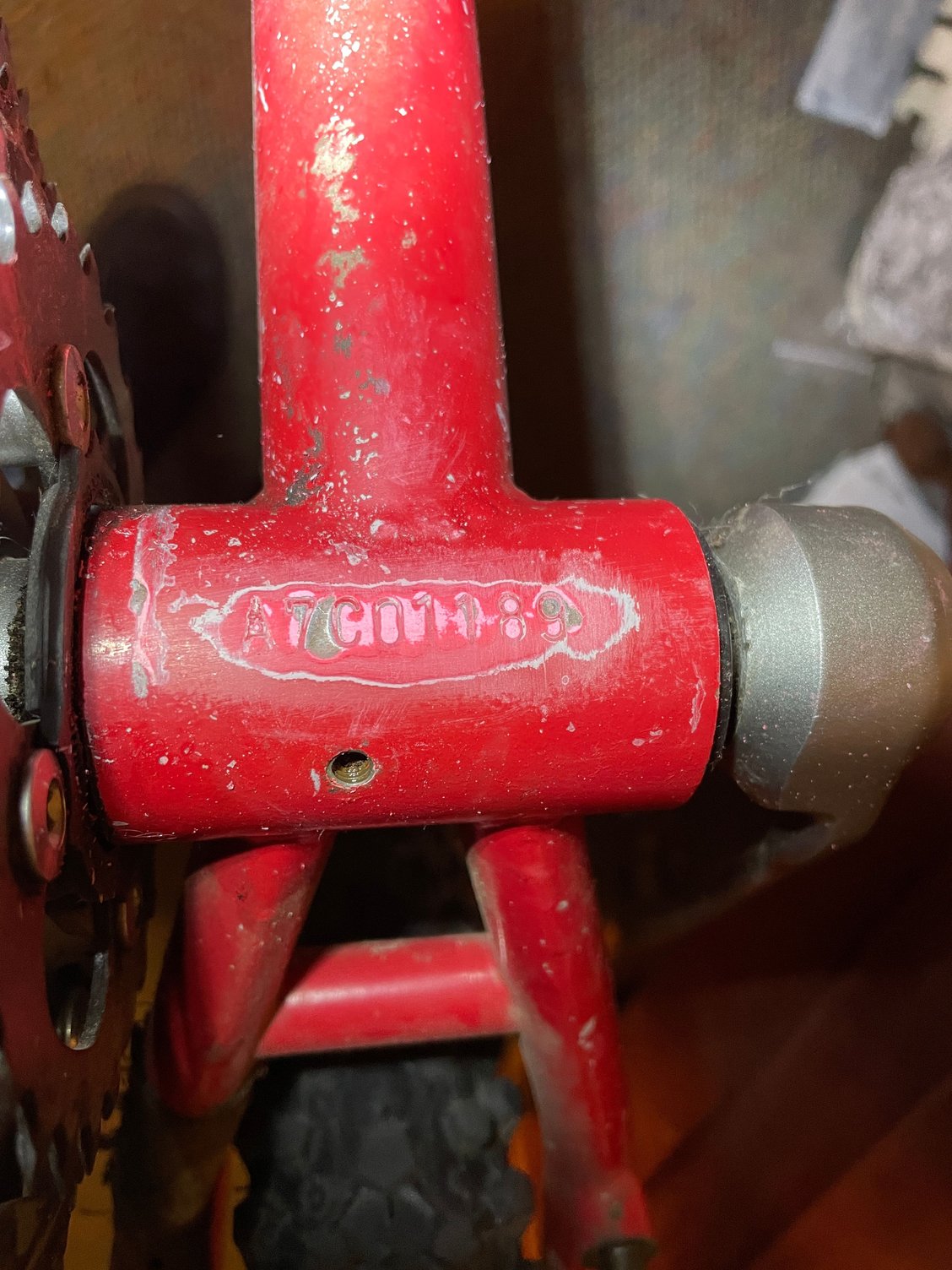

The build: Stripped it all down and started the sourcing, digging out the parts. I knew it was going with all new paint. I like doing my own paint, partly because I’m cheap and partly because I enjoy it. Maybe one day I’ll get a proper sprayer but for now rattle can it is. The first time I looked through the Velocals website I rushed it and thought they did not have the decals I needed. The original decals were in really bad shape except for the head badge. I’m glad I went back for a second look as they 100% had what was needed. I cannot say enough good things about Velocals. The quality is outstanding. They did not have a decal that was just “Ascent” only “AcsentComp”. I ordered (2) “AscentComp”s but followed up with an email asking them to confirm my yellow color selection was accurate and showed them a picture of my “Ascent” decal telling them I intended to cut their “AscentComp” offering down. They corrected my yellow color choice to Yellow 15 and asked me for dimensions on my orginal “Ascent” decal, they proceeded to make me the correct decal (I now see this decal available on their website).

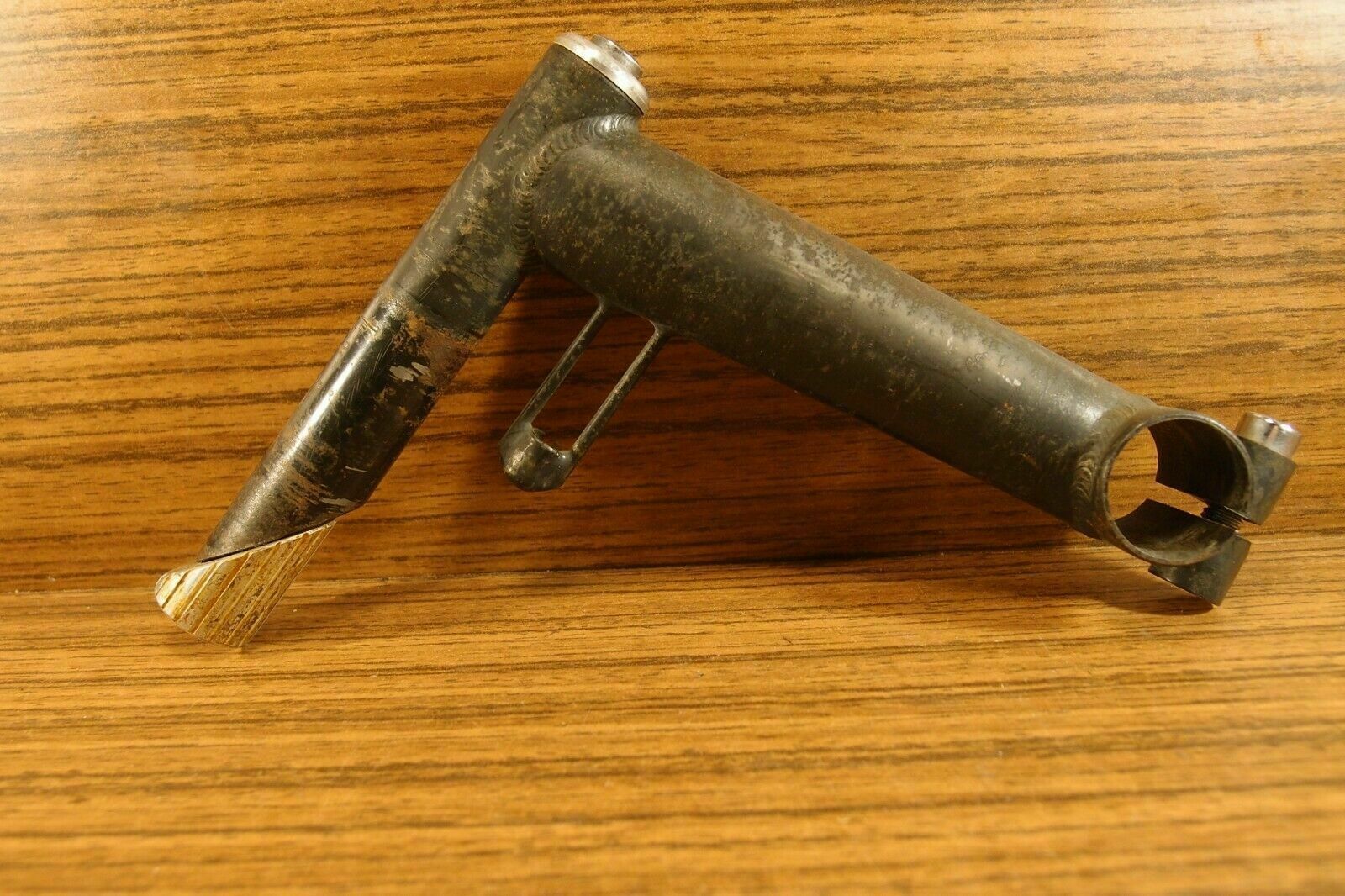

I was going to go the headset front brake hanger route. I had a Ritchey Force stem the right length, etc with no built-in hanger. My fork threads are barely long enough for the Tange Falcon headset so the extra mm makes a difference. Plus I wanted the same stem my Ritchey came with that has the simple hanger brazed in. Good shape Ritchey stems of this type are not cheap, the below stem is in the mail and set me back $50 with shipping/exchange from Poland. A lick of black paint and few coats of clear it’ll be the cherry on top. Also in the mail are the correct “ARAYA” decals for the RM-20s I’m using which are completely faded.
retrodude is offline
Likes For retrodude:
Old 12-13-21, 01:58 PM
  #4
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
Don’t mind the black tape in place of a handlebar grip which is temporary while I wait on the stem. It’s built up as far as I can go with it.

I’m super happy with the paint/decals. I can’t wait to ride it again. Also, it’s great to have a late 80s MTB to add to my (2) steel & (3) aluminum vintage 90s MTBs.




Here is the build detail:
FRAME: Tom Ritchey 4130 (Tange), Double-butted seamless Chrome-moly, ovalized seat tube at the bottom bracket, reinforcing seat collar with cold forged vertical dropouts. Weight: 5 lbs 2 oz (2325g). Price: $600. Year: 1987.


​​FORK: Tom Ritchey 4130 (Tange) rigid unicrown Chrome-moly. Weight: 780g. Rake: 1.87 in.

WHEELS: Weight: 2096g - Rear wheel (1159g) Front wheel (937g)
HUBS Front: Shimano Deore XT HB-M730 (140g), Rear: Shimano Deore XT FH-M730 (356g)​
SPOKES 36 - 3X Stainless Steel 14 gauge spokes, brass nipples​
RIMS Araya RM-20, 27 mm wide (970g)​

DRIVETRAIN:

REAR DERAILLEUR Shimano Deore XT RD-M735 (250g)​
FRONT DERAILLEUR Shimano Deore XT FD-M730 (111g)​
CHAIN KMC (300g)​
CRANKSET Shimano Deore XT FC-M730 175mm ; 58 - 94mm bolt spacing (734g)​
BOTTOM BRACKET Shimano Deore XT BB-UN71 (244g)​
REAR COGS Shimano Deore XT CS-M730 six speed 13-30T (287g)​
PEDALS Suntour XC II (439g)​

COMPONENTS:

FRONT BRAKE Shimano Deore XT BR-M732 (170g w/ brake shoes)​
REAR BRAKE Shimano Deore XT BR-M733 U brake (265g w/ brake shoes)​
BRAKE LEVERS Ritchey Logic (180g)​
SHIFT LEVERS Shimano Deore XT SL-M730 (185g)​
HANDLEBAR Zoom (161g)​
STEM Ritchey Force 130 mm (370g)​

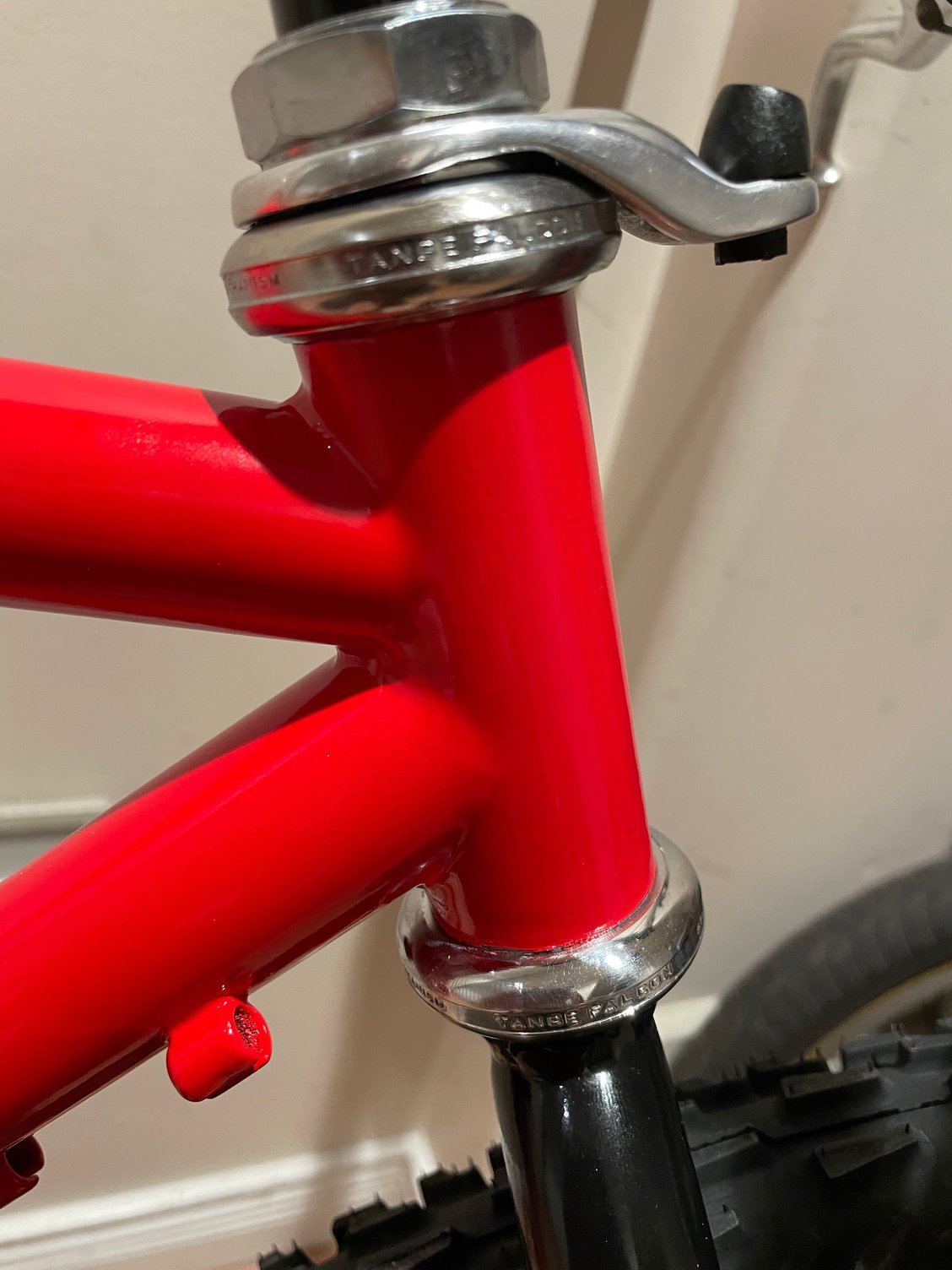

HEADSET Tange Falcon (190g)​
SADDLE Selle Italia Turbo 1980 (310g)​
SEATPOST Kalloy Uno 26.8 (220g)​
TIRES Panaracer – 26 X 2.1 Smoke (rear) Dart (front) (1194g)​
TUBES (293g)​
SKEWERS Shimano Deore XT (193g)​
CRANK BOLTS Titanium (20g)​
HANDLEBAR GRIPS Ritchey WCS True (45g)​
SEATPOST BINDER BOLT Shimano Deore XT (76g)​
GEAR/BRAKE CABLES & HOUSINGS (176g)​
TOTAL WEIGHT: 25 lbs 10 oz
retrodude is offline
Old 12-13-21, 04:00 PM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 9,818

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 3046 Post(s)
Liked 2,615 Times in 1,707 Posts
Looks great, good work, quite a slog.
merziac is offline
Old 12-13-21, 10:13 PM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,235
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2331 Post(s)
Liked 1,252 Times in 942 Posts
I have an Ascent probably the same year.
the paint was not that great-
it now is a different color- an opaque light Turquoise. I got graphics from Ritchey- hey this was the 90’s.
I need to finish it off! This will prompt me.
I have the original stem with the brake port.
at one point I ran Scott bars- not sure which I will return to, for the road those bars really are useful but are “different” looking.

my bike came with Biopace on Avocet cranks.
I asked for a round big ring.
DuraAce 7400 series hubs, the down was a unibrake- worked ok but gunked up quick.
repechage is offline
Old 12-13-21, 11:08 PM
  #7
BMC_Kid
Senior Member

BMC_Kid's Avatar

Join Date: Oct 2021
Location: San Antonio, Texas
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 40 Times in 14 Posts
As someone who has completely restored a number of bikes, I can see all of the hard work, detail, and dedication that went into your project. Great job!
BMC_Kid is offline
Old 12-14-21, 02:09 AM
  #8
Lazyass
Senior Member

Join Date: Jul 2008
Location: Minas Ithil
Posts: 9,330
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2423 Post(s)
Liked 609 Times in 379 Posts
I have a Ritchey Ascent story.

I took second place in the 1995 Hawaii State XC Championship. The guy who won was on a red fully rigid Ascent like posted here. He was about 6'8" on probably a 23 inch frame and around 15 minutes into the race (I finished in 2h 43m) he blew by me on a rocky decent like I was standing still and I literally never saw him again. I was like what the hell, because I was riding a brand new Mag 21 that I was all excited about AND a light aluminum frame. I remember I went and checked his bike out after the race and he had a custom wheelset with alternating red and blue spoke nipples. That bike is burned into my brain forever.

This was me, fanny pack and all. The guy on the Ritchey was already cleaned up and changed clothes.



Lazyass is offline
Likes For Lazyass:
Old 12-14-21, 10:19 AM
  #9
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
Thanks merziac! Definitely a lot of time well spent
retrodude is offline
Old 12-14-21, 10:53 AM
  #10
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
Originally Posted by repechage View Post
I have an Ascent probably the same year.
the paint was not that great-
it now is a different color- an opaque light Turquoise. I got graphics from Ritchey- hey this was the 90’s.
I need to finish it off! This will prompt me.
I have the original stem with the brake port.
at one point I ran Scott bars- not sure which I will return to, for the road those bars really are useful but are “different” looking.

my bike came with Biopace on Avocet cranks.
I asked for a round big ring.
DuraAce 7400 series hubs, the down was a unibrake- worked ok but gunked up quick.
Think yours is an 86' or older if it has DuraAce hubs, sweet!
Yes, the under chainstay U/Rollercam brake placement was short lived for good reason, mine packed full of mud pretty fast (luckily I didn't go mud bogging often). Sure makes for a clean look though
Looking forward to seeing your rebuild!
retrodude is offline
Old 12-14-21, 10:55 AM
  #11
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
Originally Posted by BMC_Kid View Post
As someone who has completely restored a number of bikes, I can see all of the hard work, detail, and dedication that went into your project. Great job!
Thanks BMC Kid! Yes, no detail is too small but if I could make a good living doing this I'd quit my job for sure
retrodude is offline
Old 12-14-21, 11:03 AM
  #12
retrodude
Senior Member
Thread Starter

Join Date: Nov 2018
Location: Burnaby, British Columbia
Posts: 149

Bikes: 1984 & 1990 Marinoni Specials - 1990 Bianchi Sika - 1993 Cannondale M800 - 1996 GT Zaskar - 1993 Kona Kilauea - 1987 Ritchey Ascent - 1996 Rocky Mountain Vertex - 2008 Kona Dogma - 1976 Schwinn Suburban - 1994 Kuwahara Makai

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 152 Times in 51 Posts
Originally Posted by Lazyass View Post
I have a Ritchey Ascent story.

I took second place in the 1995 Hawaii State XC Championship. The guy who won was on a red fully rigid Ascent like posted here. He was about 6'8" on probably a 23 inch frame and around 15 minutes into the race (I finished in 2h 43m) he blew by me on a rocky decent like I was standing still and I literally never saw him again. I was like what the hell, because I was riding a brand new Mag 21 that I was all excited about AND a light aluminum frame. I remember I went and checked his bike out after the race and he had a custom wheelset with alternating red and blue spoke nipples. That bike is burned into my brain forever.

This was me, fanny pack and all. The guy on the Ritchey was already cleaned up and changed clothes.



Great story Lazyass, yes, these fully rigid bikes all the way from mid 80s through mid 90s really have advantages in situations where suspension really isn't needed. Gravel bikes? We had these fully rigid MTBs and cyclocross way before the gravel bike craze!
retrodude is offline
Old 12-14-21, 07:52 PM
  #13
SwimmerMike
Senior Member

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 390

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 337 Times in 163 Posts
Great history and nice work in the restoration. It looks great!
SwimmerMike is offline
Old 12-28-21, 12:11 PM
  #14
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,496

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 122 Times in 70 Posts

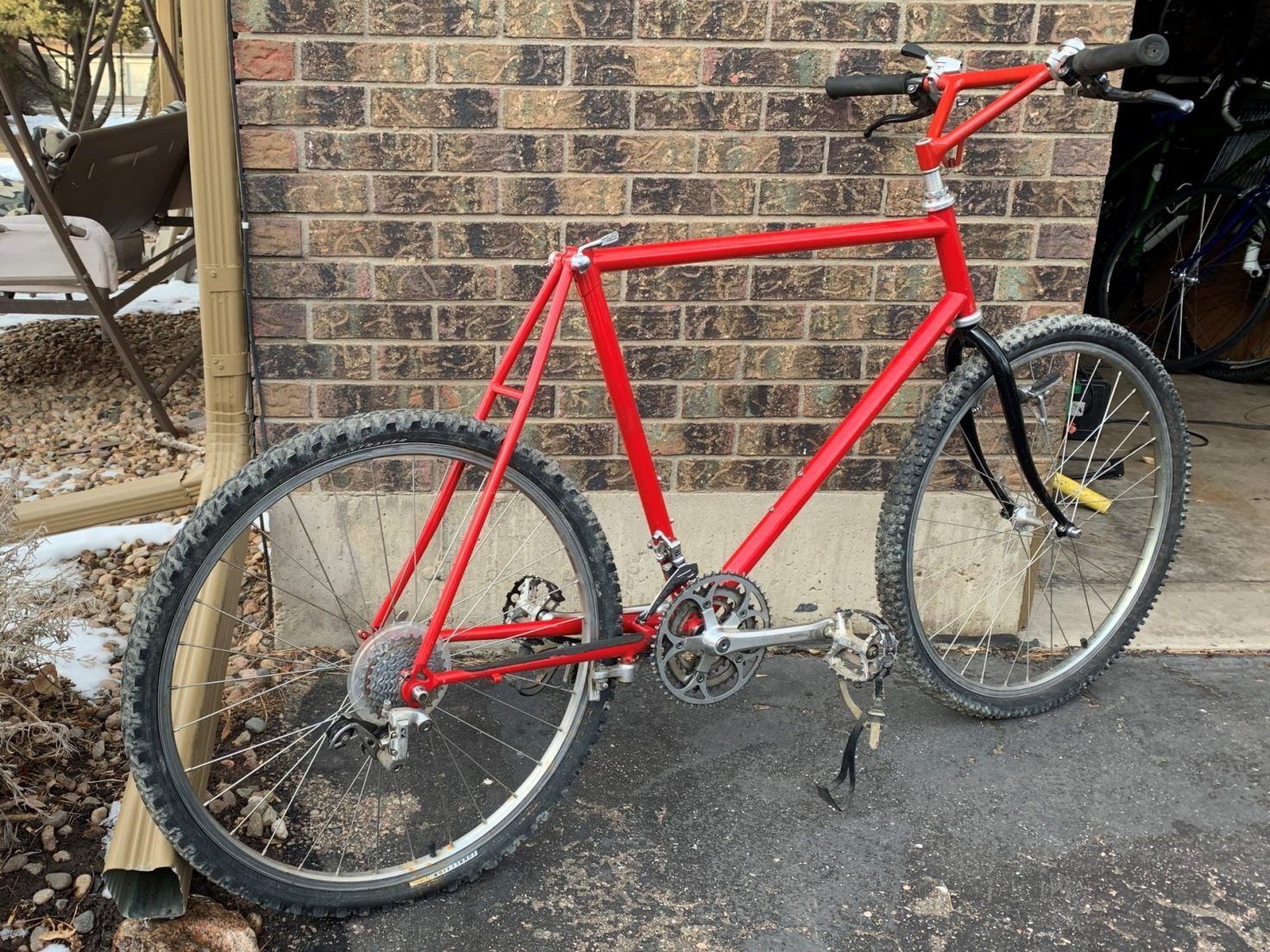

Nice write up, I have a 1985.5 Ascent. Mine is in the build queue, need to get decals for it and find the parts for the Rm20/Dura-Ace wheels.


Has most of the original Deore XT (M700) and Shimano 600 (6200 Series) components.

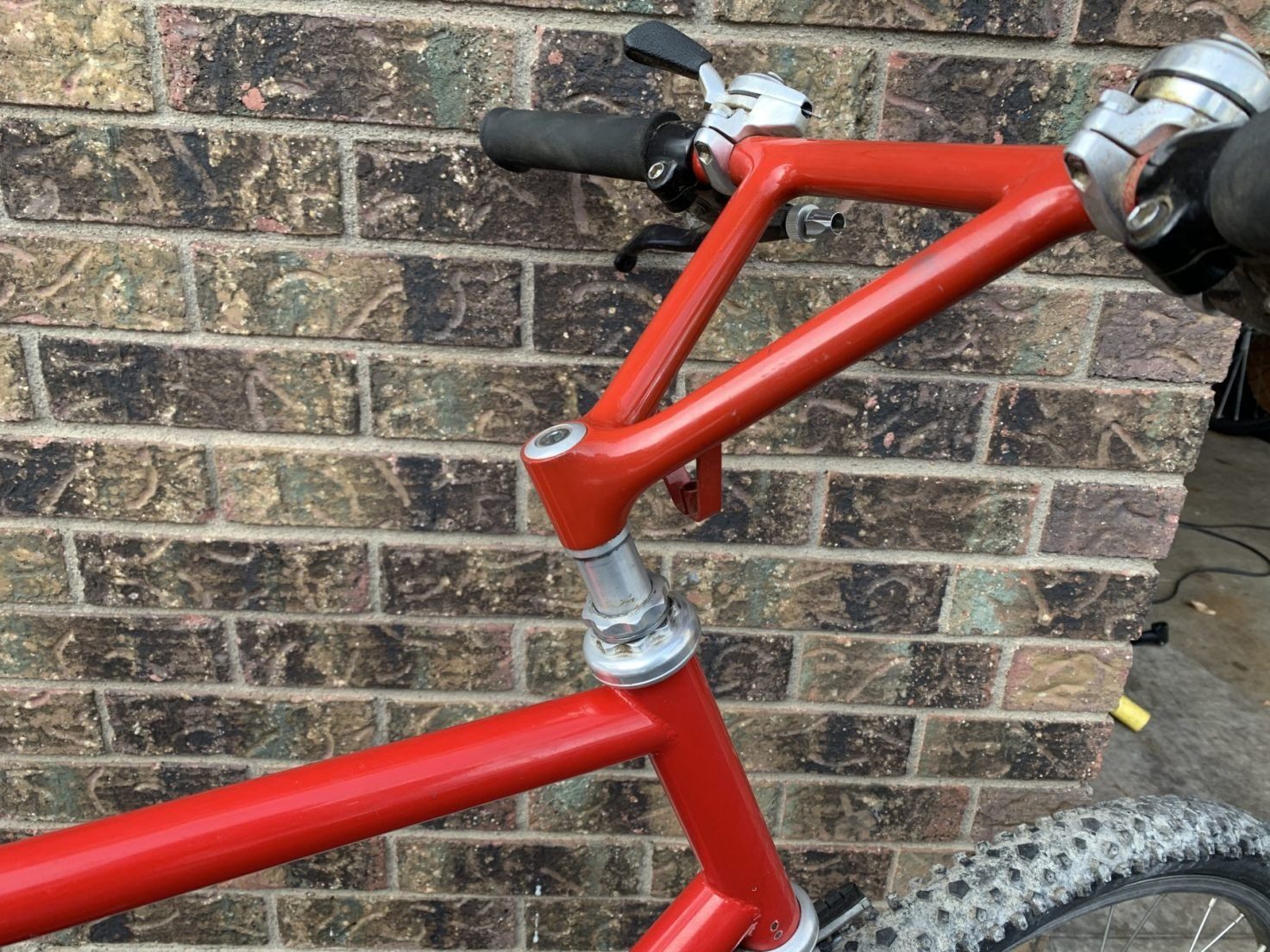

Ritchey Stem and Bull-Moose bars
