Titanium Brake Centerbolts

Doesn't seem as tho such a thing exists for single pivots, but that make much sense to me. I mean, what with all the other/everything titanium, why not centerbolts. In the grand scheme of WeightWeenieDom that's quite a chunk of weight.

inquiring minds, etc
Charlie
Steel Charlie is offline
Old 12-13-21, 03:54 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,267
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2344 Post(s)
Liked 1,267 Times in 955 Posts
Originally Posted by Steel Charlie View Post
Doesn't seem as tho such a thing exists for single pivots, but that make much sense to me. I mean, what with all the other/everything titanium, why not centerbolts. In the grand scheme of WeightWeenieDom that's quite a chunk of weight.

inquiring minds, etc
Charlie
O.M.A.S. made a lightweight kit for Campagnolo Record original issue brakes, Ti centerbolt shaft, and aluminum pressed on spring backing barrel with lateral adjustment flats.
Lighter than a full ti pivot bolt.
Jim Merz has made full ti centerbolts, mostly or exclusively in the drop bolt style.
repechage is offline
Old 12-13-21, 08:32 PM
  #3
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,217

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 759 Post(s)
Liked 661 Times in 291 Posts
There's a guy in southern California who makes titanium drop bolts for Campy brakes. I know because I have one. I don't know if he makes straight bolts. He's on eBay somewhere.
davester is offline
Old 12-13-21, 08:44 PM
  #4
Cyclist0108
Occam's Rotor

Join Date: Jul 2013
Posts: 7,248
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,322 Times in 1,157 Posts
To answer the "why not?" question, a bolt of the same radius, etc., made of titanium instead of steel will be significantly weaker. A brake bolt would be low on my list for such a substitution.
Cyclist0108 is offline
Likes For Cyclist0108:
Old 12-13-21, 08:53 PM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,267
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2344 Post(s)
Liked 1,267 Times in 955 Posts
They do flex more.
long ago when I had a lathe I made one out of 6061 T6
rear only.
never broke
also made the eccentric cam part in aluminum
never bothered to weigh them but cool and no rust.
late Super Record pad holders were aluminum with steel studs- lighter, no rust.
hey, when one trains often along Pacific Coast Highway, no rust is appreciated.
repechage is offline
Old 12-14-21, 03:29 PM
  #6
Steel Charlie
Senior Member
Thread Starter

Steel Charlie's Avatar

Join Date: Apr 2009
Posts: 300
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 117 Times in 70 Posts
OK - Thanks all

Was just wondering

Charlie
Steel Charlie is offline
Old 12-14-21, 05:25 PM
  #7
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,803
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1352 Post(s)
Likes: 0
Liked 441 Times in 304 Posts
Are the Ti bolt threads cut or rolled?
Rolled threads will always be much more preferable, as it's less likely to crack......
I guess the real question is, can threads be rolled on to Ti bolts?
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 12-15-21, 06:34 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,587
Mentioned: 600 Post(s)
Tagged: 1 Thread(s)
Quoted: 4423 Post(s)
Likes: 0
Liked 2,425 Times in 1,569 Posts
Originally Posted by Chombi1 View Post
Are the Ti bolt threads cut or rolled?
Rolled threads will always be much more preferable, as it's less likely to crack......
I guess the real question is, can threads be rolled on to Ti bolts?
Yes, you can roll threads into titanium. In fact, it is preferred due to the metal's high notch sensistivity.
T-Mar is offline
Old 12-15-21, 06:36 AM
  #9
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,587
Mentioned: 600 Post(s)
Tagged: 1 Thread(s)
Quoted: 4423 Post(s)
Likes: 0
Liked 2,425 Times in 1,569 Posts
Here's the previously mentioned OMAS Ti brake bolt kit.

T-Mar is offline
Likes For T-Mar:
Old 12-15-21, 10:22 AM
  #10
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 583

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 222 Times in 137 Posts
it's Jim Merz, "PortlandJim" on ebay, and his stuff is top of the heap, really excellent.

right now he only offers Cinelli seat bolts, but other parts are available.

really top quality items.

/markp
mpetry912 is offline
Old 12-15-21, 01:11 PM
  #11
styggno1
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 964

Bikes: A lot - accumulated over +30 years

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
Liked 590 Times in 192 Posts
By some deemed as unsafe but as with most things it depends on for what purpose. For a time trial bike where you might brake (more modulating speed than stopping) for a turn a couple of times...

Ergal and ti.

styggno1 is offline
Old 12-15-21, 01:17 PM
  #12
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,259
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Liked 647 Times in 379 Posts
Absolutely not.

Any part or fastener that is restricted to the geometry of the original steel part should not be replaced with titanium UNLESS it is a very low-load and non safety-related part. Waterbottle bolts? Sure. Brake mounting bolts? No.
If the part and mating components could be redesigned to use a larger bolt or part then yes, but simply swapping in the weaker material with no other mods on a safety related part (to save single digit grams) is a bad idea.
ClydeClydeson is offline
Old 12-15-21, 01:37 PM
  #13
Fredo76
The Wheezing Geezer

Fredo76's Avatar

Join Date: Oct 2021
Location: Española, NM
Posts: 234

Bikes: 1976 Fredo Speciale, Jamis Citizen 1, Ellis-Briggs FAVORI, Rivendell Clem Smith Jr.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 189 Times in 98 Posts
Galli made a Criterium brake set with titanium center bolts in the late '70s/early 80s.

I like the drillium levers themselves, but lever effort is high, perhaps due to overly strong caliper springs?
Fredo76 is offline
Old 12-15-21, 01:47 PM
  #14
styggno1
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 964

Bikes: A lot - accumulated over +30 years

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
Liked 590 Times in 192 Posts
Originally Posted by ClydeClydeson View Post
Absolutely not.

Any part or fastener that is restricted to the geometry of the original steel part should not be replaced with titanium UNLESS it is a very low-load and non safety-related part. Waterbottle bolts? Sure. Brake mounting bolts? No.
If the part and mating components could be redesigned to use a larger bolt or part then yes, but simply swapping in the weaker material with no other mods on a safety related part (to save single digit grams) is a bad idea.
Again... It all depends for what purpose. There are a lot of things in life that depends. Here is a full blown time trial bike untouched since it was used in the early 70ies. By professionals. A lot of parts on this bike would not stand the use in a road race (ergal bits, 28 spoke wheels, etc.) but they chose to build it for TT racing. And it worked. And it did not fail. For what is was used for.



They even drilled the handlebars (can be seen in this picture if looking carefully).



I am not saying it is for everybody. I am saying it depends.

Last edited by styggno1; 12-15-21 at 01:49 PM. Reason: spelling
styggno1 is offline
Likes For styggno1:
Old 12-15-21, 02:05 PM
  #15
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,259
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Liked 647 Times in 379 Posts
styggno1 Thanks for that, but proof that is has been done is not proof that it was ever a good idea. Pros used to use cocaine and strychnine as PEDs, and those also are not a good idea if you value your physical well being.
ClydeClydeson is offline
Old 12-15-21, 02:12 PM
  #16
styggno1
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 964

Bikes: A lot - accumulated over +30 years

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
Liked 590 Times in 192 Posts
Originally Posted by ClydeClydeson View Post
styggno1 Thanks for that, but proof that is has been done is not proof that it was ever a good idea. Pros used to use cocaine and strychnine as PEDs, and those also are not a good idea if you value your physical well being.
OK. I guess you know better. Thanks.
styggno1 is offline
Old 12-15-21, 03:14 PM
  #17
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Posts: 11,534
Mentioned: 238 Post(s)
Tagged: 0 Thread(s)
Quoted: 2137 Post(s)
Liked 3,040 Times in 1,116 Posts
Originally Posted by ClydeClydeson View Post
Absolutely not. Any part or fastener that is restricted to the geometry of the original steel part should not be replaced with titanium UNLESS it is a very low-load and non safety-related part. Waterbottle bolts? Sure. Brake mounting bolts? No.
If the part and mating components could be redesigned to use a larger bolt or part then yes, but simply swapping in the weaker material with no other mods on a safety related part (to save single digit grams) is a bad idea.

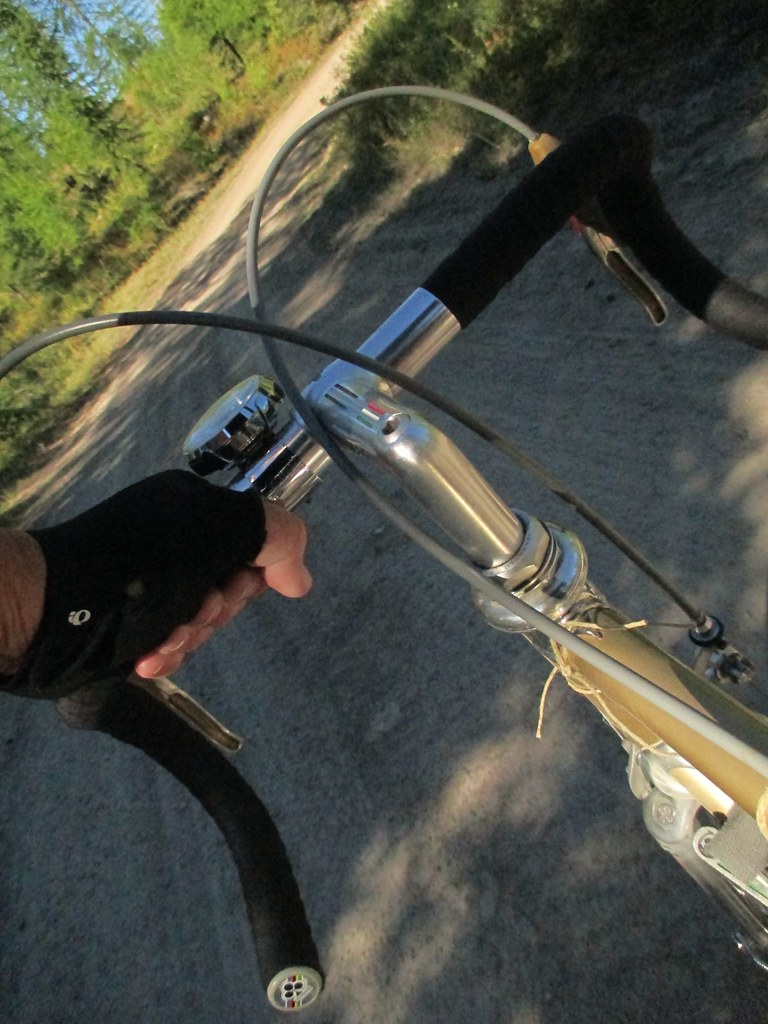

Real-world experience trumps speculation; 2010:



2018:



The bike in question went through every kind of punishment imaginable; Cino 2014:



Braking is absolutely confidence-inspiring or I wouldn't continue to use them - as I fully intend to do.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 12-15-21, 03:17 PM
  #18
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,179

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 1265 Post(s)
Liked 1,008 Times in 554 Posts
I have titanium crank fixing bolts one one crank. They seem to work fine but I pretightened with steel ones first.
