72 or 73 Peugeot PX-10...?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

72 or 73 Peugeot PX-10...?

Old 12-15-21, 12:00 PM
  #1
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
72 or 73 Peugeot PX-10...?

The several threads about vintage French bikes have really re-awakened a dream I had long ago of having one. I did an informal exchange in France in the early 80s and hoped to bring a bike home with me, but $$ didn't end up allowing. Then some years later I took a Cannondale ST600 to Europe to tour with the idea that I'd trade it in/sell it and bring something French home. Alas, the Cannondale was stolen in Toulouse...

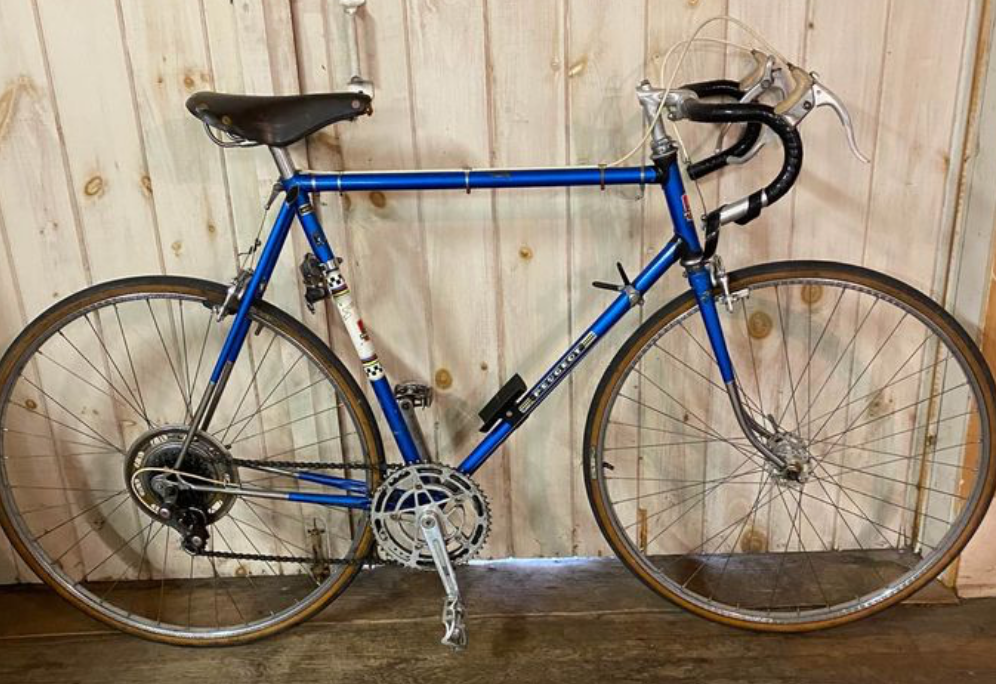

Anyway, what looks like a 72 or 73 PX-10 is for sale not terribly far from me, seems in relatively decent shape, maybe just a tiny bit small for me... I'm very tempted.
A couple things I'm wondering about.... it appears to have the plastic Simplex RD. What kind of options are there for replacing that (should it fail) without modifying the frame? Are smaller chainrings available for vintage Stronglight cranks? It is VERY hilly where I live (and I'm getting old...), and I'd need some lower gearing to be able to use the bike. Also wondering what the fattest tires folks have been able to put on a vintage PX-10? I appreciate my comforts....
thx
ehcoplex is offline
Old 12-15-21, 12:24 PM
  #2
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,280

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1266 Post(s)
Liked 736 Times in 466 Posts
I put thousands of miles on my already 50 year old "plastic" rear derailleur on my '69 PX-10 with no problems shifting a 13-23. Don't be afraid. I also got a 40 tooth chain ring from someone on here. At one point I had 32mm CX tires on it and there was room to spare. And one last thing, if it is a tiny bit small, there are others that will be a tiny bit big which is better if you are "getting old"
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 12-15-21, 12:46 PM
  #3
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
I'm going to look at it tomorrow....
From what I can tell, the wheels don't look original, and the brakes with the 'safety' levers don't line up with the info I'm finding online, but the plain lugs and various labelling seem to be '72...

ehcoplex is offline
Old 12-15-21, 12:49 PM
  #4
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 629

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 208 Post(s)
Liked 289 Times in 164 Posts
My 74 PX10 has Simplex SLJ derailleurs and they are fantastic, pricey but fantastic. I got lucky mine had SLJ when I acquired it a few years ago. If those derailleurs hadnít come with it Iíd have happily used the plastic ones until they broke. I fit 32mm tires on mine and Iíve not been tempted to try and get fatter rubber so I canít say if 35mm will fit or not.
Pcampeau is offline
Likes For Pcampeau:
Old 12-15-21, 12:49 PM
  #5
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
And then there's the, uh, interesting positioning of the FD.......!
ehcoplex is offline
Old 12-15-21, 04:22 PM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,728
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2829 Post(s)
Liked 1,364 Times in 999 Posts
-----

the most striking non-original bit is the wheelset

instead of Normandy Luxe Competition hubs with MAVIC Monthlery tubular rims the cycle is wearing Normandy Sport hubs with RIGIDA Superchromix serrated steel rims. since the valve stems are Schrader the wheel size is likely to be 27" rather than 700c.

the extension brake levers were fitted with a adaptor kit from Bicycle Research Products -






-----
juvela is offline
Likes For juvela:
Old 12-15-21, 06:55 PM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,539
Mentioned: 394 Post(s)
Tagged: 0 Thread(s)
Quoted: 2888 Post(s)
Liked 3,461 Times in 1,575 Posts

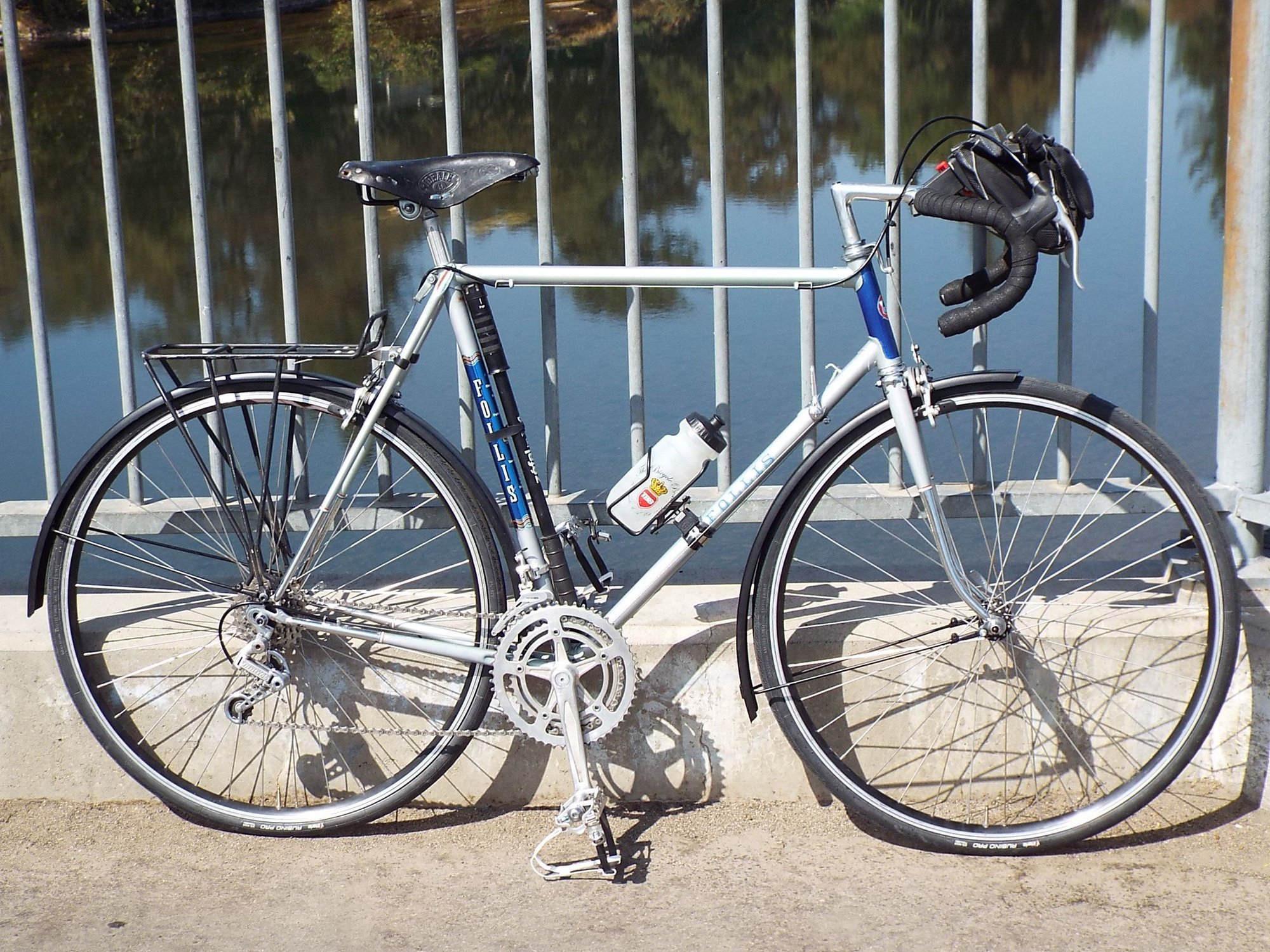

In terms of tire size, one of my first 650B conversions was a '72 PX-10, shown here with 650B x 42mm tires:



I also did one with 590 x 38mm tires:

nlerner is offline
Likes For nlerner:
Old 12-15-21, 07:44 PM
  #8
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
Originally Posted by nlerner View Post
In terms of tire size, one of my first 650B conversions was a '72 PX-10, shown here with 650B x 42mm tires:

That's excellent. Assuming I get it, new wheels will be in order, and I've been thinking maybe I'll try 650Bs. Did you have to replace the brakes for longer reach? And what's the smaller chainring on that one?
ehcoplex is offline
Old 12-15-21, 07:49 PM
  #9
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,539
Mentioned: 394 Post(s)
Tagged: 0 Thread(s)
Quoted: 2888 Post(s)
Liked 3,461 Times in 1,575 Posts
Originally Posted by ehcoplex View Post
That's excellent. Assuming I get it, new wheels will be in order, and I've been thinking maybe I'll try 650Bs. Did you have to replace the brakes for longer reach? And what's the smaller chainring on that one?
Those are Weinmann/DiaCompe 750 center pulls. Chainset is Stronglight 99, which has an 86mm bcd, so it fits rings down to 28 or so, iirc.
nlerner is offline
Likes For nlerner:
Old 12-15-21, 09:44 PM
  #10
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
Originally Posted by nlerner View Post
Those are Weinmann/DiaCompe 750 center pulls. Chainset is Stronglight 99, which has an 86mm bcd, so it fits rings down to 28 or so, iirc.
Cool. Did the 590 conversion work with the stock Mafac brakes? I hadn't thought of that option, but if I can do that and fit 38c tires and fenders I'd be very happy...! (here I am sketching things out for something I don't even own.....!)
ehcoplex is offline
Old 12-15-21, 10:44 PM
  #11
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,539
Mentioned: 394 Post(s)
Tagged: 0 Thread(s)
Quoted: 2888 Post(s)
Liked 3,461 Times in 1,575 Posts
Originally Posted by ehcoplex View Post
Cool. Did the 590 conversion work with the stock Mafac brakes? I hadn't thought of that option, but if I can do that and fit 38c tires and fenders I'd be very happy...! (here I am sketching things out for something I don't even own.....!)
That one also used Weinmann brakes. I didnít have any MAFACs to try, but I donít think they offer enough reach unless you use Raids.
nlerner is offline
Likes For nlerner:
Old 12-15-21, 11:00 PM
  #12
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 7,086

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Peugeot UE-8, '75 Peugeot PR-10L, '80 Colnago Super, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 1,136 Times in 343 Posts
Even more than the rear derailleur, I would look into replacing the shifters. Those appear to be the Simplex Criterium made of Delrin ("plastic") and a metal sleeve. My eyes aren't so good, so maybe I'm not seeing it correctly. If those are made of Delrin, I hate those shifters, especially if they flex and have gone soft with age. Metal-bodied Simplex Criterium--or better yet, the retrofriction shifters--are a big step forward.

Agreed that the "simple" (i.e., not Nervex) lugs point to '72.

A bike like this should be overhauled thoroughly with fresh grease. With that in mind, you should know these cranks require a special 23.35mm crank puller (https://www.ebay.com/itm/123667643658) in order to remove the crank arms and overhaul the bottom bracket. A standard crank extractor will likely strip the threads. I love old French bikes, but you should be aware of their quirks--different threading and dimensions for stems, bars, clamps, pedal threads, etc. if you plan to make any changes or need certain replacement parts. A great overview: https://www.sheldonbrown.com/velos.html

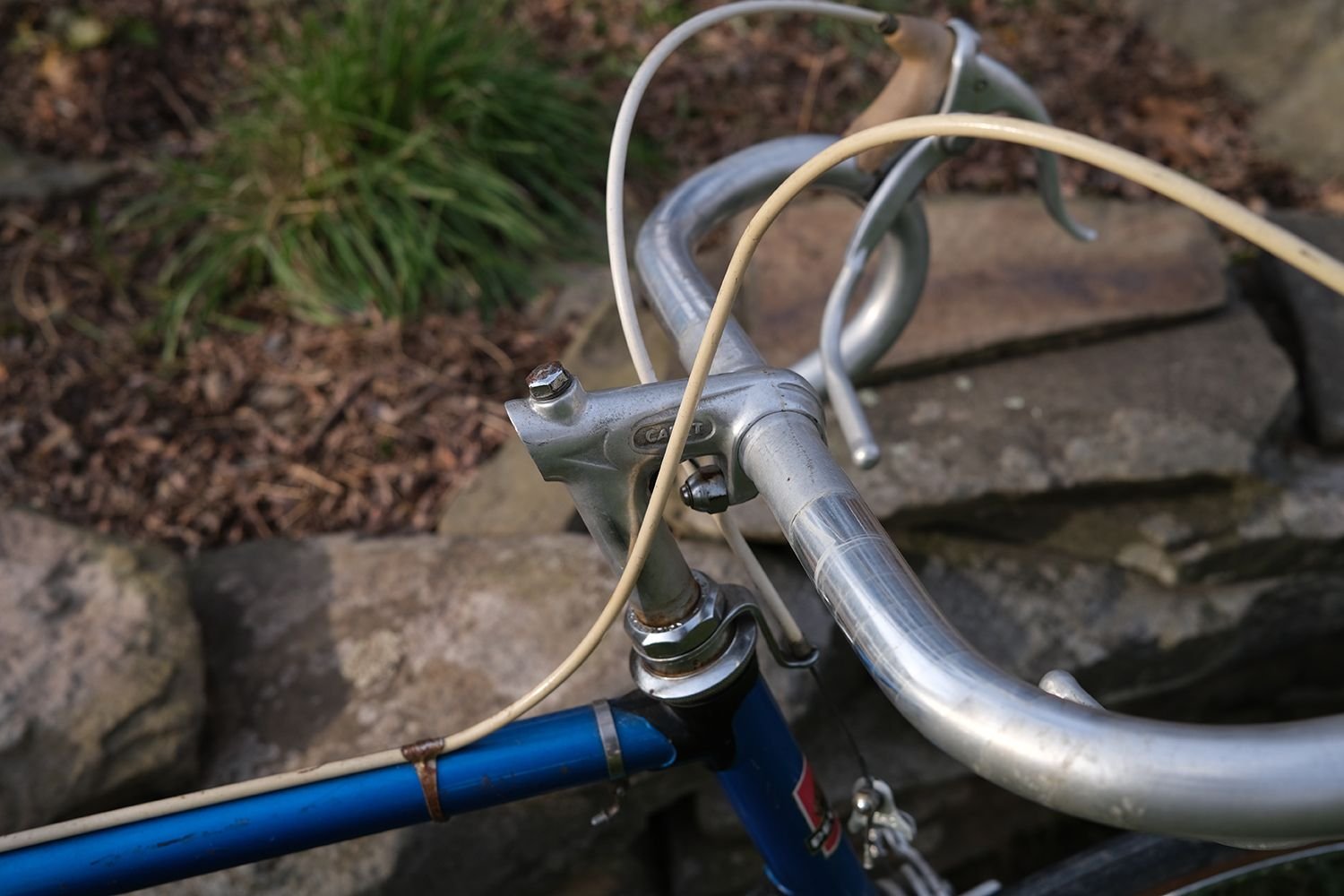

Replacement stem?

Note the missing front derailleur. Add that to your cost or use as a bargaining chip.

Here's what looks to be a good comp with hi-res photos: https://bikerecyclery.com/58cm-1972-...80s-clinchers/

Last edited by gaucho777; 12-15-21 at 11:13 PM.
gaucho777 is offline
Likes For gaucho777:
Old 12-16-21, 01:30 AM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 9,854

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 2,649 Times in 1,722 Posts
Originally Posted by ehcoplex View Post
And then there's the, uh, interesting positioning of the FD.......!
That may be the cracked original FD that was moved out of the way instead of taking it off although it looks to have a metal band so....

I would use the RD for now but plan for it to go and many fronts can be used. I would get it going and start the overhaul process asap so you can mitigate any other surprises on your terms. As indicated, it will take some tools as well as patience, skill and likely elbow grease. These are great, fantastic riders and easily one of the most iconic bikes of all time as you know.

Make it so.
merziac is offline
Old 12-16-21, 01:37 AM
  #14
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,419

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23138 Post(s)
Liked 6,494 Times in 4,661 Posts
...
....I have done over about ten or a dozen of these Peugeot PX bikes, and I once started a thread on various modifications and upgrades that work well. PX-10 Information Thread. It only ran for a couple of pages before it died out, but you might get some ideas in there about what works. The most solid replacement for the rear derailleur that you can still find at affordable prices on Highbay is probably an early Shimano Crane in the short cage version. But if you are, indeed, concerned about easier gearing, the simplest adaptation is to buy one of the long cage versions, and mount a freewheel with something big on the back, like a 28 or a 32 (I think this will work with a 32 cog, but I've never actually tried it. Suntour made a couple of front derailleurs that have an integral cable housing stop, which work well as replacements.

Most of the Super LJ stuff is pretty pricey on the Bay right now. I'm uncertain why this is so.

As someone has already told you, it's pretty difficult to get a smaller chainwheel for that model of Stronglight, because of the BCD. It is not uncommon to see these modified with Sugino cranks with smaller BCD's, but that's not cheap to do, unless you get lucky. And you have that whole French threading in the BB to deal with.

Here is a French bike with a Nervar crank (similar limitations on chainwheel sizing) and a Simplex rear dropout I recently put together, with a wider gearing range than I normally use. This was done with a Shimano long cage Titlist rear mechanism. They are usually cheaper than the Crane, work about as well, are a little less nice in finish and a few grams heavier.



__________________
3alarmer is offline
Likes For 3alarmer:
Old 12-16-21, 08:19 AM
  #15
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 307
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 133 Times in 76 Posts

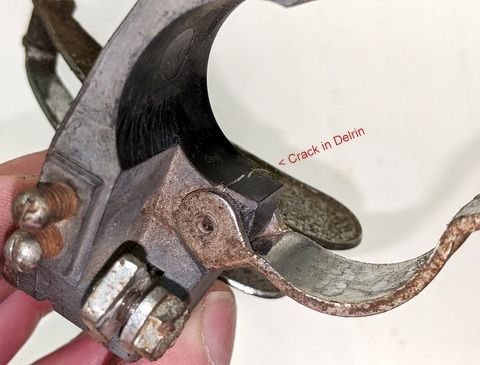

Front Derailleur issue to look for

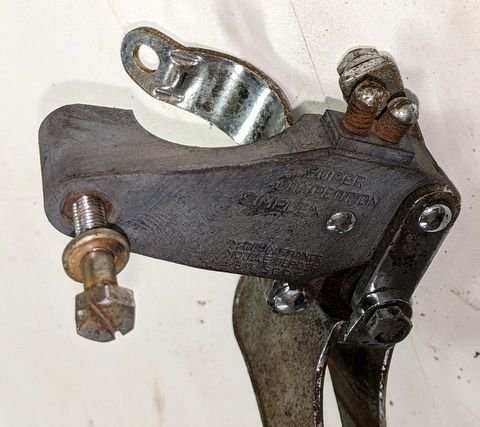

This FD is from a 1972 PX10. It's a parallelogram design rather than the pushrod type, but it shares the cracked Delrin problem


Inset brass nut on NDS is good

but the DS pivot rivet is hollow and the shift cable runs through it, so you have two sets of forces on the plastic body. Dang.

__________________
72+76 Super Course, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue



Last edited by Schreck83; 12-16-21 at 08:22 AM. Reason: 3rd pic
Schreck83 is offline
Old 12-16-21, 11:11 AM
  #16
BertoBerg
Senior Member

BertoBerg's Avatar

Join Date: Jul 2019
Location: Bainbridge Island, WA
Posts: 156

Bikes: '72 Peugeot PX-10, '85 Trek 720, '78 Masi Gran Crit, '14 Foundry Auger

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 43 Times in 27 Posts
Originally Posted by Pcampeau View Post
My 74 PX10 has Simplex SLJ derailleurs and they are fantastic, pricey but fantastic. I got lucky mine had SLJ when I acquired it a few years ago. If those derailleurs hadnít come with it Iíd have happily used the plastic ones until they broke. I fit 32mm tires on mine and Iíve not been tempted to try and get fatter rubber so I canít say if 35mm will fit or not.
I have 32s on my '72 as well. I think I could squeeze 35s on there if I pushed the dropout adjusters all of the way back.

Agreed...SLJs are a godsend.
BertoBerg is offline
Old 12-16-21, 04:58 PM
  #17
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts

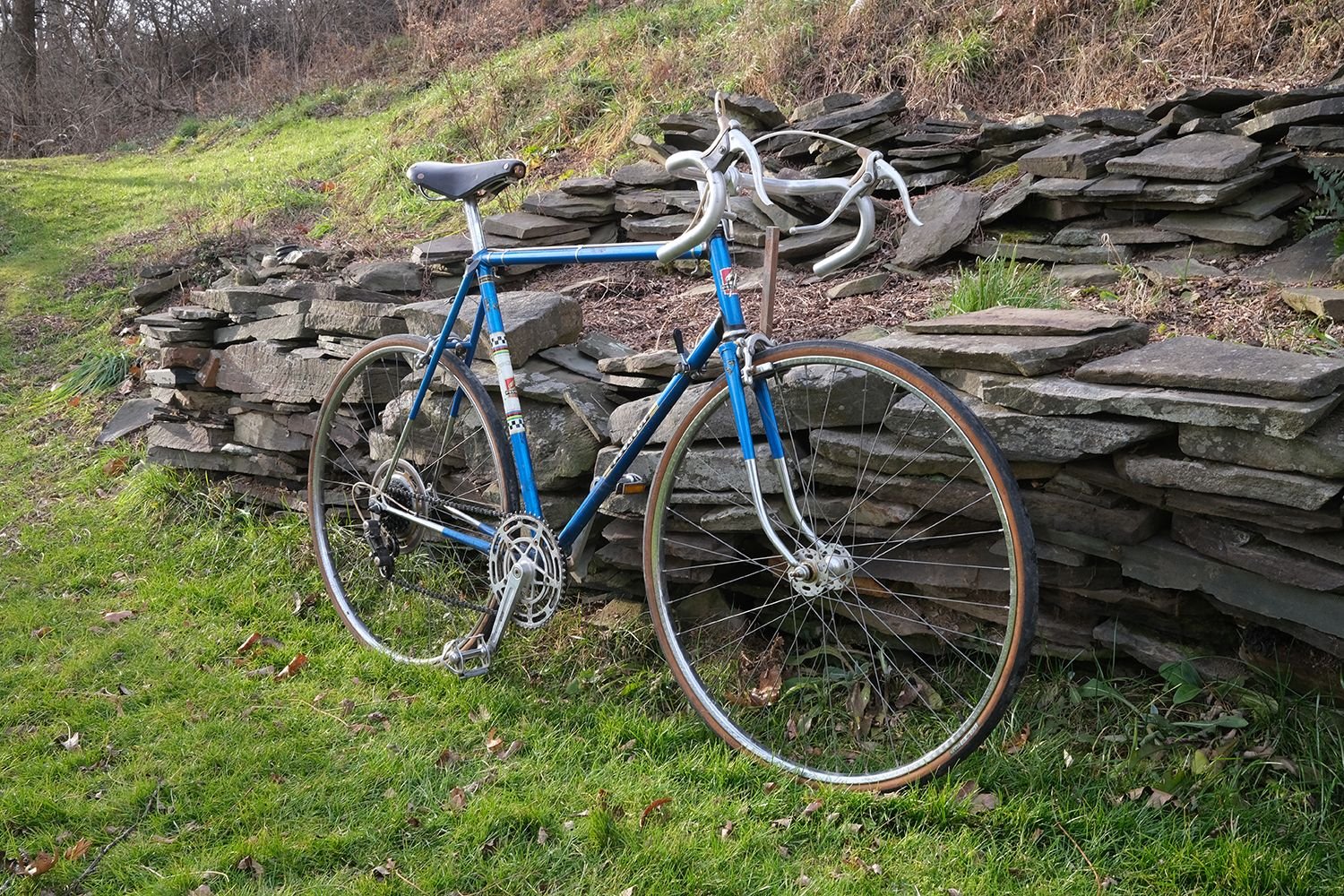

Well OK, I got it.... now what to do with it!

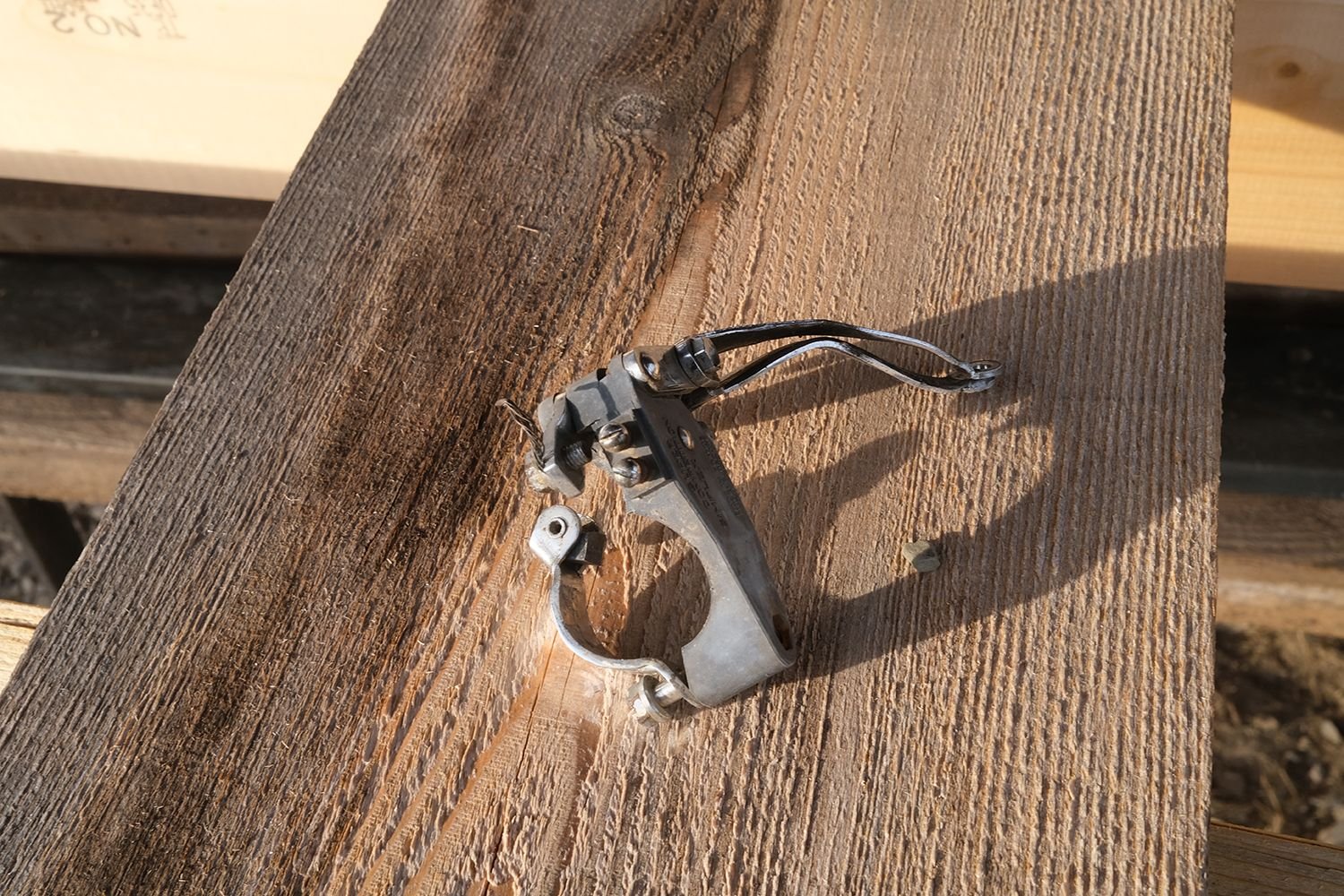

Rims are crap, front derailleur is completely toast (not only is the delrin cracked, the cage is completely bent..). Missing a couple chainring bolts, and the outer chainring appears to be on backwards (I kind of suspect maybe the FD cracked and got sucked into chain/crank... chainrings seem OK though). RD seems OK. Brooks Pro saddle has some cosmetic issues, but is otherwise in really great shape. Frame is straight, chrome pretty good, paint scrapes here and there, decals so-so. Stem seems non-original, but actually the shorter reach on it is probably better for me. Headset and BB seem good. One pedal is missing the cap and both spin less than freely. Got to get rid of those 'safety' levers on the brakes...

Everything will come apart for cleaning, appraisal, greasing, etc. Even though the rims are 27" steel crap, they seem true, so maybe I'll get some better tires for them so I can ride the bike as-is a bit (even as a 5-speed with no FD) to get more of a feel for it and figure out where to go with it. I figure with the already non-original wheels and the less-than-pristine paint I'll go more 'resto-mod'.

I'm sure it'll end up costing me, but $180 seemed like a decent deal.
ehcoplex is offline
Likes For ehcoplex:
Old 12-16-21, 04:59 PM
  #18
BertoBerg
Senior Member

BertoBerg's Avatar

Join Date: Jul 2019
Location: Bainbridge Island, WA
Posts: 156

Bikes: '72 Peugeot PX-10, '85 Trek 720, '78 Masi Gran Crit, '14 Foundry Auger

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 43 Times in 27 Posts
I wouldíve definitely bought it for that price. Good find!
BertoBerg is offline
Likes For BertoBerg:
Old 12-16-21, 05:01 PM
  #19
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts

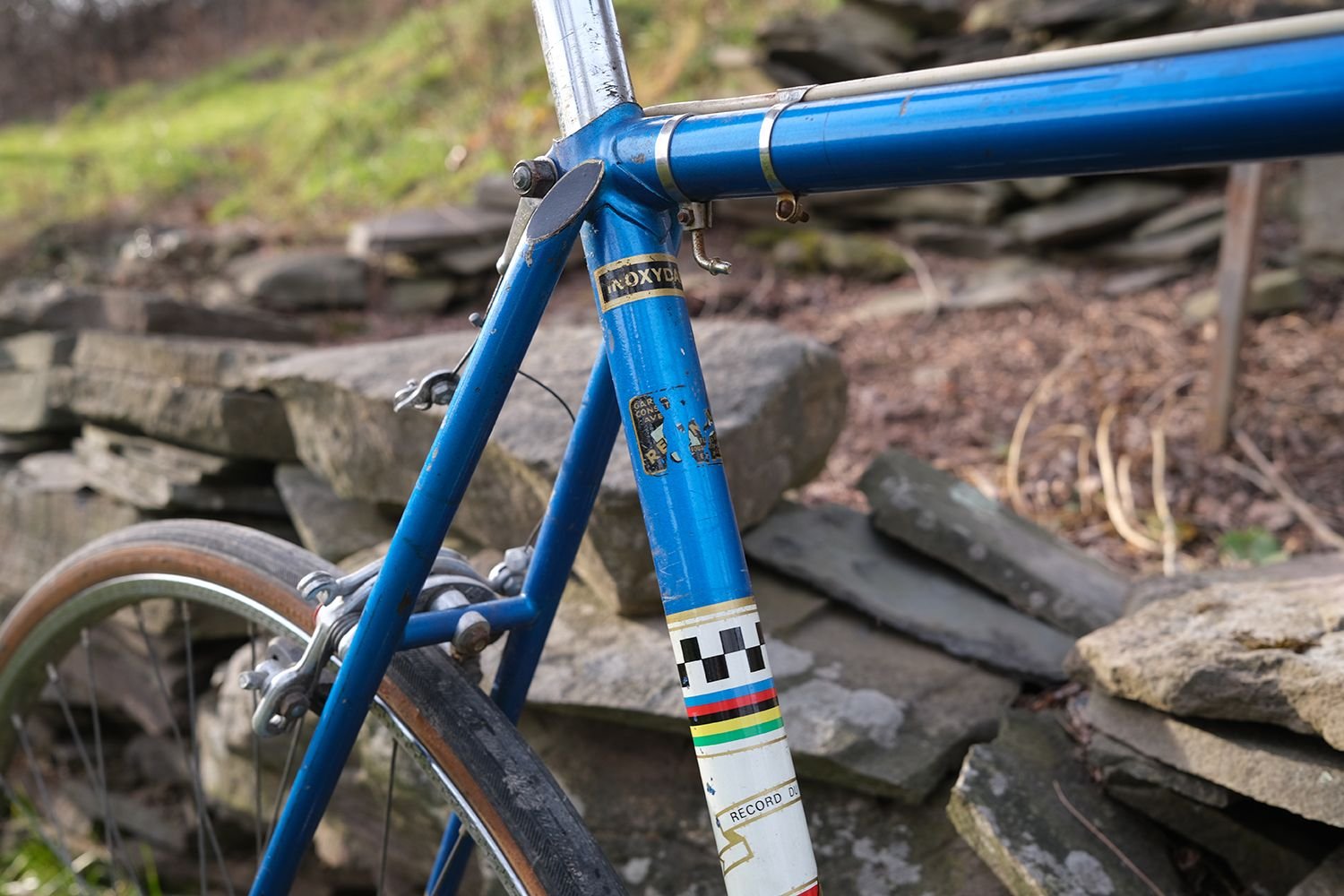

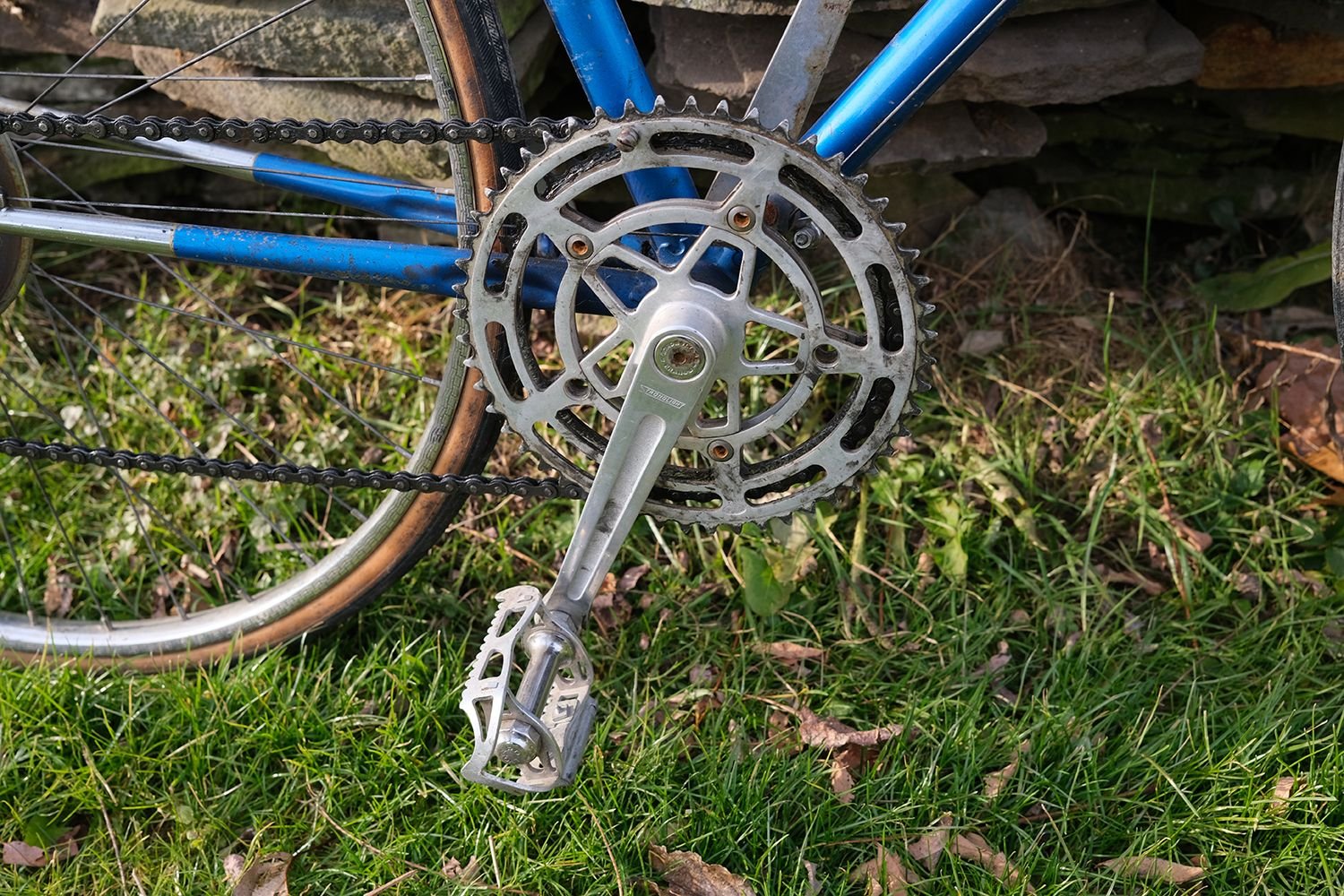

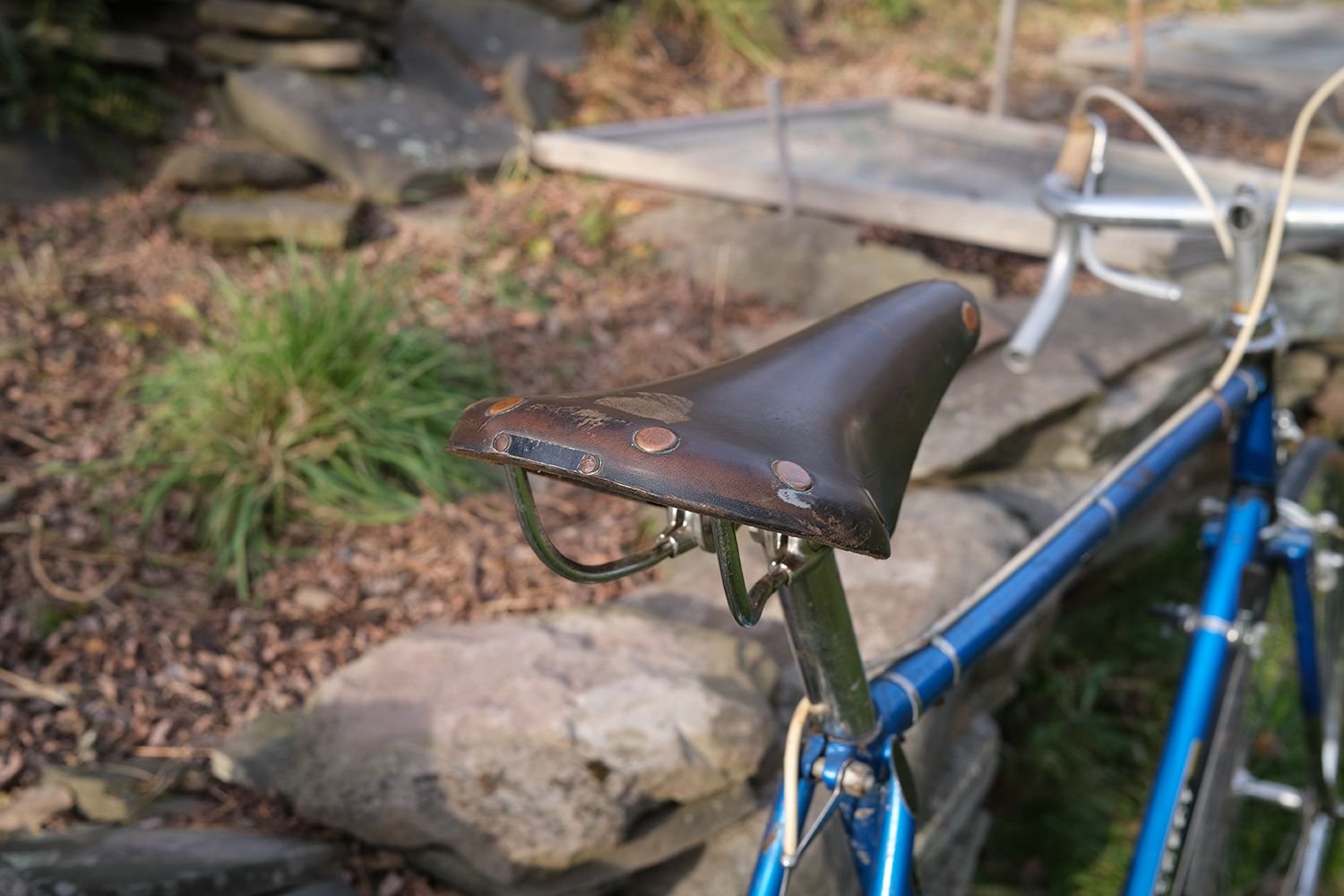

A couple more photos...









And......

ehcoplex is offline
Likes For ehcoplex:
Old 12-16-21, 05:11 PM
  #20
BertoBerg
Senior Member

BertoBerg's Avatar

Join Date: Jul 2019
Location: Bainbridge Island, WA
Posts: 156

Bikes: '72 Peugeot PX-10, '85 Trek 720, '78 Masi Gran Crit, '14 Foundry Auger

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 43 Times in 27 Posts
Sheís a beauty!
BertoBerg is offline
Likes For BertoBerg:
Old 12-16-21, 05:19 PM
  #21
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,542

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 397 Times in 218 Posts
You got a good deal on a nice bike. Well worth putting some money into it, in my opinion. Don't paint the frame! It has a very nice amount of patina right now.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 12-16-21, 08:29 PM
  #22
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 307
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 133 Times in 76 Posts
Wheels look like they came from a UO-8. That spoke protector has sure earned its keep!
__________________
72+76 Super Course, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue


Schreck83 is offline
Likes For Schreck83:
Old 12-16-21, 08:59 PM
  #23
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,419

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23138 Post(s)
Liked 6,494 Times in 4,661 Posts
.
...the chrome on it looks surprisingly good, an the saddle looks OK as well. Treat yourself to a couple of Japanese derailleurs, build some decent wheels using something like Sun Ringle rims, clean it up and you're on your way. The original bar and stem were dangerous anyway.

I usually rethread the crank to use standard pedals, then use MKS, which are pretty cheap brand new, and high quality.
__________________
3alarmer is offline
Likes For 3alarmer:
Old 12-16-21, 09:53 PM
  #24
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
On further disassembly.... I think I'm right that the FD cracked and got sucked into the crank/chainrings. Outer ring appeared to be on backwards and isn't straight. I might try and bend it back flat, because why not?, but I think it's probably toast. At least the small ring and the rest of the crank are OK. BB spins surprisingly well- though I'll pull it and re-grease.
ehcoplex is offline
Likes For ehcoplex:
Old 12-16-21, 10:12 PM
  #25
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 453

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 278 Times in 143 Posts
Originally Posted by jonwvara View Post
Don't paint the frame! It has a very nice amount of patina right now.
I don't think I will- I appreciate the patina. I'm tempted to try and match the color and touch up some of the long scrapes on the top tube, but matching the color and the time probably ain't worth it. Polish it, wax it, ride it...
ehcoplex is offline
Likes For ehcoplex:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
