Late 60s Schwinn Super Sport questions

Hello everyone,

I've found a Schwinn Super Sport for sale that's about a two-hour drive from me. I haven't seen one closer to home in at least five years. This one looks like it's in decent condition with a need for some maintenance and TLC. By its features and appearance, I would place it between 1967 and 1969. It's blue with blue bar tape, some of which is missing. 24" frame, 27" tires, the Schwinn Chicago head badge with the S in the middle, pedals with the shoe cages, Twin-Stik shifters, center pull brakes, what looks like an aftermarket rear rack, and a Brooks B15 saddle that has seen some years. Asking $90.

It looks like the RD has been swapped for a SunTour that I swear is branded SunTour Honda. That doesn't seem right, but that's what it looks like in the pics. If I wanted to make it look more original, would this have used a Heuret Alvit or something else? A couple of the catalogs say the Super Sport came with a Schwinn Sprint RD. The part number in the 1967 catalog is 3857.

Assuming I get this, is there any reason *not* to use, ride, and enjoy it? It's not a museum piece and the brazed frames are supposed to be durable, like with proper care, it could outlast me.

Any advice would be appreciated.

Thank you,
-William
WilliamK1974 is offline
Old 12-21-21, 12:45 PM
  #2
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,845
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1316 Post(s)
Liked 843 Times in 521 Posts
Probably a Suntour Honor. An upgrade from the original
alcjphil is offline
Likes For alcjphil:
Old 12-21-21, 01:05 PM
  #3
WilliamK1974
Senior Member
Thread Starter

WilliamK1974's Avatar

Join Date: May 2007
Location: East Ridge, TN
Posts: 352

Bikes: Schwinn World, Haro Flightline Sport, Gitane TdF

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 18 Times in 11 Posts
Originally Posted by alcjphil View Post
Probably a Suntour Honor. An upgrade from the original
The website I found seems to put it in the 1976 SunTour Honor era. Sort of their mid-range steel workhorse at that time.

So, if I can get it to work properly, just stick with it since it's better than whatever would have come with the bike when it was new?
WilliamK1974 is offline
Old 12-21-21, 01:31 PM
  #4
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,921

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1134 Post(s)
Liked 670 Times in 473 Posts
Originally Posted by WilliamK1974 View Post
The website I found seems to put it in the 1976 SunTour Honor era. Sort of their mid-range steel workhorse at that time.

So, if I can get it to work properly, just stick with it since it's better than whatever would have come with the bike when it was new?
Absolutely. I would trade up to a SunTour VGT if possible, but the Honor certainly beats the Schwinn-labeled Huret Allvit junk that came with it.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 12-21-21, 03:09 PM
  #5
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 874

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 296 Times in 167 Posts
If by blue you mean powder blue with matching bar tape, I think I read that color came out in 1972. Earlier ones I think would have chrome socks on the front fork ends and not that blue. I have 3 SuperSports from 1973. They are fairly easily rebuildable, solid, and pretty much bombproof yet still offer a respectable ride. Searching will show lots of interest here for the SuperSport.

Do look on the wheel hubs for an easy clue as to the year of manufacture.

Last edited by sd5782; 12-21-21 at 03:11 PM. Reason: Content
sd5782 is offline
Old 12-21-21, 03:18 PM
  #6
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 445

Bikes: 84 Pinnarello Treviso NR, 72 Fuji Finest, 72 PX-10, 84 Trek 520, 90 Trek 750, 91 Trek 930

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 95 Times in 73 Posts
This Sky Blue 68 SS followed me home 2 weeks ago. It will be a rider.

__________________
Last new bike 1991
dmark is offline
Likes For dmark:
Old 12-21-21, 04:19 PM
  #7
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,133
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 1,520 Times in 745 Posts
These are nice riding bikes. They can be very smooth with fresh maintenance and decent tires. A wire bead Pasela is ideal for the stock hookless rims.

A Suntour Honor is pretty much functionally equivalent to other Suntour derailleurs, it's just heavier. I've had good results when using them.
BFisher is offline
Old 12-21-21, 05:47 PM
  #8
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,347

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 690 Times in 486 Posts
Originally Posted by John E View Post
Absolutely. I would trade up to a SunTour VGT if possible, but the Honor certainly beats the Schwinn-labeled Huret Allvit junk that came with it.
I've gotten well past the time when I would sometimes refer to a vintage bike's original parts as junk.

I used to tend to toss items like Weinmann brakes and Huret derailers, but once I learned of their respected place in the market I thought better of doing this.

Knowing a component's limitations should precede any decision to replace it.

The Huret Allvit or Schwinn Sprint handles five speed freewheels well, but will not handle even six speed freewheels if using flexible, modern chain, and seems best designed for use with a 28t largest cog.

The Allvit body was not designed as a crash protector, but is an extreme example (extra long) of a dropped parallelogram knuckle, supporting an inverted parallelogram pivoting from the bottom in top-swing fashion instead of from the top (so as to have the guide pulley better track the slanted/convex profile of the freewheel).

Other limitations imposed by the Allvit's design include it's length and thus leverage acting on any dropout hanger to which it is attached, it's stiff return spring, and it's somewhat regressive actuation/travel ratio as it approaches the largest cog.

But it can work great, given well-fitted, modern cabling, and well-lubricated shift lever pivot, even using the Twin-Stik levers.
It can also be modified for six-speed use, with a bit of grinding for increased travel, and with the hub spacing made to position a six-speed freewheel optimally


.

Last edited by dddd; 12-21-21 at 05:50 PM.
dddd is offline
Likes For dddd:
Old 12-21-21, 06:47 PM
  #9
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,785
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1413 Post(s)
Liked 839 Times in 445 Posts
Cut my teeth touring on a 1975 Super Sport with the Huret Alvit derailleurs. The FW was 5 speed, but it was a 30 tooth, not a 28. Worked very well and without complaint. Rode all over the Midwest with the thing using a Pletcher rack and Cdale barrel shaped panniers. Smooth, steady and never any speed wobbles. Great bikes!
TiHabanero is offline
Likes For TiHabanero:
Old 12-21-21, 09:04 PM
  #10
WilliamK1974
Senior Member
Thread Starter

WilliamK1974's Avatar

Join Date: May 2007
Location: East Ridge, TN
Posts: 352

Bikes: Schwinn World, Haro Flightline Sport, Gitane TdF

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 18 Times in 11 Posts
Originally Posted by dmark View Post
This Sky Blue 68 SS followed me home 2 weeks ago. It will be a rider.

This is what it looks like. I forgot to mention the chrome fork.
WilliamK1974 is offline
Old 12-21-21, 09:10 PM
  #11
WilliamK1974
Senior Member
Thread Starter

WilliamK1974's Avatar

Join Date: May 2007
Location: East Ridge, TN
Posts: 352

Bikes: Schwinn World, Haro Flightline Sport, Gitane TdF

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 18 Times in 11 Posts
Originally Posted by dddd View Post
I've gotten well past the time when I would sometimes refer to a vintage bike's original parts as junk.

I used to tend to toss items like Weinmann brakes and Huret derailers, but once I learned of their respected place in the market I thought better of doing this.

Knowing a component's limitations should precede any decision to replace it.

The Huret Allvit or Schwinn Sprint handles five speed freewheels well, but will not handle even six speed freewheels if using flexible, modern chain, and seems best designed for use with a 28t largest cog.

The Allvit body was not designed as a crash protector, but is an extreme example (extra long) of a dropped parallelogram knuckle, supporting an inverted parallelogram pivoting from the bottom in top-swing fashion instead of from the top (so as to have the guide pulley better track the slanted/convex profile of the freewheel).

Other limitations imposed by the Allvit's design include it's length and thus leverage acting on any dropout hanger to which it is attached, it's stiff return spring, and it's somewhat regressive actuation/travel ratio as it approaches the largest cog.

But it can work great, given well-fitted, modern cabling, and well-lubricated shift lever pivot, even using the Twin-Stik levers.
It can also be modified for six-speed use, with a bit of grinding for increased travel, and with the hub spacing made to position a six-speed freewheel optimally


.
I bought a 1973 Continental a few years ago. It was kind of like a barn find survivor with all of its original components, most of which were in pretty good shape. I did some maintenance one it, and was proud of myself for getting the Allvit RD to work correctly. The chrome had been scratched off it at some point, but it was still functional. The bike rode well enough, but had a heavy feel that I wasn't enamored with, so I sold it and made a nice profit.

I like for things to be as original as I can keep them. The problem is that Heuret Allvit RDs are kind of thin on the ground right now, and priced accordingly.
WilliamK1974 is offline
Old 12-21-21, 09:25 PM
  #12
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 781
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 685 Times in 343 Posts
Originally Posted by dddd View Post
The Huret Allvit or Schwinn Sprint <snip> seems best designed for use with a 28t largest cog.
The long-cage Allvit that came on my '73 SS handles a 34t FW just fine, no straining. I think a 32t came on it originally. (Yep, just looked up the catalog: 32t was stock). I have often wondered what the trick is, what else they changed compared to the stock Allvit to make it shift to such a large FW. The jockey pulley is concentric with the cage pivot, so the length of the cage shouldn't affect the big FW cog it can shift to, right? So I wonder, would this mech shift to a 34t if I put a short cage on it? Not that I would want that, just wondering.

The long cage has enough chain-wrap for a triple in front too, but the front derailer doesn't, width-wise ó not enough travel. I actually took both adjustment screws completely out, because from all the way out as far as it can go, to all the way in, is just right for the double I have on there. If I really wanted a triple, I'd find a way to make it work, but my current gear range is just right.

I replaced the Ashtabula crank with a TA Cyclotouriste (using a 3-piece BB adaptor), and my two chainrings are a lot smaller than the stock 39-52, something like 32-46 (I forget).



Mark B
bulgie is online now
Old 12-22-21, 12:43 AM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,347

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 690 Times in 486 Posts
Originally Posted by bulgie View Post
The long-cage Allvit that came on my '73 SS handles a 34t FW just fine, no straining. I think a 32t came on it originally. (Yep, just looked up the catalog: 32t was stock). I have often wondered what the trick is, what else they changed compared to the stock Allvit to make it shift to such a large FW. The jockey pulley is concentric with the cage pivot, so the length of the cage shouldn't affect the big FW cog it can shift to, right? So I wonder, would this mech shift to a 34t if I put a short cage on it? Not that I would want that, just wondering...
Mark B
Yes, I forgot that the Supersports had the bigger freewheel and longer-cage derailer, and I have two of these bikes (both with short-cage Allvits, and with 13-26t and 13-28t 6s freewheels).

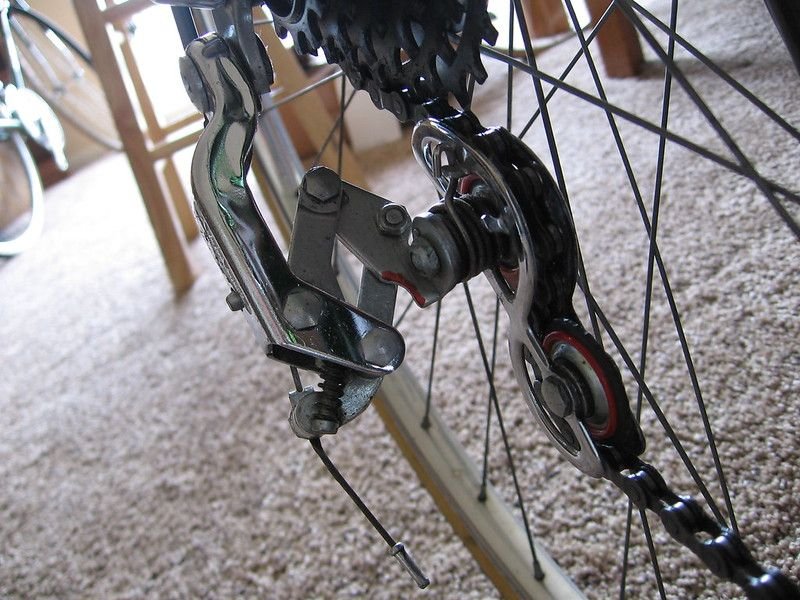

The special claw bracket is what allows the bigger 32t cog, by swinging the derailer body rearward.
I modified one of these to work better with smaller 28t freewheels,(just by grinding metal away from the stop, letting the derailer body swing forward).

The stock Supersport shifts well with stiff vintage chain, but it's long-cage derailer on the special claw bracket will shift like poop using flexible modern chain, because the re-angled derailer body does not position the guide pulley close enough to the smaller cogs on the 14-32t freewheel.
So the original Allvit with the standard claw bracket hanger is the better-shifting derailer (when used with a freewheel having about 28t on the large cog).
dddd is offline
Old 12-22-21, 06:52 AM
  #14
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 874

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 296 Times in 167 Posts
I know that dddd likes that stock rear derailleur. He obviously has more skill and patience than I do and perhaps his units were a bit less used than the ones I’ve come across. My exposure is mostly with well used co-op bikes. On my 73 bike purchased in 75, I replaced it pretty early on, but that could also have been from wanting some of the newest gadgets. Nearly all of these I have come across are also bent in some fashion.

I did once recently make an effort to get one operable and learned once again why it was nice to have that long Schwinn stick shift lever. I gave up then.
sd5782 is offline
Old 12-22-21, 07:08 AM
  #15
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,118

Bikes: Seriously downsizing.

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 499 Post(s)
Liked 358 Times in 177 Posts
I left my '65 (courtesy of pastorbobnlnh ) as close to box stock as I could make it.



The '73 was a canvas:




Both great riders. It's a bike worth putting a little time and effort into.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 12-22-21, 07:11 AM
  #16
Sierra
Uff Da!

Join Date: Sep 2003
Posts: 1,107
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 74 Times in 40 Posts
Originally Posted by bulgie View Post
The long cage has enough chain-wrap for a triple in front too, but the front derailer doesn't, width-wise ó not enough travel.
Mark B
That's odd.
The Sprint front derailleur on the '64 Sierra handled the 40/47/52 triple on that bike, and the Huret 600 that preceded it handled the same triple on the earlier 15 speed models.
Something must have changed with the newer Schwinn Approved front der.
Sierra is offline
Old 12-22-21, 07:38 AM
  #17
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,977

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Liked 620 Times in 352 Posts

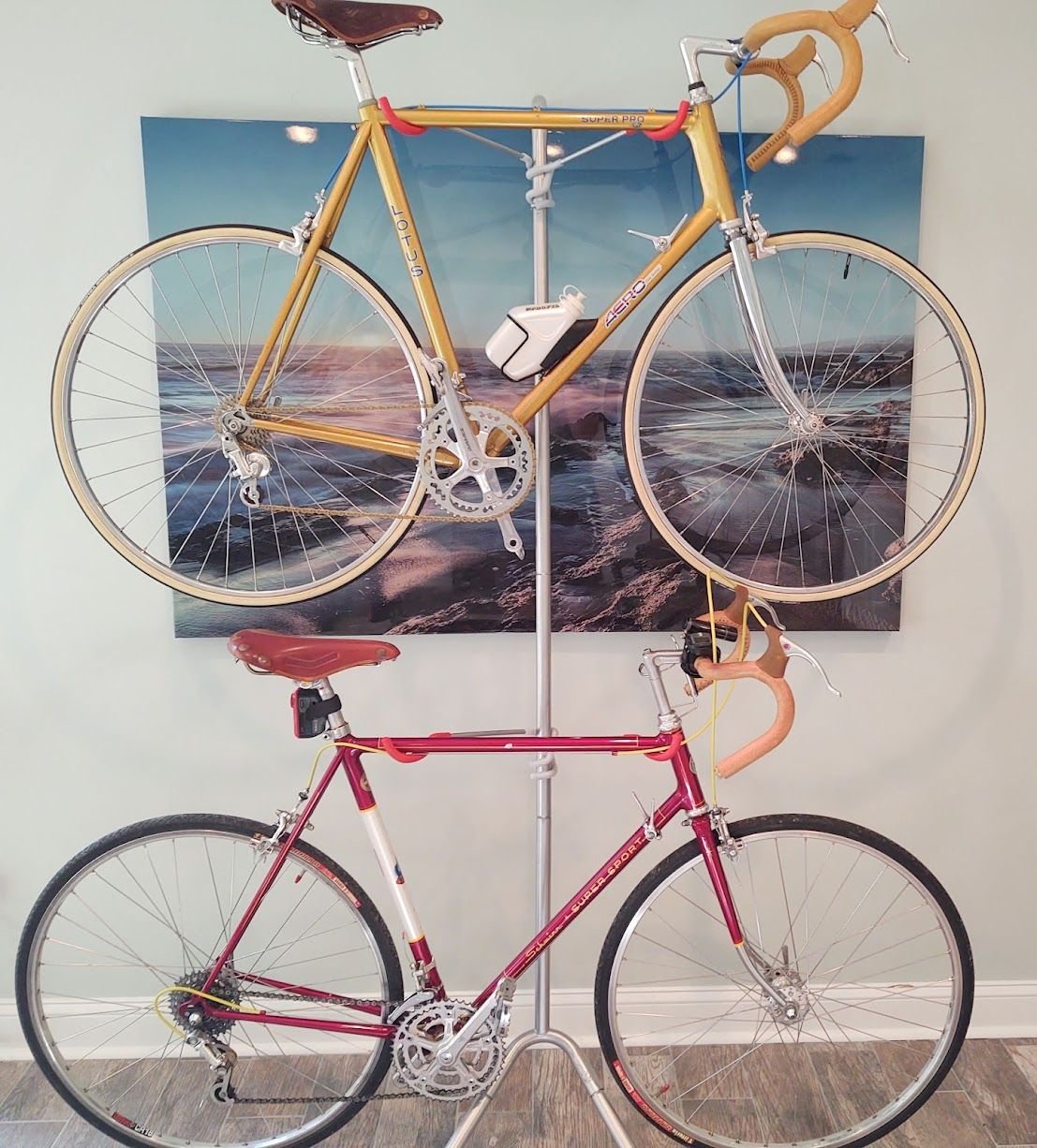

A Campagnoloed '71 Schwinn Super Sport and '82 Lotus Super Pro hang out together.

Oh, what the heck! If top506 can post pictures of his Super Sports , I'm going to post a picture of "Sporty" and his new rack-mate, a Lotus Super Pro Aero (1982).
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 12-22-21, 08:15 AM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,224
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2323 Post(s)
Liked 1,247 Times in 939 Posts
I always felt the Super Sport and the Sports Tourer should have had the model names swapped.
repechage is offline
Likes For repechage:
Old 12-22-21, 08:29 AM
  #19
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,522

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Liked 683 Times in 369 Posts
Originally Posted by repechage View Post
I always felt the Super Sport and the Sports Tourer should have had the model names swapped.
Agreed, the Supersports frame isnít quite as nice as the Sports Tourers. Supersport should have been the better frame.
Tim
tkamd73 is online now
Old 12-22-21, 12:35 PM
  #20
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 874

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 296 Times in 167 Posts
Originally Posted by tkamd73 View Post
Agreed, the Supersports frame isnít quite as nice as the Sports Tourers. Supersport should have been the better frame.
Tim
Agreed on the names, but I was under the impression that the frames were basically the same for the same year except perhaps the dropouts. I could be wrong and likely I am. Also for me, the boom era SS is what I have seen and what I have. I find it interesting that the earlier ones were quite different with regards to the downtube shifters, the rear derailleur hanger, the front chain rings lacking the guard etc, etc. Those early ones as the OP has are obviously much more of a SuperSport. Perhaps boom era cost cutting and parts interchangeability and ease of final assembly took hold after the boom. Nice score on a pre boom SS.
sd5782 is offline
Old 12-22-21, 12:57 PM
  #21
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,522

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Liked 683 Times in 369 Posts
Yup, it just the dropouts, not a big deal, but not quite as nice.
Tim
tkamd73 is online now
Old 12-22-21, 01:11 PM
  #22
daka
Senior Member

Join Date: Nov 2019
Location: SF Bay Area
Posts: 284

Bikes: Raleigh Super Course x2, Raleigh International

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 158 Times in 94 Posts
Bottom bracket is different too. Super Sport had an Ashtabula, Sports Tourer a square-taper.
daka is offline
Likes For daka:
Old 12-22-21, 01:11 PM
  #23
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,133
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 1,520 Times in 745 Posts
Some Super Sports had forged dropouts, later ones were stamped. They got the Ashtabula cranks with the matching bottom bracket shell.

The Sports Tourer and Superior fillet brazed models had three-piece cranks and appropriate shell.
BFisher is offline
Old 12-22-21, 02:33 PM
  #24
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,347

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 690 Times in 486 Posts
Originally Posted by BFisher View Post
Some Super Sports had forged dropouts, later ones were stamped. They got the Ashtabula cranks with the matching bottom bracket shell.

The Sports Tourer and Superior fillet brazed models had three-piece cranks and appropriate shell.
I found that I had to choose either having forged dropouts OR a painted fork, and strongly preferred a painted fork so went with that.

The claw hanger wasn't a problem for me as I was still able to get the more outwardly-positioned Allvit to shift across six cogs, and with the freewheel of course still clearing the claw-mount nut inward of the dropout.
"Claw" bolts tend to be made of very high-grade steel, so can be tightened heavily enough to prevent any wandering of the claw's position during wheel changes.

One challenge when trying for great shifting performance on these and similar bikes is finding best-fitting ferrules for modern, 4mm OD shift cable housing.
Using any compressionless housings sans ferrules can cause "fraying" with strands then left obstructing the cable's movement!
I did locate some 5mm OD, stepless metal ferrules which snugly capped the 4mm compressionless housings, but which I cannot locate a source for going forward. So if anyone knows where such ferrules might turn up today I am all ears.
dddd is offline
Old 12-22-21, 03:16 PM
  #25
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,133
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 1,520 Times in 745 Posts

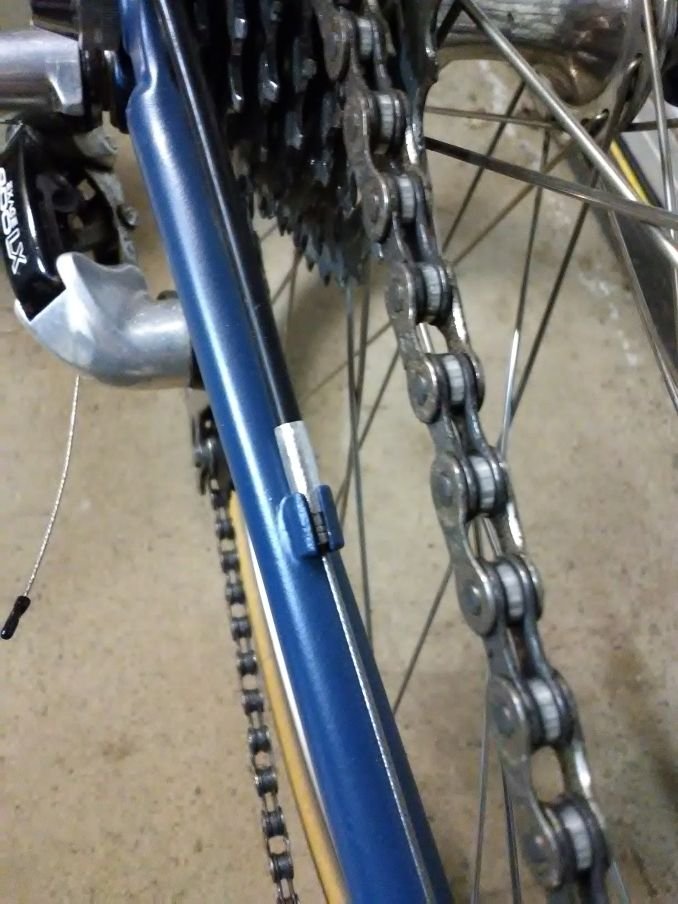

Yeah, I agree. Cable setup can be trickier with these. What I did recently on a Sports Tourer that I set up as a 3x7 indexed was to utilize some old 5mm SIS housing that I luckily had on hand and is still in good shape. The upper downtube stops are gone from this frame, so I used a Tektro clamp-on stop. At the section above the BB, I used two old steel 5mm stepdown ferrules with a #2 brass washer inside to give the strands a flat surface. A nylon washer would have been better. At the chainstay stop I took the diameter of a Shimano SP40 stepdown ferrule down just enough that it will slide into the braze-on, and finished with a length of 4mm housing. The setup works perfectly.


Last edited by BFisher; 12-22-21 at 03:19 PM.
BFisher is offline
Likes For BFisher:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
