Do I want to update my Cilo w/ Shimano 600 to ~2000's Ultegra?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Do I want to update my Cilo w/ Shimano 600 to ~2000's Ultegra?

Old 01-10-22, 05:40 PM
  #1
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,341
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 349 Times in 189 Posts
Do I want to update my Cilo w/ Shimano 600 to ~2000's Ultegra?

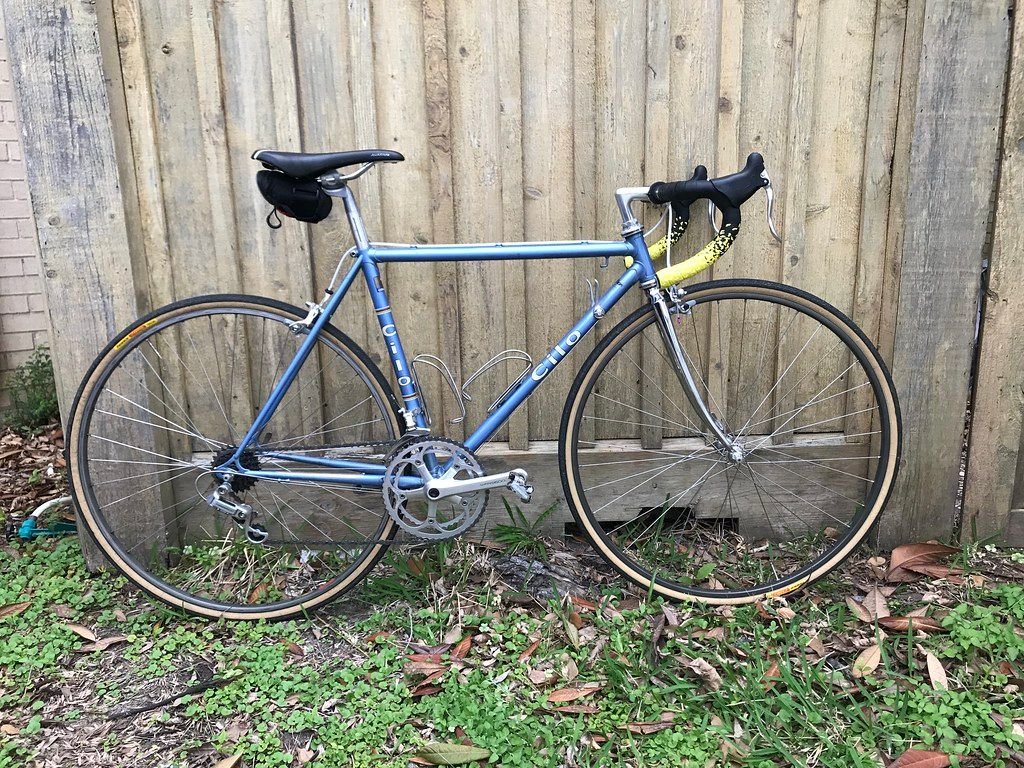

Having a battle of conscience at the moment. Currently, my 1987 Cilo is all original Shimano 600 components: FD/RD/Crank/Brakes/hubs/headset, etc, it's downtube friction shifting, 6 speed. Pic:


But I got an '01 Cannondale R1000 that I am totally updating and I peeled all the Ultegra/105 pieces off it - and now they're just kinda sitting there. Do I want to put those on the Cilo? Yes yes I know it's a "do whatever you want it's a matter of taste & preference" kind of decision, but I'm curious what everyone else would do? Sure, the bike loses some of it's vintage allure, and the simplicity and elegance of downtube friction shifting; one might even say it's entire personality. Buuuttttt sometimes I get tired of the limited available gears, and shifting that way.

KNOWN ISSUES:
-Rear spacing is 126, and the wheels from the Cannondale are 130 - I was thinking of just trying to cram it in there and see how it went to start off with instead of going through with a cold-set and making it more permanent....
-Cannot swap crank - Cilo is Italian threaded square taper, whereas the Ultegra crank is octalink and I'm not going to try to find a BB to replace. Will keeping this crank have any ill effect trying to use the new(er) 105 FD & the STIs?
-The wheelset & hubs are burnt orange that matched the bike they came on - and those are going to look funky on that beautiful blue Cilo frame. (No I'm not dropping $$ on new wheels.)

If I don't end up doing it, I may at the very least swap the brake calipers from the 600 to the 105 because they're a little better to work with (assuming they fit).

Anyway, what do y'all think? Is it way more trouble than it's worth? Am I being stupid and I need to stop being bored and find another project?

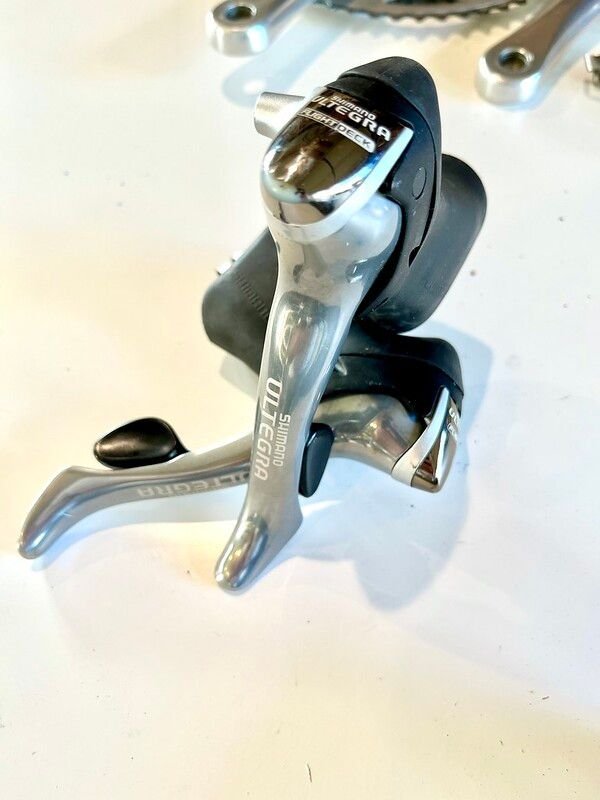

Here's the parts available below:





__________________
Twitter@theSurlyBiker
Instagram @yankee.velo.foxtrot
the sci guy is offline
Old 01-10-22, 06:26 PM
  #2
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 29,615

Bikes: Too many to list here check my signature.

Mentioned: 189 Post(s)
Tagged: 2 Thread(s)
Quoted: 2867 Post(s)
Liked 2,622 Times in 1,399 Posts
I wouldn’t. I’m not a huge brifter fan and having downtube friction shifters makes your bike less likely to be stolen since no one can drive a manual transmission these days
__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 01-10-22, 07:34 PM
  #3
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 4,627

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1905 Post(s)
Liked 1,907 Times in 1,060 Posts
Do it.

I think those wheels will look awesome on the blue bike. If you havenít done the STI on vintage steel yet, you need to. The rear hub will go on ok and if you really like it, you can cold set it later( and then regret it like I do). An issue might be the shifter bosses and how they deal with the modern stop/adjusters.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-10-22, 07:44 PM
  #4
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,341
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 349 Times in 189 Posts
Follow up question:
since I canít swap the cranks as a whole, does anyone know off the top of their heads without me going out to the garage or looking up the measurements if the BCD of the Shimano 600 spider is the same as the Ultegra crank which would allow me to swap the chainrings? (I think the Ultegra is fewer teeth)
__________________
Twitter@theSurlyBiker
Instagram @yankee.velo.foxtrot
the sci guy is offline
Old 01-10-22, 07:46 PM
  #5
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 2,726

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1066 Post(s)
Liked 980 Times in 697 Posts
Depends on why you're keeping the cilo, I have an old bike I keep around for when I ride the bike path with people I know are slow and I don't want the newest and fastest. Will also ride it with the kids from time to time, in which case I wouldn't change it. If you have a newer bike that you now ride more, like I do, then there isn't really a need to upgrade/change the old bike. I've thought about doing so and have just never gotten around to bothering. If you want to make it newer, getting tired of the down tube shifters, the parts are getting worn, or you just want things different then updating has its advantages.
Russ Roth is offline
Likes For Russ Roth:
Old 01-10-22, 07:46 PM
  #6
Full Member

Join Date: Dec 2014
Posts: 331
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 157 Times in 66 Posts
All my steel bikes ride modern groups, complete or mix and match
wheels will fit as is
crank will work with just about anything
get downtube adapters for the modern brifters
easy peasy
reissue59 is offline
Likes For reissue59:
Old 01-10-22, 08:19 PM
  #7
Senior Member

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 807

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Liked 899 Times in 368 Posts
I think it all depends on what you want. I've converted a bike to brifters for my daughter, it was pretty easy to do since I had a full 9sp group. You can always swap back if you keep the parts. I wouldn't worry about anyone's opinion. My vintage bikes are mostly period correct but they all have speedplay pedals. Some people would give me crap over my pedal choice. Back to it's my choice and I'm not worried about their opinion.
SwimmerMike is offline
Old 01-10-22, 08:33 PM
  #8
Senior Member

Join Date: Jan 2016
Posts: 781
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 316 Post(s)
Liked 274 Times in 206 Posts
Originally Posted by the sci guy
Follow up question:
since I canít swap the cranks as a whole, does anyone know off the top of their heads without me going out to the garage or looking up the measurements if the BCD of the Shimano 600 spider is the same as the Ultegra crank which would allow me to swap the chainrings? (I think the Ultegra is fewer teeth)
The BCD of both cranks should be 130. The 600 probably has 42T inner and 53 or 52T outer. The Ultegra is probably 53/39 and would have shift aids (pin and profile teeth).

As for classic 'look', the Cilo already has handlebars that is a more modern shape than most older bikes.
KCT1986 is offline
Old 01-10-22, 08:46 PM
  #9
Full Member

krakhaus's Avatar

Join Date: Sep 2012
Location: Palm Springs, California
Posts: 465
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 459 Times in 176 Posts
I love my Ultegra STI setup far more than my 600 equipped downtube setup. You won't regret it.
krakhaus is offline
Likes For krakhaus:
Old 01-10-22, 09:16 PM
  #10
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,522

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 917 Post(s)
Liked 1,268 Times in 475 Posts
The simple answer is that since you have those extra parts you need to buy another frame to hang them on. n+1 should be your guide.
davester is offline
Likes For davester:
Old 01-10-22, 11:50 PM
  #11
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 2,506
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1484 Post(s)
Liked 1,609 Times in 909 Posts
I would keep it as original as possible. I would modernize it by swapping in 600 6400 dual pivot brakes , FD6401 STI compatible FD, and 2x7 speed RSX brifters . I would keep the original wheels and put a 7sp freewheel on there.
icemilkcoffee is offline
Old 01-11-22, 12:22 AM
  #12
Full Member

BMC_Kid's Avatar

Join Date: Oct 2021
Location: San Antonio, Texas
Posts: 334
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 328 Times in 141 Posts
As someone who has kept vintage bikes vintage, as well as updated vintage bikes with "modern" components, I say it all depends on what you want out of the bike. For me at one time, it was important to have a completely vintage bike to ride. As life has moved on, it has become more of a need to have vintage bikes that are more usable with wider gearing ranges. So, my current Zullo with 8-speed Superbe Pro and Tesch S-22 with Dura-Ace 8-speed (both with DT shifters) are both being updated to Campy 11-speed. For me, this will bring those bikes up to modern specs while allowing me to have a similar riding experience to my 11-speed Campy equipped Ritchey Carbon Breakaway which is my primary ride at this time. Will I miss the human interaction with the DT-equipped SP or DA? Probably, but will I put more miles on the bikes now? Definitely, and that to me is what is most important for me at this time of my life. I still have completely vintage rides in the form of 80s Miyata Team and Pro with DA EX and AX respectively for those fleeting occasions, as well as others in the stable. The way I look at it, relatively few of the bikes we own will ever be truly collectible in the sense that not keeping it all original will totally destroy the value. I dare say, the vast majority of our bikes on this forum are worth more broken up and sold off as pieces than as a whole. I know that this is the case with every single bike I own. So other than sentimental reasons, why not update a bike, especially if it means that you will get in more miles and hopefully a corresponding increase in enjoyment?

Last edited by BMC_Kid; 01-11-22 at 12:30 AM.
BMC_Kid is offline
Old 01-11-22, 02:46 AM
  #13
Senior Member

Join Date: Jul 2008
Location: Minas Ithil
Posts: 9,337
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2432 Post(s)
Liked 638 Times in 395 Posts
I'd keep it as is except switch to a modern Sunrace freewheel with ramped teeth. Shifting is 100x better, especially with friction shifters. Goes into gear much quicker and less fumbling around with the shifter.
Lazyass is offline
Old 01-11-22, 04:35 AM
  #14
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 3,082

Bikes: 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 832 Post(s)
Liked 1,381 Times in 783 Posts
That really is a question to which only you can come up with the proper answer. I went through the same dilemma a couple of years ago. In the end, I put 9 speed STI's on it and was/am glad I did so. I have a Fuji Ace that now has mustache bars on it. I have dt levers on it. I am using them in friction mode with a nine speed cassette and mishmash of a drivetrain. With friction mode, one can get just about anything to work, and the maintenance is a whole lot easier. So, the answer for me was two different bikes. No need to change either one of them. The real bonus for me, the Fuji frameset was given to me, most of the rest of the bike is stuff I had on hand.
delbiker1 is offline
Old 01-11-22, 05:07 AM
  #15
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 2,403
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 1,810 Times in 872 Posts
The majority of my vintage fleet is Campag 10 Ergo Power. However, I still have a few downtube shifter bikes for reasons already mentioned. The chief reason is because Ergo/STI shifters have (in my opinion) created riders who have a very narrowly focused power band. Many riders use the shifters as a CVT and don't develop a broader range of strength/technique at cadences/gearing other than what they constantly shift to with Ergo/STI. Downtube shifters aren't as accessable and require the rider to seat before shifting so in some instantances where a Ergo/STI shiift would occur, the downtube shifter rider will "muscle it out" with strength and technique. I absolutley prefer Ergo levers but for my pruposes, downtube shifters have a place as well.

OP, what brake levers are pictured on the bike now?
__________________
nomadmax is offline
Old 01-11-22, 05:17 AM
  #16
...

Join Date: Oct 2021
Location: Whitestone and Rensselaerville, New York
Posts: 1,375

Bikes: Bicycles? Yup.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 423 Post(s)
Liked 1,293 Times in 649 Posts
Here's how resolved this issue;
Do I want to mostly ride it or look at it?

The orange wheelset is going to be super cool or super awful, try the front wheel and see.
BTinNYC is offline
Likes For BTinNYC:
Old 01-11-22, 06:23 AM
  #17
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 7,270

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2345 Post(s)
Liked 2,835 Times in 1,819 Posts
Buy another frame that is neo-vintage and install that stuff. Or if you love the Cilo as an everyday rider, update and ride it...or not.

I have 600 EX stuff on one bike (Nishiki Tri A), and when I ride it, it feels right to reach for the shift levers and see the tangle of cable. I have a Basso Gap that has 1990s Campagnolo stuff. It feels right (my favorite).
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981 Faggin, 1996 Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe , 1989 Fauxsin MTB, 1981 Ciocc Mockba, 1992 Bianchi Giro, 1977 Colnago Super












jdawginsc is offline
Likes For jdawginsc:
Old 01-11-22, 12:51 PM
  #18
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,041

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 121 Times in 100 Posts
Do it and see if you like it.
​​​​You can always put it back the way it was if you don't like it.
blamester is offline
Old 01-11-22, 03:15 PM
  #19
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,341
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 349 Times in 189 Posts
Originally Posted by davester
The simple answer is that since you have those extra parts you need to buy another frame to hang them on. n+1 should be your guide.
I actually just sold 2 bikes because i needed a) space in the garage, b) money

Originally Posted by nomadmax
The majority of my vintage fleet is Campag 10 Ergo Power. However, I still have a few downtube shifter bikes for reasons already mentioned. The chief reason is because Ergo/STI shifters have (in my opinion) created riders who have a very narrowly focused power band. Many riders use the shifters as a CVT and don't develop a broader range of strength/technique at cadences/gearing other than what they constantly shift to with Ergo/STI. Downtube shifters aren't as accessable and require the rider to seat before shifting so in some instantances where a Ergo/STI shiift would occur, the downtube shifter rider will "muscle it out" with strength and technique. I absolutley prefer Ergo levers but for my pruposes, downtube shifters have a place as well.

OP, what brake levers are pictured on the bike now?
As a bike commuter on a single speed, i am pretty used to doing everything through more effort, instead of shifting gears.

Currently the Cilo has Soma Highway 1 bars with Cane Creek SCR-5c levers. (for smaller hands)

Originally Posted by BTinNYC
Here's how resolved this issue;
Do I want to mostly ride it or look at it?

The orange wheelset is going to be super cool or super awful, try the front wheel and see.
Ride it. You think it'll look good? I'm having a hard time seeing it in my head. Good thought to just put the front wheel on and see what it looks like. I will give that a try.
__________________
Twitter@theSurlyBiker
Instagram @yankee.velo.foxtrot
the sci guy is offline
Likes For the sci guy:
Old 01-11-22, 04:27 PM
  #20
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 7,270

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2345 Post(s)
Liked 2,835 Times in 1,819 Posts
I think the gold wheels will look pretty cool with the Cilo.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981 Faggin, 1996 Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe , 1989 Fauxsin MTB, 1981 Ciocc Mockba, 1992 Bianchi Giro, 1977 Colnago Super












jdawginsc is offline
Likes For jdawginsc:
Old 01-12-22, 08:58 AM
  #21
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 3,417
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Liked 1,672 Times in 933 Posts
I think the Cilo is on the small side for you, I would sell the Cilo and buy a comparable frame a couple of centimeters taller to put the parts on.
Mr. 66 is offline
Old 01-12-22, 11:11 AM
  #22
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,341
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Liked 349 Times in 189 Posts
Originally Posted by Mr. 66
I think the Cilo is on the small side for you, I would sell the Cilo and buy a comparable frame a couple of centimeters taller to put the parts on.
Nah i'm 5'5" and this is the best fitting bike I've ever had as it's set up. Plus it's gorgeous I will not be selling it.
I know putting the ultegra sti's will add a couple CMs of reach since the hood ramps are longer, but i think it should be ok.
__________________
Twitter@theSurlyBiker
Instagram @yankee.velo.foxtrot
the sci guy is offline
Old 01-12-22, 06:08 PM
  #23
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 9,783

Bikes: Kirk Custom JK Special, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 2276 Post(s)
Liked 2,673 Times in 1,465 Posts
Don't know why you are saying you can't find octalink

v1 105 5500
https://www.performancebike.com/shim...9194?v=1155658

V2 un300 70 x 113
https://www.universalcycles.com/shop...BoCHbEQAvD_BwE
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)



squirtdad is online now
Old 01-12-22, 06:40 PM
  #24
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 1,043

Bikes: Gunnar, Shogun, Concorde, F Moser, Pete Tansley, Rocky Mtn, Diamant, Krapf, Marin, Avanti, Winora, Emmelle, Ken Evans

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 272 Post(s)
Liked 392 Times in 210 Posts
I would just swap the brakes. The front one only if the frame is not recessed mounting, as the front is easy to drill. Brake upgrade to dual pivots, as long as they're still shiny silver, is always always a good thing to do imo. Posterity be damned.

Otherwise imo the black spokes will look awful and the whole swap is only a good idea if you can find some attractive wheels and the bb to do the crank also. Black hubs in a chromed fork... blerugh
Soody is offline
Old 01-12-22, 06:46 PM
  #25
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 1,043

Bikes: Gunnar, Shogun, Concorde, F Moser, Pete Tansley, Rocky Mtn, Diamant, Krapf, Marin, Avanti, Winora, Emmelle, Ken Evans

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 272 Post(s)
Liked 392 Times in 210 Posts
Originally Posted by the sci guy
Follow up question:
since I canít swap the cranks as a whole, does anyone know off the top of their heads without me going out to the garage or looking up the measurements if the BCD of the Shimano 600 spider is the same as the Ultegra crank which would allow me to swap the chainrings? (I think the Ultegra is fewer teeth)
yes they will both be 130 bcd
i've done a very similiar thing, it works, but it's not without issue. The crank arm spacing between rings is wider on the older crank, and so with narrow rings and a narrow chain and the wider spacing, the chain can kinda jam between the rings

I would happily run a frankenbike setup like that but I would not modify a complete set into it from either direction. Especially as your more modern crank is shiny and will still look good on a vintage frame and the bb for it exists.
Soody is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service -

Copyright © 2024 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
