Vintage Campagnolo Headset Identification Help

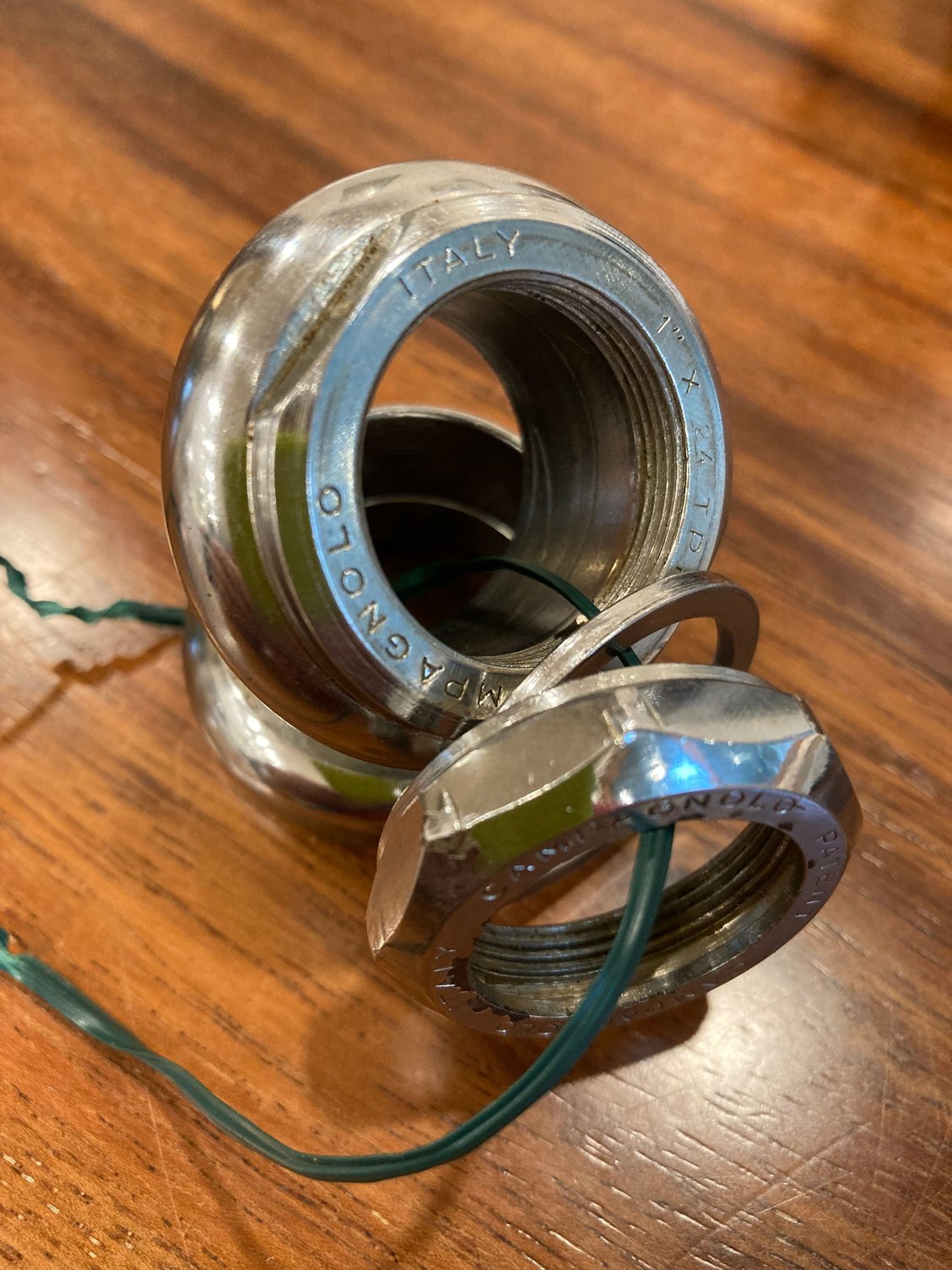

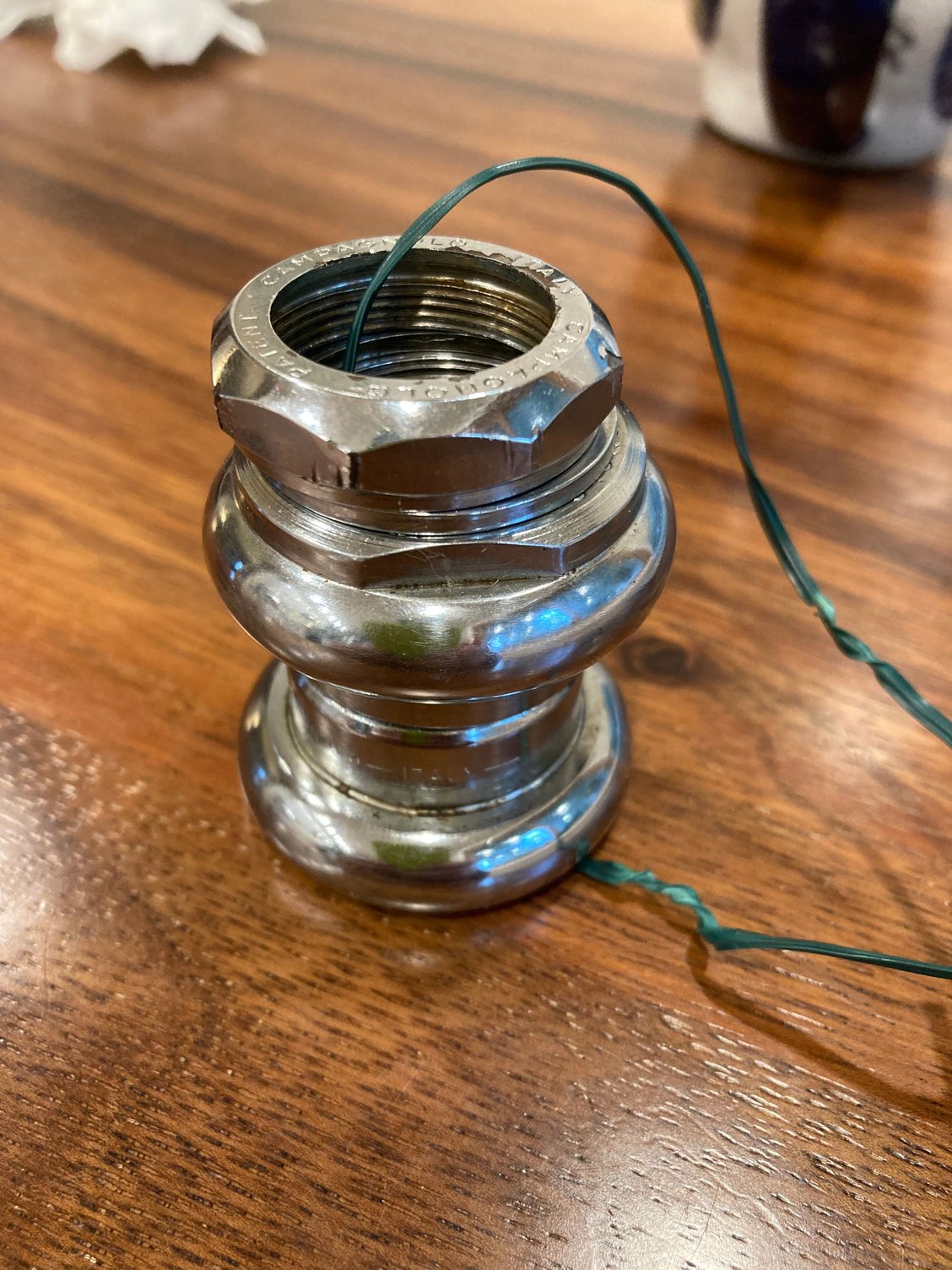

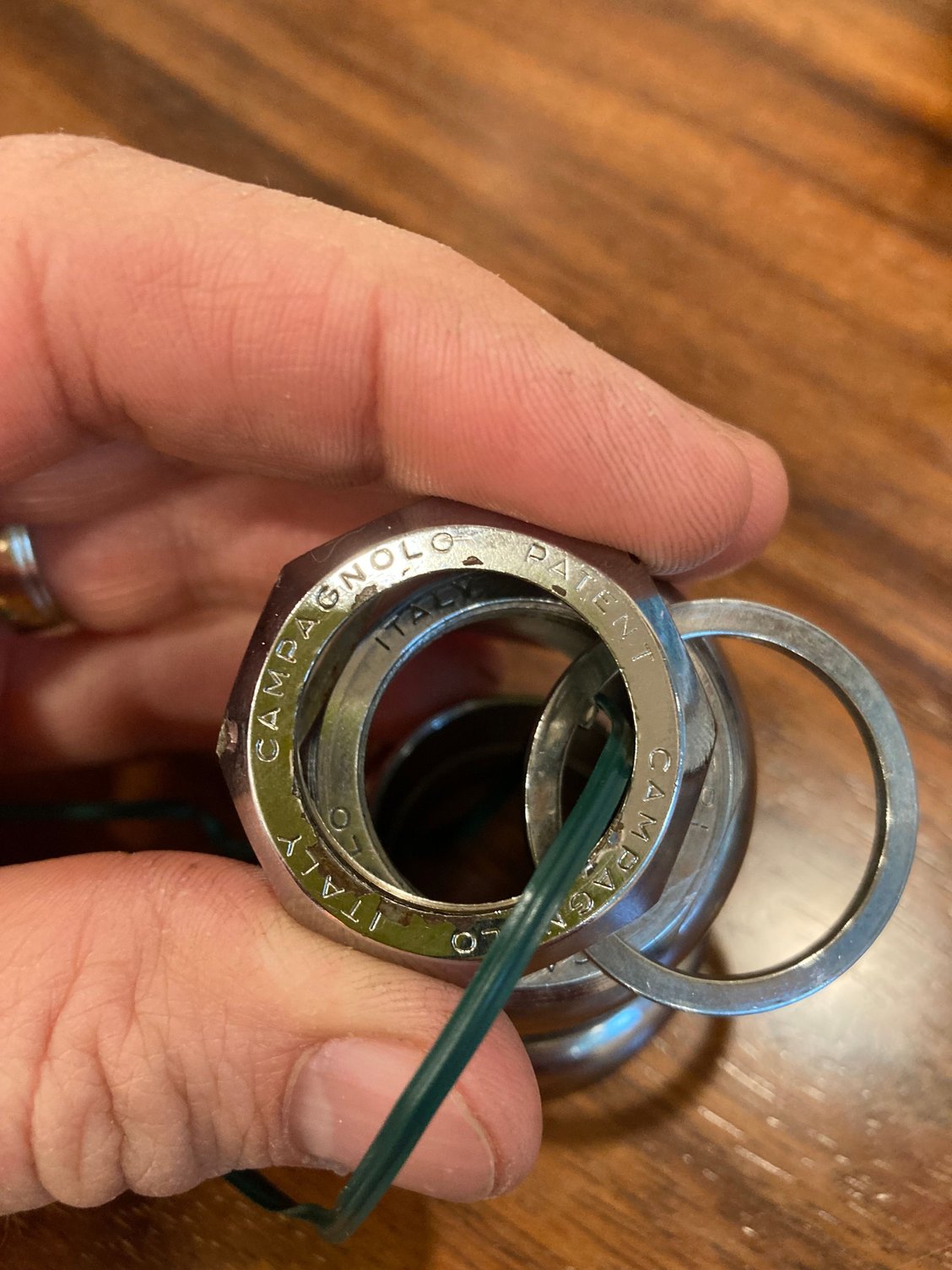

Can anyone help me ID this old Campy headset? I'm sure it's not SR and I believe Nuovo Record would have ben stamped as well. Is this essentially a cheaper, non-series model for OEM, or...? Please school me!


Der_Kruscher is offline
Old 01-11-22, 04:07 PM
  #2
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,980
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 858 Post(s)
Liked 1,276 Times in 651 Posts
Gran Sport? https://velobase.com/ViewComponent.a...m=111&AbsPos=0
P!N20 is offline
Likes For P!N20:
Old 01-11-22, 05:07 PM
  #3
Der_Kruscher
Senior Member
Thread Starter

Der_Kruscher's Avatar

Join Date: Jan 2012
Location: Seattle, WA
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 15 Times in 9 Posts
That's it - thanks, P!N20!

Originally Posted by P!N20 View Post
Der_Kruscher is offline
Likes For Der_Kruscher:
Old 01-11-22, 05:11 PM
  #4
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 1,042
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 1,090 Times in 508 Posts
Originally Posted by P!N20 View Post
Definitely. '70s vintage. They had a different headset called Gran Sport starting in about 1958 I think, superceded by the modern Record. (Gran Sport was the top of the line in the '50s, but a second-tier product by the '70s)

The '70s Gran Sport looks similar to a Record Pista of the same vintage, except for the two wrench flats on the threaded race, versus how many on a Record? Eight I think, without looking at one.

Mark B
bulgie is offline
Old 01-12-22, 07:33 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,765

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3054 Post(s)
Liked 2,192 Times in 1,309 Posts
Yes, Gran Sport. These are often confused with Record pista headsets, the salient difference being that the threaded cup has two flats on the Gran Sport, while the Record pista has eight. Like the Record pista, Gran Sport uses 5/32" balls, while Record road uses 3/16" balls. This gives it a lower stack height than Record road, which can be useful if your steer tube is cut too short.
JohnDThompson is offline
Old 01-12-22, 01:03 PM
  #6
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,716
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 535 Times in 300 Posts
I had one of these and it loved to gobble up sand flicked up from the front wheel in the gap between the crown race and bottom cup. If you do install it I'd add some shorty fenders or some other way of keeping it clean.
Narhay is offline
Old 01-13-22, 08:35 AM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,765

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3054 Post(s)
Liked 2,192 Times in 1,309 Posts
Originally Posted by Narhay View Post
I had one of these and it loved to gobble up sand flicked up from the front wheel in the gap between the crown race and bottom cup. If you do install it I'd add some shorty fenders or some other way of keeping it clean.
I never had that problem with the Gran Sport headset, but perhaps I don't ride in as gritty conditions as you.

A short section of inner tube stretched over the lower stack will also protect it from grit intrusion.
