1973-74 Raleigh Professional Mk.IV anomalies

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1973-74 Raleigh Professional Mk.IV anomalies

Old 01-12-22, 01:51 PM
  #1
retroman57
Senior Member
Thread Starter

Join Date: Oct 2006
Location: Petaluma, CA
Posts: 95

Bikes: too many

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 39 Times in 20 Posts
1973-74 Raleigh Professional Mk.IV anomalies


1973-74 Raleigh Professional MK.IV

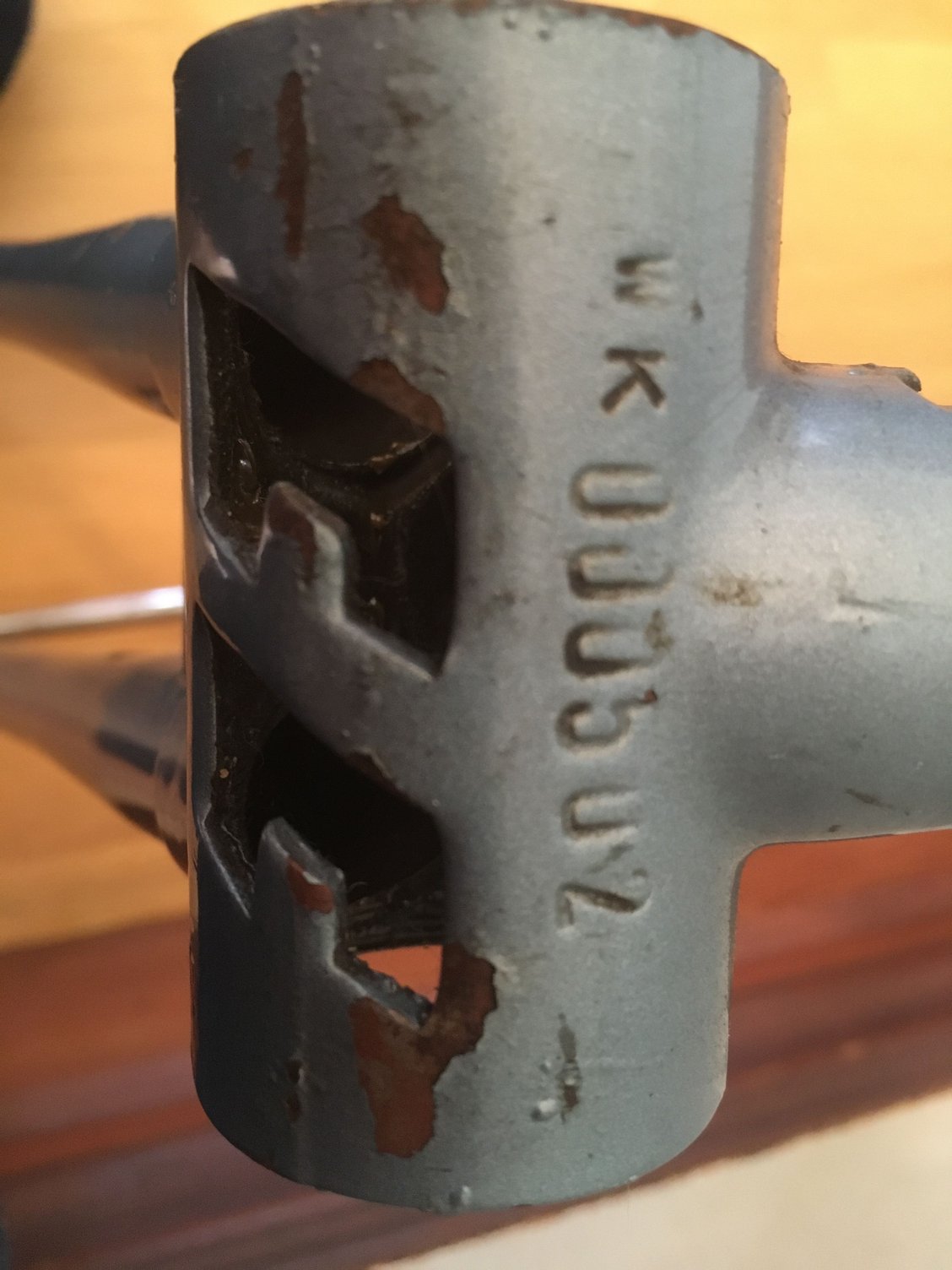

Serial No.WK000502

Carlton Worksop decals on painted fork crown

I'm trying to pinpoint date of manufacture of this Raleigh Professional frameset as I slowly collect the kit of components to put it back together. Lug, bottom bracket, and fork rake details are consistent with 1973-1976 Professional MK.IV but there are a couple of curious anomalies that have me scratching my head. The first two digits of the serial number (WK) indicate that the frame was made at Carlton Worksop no earlier than late 1973, and in the month of July. The third digit of the serial number should be a number between 3 and 6- Worksop serial numbers begin late 1973, and the MK.IV was replaced by the MK.V in 1976. Certainly not either 1970 or 1980...
All of the Professionals with Cinelli type fork crowns that I've seen are chromed, and not painted as this one is. I suppose that it is possible that this frame has been repainted, but the triangular Worksop decals on the fork crown look pretty official. A couple of details that may indicate a re-paint: the silver bands on the seat tube are bordered with 1/16" wide black pinstriping tape, no lug lining anywhere, and the oval Campagnolo decal is located at the top of the seat tube rather than on the downtube above the shifter lug.
What do y'all think? TIA
retroman57 is offline
Old 01-12-22, 02:22 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 9,854

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 2,648 Times in 1,721 Posts
I think we need to keep in mind that "Raleigh" is often synonymous with "anomalies".

Always wondered if some of it was on purpose to "Yank" some American chains aside from the oft sited 3 pint+ lunches.

All that being said, I have seen plenty of crappy Raleigh's that are still holding up just fine, nothing more iconic than a Pro, regardless of "anomalies".
merziac is offline
Old 01-12-22, 02:31 PM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,539
Mentioned: 394 Post(s)
Tagged: 0 Thread(s)
Quoted: 2888 Post(s)
Liked 3,461 Times in 1,575 Posts
A 1970 MKII repainted?
nlerner is offline
Likes For nlerner:
Old 01-12-22, 02:49 PM
  #4
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,237

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 3308 Post(s)
Liked 2,035 Times in 1,323 Posts
I'm with Merziac. Anomalies. The height of the bike boom. Standards always plural. I have a '73 Competition, also Carleton. Makes your Professional look very uniform.
79pmooney is offline
Likes For 79pmooney:
Old 01-12-22, 03:54 PM
  #5
tfbike
Member

Join Date: Apr 2017
Location: Wellington, Co
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 5 Times in 3 Posts
I agree with the "anomaly". But, most likely 74 given the CC cutouts. My 74 serial is WS4003954. That crown is weird, I have never seen decals on the top like that. It has the Carlton on the seat tube. I believe the triangle Carlton should be near the bottom bracket on the seat tube. Scratch the paint on the crown and see if it's chrome under. I have seen several 73's start with an A, although that should mean a 60's frame. Worksop is different from Carlton location.
Good luck, a good question for sure.

Last edited by tfbike; 01-12-22 at 05:15 PM.
tfbike is offline
Old 01-12-22, 04:08 PM
  #6
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,813

Bikes: https://www.theheadbadge.com

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 2,030 Times in 1,154 Posts
Do we have any potential examples of 1970-72 Professionals with the Carlton CC cutout in the bottom bracket?

Because if so, I'm with @nlerner here. The SN lines up with a '70 Mk.II, and the details aren't really different between the II and the IV, so it's a possibleworking theory that this frame was left in the rafters for a bit before it was painted and thrown out the door. Wouldn't be the first time that happened with Raleigh/Carlton.

The painted fork crown is the primary oddity if one overlooks the S/N, but that seems within the weirdness one might expect from Raleigh. It does show all the hallmarks of a factory paint job and the decals are also period transfers, though the Carlton sticker on the crown is supposed to be at the base of the seattube.

-Kurt
__________________







cudak888 is offline
Old 01-12-22, 05:13 PM
  #7
tfbike
Member

Join Date: Apr 2017
Location: Wellington, Co
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 5 Times in 3 Posts
Please do not think I am arguing with "The Headbadge", but I always thought 71 Pros were F sn, 72 were G sn. And 70 didn't have chrome rear triangle? My other usual source of info is usually Sheldon Brown. Would love to find a way to confirm, other than Raleigh's idiocy. Although my experience with 70-73 Competitions confirms almost anything goes or went back then.
tfbike is offline
Old 01-12-22, 05:39 PM
  #8
retroman57
Senior Member
Thread Starter

Join Date: Oct 2006
Location: Petaluma, CA
Posts: 95

Bikes: too many

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 39 Times in 20 Posts
Thanks all for your input

The lugs, bottom bracket cut-outs, and fork rake support the notion that this is a 1973 or later MK.IV.
A couple of discourses on the 'net mention that the "W" serial number begins in late 1973 for Worksop-made Raleighs- I can't substantiate or refute this, so taking it at face value.
The 1972 MK.IV is listed in the 1972 catalog as using "Carlton Special" lugs- elsewhere described as Hayden/birdsmouth (?) lugs.
The more that I study pictures on Flickr and here of 1973-1976 MK.IV examples, the more I'm inclined to think that mine has been repainted:
Decals are in wrong places
Demarcation lines should be hand-painted in gold
The Carlton decal on the seat tube is the wrong colorway
Both colors are just a little off...

If anyone here is in the Greater SF Bay Area with a good original example to study and compare, I'd be most grateful for a chance to see it!
retroman57 is offline
Likes For retroman57:
Old 01-12-22, 05:59 PM
  #9
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,813

Bikes: https://www.theheadbadge.com

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 2,030 Times in 1,154 Posts
Originally Posted by retroman57 View Post
Demarcation lines should be hand-painted in gold
My '74 has lug lining only on the headtube, and most of it has worn off, especially in the blue areas, where one wouldn't know it was ever lined without a really close examination.

With exception to the top tube on mine (which someone ripped the paint off from), it's very similar in condition to yours.

-Kurt
__________________








Last edited by cudak888; 01-12-22 at 06:05 PM.
cudak888 is offline
Old 01-12-22, 06:17 PM
  #10
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 629

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 208 Post(s)
Liked 289 Times in 164 Posts
It’s been a while since I overhauled the headset on either my 72 Pro or 75 International, I can’t remember, is there a corresponding serial number on the steerer tube?
Pcampeau is offline
Old 01-12-22, 06:43 PM
  #11
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 307
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 133 Times in 76 Posts
No eyelets on the dropouts along with CC cutout suggests 1974 onwards, right? I have a Professional with eyelets, no cutout in the BB and a serial number of H1643, which would indicate 1973 but before the Wxxx format began.
Regarding the serial number, this would be an early example of the Wxxxxxxx format and perhaps the last number of the year was not included initially.
The "K" looks like it was struck at a different time than the "W"
__________________
72+76 Super Course, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue


Schreck83 is online now
Likes For Schreck83:
Old 01-12-22, 07:08 PM
  #12
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Posts: 11,533
Mentioned: 238 Post(s)
Tagged: 0 Thread(s)
Quoted: 2137 Post(s)
Liked 3,039 Times in 1,115 Posts
Originally Posted by merziac View Post
I think we need to keep in mind that "Raleigh" is often synonymous with "anomalies".
You said it

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 01-12-22, 07:30 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 9,854

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 2,648 Times in 1,721 Posts
Originally Posted by Drillium Dude View Post
You said it

DD
Yes I did, I think they did a fantastic job regardless, their production numbers were staggering by any measure.

Especially when you consider the quality level they did achieve much of the time.

The internal struggle had to have been mind numbing trying to balance quality, quantity and pints.
merziac is offline
Likes For merziac:
Old 01-12-22, 08:21 PM
  #14
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,813

Bikes: https://www.theheadbadge.com

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 2,030 Times in 1,154 Posts
Originally Posted by Schreck83 View Post
No eyelets on the dropouts along with CC cutout suggests 1974 onwards, right? I have a Professional with eyelets, no cutout in the BB and a serial number of H1643, which would indicate 1973 but before the Wxxx format began.
I stand corrected on my previous theories. Completely missed the lack of eyelets. Ditto on the five-digit to W change on the S/Ns.

-Kurt
__________________







cudak888 is offline
Old 01-12-22, 09:06 PM
  #15
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,419

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23138 Post(s)
Liked 6,494 Times in 4,661 Posts
Here is a '73 (I think), that I repainted here. I got it spray painted black.

...so I have no idea what the original paint looked like.








I think yours has been repainted, because of the positioning of the seat tube striping. If you look at a lot of original example photos on the internet (as I did), you soon discover that the seat tube striping needs to be asymmetric on the seat tube, to allow the lowest stripe to rise above the front derailleur mount. This is one of the more common errors in repainting these. You need to allow space for the cranks, chainrings, and front derailleur before the striping begins to give a cleaner look overall.

I don't know about the rest of the stuff people are mentioning, because I only have three Professionals, and they are all different year and model bikes.
__________________
3alarmer is offline
Old 01-12-22, 09:07 PM
  #16
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,419

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23138 Post(s)
Liked 6,494 Times in 4,661 Posts
__________________
3alarmer is offline
Likes For 3alarmer:
Old 01-12-22, 10:01 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,259
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2341 Post(s)
Liked 1,262 Times in 951 Posts
My dart toss is repainted, 1974ish

the transfer location to me shows decaltosis
a terrible desease.
repechage is offline
Likes For repechage:
Old 01-13-22, 02:23 AM
  #18
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,159

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 501 Post(s)
Liked 1,030 Times in 612 Posts
The Raleigh’s I have seem to be well made. As far as anomalies, I wouldn’t know because I have never worked in the bike industry where I would notice. I sure love my Competition GS and looking forward to building my Pro Mk V. My daughter has a Super Grand Prix that is in my possession plus a Dutch 1971 or so Grand Prix frame. My ‘78 MkV is a bit rusty so it will need paint but I would really like to ride it a while before having it done. I have been riding my Competition GS lately and it feels lightly and responsive but I hear the MkV’s are even more so.
Oh, and by the way … LOVE all the tall boys!

Last edited by Kabuki12; 01-13-22 at 02:28 AM.
Kabuki12 is offline
Likes For Kabuki12:
Old 01-13-22, 10:45 AM
  #19
qcpmsame
Semper Fi

Join Date: Jan 2008
Posts: 12,911
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Liked 313 Times in 212 Posts
We have a member here, hobbs1951 that has researched and written, and been published, extensively on the Raleigh marque, the SBDU bicycles, and such, for Classic Lightweights website. Perhaps he will respond to the call out just sent in this reply.

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 01-15-22, 01:07 PM
  #20
Jrod721
Junior Member

Join Date: Jul 2020
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 3 Times in 2 Posts

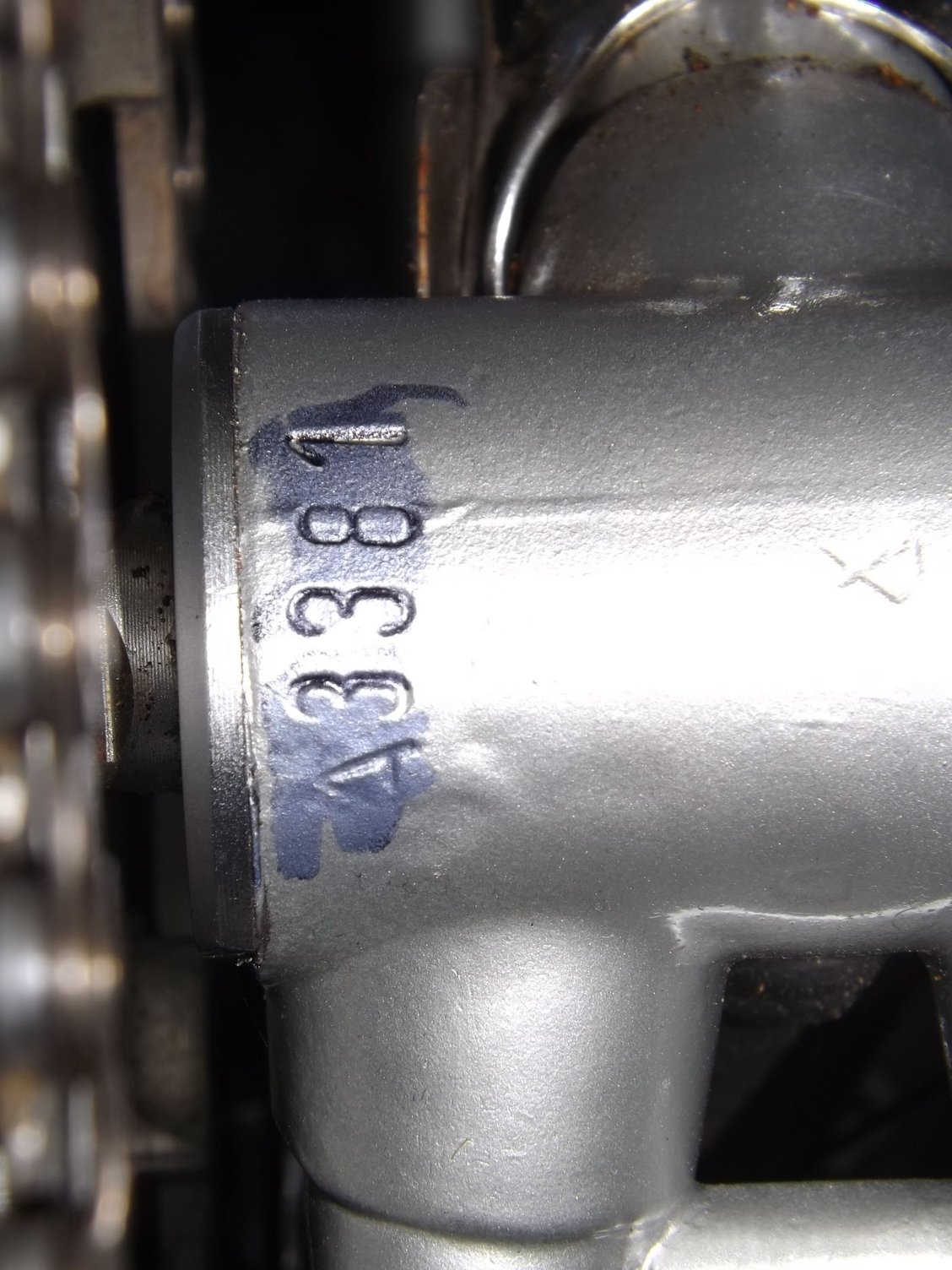

I think I’ve read that “A” serial also indicates ‘73? My Mk.IV has eyelets, no CC cutouts, and chromed Cinelli style fork crown.
Jrod721 is offline
