Eroica California 2022-bike's done.

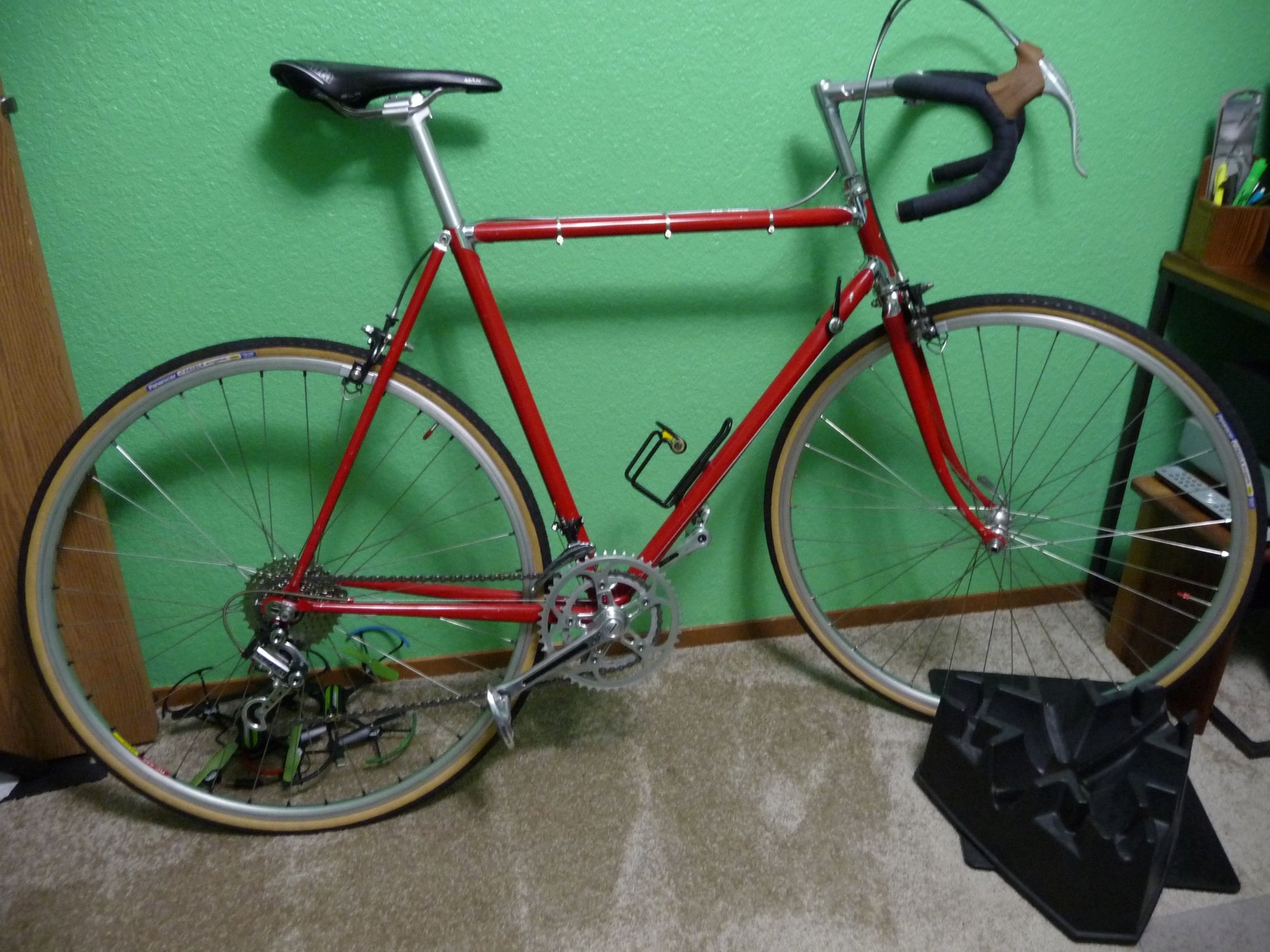

The 1976 Sannow Sport needed some changes, they're all in the finished product below, but take a moment to squint at the brake barrel adjusters and at the top of the down tube. You'll see on the top down tube a swath of missing paint, that due to the all metal First Generation Dura Ace brake adjustment barrel with lovely paint removing cross hatching, squint and you will see the later Dura Ace rubber O ring brake adjusters ending this source or frame damage.

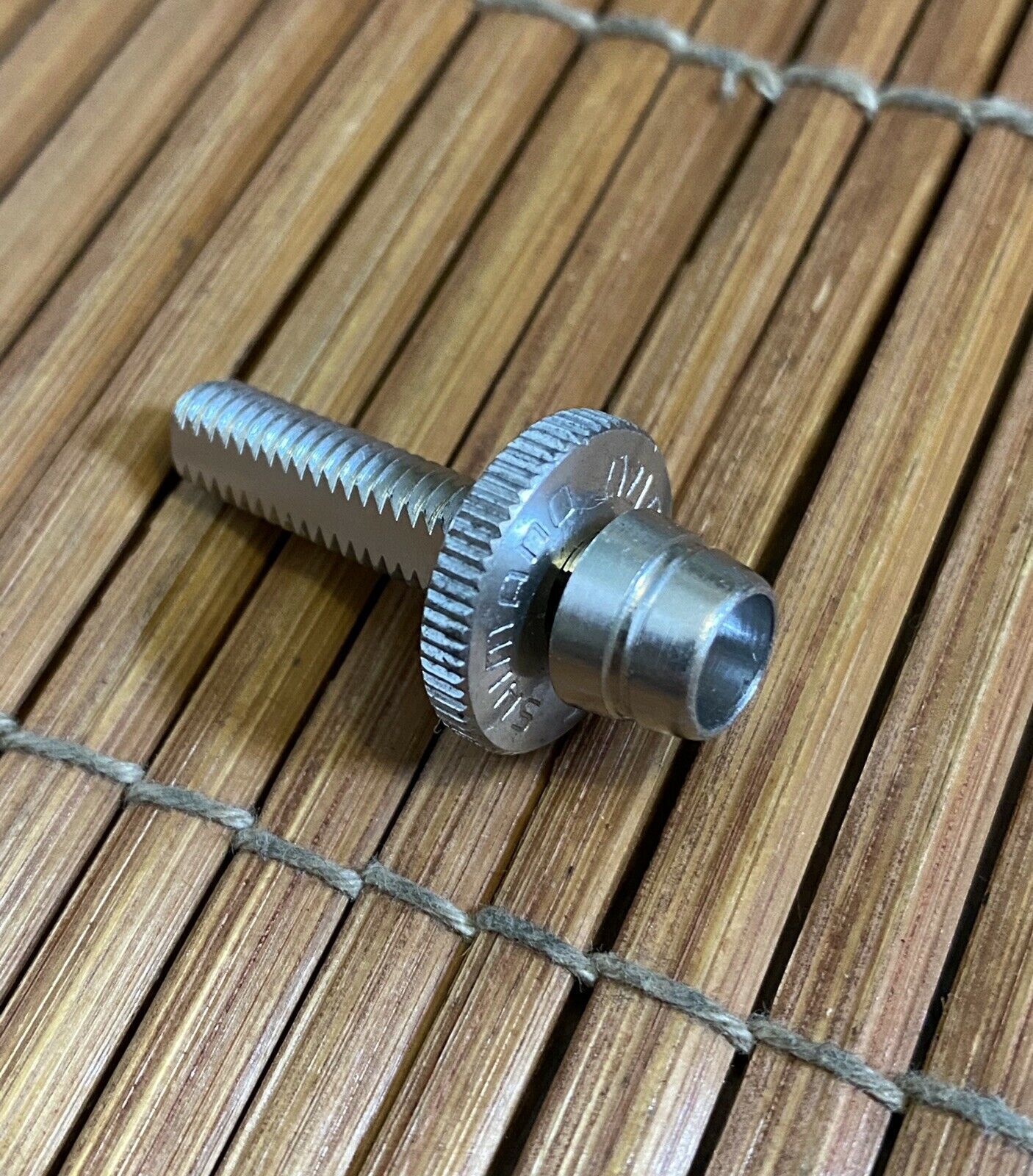

The King is dead, actually put away in the Sannow Sport parts box:

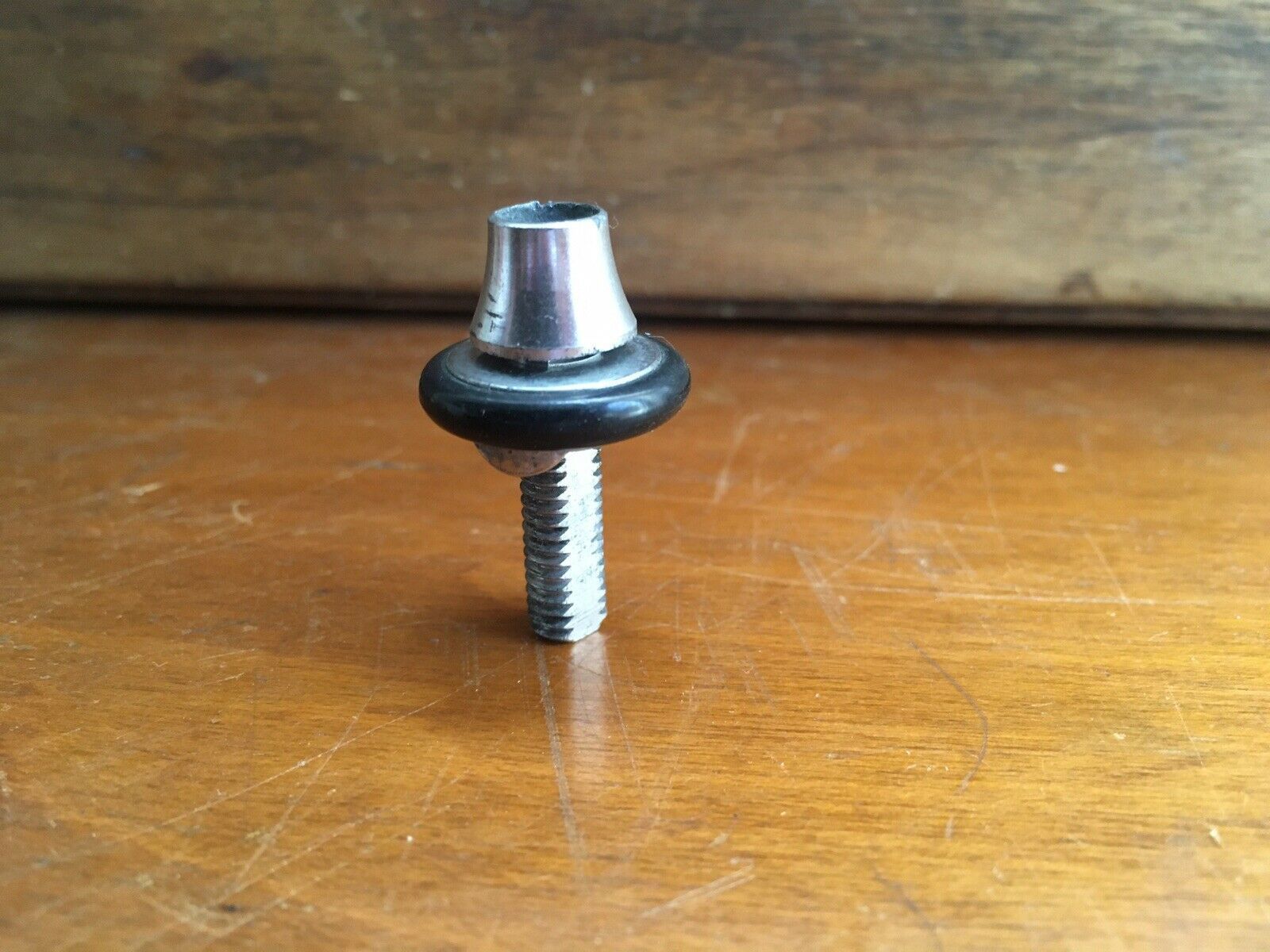

Long live the new King:

since6 is offline
Old 01-31-22, 10:41 PM
  #2
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,704

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 183 Times in 116 Posts
Next two changes, the Sugino Mighty crank arms have been replaced with Sugino Mighty Tour crank arms.



And this has allowed a 48t/34t set of chain rings, with some very nice black paint inletting matching the Black First Generation Dura Ace gruppo, that sound you hear is my left knee breaking out the champagne and party hats.

since6 is offline
Old 01-31-22, 10:47 PM
  #3
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,704

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 183 Times in 116 Posts
And sure as you change the front chain ring, the rear drive train can also see some changes to help out. In this case a NOS long cage Black Frist Dura Ace rear derailleur and a 14t-32t NOS six speed freewheel. The bike is ready and I have two months for the body to follow.



Hope to see you on the ride and at the concurs April 29-May 1st.

Take Care
since6 is offline
Old 01-31-22, 11:03 PM
  #4
SwimmerMike
Senior Member

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 535

Bikes: 1981 Bianchi Specialissim, 1976 Colnago Super. 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 532 Times in 236 Posts
I'm planning on riding my '71 Bob Jackson. Getting ready for the 2021 edition of Eroica I converted it to a NR Triple with an extra-low 32 in front, along with a first Gen Rally. I then built up a new set of Fiamme red-label wheels (The main set are very light Sheeren's) and added some Vitoria Corsa Control 30's. I'll swap pedals out a month before hand to get used to the toe clips/cleats/straps again. Pictures are on part of my Eroica training ride up above the Silicon Valley.
Attached Images
SwimmerMike is offline
Likes For SwimmerMike:
Old 02-01-22, 12:28 AM
  #5
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 970
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 430 Times in 258 Posts
Originally Posted by since6 View Post
And sure as you change the front chain ring, the rear drive train can also see some changes to help out. In this case a NOS long cage Black Frist Dura Ace rear derailleur and a 14t-32t NOS six speed freewheel.
Nice! Just about 1:1 for gearing!

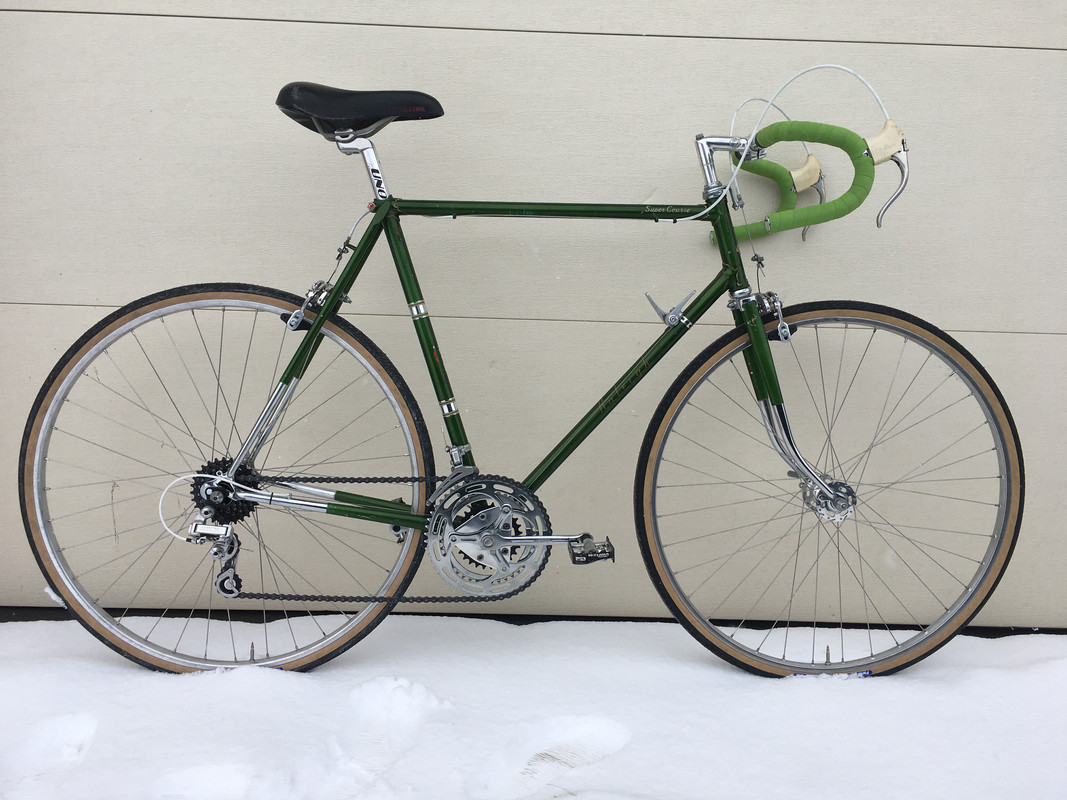

I was able to get to 1:1 on my 72' Super Course, I did add a granny ring to get there, I cut/drilled some aluminum sheet to replace the spacers between my 52 and 40 tooth chain ring, and mounted a 28t MTB ring to that adapter, so I have a 28/28 low gear which should result in an absence of walking *fingers crossed*

jackbombay is offline
Likes For jackbombay:
Old 02-01-22, 04:27 AM
  #6
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,676

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 636 Post(s)
Liked 1,453 Times in 853 Posts
That Sannow looks like one of the Acermex bikes that were also sold through Centurion . Acermex sold them badged as Windsor and they are very nice bikes. My old Windsor Pro did fine in Paso Robles Eroica years back and it didn’t have the nice gearing you have, very nice set up.
Kabuki12 is offline
Old 02-01-22, 10:58 AM
  #7
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,704

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 183 Times in 116 Posts
Here's what I found at the Vintage Centurion website:

Professional (1973-1978)

The High end Centurion aimed at the competive cyclists. The earliest examples were built in Mexico, by Acer-Mex, the same outfit that built Windsors. Essentially, the early Centurion Professional is a Windsor Professional with a Centurion head badge and decals. They were built with Columbus tubing, Campy dropouts, and fitted with Campy parts. Sometime around '77 or so, production moved to Japan and the tubing changed to Tange, and parts to a mix of SunTour, Sugino, and DiaCompe. The lugs and dropouts and such also changed at that time, but look very similar, aside from the dropouts being vertical instead of horizontal.*

*Info from user:Tymncycle


The Sannow Sport shares many features, including the fast back seat stays, though as mentioned above it was made later in Japan.
since6 is offline
Old 02-01-22, 11:07 AM
  #8
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,704

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 183 Times in 116 Posts

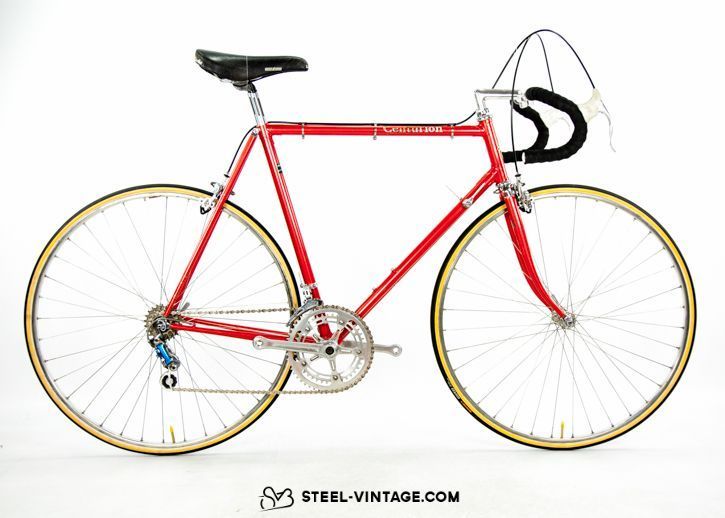

Here is a Made in Japan Centurion Professional from Steel Vintage Bikes.

since6 is offline
Old 02-01-22, 11:16 AM
  #9
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,704

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 367 Post(s)
Likes: 0
Liked 183 Times in 116 Posts

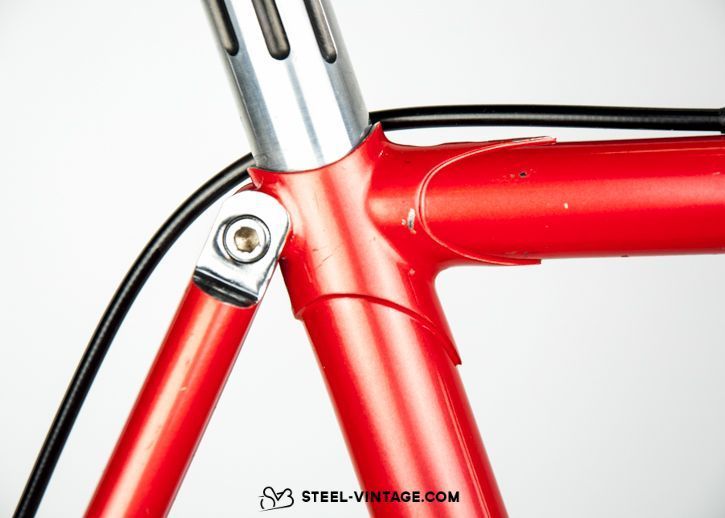

The lugs, with the holes in the lugs painted gold, and fast back seat stays are identical . Same with the fork design and chromed fork top. One difference is that the Sannow Sport has half of the top seat tube/seat stay lug is polished chrome and both of the upper and lower head tube lugs are polished chrome. My speculation is that as this bike was a customer build this added adornment was part of the customers order for the frame.

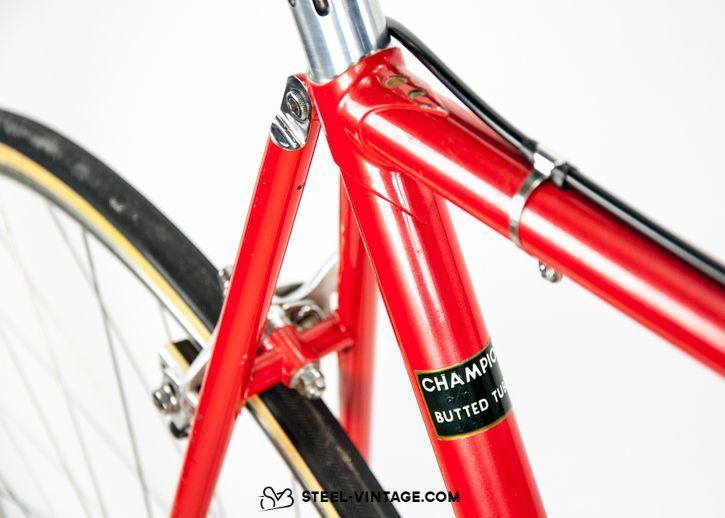

Here are the identical details, except as noted above for chrome work on lugs on the Japanese Centurion Professional.







Take Care.
